Briggs & Stratton 01931-0 Installation and operation manual

Briggs& Stratton Power Products Home Generator
Installation Manual

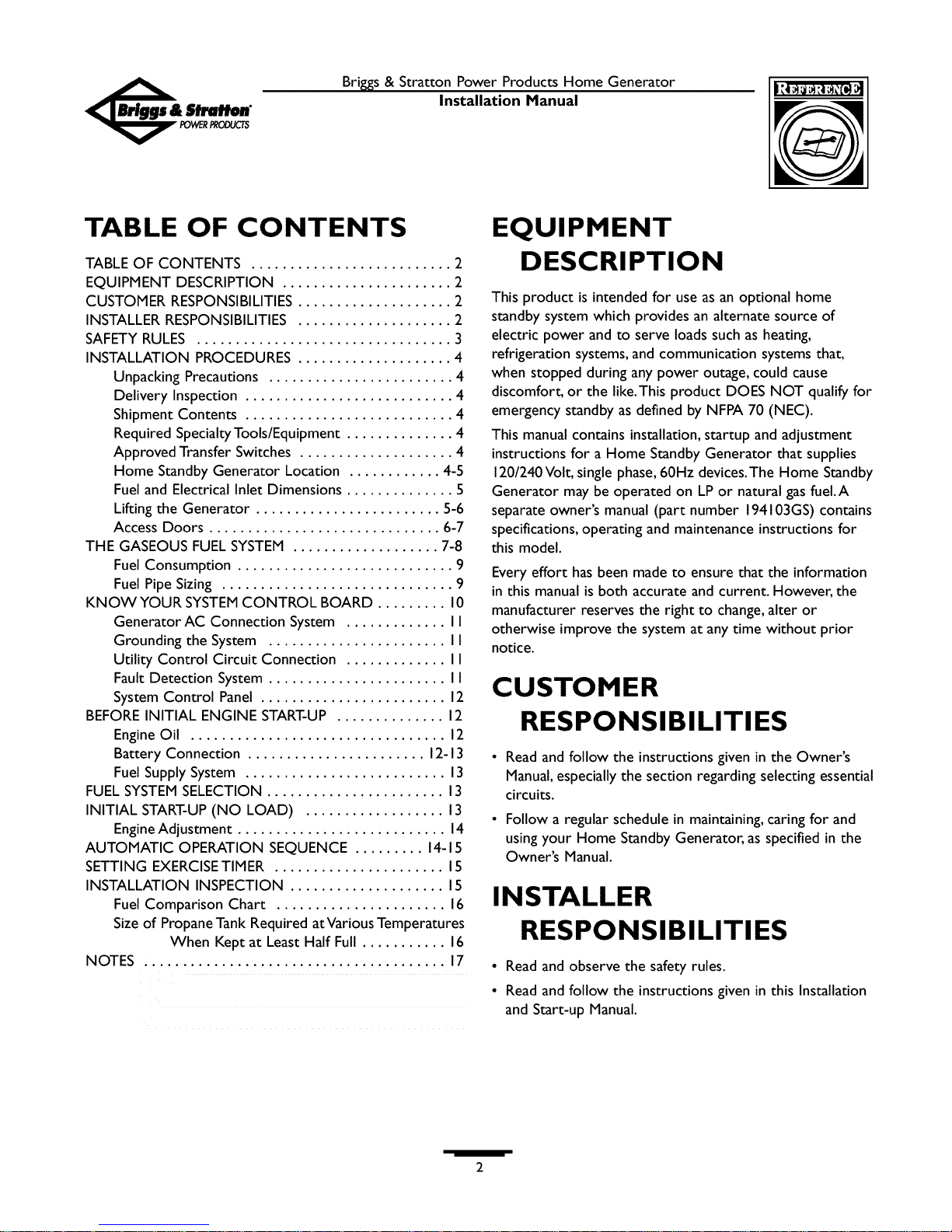

TABLE OF CONTENTS
TABLE OF CONTENTS .......................... 2
EQUIPMENT DESCRIPTION ...................... 2
CUSTOMER RESPONSIBILITIES .................... 2
INSTALLER RESPONSIBILITIES .................... 2
SAFETY RULES ................................. 3
INSTALLATION PROCEDURES .................... 4
Unpacking Precautions ........................ 4
Delivery Inspection ........................... 4
Shipment Contents ........................... 4
Required Specialty Tools/Equipment .............. 4
Approved Transfer Switches .................... 4
Home Standby Generator Location ............ 4-5
Fuel and Electrical Inlet Dimensions .............. 5
Lifting the Generator ........................ 5-6
Access Doors .............................. 6-7
THE GASEOUS FUEL SYSTEM ................... 7-8
Fuel Consumption ............................ 9
Fuel Pipe Sizing .............................. 9
KNOW YOUR SYSTEM CONTROL BOARD ......... 10
Generator AC Connection System ............. II
Grounding the System ....................... I I
Utility Control Circuit Connection ............. II
Fault Detection System ....................... II
System Control Panel ........................ 12
BEFORE INITIAL ENGINE START-UP .............. 12
Engine Oil ................................. 12
Battery Connection ....................... 12-13
Fuel Supply System .......................... 13
FUEL SYSTEM SELECTION ....................... 13
INITIAL START-UP (NO LOAD) .................. 13
Engine Adjustment ........................... 14
AUTOMATIC OPERATION SEQUENCE ......... 14-15
SETTING EXERCISE TIMER ...................... 15
INSTALLATION INSPECTION .................... 15
Fuel Comparison Chart ...................... 16
Size of Propane Tank Required atVarious Temperatures
When Kept at Least Half Full ........... 16
NOTES ....................................... 17
EQUIPMENT
DESCRIPTION
This product is intended for use as an optional home
standby system which provides an alternate source of
electric power and to serve loads such as heating,
refrigeration systems, and communication systems that,
when stopped during any power outage, could cause
discomfort, or the like.This product DOES NOT qualify for
emergency standby as defined by NFPA 70 (NEC).
This manual contains installation, startup and adjustment
instructions for a Home Standby Generator that supplies
120/240Volt, single phase, 60Hz devices.The Home Standby
Generator may be operated on LP or natural gas fueI.A
separate owner's manual (part number 194103GS) contains
specifications, operating and maintenance instructions for
this model.
Every effort has been made to ensure that the information
in this manual is both accurate and current. However, the
manufacturer reserves the right to change, alter or
otherwise improve the system at any time without prior
notice.
CUSTOMER
RESPONSIBILITIES
Read and follow the instructions given in the Owner's
Manual, especially the section regarding selecting essential
circuits.
Follow a regular schedule in maintaining, caring for and
using your Home Standby Generator, as specified in the
Owner's Manual.
INSTALLER
RESPONSIBILITIES
•Read and observe the safety rules.
• Read and follow the instructions given in this Installation
and Start-up Manual.

I:_;1_-_:_Je_-'l Briggs& Stratton Power ProductsHome Generator
Installation Manual
SAFETY RULES
The safety alert symbol (_IL) is used with a signal word
(DANGER, CAUTION,WARNING), a pictorial and/or a
safety message to alert you to hazards. DANGER indicates
a hazard which, if not avoided, will result in death or serious
injury. WARNING indicates a hazard which, if not avoided,
could result in death or serious injury. CAUTION
indicates a hazard which, if not avoided, might result in
minor or moderate injury. CAUTION, when used
without the alert symbol, indicates a situation that could
result in equipment damage. Follow safety messages to
avoid or reduce the risk of injury or death.
WARNING
•DO NOT handle generator or electrical cords while standing
in water, while barefoot, or while hands or feet are wet.
• If you must work around a unit while it is operating, stand on
an insulated dry surface to reduce shock hazard.
• DO NOT allow unqualified persons or children to operate or
service generator.
• In case of an accident caused by electrical shock, immediately
shut down the source of electrical power and contact the
local authorities. Avoid direct contact with the victim.
• Before performing any maintenance on the generator,
disconnect the battery cable indicated by a NEGATIVE,
NEG or (-) first.When finished, reconnect that cable last.
• After your Home Standby Generator is installed, the
generator may crank and start without warning any time there
is a power failure.To prevent possible injury, always set the
AUTO/OFF/MANUAL switch to OFF AND remove the
15Amp fuse BEFORE working on the equipment.
WARNING
Only qualified electricians and gaseous fuel
technicians should attempt installation of this
system, which must strictly comply with applicable
codes, standards and regulations.
WARNING
Install the fuel supply system according to applicable fuel-gas
codes.
Before placing the Home Standby Generator into service, the
fuel system lines must be properly purged and leak tested.
After the system is installed, you should inspect the fuel
system periodically.
NO leakage is permitted.
ICAUTION
DO NOT tamper with engine governed speed.
CAUTION
Adequate, unobstructed flow of cooling and ventilating air is
critical to correct generator operation.
Keep at least 3 feet of clearance on all sides of generator for
adequate ventilation.
Despite the safe design of the Home Standby Generator,
operating this equipment imprudently, neglecting its maintenance
or being careless can cause possible injury or death.
Remain alert at all times while working on this equipment.
NEVER work on the equipment when you are physically or
mentally fatigued.
DO NOT use the generator or any of its parts as a step.
Stepping on the unit can cause stress and break parts.This
may result in dangerous operating conditions from leaking
exhaust gases,fuel leakage, oil leakage, and so forth.
3

Bri_s & Stratton Power Products Home Generator
Installation Manual I I
INSTALLATION
PROCEDURES
Unpacking Precautions
The unit is shipped bolted to its mounting pad, ready for
installation. Avoid damage from dropping, bumping, collision,
etc. Store and unpack carton with the proper side up, as
noted on the shipping carton.
CAUTION
•Observe that the 15Amp fuse has been removed from the
control panel for shipping.
• DO NOT install this fuse until all plumbing and wiring has
been completed and inspected.
Delivery Inspection
After removing the carton, carefully inspect the Home
Standby Generator for any damage that may have occurred
during shipment.
IMPORTANT: If loss or damage is noted at time of
delivery, have the person(s) making delivery note all damage
on the freight bill and affix his signature under the
consignor's memo of loss or damage. If loss or damage is
noted after delivery, separate the damaged materials and
contact the carrier for claim procedures. Missing or
damaged parts are not warranted.
Shipment Contents
The Home Standby Generator is supplied with:
• Home Standby Generator
• Pre-attached mounting pad
• One 24" flexible hook-up hose
• Installation and start-up manual (P/N 194104GS)
• Owner's manual(P/N 194103GS)
• Illustrated parts list manual (P/N 193209GS)
• Product warranty sheet (P/N 190881GS)
• Installation checklist (P/N 190840GS)
• Three access door keys
• Four lifting hole plugs
• Oil fill spout
• Touch-up paint
• One spare 15A fuse
• Diagnostic LED kit (diode/plate/decal/pin connectors (2))
Required Specialty Tools/Equipment
• Two 48" lengths of I" OD pipe (NOT conduit)
• Hole punches for 16ga steel
• Torque screwdriver, 5 to 50 inch-pound range
Approved Transfer Switches
The Home Standby Generator should be used ONLY with
the following UL approved Transfer Switches. Connection
to any other transfer switch not listed below will void your
equipment warranty.
• 50A Nema I enclosure, BSPP Model 01917
• 50A Nema 3R enclosure, BSPP Model 01918
• 100A Nema 3R enclosure, BSPP Model 01813
• 100A Nema 3R enclosure w/main line disconnect, BSPP
Model 01928
• 200A Nema 3R enclosure, BSPP Model 01814
• 200A Nema 3R enclosure w/main line disconnect, BSPP
Model 01929
Home Standby Generator Location
TO THE INSTALLER: Consult with the owner(s)
and convey any technical considerations that might
affect their wishes, before applying these general
guidelines.
Generator Clearances
The generator enclosuremust be a minimum of 3 ft. (92cm)
from combustible material.Leaveat least 3 ft. (92cm) all
around the enclosurefor accessto the insideof the enclosure.
The unit's exhaust port must be at least 5 ft. (I 52 cm) from
any building opening (window, door, vent etc.), and the
exhaust must not be able to accumulate in any occupied
area (Figure I).
Exhaust
Exhaustport must be
5 ft (I 52 cm) minimum
distancefrom building
openings

_J Briggs & Stratton Power Products Home Generator
Installation Manual
General Location Guidelines
•Install the unit outdoors ONLY. NO MODIFICATIONS
WILL ALLOW INSIDE INSTALLATION!
• Place the unit in a prepared location that is fiat and has
provisions for water drainage.
• Install the unit where air inlet and outlet openings will
not become obstructed by leaves, grass, snow, etc. If
prevailing winds will cause blowing or drifting, you may
need to construct a windbreak to protect the unit.
• In locations where strong winds blow from one
direction, face the generator air inlet openings into the
prevailing winds, if possible.
• Install the generator as close as possible to the
Automatic Power Transfer System to reduce the length
of wiring and conduit.
• Install the generator as close as possible to the fuel
supply to reduce length of pipes.
_AUTION! Laws or local codes may regulate the
distance to the fuel supply.
The Home Standby Generator is shipped already attached
to its mounting pad. Unless mandated by local code, no
concrete slab is required.
If mandated by local code, detach the unit from its supplied
base. Construct a concrete slab at least 3 inches thick and
6inches longer and wider than the unit.Attach unit to slab
with I/4" diameter (minimum) masonry anchor bolts long
enough to retain the unit. Use the mounting pad holes as
anchor bolt Iocators.
Fuel and Electrical Inlet Dimensions
Figure 2, below, depicts the location of the fuel piping
connector.Also shown isthe recommended location for
punching holes for attaching the power conduit.
Lifting the Generator
The generator weighs more than 375 pounds. Proper tools,
equipment and qualified personnel should be used in all
phases of handling and moving the generator.
CAUTION! DO NOT lift unit by roof as damage to
generator will occur.
Two 48" lengths of I" O.D. pipe (supplied by the installer)
are required to lift the generator manually. Insert pipes
through the lifting holes located near the unit's base, as
shown in Figure 3 (next page).
_AUTION! The unit may shift on the lifting pipes
during movement, which may cause injury.
Recommended
Conduit Attachment
Area
p......... ,i
.....J
©
Fuel Piping
Connector I©1
--......
©
-' 4.5"
13.5"
I
5

Brig, s & Stratton Power Products Home Generator
Installation Manual I I
To lift:
Insert
pipe
here Installer-supplied pipe
WARNING! If lifting or hoisting equipment is
used, be careful not to touch any overhead power
lines.
You may also lift the unit using a"hook and hoist" method
attached to the lifting pipes, provided that you use a
spreader bar to ensure that the chains or cables do not
touch the generator's roof.
Retouch any chipped paint with supplied touch-up paint.
After paint is dry, and the unit is in place, fill the lifting holes
with the supplied lifting hole plugs.
Access Doors
The Home Standby Generator is equipped with an
enclosure that has four access doors (Figure 4).The doors
are named for a significant component located behind
them. Starting with the side that has the fuel connection
and proceeding clockwise, the doors are named:
•Oil Service door
• Air Intake door
• Control Panel door
• Battery door
Each Home Standby Generator is equipped with three
identical keys.These keys fit the locks that secure the Oil
Service and Control Panel doors.
I CAUTION
•Failureto installOil Serviceand/or Control Paneldoors while
operatingthe Home StandbyGenerator will causeoverheating.
To Remove an Access Door:
I. Insert key into lock of access door you wish to
remove and turn one quarter turn clockwise.
NOTE: The key is retained in the lock when the locks are
open.
Door Lock
Screw Fuel
Inlet Exhaust "/T
Port
29"
Door
Lock I_
Screw

_1 Brigss & Stratton Power Products Home Generator
Installation Manual
2. Grasp door's lift handle and pull door upwards until
security pins are free of lower base.
3. With the security pins free, pull the lift handle outward
(away) from the unit while pulling the door down and
out of the upper door channel.The door will come
free of the generator enclosure.
The Battery door does not have a lock and the Air Intake
door does not have a lock or lift handle.The Air Intake
door is opened by lifting on the louvers instead of a lift
handle. However, you must remove the door lock screws,
found directly above the center of the doors.
IWARNING I
•DO NOT touch hot surfaces.
• Allow equipment to cool before touching.
To Install an Access Door:
Support door by grasping lift handle or louver. Guide
top of door into generator enclosure.
Lift door up into its upper channel until security pins
clear sill of enclosure.
I.
2.
3.
4.
5.
6.
Push lower half of door into door recess until it is
flush with sides.
Seat door by pushing it down until rubber coated
security pins engage and door rests on mounting sill.
If installing a Iockable door, turn key one quarter turn
counterclockwise. Remove key.
If installing air intake or battery door, replace the door
lock screw.
Check to ensure that all the rubber and foam vibration
dampers remain in place.This will minimize vibration noise.
THE GASEOUS FUEL
SYSTEM
IWARNING I
LP gas is heavier than air and will settle in low areas.
Natural gas is lighter than air and will collect in high areas.
The slightest spark can ignite these fuels and cause an explosion.
The information provided below is to assist
gaseous fuel system technicians in planning
installations. In no way should this information
be interpreted to conflict with applicable fuel gas
codes. Consult with your local fuel supplier or
Fire Marshall if questions or problems arise.
TO THE INSTALLER: Consult with the Home
Standby Generator owner(s) and convey any
technical considerations that might affect their
installation plans before applying these general
guidelines.
The following general rules apply to gaseous fuel system
piping:
•The piping should be of a material that conforms to
federal and local codes, rigidly mounted and protected
against vibration.
• Install flexible gaseous pipe (supplied) between the Home
Standby Generator Fuel Inlet port and rigid piping.
I A CAUTION I
The entire flexible gaseous pipe must be visible for periodic
inspection and must not be concealed within, contact, or run
through any wall, floor, or partition.
7

Bri_[s& Stratton Power Products Home Generator
Installation Manual I I
Piping must be of the correct size to maintain the
required supply pressures and volume flow under varying
conditions.
• Use an approved pipe sealant or joint compound on all
threaded fittings to reduce the possibility of leakage.
• Installed piping must be properly purged and leak tested,
in accordance with applicable codes and standards.
_1_1_},_!,__' "]_" ]ili_ Illk_IL_l
IWARNING I
•Before placing the Home Standby Generator into service, the
fuel system lines must be properly purged and leak tested.
• NO leakage is permitted.
Consider the following factors when planning to
install the fuel supply system:
The Home Standby Generator engine is fitted with a fuel
mixer system that meets the specifications of the California
Air Resources Board for "tamper-proof" dual fuel systems.
The unit will run on natural gas or liquefied propane.
• A minimum of one manual shutoff valve should be placed
in the fuel supply line and located outside the building to
facilitate servicing the generator.
• Natural gas fuel supply pressure at the generator's fuel
inlet port should be between 5 to 7 inches of water (in.
W.C.) at full load. LP fuel supply pressure should be I I to
14 inches of water (in.W.C.) at full load.
The Home Standby Generator unit has been
factory set to run on natural gas. If you need to
change from natural gas to LP gas,the unit will need to be
reconfigured, as described on page 13.
It is recommended that the fuel connection incorporate
the following components:
• A manual fuel shut-off valve located in the interior of the
building.
• A manual fuel shut-off valve located outside the building,
just before the generator unit.
• The termination of hard piping should include a sediment
trap.
• A manometer port should be provided.

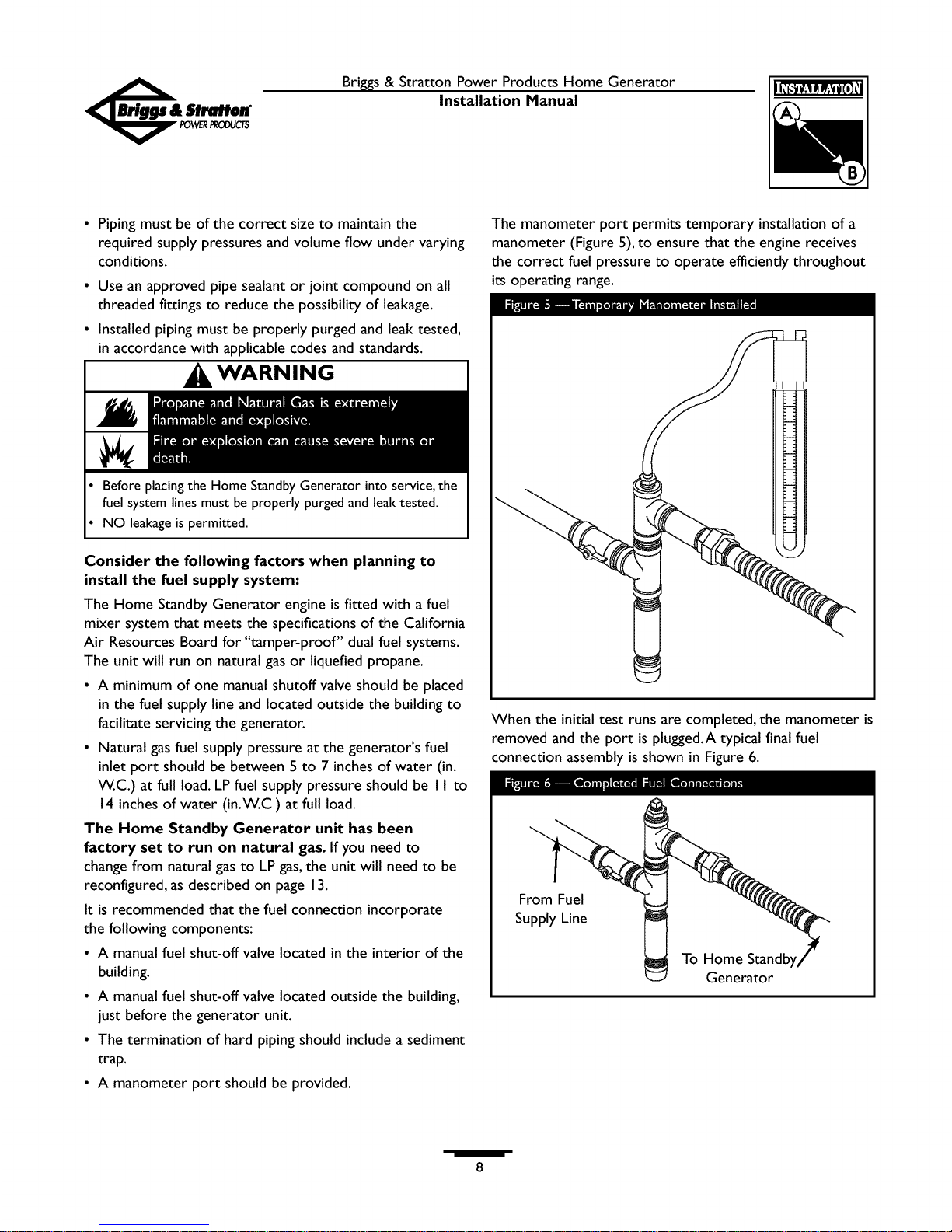

The manometer port permits temporary installation of a
manometer (Figure 5), to ensure that the engine receives
the correct fuel pressure to operate efficiently throughout
its operating range.
When the initial test runs are completed, the manometer is
removed and the port is plugged.A typical final fuel
connection assembly is shown in Figure 6.
From Fuel
SupplyLine
To Home
Generator

_1 Briggs & Stratton Power Products Home Generator
Installation Manual
Fuel Consumption
See Figure 7 for fuel supply requirements at half and full
load for both natural gas and LP vapor.
_,K_ Iv_ lalP-ll_!lcJ_'j___
Model Natural Gas* LP Vapor **
I/2 Full I/2 Load Full Load
Load Load
1931-0 84 162 34.19 65.8 I
* = Natural Gasisin cubic feet per hour
** = LPVapor isin cubic feet per hour
Fuel Pipe Sizing
Figures 8 and 9 provide the maximum capacity of pipe in
cubic feet of gas per hour for gas pressures of 0.5 psi or
less and a pressure drop of 0.3 in. water column. Specific
gravity of gas is shown.
Listed values compensate for a nominal amount of
restriction from bends, fittings, etc. If an unusual number of
fittings, bends, or other restrictions are used, please refer
to federal and local codes.
I Oft
Y2" 168
¾" 346
I" 653
Natural Gas (sg=0.65)
15E 50E
146 115 93 79 70
293 240 192 163 145
549 446 360 307 274
60_
63 59 55
132 120 113
250 230 211
90_ 100_
51 48
106 99
197 187
NPT 10_ 15_
½" II0 96
¾" 277 192
I" 428 360
Liquefied Petroleum (LP)(sg=l.50)
20_ 30_ 40_ 50_ 60_ 70_ 80_ 90_ 100k
76 61 52 46 42 38 36 33 32
158 126 107 95 87 79 74 69 65
293 236 202 180 164 151 139 129 123
9

Brig,s& Stratton Power Products Home Generator
Installation Manual I I
KNOWYOUR SYSTEM CONTROL BOARD
Compare this Control Board illustration with your generator to familiarize yourself with the location of these important
controls and connections:
o [3
/
EiE_Z] (,\___ /\}
\ j
RS ]
232 _ {\
50/60 Hz Switch o _ o o o o
/v \ --of _r -_gr _r_ 9
7 8 _
12Volt DC,
.5 Amp Output Exercise Failure Emergency Failure Remote LED Output
©
12Volt DC, .5 Amp Output- Internal power supply.
50/60 Hz Switch --Allows factory to select between
either 50 Hz or 60 Hz. Make sure the switch is in the
60 Hz position at all times for proper generator operation.
Emergency Failure -- Use NO2, Common2 and NC2 to
hook up asiren, light, etc. to alert you in case of afailure
during a power outage.
Exercise Failure -- Use NO I, Common I and NC I to
hook up a siren, light, etc. to alert you in case of a failure
during the exercise cycle.
Remote LED Output -- Use this to hook up the extra
remote LED supplied with the generator.The remote LED
will turn on and off in a series of blinks if certain faults are
detected in the generator.
10

_] Briggs & Stratton Power Products Home Generator
Installation Manual
WERPRODUCTS
Generator AC Connection System
A single-phase, three-wire AC connection system is used in
the Home Standby Generator.The stator assembly consists
of a pair of stationary windings with two leads brought out
of each winding.The junction of leads 22 and 33 forms the
neutral lead, as shown schematically and as wiring diagram
in Figure 10.A complete schematic and wiring diagram can
be found in the owner's manual.
NOTE: Neutral is not bonded to ground at generator.
_,K_ II[0]..........._TiV-,e] [o_l'_
--33
33 22
o_
I
44
I__
Neutral
["
120V
Circuit
Breaker
--II ----o_o
44-----o o
120V
240V ]
t
Circuit I
Breaker
I44
7Neutral
I
0
o
w
To Earth Ground
ToTransfer Switch
Grounding the System
Installer-supplied minimum 8AWG stranded copper wire is
connected to the generator housing GND lug and routed
through conduit to the Automatic Transfer Switch's GND
bus. Continue the 8 AWG wire through conduit to the main
distribution panel ground bus.
Utility Control Circuit Connection
Control circuit interconnections consist of "Utility" leads.
These two leads must be routed in conduit. Control lead
functions are briefly described as follows:
• "Utility I" and "Utility 2" deliver utility power to the
generator's circuit board, charge the battery and when
utility is lost the generator will start.
Using installer-supplied minimum 300V, 14AWG stranded
copper wire, connect each control circuit terminal in the
generator to the Automatic Transfer Switch.
Fault Detection System
The light on the control panel is referred to as the
Diagnostic LED. It will turn on and off in a series of blinks if
certain faults are detected in the HSG.An extra LED and
mounting plate is supplied so that it can be installed at a
convenient indoor location.The owner will use it to
observe the status of the HSG. Consult with the owner for
a convienant location.
To install the remote LED panel:
•Apply the supplied decal to the supplied mounting plate.
• Push the LED through the mounting plate from the front
until it snaps in place.
• Using minimum 18AWG wire, connect the remote LED
to the generator control board using supplied pin
connectors. Use wire nuts to attach wire to LED leads.
•Attach mounting plate to installer-supplied electrical box.
Refer to the section "Fault Detection System" in the
Owner's Manual for operation.
II

Bri_s & Stratton Power Products Home Generator
Installation Manual I I
WERPRODUCTS
System Control Panel
Figure II depicts the Home Standby Generator control
panel, located inside the generator housing. Brief
descriptions of the controls used during installation. More
information may be found in the Owner's Manual.
Circuit
Breaker
Hour Mete
15Amp
Fuse
Set Exercise
Switch
Diagnostic
LED
_UTO/OFF/
MANUAL
Switch
AUTO/OFF/MANUAL Switch
This three-position switch is the most important control
on the system and is used as follows:
• "AUTO" position is the normal operating position. If a
utility power outage is sensed, the system will start the
generator.When utility power is restored, lets the engine
stabilize internal temperatures, shuts off the generator,
and waits for the next utility power outage.
• "OFF" position turns off running generator, prevents
unit from starting and resets any detected faults.
• "MANUAL" position starts the engine after a short
amount of time. It is used for maintenance or diagnostic
functions.
15Amp Fuse
Protects the Home StandbyGenerator DC control circuits.
If the fuse has'blown' (melted open) or was removed,the
engine cannot crank or start. Replacethe fuse usingONLY
an identical BUSAGC 15A fuse.One sparefuse is supplied
with the unit.
BEFORE INITIAL START-UP
Engine Oil
This engine is shipped from the factory filled with the
recommended oil. Before starting the engine, check oil level
and ensure that engine is serviced as described in the
engine owner's manual.
I CAUTION
•Refer to engine manual for oil fill information.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
Oil Considerations
Your Home Standby Generator is equipped with an engine
that has been pre-run at the factory and does not require
the traditional "break-in" procedure.
The system is filled with synthetic oil (API SJ/CF 5W-30W).
This allows for system operation in the widest range of
temperature and climate conditions.
NOTE: The use of synthetic oil DOES NOT alter the
required oil change intervals described in the engine
owner's manual.
Battery Connection
The Home Standby Generator is supplied with a 12Volt
DC 33 Amp-Hour battery. It is a sealed, lead-acid
rechargeable battery. It is installed in the unit and the
battery cables are connected at the factory.The unit's
15 Amp fuse, which isolates the battery and prevents the
unit from starting, has been removed for shipping.
If it is necessary to service the battery, proceed as follows:
I. Set the generator's "AUTO/OFF/MANUAL" switch to
OFF.
2. Remove the 15Amp fuse from the control panel.
3. Service or replace battery as required.
4. Connect the red battery cable to the battery positive
terminal (indicated by POSITIVE, POS, or (+).
5. Connect the negative battery cable to the negitive battery
terminal (indicated by NEGATIVE, NEG, or (-).
6. Ensure hardware on both positive and negative battery
terminals is secure.
7. Reinstall the IS Amp fuse in the control panel.
12

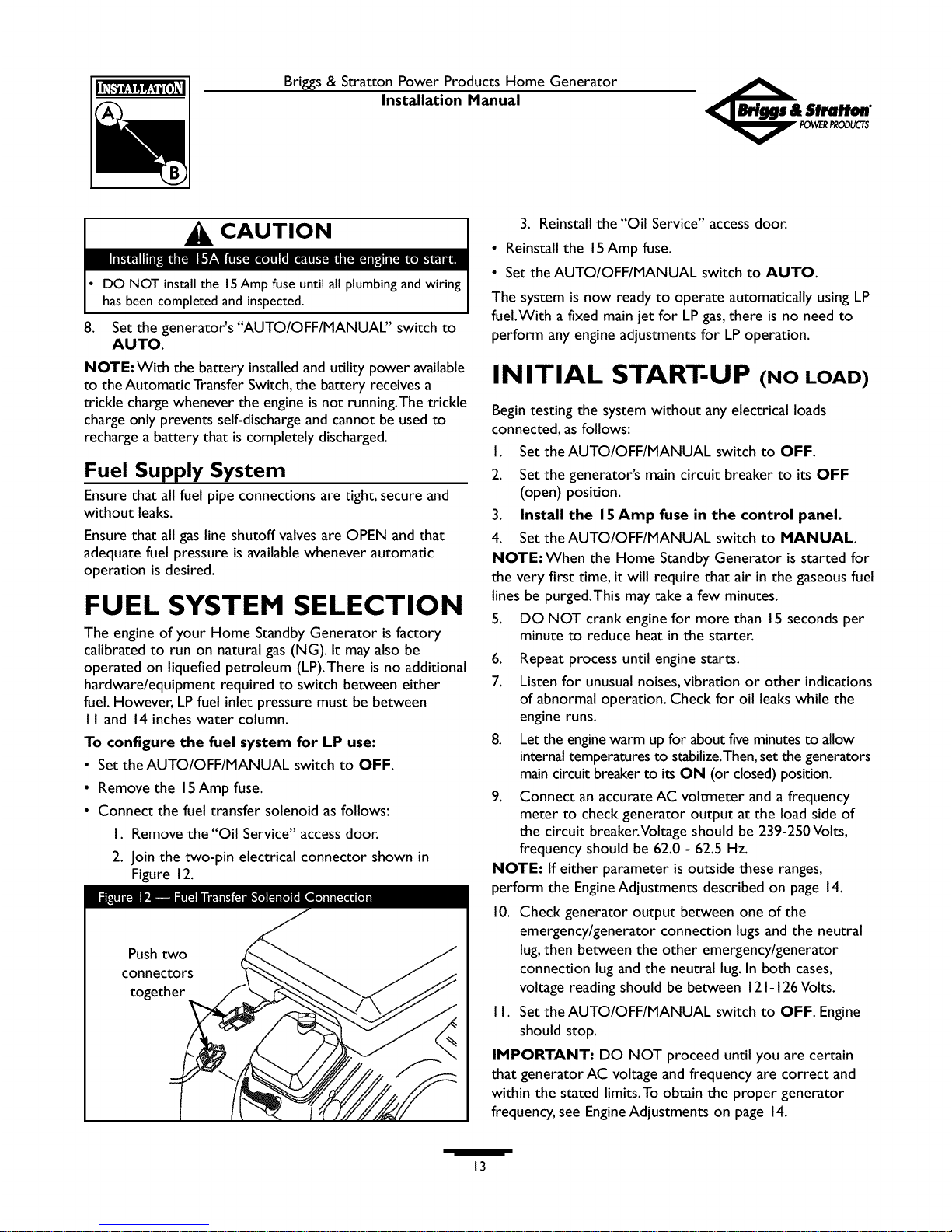

_1 Briggs & Stratton Power Products Home Generator
Installation Manual
CAUTION
•DO NOT install the 15Amp fuse until all plumbing and wiring
has been completed and inspected.
8. Set the generator's "AUTO/OFF/MANUAL" switch to
AUTO.
NOTE: With the battery installed and utility power available
to the Automatic Transfer Switch, the battery receives a
trickle charge whenever the engine is not running.The trickle
charge only prevents self-discharge and cannot be used to
recharge a battery that is completely discharged.
Fuel Supply System
Ensure that all fuel pipe connections are tight, secure and
without leaks.
Ensure that all gas line shutoff valves are OPEN and that
adequate fuel pressure is available whenever automatic
operation is desired.
FUEL SYSTEM SELECTION
The engine of your Home Standby Generator is factory
calibrated to run on natural gas (NG). It may also be
operated on liquefied petroleum (LP).There is no additional
hardware/equipment required to switch between either
fuel. However, LP fuel inlet pressure must be between
I I and 14 inches water column.
To configure the fuel system for LP use:
•Set the AUTO/OFF/MANUAL switch to OFF.
• Remove the 15Amp fuse.
• Connect the fuel transfer solenoid as follows:
I. Remove the "Oil Service" access door.
2. Join the two-pin electrical connector shown in
Figure 12.
3. Reinstall the "Oil Service" access door.
• Reinstall the 15Amp fuse.
• Set the AUTO/OFF/MANUAL switch to AUTO.
The system is now ready to operate automatically using LP
fuel.With a fixed main jet for LP gas, there is no need to
perform any engine adjustments for LP operation.
INITIAL START-UP (NO LOAD)
Begin testing the system without any electrical loads
connected, as follows:
Set the AUTO/OFF/MANUAL switch to OFF.I.
2. Set the generator's main circuit breaker to its OFF
(open) position.
3. Install the 15 Amp fuse in the control panel.
4. Set the AUTO/OFF/MANUAL switch to MANUAL.
NOTE: When the Home Standby Generator is started for
the very first time, it will require that air in the gaseous fuel
lines be purged.This may take a few minutes.
5. DO NOT crank engine for more than 15 seconds per
minute to reduce heat in the starter.
6. Repeat process until engine starts.
7. Listen for unusual noises, vibration or other indications
of abnormal operation. Check for oil leaks while the
engine runs.
8. Let the engine warm up for about five minutes to allow
internal temperatures to stabilize.Then, set the generators
main circuit breaker to its ON (or closed) position.
9. Connect an accurate AC voltmeter and a frequency
meter to check generator output at the load side of
the circuit breaker.Voltage should be 239-250 Volts,
frequency should be 62.0 - 62.5 Hz.
NOTE: If either parameter is outside these ranges,
perform the Engine Adjustments described on page 14.
10. Check generator output between one of the
emergency/generator connection lugs and the neutral
lug, then between the other emergency/generator
connection lug and the neutral lug. In both cases,
voltage reading should be between 12I- 126 Volts.
I I. Set the AUTO/OFF/MANUAL switch to OFF. Engine
should stop.
IMPORTANT: DO NOT proceed until you are certain
that generator AC voltage and frequency are correct and
within the stated limits.To obtain the proper generator
frequency, see Engine Adjustments on page 14.
13

Bri_s&Stratton Power Products Home Generator
Installation Manual I I
Engine Adjustment
There are regional variances in the composition of natural
gas. Each HSG unit isadjusted at the factory for NG
operation. If the generator output voltage or frequency
measured during initial Start-Up (paragraph #9 on page 13)
is outside the listed ranges, the combustibility of the gas
supplied at the installation site may be substantially different.
To adjust the engine for this difference, proceed as follows.
I. Remove the Air Intake access door.
2. Remove the three M5 sheet metal screws that hold
the control panel wiring cover to the air intake guard
(Figure 13).
_,_ I1_]__'--! _i_:_ lil_lll!_! _lllll_ll
Remove
Access
Plug
3. Remove the six (M5) sheet metal screws that hold the
air intake guard to the engine fan panel.
4. An access hole is visible above the engine fan panel
(see Figure 13). It will be covered with a plug. Remove
the plug to gain access to the adjustment screw.
NOTE: The mixture adjustment screw is the brass slotted
screw in the center of the aluminum boss directly visible in
the access hole.
5. Connect an accurate frequency meter to the load side
of the main circuit breaker (on the back of the control
panel).
6. Ensure that the 15 Amp fuse is installed.
7. Set the generator's main circuit breaker ON.
8. Set the AUTO/OFF/MANUAL switch to MANUAL.
When the engine starts, allow it to warm up for two
minutes.
.When the engine speed has stabilized, slowly rotate
the adjustment screw clockwise and/or
counterclockwise until the maximum (peak) frequency
is reached. Normal no load frequency is 62.0 to
62.5 Hz.
10. Turn the service disconnect to the transfer switch off.
The transfer switch will connect to the generator after
a short time delay.
I I. Load generator to rated Natural Gas rating.
12. Connect an accurate frequency meter to the load side
of the main circuit breaker (on the back of the control
panel). Frequency should be above 57.0 Hz.
13. If frequency is below 57.0 Hz, slowly rotate the
adjustment screw clockwise and/or counterclockwise
until frequency is above 57.0 Hz. Reinstall the access
hole plug.
14. Turn the service disconnect to the transfer switch on.
The transfer switch will connect to the utility after a
short time delay.
Set the AUTO/OFF/MANUAL switch to OFF.15.
16. After the engine has stopped running, reinstall the air
intake guard.
17. Reinstall the control panel wiring cover to the air
intake guard.
18. Reinstall the air intake access panel.
19. Set the AUTO/OFF/MANUAL switch to AUTO.
AUTOMATIC OPERATION
SEQUENCE
The generator's control panel houses a logic control circuit
board.This control board constantly monitors utility power
source voltage. Should that voltage drop below a preset
level, control board action will signal the engine to crank
and start.
When utility source voltage is restored above a preset
voltage level, the engine is signaled to shut down.
The actual system operation is not adjustable and is
sequenced by sensors and timers on the control board, as
follows:
14

_] Briggs & Stratton Power Products Home Generator
Installation Manual
Utility Voltage Dropout Sensor
•This sensor monitors utility source voltage.
• If utility source voltage drops below about 70 percent of
the nominal supply voltage, the sensor energizes a
6-second timer.The timer is used to 'sense' brown-outs.
• Once the timer has expired, the engine will crank and
start.
Utility Voltage Pickup Sensor
This sensor monitors utility power supply voltage.When
that voltage is restored above 80 percent of the nominal
source voltage, a time delay starts timing and the engine
will go to engine cool-down.
Engine Cool-down Timer
• When the load istransferred back to the utility power
source, the engine cool-down timer starts timing.
• The timer will run for about one minute, then the
generator will stop.
• Minimum engine run time is 5 minutes.
SETTING EXERCISE TIMER
The Home Standby Generator is equipped with an exercise
timer that will start and exercise the system once every
seven days. During this exercise period, the unit runs for
approximately 20 minutes and then shuts down. Electrical
load transfer DOES NOT occur during the exercise cycle
(unless an utility power outage occurs).
A switch on the control panel is labeled "Set Exercise" (see
Figure I I).The specific day and the specific time of day this
switch is pressed is programmed into the control board
memory.This date and time is then used to automatically
initiate the system exercise cycle.
To perform the Set Exercise procedure:
I. Choose the day and time you want your Home
Standby Generator to exercise.
2. On that day and time, set the AUTO/OFF/MANUAL
switch to OFF.
3. Pressand hold down the "Set Exercise" switchfor two
seconds.
4. Set the AUTO/OFF/MANUAL switch to AUTO. "Set
Exercise" iscomplete.
For example, if you press the "Set Exercise" switch on
Sunday morning at I0:00 AM, the unit will run an exercise
cycle the following Sunday at 10:00 AM (+/- I/2 hour).
NOTE: "Set Exercise" will only work if the unit is in the
Automatic mode and this exact procedure is followed.The
exerciser does not need to be re-set if the 15Amp fuse is
removed or changed.The exerciser will need to be re-set if
the 12Volt DC battery is disconnected.
If you want to change the day and time the unit exercises,
simply perform the "Set Exercise" procedure at the exact
weekday and time you want it to take place.
INSTALLATION
INSPECTION
Before placing the Home Standby Generator into service,
inspect the entire installation carefully. Ensure that any
scratches or broken paint on the inside or outside of the
enclosure are touched up with the supplied paint.
Complete the "installation Checklist" as you make the
inspection. Ensure all items have been filled-in and all
signatures have been obtained. Instruct the owner to mail
the white copy to:
Briggs &Stratton Power Products
Warranty Registration
P. O. Box I 144
Milwaukee,WI 53201-1144
15

Bri_s& Stratton Power Products Home Generator I_1
Installation Manual I I
Fuel Comparison Chart
lal?q]_4'E'l,_.]dl,.[,]i_[IR'_
Physical Properties
Normal Atmospheric State
Boiling Point (in °F): Initial
End
Heating Value:
BTU per gallon (Net LHV*)
BTU per Gallon (Gross *_*)
Cubic Feet (Gas)
Density***
Weight t
Octane Number: Research
Motor
Butane
Gas
32
32
94,670
102,032
3,264
31.26
4.81
Propane
Gas
-44
-44
83,340
91,547
2,516
36.39
4.24
Natural Gas
Gas
-259
-259
63,310
1,000
57.75
2.65
94 II0+ II0+
90 97
* LHV (Low HeatValue) is the more realistic rating.
** Gross HeatValue does not consider heat lost in the form of water during combustion.
*** Density is given in "Cubic Feet of Gas per Gallon of Liquid".
Weight is given in "Pounds per Gallon of Liquid".
Size of Propane Tank Required at Various Temperatures When Kept at Least
Half Full
Given the gas withdrawal rate and the lowest average winter temperature, an installer can specify the required LP storage
tank size:
Withdrawal Rate 32°F 20°F I 0°F 0°F - I 0°F -30°F -40°F
50 CFH 115 115 115 250 250 400 600
100 CFH 250 250 250 400 500 1000 1500
150 CFH 300 400 500 500 1000 1500 2500
200 CFH 400 500 750 1000 1200 2000 2500
300 CFH 750 1000 1500 2000 2500 4000 5000
16

Briggs&StrattonPowerProductsHomeGenerator
Installation Manual
NOTES
17

GeneradorDom_sticodeBrig,s&StrattonPowerProducts
Manual de Instalaci6n
TABLA DE CONTENIDO
TABLA DE CONTENIDO .............................. 18
DESCRIPCION DEL EQUIPO ........................... 18
RESPONSABILIDADES DEL CLIENTE .................... 18
RESPONSABILIDADES DEL INSTALADOR ................ 18
REGLAS DE SEGURIDAD .............................. 19
PROCEDIMIENTOS DE INSTALACION .................. 20
Precauciones al Momento del Desempaque ............ 20
Inspeccibn al Momento de la Entrega ................. 20
Contenido de la Caja .............................. 20
Herramientas/Equipos Especiales Necesarias ........... 20
Conmutadores de Transferencia Aprobados ............ 20
Ubicacibn del Generador Dom_stico .............. 20-21
Dimensiones de la Entrada para Electricidad
y Combustible ........................... 21
Elevacibn del Generador ......................... 21-22
Puertas de Acceso .............................. 22-23
SISTEMA DE COMBUSTIBLE GASEOSO ............... 23-24
Consumo de Combustible .......................... 25
Dimensiones de la Cafieria de Combustible ............ 25
CONOZCA LATARJETA DE CONTROL DE SU SISTEMA... 26
Sistema de Conexibn de c.a. del Generador ............ 27
Conexibn aTierra del Sistema ....................... 27
Interconexiones del Circuito de Control .............. 27
Sistema de Deteccibn de Fallas ...................... 27
Panel de Control del Sistema ........................ 28
ANTES DELARRANQUE INICIAL DEL MOTOR ........... 28
Aceite de Motor .................................. 28
Conexi6n de la Bateria .......................... 28-29
Sistema de Suministro de Combustible ................ 29
SELECCION DEL SISTEMA DE COMBUSTIBLE ............ 29
ARRANQUE INICIAL (SIN CARGA) ..................... 30
Ajuste del Motor ................................. 31
SECUENCIA DE OPERACION AUTOMATICA .......... 31-32
CONFIGURACION DEL TEMPORIZADOR DE PRACTICA.. 32
INSPECCION POSTERIOR A LA INSTALACION ........... 32
Cuadro de Comparaci6n de Combustibles ............. 33
Tamafio del Tanque de Propano Requerido a Distintas
Temperaturas Cuando se Mantiene con la Mitad de
su Capacidad, como Minimo ................ 33
DESCRIPCION DEL EQUIPO
Muchas graclas por comprar un generador de reserva
dom_stico (HSG) Briggs & Stratton. Este producto est_ pensado
para utilizarlo como un sistema de reserva dom_stico opcional
que proporciona una fuente alternativa de energia el_ctrica con
capacidad para alimentar cargas tales como sistemas de
calefacci6n y refrigeracibn y sistemas de comunicaciones, que
cuando dejan de funcionar a causa de una interrupcibn de la
alimentacibn el_ctrica de la red pueden producir incomodidades o
problemas. Este producto no pertenece a la categoria de reserva
de emergencia seg_n Io definido por la norma NFPA 70 (NEC).
Este manual contiene las instrucciones para la instalacibn y el
arranque de los sistemas de generadores dom_sticos que trabajan
con dispositivos de 120 y 240 Voltios, con corriente monof_sica a
60 Hz. En un manual del propietario separado (n_mero de parte
194103GS) se pueden encontrar las especificaciones y las
instrucciones de operaci6n y mantenimiento de este modelo.
Se han tomado todos los recaudos posibles para asegurar que la
informacibn incluida en este manual sea correcta y est_
actualizada. Sin embargo, los fabricantes se reservan el derecho de
cambiar, alterar o mejorar el sistema de cualquier otra manera y
en cualquier momento, sin previo aviso.
RESPONSABILIDADES DEL
CLIENTE
Lea y cumpla las instrucciones incluidas en el Manual del
Propietario, en especial la seccibn dedicada a la seguridad y la
seccibn relacionada con la seleccibn de los circuitos
fundamentales.
•Siga un programa regular para mantener, cuidar y utilizar el
Generador Dom_stico, seg_n se especifica en el Manual del
Propietario.
RESPONSABILIDADES DEL
INSTALADOR
• Lea y observe las reglas de seguridad que se encuentran en el
Manual del Propietario.
• Lea y siga las instrucciones que se encuentran en este Manual
de Instalacibn.
18

GeneradorDom_sticodeBriggs&StrattonPowerProducts
Manual de Instalaci6n
INSTRUCCIONES DE SEGURIDAD
El simbolo de alerta de seguridad (_iL) es usado con una palabra
(PELIGRO, ADVERTENCIA, PRECAUCION), un mensaje por
escrito o una ilustracibn, para alertarlo acerca de cualquier
situacibn de peligro que pueda existir. PELIGRO indica un riesgo
el cual, si no se evita, causar6 la muerte o una herida grave.
AOVERTENClA indica un riesgo el cual, si no se evita, puede
causar la muerte o una herida grave. PRECAUCl6N indica un
riesgo, el cual, si no se evita, puede causar heridas menores o
moderadas. PRECAUCl6N, cuando se usa sin el simbolo de
alerta, indica una situacibn que podria resultar en el da_o del
equipo. Siga los mensajes de seguridad para evitar o reducir los
riesgos de heridas e inclusive la muerte.
ADVERTENCIA
•NO maneje el generador o cables el_ctricos mientras est_ parado en
agua, descalzo o cuando las manos y los pies est_n mojados.
• Si fuera necesario realizar trabajos en cercanias de la unidad mientras
est_ en funcionamiento, p_rese sobre una superficie seca y aislada para
reducir los riesgos de una descarga.
• NO permita que personas descalificadas o ni_os operen o sirrah al
generador.
• En caso de que se produzca un accidente causado por una descarga
el_ctrica, cierre inmediatamente la fuente de energia el_ctrica y
contacta administraci6n local. Evite el contacto directo con la
victima.
• Antes de realizar cualquier tarea de mantenimiento en el generador,
desconecte primero el cable de la bateria marcado como
NEGATIVE, NEG o(-). Cuando haya terminado, vuelva a conectar
el cable en _ltimo lugar.
• Una vez que el Generador Dom_stico est_ instalado, el generador
puede arrancar manualmente sin ninguna advertencia cada vez que se
produce una falla en el suministro de electricidad. Para evitar posibles
lesiones, siempre fije el interruptor AUTO/OFF/MANUAL en OFF, Y
retire el fusible de 15 Amperios ANTES de realizar trabajos en el
equipo.
ADVERTENCIA J
0nicamente los electriclstas capacitados y los t_cnicos J
especializados en combustibles gaseosos pueden J
intentar instalar este sistema. Dicha instalaci6n debe J
cumplir estrictamente con los c6dlgos, las regulaclones y J
las normas correspondientes. J
ADVERTENClA
I
Instale el sistema de suministro de combustible de acuerdo con los
c6digos de gas combustible que correspondan.
Antes de poner en servicio el Generador Dom_stico, se deben purgar
las lineas del sistema de combustible y se debe probar si presentan
p_rdidas.
Una vez instalado el sistema, se Io debe inspeccionar en forma
peri6dica.
NO se debe permitir que se produzca ninguna p_rdida.
PRECAUCION
NO altere la velocidad propia del motor.
PRECAUCION
Para la correcta operaci6n del generador es fundamental contar con
ventilaci6n y unacirculaci6n de aire de refrigeraci6n adecuaday que
no sufra obstrucciones.
Mantenga al menos 3 piesde espacio libre alrededor del generador,
para la adecuadaventilaci6n.
A pesar del dise_o seguro del Generador Dom_stico, si se opera este
equipo en forma imprudente, si no se cumple con el mantenimiento o
si se act_a con descuido, se pueden producir lesiones o la muerte.
Permanezca siempre alerta cuando trabaje con este equipo. Nunca
trabaje con este equipo si se siente cansado fisica o mentalmente.
NUNCA utilice el generador ni ningunade sus piezascomo escalera.
Si se sube sobre la unidad,sus piezas se pueden ver sobreexigidas y
pueden romperse. Esto puede dar como resultado condiciones de
operaci6n peligrosas como consecuencias de la fuga de gases del
escape,p_rdida de combustible, p_rdida de aceite, etc.
19

Generador Dom_stico de Bri_s & Stratton Power Products
Manual de Instalaci6n I I
WERPRODUCTS
PROCEDIMIENTOS DE
INSTALACION
Precauciones al Momento del Desempaque
La unidad se envia abulonada a su placa de montaje, lista para
engancharla hacia arriba.Tenga cuidado a fin de evitar daffos causados
por caidas,golpes, choques, etc. Guarde y desempaque la caja ubicando
el lado correcto hacia arriba, tal como se indica en la misma.
I A PRECAUCION I
•Tenga en cuenta que el fusible de 15 Amperios ha sido retirado del
panel de control para realizar el envio,
• NO instale este fusible hasta que no se hayan completado e
inspeccionado todas las conexiones de cables y tuberias.
Inspecci6n al Momento de la Entrega
Luego de retirar la caja, inspeccione cuidadosamente el
Generador Dom_stico para detectar cualquier daffo que pudiera
haber ocurrido durante el traslado.
IMPORTANTE: Si en el momento de la entrega se detecta
alguna p_rdida o daffo, solicite a la persona o personas encargadas
de la entrega que dejen debida constancia en la nota de entrega y
que firmen debajo de la nota del consignador donde se informa
acerca de la p_rdida o daffo. Si la p_rdida o el daffo se detecta
despu_s de la entrega, separe los materiales daffados y p6ngase en
contacto con el transportista para Ilevar a cabo los
procedimientos de reclamo. Las piezas perdidas o daffadas no
est_n garantizadas.
Contenido de la Caja
El Generador Dom_stico incluye Io siguiente:
•Generador de energia de respaldo
• Placa de montaje fijada previamente
• Un tubo de enganche flexible de 24"
• Manual de instalaci6n (P/N 194104GS)
• Manual del propietario (P/N 194103GS)
• Manual ilustrado de listas de piezas (n°de pieza 193209GS)
• Garantia del producto (P/N 190881GS)
• Lista de verificaci6n de la instalaci6n (P/N 190840GS)
• Tres Ilaves para la puerta de acceso
• Cuatro tapones para los oriflcios de izamiento
• Tubo para la carga de aceite
• Pintura de contacto
• Un fusible de 15Amperios de repuesto
• Equipo del LED de diagn6stico
(diodo/placa/calcomania/conectores de agujas (2))
Herramientas/Equipos Especiales Necesarios
• Dos largos de 48" de tubo de di_metro exterior I" (NO tipo
conducto)
• Perforadoras para acero tipo 16
• Destornillador de torsi6n, de entre 5 y 50 libras por pulgada
Conmutadores de Transferencia Aprobados
El generador de reserva dom_stico debe ser utilizado
UNICAMENTE con los siguientes interruptores de transferencia
aprobados por UL. La conexi6n a cualquier interruptor de
transferencia no incluido en la lista siguiente supondr_ la anulaci6n
de la garantia del equipo.
• 50 A, caja Nema I, BSPP modelo 01917
• 50A, caja Nema 3R, BSPP modelo 01918
• 100 A, caja Nema 3R, BSPP modelo 01813
• 100 A, caja Nema 3R con seccionador principal de linea, BSPP
modelo 01928
• 200A, caja Nema 3R, BSPP modelo 01814
• 200 A, caja Nema 3R con seccionador principal de linea, BSPP
modelo 01929
Ubicaci6n del Generador Dom_stico
AL INSTALADOR: Antes de aplicar estas pautas
generales, consulte al propietario y comuniquele cualquier
factor t_cnico a tener en cuenta que pudiera influir en sus
decisiones y deseos.
Distancias Desde el Generador
El compartimiento del generador debe ubicarse a una distancia
minima de 3 pies (92 cm) de materiales combustibles. Deje al
menos 3 pies (92 cm) en todo el perimetro del compartimiento
para permitir el acceso al interior del mismo.
La salida del escape de la unidad debe estar por Io menos a 5 pies
(152 cm) de cualquier ingreso a edificios (ventanas, puertas,
espacios de ventilaci6n, etc.) y los gases del escape no deben
acumularse en espacios habitados (Figura 14).
La salida del escape debe
estar a una distancia
minima de 5 pies (152 cm)
de cualquier ingreso a
edificios
20
