Inverter Generator
Operator’s Manual
This generator is certified in accordance with CSA (Canadian Standards Association) standard C22.2 No. 100-04
(motors and generators) and rated in accordance with PGMA (Portable Generator Manufacturers’ Association)
standard PGMA G200 (Standard for Testing and Validating Performance of Portable Generators).

Not for
Reproduction
2 BRIGGSandSTRATTON.COM
Thank you for purchasing this quality-built Briggs & Stratton® generator. We are pleased that you’ve placed your
confidence in the Briggs & Stratton brand. When operated and maintained according to the instructions in this
manual, your Briggs & Stratton generator will provide many years of dependable service.
This manual contains safety information to make you aware of the hazards and risks associated with generators
and how to avoid them. This generator is designed and intended only for supplying electrical power for operating
compatible electrical lighting, appliances, tools and motor loads, and is not intended for any other purpose. It is
important that you read and understand these instructions thoroughly before attempting to start or operate this
equipment. Save these original instructions for future reference.
This generator requires final assembly before use. Refer to the Assembly section of this manual for
instructions on final assembly procedures. Follow the instructions completely.
Where to Find Us
You never have to look far to find Briggs & Stratton support and service for your generator. Consult your Yellow
Pages. There are over 30,000 Briggs & Stratton authorized service dealers worldwide who provide quality service.
You can also contact Briggs & Stratton Customer Service by phone at [phone], or on the Internet at
BRIGGSandSTRATTON.COM.
Generator
Model Number _______________________
Revision _____________________
Serial Number __________________
Date Purchased _____________________
Table of Contents
Operator Safety...........................................3
Assembly................................................8
Features and Controls ....................................11
Operation...............................................13
Maintenance ............................................16
Troubleshooting .........................................21
Warranty ...............................................22
Specifications ...........................................24
Common Service Parts ...................................24
Copyright © 2015. Briggs & Stratton Power Products Group, LLC
Milwaukee, WI, USA. All rights reserved.
BRIGGS & STRATTON POWER PRODUCTS is a registered
trademark of Briggs & Stratton Corporation
Milwaukee, WI, USA

Not for
Reproduction
33
Operator Safety
Safety Labels
The generator safety labels shown below and on the next page are placed on your portable generator to draw
attention to potential safety hazards.

Not for
Reproduction
4 BRIGGSandSTRATTON.COM
Fuel is flammable which could cause burns
resulting in death or serious injury.
• Turn engine off and let it cool at least 2 minutes
before refueling.
• Do not fill fuel above bottom lip.
• Never add fuel to a hot or running generator.

Not for
Reproduction
5
Equipment Description
Read this manual carefully and become
familiar with your generator. Know its
applications, its limitations and any hazards
involved.
The generator is an engine–driven, revolving field,
alternating and direct current (AC & DC) generator. It
was designed to supply electrical power for operating
compatible electrical lighting, appliances, tools and
motor loads. The generator’s revolving field is driven
at about 4,500 rpm (with POWERSMART mode switch
off) by a single-cylinder engine.
NOTICE Exceeding generators wattage/amperage
capacity can damage generator and/or electrical
devices connected to it.
• Do not exceed generator’s wattage/amperage capacity.
See Don’t Overload Generator.
Every effort has been made to ensure that the
information in this manual is both accurate and current.
However, the manufacturer reserves the right to
change, alter or otherwise improve the generator and
this documentation at any time without prior notice.
The Emission Control System for this generator is
warranted for standards set by the Environmental
Protection Agency and the California Air Resources
Board.
This spark ignition system complies with the Canadian
standard ICES-002.
Important Safety Information
The manufacturer cannot possibly anticipate every
possible circumstance that might involve a hazard.
The warnings in this manual, and the tags and decals
affixed to the unit are, therefore, not all-inclusive.
If you use a procedure, work method or operating
technique that the manufacturer does not specifically
recommend, you must satisfy yourself that it is safe
for you and others. You must also make sure that the
procedure, work method or operating technique that
you choose does not render the generator unsafe.
Safety Symbols and Meanings
The safety alert symbol indicates a potential
personal injury hazard. A signal word (DANGER,
WARNING, or CAUTION) is used with the alert symbol
to designate a degree or level of hazard seriousness.
A safety symbol may be used to represent the type of
hazard. The signal word NOTICE is used to address
practices not related to personal injury.
DANGER indicates a hazard which, if not avoided,
will result in death or serious injury.
WARNING indicates a hazard which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazard which, if not
avoided, could result in minor or moderate injury.
NOTICE address practices not related to personal
injury.
WARNING Certain components in this product
and related accessories contain chemicals known to
the State of California to cause cancer, birth defects
or other reproductive harm. Wash hands after
handling.
Fire Explosion
Toxic Fumes
Hot Surface
Moving Parts
Electrical Shock
Kickback
Flying Objects
Operator’s Manual
WARNING The engine exhaust from this
product contains chemicals known to the State of
California to cause cancer, birth defects, or other
reproductive harm.

Not for
Reproduction
6 BRIGGSandSTRATTON.COM

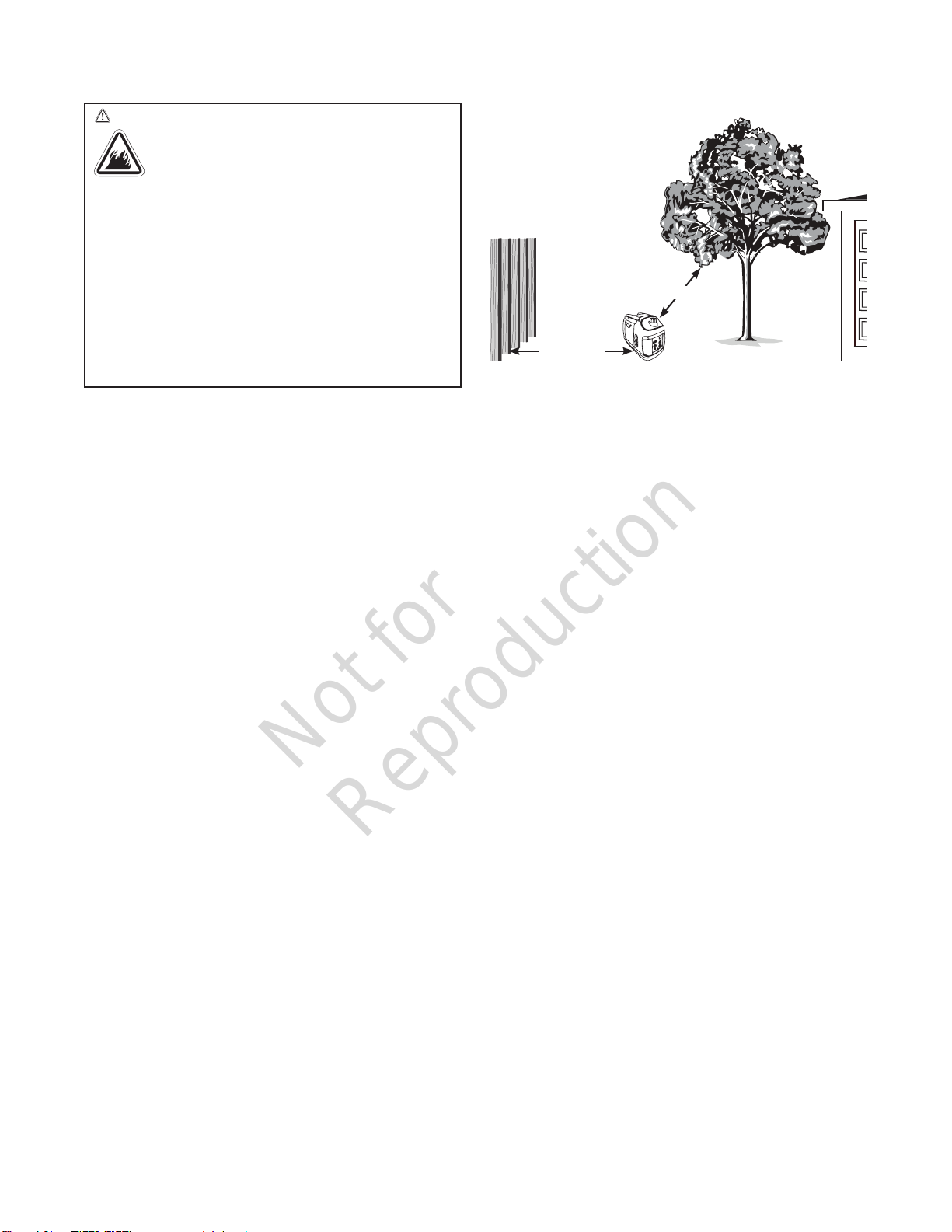

WARNING POISONOUS GAS HAZARD.
Engine exhaust contains carbon monoxide,
a poisonous gas that could kill you in
minutes. You CANNOT smell it, see it, or
taste it. Even if you do not smell exhaust fumes, you
could still be exposed to carbon monoxide gas.
• Operate this product ONLY outside far away from
windows, doors and vents to reduce the risk of carbon
monoxide gas from accumulating and potentially being
drawn towards occupied spaces.
• Install battery-operated carbon monoxide alarms or
plug-in carbon monoxide alarms with battery back-up
according to the manufacturer’s instructions. Smoke
alarms cannot detect carbon monoxide gas.
• DO NOT run this product inside homes, garages,
basements, crawlspaces, sheds, or other partially-
enclosed spaces even if using fans or opening doors
and windows for ventilation. Carbon monoxide can
quickly build up in these spaces and can linger for hours,
even after this product has shut off.
• ALWAYS place this product downwind and point the
engine exhaust away from occupied spaces.
If you start to feel sick, dizzy, or weak while using this
product, get to fresh air RIGHT AWAY. See a doctor. You
may have carbon monoxide poisoning.
WARNING Fuel and its vapors are extremely
flammable and explosive which
could cause burns, fire or explosion
resulting in death or serious injury.
WHEN ADDING OR DRAINING FUEL
• Turn generator engine OFF and let it cool at least 2
minutes before removing fuel cap. Loosen cap slowly to
relieve pressure in tank.
• Fill or drain fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open flames, pilot lights,
heat, and other ignition sources.
• Check fuel lines, tank, cap and fittings frequently for
cracks or leaks. Replace if necessary.
• DO NOT light a cigarette or smoke.
WHEN STARTING EQUIPMENT
• Ensure spark plug, muffler, fuel cap, and air cleaner are
in place.
• DO NOT crank engine with spark plug removed.
WHEN OPERATING EQUIPMENT
• DO NOT operate this product inside any building,
carport, porch, mobile equipment, marine applications, or
enclosure.
• DO NOT tip engine or equipment at angle which causes
fuel to spill.
• DO NOT stop engine by moving choke control to CHOKE
() position.
WHEN TRANSPORTING,
MOVING OR REPAIRING EQUIPMENT
• Transport/move/repair with fuel tank EMPTY or with fuel
shutoff valve OFF.
• DO NOT tip engine or equipment at angle which causes
fuel to spill.
• Disconnect spark plug wire.
STORING FUEL OR EQUIPMENT WITH FUEL IN TANK
• Store away from furnaces, stoves, water heaters, clothes
dryers, or other appliances that have pilot light or other
ignition source because they could ignite fuel vapors.
WARNING Starter cord kickback (rapid
retraction) will pull hand and arm toward
engine faster than you can let go which
could cause broken bones, fractures,
bruises, or sprains resulting in serious injury.
• When starting engine, pull cord slowly until resistance is
felt and then pull rapidly to avoid kickback.
• NEVER start or stop engine with electrical devices
plugged in and turned on.
WARNING
• This generator does not meet U. S. Coast Guard
Regulation 33CFR-183 and should not be used on
marine applications.
• Failure to use the appropriate U. S. Coast Guard
approved generator could result in death or serious injury.

Not for
Reproduction
7
NOTICE Exceeding generators wattage/amperage
capacity could damage generator and/or electrical
devices connected to it.
• DO NOT exceed the generator’s wattage/amperage
capacity. See Don’t Overload Generator.
• Start generator and let engine stabilize before connecting
electrical loads.
• Connect electrical loads in OFF position, then turn ON for
operation.
• Turn electrical loads OFF and disconnect from generator
before stopping generator.
NOTICE Improper treatment of generator could
damage it and shorten its life.
• Use generator only for intended uses.
• If you have questions about intended use, ask dealer or
contact local service center.
• Operate generator only on level surfaces.
• DO NOT expose generator to excessive moisture, dust,
dirt, or corrosive vapors.
• DO NOT insert any objects through cooling slots.
• If connected devices overheat, turn them off and
disconnect them from generator.
• Shut off generator if:
-electrical output is lost;
-equipment sparks, smokes, or emits flames;
-unit vibrates excessively.
WARNING Starter and other rotating parts
could entangle hands, hair, clothing, or
accessories resulting in serious injury.
• NEVER operate generator without protective housing or
covers.
• DO NOT wear loose clothing, jewelry or anything that
could be caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry.
CAUTION Excessively high operating speeds
could result in minor injury.
Excessively low operating speeds impose a heavy
load.
• DO NOT tamper with governor spring, links or other parts
to increase engine speed. Generator supplies correct
rated frequency and voltage when running at governed
speed.
• DO NOT modify generator in any way.
WARNING Generator voltage could cause
electrical shock or burn resulting in death or
serious injury.
• DO NOT connect generator to a building’s electrical
system.
• DO NOT touch bare wires or receptacles.
• DO NOT use generator with electrical cords which are
worn, frayed, bare or otherwise damaged.
• DO NOT operate generator in the rain or wet weather.
• DO NOT handle generator or electrical cords while
standing in water, while barefoot, or while hands or feet
are wet.
• DO NOT allow unqualified persons or children to operate
or service generator.
WARNING Exhaust heat/gases could ignite
combustibles, structures or damage
fuel tank causing a fire, resulting in
death or serious injury.
Contact with muffler area could cause burns
resulting in serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5 m) of clearance on all sides of
generator including overhead.
• It is a violation of California Public Resource Code,
Section 4442, to use or operate the engine on any forest-
covered, brush-covered, or grass-covered land unless
the exhaust system is equipped with a spark arrester, as
defined in Section 4442, maintained in effective working
order. Other states or federal jurisdictions may have
similar laws.
Contact the original equipment manufacturer, retailer, or
dealer to obtain a spark arrester designed for the exhaust
system installed on this engine.
• Replacement parts must be the same and installed in the
same position as the original parts.
WARNING Unintentional sparking could cause
fire or electric shock resulting in
death or serious injury.
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR
GENERATOR
• Disconnect the spark plug wire from the spark plug and
place the wire where it cannot contact spark plug.
WHEN TESTING FOR ENGINE SPARK
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.

Not for
Reproduction
8 BRIGGSandSTRATTON.COM
Assembly
Your generator requires some assembly and is ready
for use after it has been properly serviced with the
recommended fuel and oil.
If you have any problems with the assembly of
your generator, please call the generator helpline
at [phone]. If calling for assistance, please
have the model, revision, and serial number from the
identification label available. See Generator Features
and Controls for identification label location.
Unpack Generator
1. Set the carton on a rigid, flat surface.
2. Remove everything from carton except generator.
3. Open carton completely by cutting each corner
from top to bottom.
The generator is supplied with:
• USB adapter
• Operator’s manual
• Engine oil bottle
• Oil funnel
• Screwdriver
Add Engine Oil
1. Place generator on a level surface.
2. Loosen the two maintenance cover screws and
remove the side maintenance cover.
3. Clean area around oil fill and remove yellow oil fill
cap.
4. Using oil funnel, slowly pour contents of provided
oil bottle into oil fill opening to the point of
overflowing at oil fill cap.
NOTICE Improper treatment of generator could
damage it and shorten its life.
• DO NOT attempt to crank or start the engine before it has
been properly serviced with the recommended oil. This
could result in an engine failure.
5. Replace oil fill cap and fully tighten.
6. Replace the maintenance cover and hand tighten
the two maintenance cover screws.
Add Fuel
Fuel must meet these requirements:
• Clean, fresh, unleaded gasoline.
• A minimum of 87 octane/87 AKI (91 RON). For
high altitude use, see High Altitude.
• Fuel with up to 10% ethanol (gasohol) is acceptable.
NOTICE Use of unapproved fuels could damage
generator and voids warranty.
• DO NOT use unapproved fuels such as E15 and E85.
• DO NOT mix oil in fuel or modify engine to run on alternate fuels.
To protect the fuel system from gum formation, mix in a
fuel stabilizer when adding fuel. See Storage. All fuel is
not the same. If you experience starting or performance
problems after using fuel, switch to a different fuel
provider or change brands. This engine is certified to
operate on gasoline. The emission control system for this
engine is EM (Engine Modifications).
1. Clean area around fuel fill cap, remove cap.
2. Slowly add unleaded fuel to red fuel level indicator (A)
in fuel tank. Be careful not to fill above the indicator.
This allows adequate space for fuel expansion.
3. Install fuel cap and let any spilled fuel evaporate
before starting engine.
A
WARNING Fuel and its vapors are extremely
flammable and explosive which
could cause burns, fire or explosion
resulting in death or serious injury.
WHEN ADDING FUEL
• Turn generator engine OFF and let it cool at least 2
minutes before removing fuel cap. Loosen cap slowly to
relieve pressure in tank.
• Fill fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open flames, pilot lights,
heat, and other ignition sources.
• Check fuel lines, tank, cap and fittings frequently for
cracks or leaks. Replace if necessary.
• DO NOT light a cigarette or smoke.

Not for
Reproduction
9
High Altitude
At altitudes over 5,000 feet (1524 meters), a
minimum 85 octane / 85 AKI (89 RON) gasoline is
acceptable. To remain emissions compliant, high
altitude adjustment is required. Operation without
this adjustment will cause decreased performance,
increased fuel consumption, and increased emissions.
See a Briggs & Stratton Authorized Dealer for high
altitude adjustment information. Operation of the
engine at altitudes below 2,500 feet (762 meters) with
the high altitude kit is not recommended.
Grounding Fastener
The generator neutral is floating, which means that
the AC stator winding is isolated from the grounding
fastener and the AC receptacle ground pins. On a
floating neutral generator the AC receptacle ground
pins are not functional. Electrical devices, such as a
GFCI, requiring a functioning AC receptacle ground pin
will not operate.
Special Requirements
There may be Federal, local codes, or ordinances that
apply to the intended use of the generator. Please
consult a qualified electrician, electrical inspector, or
the local agency having jurisdiction:
• This generator has a floating neutral and is not for
use on job sites requiring a bonded neutral.
Portable Generator Location
Before starting the portable generator there are two
equally important safety concerns regarding carbon
monoxide poisoning and fire that must be addressed.
Operation Location to Reduce the Risk of Carbon
Monoxide Poisoning
All fossil fuel burning equipment, such as a portable
generator, contains carbon monoxide gas in the engine
exhaust, a poisonous gas that could kill you in minutes.
You cannot smell it, see it, or taste it. Even if you do
not smell exhaust fumes, you could still be exposed to
carbon monoxide gas.
By law it is required in many states to have a carbon
monoxide alarm (A) in operating condition in your
home. A carbon monoxide alarm is an electronic
device that detects hazardous levels of carbon
monoxide. When there is a buildup of carbon
monoxide, the alarm will alert the occupants by
flashing visual indicator light and alarm. Smoke alarms
cannot detect carbon monoxide gas.
A
Install carbon monoxide alarms inside
your home. Without working carbon
monoxide alarms, you will not realize
you are getting sick and dying from
carbon monoxide poisoning.
CARBON MONOXIDE ALARM(S)
USE OUTDOORS - AVOID CARBON MONOXIDE POISONING
point away
from home
MUFFLER
WARNING POISONOUS GAS HAZARD.
Engine exhaust contains carbon monoxide,
a poisonous gas that could kill you in
minutes. You CANNOT smell it, see it, or
taste it. Even if you do not smell exhaust fumes, you
could still be exposed to carbon monoxide gas.
• Operate this product ONLY outside far away from
windows, doors and vents to reduce the risk of carbon
monoxide gas from accumulating and potentially being
drawn towards occupied spaces.
• Install battery-operated carbon monoxide alarms or
plug-in carbon monoxide alarms with battery back-up
according to the manufacturer’s instructions. Smoke
alarms cannot detect carbon monoxide gas.
• DO NOT run this product inside homes, garages,
basements, crawlspaces, sheds, or other partially-
enclosed spaces even if using fans or opening doors
and windows for ventilation. Carbon monoxide can
quickly build up in these spaces and can linger for hours,
even after this product has shut off.
• ALWAYS place this product downwind and point the
engine exhaust away from occupied spaces.
If you start to feel sick, dizzy, or weak while using this
product, get to fresh air RIGHT AWAY. See a doctor. You
may have carbon monoxide poisoning.

Not for
Reproduction
10 BRIGGSandSTRATTON.COM
Operation Location to Reduce the Risk of Fire
WARNING Exhaust heat/gases could ignite
combustibles, structures or damage fuel
tank causing a fire, resulting in death or
serious injury.
• Portable generator must be at least 5 feet (1.5 m) from
any structure, overhang, trees, windows, doors, any wall
opening, shrubs, or vegetation over 12 inches (30.5 cm)
in height.
• DO NOT place portable generator under a deck or other
type of structure that may confine airflow.
• Smoke alarm(s) MUST be installed and maintained
indoors according to the manufacturer’s instructions/
recommendations. Carbon monoxide alarms cannot
detect smoke.
• DO NOT place portable generator in manner other than
shown.
5 ft.
(1.5 m) min.
5 ft. (1.5 m) min.
MUFFLER

Not for
Reproduction
11
Features and Controls
Read this Operator’s Manual and safety rules before operating your generator.
Compare the illustrations with your generator, to familiarize yourself with the locations of various controls
and adjustments. Save this manual for future reference.
A - Fuel Tank — Capacity of 3.7 L (1.0 U.S. gallons).
B - Choke Lever — Used when starting a cold engine.
C - Side Maintenance Cover — Remove to gain access
to the air cleaner and oil service.
D - POWERSMART Switch— Use this switch to turn the
POWERSMART mode on and off.
E - Output Indicator — A green LED light comes on
when the generator is working correctly and producing
power at the receptacles.
F - Recoil Starter — Used to start the engine.
G - Generator Reset — Push to reset generator if overloaded.
H - Engine Switch — Set this switch to ON (I) before
using recoil starter. Set switch to OFF (0) to stop
engine. Also turns fuel valve on and off.
J - 12 Volt DC Receptacle — Use this receptacle to
supply power for 12 Volt DC accessories that are rated
60 watts (5 Amp) or less. This receptacle is protected
by a push to reset circuit breaker.
K - Parallel Operation Port — Use this port with optional
parallel operation kit to allow two generators to run in
parallel.
L - DC Circuit Breaker — The 12 Volt DC receptacle
is provided with a “push to reset” circuit breaker to
protect the generator against electrical overload.
M - Circuit Breaker — The 120 Volt AC receptacle
is provided with “push to reset” circuit breakers to
protect the generator against electrical overload.
N - 120 Volt AC, 20 Amp, Duplex Receptacle — May
be used to supply electrical power for the operation of
120 Volt AC, 20 Amp, single phase, 60 Hz electrical,
lighting, appliance, tool, and motor loads.
P - Overload Alarm — A red LED light comes on and
cuts power to the receptacles when the generator is
overloaded.
R - Low Oil Indicator — A yellow LED light comes on
when the oil in the generator drops below a preset
level.
S - Grounding Fastener — Consult your local agency
having jurisdiction for grounding requirements in your
area.
T - Spark Arrester Muffler — Exhaust muffler lowers
engine noise and is equipped with a spark arrester
screen.
U - Top Maintenance Cover — Remove to gain access
to the spark plug.
V - Identification Label — Provides model, revision, and
serial number of generator. Please have these readily
available when calling for assistance.
Items Not Shown:
Air Cleaner (under side maintenance cover) —
Protects engine by filtering dust and debris out of intake
air.
Oil Fill Cap (under side maintenance cover) — Check
and add engine oil here.
D
F
R
M
G
S
T
K
J
B
A
CU
E
H
L
N
P
V

Not for
Reproduction
12 BRIGGSandSTRATTON.COM

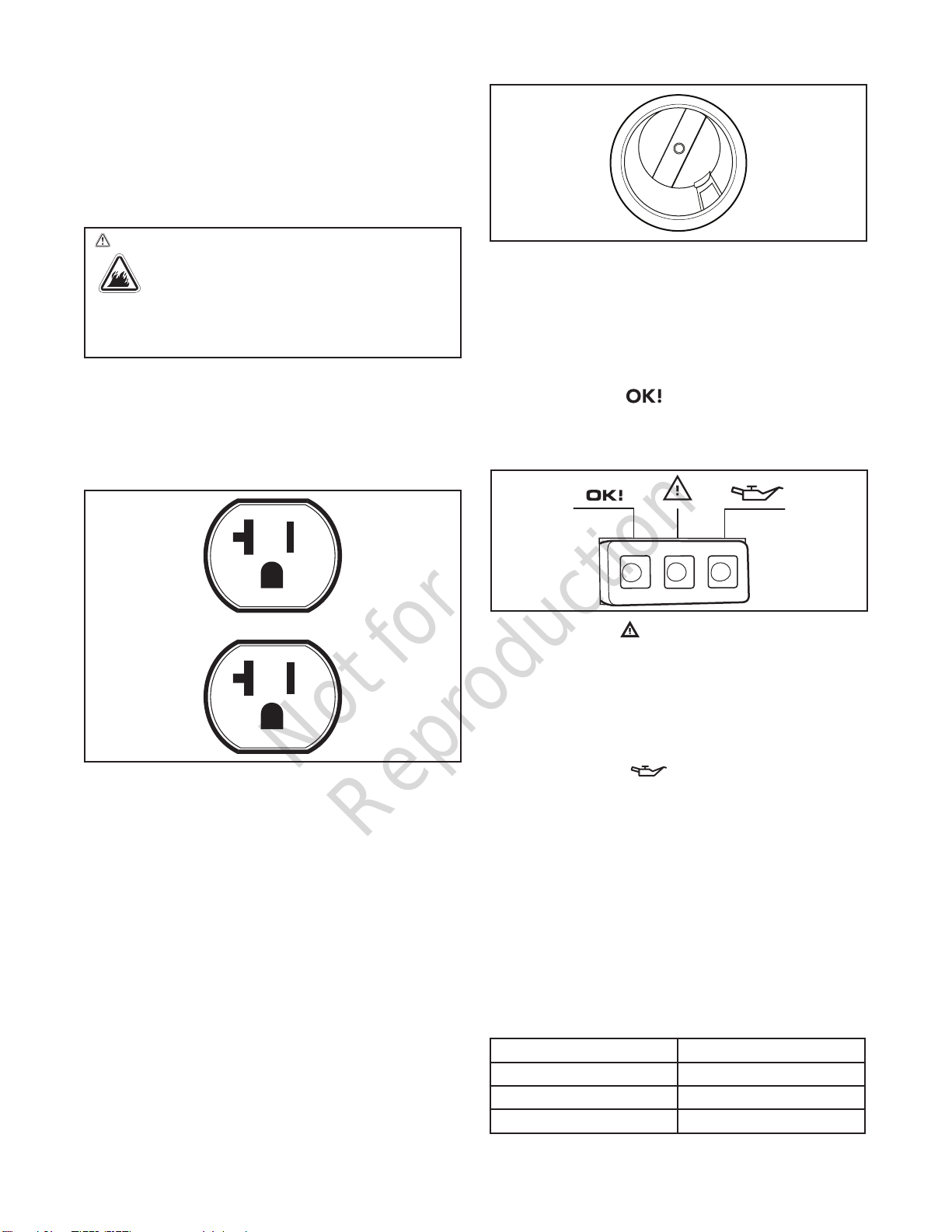

Cord Sets and Receptacles
Use only high quality, well-insulated, grounded
extension cords with the generator’s receptacles.
Inspect extension cords before each use.
Check the ratings of all extension cords before you use
them. Check the operator’s manuals of devices for the
manufacturer’s recommendations.
120 Volt AC, 20 Amp, Duplex Receptacle
The duplex receptacle is protected against overload by
push-to-reset circuit breakers. If an overload occurs,
the circuit breaker will trip (push button pops out).
Wait a few minutes and push the button in to reset the
circuit breaker.
Use receptacle to operate 120 Volt AC, single–phase,
60 Hz electrical loads requiring up to 1,700 watts
(1.7 kW) at 14.2 Amps of current. Use cord sets that are
rated for 125 Volt AC loads at 15 Amps (or greater).
NOTICE Receptacles may be marked with rating
value greater than generator output capacity.
• NEVER attempt to power a device requiring more
amperage than generator or receptacle can supply.
• DO NOT overload the generator. See Don’t Overload
Generator.
12 Volt DC Receptacle
The maximum current available for the 12 Volt DC
receptacle is 60 Watts (5 Amps). A DC circuit breaker
protects this receptacle from overloads. If an overload
occurs, the circuit breaker will trip (push button pops
out). Wait a few minutes and push the button in to
reset the circuit breaker.
This receptacle along with the USB adapter allows
you to recharge any USB powered device with a USB
charging cable (not included).
NOTICE For charging ITE (Information Technology
Equipment) only.
NOTICE When using this receptacle, turn the
POWERSMART switch to the OFF (0) position.
Output Indicator
The green LED output indicator light comes on when
the generator is operating normally. It indicates that the
generator is producing power at the receptacles.
Overload Alarm
The red LED overload alarm light comes on and cuts
power to the receptacles if you overload the generator.
The green output indicator light will also go off. If the
generator was overloaded, you must turn off and
unplug all electrical loads, then push the generator
reset button to continue operating.
Low Oil Indicator
The low oil indicator system is designed to prevent
engine damage caused by not enough engine oil. If the
engine oil level drops below a preset level, the yellow
LED low oil indicator light comes on and an oil switch
will stop the engine. If the engine stops or the yellow
LED low oil indicator light comes on when you pull the
recoil handle, check the engine oil level.
Parallel Operation Port
The parallel operation port allows you to connect two
Briggs & Stratton inverter generators with a Briggs &
Stratton parallel operation kit (optional equipment).
When running in parallel, the total output of power is
shown in chart.
WARNING Damaged or overloaded electrical
cords could overheat, arc, and burn
resulting in death or serious injury.
• ONLY use cords rated for your loads.
• Follow all safeties on electrical cords.
• Inspect cord sets before each use.
Models Maximum Output
P2200 & P2200 3000 Watts
P2200 & P3000 3000 Watts
P3000 & P3000 4800 Watts

Not for
Reproduction
13
Operation
Starting the Engine
Disconnect all electrical loads from the generator. Use
the following start instructions:
1. Make sure unit is on a level surface.
NOTICE Failure to start and operate the unit on a
level surface will cause the unit not to start or shut
down during operation.
2. Turn the engine switch (A) to the ON (I) position.
3. Push choke lever (B) to CHOKE ( ) position.
NOTICE To help start the engine for the very first
time, after running out of fuel or after a long period of
storage, fill fuel tank as described in Add Fuel. It will
require more than several start attempts until the air in
the fuel system has been purged.
4A. Grasp recoil handle and pull slowly until slight
resistance is felt. Then pull rapidly to start engine.
• If engine starts, proceed to step 6.
• If engine fails to start, proceed to step 5.
To start engine thereafter:
4B. Grasp recoil handle and pull slowly until slight
resistance is felt. Then pull rapidly one time only to
start engine.
• If engine starts, proceed to step 6.
• If engine fails to start, proceed to step 5.
5. Move choke lever to half choke position, and pull
recoil handle twice.
• If engine fails to start, repeat steps 3 thru 4.
6. Slowly move choke lever to RUN ( ) position. If
engine falters, move choke lever to half choke
position until engine runs smoothly, and then to
RUN ( ) position.
NOTICE If engine floods, move choke lever to RUN
() position and crank until engine starts.
NOTICE If engine starts after 3 pulls but fails to run,
or if unit shuts down during operation, make sure unit
is on a level surface and check for proper oil level
in crankcase. This unit is equipped with a low oil
protection device. If so, oil must be at proper level for
engine to start.
B
A
WARNING Exhaust heat/gases could ignite
combustibles, structures or damage
fuel tank causing a fire, resulting in
death or serious injury.
Contact with muffler area could cause burns
resulting in serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5 m) of clearance on all sides of
generator including overhead.
• It is a violation of California Public Resource Code,
Section 4442, to use or operate the engine on any forest-
covered, brush-covered, or grass-covered land unless
the exhaust system is equipped with a spark arrester, as
defined in Section 4442, maintained in effective working
order. Other states or federal jurisdictions may have
similar laws.
Contact the original equipment manufacturer, retailer, or
dealer to obtain a spark arrester designed for the exhaust
system installed on this engine.
• Replacement parts must be the same and installed in the
same position as the original parts.
WARNING Starter cord kickback (rapid
retraction) will pull hand and arm toward
engine faster than you can let go which
could cause broken bones, fractures,
bruises, or sprains resulting in serious injury.
• When starting engine, pull cord slowly until resistance is
felt and then pull rapidly to avoid kickback.
• NEVER start or stop engine with electrical devices
plugged in and turned on.

Not for
Reproduction
14 BRIGGSandSTRATTON.COM
Connecting Electrical Loads
1. Make sure the green output indicator light comes
on (it may take up to three seconds).
2. Let engine stabilize and warm up for a few
minutes after starting.
3. Plug in and turn on the desired 120 Volt AC,
single phase, 60 Hz electrical loads.
NOTICE
• DO NOT connect 240 Volt loads to the 120 Volt
receptacle.
• DO NOT connect 3-phase loads to the generator.
• DO NOT connect 50 Hz loads to the generator.
• DO NOT OVERLOAD THE GENERATOR. See
Don’t Overload Generator.
NOTICE Exceeding generators wattage/amperage
capacity could damage generator and/or electrical
devices connected to it.
• DO NOT exceed the generator’s wattage/amperage
capacity. See Don’t Overload Generator in the Operation
section.
• Start generator and let engine stabilize before connecting
electrical loads.
• Connect electrical loads in OFF position, then turn ON for
operation.
• Turn electrical loads OFF and disconnect from generator
before stopping generator.
Parallel Operation
Two Briggs & Stratton inverter generators can be run
in parallel with a Briggs & Stratton parallel operation
kit (optional equipment). When running in parallel, the
total output of power is shown in chart.
NOTICE Total electrical load connected to the
parallel kit must not exceed the maximum output.
See the parallel operation kits instruction sheet for
detailed instructions on installation and operation of the
connected generators.
NOTICE
• Turn electrical loads OFF and disconnect from
both generators.
• The POWERSMART switch must be in the same
position on both generators.
• Connect the power cables to both generators
before starting the engines. See instruction sheet
supplied with parallel kit.
• Start engine on one of the inverter generators
according to Starting the Engine in the Operation
section.
• Once the green LED output indicator light on the
first generators is steady, start second generator.
• Connect and turn on electrical loads to the parallel
panel receptacles.
• DO NOT disconnect power cables after engines
have been started.
• Shut down engines as described in Stopping the
Engine.
Stopping the Engine
1. Turn OFF and unplug all electrical loads from
generator panel receptacles. NEVER start or stop
engine with electrical devices plugged in and
turned ON.
2. Let engine run at no-load for several minutes
to stabilize internal temperatures of engine and
generator.
3. Turn engine switch to the OFF (0) position.
POWERSMART Mode
This feature is designed to greatly improve fuel
economy. When this switch is turned ON, the
engine speed will increase as electrical loads are
connected, and decreased as electrical loads are
removed.
With the switch off, the engine will run at full
governed speed. Always have the switch OFF when
starting and stopping the engine.
NOTICE Always have the switch OFF when starting
or stopping the generator or when using the DC
receptacle.
Models Maximum Output
P2200 & P2200 3000 Watts
P2200 & P3000 3000 Watts
P3000 & P3000 4800 Watts
WARNING Fuel and its vapors are extremely
flammable and explosive which
could cause burns, fire or explosion
resulting in death or serious injury.
• DO NOT stop engine by moving choke handle to CHOKE
position ( ).

Not for
Reproduction
15
Don’t Overload Generator
Capacity
You must make sure your generator can supply
enough rated (running) and surge (starting) watts for
the items you will power at the same time. Follow these
simple steps:
1. Select the items you will power at the same time.
2. Total the rated (running) watts of these items.
This is the amount of power your generator must
produce to keep your items running. See Wattage
Reference Guide.
3. Estimate how many surge (starting) watts you will
need. Surge wattage is the short burst of power
needed to start electric motor-driven tools or
appliances such as a circular saw or refrigerator.
Because not all motors start at the same time, total
surge watts can be estimated by adding only the
item(s) with the highest additional surge watts to
the total rated watts from step 2.
Example:
Total Rated (Running) Watts = 1555
Highest Additional Surge Watts = 600
Total Generator Output Required = 2155
Power Management
To prolong the life of your generator and attached
devices, it is important to take care when adding
electrical loads to your generator. There should be
nothing connected to the generator outlets before
starting its engine. The correct and safe way to manage
generator power is to sequentially add loads as follows:
1. With nothing connected to the generator, start the
engine as described in this manual.
2. Plug in and turn on the first load, preferably the
largest load you have.
3. Permit the generator output to stabilize (engine
runs smoothly and attached device operates
properly).
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.
NEVER add more loads than the generator capacity.
Take special care to consider surge loads in generator
capacity, as described above.
* Wattages listed are approximate only. Check tool or
appliance for actual wattage.
Tool or
Appliance
Rated
(Running)
Watts
Additional Surge
(Starting) Watts
Window Fan 300 600
Deep Freezer 500 500
Television 500 —
Security System 180 —
Light (75 Watts) 75 —
1555 Total
Running Watts
600 Highest Surge
Watts
Wattage Reference Guide
Tool or Appliance
Rated*
(Running)
Watts
Additional
Surge
(Starting)
Watts
Essentials
Light Bulb - 75 watt 75 —
Deep Freezer 500 500
Sump Pump 800 1200
Refrigerator/Freezer - 18 cf 800 1600
Water Well Pump - 1/3 hp 1000 2000
Heating/Cooling
Window AC - 10,000 BTU 1200 1800
Window Fan 300 600
Furnace Fan Blower - 1/2 hp 800 1300
Kitchen
Microwave Oven - 1000 Watt 1000 —
Coffee Maker 1500 —
Electric Stove - Single Element 1500 —
Hot Plate 2500 —
Family Room
DVD/CD Player 100 —
VCR 100 —
Stereo Receiver 450 —
Color Television - 27 in 500 —
Personal Computer w/17 in
monitor
800 —
Other
Security System 180 —
AM/FM Clock Radio 300 —
Garage Door Opener - 1/2 hp 480 520
Electric Water Heater - 40 gallon 4000 —
DIY
Quartz Halogen Work Light 1000 —
Airless Sprayer - 1/3 hp 600 1200
Reciprocating Saw 960 960
Electric Drill - 1/2 hp 1000 1000
Circular Saw - 7-1/4 in 1500 1500
Miter Saw - 10 in 1800 1800
Table Planer - 6 in 1800 1800
Table Saw/Radial Arm Saw - 10 in 2000 2000
Air Compressor - 1-1/2 hp 2500 2500

Not for
Reproduction
16 BRIGGSandSTRATTON.COM
Maintenance
Maintenance Schedule
Follow the hourly or calendar intervals, whichever
occurs first. More frequent service is required when
operating in adverse conditions noted below.
1Service more often under dirty or dusty conditions.
General Recommendations
Regular maintenance will improve the performance
and extend the life of the generator. See any
authorized dealer for service.
The generator’s warranty does not cover items that
have been subjected to operator abuse or negligence.
To receive full value from the warranty, the operator
must maintain the generator as instructed in this
manual.
NOTICE Improper treatment of generator could
damage it and shorten its life.
• NEVER operate generator without protective housing or
covers to assure proper cooling.
Some adjustments will need to be made periodically to
properly maintain your generator.
All service and adjustments should be made at least
once each season. A new spark plug and clean
air filter assure proper fuel-air mixture and help
your engine run better and last longer. Follow the
requirements in the Maintenance Schedule chart
above.
Emissions Control
Maintenance, replacement, or repair of the
emissions control devices and systems may
be performed by any non-road engine repair
establishment or individual. However, to obtain
”no charge” emissions control service, the work must
be performed by a factory authorized dealer. See the
Emissions Warranty.
• Generator is equipped with a G-trim engine.
Generator Maintenance
Generator maintenance consists of keeping the unit
clean and dry. Operate and store the unit in a clean dry
environment where it will not be exposed to excessive
dust, dirt, moisture, or any corrosive vapors. Cooling
air slots in the generator must not become clogged
with snow, leaves, or any other foreign material.
NOTICE DO NOT use water or other liquids to clean
generator. Liquids can enter engine fuel system,
causing poor performance and/or failure to occur. In
addition, if liquid enters generator through cooling air
slots, some of the liquid will be retained in voids and
cracks of the rotor and stator winding insulation. Liquid
and dirt buildup on the generator internal windings will
eventually decrease the insulation resistance of these
windings.
Cleaning
Daily or before use, look around and underneath
the generator for signs of oil or fuel leaks. Clean
accumulated debris from inside and outside the
generator. Keep the linkage, spring and other engine
controls clean. Keep the area around and behind
the muffler free from any combustible debris. Inspect
cooling air slots and openings on generator. These
openings must be kept clean and unobstructed.
Engine parts should be kept clean to reduce the risk of
overheating and ignition of accumulated debris:
• Use a damp cloth to wipe exterior surfaces clean.
NOTICE Improper treatment of generator could
damage it and shorten its life.
• DO NOT expose generator to excessive moisture, dust,
dirt, or corrosive vapors.
• DO NOT insert any objects through cooling slots.
• Use a soft bristle brush to loosen caked on dirt or
oil.
• Use a vacuum cleaner to pick up loose dirt and
debris.
Every 8 Hours or Daily
• Clean debris
• Check engine oil level
First 10 Hours
• Change engine oil
Every 50 Hours or 3 Months
• Service engine air cleaner and breather filter1
Every 100 Hours or 6 Months
• Clean fuel strainer
• Change engine oil1
• Service spark plug
• Inspect muffler and spark arrester
Every 250 Hours or Yearly
• Check valve clearance

Not for
Reproduction
17
Cleaning Fuel Strainer
The fuel strainer helps prevent debris from entering the
fuel system.
Clean the fuel strainer as follows:
1. Make sure generator is on a level surface.
2. Remove the fuel cap (A) and fuel strainer (B).
3. Wash fuel strainer in liquid detergent and water.
4. Wipe fuel strainer clean with a clean, dry cloth.
5. Carefully reinstall the fuel strainer and fuel cap.
Engine Maintenance
Oil
Oil Recommendations
We recommend the use of Briggs & Stratton Warranty
Certified oils for best performance. Other high-quality
detergent oils are acceptable if classified for service
SF, SG, SH, SJ or higher. DO NOT use special
additives.
Outdoor temperatures determine the proper oil
viscosity for the engine. Use the chart to select the
best viscosity for the outdoor temperature range
expected.
* Below 40°F (4°C) the use of SAE 30 will result in hard
starting.
** Above 80°F (27°C) the use of 10W30 may cause
increased oil consumption. Check oil level more frequently.
Checking Oil Level
Oil level should be checked prior to each use or
at least every 8 hours of operation. Keep oil level
maintained.
1. Make sure generator is on a level surface.
2. Loosen the side maintenance cover screws and
remove the side maintenance cover.
3. Clean area around oil fill and remove oil fill cap.
4. Verify oil is at the point of overflowing at oil fill
opening.
5. Replace and tighten oil fill cap.
6. Reinstall the side maintenance cover and hand
tighten the cover screws.
Adding Engine Oil
1. Make sure generator is on a level surface.
2. Repeat steps 2 through 4 to check oil level as
described in Checking Oil Level.
3. If needed, slowly pour oil into oil fill opening to the
point of overflowing at oil fill.
4. Replace and tighten oil fill cap.
5. Reinstall the side maintenance cover and hand
tighten the cover screws.
B
A
WARNING Unintentional sparking could cause
fire or electric shock resulting in
death or serious injury.
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR
GENERATOR
• Disconnect the spark plug wire from the spark plug and
place the wire where it cannot contact spark plug.
WHEN TESTING FOR ENGINE SPARK
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.

Not for
Reproduction
18 BRIGGSandSTRATTON.COM
Changing Engine Oil
If you are using your generator under extremely dirty or
dusty conditions, or in extremely hot weather, change
the oil more often.
KEEP OUT OF REACH OF CHILDREN.
DON’T POLLUTE. CONSERVE
RESOURCES. RETURN USED OIL TO
COLLECTION CENTERS.
Change the oil while the engine is still warm from
running, as follows:
1. Make sure generator is on a level surface.
2. Loosen the side maintenance cover screws and
remove the side maintenance cover.
3. Clean area around oil fill and remove oil fill cap.
4. Tip your generator to drain oil from oil fill into a
suitable container making sure you tip your unit
toward the oil filler neck. When crankcase is
empty, return generator to upright position.
5. Slowly pour oil (about 13.5 oz. (0.4 l)) into oil fill
opening to the point of overflowing at oil fill cap.
DO NOT overfill.
6. Reinstall oil fill cap. Finger tighten cap securely.
7. Wipe up any spilled oil.
8. Reinstall the side maintenance cover and hand
tighten the cover screws.
Service Air Cleaner
Your engine will not run properly and may be damaged
if you run it with a dirty air cleaner. Service more often
if operating under dirty or dusty conditions.
To service the air cleaner, follow these steps:
1. Loosen the side maintenance cover screws and
remove the side maintenance cover.
2. Loosen air cleaner cover screw (A) and remove
air cleaner cover (B).
3. Carefully remove foam air cleaner (C) by pulling it
out towards you.
4. Carefully remove breather filter (D) by pulling it out
towards you.
5. Wash foam air cleaner and breather filter in liquid
detergent and water only. Squeeze dry in a clean
cloth.
6. SATURATE foam air cleaner in clean engine oil
and squeeze in a clean cloth to remove excess
oil.
7. Reinstall clean or new foam air cleaner inside
base.
8. Reinstall clean or new breather filter inside base.
9. Reinstall the air cleaner cover and tighten screw.
10. Reinstall the side maintenance cover and hand
tighten the cover screws.
Service Spark Plug
Changing the spark plug will help your engine to start
easier and run better.
1. Remove top maintenance cover.
2. Clean area around spark plug and remove spark
plug boot.
C
A
D
B
CAUTION Avoid prolonged or repeated skin
contact with used motor oil.
• Used motor oil has been shown to cause skin cancer in
certain laboratory animals.
• Thoroughly wash exposed areas with soap and water.

Not for
Reproduction
19
3. Remove spark plug and inspect spark plug.
4. Replace spark plug if electrodes are pitted, burned
or porcelain is cracked. Use the recommended
replacement plug. See Specifications.
5. Check electrode gap with wire feeler gauge and
reset spark plug gap to recommended gap if
necessary (see Specifications).
6. Install spark plug and tighten firmly. Reinstall
spark plug boot.
7. Reinstall top maintenance cover.
Inspect Muffler and Spark Arrester
Inspect the muffler for cracks, corrosion, or other
damage. Remove the spark arrester, if equipped, and
inspect for damage or carbon blockage. If replacement
parts are required, make sure to use only original
equipment replacement parts.
Clean and inspect the spark arrester as follows:
1. To remove muffler guard, remove four screws that
connects guard to generator.
2. Remove screw that attaches spark arrester screen
to muffler. Remove spark arrester screen.
3. Inspect screen and obtain a replacement if torn,
perforated or otherwise damaged. DO NOT use a
defective screen. If screen is not damaged, clean
it with a brush.
4. Reattach screen to muffler. Reattach muffler guard.
Check Valve Clearance
Regular valve clearance check and adjustment will
improve performance and extend engine life. This
procedure cannot be done without partial engine
disassembly and the use of special tools. For this
reason we recommend that you have an authorized
Service Dealer check and adjust valve clearance at
recommended intervals (see Maintenance Schedule).
WARNING Exhaust heat/gases could ignite
combustibles, structures or damage
fuel tank causing a fire, resulting in
death or serious injury.
Contact with muffler area could cause burns
resulting in serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5 m) of clearance on all sides of
generator including overhead.
• It is a violation of California Public Resource Code,
Section 4442, to use or operate the engine on any forest-
covered, brush-covered, or grass-covered land unless
the exhaust system is equipped with a spark arrester, as
defined in Section 4442, maintained in effective working
order. Other states or federal jurisdictions may have
similar laws.
Contact the original equipment manufacturer, retailer, or
dealer to obtain a spark arrester designed for the exhaust
system installed on this engine.
• Replacement parts must be the same and installed in the
same position as the original parts.

Not for
Reproduction
20 BRIGGSandSTRATTON.COM
Storage
The generator should be started at least once every
seven days and allowed to run at least 30 minutes. If
this cannot be done and you must store the unit for
more than 30 days, use the following guidelines to
prepare it for storage.
Generator Storage
• Clean the generator as outlined in Cleaning.
• Check that cooling air slots and openings on
generator are open and unobstructed.
Long Term Storage Instructions
Fuel can become stale when stored over 30 days.
Stale fuel causes acid and gum deposits to form in the
fuel system or on essential carburetor parts. To keep
fuel fresh, use Briggs & Stratton® Advanced Formula
Fuel Treatment & Stabilizer, available wherever Briggs
& Stratton genuine service parts are sold.
There is no need to drain gasoline from the engine
if a fuel stabilizer is added according to instructions.
Run the engine for 2 minutes to circulate the stabilizer
throughout the fuel system before storage.
If gasoline in the engine has not been treated with a
fuel stabilizer, it must be drained into an approved
container. Run the engine until it stops from lack
of fuel. The use of a fuel stabilizer in the storage
container is recommended to maintain freshness.
Change Engine Oil
While engine is still warm, drain oil from crankcase.
Refill with recommended grade. See Changing Engine
Oil.
Other Storage Tips
1. DO NOT store fuel from one season to another
unless it has been treated as described in Long
Term Storage Instructions.
2. Replace fuel container if it starts to rust. Rust and/
or dirt in fuel can cause problems if it’s used with
this unit.
3. DO NOT tip generator up on end and store.
Generator must be stored in normal operating
position.
4. Cover unit with a suitable protective cover that
does not retain moisture.
5. Store generator in clean, dry area.
WARNING Storage covers could cause a fire
resulting in death or serious injury
• DO NOT place a storage cover over a hot generator.
• Let equipment cool for a sufficient time before placing the
cover on the equipment.
WARNING Fuel and its vapors are extremely
flammable and explosive which
could cause burns, fire or explosion
resulting in death or serious injury.
WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN
TANK
• Store away from furnaces, stoves, water heaters, clothes
dryers or other appliances that have pilot light or other
ignition source because they could ignite fuel vapors.
WHEN DRAINING FUEL
• Turn generator engine OFF and let it cool at least 2
minutes before removing fuel cap. Loosen cap slowly to
relieve pressure in tank.
• Drain fuel tank outdoors.
• Keep fuel away from sparks, open flames, pilot lights,
heat, and other ignition sources.
• Check fuel lines, tank, cap and fittings frequently for
cracks or leaks. Replace if necessary.
• Do not light a cigarette or smoke.
