Operator’s Manual
Manual del Operario
Manuel de l'Utilisation
12000 / 15000
Home Generator System Manual No. 194689GS Rev. G (03/23/07)
Models / Modelos / Modèles
040204
040210
040212
040213
040229
040234
Questions? Help is just a moment away!
Preguntas? La ayuda es justa un momento lejos!
Vous avez des questions? Vous n'avez pas
besoin d'aller loin pour trouver de l'aide!
Call: Home Generator Helpline
Llamada: Línea Directa de Generador de Hogar
Appelez: Ligne Directe de Génératrice la Maison
1-800-743-4115 M-F 8-5 CT
BRIGGSandSTRATTON.COM

TABLE OF CONTENTS
2
TABLE OF CONTENTS
TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . 3-5
Hazard Symbols and Meanings. . . . . . . . . . . . . . . . . . . 3
SAVE THESE INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . 6
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation Assistance . . . . . . . . . . . . . . . . . . . . . . . . . 6
For the Home Owner: . . . . . . . . . . . . . . . . . . . . . . 6
For the Installing Dealer/Contractor: . . . . . . . . . . . 6
OWNER ORIENTATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Fuel Factors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Power Decrease at High Altitude or High
Temperature . . . . . . . . . . . . . . . . . . . . . . 7
Home Generator System Location . . . . . . . . . . . . . . . . 7
Generator Clearances . . . . . . . . . . . . . . . . . . . . . . 7
General Location Guidelines . . . . . . . . . . . . . . . . 7-8
Essential Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Essential Circuit Selection . . . . . . . . . . . . . . . . . . . 9
UNPACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Delivery Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Shipment Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
KNOW YOUR HOME GENERATOR SYSTEM. . . . . . . . . . . . 10
KNOW YOUR SYSTEM CONTROL PANEL . . . . . . . . . . . . . 11
Access Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
To Open an Access Door: . . . . . . . . . . . . . . . . . . 12
To Close an Access Door: . . . . . . . . . . . . . . . . . . 12
BEFORE INITIAL START-UP . . . . . . . . . . . . . . . . . . . . . . . 13
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Oil Considerations . . . . . . . . . . . . . . . . . . . . . . . . 13
Battery Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Gaseous Fuel System . . . . . . . . . . . . . . . . . . . . . . . . . 13
AUTOMATIC OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . 14
Checking Automatic Operation . . . . . . . . . . . . . . . . . . 14
Servicing the System . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting Exercise Timer . . . . . . . . . . . . . . . . . . . . . . . . 14
FAULT DETECTION SYSTEM . . . . . . . . . . . . . . . . . . . . . . . 15
Reset Fault Detection System . . . . . . . . . . . . . . . 15
No LED - Discharged Battery . . . . . . . . . . . . . . . 15
Low Battery Voltage . . . . . . . . . . . . . . . . . . . . . . 15
Low Oil Pressure . . . . . . . . . . . . . . . . . . . . . . 15-16
Low Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Engine Fail To Start . . . . . . . . . . . . . . . . . . . . . . . 16
Low Frequency. . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Engine Overspeed . . . . . . . . . . . . . . . . . . . . . . . . 16
Oil Temperature High . . . . . . . . . . . . . . . . . . . . . 16
Transfer Switch Fault . . . . . . . . . . . . . . . . . . . . . . 16
GENERATOR MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . 17
Changing Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . . 17
To Clean the Generator . . . . . . . . . . . . . . . . . . . . . . . . 17
When Calling the Factory . . . . . . . . . . . . . . . . . . . . . . 17
STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-37
FRANÇAIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38-56
Copyright © 2007 Briggs & Stratton Power Products Group,
LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without
the express written permission of Briggs & Stratton Power
Products Group, LLC.

SAFETY RULES
3
IMPORTANT SAFETY RULES
The safety alert symbol ( ) is used with a signal word
(DANGER, CAUTION, WARNING), a pictorial and/or a safety
message to alert you to hazards. DANGER indicates a hazard
which, if not avoided, will result in death or serious injury.
WARNING indicates a hazard which, if not avoided, could
result in death or serious injury. CAUTION indicates a hazard
which, if not avoided, might result in minor or moderate
injury. NOTICE indicates a situation that could result in
equipment damage. Follow safety messages to avoid or
reduce the risk of injury or death.
The manufacturer cannot possibly anticipate every possible
circumstance that might involve a hazard. The warnings in
this manual, and the tags and decals affixed to the unit are,
therefore, not all-inclusive. If you use a procedure, work
method or operating technique that the manufacturer does
not specifically recommend, you must satisfy yourself that it
is safe for you and others. You must also make sure that the
procedure, work method or operating technique that you
choose does not render the generator unsafe.
NOTE: Your generator is equipped with a spark arrester
muffler. The spark arrester must be maintained in effective
working order by the owner/operator. In the State of
California, a spark arrester is required by law (Section 4442
of the California Public Resources Code). Other states may
have similar laws. Federal laws apply on federal lands.
Hazard Symbols and Meanings
SAVE THESE INSTRUCTIONS
Explosion Fire Electrical Shock
Rotating Parts Hot Surface Toxic Fumes
Chemical BurnExplosive PressureAuto Start
WARNING
Storage batteries give off explosive hydrogen gas
during recharging.
Slightest spark will ignite hydrogen and cause
explosion.
Battery electrolyte fluid contains acid and is
extremely caustic.
Contact with battery contents will cause severe
chemical burns.
A battery presents a risk of electrical shock and
high short circuit current.
• DO NOT dispose of battery in a fire.
• DO NOT allow any open flame, spark, heat, or lit cigarette
during and for several minutes after charging a battery.
• DO NOT open or mutilate the battery.
• Wear protective goggles, rubber apron, and rubber gloves.
• Remove watches, rings, or other metal objects.
• Use tools with insulated handles.
WARNING
Running engine gives off carbon monoxide, an
odorless, colorless, poison gas.
Breathing carbon monoxide can cause headache,
fatigue, dizziness, vomiting, confusion, seizures,
nausea, fainting or death.
• Operate generator ONLY outdoors.
• Install a battery operated carbon monoxide alarm near the
bedrooms.
• Keep exhaust gas from entering a confined area through
windows, doors, ventilation intakes, or other openings.

SAFETY RULES
4
WARNING
Generator produces hazardous voltage.
Failure to properly ground generator can result in
electrocution.
Failure to isolate generator from power utility can
result in death or injury to electric utility workers
due to backfeed of electrical energy.
• When using generator for backup power, notify utility company.
• DO NOT touch bare wires or receptacles.
• DO NOT use generator with electrical cords which are worn,
frayed, bare or otherwise damaged.
• DO NOT handle generator or electrical cords while standing in
water, while barefoot, or while hands or feet are wet.
• If you must work around a unit while it is operating, stand on
an insulated dry surface to reduce shock hazard.
• DO NOT allow unqualified persons or children to operate or
service generator.
• In case of an accident caused by electrical shock, immediately
shut down the source of electrical power and contact the local
authorities. Avoid direct contact with the victim.
• Despite the safe design of the Home Generator System, operating
this equipment imprudently, neglecting its maintenance or being
careless can cause possible injury or death.
• Remain alert at all times while working on this equipment.
NEVER work on the equipment when you are physically or
mentally fatigued.
• Before performing any maintenance on the generator,
disconnect the battery cable indicated by a NEGATIVE, NEG or
(-) first. When finished, reconnect that cable last.
• After your Home Generator System is installed, the generator
may crank and start without warning any time there is a power
failure. To prevent possible injury, always set the generator’s
system switch to OFF, remove the service disconnect from the
disconnect box AND remove the 15 Amp fuse BEFORE working
on the equipment.
WARNING
Propane and Natural Gas are extremely
flammable and explosive.
Fire or explosion can cause severe burns or
death.
• Install the fuel supply system according to applicable fuel-gas
codes.
• Before placing the Home Generator System into service, the
fuel system lines must be properly purged and leak tested.
• After the generator is installed, you should inspect the fuel
system periodically.
• NO leakage is permitted.
• DO NOT operate engine if smell of fuel is present or other
explosive conditions exist.
• DO NOT smoke around the generator. Wipe up any oil spills
immediately. Ensure that no combustible materials are left in
the generator compartment. Keep the area near the generator
clean and free of debris.
WARNING
Contact with muffler area can result in serious
burns.
Exhaust heat/gases can ignite combustibles or
structures causing a fire.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• DO NOT install the generator closer than 5 feet (1.5m) from any
combustibles or structures with combustible walls having a fire
resistance rating of less than 1 hour.
• Keep at least 3 ft. (91 cm) clearance on all sides of generator
including overhead.
• Code of Federal Regulation (CFR) Title 36 Parks, Forests, and
Public Property require equipment powered by an internal
combustion engine to have a spark arrester, maintained in
effective working order, complying to USDA Forest service
standard 5100-1C or later revision. In the State of California a
spark arrester is required under section 4442 of the California
Public resources code. Other states may have similar laws.

SAFETY RULES
5
CAUTION
Excessively high operating speeds increase risk of injury
and damage to generator.
Excessively low speeds impose a heavy load.
• DO NOT tamper with governed speed. Generator supplies
correct rated frequency and voltage when running at governed
speed.
• DO NOT modify generator in any way.
NOTICE
Improper treatment of generator can damage it and
shorten its life.
• Use generator only for intended uses.
• If you have questions about intended use, ask dealer or contact
Briggs and Stratton.
• Operate generator only on level surfaces.
• Adequate, unobstructed flow of cooling and ventilating air is
critical to correct generator operation.
• The Oil Fiil, Oil Drain and the Control Panel doors must be
installed whenever the unit is running.
• DO NOT expose generator to excessive moisture, dust, dirt, or
corrosive vapors.
• Despite the safe design of the Home Generator System, operating
this equipment imprudently, neglecting its maintenance or being
careless can cause possible injury or death.
• Remain alert at all times while working on this equipment.
NEVER work on the equipment when you are physically or
mentally fatigued.
• DO NOT start engine with air cleaner or air cleaner cover
removed.
• DO NOT insert any objects through cooling slots.
• DO NOT use the generator or any of its parts as a step.
Stepping on the unit can cause stress and break parts. This
may result in dangerous operating conditions from leaking
exhaust gases, fuel leakage, oil leakage, etc..
• If connected devices overheat, turn them off and disconnect
them from generator.
• Shut off generator if:
-electrical output is lost;
-equipment sparks, smokes, or emits flames;
-unit vibrates excessively.
WARNING
Starter and other rotating parts can entangle
hands, hair, clothing, or accessories.
• NEVER operate generator without protective housing or covers.
• DO NOT wear loose clothing, jewelry or anything that may be
caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry.
CAUTION
Installing the 15A fuse could cause the engine to
start.
• Observe that the 15 Amp fuse has been removed from the
control panel for shipping.
• DO NOT install this fuse until all plumbing and wiring has been
completed and inspected.
NOTICE
Exceeding generators wattage/amperage capacity can
damage generator and/or electrical devices connected to it.
• See “Essential Circuits”.
• Start generator and let engine stabilize before connecting
electrical loads.

INSTALLATION
6
SAVE THESE INSTRUCTIONS
This manual contains important instructions that should be
followed during installation and maintenance of the generator
and battery.
INTRODUCTION
Thank you for your purchase of a Briggs & Stratton Home
Generator System (HGS). This product is intended for use as
an optional home standby system which provides an
alternate source of electric power and to serve loads such as
heating, refrigeration systems, and communication systems
that, when stopped during any power outage, could cause
discomfort, or the like. This product does not qualify for
emergency standby as defined by NFPA 70 (NEC).
Briggs and Stratton has made every effort to provide for a
safe, streamlined and cost-effective installation. Because
each installation is unique, it is impossible to know of and
advise the trade of all conceivable procedures and methods
by which installation might be achieved. Neither could we
know of possible hazards and/or the results of each method
or procedure. For these reasons,
Only current licensed electrical and plumbing
contractors should attempt HGS installations.
Installations must strictly comply with
all applicable codes, industry standards
and regulations.
Your Briggs & Stratton Home Generator System is supplied
with this “Operator’s Manual” and a separate “Installation
Manual”. These are important documents and should be
retained by the owner after the installation has been
completed.
Installation Assistance
For the Home Owner:
To help you make informed choices and communicate
effectively with your installation contractor(s),
Read and understand the
Owner Orientation Section of this manual
BEFORE contracting or starting
your HGS installation.
To arrange for proper installation, contact the store at which
you purchased your Briggs & Stratton Home Generator
System, your dealer, a licensed electrician or your utility
power provider.
The HGS Warranty is VOID unless the system is installed
by licensed electrical and plumbing professionals.
For the Installing Dealer/Contractor:
For most applications, the Installation manual contains all the
information required to properly install and start the Home
Generator System. This Operator’s Manual describes
essential circuit selection, routine operation and owner
maintenance procedures.
If you need more information, call 1-800-743-4115, between
8:00 AM and 5:00 PM CT.
The Emission Control System for this generator is warranted
for standards set by the U.S. Environmental Protection
Agency and by the California Air Resources Board (CARB).
OWNER ORIENTATION
This section provides Home Generator System owners with
the information necessary to achieve the most satisfactory
and cost effective installation possible.
The illustrations are for typical circumstances and are meant
to familiarize you with the installation options available with
your Home Generator System. A thorough understanding of
these options will provide fundamental control over the cost
of your installation, as well as ensure your final satisfaction
and security.
Federal and local codes, appearance, noise levels, fuel types,
and distances are the factors that must be considered when
negotiating with an installation professional. Remember that
as the distance from the existing electrical service and
gaseous fuel supply increases, equal compensations in
piping and wiring materials must be allowed for. This is
necessary to comply with local codes and overcome
electrical voltage drops and gaseous fuel pressure drops.
The factors mentioned above will have a direct affect on
the overall price of your Home Generator System
installation.
NOTE: In some areas you may need to acquire electrical
permits for installing the Home Generator System, building
permits for installing gas lines, and permits for noise
allowances. Your installer should check your local codes AND
obtain the permits before installing the system.

INSTALLATION
7
Fuel Factors
An important consideration affecting the entire installation is
the type of fuel used by your Home Generator System. The
system was factory tested and adjusted using natural gas as
a fuel. Liquid propane (LP) may also be used as a fuel (see
the Installation Manual).
Although there are specific factors that are inherent to each of
these fuels, your location and the duration of possible utility
interruptions should guide your selection of fuel type. For
urban installations, Natural Gas (if available) should be your
fuel of choice. For remote installations, a Liquefied Petroleum
(LP) tank might better meet your needs.
For proper engine function, the following fuel guidelines are
recommended:
• Use clean, dry fuel, free of moisture or any particulate
material. Using fuels outside the following recommended
values may cause performance problems.
In engines set up to run on propane (LP) gas,
commercial grade HD5 propane with a minimum fuel
energy of 2500 BTUs/ft3with maximum propylene
content of 5% and butane and heavier gas content of
2.5% and minimum propane content of 90%.
Power Decrease at High Altitude or High Temperature
Air density is less at high altitudes, resulting in less available
engine power. Specifically, engine power will decrease 3.5%
for each 1,000 feet (300 meters) above sea level and 1% for
each 10° F (5.6°C) above 77°F (25°C). Make sure you and
your installer consider these factors when determining total
generator load.
Generator Location
The actual physical location of your HGS has a direct affect on:
1. The amount of plumbing required to fuel your generator.
2. The amount of wiring required to control and connect
your generator.
NOTE: Specific location guidelines are discussed in the
Installation Manual. Acquaint yourself with that information
and confer with your installer. Be sure to ask how your site
might affect installation costs and compliance with local
codes and standards.
Home Generator System Location
Before installing generator, consult with homeowner and convey
the following guidelines which may affect the desired location.
Generator Clearances
Install generator outdoors in an area which will not accumulate
deadly exhaust gas. DO NOT install generator where exhaust
gas could accumulate and enter inside or be drawn into a
potentially occupied building. Ensure exhaust gas is kept away
from any windows, doors, ventilation intakes or other
openings that can allow exhaust gas to collect in a confined
area (Figure 1). Prevailing winds and air currents should be
taken into consideration when positioning generator.
WARNING
Propane and Natural Gas are extremely
flammable and explosive.
Fire or explosion can cause severe burns or
death.
• The Home Generator System is equipped with an automatic
safety gas “fuel shut-off” valve.
• DO NOT operate the equipment if the “fuel shut-off” valve is
missing or inoperative.

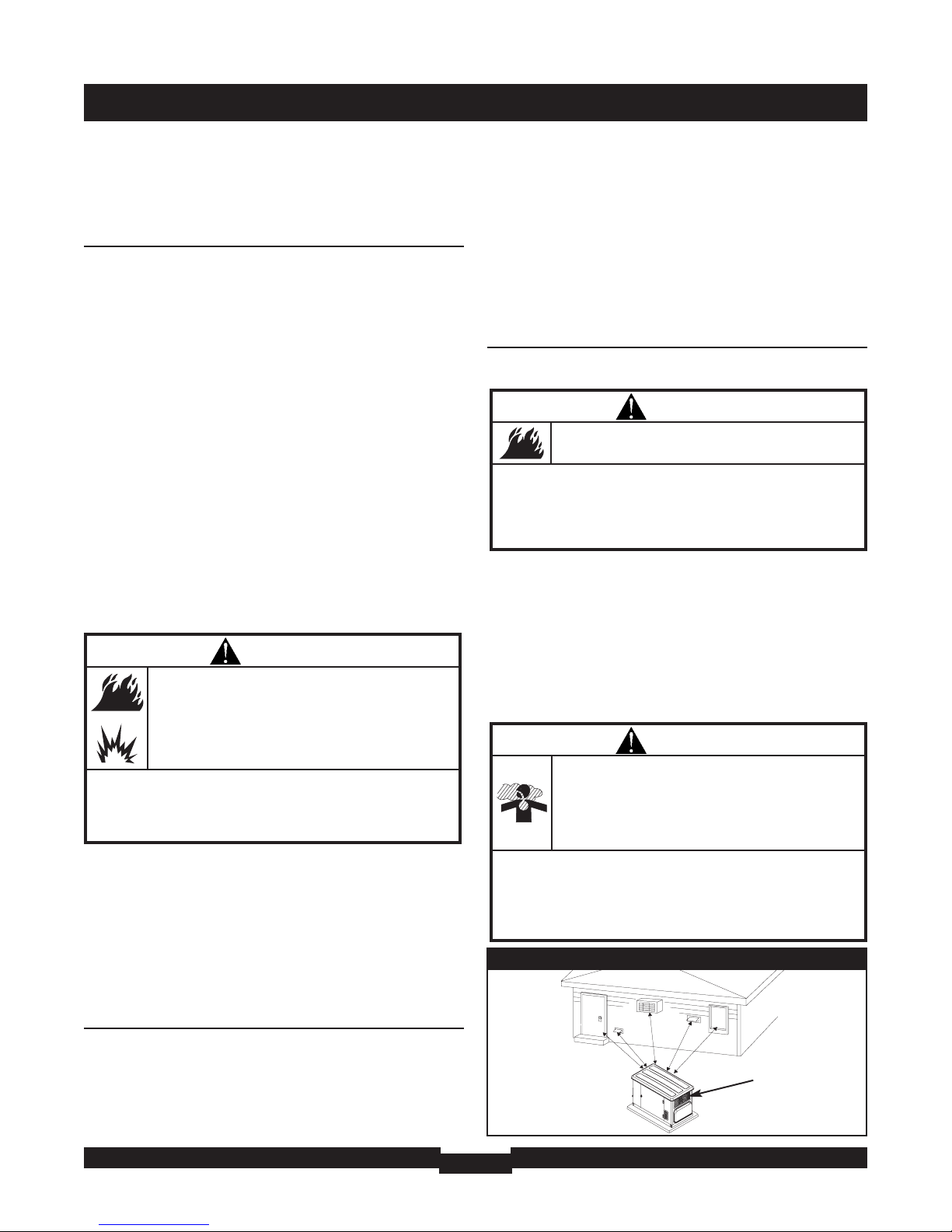

Figure 1 — Home Generator System Location
Exhaust Port
WARNING
Running engine gives off carbon monoxide, an
odorless, colorless, poison gas.
Breathing carbon monoxide can cause headache,
fatigue, dizziness, vomiting, confusion, seizures,
nausea, fainting or death.
• Operate generator ONLY outdoors.
• Install a battery operated carbon monoxide alarm near the
bedrooms.
• Keep exhaust gas from entering a confined area through
windows, doors, ventilation intakes, or other openings.
WARNING
Exhaust heat/gases can ignite combustibles or
structures causing a fire.
• DO NOT install the generator closer than 5 feet (1.5m) from
any combustibles or structures with combustible walls having
a fire resistance rating of less than 1 hour.
• Keep at least 3 ft. (91 cm) clearance on all sides of generator
including overhead.

INSTALLATION
8
General Location Guidelines
• Install the unit outdoors ONLY.
• Place the unit in a prepared location that is flat and has
provisions for water drainage.
• Install the unit in a location where sump pump discharge,
rain gutter down spouts, roof run-off, landscape irrigation,
or water sprinklers will not flood the unit or spray the
enclosure and enter any air inlet our outlet openings.
• Install the unit where the location of any services such as
phone, electrical, fuel, air conditioning, irrigation, including
covered, concealed and underground services will not be
affected or obstructed.
• Install the unit where air inlet and outlet openings will not
become obstructed by leaves, grass, snow, etc. If
prevailing winds will cause blowing or drifting, you may
need to construct a windbreak to protect the unit.
• Install the generator as close as possible to the Transfer
Switch to reduce the length of wiring and conduit.
• Install the generator as close as possible to the fuel supply
to reduce length of pipes.
IMPORTANT: Laws or local codes may regulate the distance
to the fuel supply.
The Home Generator System is shipped already attached to
its mounting pad. Unless mandated by local code, a concrete
slab is not required.
If mandated by local code, construct a concrete slab at least
3 inches thick and 6 inches longer and wider than the unit.
Attach unit to slab with 1/4” diameter (minimum) masonry
anchor bolts long enough to retain the unit.
Essential Circuits
As a Home Generator System owner, it is important that you
clearly identify the circuits in your building that are "essential"
to you.
It is important that your installer understand which circuits
you want to include as "Essential Circuits". Depending on the
power consumed by these circuits, most or all of them can
be switched to the Home Generator System for the duration
of normal power interruption.
The wattage reference guide shown in Figure 2 will assist you
with your decision-making process. It provides the wattage
used by many ordinary household devices. Use it as a guide
when selecting your essential circuits. Review this information
with your installer and ask about any technical considerations
that might affect the cost of your installation.
Device
Running
Watts

Air Conditioner (12,000 Btu)*
1700

Air Conditioner (24,000 Btu)*
3800

Air Conditioner (40,000 Btu)*
6000

Battery Charger (20 Amp)
500

Circular Saw (6-1/2")
800 to 1000

Clothes Dryer (Electric)*
5750

Clothes Dryer (Gas)*
700

Clothes Washer*
1150

Coffee Maker
1750

Compressor (1 HP)*
2000

Compressor (1/2 HP)*
1400

Compressor (3/4 HP)*
1800

Curling Iron
700

Dehumidifier*
650

Electric Blanket
400

Electric Range (per element)
1500

Electric Skillet
1250

Freezer*
700

Furnace Fan (3/5 HP)*
875

Garage Door Opener*
500 to 750

Hair Dryer
1200

Hand Drill
250 to 1100

Iron
1200

Jet Pump*
800

Light Bulb
100

Microwave Oven
700 to 1000

Milk Cooler*
1100

Oil Burner on Furnace
300

Oil Fired Space Heater (140,000 Btu)
400

Oil Fired Space Heater (30,000 Btu)
150

Oil Fired Space Heater (85,000 Btu)
225

Radio
50 to 200

Refrigerator
700

Slow Cooker
200

Submersible Pump (1 HP)*
2000

Submersible Pump (1/2 HP)*
1500

Submersible Pump (1-1/2 HP)*
2800

Sump Pump*
800 to 1050

Table Saw (10")*
1750 to 2000

Television
200 to 500

Toaster
1000 to 1650
Figure 2 — Wattage Reference Guide
*Allow three (3) times listed watts for starting device

INSTALLATION
9
Essential Circuit Selection
When selecting the essential circuits that will be switched to
“Standby Power,” it is important that the sum of the combined
circuit loads does not exceed the wattage/amperage capacity of
the generator. To help you with your selection of essential
circuits, please consider the following:
Add up the total wattage of all electrical devices to be
connected at one time. This total should NOT be greater
than the generator’s wattage capacity.
The rated wattage of lights can be taken from light bulbs.
The rated wattage of tools, appliances and motors can
usually be found on a data plate or decal affixed to the
device.
If the appliance, tool or motor nameplate does not list
wattage, multiply volts times the ampere rating to
determine watts (Volts x Amps = Watts).
Some electric motors (induction types) require about three
times more watts of power for starting than for running.
This surge lasts for only a few seconds. Be sure you allow
for this high starting wattage when selecting electrical
devices that will be energized by the Home Generator
System:
• Figure the watts required to start the largest motor.
• Add that to the total running watts of all other
connected loads.
This Briggs & Stratton Home Generator System complies
with the following “stationary standby power rating”:
The standby power rating is applicable for supplying power
for the duration of normal power interruption. NO sustained
overload capability is available for this rating.
This rating is applicable to installations served by a reliable
normal utility source. This rating is only applicable to
variable loads with an average load factor of 80% of the
standby rating. The standby rating is only applicable for
optional standby power where the generator set serves as
the backup to the normal utility source.
Use the “Wattage Reference Guide” provided and mark those
circuits you consider “critical” or “essential”. Make sure you
and your installer consider the system’s altitude above sea
level and the ambient temperature range when determining
total generator load.
IMPORTANT: When using the 100 Amp or 200 Amp transfer
switch with the Home Generator System, you must turn off any
non essential loads. Failure to turn off non essential loads could
overload the generator causing it to shut down. Some examples
of non essential loads are as follows:
• Pool pump
• Hot tub
• Electric hot tub and/or pool heaters
• Central air conditioners
• Electric hot water heaters
• Electric range and/or oven
• Arc welder
• Non essential electric heaters
UNPACKING
Refer to the Installation Manual for detailed unpacking
instructions, if desired.
Delivery Inspection
After removing the carton, carefully inspect the Home
Generator System for any damage that may have occurred
during shipment.
IMPORTANT: If loss or damage is noted at time of delivery,
have the person(s) making delivery note all damage on the
freight bill and affix his signature under the consignor's
memo of loss or damage. If loss or damage is noted after
delivery, separate the damaged materials and contact the
carrier for claim procedures. Missing or damaged parts are
not warranted.
Shipment Contents
The Home Generator System is supplied with:
• Home Generator System
• Pre-attached mounting pad
• One flexible hook-up hose
• Installation and start-up manual
• Operator’s manual
• Illustrated parts list manual
• Installation checklist
• Two access door keys
• Four lifting hole plugs
• Oil fill spout
• One spare 15A fuse
• 2 Pole connector - 240V from house
• 10 Pole connector - Sensing and control wires
• Air intake engine cover
• Alternator cover
• Diagnostic LED kit (red LED/plate/screws (2))

FEATURES AND CONTROLS
10
KNOW YOUR HOME GENERATOR SYSTEM
Read this Operator’s Manual and safety rules before operating your generator.
Compare the illustrations with your generator to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
15 Amp Fuse — Protects the DC control circuits.
Air Cleaner — Protects engine by filtering dust and debris
out of intake air.
Battery — 12 Volt DC, 55 Amp-Hour sealed battery provides
power to start the engine. Battery receives trickle charge
whenever generator is not running.
Control Panel — Used for various test, operation and
maintenance functions. See “KNOW YOUR SYSTEM
CONTROL PANEL” on the next page.
Engine Label — Identifies engine model and type.
Exhaust Port — High-performance muffler lowers engine
noise to comply with most residential codes.
Oil Dip Stick — Used to check the engine oil level.
Oil Drain Hose — Provided to facilitate oil changing.
Oil Fill Cap — Remove to service the engine with
recommended oil.
Oil Filter — Filters engine oil to prolong system life.
Unit Data Decal (located on base) — Identifies unit by serial
number.

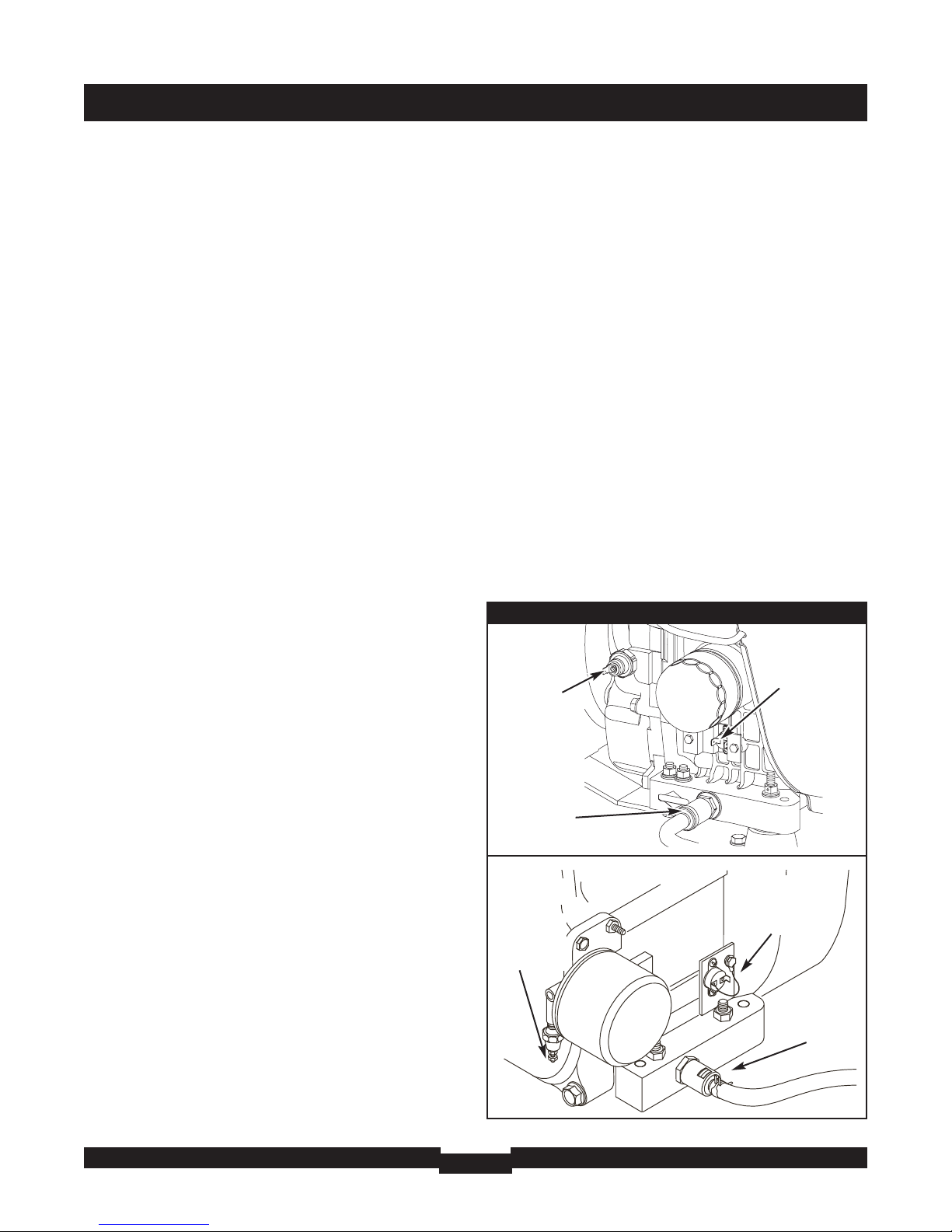

Air Cleaner Oil Filter
Control Panel Door Opening
Oil Fill Door Opening
Unit Data Decal
Oil Drain Door Opening
Exhaust Port
Oil Dip Stick
Fuel Inlet
Control Panel
(see page 11)
Battery
Oil Drain Hose
Oil Fill Cap
15 Amp Fuse
Engine Label

FEATURES AND CONTROLS
11
KNOW YOUR SYSTEM CONTROL PANEL
Compare this Control Panel illustration with your generator to familiarize yourself with the location of these important controls:
Manual Over-Ride
Switch
Set Exercise
Switch
System Switch
Digital
Display
15 Amp
Fuse
15 Amp Fuse — Protects the Home Generator System DC
control circuits. If the fuse has ‘blown’ (melted open) or was
removed, the engine cannot crank or start. Replace the fuse
using only an identical ATO 15A fuse.
Circuit Breaker — Protects the system from shorts and
other over-current conditions. Must be ON to supply power
to the Automatic Transfer Switch.
Digital Display — Displays the total number of hours the
generator has been running and fault codes. Used to
schedule maintenance tasks and troubleshooting operational
problems with the Home Generator System. All fault
conditions are described in the section “Fault Detection
System”.
Manual Over-Ride Switch — With system switch in AUTO
position, push the manual over-ride switch to start the
generator. To turn off the generator, push and hold the
manual over-ride switch again until engine stops.
Service Tool — For use by qualified service personnel ONLY.
Set Exercise Switch — Used to set the exercise cycle start
time and day-of-the-week. Exercise cycle only occurs in
AUTO mode.
System Switch — This two-position switch is the most
important control on the system and is used as follows:
•“AUTO” position is the normal operating position. If a
utility power outage is sensed, the system will start the
generator. When utility power is restored, lets the engine
stabilize internal temperatures, shuts off the generator, and
waits for the next utility power outage.
•“OFF” position turns off running generator, prevents unit
from starting and resets any detected faults.
Service Tool
Circuit
Breaker

INSTALLATION
12
Access Doors
The Home Generator System is equipped with an enclosure
that has three access doors (Figure 3). The doors are named
for a significant component located behind them. Starting
with the side that has the fuel connection and proceeding
clockwise, the doors are named:
• Oil Fill door
• Control Panel door
• Oil Drain door
Each Home Generator System is equipped with two identical
keys. These keys fit the locks that secure the access doors.
To Open an Access Door:
1. Insert key into lock of access door you wish to open and
turn one quarter turn counterclockwise.
2. Grasp door’s handle and turn one quarter turn
counterclockwise to open. Remove key.
To Close an Access Door:
1. Close door and turn doors handle one quarter of a turn
clockwise.
2. Insert key into lock of access door and turn one quarter
turn clockwise. Remove key.
Oil Fill Door
Fuel Inlet
Exhaust
Port
Control Panel Door
Oil Drain Door
Exhaust Bulkhead
Figure 3 — Enclosure Access Doors
WARNING
Contact with muffler area can result in serious
burns.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.

INSTALLATION
13
BEFORE INITIAL START-UP
Engine Oil
This engine is shipped from the factory filled with the
recommended oil. Before starting the engine, check oil level
and ensure that engine is serviced as described in the engine
operator’s manual.
Oil Considerations
Your Home Generator System is equipped with an engine
that has been pre-run at the factory and does not require the
traditional “break-in” procedure.
The system is filled with synthetic oil (API SJ/CF 5W-30W).
This allows for system operation in the widest range of
temperature and climate conditions.
NOTE: The use of synthetic oil DOES NOT alter the required
oil change intervals described in the engine operator’s
manual.
Battery Connection
The Home Generator System is supplied with a 12 Volt DC
55 Amp-Hour, valve regulated battery. It is a sealed, lead-acid
rechargeable battery. It is installed in the unit and the battery
cables are connected at the factory. The generator’s 15 Amp
fuse has been removed to prevent the unit from starting
during shipping.
NOTE: With the battery installed, all wiring to transfer switch
and Home Generator System completed, utility power
supplied to the Automatic Transfer Switch, and the unit in
AUTO mode, the battery receives a trickle charge while the
engine is not running. The trickle charger cannot be used to
recharge a battery that is completely discharged.
Gaseous Fuel System
• Ensure that all fuel connections are tight, secure and
without leaks.
• Ensure that all shutoff valves are OPEN and that adequate
pressure is available (see installation manual).
NOTICE
Any attempt to crank or start the engine before it has been
properly serviced with the recommended oil will result in
equipment failure.
• Refer to engine manual for oil fill information.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
CAUTION
Installing the 15A fuse could cause the engine to
start.
• DO NOT install this fuse until all plumbing and wiring has been
completed and inspected.
WARNING
Propane and Natural Gas are extremely
flammable and explosive.
Fire or explosion can cause severe burns or
death.
• DO NOT operate engine if smell of fuel is present or other
explosive conditions exist.
• If you smell ‘raw’ gaseous fuel (natural or LP) near the unit,
immediately turn off the gas supply to the Home Generator
System.
• Contact your gas utility or the system installer for assistance in
determining the source of the smell.

OPERATION
14
AUTOMATIC OPERATION
To select automatic operation, do the following:
1. Set the service disconnect or main distribution panel
circuit breaker that sends utility voltage to the transfer
switch to ON.
2. Set the generator’s main circuit breaker to its ON
position.
3. Set the system switch to AUTO.
Checking Automatic Operation
To check the system for proper automatic operation, proceed
as follows:
1. Turn OFF the service disconnect or main distribution
panel circuit breaker sending power to the automatic
transfer switch.
The engine will crank and start when the utility voltage drops
out and the sensor has timed out. Let the system go through
its entire automatic operation sequence.
2. With the generator output supplying its loads, turn ON
the service disconnect or main distribution panel circuit
breaker that supplies utility power to the Automatic
Transfer Switch.
3. The automatic transfer switch will transfer loads back to
the utility power after 5 minute minimum run time and
utility is restored.
4. The generator will run for an additional one minute for
engine cool down, then shut down.
NOTE: If utility is restored and generator does not shut down
after 10 minutes, set system switch to OFF and contact your
installer or local service center.
This completes the test procedures for automatic operation.
The Home Generator System will now start automatically
when utility power is lost and will supply power to the
transfer switch.
Servicing the System
To service system:
1. Set the system switch to OFF.
2. Set the generator’s main circuit breaker to its OFF
position.
3. Utility voltage is present. Disconnect power before
servicing by removing the two 2 Amp fuses from the
transfer switch.
Setting Exercise Timer
The Home Generator System is equipped with an exercise
timer that will start and exercise the system once every seven
days. During this exercise period, the unit runs for
approximately 20 minutes and then shuts down. Electrical
load transfer DOES NOT occur during the exercise cycle
(unless an utility power outage occurs).
A switch on the control panel is labeled “Set Exercise” (see
page 11). The specific day and the specific time of day this
switch is pressed is programmed into the control board
memory. This date and time is then used to automatically
initiate the system exercise cycle. The LED on the control
panel will flash until the set exercise is set.
To perform the Set Exercise procedure:
1. Choose the day and time you want your Home Generator
System to exercise.
2. On that day and time, press and hold down the “Set
Exercise” switch for three seconds.
NOTE: The LED will flash until the switch is pressed for three
seconds, then the LED will illuminate for 5 seconds and turn
off.
For example, if you press the “Set Exercise” switch on
Sunday morning at 10:00 AM, the unit will run an exercise
cycle the following Sunday at 10:00 AM (+/- 1/2 hour).
NOTE: “Set Exercise” will only work if the unit is in the
Automatic mode and this exact procedure is followed. The
exerciser will need to be re-set if the 15 Amp fuse is
removed or changed, or if the 12 Volt DC battery is
disconnected.
If you want to change the day and time the unit exercises,
simply perform the “Set Exercise” procedure at the exact
weekday and time you want it to take place.
CAUTION
With the switch set to AUTO, the engine may
crank and start at any time without warning.
Such automatic starting normally occurs when
utility source voltage drops below a preset level
or during the normal exercise cycle.
• To prevent possible injury that might be caused by such sudden
starts, always set the system switch to OFF.
• Remove the 15 Amp fuse before working on or around the
generator or transfer switch.

MAINTENANCE
15
FAULT DETECTION SYSTEM
The generator may have to run for long periods of time with
no operator present. For that reason, the system is equipped
with sensors that automatically shut down the generator in
the event of potentially damaging conditions, such as low oil
pressure, high oil temperature, over speed, and other
conditions.
The generator's control panel has a digital display to show
fault codes. An extra LED indicator is installed at a
convenient inside location. The LED will turn on and off in a
series of blinks if certain problems are detected in your HGS.
The blink pattern is repeated with a brief pause between each
series. The fault code as shown on the control panel, and the
number of blinks on the mounting plate, indicates the
detected fault and as follows:
Fault Codes / LED Flashes Fault Description
FC_1 / 1 Low battery voltage
FC_2 / 2 Low oil pressure
FC_3 / 3 Low voltage
FC_4 / 4 Engine fail to start
FC_5 / 5 Low frequency
FC_6 / 6 Engine overspeed
FC_7 / 7 Oil temperature high
FC_8 / 8 Transfer switch fault
Reset Fault Detection System
The operator must reset the fault detection system each time
it activates. To do so, place the system switch in the OFF
position for 5 seconds or more. Return the Home Generator
System to service after correcting the problem by placing the
system switch in the AUTO position.
A description of each fault and suggested remedies are as
follows:
No LED - Discharged Battery
This condition is caused by a completely discharged battery.
To remedy the problem, remove the 15 Amp fuse and
disconnect the battery from the generator. Take the battery to
a local battery store for analysis.
Replace the battery after it has been fully recharged,
connecting the NEGATIVE cable last. Install the 15 Amp fuse.
Low Battery Voltage
This fault is indicated by fault code FC_1 and one blink on
the LED indicator. This condition occurs if the generator
cannot start because the starting battery output power is
below that needed to crank the engine. Causes for this
problem may be a faulty battery or trickle charger circuit.
To remedy the problem, contact your local service center to
check the battery trickle charge output. Remove the 15 Amp
fuse and disconnect the battery from the generator. Take the
battery to a local battery store for analysis.
Replace the battery after it has been fully recharged,
connecting the NEGATIVE cable last. Install the 15 Amp fuse.
Low Oil Pressure
This fault is indicated by fault code FC_2 and two blinks on
the LED indicator. The unit is equipped with an oil pressure
switch (Figure 4) using normally closed contacts that are
held open by engine oil pressure during operation. Should oil
pressure drop below a preset range, switch contacts close
and the engine is shut down.
Figure 4 — Low Oil Pressure & High Temp. Switches
High
Temperature
Switch
Oil Drain
Fitting
Oil
Pressure
Switch
High
Temperature
Switch
Oil Drain
Fitting
Oil
Pressure
Switch
15kW
12kW

MAINTENANCE
16
To remedy the low oil pressure condition, add the
recommended oil to the FULL mark on the dipstick.
If low oil pressure condition still exists, engine will start, then
shut down after about 20 seconds and diagnostic LED will
flash. In this case, contact an authorized service facility.
Low Voltage (Generator)
This fault is indicated by fault code FC_3 and three blinks on
the LED indicator. This condition is caused by a restriction in
the fuel flow, a broken or disconnected signal lead, a failed
alternator winding, the control panel circuit breaker is open,
or Home Generator System is overloaded.
To remedy the problem, contact your local service center.
Engine Fail To Start
This fault is indicated by fault code FC_4 and four blinks on
the LED indicator. This feature prevents the generator from
damaging itself if it continually attempts to start in spite of
another problem, such as no fuel supply. Each time the
system is directed to start, the unit will crank for 10 seconds,
pause for 10 seconds, crank for 10 seconds, pause for
10 seconds, and repeat. If the system does not begin
producing electricity after approximately 2 minutes, the unit
will stop cranking and the LED will blink.
Check to make sure the generator’s main circuit breaker is in
the ON (closed) position in order for the sensing leads to
verify that the unit is running.
The most likely cause of this problem is no fuel supply.
Check the inside and outside fuel shut off valves to ensure
they are fully open. Other causes could be failed spark
plug(s), failed engine ignition, or the engine air filter is
clogged. You may need to contact your installer for
assistance if you can’t remedy these problems.
Low Frequency
This fault is indicated by fault code FC_5 and five blinks on
the LED indicator. This feature protects devices connected to
the transfer switch by shutting the generator down if the
engine runs slower than the preset limit.
• If the generator output frequency is below 55 Hz for three
seconds, the generator will shut down.
This condition is caused by a failed engine governor or by
excessive loads on the generator. To remedy the problem,
you may need to contact your installer or local service center
for assistance.
Engine Overspeed
This fault is indicated by fault code FC_6 and six blinks on
the LED indicator. This feature protects devices connected to
the transfer switch by shutting the generator down if the
engine happens to run faster than the preset limit. The
overspeed fault is detected as follows:
• If the generator output frequency is 65-70 Hz, after three
seconds, the generator will shut down.
• If the generator output frequency is greater than 70 Hz, the
generator will shut down instantly.
This condition is caused by a failed engine governor. To
remedy the problem, you should contact your installer or
local service center for assistance.
Oil Temperature High
This fault is indicated by fault code FC_7 and seven blinks on
the LED indicator. The contacts of the temperature switch
(Figure 4) are normally open. If the engine oil temperature
exceeds approximately 140°C (284°F), the fault is detected
and the engine shuts down.
Common causes for this condition include running the unit
with all access doors removed, obstructed air inlet or exhaust
port, low oil level, or debris in the engine cylinder cooling
fins.
To resolve the problem, remove any accumulated debris and
obstructions and let the engine cool down. Ensure that the
Oil Service door and/or the Control Panel door is installed
whenever the unit is running.
Transfer Switch Fault
This fault is indicated by fault code FC_8 and eight blinks on
the LED indicator (if transfer switch is equipped with fault
detection).
To remedy the problem, you should contact your installer or
local service center for assistance.

MAINTENANCE
17
GENERATOR MAINTENANCE
The generator warranty does not cover items that have been
subjected to operator abuse or neglect. To receive full value
from the warranty, the operator must maintain the system as
instructed in the engine operator’s manual.
All adjustments should be made at least once each season.
Follow the requirements in the engine operator’s manual.
Generator maintenance consists of keeping the unit clean.
Operate the unit in an environment where it will not be
exposed to excessive dust, dirt, moisture or any corrosive
vapors. Cooling air louvers on the enclosure must not
become clogged with snow, leaves, or any other foreign
material.
Check the cleanliness of the unit frequently and clean when
dust, dirt, oil, moisture or other foreign substances are
visible on its exterior/interior surface.
NOTE: DO NOT use direct spray from a garden hose to clean
generator. Water can enter the engine and generator and
cause problems.
Changing Engine Oil
• Place the oil drain tube into an approved container.
• Push in and rotate the oil drain fitting 1/4 turn
counterclockwise. Slowly pull outward until oil starts
draining (Figure 5). DO NOT pull the oil drain fitting off the
engine.
• When the oil has drained, push the oil drain fitting in and
rotate 1/4 turn clockwise until it locks in place.
• Slide the oil drain tube up into the clamp on the generator.
To fill your engine with oil:
• Follow the synthetic oil grade recommendation and oil fill
instructions given in the engine operator’s manual.
To Clean the Generator
• Use a damp cloth to wipe exterior surfaces clean.
• Use a soft, bristle brush to loosen caked on dirt, oil, etc.
• Use a vacuum cleaner to pick up loose dirt and debris.
• Use low pressure air (not to exceed 25 psi) to blow away dirt.
Inspect cooling air slots and openings on the generator. These
openings must be kept clean and unobstructed.
When Calling the Factory
You must have the following information at hand if it is
necessary to contact a local service center regarding service
or repair of this unit:
1. Obtain the unit Model Number and Serial Number from
the unit data decal. See “Know Your Home Generator
System” diagram for location.
2. Obtain the engine Model/Type/Code numbers from the
engine label. See “Know Your Home Generator System”
diagram for location. Please note that the model number
may vary slightly from that presented herein.
STORAGE
The Briggs & Stratton Home Generator System is designed
for continuous backup operational duty. As such, there is no
need to take any storage precautions. However, if it becomes
necessary to take the system out of service for an extended
period, call Briggs and Stratton Technical Services at
1-800-743-4115, between 8:00 AM and 5:00 PM CT for
specific recommendations.
Figure 5 — Oil Drain Fitting
NOTICE
Any attempt to crank or start the engine before it has been
properly serviced with the recommended oil will result in
equipment failure.
• Refer to engine manual for oil fill information.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
NOTICE
Improper treatment of generator can damage it and
shorten its life.
• DO NOT expose generator to excessive moisture, dust, dirt, or
corrosive vapors.
• DO NOT insert any objects through cooling slots.

TROUBLESHOOTING
18
TROUBLESHOOTING
Problem Cause Correction
Engine is running, but no AC output is
available.
1. Circuit breaker open or defective.
2. Fault in generator.
3. Poor wiring connections or
defective transfer switch.
1. Reset or replace circuit breaker.
2. Contact local service facility.
3. Check and repair.
Engine runs good at no-load but "bogs
down" when loads are connected.
1. Short circuit in a connected load.
2. Generator is overloaded.
3. Shorted generator circuit.
4. Fuel Pressure is incorrect.
5. Natural gas fuel mixture is
incorrect.
1. Disconnect shorted electrical load.
2. See "Essential Circuits".
3. Contact local service facility.
4. See "The Gaseous Fuel System" in
the Installation Manual.
5. See "The Gaseous Fuel System" in
the Installation Manual.
Engine will not start; or starts and runs
rough.
1. 15 Amp fuse missing or blown.
2. Out of fuel.
3. Failed battery.
1. Install (new) 15 Amp fuse. See
“Know Your System Control Panel”.
2. Open fuel valve(s); check propane
tank.
3. Replace battery.
Engine shuts down during operation.
1. Out of fuel.
2. Fault indicator blinking.
1. Check fuel valves, fill propane tank.
2. Count blinks and refer to "Fault
Detection System".
Loss of power on essential circuits. 1. Generator circuit breaker is open.
2. Transfer switch problems.
1. Reset circuit breaker.
2. See the transfer switch manual.

The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of time stated in the
table above. “Consumer use" means personal residential household use by a retail consumer. “Commercial use" means all other uses, including use for
commercial, income producing or rental purposes. Once equipment has experienced commercial use, it shall thereafter be considered as commercial use for
purposes of this warranty.
NO WARRANTY REGISTRATION IS NECESSARY TO OBTAIN WARRANTY ON BRIGGS & STRATTON PRODUCTS. SAVE YOUR PROOF OF PURCHASE
RECEIPT. IF YOU DO NOT PROVIDE PROOF OF THE INITIAL PURCHASE DATE AT THE TIME WARRANTY SERVICE IS REQUESTED, THE MANUFACTURING
DATE OF THE PRODUCT WILL BE USED TO DETERMINE THE WARRANTY PERIOD.
An extended fourth year of Consumer Use warranty for the engine and alternator is available by completing the customer registration card and the installation
checklist and returning both to Briggs & Stratton Power Products, LLC.
ABOUT YOUR WARRANTY
We welcome warranty repair and apologize to you for being inconvenienced. Any Authorized Service Dealer may perform warranty repairs. Most warranty
repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example, warranty service would not apply if
equipment damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, the
warranty is void if the manufacturing date or the serial number on the equipment has been removed or the equipment has been altered or modified. During
the warranty period, the Authorized Service Dealer, at its option, will repair or replace any part that, upon examination, is found to be defective under normal
use and service. This warranty will not cover the following repairs and equipment:
•Normal Wear: Outdoor Power Equipment and engines, like all mechanical devices, needs periodic parts and service to perform well. This warranty
does not cover repair when normal use has exhausted the life of a part or the equipment.
•Installation and Maintenance: This warranty does not apply to equipment or parts that have been subjected to improper or unauthorized installation or
alteration and modification, misuse, negligence, accident, overloading, overspeeding, improper maintenance, repair or storage so as, in our judgment,
to adversely affect its performance and reliability. This warranty also does not cover normal maintenance such as adjustments, fuel system cleaning
and obstruction (due to chemical, dirt, carbon, lime, and so forth).
•Other Exclusions: This warranty excludes wear items such as oil gauges, o-rings, filters, fuses, or spark plugs, etc., or damage or malfunctions
resulting from accidents, abuse, modifications, alterations, or improper servicing or freezing or chemical deterioration. Accessory parts are excluded
from the product warranty. This warranty excludes failures due to acts of God and other force majeure events beyond the manufacturers control. Also
excluded is used, reconditioned, and demonstration equipment; equipment used for prime power in place of utility power and equipment used in life
support applications. 198181-E, Rev. C, 12/31/2006
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WI, USA
Effective September 1, 2005 replaces all undated Warranties and all Warranties dated before September 1, 2005
LIMITED WARRANTY
Briggs & Stratton Power Products Group, LLC will repair or replace, free of charge, any part(s) of the equipment that is defective in material or
workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This
warranty is effective for the time periods and subject to the conditions stated below. For warranty service, find the nearest Authorized Service Dealer in
our dealer locator map at BRIGGSandSTRATTON.COM.
THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO ONE YEAR FROM PURCHASE, OR TO THE EXTENT PERMITTED BY LAW. ANY AND ALL IMPLIED WARRANTIES ARE
EXCLUDED. LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE EXCLUDED TO THE EXTENT EXCLUSION IS PERMITTED BY LAW. Some
states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and
you may also have other rights which vary from state to state or country to country.
3 years or 1500 Hours, whichever comes first
None
Consumer Use
Commercial Use
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC 12KW, 15KW and 20KW HOME GENERATOR OWNER WARRANTY POLICY
WARRANTY PERIOD

REFERENCIA
20
TABLA DE CONTENIDO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
REGLAS DE SEGURIDAD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-23
INTRODUCCIÓN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Asistencia para la Instalación . . . . . . . . . . . . . . . . . . . . . . . . 24
Para el Propietario Doméstico . . . . . . . . . . . . . . . . . . . 24
Para el Agente de Ventas/Contratista . . . . . . . . . . . . . . 24
ORIENTACIÓN PARA EL PROPIETARIO . . . . . . . . . . . . . . . . . . . . 24
Factores Relacionados con el Combustible. . . . . . . . . . . . . . 25
Disminución de la Potencia a Temperaturas Elevadas o en
Lugares Altos . . . . . . . . . . . . . . . . . . . . . . . . 25
Ubicación del Generador. . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Distancias Desde el Generador . . . . . . . . . . . . . . . . . . . . 25-26
Circuitos Fundamentales. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Selección de los Circuitos Fundamentales . . . . . . . . . . 27
DESEMPAQUE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Inspección al Momento de la Entrega. . . . . . . . . . . . . . . . . . 27
Contenido de la Caja . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
CONOZCA SU GENERADOR DOMÉSTICO. . . . . . . . . . . . . . . . . . . 28
CONOZCA EL PANEL DE CONTROL DEL SISTEMA. . . . . . . . . . . . 29
Puertas de Acceso . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Para Retirar una Puerta de Acceso . . . . . . . . . . . . . . . . 30
Para Instalar una Puerta de Acceso . . . . . . . . . . . . . . . 30
ANTES DEL ARRANQUE INICIAL . . . . . . . . . . . . . . . . . . . . . . . . . 31
Aceite de Motor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Consideraciones Sobre el Aceite. . . . . . . . . . . . . . . . . . 31
Conexión de la Batería . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Sistema de Combustible Gaseoso. . . . . . . . . . . . . . . . . . . . . 31
OPERACIÓN AUTOMÁTICA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Verificación de la Operación Automática. . . . . . . . . . . . . . . . 32
Paro del Sistema. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Configuración del Temporizador de Práctica. . . . . . . . . . . . . 32
SISTEMA DE DETECCIÓN DE FALLAS . . . . . . . . . . . . . . . . . . . . . 33
Restablecimiento del Sistema de Detección de Fallas. . 33
No se Enciende el LED - Batería Descargada . . . . . . . . 33
Baja Tensión de la Batería . . . . . . . . . . . . . . . . . . . . . . . 33
Baja Presión de Aceite . . . . . . . . . . . . . . . . . . . . . . . 33-34
Baja Tensión . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
El Motor no Arranca . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Baja Frecuencia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Sobrevelocidad del Motor . . . . . . . . . . . . . . . . . . . . . . . 34
Alta Temperatura del Aceite . . . . . . . . . . . . . . . . . . . . . 34
MANTENIMIENTO DEL GENERADOR . . . . . . . . . . . . . . . . . . . . . . 35
Cambio del Aceite del Motor. . . . . . . . . . . . . . . . . . . . . . . . . 35
Para Limpiar el Generador . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Si Llama a la Fábrica. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
ALMACENAMIENTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
REPARACION DE AVERIAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
GARANTÍA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
TABLA DE CONTENIDO
