Inverter Generator
Operator’s Manual
This generator is rated in accordance with CSA (Canadian Standards Association)
standard C22.2 No. 100-04 (motors and generators).

Not for
Reproduction
Thank you for purchasing this quality-built Briggs & Stratton® generator. We are pleased that you’ve placed your
condence in the Briggs & Stratton brand. When operated and maintained according to the instructions in this
manual, your Briggs & Stratton generator will provide many years of dependable service.
This manual contains safety information to make you aware of the hazards and risks associated with generators
and how to avoid them. This generator is designed and intended only for supplying electrical power for operating
compatible electrical lighting, appliances, tools and motor loads, and is not intended for any other purpose. It is
important that you read and understand these instructions thoroughly before attempting to start or operate this
equipment. Save these instructions for future reference.
This generator requires nal assembly before use. Refer to the Assembly section of this manual for
instructions on nal assembly procedures. Follow the instructions completely.
Where to Find Us
You never have to look far to nd Briggs & Stratton support and service for your generator. Consult your Yellow
Pages. There are over 30,000 Briggs & Stratton authorized service dealers worldwide who provide quality service.
You can also contact Briggs & Stratton Customer Service by phone at 1800 356 632, or on the Internet at
www.briggsandstratton.com.au.
Generator
Model Number _______________________
Revision _____________________
Serial Number __________________
Date Purchased _____________________
Table of Contents
Safe Operation Checklist ............... 3
Operator Safety....................... 4
Assembly............................ 8

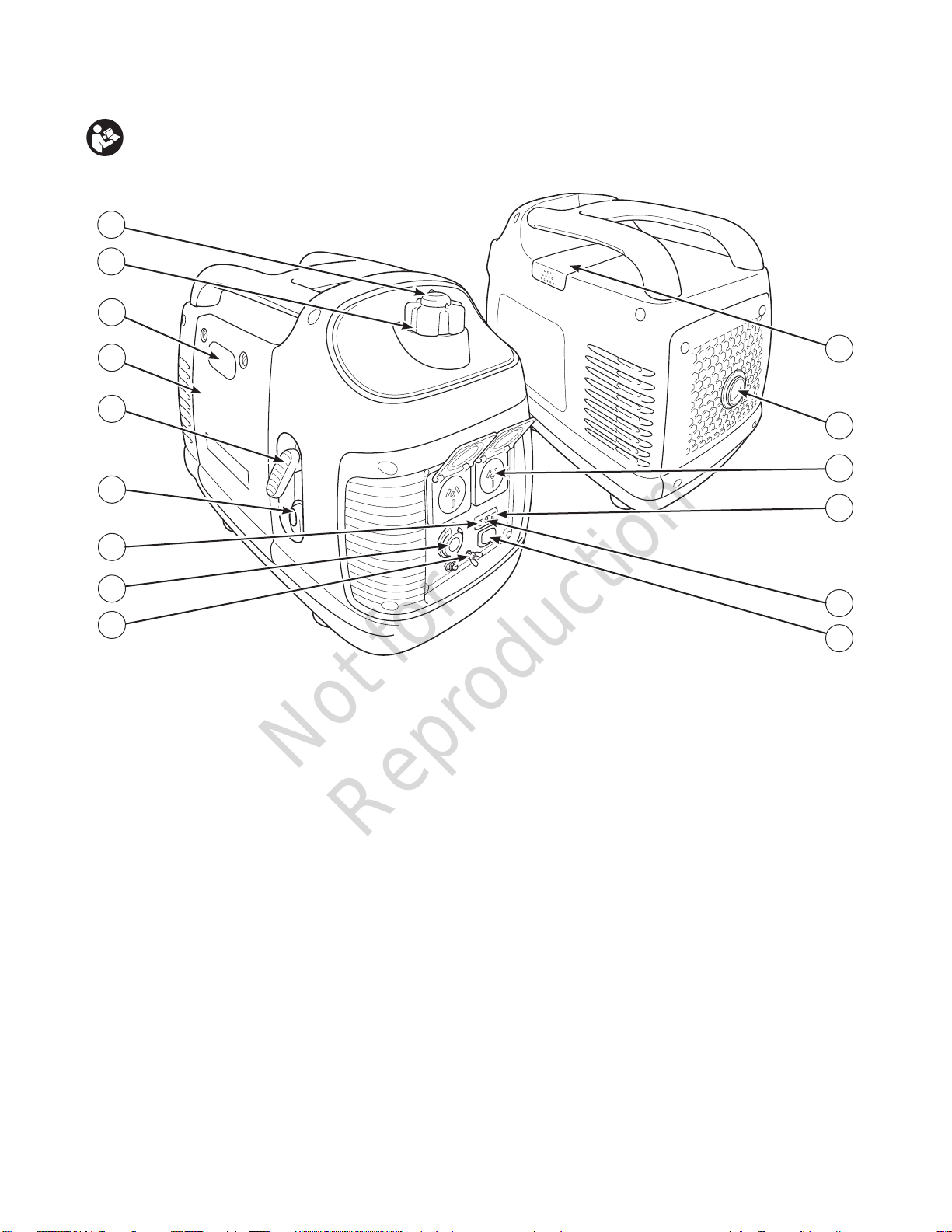

Features and Controls ................ 12
Operation........................... 14
Maintenance ........................ 17
Troubleshooting ..................... 22
Warranty ........................... 23
Product Specications ................ 24
Common Service Parts ............... 24
Copyright © 2015 Briggs & Stratton Power Products Group, LLC
Milwaukee, WI, USA. All rights reserved.
BRIGGS & STRATTON POWER PRODUCTS is a registered
trademark of Briggs & Stratton Corporation
Milwaukee, WI, USA
2 www.briggsandstratton.com.au

Not for
Reproduction
3
Safe Operation Checklist
Safe operation of the portable generator requires the completion of the following tasks:
Carbon Monoxide (CO) Alarm

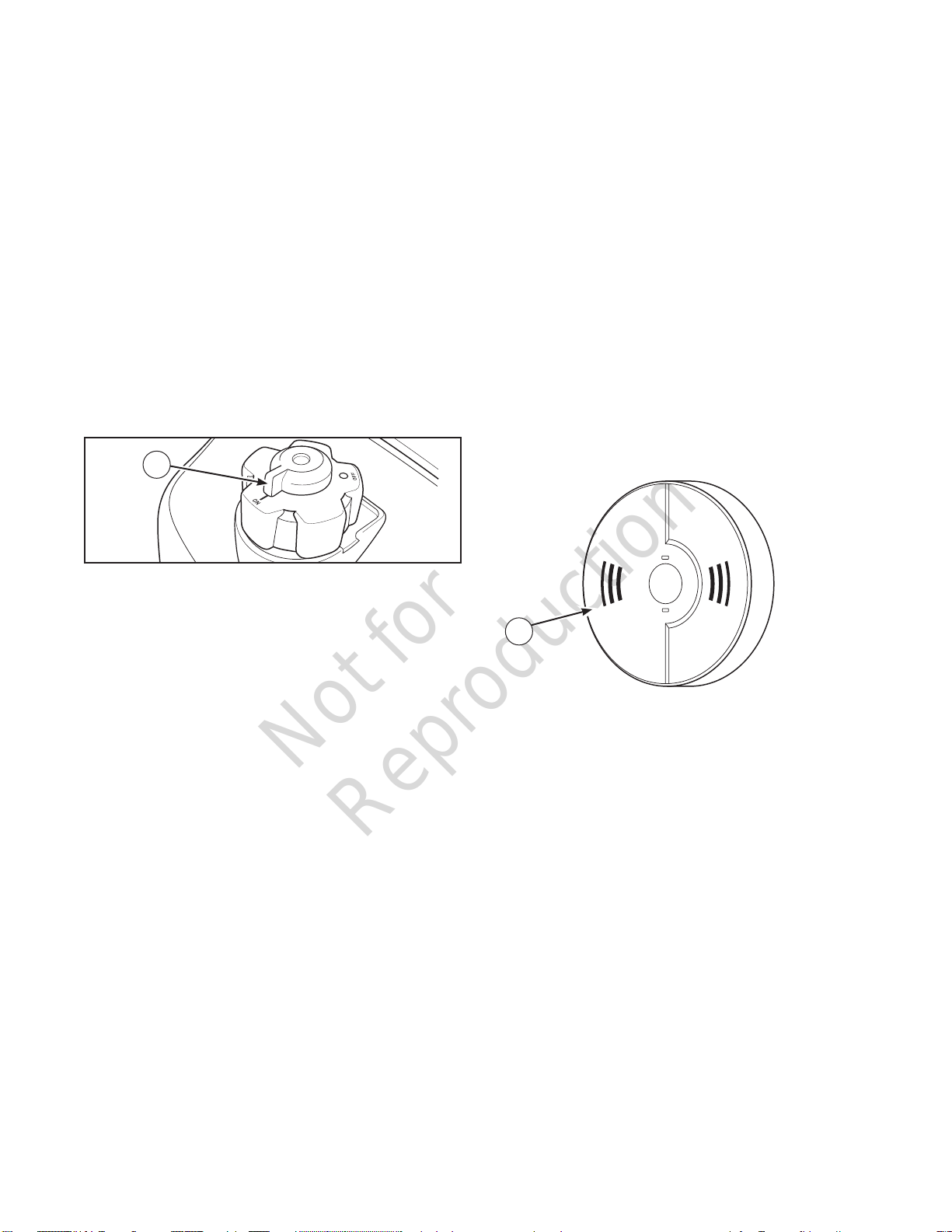

Carbon monoxide (CO) alarm(s) in working order.
Smoke Alarm
Smoke alarm(s) in working order.
Generator Location

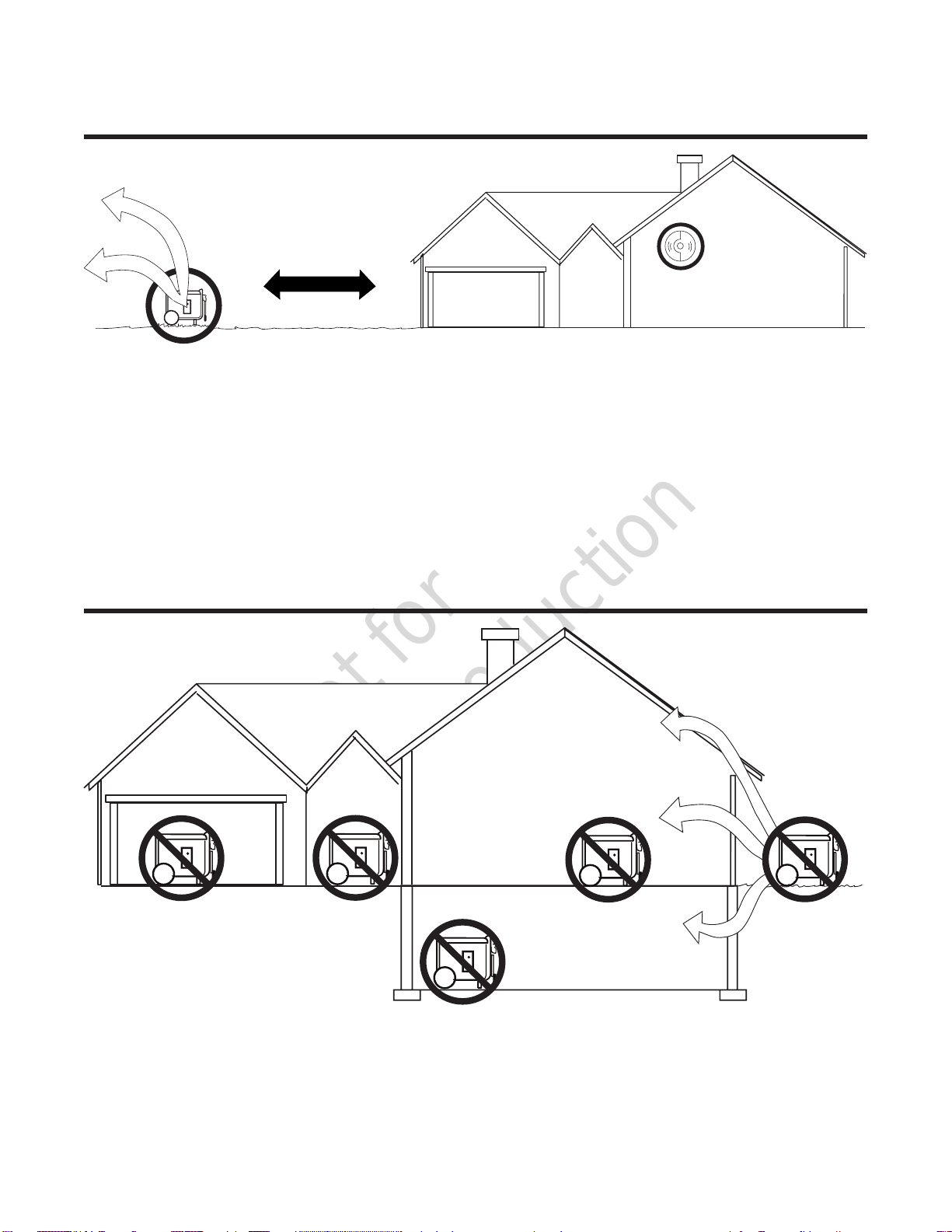

Generator placed in a Carbon Monoxide (CO) safe zone. See Generator Location to reduce the Risk of
Carbon Monoxide Poisoning.

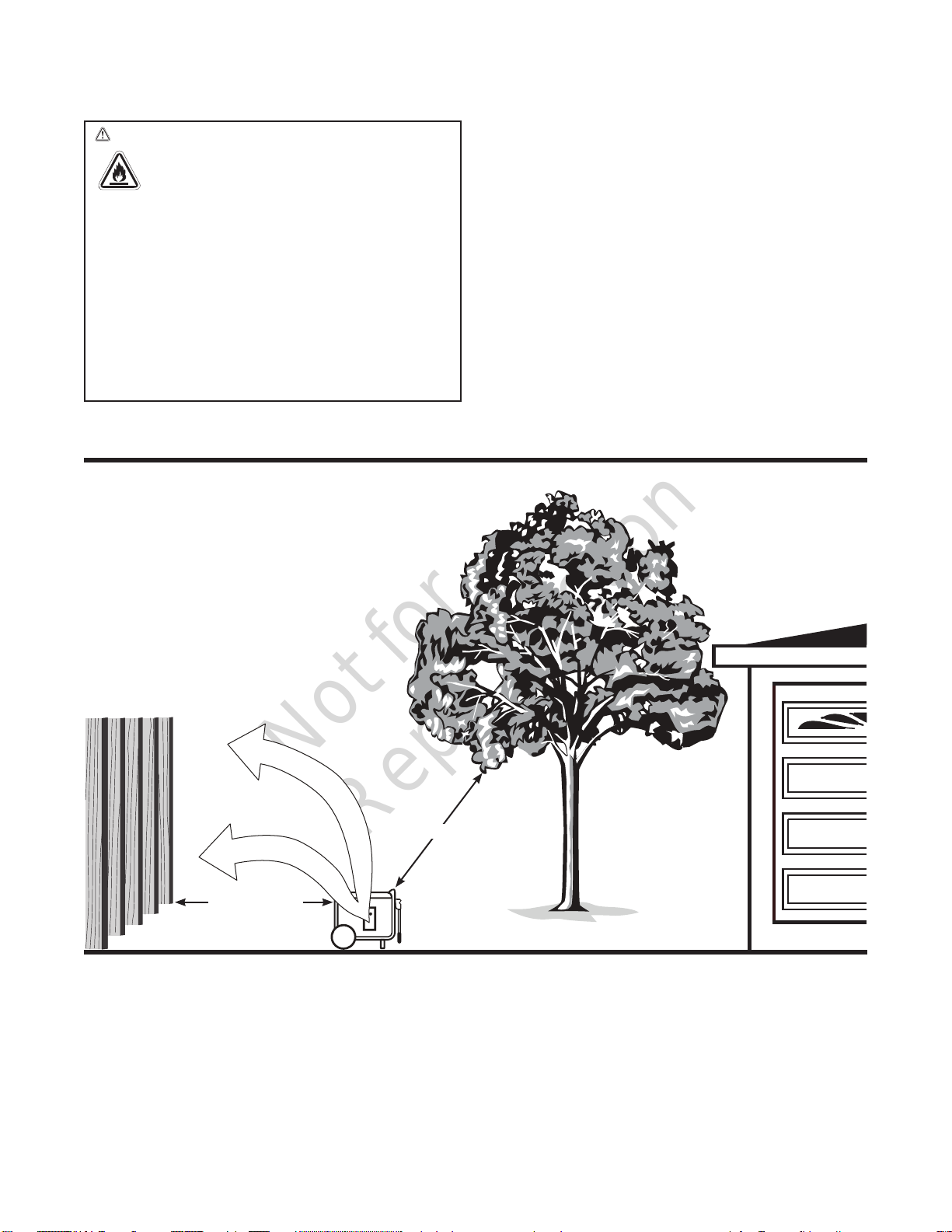

Generator placed in a re safe zone. See Generator Location to reduce the Risk of Fire.
Generator located on at and level surface.
Oil and Fuel
Engine has proper oil level. See Add Engine Oil.

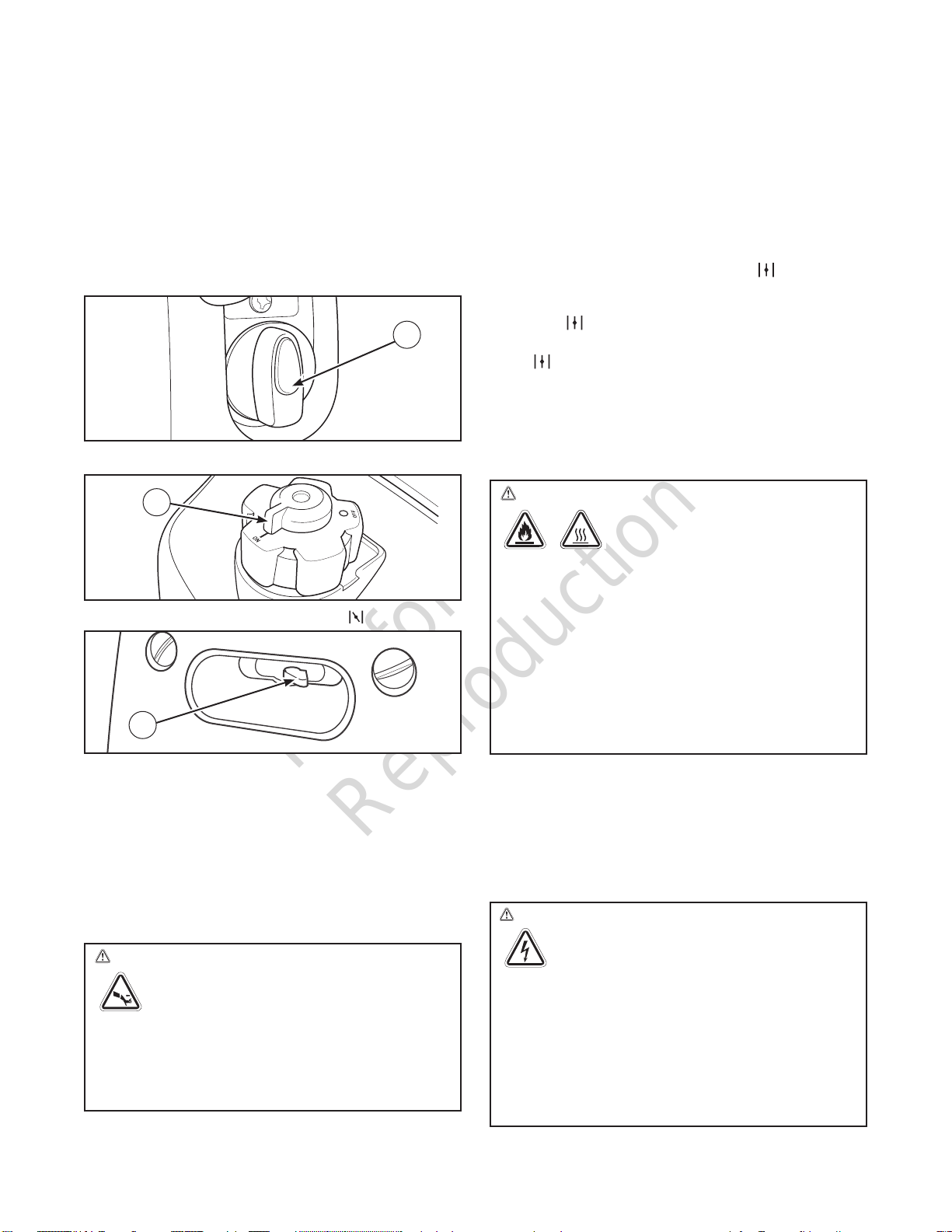

Fuel tank lled at or below red fuel level indicator. See Add Fuel.
Inspect fuel lines, tank, cap and ttings each time before using generator. DO NOT use if fuel leak or damage
is found.
Electrical
Electrical cords are rated for intended loads. See Cord Sets and Receptacles.
Electrical cords do not run through doorways, windows, holes in ceilings, walls or oors.
Inspect electrical cords thoroughly before each use. DO NOT use if damaged.
All labeled electrical cord safeties are understood and being followed.
Operation
Start engine. See Starting the Engine.

Not for
Reproduction
4 www.briggsandstratton.com.au
Operator Safety
Safety Labels
The generator safety labels shown below and on the next page are placed on your portable generator to draw
attention to potential safety hazards.

Not for
Reproduction
Equipment Description
Read this manual carefully and become
familiar with your generator. Know its
applications, its limitations and any hazards
involved.
The generator is an engine–driven, revolving eld,
alternating and direct current (AC & DC) generator. It
was designed to supply electrical power for operating
compatible electrical lighting, appliances, tools and
motor loads. The generator’s revolving eld is driven
at about 4,500 rpm (with POWERSMART mode switch
o) by a single-cylinder engine.
NOTICE Exceeding generators wattage/amperage
capacity can damage generator and/or electrical
devices connected to it.
• DO NOT exceed the generator’s wattage/amperage
capacity. See Don’t Overload Generator in the Operation
section.
Every eort has been made to ensure that the
information in this manual is both accurate and current.
However, the manufacturer reserves the right to
change, alter or otherwise improve the generator and
this documentation at any time without prior notice.
Important Safety Information
The manufacturer cannot possibly anticipate every
possible circumstance that might involve a hazard.
The warnings in this manual, and the tags and decals
axed to the unit are, therefore, not all-inclusive.
If you use a procedure, work method or operating
technique that the manufacturer does not specically
recommend, you must satisfy yourself that it is safe
for you and others. You must also make sure that the
procedure, work method or operating technique that
you choose does not render the generator unsafe.
Safety Symbols and Meanings
The safety alert symbol indicates a potential
personal injury hazard. A signal word (DANGER,
WARNING, or CAUTION) is used with the alert symbol
to designate a degree or level of hazard seriousness.
A safety symbol may be used to represent the type of
hazard. The signal word NOTICE is used to address
practices not related to personal injury.
DANGER indicates a hazard which, if not avoided,
will result in death or serious injury.
WARNING indicates a hazard which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided,
could result in minor or moderate injury.
NOTICE address practices not related to personal
injury.
5
Explosive Pressure Chemical Burn
Fire Explosion
Toxic Fumes
Hot Surface
Moving Parts
Electrical Shock
Kickback
Flying Objects
Operator’s Manual
Carbon
Monoxide Alarm
On
Ground Terminal
Floating
Neutral
O Fuel
Choke Run Sucation

Not for
Reproduction
6 www.briggsandstratton.com.au
WARNING Storage batteries give o explosive
hydrogen gas during recharging.
Hydrogen gas stays near battery for
a long time after battery has been
charged. Slightest spark could ignite hydrogen
causing explosion resulting in death or serious
injury.
Battery electrolyte uid contains acid and is
extremely caustic. Contact with battery uid could
cause chemical burns resulting in serious injury.
• DO NOT allow any open ame, spark, heat, or lit
cigarette during and for several minutes after charging a
battery.
• Wear protective goggles, rubber apron, and rubber
gloves.
• DO NOT continue to charge a battery that becomes hot
or is fully charged.
• DO NOT leave battery unattended.
WARNING Fuel and its vapors are extremely
ammable and explosive which
could cause burns, re or explosion
resulting in death or serious injury.
WHEN ADDING OR DRAINING FUEL
• Turn generator engine OFF and let it cool at least 2
minutes before removing fuel cap. Loosen cap slowly to
relieve pressure in tank.
• Fill or drain fuel tank outdoors.
• DO NOT overll tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open ames, pilot lights,
heat, and other ignition sources.
• Check fuel lines, tank, cap and ttings frequently for
cracks or leaks. Replace if necessary.
• DO NOT light a cigarette or smoke.
WHEN STARTING EQUIPMENT
• Ensure spark plug, muer, fuel cap, and air cleaner are
in place.
• DO NOT crank engine with spark plug removed.
WHEN OPERATING EQUIPMENT
• DO NOT operate this product inside any building,
carport, porch, mobile equipment, marine applications, or
enclosure.
• DO NOT tip engine or equipment at angle which causes
fuel to spill.
• DO NOT stop engine by moving choke control to
CHOKE ( ) position.
WHEN TRANSPORTING, MOVING OR REPAIRING
EQUIPMENT
• Transport/move/repair with fuel tank EMPTY or with fuel
shuto valve OFF (0).
• DO NOT tip engine or equipment at angle which causes
fuel to spill.
• Disconnect spark plug wire.
WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN
TANK
• Store away from furnaces, stoves, water heaters, clothes
dryers, or other appliances that have pilot light or other
ignition source because they could ignite fuel vapors.
WARNING Starter cord kickback (rapid
retraction) will pull hand and arm toward
engine faster than you can let go which
could cause broken bones, fractures,
bruises, or sprains resulting in serious injury.
• When starting engine, pull cord slowly until resistance is
felt and then pull rapidly to avoid kickback.
• NEVER start or stop engine with electrical devices
plugged in and turned on.
WARNING POISONOUS GAS HAZARD.
Engine exhaust contains carbon monoxide,
a poisonous gas that could kill you in
minutes. You CANNOT smell it, see it, or
taste it. Even if you do not smell exhaust fumes, you
could still be exposed to carbon monoxide gas.
• Operate this product ONLY outside far away from
windows, doors and vents to reduce the risk of carbon
monoxide gas from accumulating and potentially being
drawn towards occupied spaces.
• Install battery-operated carbon monoxide alarms or
plug-in carbon monoxide alarms with battery back-up
according to the manufacturer’s instructions. Smoke
alarms cannot detect carbon monoxide gas.
• DO NOT run this product inside homes, garages,
basements, crawlspaces, sheds, or other partially-
enclosed spaces even if using fans or opening doors
and windows for ventilation. Carbon monoxide can
quickly build up in these spaces and can linger for hours,
even after this product has shut o.
• ALWAYS place this product downwind and point the
engine exhaust away from occupied spaces.
If you start to feel sick, dizzy, or weak while using this
product, get to fresh air RIGHT AWAY. See a doctor. You
may have carbon monoxide poisoning.

Not for
Reproduction
NOTICE Exceeding generators wattage/amperage
capacity could damage generator and/or electrical
devices connected to it.
• DO NOT exceed the generator’s wattage/amperage
capacity. See Don’t Overload Generator in the Operation
section.
• Start generator and let engine stabilize before connecting
electrical loads.
• Connect electrical loads in OFF position, then turn ON for
operation.
• Turn electrical loads OFF and disconnect from generator
before stopping generator.
NOTICE Improper treatment of generator could
damage it and shorten its life.
• Use generator only for intended uses.
• If you have questions about intended use, ask dealer or
contact local service center.
• Operate generator only on level surfaces.
• DO NOT expose generator to excessive moisture, dust,
dirt, or corrosive vapors.
• DO NOT insert any objects through cooling slots.
• If connected devices overheat, turn them o and
disconnect them from generator.
• Shut o generator if:
-electrical output is lost;
-equipment sparks, smokes, or emits ames;
-unit vibrates excessively.
7
WARNING Starter and other rotating parts
could entangle hands, hair, clothing, or
accessories resulting in serious injury.
• NEVER operate generator without protective housing or
covers.
• DO NOT wear loose clothing, jewelry or anything that
could be caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry.
WARNING Generator voltage could cause
electrical shock or burn resulting in death or
serious injury.
• DO NOT connect generator to a building’s electrical
system.
• DO NOT touch bare wires or receptacles.
• DO NOT use generator with electrical cords which are
worn, frayed, bare or otherwise damaged.
• DO NOT operate generator in the rain or wet weather.
• DO NOT handle generator or electrical cords while
standing in water, while barefoot, or while hands or feet
are wet.
• DO NOT allow unqualied persons or children to operate
or service generator.
WARNING Exhaust heat/ gases could ignite
combustibles, structures or damage
fuel tank causing a re, resulting in
death or serious injury.
Contact with muer area could cause burns
resulting in serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 1.5 m (5 ft.) of clearance on all sides of
generator including overhead.
• Contact the original equipment manufacturer, retailer,
or dealer to obtain a spark arrester designed for the
exhaust system installed on this engine.
• Replacement parts must be the same and installed in the
same position as the original parts.
WARNING Unintentional sparking could cause
re or electric shock resulting in
death or serious injury.
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR
GENERATOR
• Disconnect the spark plug wire from the spark plug and
place the wire where it cannot contact spark plug.
WHEN TESTING FOR ENGINE SPARK
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.
CAUTION Excessively high operating speeds
could result in minor injury.
Excessively low operating speeds impose a heavy
load.
• DO NOT tamper with governor spring, links or other parts
to increase engine speed. Generator supplies correct
rated frequency and voltage when running at governed
speed.
• DO NOT modify generator in any way.

Not for
Reproduction
8 www.briggsandstratton.com.au
Assembly
Your generator requires some assembly and is ready
for use after it has been properly serviced with the
recommended fuel and oil.
If you have any problems with the assembly of
your generator, please call the generator helpline
at 1800 356 632. If calling for assistance, please
have the model, revision, and serial number from the
identication label available. See Generator Features
and Controls for identication label location.
Unpack Generator
1. Set the carton on a rigid, at surface.
2. Remove everything from carton except generator.
3. Open carton completely by cutting each corner
from top to bottom.
The generator is supplied with:
• Battery charge cables
• Operator’s manual
• Engine oil bottle
• Tool kit
Add Engine Oil
1. Place generator on a level surface.
2. Loosen the two maintenance cover screws and
remove the side maintenance cover.
3. Clean area around oil ll and remove yellow oil ll
cap.
4. Using oil funnel (optional), slowly pour contents of
provided oil bottle into oil ll opening to the point
of overowing at oil ll cap.
NOTICE Improper treatment of generator could
damage it and shorten its life.
• DO NOT attempt to crank or start the engine before it has
been properly serviced with the recommended oil. This
could result in an engine failure.
5. Replace oil ll cap and fully tighten.
6. Replace the maintenance cover and hand tighten
the two maintenance cover screws.
Add Fuel
Fuel must meet these requirements:
• Clean, fresh, unleaded gasoline.
• A minimum of 87 octane/87 AKI (91 RON). For
high altitude use, see High Altitude.
• Gasoline with up to 10% ethanol (gasohol) is
acceptable.
NOTICE Use of unapproved fuels could damage
generator and voids warranty.
• DO NOT use unapproved gasoline such as E15 and E85.
• DO NOT mix oil in gasoline or modify engine to run on
alternate fuels.
To protect the fuel system from gum formation, mix in a
fuel stabilizer when adding fuel. See Storage. All fuel is
not the same. If you experience starting or performance
problems after using fuel, switch to a dierent fuel
provider or change brands. This engine is certied to
operate on gasoline. The emission control system for this
engine is EM (Engine Modications).
1. Clean area around fuel ll cap, remove cap.
2. Slowly add unleaded fuel to red fuel level indicator
(A) in fuel tank. Be careful not to ll above the
indicator. This allows adequate space for fuel
expansion.
WARNING Fuel and its vapors are extremely
ammable and explosive which could
cause burns, re or explosion
resulting in death or serious injury.
WHEN ADDING FUEL
• Turn generator engine OFF and let it cool at least 2 minutes
before removing fuel cap. Loosen cap slowly to relieve
pressure in tank.
• Fill fuel tank outdoors.
• DO NOT overll tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open ames, pilot lights,
heat, and other ignition sources.
• Check fuel lines, tank, cap and ttings frequently for
cracks or leaks. Replace if necessary.
• DO NOT light a cigarette or smoke.
A

Not for
Reproduction
9
3. Install fuel cap and let any spilled fuel evaporate
before starting engine.
High Altitude
At altitudes over 1524 m (5,000 ft.), a minimum
85 octane / 85 AKI (89 RON) gasoline is acceptable.
To remain emissions compliant, high altitude
adjustment is required. Operation without this
adjustment will cause decreased performance,
increased fuel consumption, and increased emissions.
See a Briggs & Stratton Authorized Dealer for high
altitude adjustment information. Operation of the
engine at altitudes below 762 m (2,500 ft.) with the
high altitude kit is not recommended.
Fuel Tank Cap Vent Lever
The fuel tank cap is provided with a vent lever (A) to
seal the fuel tank. The vent lever must be in the ON (I)
position for the engine to run.
When the engine is not in use, leave the vent lever in
the OFF (0) position to reduce the possibility of fuel
leakage. Allow the engine to cool before turning the
vent lever to the OFF (0) position.
Grounding Fastener
The generator neutral is oating, which means that
the AC stator winding is isolated from the grounding
fastener and the AC receptacle ground pins. On a
oating neutral generator the AC receptacle ground
pins are not functional. Electrical devices, such as a
residual current device (RCD), requiring a functioning
AC receptacle ground pin will not operate.
Special Requirements
There may be Federal, local codes, or ordinances that
apply to the intended use of the generator. Please
consult a qualied electrician, electrical inspector, or
the local agency having jurisdiction:
• This generator has a oating neutral and is not for
use on job sites requiring a bonded neutral.
Portable Generator Location
Before starting the portable generator there are two equally
important safety concerns regarding carbon monoxide
(CO) poisoning and re that must be addressed.
NOTICE Satisfying the RISK OF CARBON MONOXIDE
POISONING location requirements may not satisfy the
re location requirements. Satisfying the RISK OF FIRE
location requirements may not satisfy the CARBON
MONOXIDE POISONING location requirements.
Operation Location of Portable Generator to
REDUCE THE RISK OF CARBON MONOXIDE
POISONING
All fossil fuel burning equipment, such as a portable
generator, contains carbon monoxide (CO) gas in the
engine exhaust, a poisonous gas that could kill you in
minutes. You CANNOT smell it, see it, or taste it. Even
if you do not smell exhaust fumes, you could still be
exposed to carbon monoxide gas. The following must
be completed prior to starting the portable generator
engine:
• By law it is required in many states to have a
Carbon Monoxide (CO) alarm (B) in operating
condition in your home. Install/maintain battery-
operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up
according to the manufacturer’s instructions. A
CO alarm is an electronic device that detects
hazardous levels of CO. When there is a buildup
of CO, the alarm will alert the occupants by
ashing visual indicator light and alarm. Smoke
alarms cannot detect CO gas.
• Operate this product ONLY outside far away from
windows, doors and vents to reduce the risk of
carbon monoxide gas from accumulating and
potentially being drawn towards occupied spaces.
• DO NOT run this product inside homes, garages,
basements, crawlspaces, sheds, or other partially-
enclosed spaces even if using fans or opening
doors and windows for ventilation. Carbon
monoxide can quickly build up in these spaces
and can linger for hours, even after this product
has shut o.
• Your neighbor(s) home may be exposed to the
engine exhaust from your portable generator and
must be considered when deciding on a location
for the safe operation of your portable generator.
• ALWAYS place this product downwind and point
the engine exhaust away from occupied spaces.
If you start to feel sick, dizzy, or weak while using this
product, get to fresh air RIGHT AWAY. See a doctor.
You may have carbon monoxide poisoning.
B
A

Not for
Reproduction
EXAMPLE OF LOCATION TO REDUCE THE RISK OF CARBON MONOXIDE
POISONING
DO NOT OPERATE IN ANY OF THE FOLLOWING LOCATIONS
Only use OUTSIDE
and FAR AWAY from
windows, doors and vents.
Direct exhaust AWAY
from windows, doors,
and vents.
KEEP
FAR AWAY
CO Alarm
in Living Areas
E
X
H
A
U
S
T
(
C
O
)
Generator too
close to home
and exhaust
directed towards
windows, doors
and vents.
Garage
Attic
Living Area
Basement
Crawlspace
Entryway,
Porch
E
X
H
A
U
S
T
(
C
O
)
10 www.briggsandstratton.com.au

Not for
Reproduction
11
Operation Location of Portable Generator to
REDUCE THE RISK OF FIRE
EXAMPLE OF LOCATION TO REDUCE THE RISK OF FIRE
Direct exhaust AWAY from
windows, doors, and vents.
E
X
H
A
U
S
T
(
C
O
)
1.5 m (5 ft.) min.
1.5 m (5 ft.) min.
WARNING Exhaust heat/ gases could ignite
combustibles, structures or damage fuel tank
causing a re, resulting in death or serious
injury.
• Portable generator must be at least 1.5 m (5 ft.) from
any structure, overhang, trees, windows, doors, any wall
opening, shrubs, or vegetation over 30.5 cm (12 in.) in
height.
• DO NOT place portable generator under a deck or other
type of structure that may conne airow.
• Smoke alarm(s) MUST be installed and maintained
indoors according to the manufacturer’s instructions/
recommendations. Carbon monoxide alarms cannot
detect smoke.
• DO NOT place portable generator in manner other than
shown.

Not for
Reproduction
12 www.briggsandstratton.com.au
Features and Controls
Read this Operator’s Manual and safety rules before operating your generator.
Compare the illustrations with your generator, to familiarize yourself with the locations of various controls
and adjustments. Save this manual for future reference.
A - Fuel Tank Cap Vent Lever — Turn the vent lever
to the ON (I) position when operating generator.
Turn to the OFF (0) position when not in use.
B - Fuel Tank — Capacity of 3.7 L (1.0 U.S. gallons).
C - Choke Lever — Used when starting a cold engine.
D - Side Maintenance Cover — Remove to gain
access to the air cleaner and oil service.
E - Recoil Starter — Used to start the engine
manually.
F - Engine Switch — Set this switch to ON (I) before
using recoil starter. Set switch to OFF (0) to stop
engine. Also turns fuel valve on and o.
G - Output Indicator — A green LED light comes
on when the generator is working correctly and
producing power at the receptacles.
H - 12 Volt DC Receptacle — Use this receptacle
with battery charge cables to charge a 12 Volt
battery. This receptacle is protected by a push to
reset circuit breaker.
J - Grounding Fastener — Consult your local agency
having jurisdiction for grounding requirements in
your area.
K - POWERSMART Switch— Use this switch to turn
the POWERSMART mode on and o.
L - Overload Alarm — A red LED light comes on and
cuts power to the receptacles when the generator
is overloaded.
M - Low Oil Indicator — A yellow LED light comes on
when the oil in the generator drops below a preset
level.
N - 230 Volt AC, 15 Amp Receptacles — May be
used to supply electrical power for the operation
of 230 Volt AC, 15 Amp, single phase, 50 Hz
electrical, lighting, appliance, tool, and motor loads.
P - Spark Arrester Muer — Exhaust muer lowers
engine noise and is equipped with a spark arrester
screen.
R - Top Maintenance Cover — Remove to gain
access to the spark plug.
Items Not Shown:
Air Cleaner (under side maintenance cover) —
Protects engine by ltering dust and debris out of
intake air.
Identication Label — Provides model, revision, and
serial number of generator. Please have these readily
available when calling for assistance.
Oil Fill Cap (under side maintenance cover) —
Check and add engine oil here.
E
F
M
K
G
N
P
L
J
H
C
B
DR
A

Not for
Reproduction
13
Cord Sets and Receptacles
Use only high quality, well-insulated, grounded
extension cords with the generator’s receptacles.
Inspect extension cords before each use.
Check the ratings of all extension cords before you use
them. Extension cord sets used should be rated for AC
loads 15 Amps or greater. Check operator’s manuals
of devices to be powered for the manufacturer’s
recommendations.
Keep extension cords as short as possible to minimize
voltage drop.
230 Volt AC, 15 Amp Receptacles
These receptacles are protected against overload by
an internal overload system.
Use receptacles to operate 230 Volt AC, single–
phase, 50 Hz electrical loads requiring up to 1,600
watts (1.6 kW) at 6.95 Amps of current. Use cord sets
that are rated for 230 Volt AC loads at 15 Amps (or
greater).
NOTICE Receptacles may be marked with rating
value greater than generator output capacity.
• NEVER attempt to power a device requiring more
amperage than generator or receptacle can supply.
• DO NOT overload the generator. See Don’t Overload
Generator.
12 Volt DC Receptacle
The maximum current available for the battery charge
circuit is 5 Amps. A DC circuit breaker protects this
receptacle from overloads. If an overload occurs, the
circuit breaker will trip (push button pops out). Wait a
few minutes and push the button in to reset the circuit
breaker.
This receptacle allows you to recharge a 12 Volt
automotive or utility style storage battery with the
battery charge cable provided.
This receptacle can not be used to crank an engine
having a discharged battery. See Charging a Battery
before attempting to recharge a battery.
NOTICE When using the battery charge circuit, turn
the POWERSMART switch to the OFF (0) position.
Output Indicator
The green LED output indicator light comes on when
the generator is operating normally. It indicates that the
generator is producing power at the receptacles.
Overload Alarm
The red LED overload alarm light comes on and cuts
power to the receptacles if you overload the generator.
The green output indicator light will also go o. If the
generator was overloaded, you must turn o and
unplug all electrical loads, shut down the generator
and restart it to continue in normal operating mode.
Low Oil Indicator
The low oil indicator system is designed to prevent
engine damage caused by not enough engine oil. If the
engine oil level drops below a preset level, the yellow
LED low oil indicator light comes on and an oil switch
will stop the engine. If the engine stops or the yellow
LED low oil indicator light comes on when you pull the
recoil handle, check the engine oil level.
WARNING Damaged or overloaded electrical
cords could overheat, arc, and burn
resulting in death or serious injury.
• ONLY use cords rated for your loads.
• Follow all safeties on electrical cords.
• Inspect cord sets before each use.

Not for
Reproduction
14 www.briggsandstratton.com.au
Operation
Starting the Engine
Disconnect all electrical loads from the generator. Use
the following start instructions:
1. Make sure unit is on a level surface.
NOTICE Failure to start and operate the unit on a
level surface will cause the unit not to start or shut
down during operation.
2. Turn the engine switch (A) to the ON (I) position.
3. Turn fuel cap vent lever (B) to ON (I) position.
4. Push choke lever (C) to CHOKE ( ) position.
NOTICE To help start the engine for the very rst
time, after running out of fuel or after a long period of
storage, ll fuel tank as described in Add Fuel. It will
require more than several start attempts until the air in
the fuel system has been purged.
5A. Grasp recoil handle and pull slowly until slight
resistance is felt. Then pull rapidly to start engine.
• If engine starts, proceed to step 7.
• If engine fails to start, proceed to step 6.
To start engine thereafter:
5B. Grasp recoil handle and pull slowly until slight
resistance is felt. Then pull rapidly one time only to
start engine.
• If engine starts, proceed to step 6.
• If engine fails to start, proceed to step 5.
6. Move choke lever to half choke position, and pull
recoil handle twice.
• If engine fails to start, repeat steps 3 thru 4.
7. Slowly move choke lever to RUN ( ) position. If
engine falters, move choke lever to half choke
position until engine runs smoothly, and then to
RUN ( ) position.
NOTICE If engine oods, move choke lever to
RUN ( ) position and crank until engine starts.
NOTICE If engine starts after 3 pulls but fails to run,
or if unit shuts down during operation, make sure unit
is on a level surface and check for proper oil level
in crankcase. This unit is equipped with a low oil
protection device. If so, oil must be at proper level for
engine to start.
Connecting Electrical Loads
1. Make sure the green output indicator light comes
on (it may take up to three seconds).
2. Let engine stabilize and warm up for a few
minutes after starting.
3. Plug in and turn on the desired 230 Volt AC,
single phase, 50 Hz electrical loads.
A
C
WARNING Starter cord kickback (rapid
retraction) will pull hand and arm toward
engine faster than you can let go which
could cause broken bones, fractures,
bruises, or sprains resulting in serious injury.
• When starting engine, pull cord slowly until resistance is
felt and then pull rapidly to avoid kickback.
• NEVER start or stop engine with electrical devices
plugged in and turned on.
WARNING Exhaust heat/ gases could ignite
combustibles, structures or damage
fuel tank causing a re, resulting in
death or serious injury.
Contact with muer area could cause burns
resulting in serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 1.5 m (5 ft.) of clearance on all sides of
generator including overhead.
• Contact the original equipment manufacturer, retailer,
or dealer to obtain a spark arrester designed for the
exhaust system installed on this engine.
• Replacement parts must be the same and installed in the
same position as the original parts.
WARNING Generator voltage could cause
electrical shock or burn resulting in death or
serious injury.
• DO NOT connect generator to a building’s electrical system.
• DO NOT touch bare wires or receptacles.
• DO NOT use generator with electrical cords which are
worn, frayed, bare or otherwise damaged.
• DO NOT operate generator in the rain or wet weather.
• DO NOT handle generator or electrical cords while standing
in water, while barefoot, or while hands or feet are wet.
• DO NOT allow unqualied persons or children to operate
or service generator.
B

Not for
Reproduction
15
NOTICE
• DO NOT connect 3-phase loads to the generator.
• DO NOT connect 60 Hz loads to the generator.
• DO NOT OVERLOAD THE GENERATOR. See
Don’t Overload Generator.
NOTICE Exceeding generators wattage/amperage
capacity could damage generator and/or electrical
devices connected to it.
• DO NOT exceed the generator’s wattage/amperage
capacity. See Don’t Overload Generator in the Operation
section.
• Start generator and let engine stabilize before connecting
electrical loads.
• Connect electrical loads in OFF position, then turn ON for
operation.
• Turn electrical loads OFF and disconnect from generator
before stopping generator.
Stopping the Engine
1. Turn OFF and unplug all electrical loads from
generator panel receptacles. NEVER start or stop
engine with electrical devices plugged in and
turned ON.
2. Let engine run at no-load for several minutes
to stabilize internal temperatures of engine and
generator.
3. Turn engine switch to the OFF (0) position.
4. Turn fuel cap vent lever to the OFF (0) position.
POWERSMART Mode
This feature is designed to greatly improve fuel
economy. When this switch is turned ON, the
engine speed will increase as electrical loads are
connected, and decreased as electrical loads are
removed.
With the switch o, the engine will run at a higher
speed.
NOTICE Always have the switch OFF when using the
DC receptacle.
Charging a Battery
Your generator has the capability of recharging a
discharged 12 Volt automotive or utility style storage
battery.
NOTICE
• Not for use with any other type of battery.
• DO NOT use the unit to charge any 6 Volt batteries.
• DO NOT use the unit to crank an engine having a
discharged battery.
To recharge 12 Volt batteries, proceed as follows:
1. Make sure POWERSTART switch is in OFF (0)
position.
2. If necessary, clean battery posts or terminals.
3. Check uid level in all battery cells. If necessary,
add ONLY distilled water to cover separators in
battery cells. DO NOT use tap water.
4. If the battery is equipped with vent caps, make
sure they are installed and are tight.
5. Connect battery charge cable clamp with red
handle to battery post or terminal indicated by
Positive,POS or (+).
6. Connect battery charge cable clamp with black
handle to battery post or terminal indicated by
Negative, NEG, or (–).
7. Connect battery charge cable connector plug to
the 12 Volt DC panel receptacle.
8. Start generator as described in Starting The
Engine. Let the engine run while battery
recharges.
NOTICE Normally a period of 30 to 120 minutes is
sucient to recharge a weak battery.
9. When battery has charged, shut down engine as
described in Stopping The Engine.
10. Remove the battery charging cable from the
generator and then disconnect from the battery posts.
NOTICE Use an automotive hydrometer to test battery
state of charge and condition. Follow the hydrometer
manufacturer’s instructions carefully. Generally, a battery
is considered to be at 100% state of charge when
specic gravity of its uid (as measured by hydrometer)
is 1.260 or higher.
WARNING Storage batteries give o explosive
hydrogen gas during recharging.
Hydrogen gas stays near battery for
a long time after battery has been
charged. Slightest spark could ignite hydrogen
causing explosion resulting in death or serious injury.
Battery electrolyte uid contains acid and is
extremely caustic. Contact with battery uid could
cause chemical burns resulting in serious injury.
• DO NOT allow any open ame, spark, heat, or lit
cigarette during and for several minutes after charging a
battery.
• Wear protective goggles, rubber apron, and rubber
gloves.
• DO NOT continue to charge a battery that becomes hot
or is fully charged.
• DO NOT leave battery unattended.
WARNING Fuel and its vapors are extremely
ammable and explosive which could
cause burns, re or explosion
resulting in death or serious injury.
• DO NOT stop engine by moving choke lever to
CHOKE ( ) position.

Not for
Reproduction
16 www.briggsandstratton.com.au
Don’t Overload Generator
Capacity
You must make sure your generator can supply
enough rated (running) and surge (starting) watts for
the items you will power at the same time. Follow these
simple steps:
1. Select the items you will power at the same time.
2. Total the rated (running) watts of these items.
This is the amount of power your generator must
produce to keep your items running. See Wattage
Reference Guide.
3. Estimate how many surge (starting) watts you will
need. Surge wattage is the short burst of power
needed to start electric motor-driven tools or
appliances such as a circular saw or refrigerator.
Because not all motors start at the same time, total
surge watts can be estimated by adding only the
item(s) with the highest additional surge watts to
the total rated watts from step 2.
Example:
Total Rated (Running) Watts = 1555
Highest Additional Surge Watts = 600
Total Generator Output Required = 2155
Power Management
To prolong the life of your generator and attached
devices, it is important to take care when adding
electrical loads to your generator. There should be
nothing connected to the generator outlets before
starting its engine. The correct and safe way to manage
generator power is to sequentially add loads as follows:
1. With nothing connected to the generator, start the
engine as described in this manual.
2. Plug in and turn on the rst load, preferably the
largest load you have.
3. Permit the generator output to stabilize (engine runs
smoothly and attached device operates properly).
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.
NEVER add more loads than the generator capacity.
Take special care to consider surge loads in generator
capacity, as described above.
* Wattages listed are approximate only. Check tool or
appliance for actual wattage.
Tool or
Appliance
Rated
(Running)
Watts
Additional
Surge
(Starting)
Watts
Window Fan 300 600
Deep Freezer 500 500
Television 500 —
Security System 180 —
Light (75 Watts) 75 —
1555 Total
Running Watts
600 Highest
Surge Watts
Wattage Reference Guide
Tool or Appliance
Rated*
(Running)
Watts
Additional
Surge
(Starting)
Watts
Essentials
Light Bulb - 75 watt 75 —
Deep Freezer 500 500
Sump Pump 800 1200
Refrigerator/Freezer - 18 cf 800 1600
Water Well Pump - 1/3 hp 1000 2000
Heating/Cooling
Window AC - 10,000 BTU 1200 1800
Window Fan 300 600
Furnace Fan Blower - 1/2 hp 800 1300
Kitchen
Microwave Oven - 1000 Watt 1000 —
Coee Maker 1500 —
Electric Stove - Single Element 1500 —
Hot Plate 2500 —
Family Room
DVD/CD Player 100 —
VCR 100 —
Stereo Receiver 450 —
Color Television - 27 in 500 —
Personal Computer w/17 in
monitor
800 —
Other
Security System 180 —
AM/FM Clock Radio 300 —
Garage Door Opener - 1/2 hp 480 520
Electric Water Heater - 40
gallon
4000 —
DIY
Quartz Halogen Work Light 1000 —
Airless Sprayer - 1/3 hp 600 1200
Reciprocating Saw 960 960
Electric Drill - 1/2 hp 1000 1000
Circular Saw - 7-1/4 in 1500 1500
Miter Saw - 10 in 1800 1800
Table Planer - 6 in 1800 1800
Table Saw/Radial Arm Saw -
10 in
2000 2000
Air Compressor - 1-1/2 hp 2500 2500

Not for
Reproduction
17
Maintenance
Maintenance Schedule
Follow the hourly or calendar intervals, whichever
occurs rst. More frequent service is required when
operating in adverse conditions noted below.
1Service more often under dirty or dusty conditions.
General Recommendations
Regular maintenance will improve the performance
and extend the life of the generator. See any
authorized dealer for service.
The generator’s warranty does not cover items that
have been subjected to operator abuse or negligence.
To receive full value from the warranty, the operator
must maintain the generator as instructed in this
manual.
NOTICE Improper treatment of generator could
damage it and shorten its life.
• NEVER operate generator without protective housing or
covers to assure proper cooling.
Some adjustments will need to be made periodically to
properly maintain your generator.
All service and adjustments should be made at least
once each season. A new spark plug and clean
air lter assure proper fuel-air mixture and help
your engine run better and last longer. Follow the
requirements in the Maintenance Schedule chart
above.
Generator Maintenance
Generator maintenance consists of keeping the unit
clean and dry. Operate and store the unit in a clean dry
environment where it will not be exposed to excessive
dust, dirt, moisture, or any corrosive vapors. Cooling
air slots in the generator must not become clogged
with snow, leaves, or any other foreign material.
NOTICE DO NOT use water or other liquids to clean
generator. Liquids can enter engine fuel system,
causing poor performance and/or failure to occur. In
addition, if liquid enters generator through cooling air
slots, some of the liquid will be retained in voids and
cracks of the rotor and stator winding insulation. Liquid
and dirt buildup on the generator internal windings will
eventually decrease the insulation resistance of these
windings.
Cleaning
Daily or before use, look around and underneath
the generator for signs of oil or fuel leaks. Clean
accumulated debris from inside and outside the
generator. Keep the linkage, spring and other engine
controls clean. Keep the area around and behind
the muer free from any combustible debris. Inspect
cooling air slots and openings on generator. These
openings must be kept clean and unobstructed.
Engine parts should be kept clean to reduce the risk of
overheating and ignition of accumulated debris:
• Use a damp cloth to wipe exterior surfaces clean.
NOTICE Improper treatment of generator could
damage it and shorten its life.
• DO NOT expose generator to excessive moisture, dust,
dirt, or corrosive vapors.
• DO NOT insert any objects through cooling slots.
• Use a soft bristle brush to loosen caked on dirt or
oil.
• Use a vacuum cleaner to pick up loose dirt and
debris.
Every 8 Hours or Daily
• Clean debris
• Check engine oil level
First 10 Hours
• Change engine oil
Every 50 Hours or 3 Months
• Service engine air cleaner and breather lter1
Every 100 Hours or 6 Months
• Clean fuel strainer
• Change engine oil1
• Service spark plug
• Inspect muer and spark arrester
Every 250 Hours or Yearly
• Check valve clearance

Not for
Reproduction
18 www.briggsandstratton.com.au
Cleaning Fuel Strainer
The fuel strainer helps prevent debris from entering the
fuel system.
Clean the fuel strainer as follows:
1. Make sure generator is on a level surface.
2. Remove the fuel cap (A) and fuel strainer (B).
3. Wash fuel strainer in liquid detergent and water.
4. Wipe fuel strainer clean with a clean, dry cloth.
5. Carefully reinstall the fuel strainer and fuel cap.
Engine Maintenance
Oil
Oil Recommendations
We recommend the use of Briggs & Stratton Warranty
Certied oils for best performance. Other high-quality
detergent oils are acceptable if classied for service
SF, SG, SH, SJ or higher. DO NOT use special
additives.
Outdoor temperatures determine the proper oil
viscosity for the engine. Use the chart to select the
best viscosity for the outdoor temperature range
expected.
* Below 4°C (40°F) the use of SAE 30 will result in hard
starting.
** Above 27°C (80°F) the use of 10W30 may cause
increased oil consumption. Check oil level more frequently.
Checking Oil Level
Oil level should be checked prior to each use or
at least every 8 hours of operation. Keep oil level
maintained.
1. Make sure generator is on a level surface.
2. Loosen the side maintenance cover screws and
remove the side maintenance cover.
3. Clean area around oil ll and remove oil ll cap.
4. Verify oil is at the point of overowing at oil ll
opening.
5. Replace and tighten oil ll cap.
6. Reinstall the side maintenance cover and hand
tighten the cover screws.
Adding Engine Oil
1. Make sure generator is on a level surface.
2. Repeat steps 2 through 4 to check oil level as
described in Checking Oil Level.
3. If needed, slowly pour oil into oil ll opening to the
point of overowing at oil ll.
4. Replace and tighten oil ll cap.
5. Reinstall the side maintenance cover and hand
tighten the cover screws.
B
A
WARNING Unintentional sparking could cause
re or electric shock resulting in
death or serious injury.
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR
GENERATOR
• Disconnect the spark plug wire from the spark plug and
place the wire where it cannot contact spark plug.
WHEN TESTING FOR ENGINE SPARK
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.

Not for
Reproduction
19
Changing Engine Oil
If you are using your generator under extremely dirty or
dusty conditions, or in extremely hot weather, change
the oil more often.
KEEP OUT OF REACH OF CHILDREN.
DON’T POLLUTE. CONSERVE
RESOURCES. RETURN USED OIL TO
COLLECTION CENTERS.
Change the oil while the engine is still warm from
running, as follows:
1. Make sure generator is on a level surface.
2. Loosen the side maintenance cover screws and
remove the side maintenance cover.
3. Clean area around oil ll and remove oil ll cap.
4. Tip your generator to drain oil from oil ll into a
suitable container making sure you tip your unit
toward the oil ller neck. When crankcase is
empty, return generator to upright position.
5. Slowly pour oil (about 0.4 L (13.5 oz.)) into oil ll
opening to the point of overowing at oil ll cap.
DO NOT overll.
6. Reinstall oil ll cap. Finger tighten cap securely.
7. Wipe up any spilled oil.
8. Reinstall the side maintenance cover and hand
tighten the cover screws.
Service Air Cleaner
Your engine will not run properly and may be damaged
if you run it with a dirty air cleaner. Service more often
if operating under dirty or dusty conditions.
To service the air cleaner, follow these steps:
1. Loosen the side maintenance cover screws and
remove the side maintenance cover.
2. Loosen air cleaner cover screw (A) and remove
air cleaner cover (B).
3. Carefully remove foam air cleaner (C) by pulling it
out towards you.
4. Carefully remove breather lter (D) by pulling it out
towards you.
5. Wash foam air cleaner and breather lter in liquid
detergent and water only. Squeeze dry in a clean
cloth.
6. SATURATE foam air cleaner in clean engine oil
and squeeze in a clean cloth to remove excess oil.
7. Reinstall clean or new foam air cleaner inside base.
8. Reinstall clean or new breather lter inside base.
9. Reinstall the air cleaner cover and tighten screw.
10. Reinstall the side maintenance cover and hand
tighten the cover screws.
Service Spark Plug
Changing the spark plug will help your engine to start
easier and run better.
1. Loosen the four handle screws and remove
handle.
2. Remove top maintenance cover.
C
A
D
B
CAUTION Avoid prolonged or repeated skin
contact with used motor oil.
• Used motor oil has been shown to cause skin cancer in
certain laboratory animals.
• Thoroughly wash exposed areas with soap and water.

Not for
Reproduction
20 www.briggsandstratton.com.au
3. Clean area around spark plug and remove spark
plug boot.
4. Remove spark plug and inspect spark plug.
5. Replace spark plug if electrodes are pitted,
burned or porcelain is cracked. Use the
recommended replacement plug. See
Specications.
6. Check electrode gap with wire feeler gauge and
reset spark plug gap to recommended gap if
necessary (see Specications).
7. Install spark plug and tighten rmly. Reinstall
spark plug boot.
8. Reinstall top maintenance cover.
9. Reinstall handle and tighten the four handle
screws.
Inspect Muer and Spark Arrester
Inspect the muer for cracks, corrosion, or other
damage. Remove the spark arrester, if equipped, and
inspect for damage or carbon blockage. If replacement
parts are required, make sure to use only original
equipment replacement parts.
Clean and inspect the spark arrester as follows:
1. To remove muer guard, remove four screws that
connects guard to generator.
2. Remove screw that attaches spark arrester screen
to muer. Remove spark arrester screen.
3. Inspect screen and obtain a replacement if torn,
perforated or otherwise damaged. DO NOT use a
defective screen. If screen is not damaged, clean
it with a brush.
4. Reattach screen to muer. Reattach muer guard.
Check Valve Clearance
Regular valve clearance check and adjustment will
improve performance and extend engine life. This
procedure cannot be done without partial engine
disassembly and the use of special tools. For this
reason we recommend that you have an authorized
Service Dealer check and adjust valve clearance at
recommended intervals (see Maintenance Schedule in
the Maintenance section).
WARNING Exhaust heat/ gases could ignite
combustibles, structures or damage
fuel tank causing a re, resulting in
death or serious injury.
Contact with muer area could cause burns
resulting in serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 1.5 m (5 ft) of clearance on all sides of
generator including overhead.
• Contact the original equipment manufacturer, retailer,
or dealer to obtain a spark arrester designed for the
exhaust system installed on this engine.
• Replacement parts must be the same and installed in the
same position as the original parts.
