PortableGenerator
Operator'sManual
This generator is rated in accordance with CSA(Canadian Standards
Association) standard 022.2 No. 100-04 (motors and generators).
BRIGGS & STRATTONPOWER PRODUCTS GROUP, LLC
MILWAUKEE, WISCONSIN, U.S.A.
o z 9 Manual No. 310784GS Revision E

Thankyoufor purchasing this quality-built Briggs & Stratton generator.We are pleasedthat you've placedyour confidencein
the Briggs& Stratton brand. When operatedand maintained according to the instructions in this manual,your Briggs &
Stratton generatorwill provide many years of dependableservice.
Thismanualcontainssafety information to makeyou awareof the hazardsand risks associatedwith generatorproducts and
how to avoidthem. This generator is designed and intendedonly for supplying electrical powerfor operatingcompatible
electrical lighting, appliances,tools and motor loads, and is not intendedfor any other purpose. It is important that you read
and understand these instructions thoroughly before attempting to start or operatethis equipment. Save these original
instructions for future reference.
Thisgenerator requiresfinal assembly beforeuse. Referto the Assemb/ysection of this manualfor instructions on final
assembly procedures. Follow the instructions completely.
Whereto FindUs
You never haveto look far to find Briggs & Stratton support and servicefor your generator. Consultyour Yellow Pages.There
are over 30,000 Briggs & Stratton authorized service dealersworldwide who provide quality service. You canalso contact
Briggs & Stratton Customer Service by phone at [phone], or on the Internet at BRIGGSandSTRATTON.COM.
Generator
Engine
Model Number
Revision
Serial Number III
Model Number
Type Number
Code Number III
DatePurchased III III III
Copyright © 2010. Briggs & Stratton PowerProducts Group,LLC
Milwaukee, WI, USA.All rights reserved.
BRIGGS& STRATTONPOWERPRODUCTSis a registered
trademark of Briggs & Stratton Corporation
Milwaukee, WI, USA
2 BRIGGSandSTRATTON.COIVl

TableofContents
Operator Safety ................................. 4
Equipment Description......................................... 4
Important SafetyInformation.................................... 4
Assembly ..................................... 7
UnpackGenerator ............................................ 7
Shipment Contents ........................................... 7
Install Wheel Kit.............................................. 7
Attach NegativeBatteryCable................................... 7
Add Engine Oil............................................... 8
Add Fuel.................................................... 8
System Ground .............................................. 9
Connectingto a Building's ElectricalSystem........................ 9
GeneratorLocation ........................................... 9
FeaturesandControls............................ 10
Cord Sets and Receptacles.................................... 11
Battery Charger............................................. 11
Operation .................................... 12
Starting the Engine .......................................... 12
ConnectingElectrical Loads.................................... 13
Stopping the Engine.......................................... 13
Oil PressureShutdown ....................................... 13
ColdWeather Operation....................................... 14
Don't OverloadGenerator ..................................... 15
Maintenance .................................. 16
MaintenanceSchedule........................................ 16
GeneratorMaintenance....................................... 16
Battery Maintenance ......................................... 16
FuelValveMaintenance....................................... 17
Engine Maintenance.......................................... 17
Storage ................................................... 20
Troubleshooting ................................ 21
Schematic - Model 030470 (7000 Watt) .......................... 22
Schematic - Model 030471 (8000 Watt) .......................... 23
Warranties .................................... 24
Emissions Control System Warranty............................. 24
GeneratorOwnerWarranty .................................... 26
Specifications ................................. 28
Product Specifications........................................ 28
Common Service Parts ....................................... 28
Frangais Espaffol

OperatorSafety
Equipment Description
Readthis manualcarefully and becomefamiliar
...... with yourgenerator. Knowitsapplications, its
limitationsand anyhazardsinvolved.
Thegenerator is an engine-driven, revolving field, alternating
current (AC) generator. It was designedto supply electrical
power for operating compatible electrical lighting,
appliances,tools and motor loads. Thegenerator's revolving
field is driven at about 3,600 rpm by a single-cylinder
engine.
NOTICE Exceedinggeneratorswattage/amperagecapacity
could damagegeneratorand/orelectrical devicesconnected
to it.
• DONOTexceedthegenerator'swattage/amperagecapacity.See
Don'tOverloadGeneratorintheOperationsection.
Everyeffort hasbeen madeto ensurethat the information in
this manualis both accurateand current. However,the
manufacturer reservesthe right to change,alter or otherwise
improve the generatorand this documentation at anytime
without prior notice.
The EmissionControl System for this generator is warranted
for standardsset by the Environmental ProtectionAgency
and the California Air Resources Board.
Important Safety Information
Themanufacturer cannot possibly anticipateevery possible
circumstance that might involve a hazard.Thewarnings in
this manual, and the tags and decals affixedto the unit are,
therefore, not all-inclusive. If you usea procedure,work
method or operating technique that the manufacturer does
not specifically recommend, you must satisfy yourself that it
is safe for you and others. You must also makesure that the
procedure, work method or operating technique that you
choose does not renderthe generator unsafe.
SafetySymbolsand Mleanings
ToxicFumes Kickback ElectricalShock
Fire Explosion Operator'sManual
MovingParts FlyingObjects HotSurface
_i, Thesafety alertsymbol indicatesa potential personal
injury hazard.A signalword (DANGER,WARNING,or
CAUTION)is usedwith the alert symbol to designatea
degreeor levelof hazardseriousness.A safety symbol may
be usedto representthe type of hazard.Thesignal word
NOTICEis usedto address practicesnot relatedto personal
injury.
ADANGER indicatesa hazardwhich, if not avoided, will
result in deathor serious injury.
A WARNINGindicatesa hazardwhich, if not avoided,
could result in death or serious injury.
ACAUTIONindicates a hazardwhich, if not avoided, could
result in minor or moderate injury.
NOTICEaddress practices not relatedto personal injury.
4 BRIGGSandSTRATTON.COIVl

Using a generator indoors CAN KiLL YOU iN MINUTES,
Generator exhaust contains carbon monoxide, This is
apoison you cannot see or smell,
V v
NEVER use inside ahome
or garage, EVEN iF doors
and windows are open,
[]
Only use OUTSIDE and
far away from windows,
doors, and vents,
_k WARNING Runningengine gives off carbon
monoxide, an odorless, colorless, poison gas.
_ Breathingcarbon monoxide could result in death,
serious injury, headache,fatigue,dizziness,
vomiting, confusion, seizures,nauseaor fainting.
• Operatethis productONLYoutdoors.
• Installa batteryoperatedcarbonmonoxidealarmnearthe
bedrooms.
Keepexhaustgas from entering a confined areathrough
windows, doors, ventilation intakes,or other openings.
DO NOToperatethis product insideany building, carport,
porch, mobile equipment, marine applications, or enclosure,
evenif windows and doors areopen.
_k WARNING Theengine exhaustfrom this product
contains chemicals known to the State of California to
causecancer, birth defects,or other reproductive harm.
A, WARNING Certain components in this product and
relatedaccessoriescontain chemicals known to the State
of Californiato causecancer, birth defects or other
reproductive harm. Wash hands after handling.
_k WARNING
• This generator does not meetU. S. CoastGuard Regulation
33CFR-183and should not be used on marineapplications.
• Failureto usethe appropriate U.S. CoastGuard approved
generator could result in deathor serious injury and/or property
damage.
A, WARNING Starter cord kickback(rapid retraction)will
pull hand and arm toward engine fasterthan you
can letgo which could causebroken bones,
fractures, bruises, or sprains resulting in
serious injury.
• Whenstartingengine,pullcordslowlyuntilresistanceisfelt
andthenpull rapidlytoavoidkickback.
• NEVERstartor stopenginewith electricaldevicespluggedin
andturnedon.
A. WARNING Fuel and its vapors are extremely
flammable and explosive which could
cause burns, fire or explosion resulting
in death, serious injury and/or property
damage.
WHENADDINGOR DRAININGFUEL
• Turn generator engineOFFand let it cool at least 2 minutes
before removing fuel cap. Loosen capslowly to relievepressure
in tank.
• Fill or drain fuel tank outdoors.
• DONOToverfill tank. Allow spacefor fuel expansion.
• If fuel spills, wait until it evaporatesbefore starting engine.
• Keepfuel awayfrom sparks, open flames, pilot lights, heat,and
other ignition sources.
• Checkfuel lines,tank, cap and fittings frequently for cracks or
leaks. Replaceif necessary.
• DONOTlight a cigaretteor smoke.
WHENSTARTINGEQUIPMENT
• Ensure spark plug, muffler, fuel cap, andair cleanerare in
place.
• DO NOTcrank enginewith spark plug removed.
WHENOPERATINGEQUIPMENT
•DO NOToperatethis product inside any building, carport,
porch, mobile equipment, marine applications, or enclosure.
• DONOTtip engine or equipment at anglewhich causesfuel to
spill.
• DONOTstop engineby moving choke control to "Choke"
position (I",l).
WHENTRANSPORTING,MOVING OR REPAIRINGEQUIPMENT
• Transport/move/repair with fuel tank EMPTYor with fuel shutoff
valveOFF.
• DONOTtip engine or equipment at anglewhich causesfuel to
spill.
• Disconnectspark plug wire.
WHENSTORINGFUELOR EQUIPMENTWITH FUELIN TANK
•Store awayfrom furnaces, stoves,water heaters,clothes
dryers, or other appliancesthat have pilot light or other ignition
source becausethey could ignite fuel vapors.

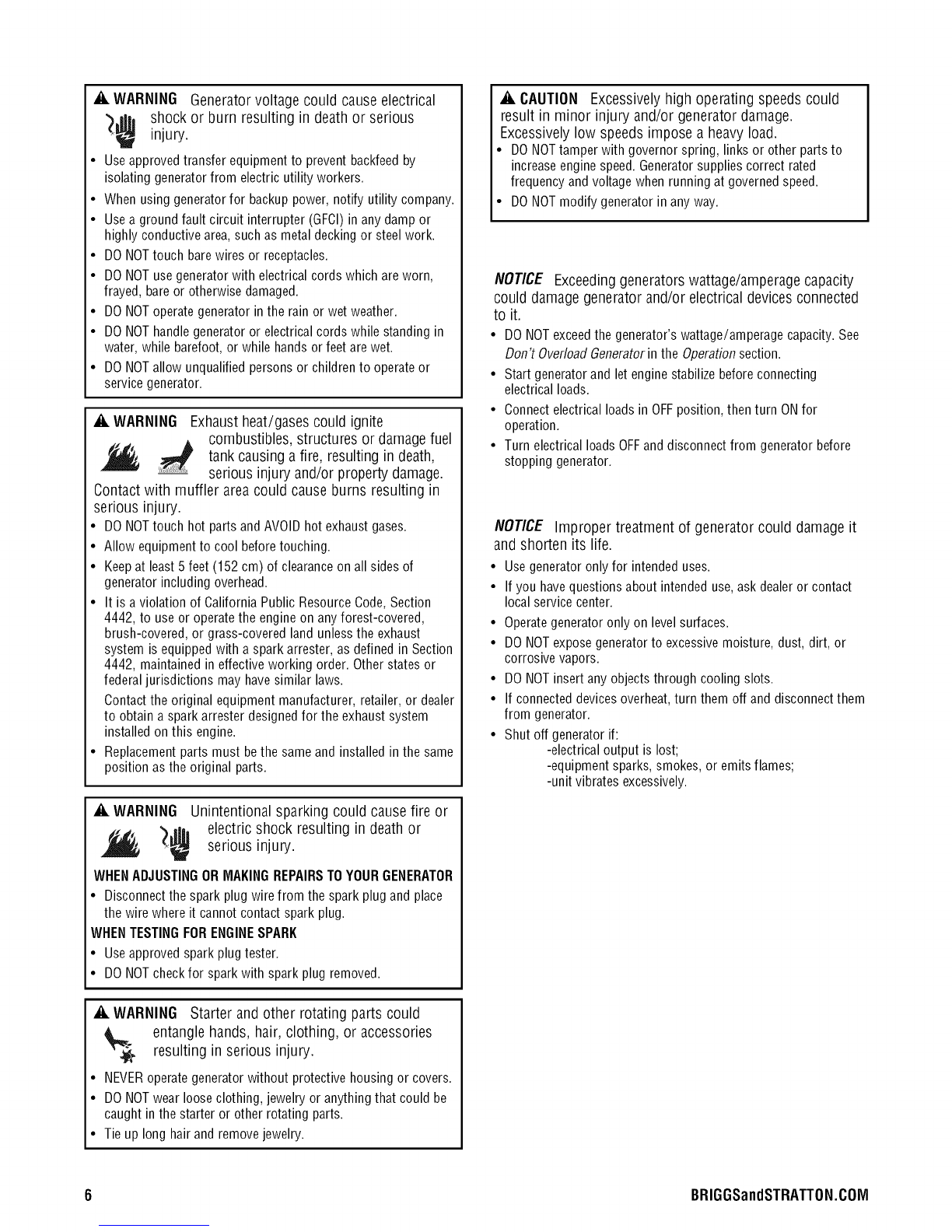

_k.WARNING Generator voltage could cause electrical
')llJil shock or burn resulting in death or serious
injury.
• Use approvedtransfer equipment to preventbackfeedby
isolating generator from electric utility workers.
• When using generator for backup power, notify utility company.
• Use a ground fault circuit interrupter (GFCI)in any damp or
highly conductive area,such as metal deckingor steel work.
• DO NOTtouch bare wires or receptacles.
• DO NOTuse generatorwith electrical cords which areworn,
frayed, bareor otherwise damaged.
• DO NOToperate generator in the rain or wet weather.
• DO NOThandle generator or electrical cords while standing in
water, while barefoot,or while hands or feet are wet.
• DO NOTallow unqualified personsor children to operate or
servicegenerator.
A, WARNING Exhaust heat/gases could ignite
combustibles, structures or damage fuel
causing a fire, resulting death,
tank in
' serious injury and/or property damage.
Contact with muffler area could cause burns resulting in
serious injury.
• DO NOTtouch hot parts and AVOID hot exhaust gases.
• Allow equipmentto cool beforetouching.
• Keepat least5 feet (152 cm) of clearanceon all sidesof
generator including overhead.
• It is a violation of California Public Resource Code, Section
4442, to use or operate the engineon anyforest-covered,
brush-covered, or grass-covered land unlessthe exhaust
system is equipped with a spark arrester, as defined in Section
4442, maintained in effective working order. Other states or
federal jurisdictions may have similar laws.
Contactthe original equipment manufacturer, retailer, or dealer
to obtain a sparkarrester designedfor the exhaust system
installed on this engine.
• Replacement parts must bethe sameand installed in the same
position asthe original parts.
_k.WARNING Unintentional sparking could cause fire or
"_.llh electric shock resulting in death or
serious injury.
WHENADJUSTINGORMAKINGREPAIRSTOYOURGENERATOR
• Disconnectthe spark plug wire from the spark plug and place
the wire where it cannot contact spark plug.
WHENTESTINGFORENGINESPARK
• Use approved spark plug tester.
• DO NOTcheckfor spark with spark plug removed.
_k.WARNING Starter and other rotating parts could
entanglehands, hair, clothing, or accessoriesresulting in serious injury.
• NEVERoperate generator without protective housing or covers.
• DO NOTwear looseclothing, jewelry or anything that could be
caught in the starter or other rotating parts.
• Tie up long hair and removejewelry.
A, CAUTION Excessively high operating speeds could
result in minor injury and/or generator damage.
Excessively low speeds impose a heavy load.
• DO NOTtamper with governor spring, links or other partsto
increase enginespeed. Generatorsupplies correct rated
frequency and voltage when running at governed speed.
• DO NOTmodify generator in any way.
NOTICE Exceeding generators wattage/amperage capacity
could damage generator and/or electrical devices connected
to it.
• DO NOTexceedthe generator's wattage/amperage capacity. See
Don't OverloadGeneratorin the Operationsection.
• Start generator and letengine stabilize beforeconnecting
electrical loads.
• Connectelectrical loads in OFFposition, thenturn ONfor
operation.
• Turn electrical loads OFFand disconnect from generator before
stopping generator.
NOTICE Improper treatment of generator could damage it
and shorten its life.
• Use generator only for intendeduses.
• If you havequestions about intended use,ask dealeror contact
local servicecenter.
• Operategenerator only on level surfaces.
• DO NOTexposegenerator to excessivemoisture, dust, dirt, or
corrosive vapors.
• DO NOTinsert any objects through cooling slots.
• If connected devicesoverheat, turn them off and disconnect them
from generator.
• Shut off generator if:
-electrical output is lost;
-equipment sparks, smokes, or emits flames;
-unit vibrates excessively.
6 BRIGGSandSTRATTON.COIVI

Assembly
Your generator requiressome assembly and is readyfor use
after it hasbeen properly servicedwith the recommendedoil
and fuel.
If you haveany problemswith the assemblyof your generator,
pleasecallthe generatorhelplineat 1-888-743-4115. If calling
for assistance,pleasehavethe model, revision,and serial
numberfrom the identificationlabel available.SeeGenerator
ControlsandFeaturesfor identification labellocation.
UnpackGenerator
1. Setthe carton on a rigid, flat surface.
2. Removeeverything from carton exceptgenerator.
3. Opencarton completely by cutting eachcorner from
top to bottom.
4. Leavegeneratoron carton to install wheel kit.
Shipment Contents
The generatoris suppliedwith:
•Engineoil bottles (2)
• Operator's manual
• Batteryfloat charger
• Wheelkit
• Keys (2)
Install Wheel Kit
NOTICE Wheelkit is not intendedfor over-the-road use.
You will needthe following tools to install these
components:
• 13 mm and 19 mm wrench
• Socketwrench with 10 mm and 16 mm sockets
Installthewheelkitas follows:
1. Tip generator sothat engine side is down.
2. Slide axlestud (A) through mounting bracketwith
threadedend facing out.
3. Insert retaining pin (B) through hole on axlestud.
4. Slide a wheel (C) over axlestud.
NOTICE Besure to install wheelwith raised hub inboard.
5. Attach wheelto axlestud with a washer (D), lock
washer (E) and nut (F). Tighten with a 16 mm socket
wrench and 19 mm wrench.
6. Placehub cap (G) into center of wheel and push until it
snaps into place.
7. Repeatsteps 2 through 6 to secure secondwheel.
8. Line up holes in support leg (H) with holes in generator
frame.
,
10.
Attach support leg using 4 capscrews(J) and 4 hex
nuts (K). Tighten with a 10 mm socket wrench and
13 mm wrench.
Return generatorto normal operating position (resting
on wheels).
Attach Negative Battery Cable
Your unit is equippedwith electric start capability but can be
started manually. If you choose not to use the electric start
feature,you do not needto connect the negative battery
cable.
Thesealedbattery on the generatorpre-installed exceptfor
the negative (black) batterycable.
A. WARNING Batteryposts, terminals and related
accessoriescontain leadand leadcompounds - chemicals
known to the State of Californiato cause cancerand
reproductiveharm. Wash handsafter handling.

To install:
1. Cut off tie wrap securing looseend of negative (black)
cable.
2. Using an 8 mm or 5/16" socket wrench, remove
screw (A), lock washer (B) and flat washer (6) on
negative batteryterminal.
3. Slide lock washer,flat washer and negativebattery cable
(D) over screw asshown.
4. Reattachscrew to negative batteryterminal and tighten.
5. Verify that connections to batteryand generator are
tight and secure.
NOTICE If your battery is discharged, chargeprior to use
following the instructions in the section Battery Charger.
Add Engine Oil
1. Placegeneratoron a flat, levelsurface.
2. Cleanarea around oil fill and removeyellow oil fill
cap/dipstick.
3. Using oil funnel (optional), slowly pour contents of
both provided oil bottles into oil fill opening to the
"Full" mark on dipstick.
NOTICE Improper treatment of generator could damage it
and shorten its life.
• DO NOTattempt to crank or start the engine beforeit has been
properly servicedwith the recommended oil. This could result in
an enginefailure.
4. Replaceoil fill cap/dipstick and fully tighten.
Add Fuel
Fuel must meet theserequirements:
• Clean,fresh, unleadedgasoline.
• A minimum of 87 octane/87AKI (91 RON).Forhigh
altitude use, seeHigh Altitude.
• Gasolinewith up to 10% ethanol (gasohol) or up to
15% MTBE(methyl tertiary butyl ether) is acceptable.
NOTICE Avoid generatordamage.
Failureto follow Operator's Manualfor fuel
recommendations voids warranty.
• DONOTuseunapprovedgasolinesuchasE85.
• DONOTmixoil in gasoline.
• DONOTmodifyengineto runonalternatefuels.
To protect the fuel system from gum formation, mix in a fuel
stabilizer when adding fuel. SeeStorage.All fuel is not the
same. If you experiencestarting or performance problems
after using fuel, switch to a different fuel provider or change
brands. This engine is certified to operateon gasoline. The
emission control system for this engine is EM (Engine
Modifications).
A. WARNING Fueland its vapors areextremelyflammable
and explosivewhich could causeburns,
fire or explosionresulting in death,
serious injury and/orproperty damage.
WHENADDINGFUEL
• TurngeneratorengineOFFandletit coolatleast2 minutes
beforeremovingfuelcap.Loosencapslowlyto relievepressure
intank.
• Fillfueltankoutdoors.
• DONOToverfilltank.Allowspacefor fuelexpansion.
• Iffuelspills,waituntilit evaporatesbeforestartingengine.
• Keepfuelawayfromsparks,openflames,pilotlights,heat,and
otherignitionsources.
• Checkfuellines,tank,capandfittingsfrequentlyfor cracksor
leaks.Replaceif necessary.
• DONOTlighta cigaretteor smoke.
,
2. Cleanarea around fuel fill cap, remove cap.
Slowly add unleadedfuel to fuel tank. Becarefulnot to
fill abovethe redfuel level indicator (E).This allows
adequatespace for fuel expansion.
\
3. Install fuel capand let anyspilled fuel evaporatebefore
starting engine.
High Altitude
At altitudes over 5,000 feet (1524 meters), a minimum
85 octane/85 AKI (89 RON)gasoline is acceptable.To
remainemissions compliant, high altitude adjustment is
required.Operationwithout this adjustment will cause
decreasedperformance, increasedfuel consumption, and
increasedemissions. Seean authorized dealerfor high
altitude adjustment information. Operationof the engine at
altitudes below 2,500 feet (762 meters) with the high altitude
kit is not recommended.
8 BRIGGSandSTRATTON.COIVl

SystemGround
Thegenerator hasa system ground that connects the
generatorframe components to the ground terminals on the
ACoutput receptacles.Thesystem ground is connected to
the ACneutral wire (the neutral is bonded to the generator
frame).
Special Requirements
Theremay be Federalor State OccupationalSafety and
Health Administration (OSHA)regulations, local codes, or
ordinances that applyto the intended useof the generator.
Pleaseconsult a qualified electrician, electrical inspector, or
the local agency havingjurisdiction:
• In some areas,generators are requiredto be registered
with local utility companies.
• If the generator is usedat a construction site, there
may be additional regulations which must be observed.
Connecting to a Building's Electrical System
Connectionsfor standby powerto a building's electrical
system must be made by a qualified electrician. The
connection must isolate the generator powerfrom utility
power or other alternativepower sources and must comply
with all applicablelaws and electrical codes.
A, WARNING Generatorvoltage could cause electrical
)Jhl shock or burn resulting in deathor serious
mlury.
• Useapprovedtransferequipmentto preventbackfeedby
isolatinggeneratorfromelectricutilityworkers.
• Whenusinggeneratorfor backuppower,notifyutilitycompany.
• Useagroundfaultcircuitinterrupter(GFCI)in anydampor
highlyconductivearea,suchasmetaldeckingor steelwork.
• DONOTtouchbarewiresor receptacles.
• DONOTusegeneratorwithelectricalcordswhichareworn,
frayed,bareor otherwisedamaged.
• DONOToperategeneratorintherainorwetweather.
• DONOThandlegeneratoror electricalcordswhilestandingin
water,whilebarefoot,or whilehandsorfeetarewet.
• DONOTallowunqualifiedpersonsor childrento operateor
servicegenerator.
GeneratorLocation
Clearancesand Air Movement
A, WARNING Exhaustheat/gases could ignite
combustibles, structuresor damagefuel tank
causing afire, resultingin death,serious injury
and/or property damage.
• Keepatleast5 ft. (152cm) clearanceonallsidesof generator
includingoverhead.
Placegeneratoroutdoors in an areathat will not accumulate
deadlyexhaust gas. DONOTplacegeneratorwhere exhaust
gas (A) could accumulate and enter inside or be drawn into
a potentially occupied building. Ensureexhaustgas is kept
awayfrom any windows, doors, ventilation intakes, or other
openings that canallow exhaustgasto collect in a confined
area.Prevailingwinds and air currents should betaken into
consideration when positioning generator.
Using agenerator indoors CAN KILL YOU IN MINUTES,
Generator exhaust contains carbon monoxide, This is
a poison you cannot see or smell,
NEVER use inside a home
or garage, EVEN IF doors
and windows are open,
Only use OUTSIDE and
far away from windows,
doors, and vents,
|

FeaturesandControls
Readthis Operator'sManual and safetyrules beforeoperatingyourgenerator.
Comparethe illustrations with your generator, to familiarize yourself with the locations of various controls and
adjustments. Savethis manual for future reference.
A-StartSwitch-- Turn keyto start ((_) position to start
the engine.Turn key to off (0) position to switch off
engine.
B-HourMeter- Displays and records how many hours
your generator hasrun (up to 9,999.9).
C- RockerSwitchCircuitBreaker-- The120/240 Volt AC,
30A lockingreceptacleisprovided with a 2 pole rocker
switch circuit breakerto protect the generatoragainst
electrical overload.
D-ChokeControl-- Usedwhen starting a cold engine.
E - BatteryFloat ChargerJack-- Use batteryfloat charger
jack to keepthe starting batterycharged and readyfor
use.
F - 120/240 Volt AC,30 Amp LockingReceptacle-- May
be usedto supply electrical power for the operation of
120 and/or 240 Volt AC,30 Amp, single phase,60 Hz
electrical, lighting, appliance,tool and motor loads.
G - 120 Volt AC,20 Amp, DuplexReceptacle-- May be
usedto supply electrical power for the operation of
120 Volt AC,20 Amp, single phase,60 Hzelectrical,
lighting, appliance,tool and motor loads.
H-CircuitBreakers(AC}-- The 120 Volt AC, 20A duplex
receptaclesare provided with "pushto reset"circuit
breakersto protect the generatoragainst electrical
overload.
J-0il Fill Cap/Dipstick-- Checkand add engine oil here.
K- 0il Drain Plug -- Drainengine oil here.
L - GroundingFastener -- Consult your local agency having
jurisdiction for grounding requirements in your area.
M - Spark Arrester Muffler -- Exhaustmuffler lowers engine
noiseand is equippedwith a spark arrester screen.
N - Air Cleaner-- Protects engine by filtering dust and
debris out of intake air.
P - Recoil Starter -- Usedto start the engine manually.
R - FuelValve-- Usedto turn fuelsupply on and off to
engine.
S - FuelTank -- Capacityof seven(7) U.S.gallons (26.5 I).
Items NotShown:
EngineIdentification-- Provides model, type and code of
engine. Pleasehavethese readily availableif calling for
assistance.
Identification Label -- Provides model and serial number of
generator. Pleasehavethese readilyavailableif calling for
assistance.
10 BRIGGSandSTRATTON.COM

CordSetsandReceptacles
Use only high quality, well-insulated, grounded extension
cords with the generator's receptacles.Inspect extension
cords before eachuse.
Checkthe ratings of all extensioncords beforeyou use
them. Extensioncord sets usedshould be ratedfor 125
Volts ACloads20 Amps or greater. Checkoperator's
manuals of devicesto be poweredfor the manufacturer's
recommendations.
Keepextension cords asshort aspossible to minimize
voltage drop.
_i, WARNING Damagedor overloadedelectrical cords
could overheat,arc, and burn resulting in death,
serious injury, and/or property damage.
• ONLYuse cords ratedfor your loads.
• Follow all safeties on electricalcords.
• Inspect cord sets before each use.
120/240 Volt AC,30 Amp, LockingReceptacle
Use a NEMAL14-30 plug with this receptacle.Connecta
4-wire cord set ratedfor 250 Volt AC loadsat 30 Amps (or
greater). You can usethe same4-wire cord if you planto run
a 120 Volt load.
4-Wire CordSet
_240V-_
_-120V W(Neutral)
Y (Hot) /x (Hot)
NEMAL14-30 _ Ground (Green)
This receptaclepowers 120/240 Volt AC, 60 Hz,single phase
loads requiring up to 7,200 watts of power (7.2 kW) at
30 Amps for 240 Volts or two independent120 Volt loads at
30 Amps each.The outlet is protected by a 2 pole rocker
switch circuit breaker.
NOTICE Receptacles may be marked with rating value
greater than generator output capacity.
• NEVERattempt to power a device requiring more amperagethan
generator or receptaclecan supply.
• DONOToverloadthe generator.See Don'tOverloadGenerator.
120 Volt AC, 20 Amp, DuplexReceptacles
Theduplex receptacleis protected against overload by
push-to-reset circuit breakers.
Useeachreceptacleto operate120 Volt AC, single-phase,
60 Hz electricalloads requiring up to 2,400 watts (2.4 kW) at
20 Amps of current. Usecord setsthat are ratedfor 125 Volt
ACloads at 20 Amps (or greater).
Battery Charger
Usebatteryfloat chargerjack to keepthe starting battery
chargedand readyfor use. Battery charging should be done
in a dry location, such as insidea garage.
1. Plug charger into unit's "Battery Float Charger"jack,
which is located next to the start switch. Plug battery
charger into a 120 Volt AC wall receptacle.
.
3.
NOtiCE
Unplugchargerfrom unitandwall outletwhengenerator
is beingstartedand whileit is in operation.
Keepthis charger plugged in when generator is not in
useto prolong battery life. The chargerhas a built in
float equalizerand will not overchargethe battery, even
when plugged in for an extended period of time.
SeeBattery Maintenancefor additional information.
11

Operation
Starting the Engine
NOTICE Always unplug the battery float charger before
starting the generator.
Disconnect all electrical loads from the generator. Usethe
following start instructions:
1. Make sure unit is on a levelsurface.
NOTICE Failureto start and operatethe unit on a level
surfacewill causethe unit not to start or shut down during
operation.
2. Turn thefuel valve (A) to the "On" position.
3. Pull choke control out to close choke (J",l).
4A. Forelectricstarting,turn and hold key in start switch
to start ((_) position until generatorstarts. To prolong
the lifeof starter components, DONOThold key in start
((_) position for more than 15 seconds, and pausefor
at least1 minute betweenstarting attempts.
• If engine starts, proceedto step 6.
• If engine fails to start, proceedto step 5.
NOTICE If batteryis discharged,usemanualstarting
instructions.
4B. Formanualstarting,turn key in start switch to run (I)
position, grasp recoil handle and pull slowly until slight
resistance is felt. Then pull rapidly one time only to
start engine.
• If engine starts, proceedto step 6.
• If engine fails to start, proceedto step 5.
_, WARNING Starter cord kickback(rapid retraction)will
pull hand and arm toward engine fasterthan you
,!_ can letgo which could cause brokenbones,
fractures, bruises, or sprains resulting in
serious injury.
• Whenstartingengine,pullcordslowlyuntilresistanceisfelt
andthenpull rapidlytoavoidkickback.
• NEVERstartor stopenginewith electricaldevicespluggedin
andturnedon.
5. Push in the choke handle half way,turn key in start
switch to run (I) position and pull recoil handletwice or
turn and hold key in start switch to start ((_) position
as described in step 4A.
• If engine fails to start, repeatsteps 3 thru 4.
6. Openthe choke gradually asthe enginewarms up by
pushing in on the choke handle.
NOTICE If engine floods, push choke handle all the way in
and crank until enginestarts.
NOTICE If engine starts after 3 pulls but fails to run, or if
unit shuts down during operation, makesure unit is on a
level surfaceand check for proper oil level in crankcase.This
unit may be equipped with a low oil protection device. If so,
oil must be at proper levelfor engine to start.
,A WARNING Exhaust heat/gases could ignite
._; combustibles, structures or damage fuel
tank causing a fire, resulting in death,
serious injury and/or property damage.
Contact with muffler area could cause burns resulting in
serious injury.
• DO NOTtouch hot parts and AVOIDhot exhaust gases.
• Allow equipment to cool beforetouching.
• Keepat least5 feet (152 cm) of clearanceon all sides of
generator including overhead.
• It is a violation of California Public Resource Code,Section
4442, to use or operate the engine on any forest-covered,
brush-covered, or grass-covered land unless the exhaust
system is equipped with a spark arrester, as defined in Section
4442, maintained in effective working order. Other states or
federaljurisdictions may havesimilar laws.
Contactthe original equipment manufacturer, retailer, or dealer
to obtain a spark arrester designedfor the exhaust system
installed on this engine.
• Replacement parts must bethe sameand installed in the same
position asthe original parts.
12 BRIGGSandSTRATTON.COIVl

Connecting Electrical Loads
1. Let engine stabilizeand warm up for a few minutes
after starting.
2. Ensurecircuit breakeron control panel is in on (I)
position.
3. Plug in andturn on the desired 120 and/or 240 Volt
AC,single phase,60 Hz electrical loads.
NOTICE When plugging into the 120 Volt receptacles,plug
items to be powered in sequenceasshown below.
NOTICE
• DONOTconnect 240Volt loads to the 120 Volt duplex
receptacles.
• DONOTconnect 3-phaseloads to the generator.
• DONOTconnect 50 Hzloads to the generator.
• DONOTOVERLOADTHEGENERATOR.SeeDon't
OverloadGenerator.
NOTICE Exceeding generators wattage/amperage capacity
could damage generator and/or electrical devices connected
to it.
•DO NOTexceedthe generator's wattage/amperage capacity. See
Don't OverloadGeneratorin the Operationsection.
• Start generator and letengine stabilize beforeconnecting
electrical loads.
• Connectelectrical loads in OFFposition, thenturn ONfor
operation.
• Turn electricalloads OFFand disconnectfrom generator before
stopping generator.
Stopping the Engine
1. Turn OFFand unplug all electrical loads from generator
panel receptacles.NEVERstart or stop enginewith
electrical devicesplugged in and turned ON.
2. Let engine run at no-load for several minutes to
stabilize internaltemperatures of engine and generator.
3. Turn key in start switch to off (0) position.
A. WARNING Fueland its vapors areextremelyflammable
and explosivewhich could causeburns,
fire or explosionresulting in death,
serious injury and/orproperty damage.
• DONOTstopenginebymovingchokecontroltochoke(l",l)
position.
4. Move fuel valve to "Off" position.
Low Oil Shutdown
If the engine oil drops below a preset level,an oil switch will
stop the engine. Checkoil levelwith dipstick.
oil level is betweenADDand FULLmarkon dipstick:
1. DONOTtry to restart the engine.
2. Contact an Authorized Briggs & Stratton Service Dealer.
3. DONOToperateengine until oil level is corrected.
oil level isbelowADDmarkon dipstick:
1. Add oil to bring levelto FULLmark.
2. Restart engine and if the engine stops again a low oil
condition may still exist. DONOTtry to restart the
engine.
3. Contact an Authorized Briggs & Stratton Service Dealer.
4. DONOToperateengine until oil level is corrected.
13

Cold WeatherOperation
Under certain weather conditions (temperatures below 40°F
[4°0] combined with high humidity), your generator may
experienceicing of the carburetor and/or the crankcase
breather system. To reducethis problem, you needto
perform the following:
1. Make sure generator hasclean,fresh fuel.
2. Openfuel valve (turn valve to open position).
3. Use SAE5W-30 oil.
4. Checkoil leveldaily or after every eight (8) hours of
operation.
5. Maintain generatorfollowing MaintenanceSchedulein
Maintenancesection.
6. Shelter unit from elements.
Creatinga TemporaryColdWeather Shelter
1. Fortemporary shelter,the original shipping carton can
be used.
2. Cut off top carton flaps and one long sideof carton to
expose muffler side of unit. If required,tape up other
sides of carton to fit over generatoras shown.
Wind
NOTICE If required, removewheel kit to fit carton over
generator asshown.
3. Cut appropriate slots to access receptaclesof unit.
4. Faceexposedend away from wind and elements.
5. Locate generatoras described in the section Generator
Location. Keepexhaust gasfrom entering a confined
areathrough windows, doors, ventilation intakesor
other openings.
_i. WARNING Runningengine gives off carbon
monoxide, an odorless, colorless, poison gas.
carbon monoxidecould result in death,
Breathing
serious injury, headache,fatigue,dizziness,
vomiting, confusion, seizures,nauseaor fainting.
• Operatethis productONLYoutdoors.
• Installa batteryoperatedcarbonmonoxidealarmnearthe
bedrooms.
Keepexhaustgas from entering a confined areathrough
windows, doors, ventilation intakes,or other openings.
DO NOToperatethis product inside any building, carport,
porch, mobile equipment, marine applications, or enclosure,
evenif windows and doors areopen.
,Start generatoras described in the section Starting the
Engine,then placecarton over generator. Keepat least
5 ft. (1.5 m) clearanceon all sides of generator
including overheadwith shelter in place.
_i. WARNING Exhaustheat/gases could ignite
combustibles, structuresor damagefuel
_ causinga fire, resulting death,
tank in
serious injury and/or property damage.
Contact with muffler area could cause burns resulting in
serious injury.
• DONOTtouchhotpartsandAVOIDhotexhaustgases.
• Allowequipmentto coolbeforetouching.
• Keepatleast5 feet(152cm)of clearanceonall sidesof
generatorincludingoverhead.
• Removeshelterwhentemperaturesareabove40°F[4°C].
7. Removeshelter when temperatures are above40°F
[4°C].
8. Turn engine OFFand let cool two (2) minutes before
refueling. Let anyspilled fuel evaporatebefore starting
engine.
BuildingaColdWeather Shelter
1. Using non combustible materialwith a fire rating of at
least one hour, build a shelter that will enclose three
sides and the top of the generator. Makesure muffler
side of generator is exposed.
NOTICE Contactyour local building material supplier for
non combustible materialswith a fire rating of at least one
hour.
NOTICE Besure shelter caneasily be repositioned for
changein wind direction.
2. DONOTenclose generatorany more than shown.
Sheltershould hold enough heat createdby the
generatorto prevent icing problem.
NOTICE If a wheel kit is installed on the generator, enlarge
shelter accordingly.
3. Follow steps 3 through 8 asdescribed previously in
Creatinga TemporaryCold WeatherShelter.
14 BRIGGSandSTRATTON.COIVI

Don't Overload Generator
Capacity
You must make sureyour generator cansupply enough
rated (running) and surge (starting) watts for the items you
will power at the same time. Follow these simple steps:
1. Selectthe itemsyou will power at the same time.
2. Total the rated(running) watts of these items. This is
the amount of power your generator must produce to
keepyour items running. Seethe table on the right.
3. Estimatehow many surge (starting) watts you will need.
Surge wattageis the short burst of power neededto
start electric motor-driven tools or appliancessuch asa
circular saw or refrigerator. Becausenot all motors start
atthe sametime, total surgewatts can be estimatedby
adding only the item(s) with the highest additionalsurge
watts to thetotal ratedwatts from step 2.
Example:
Toolor Appliance
WaterWell Pump
Refrigerator
FurnaceFan
Television
Light (75 Watts)
Running(Rated)
Watts
1200
700
800
500
75
3275 Total
RunningWatts
Total Rated(Running) Watts
HighestAdditional Surge Watts
Total GeneratorOutput Required
AdditionalStarting
(Surge) Watts
21O0
2200
2350
2350 Highest
Starting Watts
= 3275
= 2350
= 5625
Power Management
To prolong the life of your generatorand attacheddevices, it
is important to take carewhen adding electrical loadsto your
generator. Thereshould be nothing connectedto the
generator outlets before starting its engine.Thecorrect and
safe way to managegeneratorpower isto sequentiallyadd
loads asfollows:
1. With nothing connectedto the generator,start the
engine asdescribed in this manual.
2. Plug in andturn on the first load, preferablythe largest
load you have.
3. Permit the generatoroutput to stabilize (engine runs
smoothly and attacheddeviceoperates properly).
4. Plug in andturn on the next load.
5. Again, permit the generatorto stabilize.
6. Repeatsteps 4 and 5 for eachadditional load.
WattageReferenceGuide
Running* Additional
Tool orAppliance (Rated) Starting
Watts (Surge)
Watts
Essentials
Light Bulb - 75 watt 75 --
FurnaceFanBlower- 1/2 HP 800 2350
Sump Pump- 1/3 HP 800 1300
Refrigerator/Freezer 700 2200
Water Well Pump- 1/2 HP 1000 2100
Heating/Cooling
Window AC- 10,000 BTU 1200 3600
Humidifier- 13 Gal 175 --
CentralAC- 24,000 BTU 3800 11400
Kitchen
Microwave Oven- 1000 Watt 1000 --
CoffeeMaker 1000 --
Electric Stove - 8" Element 2100 --
Toaster 850 --
Family Room
DVD/CDPlayer 100 --
VCR 100 --
Stereo Receiver 450 --
Color Television- 27 in 500 --
PersonalComputer w/17 in 800 --
monitor
Other
Security System 500 --
AM/FM Clock Radio 100 --
GarageDoor Opener- 1/2 HP 875 2350
ElectricWater Heater 4700 11700
DIY/JohSite
Quartz HalogenWork Light 1000 --
Airless Sprayer- 1/3 HP 600 1200
Reciprocating Saw 960 --
Electric Drill - 1/2 HP, 5.4 Amps 600 900
Circular Saw - 7-1/4 in 1400 2300
Miter Saw- 10 in 1800 1800
TablePlaner - 6 in 1800 1800
TableSaw/RadialArm Saw- 10 in 2000 2000
Air Compressor - 1 HP 1600 4500
NEVERadd more loads than the generatorcapacity.Take
special careto consider surge loads in generator capacity,as
described above.
*Wattageslisted are approximate only. Checktool or
appliancefor actual wattage.
15

Maintenance
MaintenanceSchedule
Follow the hourly or calendarintervals, whichever occurs
first. More frequent serviceis required when operating in
adverseconditions noted below.
• Changeengine oil
• Cleandebris
• Checkengineoil level
• Cleanengine air filter'
• Changeengine oil'
• Replaceengine air filter'
• Servicefuel valve
• Service spark plug
• Inspect muffler and spark arrester
• Cleancooling system'
1 Service more often under dirty or dusty conditions.
GeneralRecommendations
Regular maintenancewill improve the performance and
extend the life of the generator. Seeany authorizeddealer for
service.
Thegenerator's warranty doesnot cover items that have
been subjectedto operator abuseor negligence.To receive
full valuefrom the warranty, the operator must maintain the
generator asinstructed in this manual.
Someadjustments will needto be made periodically to
properly maintain your generator.
All serviceand adjustments should be made at least once
eachseason.Follow the requirementsin the Maintenance
Schedulechart above.
NOTICE Oncea year you should cleanor replacethe spark
plug and replacethe air filter. New spark plugs and cleanair
filter assure proper fuel-air mixture and help your engine run
better and last longer.
EmissionsControl
Mlaintenance, replacement,or repair of theemissions
controldevicesand systemsmay he performedby any
non-roadengine repair establishmentor individual.
However,to obtain "no charge" emissions control service,
the work must be performed by a factory authorized dealer.
Seethe Emissions Warranty.
GeneratorMaintenance
Generatormaintenanceconsists of keepingthe unit clean
and dry. Operateand store the unit in a clean dry
environment where it will not be exposedto excessivedust,
dirt, moisture, or any corrosive vapors. Coolingair slots in
the generator must not become cloggedwith snow, leaves,
or any other foreign material.
NOTICE DONOTusewater or other liquids to clean
generator. Liquids canenter engine fuel system, causing
poor performance and/or failure to occur. In addition, if
liquid enters generator through cooling air slots, some of the
liquid will be retainedin voids and cracks of the rotor and
stator winding insulation. Liquid and dirt buildup on the
generator internalwindings will eventuallydecreasethe
insulation resistanceof these windings.
Cleaning
Dailyor before use, look around and underneaththe
generatorfor signs of oil or fuel leaks. Cleanaccumulated
debris from inside and outside the generator. Keepthe
linkage, spring and other engine controls clean. Keepthe
areaaround and behind the muffler free from any
combustible debris. Inspect cooling air slots and openings
on generator. Theseopenings must be kept cleanand
unobstructed.
Engine parts should be kept cleanto reducethe risk of
overheating and ignition of accumulateddebris:
• Use a damp cloth to wipe exterior surfaces clean.
NOTICE Improper treatment of generator could damage it
and shorten its life.
• DO NOTexposegenerator to excessivemoisture, dust, dirt, or
corrosive vapors.
• DONOTinsert any objects through cooling slots.
• Use a soft bristle brush to loosen cakedon dirt or oil.
• Use a vacuum cleanerto pick up loose dirt and debris.
BatteryMaintenance
Otherthan float charging, described elsewhere,no
maintenanceis requiredfor the starting battery. Keepthe
battery and terminals cleanand dry.
NOTICE Batterycharging should be performed in a dry
location, such as inside a garage.
_. WARNING Batteryposts, terminals and related
accessoriescontain leadand leadcompounds - chemicals
known to the State of Californiato cause cancerand
reproductiveharm. Wash handsafter handling.
16 BRIGGSandSTRATTON.COIVl

FuelValve Maintenance
Thefuel valve is equipped with a fuel sediment cup, screen,
and o-ring that needto be cleaned.
1. Move fuel valve to "olr' position.
2. Removesediment cup (A) from fuel valve. Remove
o-ring (B) and screen (C)from fuel valve.
3. Wash sediment cup, o-ring, and screen in a
nonflammable solvent. Dry them thoroughly.
4. Place screen and o-ring into fuel valve. Install sediment
cup and tighten securely.
5. Move fuel valve to "On" position,and check for leaks.
Replacefuel valve if there is anyleakage.
EngineMaintenance
_i. WARNING Unintentionalsparking could cause fire or
'_.i|h electric shock resulting in death or
serious injury.
WHENADJUSTINGORMAKINGREPAIRSTOYOURGENERATOR
•Disconnectthesparkplugwirefromthesparkplugandplace
thewirewhereit cannotcontactsparkplug.
WHENTESTINGFORENGINESPARK
• Useapprovedsparkplugtester.
• DONOTcheckfor sparkwithsparkplugremoved.
Oil
Oil Recommendations
We recommendthe useof Briggs & Stratton Warranty
Certified oils for best performance. Otherhigh-quality
detergent oils are acceptableif classified for serviceSF, SG,
SH, SJ or higher. DONOTuse specialadditives.
Outdoor temperatures determine the proper oil viscosity for
the engine. Usethe chart to select the best viscosity for the
outdoor temperature rangeexpected.
oF
104
86
68
5O
32
14
-4
-22
* Below40°F
oC
n, '_ 40
co _ D _ 30
--uu _' o _ 20
,o
_, -10
--__-20
_ -30
(4°C)theuseofSAE30 will resultin hardstarting.
** Above 80°F (27°C) the useof 10W30 may cause increasedoil
consumption. Checkoil level more frequently.
OOTICE Synthetic oil meeting ILSACGF-2,API
certification mark and API servicesymbol with
"SJ/CF ENERGYCONSERVING"or higher, is an
acceptableoil at all temperatures. Useof synthetic
oil does not alter required oil change intervals.
CheckingOil Level
Oil levelshould be checked prior to each useor at least
every 8 hours of operation. Keepoil levelmaintained.
1. Make sure generatoris on a levelsurface.
2. Cleanarea around oil fill, removeoil cap/dipstick and
wipe dipstick with cleancloth. Replacedipstick.
Removeand and check oil level.
NOTICE DONOTscrew in dipstick when checking oil level.
3. Verify oil is at "Full" mark (D) on dipstick. Replaceand
tighten oil cap/dipstick.
AddingEngineOil
1. Make sure generatoris on a levelsurface.
2. Checkoil levelas described in CheckingOilLevel
3. If needed,slowly pour oil into oil fill opening to the
"Full" mark on dipstick. DONOToverfill.
NOTICE Overfilling with oil could causethe engine to not
start, or hard starting.
• DONOToverfill.
• If overthe FULLmarkondipstick,drainoil to reduceoil levelto
FULLmarkondipstick.
4. Replaceand tighten oil cap/dipstick.
17

ChangingEngineOil
If you are usingyour generator under extremely dirty or
dusty conditions, or in extremely hot weather, changethe oil
more often.
_i, CAUTION Avoid prolonged or repeated skin contact
with used motor oil.
• Usedmotor oil has beenshown to cause skin cancer in certain
laboratory animals.
• Thoroughly wash exposed areaswith soap and water,
KEEPOUTOFREACHOFCHILDREN.DON'T
POLLUTE.CONSERVERESOURCES.RETURN
USEDOILTOCOLLECTIONCENTERS.
To servicetheair cleaner, follow these steps:
1. Loosen screws (A) and removeair cleanercover (B).
Changethe oil while the engineis still warm from
running,as follows:
Make sure unit is on a levelsurface.,
2. Disconnectthe spark plug wire from the spark plug and
placethe wire where it cannot contact spark plug.
3. Cleanarea around oil drain plug.The oil drain plug is
located at baseof engine,opposite carburetor.
4. Removeoil drain plug and drain oil completely into a
suitable container.
5. Reinstall oil drain plug andtighten securely. Removeoil
cap/dipstick.
6. Slowly pour recommendedoil (about 36 oz.) into oil fill
opening. Pauseto permit oil to settle. Fillto "Full" mark
on dipstick.
Wipe dipstick cleaneachtime oil levelis checked. DO
NOToverfill.
,
8.
9. Reinstall oil cap/dipstick. Tighten cap securely.
Wipe up any spilled oil.
ServiceAir Cleaner
Your enginewill not run properly and may be damaged if
you run it with a dirty air cleaner. Cleanor replacemore
often if operating under dusty or dirty conditions.
2. Carefully removecartridge (C) from base(D).
3. Install clean(or new)air cleanerassembly inside cover.
Disposeof old filter properly.
4. Assembleair cleanercover onto baseand tighten
screws.
Service Spark Plug
Changingthe spark plug will helpyour engine to start easier
and run better.
1. Cleanarea around spark plug.
2. Removeand inspect spark plug.
3. Checkelectrode gapwith wire feeler gauge and reset
spark plug gap to recommended gap if necessary(see
Specifications).
4. Replacespark plug if electrodesare pitted, burned or
porcelain is cracked. Use the recommended
replacementspark plug. SeeSpecifications.
5. Install spark plug and tighten firmly.
18 BRIGGSandSTRATTON.COIVl

InspectMuffler and Spark Arrester
Inspect the muffler for cracks, corrosion, or other damage.
Removethe spark arrester, if equipped,and inspectfor
damageor carbon blockage. If replacementparts are
required, make sure to useonly original equipment
replacementparts.
A. WARNIN6 Exhaustheat/gasescould ignite
combustibles, structuresor damagefuel
,_ causinga fire, resulting death,
tank in
serious injury and/or property damage.
Contactwith muffler area could cause burns resulting in
serious injury.
•DONOTtouchhotpartsandAVOIDhotexhaustgases.
• Allowequipmentto coolbeforetouching.
• Keepat least5 feet(152cm)of clearanceonall sidesof
generatorincludingoverhead.
• It isaviolationofCaliforniaPublicResourceCode,Section
4442,to useor operatetheengineon anyforest-covered,
brush-covered,or grass-coveredlandunlesstheexhaust
systemisequippedwith asparkarrester,asdefinedinSection
4442,maintainedineffectiveworkingorder.Otherstatesor
federaljurisdictionsmayhavesimilarlaws.
Contacttheoriginalequipmentmanufacturer,retailer,or dealer
to obtaina sparkarresterdesignedfor theexhaustsystem
installedonthis engine.
• Replacementpartsmustbethesameandinstalledinthesame
positionastheoriginalparts.
Cleanand inspectthesparkarresteras follows:
1. To remove muffler heatshield (A) from muffler (B),
removefour screws that connect guard to muffler
bracket.
.
3. Removefour screwsthat attachsparkarresterscreen(C).
Inspect screenand obtain a replacementif torn,
perforated or otherwise damaged. DONOTusea
defective screen.If screen is not damaged,clean it with
commercial solvent.
4. Reattachscreen and muffler guard.
CleanCoolingSystem
Overtime debris may accumulatein cylinder cooling fins and
cannot be observedwithout partial engine disassembly. For
this reason,we recommendyou havea Briggs & Stratton
authorized dealercleanthe cooling system (D) per
recommendedintervals (seeMaintenanceSchedulein the
Maintenancesection). Equallyimportant is to keeptop of
engine freefrom debris. Also see Cleaning.
CarburetorAdjustment
Thecarburetor on this engine is low emission. It is equipped
with a non-adjustable idle mixture valve.Top speedhas been
set atthe factory. If adjustment is required,seea Briggs &
Stratton authorized dealer.
_k. CAUTION Excessively high operating speeds could
result in minor injury and/or generator damage.
Excessively low speeds impose a heavy load.
• DO NOTtamper with governor spring, links or other partsto
increase enginespeed. Generatorsupplies correct rated
frequency and voltage when running at governed speed.
• DO NOTmodify generator in any way.
19

Storage
Thegenerator should be started at least once every seven
days and allowed to run at least 30 minutes. If this cannot be
done and you must store the unit for more than 30 days,use
the following guidelinesto prepare it for storage.
GeneratorStorage
• Cleanthe generator as outlined in Cleaningin the
Maintenancesection.
• Checkthat cooling air slots and openingson generator
are open and unobstructed.
LongTerm StorageInstructions
Fuelcan becomestale when stored over 30 days.Stalefuel
causesacid and gum deposits to form in the fuel system or
on essentialcarburetor parts. To keepfuel fresh, use Briggs
& Stratton FRESHSTART® fuel stabilizer, availableasa
liquid additive or a drip concentrate cartridge.
Thereis no needto drain gasolinefrom the engine if a fuel
stabilizer is added according to instructions. Runthe engine
for 2 minutes to circulate the stabilizerthroughout the fuel
system. The engine andfuel canthen be stored up to
24 months.
If gasoline in the engine hasnot beentreated with a fuel
stabilizer, it must be drained into an approvedcontainer. Run
the engine until it stops from lackof fuel. The useof a fuel
stabilizer in the storage container is recommendedto
maintain freshness.
_k WARNING Fueland its vapors areextremelyflammable
andexplosivewhich could causeburns,
fire or explosionresulting in death,
seriousinjury and/orproperty damage.
WHENSTORINGFUELOREQUIPMENTWITHFUELINTANK
• Store awayfrom furnaces, stoves, water heaters,clothesdryers
or other appliances that have pilot light or other ignition source
becausethey could ignite fuel vapors.
WHENDRAININGFUEL
• Turn generator engineOFFand let it cool at least 2 minutes
before removing fuel cap. Loosen capslowly to relievepressure
in tank.
• Drain fuel tank outdoors.
• Keepfuel awayfrom sparks, open flames, pilot lights, heat,and
other ignition sources.
• Checkfuel lines,tank, cap and fittings frequently for cracks or
leaks. Replaceif necessary.
• DO NOTlight a cigarette or smoke.
ChangeOil
While engine is still warm, drain oil from crankcase.Refill
with recommendedgrade.See ChangingEngine Oilin Engine
Maintenance.
OtherStorageTips
1. DONOTstore fuel from one seasonto another unless it
has beentreated as described in Long TermStorage
Instructions.
2. Replacefuel can if it starts to rust. Contaminatedfuel
will cause engine problems.
3. If possible,store unit indoors and cover it to give
protection from dust and dirt.
4. Cover unit with a suitable protective cover that does not
retain moisture.
A. WARNING Storagecovers could causea fire
resulting in death, serious injury and/or property
damage.
• DO NOTplace astorage cover overa hot generator.
• Let equipment coolfor a sufficient time before placing the cover
on the equipment.
5. Store generator in clean, dry area.
20 BRIGGSandSTRATTON.COM
