Briggs & Stratton 20250 User manual

020250
(2550 PSI)
Operator’s Manual
Manual del Operario
Questions? Help is just a moment away!
Preguntas? La ayuda es justa un momento lejos!
Call: Pressure Washer Helpline
Llame: Línea Directa del Lavador a Presión
1-800-743-4115 M-F 8-5 CT
web: BRIGGSandSTRATTON.COM
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON,WISCONSIN, U.S.A. Manual No. 196408GS
Revision D (07/13/2006)
Before using this product, read this manual and follow all
Safety Rules and Operating Instructions.
WARNING
Antes de utilizar el producto, lea este manual y siga todas las
Reglas de Seguridad e Instrucciones de Uso.
ADVERTENCIA

2550 PSI Pressure Washer
2
TABLE OF CONTENTS
Safety Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Know Your Pressure Washer. . . . . . . . . . . . . . . . . . . . . . . . 6
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-14
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-16
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
EQUIPMENT
DESCRIPTION
Read this manual carefully and become familiar
with your pressure washer. Know its
applications, its limitations and any hazards
involved.
This manual contains information for a pressure washer
that operates up to a maximum of 2,550 PSI and up to a
maximum flow rate of 2.3 gallons per minute.This high
quality residential system features 10” NeverFlat™ wheels,
axial cam pump with stainless steel pistons, automatic cool
down system, chemical injection system, a variety of nozzle
sizes, safety goggles, 25’ high pressure hose, and more.
Every effort has been made to ensure that information in
this manual is accurate and current. However, we reserve
the right to change, alter or otherwise improve the product
and this document at any time without prior notice.
SAFETY RULES
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
The safety alert symbol ( ) is used with a signal word
(DANGER, CAUTION,WARNING), a pictorial and/or a
safety message to alert you to hazards. DANGER indicates
a hazard which, if not avoided, will result in death or serious
injury. WARNING indicates a hazard which, if not avoided,
could result in death or serious injury. CAUTION
indicates a hazard which, if not avoided, might result in
minor or moderate injury. CAUTION, when used
without the alert symbol, indicates a situation that could
result in equipment damage. Follow safety messages to
avoid or reduce the risk of injury or death.

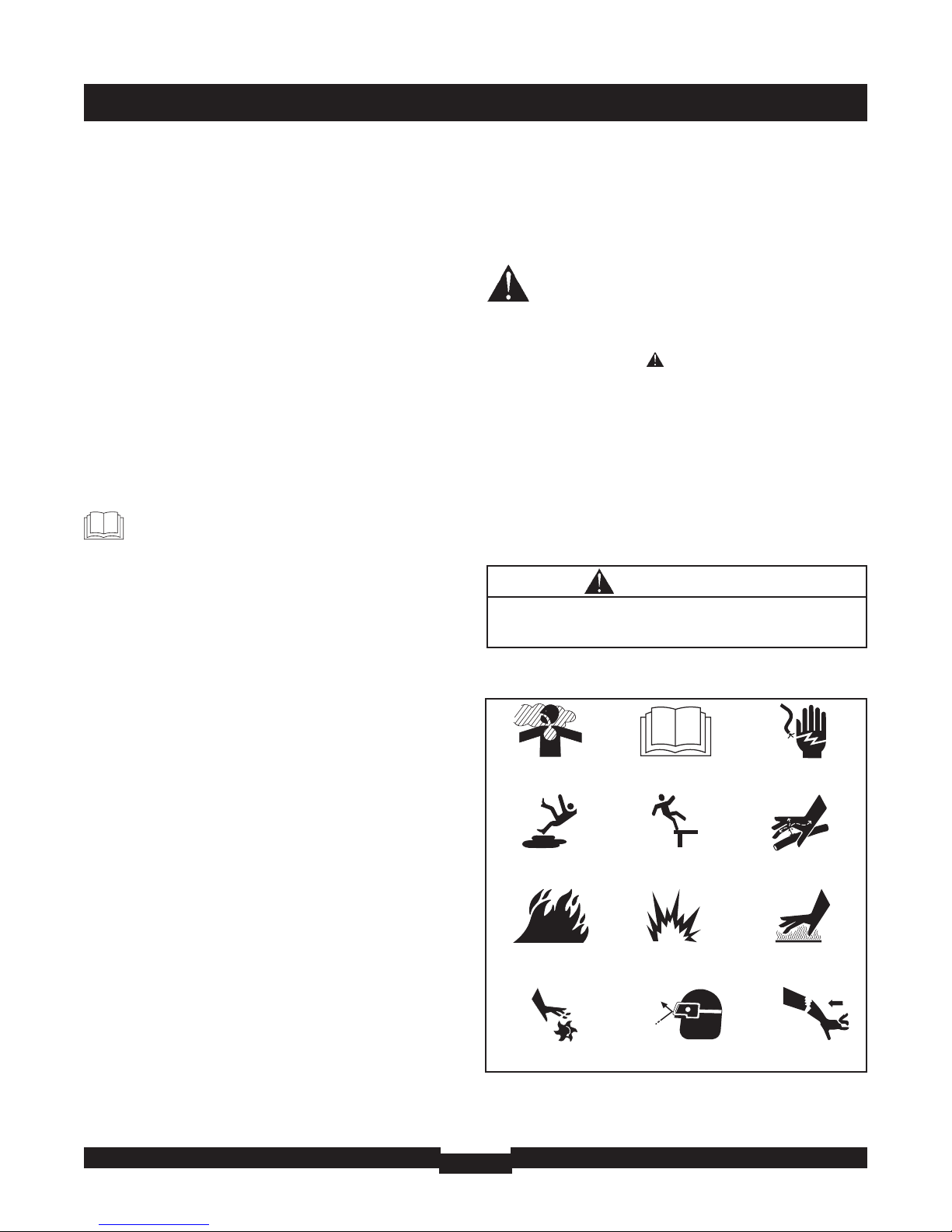

Hazard Symbols and Meanings
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING
SAVE THESE INSTRUCTIONS
Copyright © 2006 Briggs & Stratton Power Products
Group, LLC. All rights reserved. No part of this material
may be reproduced or transmitted in any form by any
means without the express written permission of Briggs &
Stratton Power Products Group, LLC.
Fire Explosion
Toxic Fumes
Hot Surface
Moving Parts
Electrical Shock
Slippery Surface Fall
Kickback
Flying Objects
Fluid Injection
Operator’s Manual

2550 PSI Pressure Washer
3
• Keep water spray away from electric wiring or fatal electric
shock may result.
Spray contact with electrical wiring can result in
electrocution.
WARNING
• Operate pressure washer ONLY outdoors.
• Keep exhaust gas from entering a confined area through
windows, doors, ventilation intakes or other openings.
• DO NOT operate pressure washer inside any building or
enclosure, even if doors or windows are open.
• Use a respirator or mask whenever there is a chance that
vapors may be inhaled.
• Read all instructions with mask so you are certain the mask will
provide the necessary protection against inhaling harmful vapors.
Running engine gives off carbon monoxide, an
odorless, colorless, poison gas.
Breathing carbon monoxide can cause nausea,
fainting or death.
Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea,
fainting or poisoning.
WARNING
• Keep spray nozzle between 8 to 24 inches away from cleaning
surface.
• Operate this unit on a stable surface.
• The cleaning area should have adequate slopes and drainage to
reduce the possibility of a fall due to slippery surfaces.
• Be extremely careful if you must use the pressure washer from
a ladder, scaffolding or any other relatively unstable location.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when gun kicks back.
Use of pressure washer can create puddles and
slippery surfaces.
High pressure spray could cause you to fall if
you are too close to the cleaning surface.
WARNING
WHEN ADDING FUEL
• Turn pressure washer OFF and let it cool at least 2 minutes
before removing gas cap.
• Fill fuel tank outdoors.
• DO NOT overfill tank.Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open flames, pilot lights, heat, and
other ignition sources.
• DO NOT light a cigarette or smoke.
WHEN OPERATING EQUIPMENT
• DO NOT tip engine or equipment at angle which causes fuel
to spill.
• DO NOT spray flammable liquids.
WHEN TRANSPORTING OR REPAIRING EQUIPMENT
• Transport/repair with fuel tank EMPTY or with fuel shutoff
valve OFF.
WHEN STORING FUEL OR EQUIPMENT WITH FUEL
IN TANK
• Store away from furnaces, stoves, water heaters, clothes
dryers or other appliances that have pilot light or other
ignition source because they can ignite fuel vapors.
Fuel and its vapors are extremely flammable and
explosive.
Fire or explosion can cause severe burns or
death.
WARNING

2550 PSI Pressure Washer
4
• DO NOT wear loose clothing, jewelry or anything that may
be caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry.
Starter and other rotating parts can entangle
hands, hair, clothing, or accessories.
WARNING
• ALWAYS point gun in safe direction and squeeze spray gun
trigger, to release pressure and avoid kickback each time,
before starting engine. Engage trigger lock when not in use.
• When starting engine, pull cord slowly until resistance is felt
and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always
point gun in safe direction and squeeze spray gun trigger to
release high pressure.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when gun kicks back.
Rapid retraction of starter cord (kickback) will
pull hand and arm toward engine faster than
you can let go.
Broken bones, fractures, bruises or sprains could
result.
WARNING
• NEVER aim spray gun at people, animals or plants.
• DO NOT allow CHILDREN to operate pressure washer.
• NEVER repair high pressure hose. Replace it.
• NEVER repair leaking connections with sealant of any kind.
Replace o-ring or seal.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• ALWAYS point gun in safe direction and squeeze spray gun
trigger, to release high pressure, every time you stop engine.
Engage trigger lock when not in use.
The high pressure stream of water that this
equipment produces can pierce skin and its
underlying tissues, leading to serious injury and
possible amputation.
Spray gun traps high water pressure, even when
engine is stopped and water is disconnected,
which can cause injury.
WARNING
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR
PRESSURE WASHER
• Disconnect spark plug wire from spark plug and place wire
where it cannot contact spark plug.
WHEN TESTING FOR ENGINE SPARK
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.
Unintentional sparking can result in fire or
electric shock.
WARNING
• DO NOT touch hot surfaces and avoid hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 ft. (152 cm) clearance on all sides of pressure
washer including overhead.
• Code of Federal Regulation (CFR) Title 36 Parks, Forests, and
Public Property require equipment powered by an internal
combustion engine to have a spark arrester, maintained in
effective working order, complying to USDA Forest service
standard 5100-1C or later revision. In the State of California a
spark arrester is required under section 4442 of the California
Public resources code. Other states may have similar laws.
Running engines produce heat.Temperature of
muffler and nearby areas can reach or exceed
150°F (65°C).
Severe burns can occur on contact.
Exhaust heat/gases can ignite combustibles,
structures or damage fuel tank causing a fire.
WARNING
• Always wear safety goggles when using this equipment or in
vicinity of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing
adequate safety goggles.
High pressure spray can cause paint chips or
other particles to become airborne.
WARNING

2550 PSI Pressure Washer
5
• DO NOT point spray gun at glass when in jet spray mode.
• NEVER aim spray gun at plants.
High pressure spray may damage fragile items including
glass.
CAUTION
• DO NOT tamper with governed speed.
• DO NOT operate pressure washer above rated pressure.
Excessively high or low operating speeds increase risk
of injury and damage to pressure washer.
CAUTION
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is
running.
• NEVER use a spray gun which does not have a trigger lock or
trigger guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are
correctly attached.
A pressure washer produces a high pressure spray
which increases risk of injury and damage to unit.
CAUTION
• If you have questions about intended use, ask dealer or
contact Briggs & Stratton Power Products.
• NEVER operate units with broken or missing parts, or
without protective housing or covers.
• DO NOT by–pass any safety device on this machine.
• Before starting pressure washer in cold weather, check all
parts of the equipment to be sure ice has not formed there.
• NEVER move machine by pulling on hoses. Use handle
provided on unit.
• Check fuel system for leaks or signs of deterioration, such as
chafed or spongy hose, loose or missing clamps, or damaged
tank or cap. Correct all defects before operating pressure
washer.
• This equipment is designed to be used with Briggs & Stratton
Power Products authorized parts ONLY. If equipment is used
with parts that DO NOT comply with minimum specifications,
user assumes all risks and liabilities.
Improper treatment of pressure washer can damage it
and shorten its life.
CAUTION

2550 PSI Pressure Washer
6
KNOWYOUR PRESSURE WASHER
Read this Operator’s Manual and safety rules before operating your pressure washer.
Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls
and adjustments. Save this manual for future reference.
Accessory Tray — Provides convenient storage for
standard and optional accessories, such as brushes, turbo
wands, etc.
Air Filter — Protects engine by filtering dust and debris
out of intake air.
Automatic Cool Down System — Cycles water
through pump when water reaches 125°-155°F.Warm
water will discharge from pump onto ground.This system
prevents internal pump damage.
Detergent Siphoning Tube/Filter — Use to siphon
pressure washer safe detergents into the low pressure
stream.
Choke Lever — Prepares a cold engine for starting.
Data Tag (not shown, near rear of base plate) –
Provides model and serial number of pressure washer.
Please have these readily available if calling for assistance.
High Pressure Hose — Connect one end to water
pump and the other end to spray gun.
High Pressure Outlet — Connection for high pressure
hose.
Nozzle Extension with Quick Connect — Allows you
to switch between four different nozzles.
Oil Fill/Dipstick — Check and fill with oil here.
ProjectPro™ Nozzles — Detergent, Max, General, and
Delicate nozzles: for various pressure cleaning applications.
Pump — Develops high pressure.
Recoil Starter — Used for starting the engine manually.
Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes trigger lock.
Throttle Control Lever — Sets engine in starting mode
for recoil starter and stops a running engine.
Water Inlet — Connection for garden hose.
High Pressure Hose
Nozzle Extension with Quick Connect
Throttle Control Lever High Pressure Outlet
& Water Inlet
Pump equipped with Automatic
Cool Down System
Spray Gun
Oil Fill/Dipstick
Recoil Starter
Choke Lever
Air Filter
Detergent Siphoning
Tube/Filter
ProjectPro™ Nozzles
Accessory Tray

2550 PSI Pressure Washer
7
ASSEMBLY
IMPORTANT: Read entire operator’s manual before you
attempt to assemble or operate your new pressure washer.
Remove Pressure Washer From
Carton
1. Remove the parts bag, accessories, and inserts included
with pressure washer.
2. Slice two corners at the end of carton from top to
bottom so the panel can be folded down flat.
3. Remove pressure washer from carton.
Carton Contents
Items in the carton include:
• Main Unit
• Handle
• High Pressure Hose
• Spray Gun
• Nozzle Extension with Quick Connect Fitting
• Plastic Accessory Tray
• Oil Bottle
• Parts Bag (which includes the following):
• Operator’s Manual
• Engine Operator’s Manual
• Maintenance Kit
• Safety Goggles
• Owner’s Registration Card
• Bag containing 4 multi–colored ProjectPro™
Nozzles
• Handle/Tray Fastening Hardware Kit (which
includes):
• Carriage Bolts (2)
• Plastic Knobs (2)
• Tree Clips (4)
PREPARING PRESSURE
WASHER FOR USE
If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged, call the
pressure washer helpline at 1-800-743-4115. If calling for
assistance, please have the model, revision, and serial
number from the data tag available.
To prepare your pressure washer for operation, you
will need to perform these tasks:
1. Fill out and send in registration card.
2. Attach handle to main unit, then attach accessory tray
to handle.
3. Add oil to engine crankcase.
4. Add fuel to fuel tank.
5. Connect high pressure hose to spray gun and pump.
6. Connect water supply to pump.
7. Attach nozzle extension to spray gun.
8. Select/attach quick connect ProjectPro™ nozzle to
nozzle extension.
Attach Handle and Accessory Tray
1. Place handle onto handle supports connected to main
unit. Make sure holes in handle align with holes on
handle supports (Figure 1).
NOTE: It may be necessary to move the handle supports
from side to side in order to align the handle so it will slide
over the handle supports.
Align Holes
Handle
Handle
Supports
Figure 1 — Attach Handle to Base

2550 PSI Pressure Washer
8

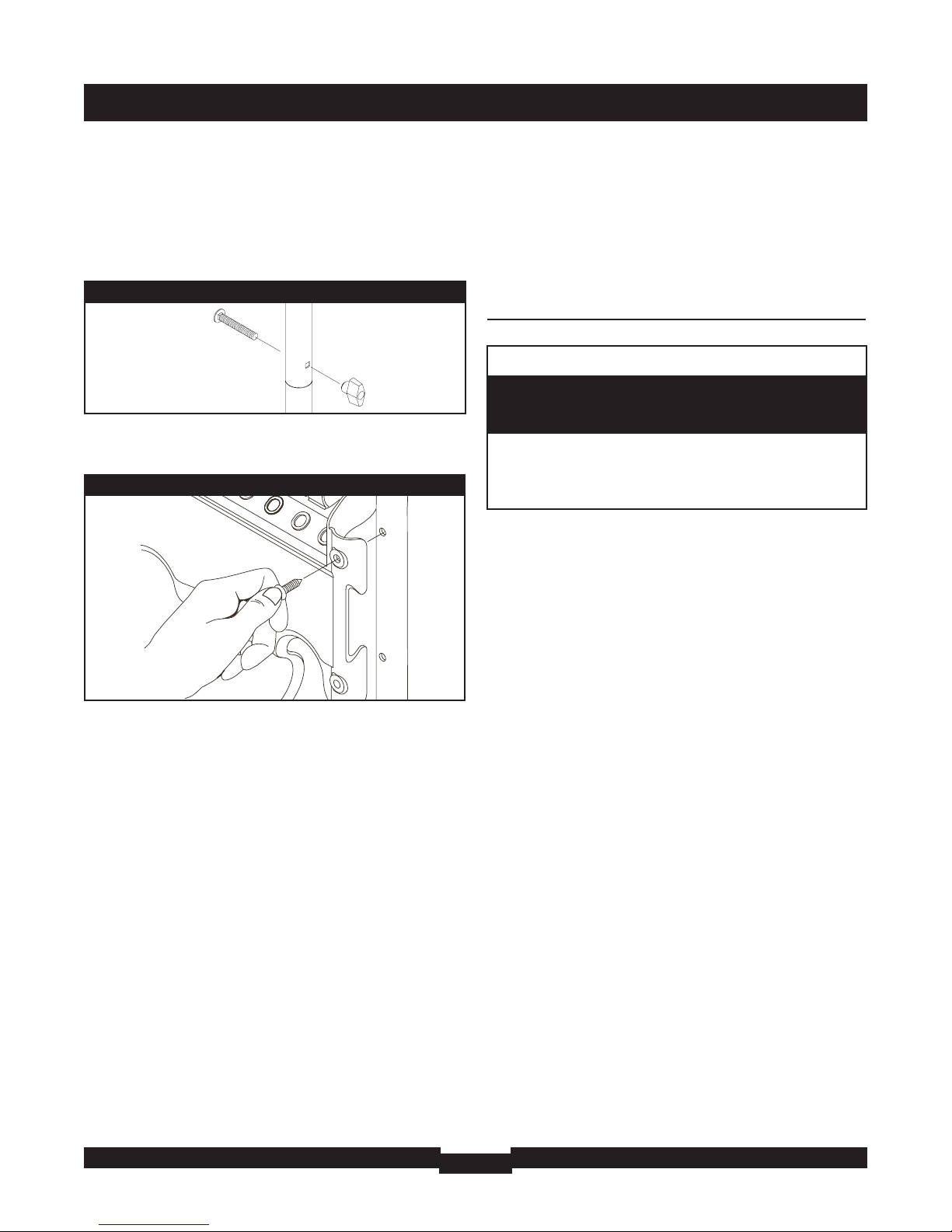

2. Insert carriage bolts through holes from outside of the
unit and attach a plastic knob from inside of unit
(Figure 2).Tighten by hand.
3. Place accessory tray over holes on handle (viewing
from front of unit). Push the tree clips into the holes
until they sit flat against the accessory tray (Figure 3).
4. Insert multi–colored ProjectPro™ nozzles and other
supplied accessories in spaces provided in accessory
tray. See “How to Use Accessory Tray”.
Add Engine Oil and Fuel
• Place pressure washer on a level surface.
• Refer to engine operator’s manual and follow oil and fuel
recommendations and instructions.
NOTE: Check oil often during engine break–in. Refer to
engine operator’s manual for recommendations.
CAUTION
• Refer to engine operator’s manual for oil and fuel fill
information.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
Any attempt to crank or start the engine before it has
been properly filled with the recommended oil will result
in equipment failure.
Figure 2 — Secure Handle
Figure 3 — Attach Accessory Tray to Handle

2550 PSI Pressure Washer
9
Connect Hose and Water Supply to
Pump
IMPORTANT: To avoid pump damage, you must assemble
the nozzle extension to the spray gun and attach all hoses
before you start the engine.
NOTE: Remove and discard the shipping caps from the
pumps high pressure outlet and water inlet before attaching
hoses.
1. Uncoil high pressure hose and attach one end of hose
to base of spray gun (Figure 4).Tighten by hand.
2. Attach other end of high pressure hose to high
pressure outlet on pump (Figure 5).Tighten by hand.
3. Before connecting garden hose to water inlet, inspect
inlet screen (Figure 6). Clean screen if it contains
debris or replace if damaged. Refer to “O-Ring
Maintenance” section on page 15 if inlet screen is
damaged. DO NOT run pressure washer if inlet screen
is damaged or missing.
4. Run water through your garden hose for 30 seconds
to clean out any debris.
IMPORTANT: DO NOT siphon standing water for the
water supply. Use ONLY cold water (less than 100°F).
5. Connect garden hose (not to exceed 50 feet in length)
to water inlet.Tighten by hand (Figure 6).
6. Turn ON the water and squeeze the trigger on the gun
to purge the pump system of air and impurities.
Checklist Before Starting Engine
Review the unit’s assembly to ensure you have performed
all of the following.
1. Make sure handle is in place and secure.
2. Check that oil has been added to proper level in the
engine crankcase.
3. Add proper gasoline to fuel tank.
4. Check for properly tightened hose connections.
5. Check to make sure there are no kinks, cuts, or
damage to high pressure hose.
6. Provide a proper water supply at an adequate flow.
7. Be sure to read “Safety Rules” and “How To Use Your
Pressure Washer” before using pressure washer.
CAUTION
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
There MUST be at least ten feet of unrestricted garden
hose between the pressure washer inlet and any flow
shut off device, such as a ‘Y’ shut-off connector or other
convenience-type water shut-off valve.
Figure 5 — Connect High Pressure Hose to Water Outlet
Inspect inlet
screen. DO NOT
use if damaged;
clean if dirty.
Figure 6 — Connect Garden Hose to Water Inlet
Connect high pressure
hose here
Figure 4 — Connect High Pressure Hose to Spray Gun
• Always wear safety goggles when using this equipment or in
vicinity of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing
adequate safety goggles.
High pressure spray can cause paint chips or
other particles to become airborne.
WARNING

2550 PSI Pressure Washer
10
HOW TO USEYOUR
PRESSURE WASHER
If you have any problems operating your pressure washer,
please call the pressure washer helpline at 1-800-743-4115.
Pressure Washer Location
Pressure Washer Clearance
Place pressure washer in a well ventilated area, which will
allow for removal of deadly exhaust gas. DO NOT place
pressure washer where exhaust gas could accumulate and
enter inside or be drawn into a potentially occupied
building. Ensure exhaust gas is kept away from any
windows, doors, ventilation intakes or other openings that
can allow exhaust gas to collect in a confined area
(Figure 7). Prevailing winds and air currents should be taken
into consideration when positioning pressure washer.
How to Start Pressure Washer
To start your pressure washer for the first time, follow
these instructions step-by-step.This starting information
also applies if you have let the pressure washer sit idle for
at least a day.
1. Place pressure washer near an outside water source
capable of supplying water at a flow rate greater than
3.3 gallons per minute and no less than 20 PSI at
pressure washer end of garden hose.
2. Check that high pressure hose is tightly connected to
spray gun and pump. See “Preparing Pressure Washer
for Use” for illustrations.
3. Make sure unit is in a level position.
4. Connect garden hose to water inlet on pressure
washer pump.
5. Turn ON water, point gun in a safe direction and squeeze
trigger to purge pump system of air and impurities.
6. Attach nozzle extension to spray gun (Figure 8).
Tighten by hand.

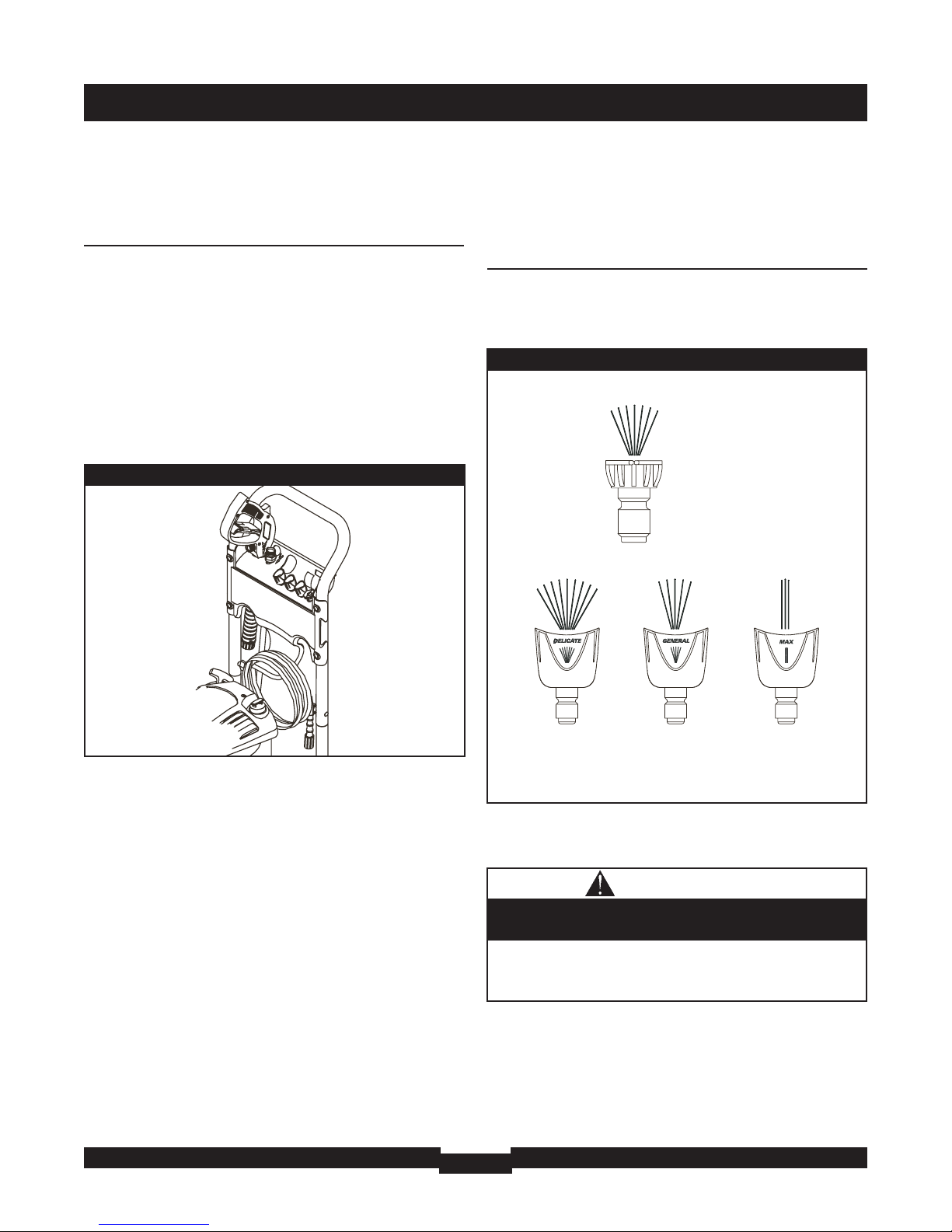

7. Choose ProjectPro™ nozzle you want to use, pull
back on collar of nozzle extension, insert nozzle and
release collar.Tug on nozzle to make sure it is securely
in place (Figure 9). See “How to Use ProjectPro™
Nozzle System”.
CAUTION
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
DO NOT run the pump without the water supply
connected and turned on.
Figure 8 — Connect Nozzle Extension to Spray Gun
Figure 7 — Pressure Washer Clearance
Exhaust Port
Typical Pressure
Washer Shown
Figure 9 - Attaching ProjectPro™ Nozzle to Nozzle Extension
• Operate pressure washer ONLY outdoors.
• Keep exhaust gas from entering a confined area through
windows, doors, ventilation intakes or other openings.
• DO NOT operate pressure washer inside any building or
enclosure, even if doors or windows are open.
Running engine gives off carbon monoxide, an
odorless, colorless, poison gas.
Breathing carbon monoxide can cause nausea,
fainting or death.
WARNING
• Keep at least 5 ft. (152 cm) clearance on all sides of pressure
washer including overhead.
Exhaust heat/gases can ignite combustibles,
structures or damage fuel tank causing a fire.
WARNING

2550 PSI Pressure Washer
11
8. Engage trigger lock on spray gun trigger (Figure 10).
9. When starting engine, position yourself as recommended
in Figure 11 and start engine according to instructions
given in engine operator’s manual.Also see operating
instructions tag located on the pressure washer.
NOTE: Always keep the throttle lever in the “Fast”
position when operating the pressure washer.
How to StopYour Pressure Washer
1. Let engine idle for two minutes.
2. Turn engine off according to instructions given in
engine operator’s manual.
3. ALWAYS point gun in a safe direction and squeeze
spray gun trigger to release retained high water
pressure.
IMPORTANT: Spray gun traps high water pressure, even
when engine is stopped and water is disconnected.
4. Engage trigger lock on spray gun when not in use.
Figure 11 - Recommended Starting Position
• DO NOT touch hot surfaces and avoid hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 ft. (152 cm) clearance on all sides of pressure
washer including overhead.
• Code of Federal Regulation (CFR) Title 36 Parks, Forests, and
Public Property require equipment powered by an internal
combustion engine to have a spark arrester, maintained in
effective working order, complying to USDA Forest service
standard 5100-1C or later revision. In the State of California a
spark arrester is required under section 4442 of the California
Public resources code. Other states may have similar laws.
Running engines produce heat.Temperature of
muffler and nearby areas can reach or exceed
150°F (65°C).
Severe burns can occur on contact.
Exhaust heat/gases can ignite combustibles,
structures or damage fuel tank causing a fire.
WARNING
Trigger Lock
Figure 10 — Spray Gun with Trigger Lock Engaged
• ALWAYS point gun in safe direction and squeeze spray gun
trigger, to release pressure and avoid kickback each time,
before starting engine.
• When starting engine, pull cord slowly until resistance is felt
and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always
point gun in safe direction and squeeze spray gun trigger to
release high pressure.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when gun kicks back.
Rapid retraction of starter cord (kickback) will
pull hand and arm toward engine faster than
you can let go.
Broken bones, fractures, bruises or sprains could
result.
WARNING
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
• ALWAYS point gun in safe direction and squeeze spray gun
trigger, to release high pressure, every time you stop engine.
Engage trigger lock when not in use.
The high pressure stream of water that this
equipment produces can pierce skin and its
underlying tissues, leading to serious injury and
possible amputation.
Spray gun traps high water pressure, even when
engine is stopped and water is disconnected,
which can cause injury.
WARNING

How to Use Accessory Tray
The unit is equipped with an accessory tray with places to
store your spray gun, nozzle extension and ProjectPro™
nozzles.There is also a hook at the front of the accessory
tray to hold your high pressure hose.
NOTE: The extra hole in the tray is for storing a utility
brush.The extra clip in the tray is for storing a turbo
nozzle.The brush and turbo nozzle are NOT included with
your pressure washer.You can buy these items as optional
accessories.
1. Place nozzle extension through hole on accessory tray,
as shown in Figure 12.
2. Place spray gun through hole on accessory tray on
right side of unit (Figure 12).
3. Insert multi–colored ProjectPro™ nozzles in spaces
provided in accessory tray (Figure 12).
4. Hang high pressure hose on hook attached to accessory
tray on front of tray, as shown in Figure 12.
How to Use ProjectPro™ Nozzle
System
The quick–connect on the nozzle extension allows you to
switch between four different ProjectPro™ system nozzles.
The ProjectPro™ nozzles vary the pressure and spray
pattern as shown (Figure 13).
Follow these instructions to change ProjectPro™
nozzles:
1. Engage trigger lock on spray gun.
2. Pull back collar on quick–connect and pull current
ProjectPro™ nozzles off. Store ProjectPro™ nozzles in
holder provided on the accessory tray.
2550 PSI Pressure Washer
12
Figure 12 — Typical Accessory Tray
• NEVER exchange ProjectPro™ nozzles without locking the
trigger lock on the trigger.
• DO NOT twist ProjectPro™ nozzles while spraying.
A pressure washer produces a high pressure spray
which increases risk of injury and damage to unit.
CAUTION
Delicate
40° Yellow
1750 PSI
2.3 GPM
General
15° Orange
2200 PSI
2.2 GPM
Max
0° Red
2550 PSI
2.0 GPM
Black
Use to apply
detergent
Figure 13 — Nozzle Spray Patterns
Low Pressure
High Pressure

2550 PSI Pressure Washer
13
3. Select desired ProjectPro™ nozzle:
• For delicate rinse (lower pressure and higher
flow), for gentle cleaning of cars/trucks, boats, RV’s,
patio furniture, lawn equipment, etc., select yellow
Delicate ProjectPro™ nozzle (Figure 14).
• For general rinsing (medium pressure and medium
flow), ideal for most all purpose cleaning such as
home siding, brick patios, wood decks, driveways
and sidewalks, garage floors, etc., select orange
General ProjectPro™ nozzle (Figure 15).
• For maximum rinsing (higher pressure and lower
flow), for stubborn or hard to reach surface such
as second story surfaces, paint removal, oil stains,
rust removal or other stubborn substances (tar,
gum, grease, wax, etc.), select red Max
ProjectPro™ nozzle (Figure 16).
• To apply detergent, applies project specific cleaners
to help break down stubborn dirt and grime on a
variety of surfaces, select black ProjectPro™
cleaning detergent nozzle (Figure 17).
4. Pull back on collar, insert new ProjectPro™ nozzle and
release collar.Tug on ProjectPro™ nozzle to make sure
it is securely in place.
5. For most effective cleaning, keep ProjectPro™ nozzle
from 8 to 24 inches away from cleaning surface. If you
get ProjectPro™ nozzle too close, you may damage
cleaning surface.
6. DO NOT get closer than 6 inches when cleaning tires.
Cleaning and Applying Detergent
IMPORTANT: Use detergents designed specifically
for pressure washers. Household detergents could
damage the pump.
Figure 16 — Max Nozzle
Figure 17 — Cleaning Detergent Nozzle
Figure 14 — Delicate Nozzle
Figure 15 — General Nozzle

2550 PSI Pressure Washer
14
To apply detergent follow these steps:
1. Review ProjectPro™ nozzle use.
2. Prepare detergent solution as required by
manufacturer.
3. Place small filter end of detergent siphoning tube into
detergent container.
4. Make sure black cleaning detergent nozzle is installed.
NOTE: Detergent cannot be applied with the high
pressure nozzles (Yellow, Orange or Red).
5. Make sure garden hose is connected to water inlet.
Check that high pressure hose is connected to spray
gun and pump and start engine.
6. Apply detergent to a dry surface, starting at lower
portion of area to be washed and work upward, using
long, even, overlapping strokes.
7. Allow detergent to soak in between 3–5 minutes
before washing and rinsing. Reapply as needed to
prevent surface from drying. DO NOT allow detergent
to dry on (prevents streaking).
IMPORTANT:You must flush the detergent siphoning
system after each use by placing the filter into a bucket of
clean water, then run the pressure washer in low pressure
for 1-2 minutes.
Pressure Washer Rinsing
For Rinsing:
1. Apply trigger lock to spray gun.
2. Remove black cleaning detergent nozzle from nozzle
extension.
3. Select and install desired high pressure nozzle following
instructions “How to Use ProjectPro™ Nozzle System”.
4. Keep spray gun a safe distance from the area you plan
to spray.
5. Apply a high pressure spray to a small area and then
check the surface for damage. If no damage is found,
you can assume it is okay to continue rinsing.
6. Start at top of area to be rinsed, working down with
same overlapping strokes as you used for cleaning.
Cleaning Detergent SiphoningTube
If you used the detergent siphoning tube, you must flush it
with clean water before stopping the engine.
1. Place detergent siphoning tube/filter in a bucket full of
clean water.
2. Engage trigger lock on spray gun.
3. Attach black detergent nozzle.
4. Flush for 1-2 minutes.
5. Shut off engine.
6. ALWAYS point gun in a safe direction and squeeze
spray gun trigger to release retained high water
pressure.
IMPORTANT: Spray gun traps high water pressure, even
when engine is stopped and water is disconnected.
Automatic Cool Down System
(Thermal Relief)
If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach temperatures
above 125°F.The system engages to cool the pump by
discharging the warm water onto the ground.
CAUTION
• Starting the engine without all the hoses connected and
without the water turned ON will damage the pump.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
You must attach all hoses before you start the engine.
CAUTION
• When inserting the filter into a detergent solution bottle,
route the tube so as to keep it from inadvertently contacting
the hot muffler.
Keep the detergent siphoning tube from coming in
contact with the hot muffler.
• Keep spray nozzle between 8 to 24 inches away from cleaning
surface.
• Operate this unit on a stable surface.
• Be extremely careful if you must use the pressure washer from
a ladder, scaffolding or any other relatively unstable location.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when gun kicks back.
High pressure spray could cause you to fall if
you are too close to the cleaning surface.
WARNING

2550 PSI Pressure Washer
15
SPECIFICATIONS
Maximum Outlet Pressure . . . . . . . . . . . . . . . 2550 psi
Maximum Flow Rate . . . . 2.3 gallons per minute (gpm)
Detergent Use detergent approved for pressure washers
Water SupplyTemperature . . . . Not to Exceed 100°F
Automatic Cool . . . . . . . . . . . . . Will cycle when water
Down System reaches 125°-155°F
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . .67 lbs.
GENERAL MAINTENANCE
RECOMMENDATIONS
The pressure washer warranty does not cover items that
have been subjected to operator abuse or negligence.To
receive full value from the warranty, the operator must
maintain the pressure washer as instructed in this manual.
NOTE: Should you have questions about replacing
components on your pressure washer, please call
1-800-743-4115 for assistance.
• Some adjustments will need to be made periodically to
properly maintain your pressure washer.
• All maintenance in this manual and the engine operator’s
manual should be made at least once each season.
Before Each Use
• Check engine oil level.
• Check water inlet screen for damage.
• Check in-line filter for damage.
• Check high pressure hose for leaks.
• Check detergent siphoning tube and filter for damage.
• Check spray gun and nozzle extension for leaks.
• Rinse out garden hose to flush out debris.
PRESSURE WASHER
MAINTENANCE
Check and Clean Inlet Screen
Examine the screen on the water inlet. Clean it if the
screen is clogged or replace it if screen is damaged.
Check High Pressure Hose
The high pressure hose can develop leaks from wear,
kinking, or abuse. Inspect the hose each time before using
it. Check for cuts, leaks, abrasions or bulging of cover,
damage or movement of couplings. If any of these
conditions exist, replace the hose immediately.
Check Detergent SiphoningTube
Examine the filter on the detergent tube and clean if
clogged.The tube should fit tightly on the barbed fitting.
Examine the tube for leaks or tears. Replace the filter or
tube if either is damaged.
Check Gun and Nozzle Extension
Examine the hose connection to the spray gun and make
sure it is secure.Test the trigger by pressing it and making
sure it “springs back” into place when you release it. Put
the trigger lock in the ON position and test the trigger.
You should not be able to press the trigger.
Check In-Line Filter
Refer to Figure 18 and service the in-line filter if it
becomes clogged, as follows:
1. Detach spray gun and nozzle extension from high
pressure hose. Detach nozzle extension from spray
gun and remove o-ring and screen from nozzle
extension. Flush screen, spray gun, and nozzle
extension with clean water to clear debris.
• NEVER repair high pressure hose. Replace it.
• Replacement hose rating MUST exceed maximum pressure
rating of unit.
The high pressure stream of water that this
equipment produces can pierce skin and its
underlying tissues, leading to serious injury and
possible amputation.
WARNING
Nozzle Extension
Filter Screen
O-ring
Figure 18 — Clean In-Line Filter

2550 PSI Pressure Washer
16
2. If screen is damaged, o-ring kit contains a replacement
in-line filter screen and o-ring. If undamaged, reuse
screen.
3. Place in-line filter screen into threaded end of nozzle
extension. Direction does not matter. Push screen in
with eraser end of pencil until screen rests flat at
bottom of opening.Take care to not bend screen.
4. Place o-ring into recess. Push o-ring snugly against
in-line filter screen.
5. Assemble nozzle extension to spray gun.
Nozzle Maintenance
A pulsing sensation felt while squeezing the spray gun
trigger may be caused by excessive pump pressure.The
principal cause of excessive pump pressure is a nozzle
clogged or restricted with foreign materials, such as dirt,
etc.To correct the problem, immediately clean the nozzle
using the tools included with your pressure washer and
follow these instructions:
1. Shut off engine and turn off water supply.
2. Remove nozzle from end of nozzle extension.
3. Remove in-line filter from other end of nozzle
extension.
4. Use wire included in kit (or a small paper clip) to free
any foreign material clogging or restricting nozzle
(Figure 19).
5. Using a garden hose, remove additional debris by back
flushing water through nozzle extension (Figure 20).
Back flush between 30 to 60 seconds.
6. Reinstall nozzle and in-line filter into nozzle extension.
7. Reconnect nozzle extension to spray gun.
8. Reconnect water supply, turn on water, and start engine.
9. Test pressure washer by operating with each
ProjectPro™ nozzle.
O–Ring Maintenance
Through the normal operation of your pressure washer,
o–rings, which keep the connections of the hoses and spray
gun tight and leak–free, may become worn or damaged.
Provided with your pressure washer is an O–Ring
Maintenance Kit which includes replacement o-rings,
rubber washer and water inlet filter. Refer to the
instruction sheet provided in the kit to service your unit’s
o-rings. Note that not all of the parts in the kit will be used
on your unit.
To remove a worn or damaged o–ring; use a small flathead
screwdriver to get underneath the o-ring and pry it off.
Pump Oil Maintenance
This model does not require any pump maintenance.The
pump is pre-lubricated and sealed, requiring no additional
lubrication for the life of the pump.
ENGINE MAINTENANCE
See the engine operator’s manual for instructions on how
to properly maintain the engine.
KEEP OUT OF REACH OF CHILDREN. DON'T
POLLUTE. CONSERVE RESOURCES. RETURN
USED OIL TO COLLECTION CENTERS.
Use wire here
to remove
debris.
Figure 19 — Nozzle Maintenance
Figure 20 — Backflushing the Nozzle Extension
• NEVER repair leaking connections with sealant of any kind.
Replace o-ring or seal.
The high pressure stream of water that this
equipment produces can pierce skin and its
underlying tissues, leading to serious injury and
possible amputation.
WARNING
• Used motor oil has been shown to cause skin cancer in
certain laboratory animals.
• Thoroughly wash exposed areas with soap and water.
Avoid prolonged or repeated skin contact with used
motor oil.
CAUTION

2550 PSI Pressure Washer
17
PREPARING THE UNIT
FOR STORAGE
Water should not remain in the unit for long periods of
time. Sediments or minerals can deposit on pump parts and
“freeze” pump action. If you do not plan to use the
pressure washer for more than 30 days, follow this
procedure:
1. Flush detergent siphoninhg hose by placing filter into a
pail of clean water while running pressure washer in
low pressure mode. Flush for one to two minutes.
2. Shut off engine and let it cool, then remove high
pressure and garden hoses. Disconnect spark plug wire
from spark plug.
3. Empty pump of all pumped liquids by pulling recoil
handle about 6 times.This should remove most liquid
in pump.
4. Use PumpSaver to prevent corrosion build up and
freezing of pump.
5. Store unit in a clean, dry area.
Protecting the Pump
To protect the pump from damage caused by mineral
deposits or freezing, use PumpSaver to treat pump.This
prevents freeze damage and lubricates pistons and seals.
NOTE: PumpSaver is available as an optional accessory. It
is not included with the pressure washer. Contact the
nearest authorized service center to purchase PumpSaver.
To use PumpSaver, make sure the pressure washer is
turned off and disconnected from supply water. Read and
follow all instructions and warnings given on the
PumpSaver container.
NOTE: If PumpSaver is not available, draw RV antifreeze
(non-alcohol) into the pump by pouring the solution into a
3-foot section of garden hose connected to inlet adapter
and pulling recoil handle twice.
STORING THE ENGINE
See the engine operator’s manual for instructions on how
to properly prepare the engine for storage.
CAUTION
• Failure to do so will permanently damage your pump and
render your unit inoperable.
• Freeze damage is not covered under warranty.
You must protect your unit from freezing temperatures.
• Always wear eye protection when using PumpSaver.
Read and follow all cautions and warnings on the
PumpSaver can label.
CAUTION
CAUTION
• Protect surfaces from dripping PumpSaver.
PumpSaver will drip from pump after treatment and
will stain wood and concrete.

2550 PSI Pressure Washer
18
NOTES

2550 PSI Pressure Washer
19
NOTES

2550 PSI Pressure Washer
20
TROUBLESHOOTING
Problem Cause Correction
Pump has following problems:
failure to produce pressure, erratic
pressure, chattering, loss of
pressure, low water volume.
1. Low pressure nozzle installed.
2. Water inlet is blocked.
3. Inadequate water supply.
4. Inlet hose is kinked or leaking.
5. Clogged inlet hose strainer.
6. Water supply is over 100°F.
7. High pressure hose is blocked or
leaks.
8. Gun leaks.
9. Nozzle is obstructed.
10. Pump is faulty.
1. Replace nozzle with high pressure
nozzle.
2. Clear inlet.
3. Provide adequate water flow.
4. Straighten inlet hose, patch leak.
5. Check and clean inlet hose
strainer.
6. Provide cooler water supply.
7. Clear blocks in outlet hose.
8. Replace gun.
9. Clean nozzle.
10. Contact authorized service facility.
Detergent fails to mix with spray.
1. Detergent siphoning tube is not
submerged.
2. Chemical filter is clogged or
cracked.
3. Dirty in-line filter.
4. High pressure nozzle installed.
1. Insert detergent siphoning tube
into detergent.
2. Clean or replace filter/detergent
siphoning tube.
3. See "Check In-Line Filter".
4. Replace nozzle with low pressure
nozzle.
Engine runs good at no-load but
"bogs" when load is added.
Engine speed is too slow. Move throttle control to FAST
position. If engine still "bogs down",
contact Briggs and Stratton service
facility.
Pressure washer stops during
operation.
Out of fuel. Fill fuel tank.
