Brighter Pixel Beam User manual

1
Pixel Beam

2
TABLE OF CONTENTS
1.Safety Instruction......................................................................................................... 3
2.Technical Specification ................................................................................................ 4
3.How to control the device ...........................................................................................5
4.Diagram......................................................................................................................10
5.Troubleshooting.........................................................................................................11
6.Cleaning the device ..................................................................................................11
Statement
The product has full capability and intact packing when it leaves
factory. All the users should comply with provided warnings and
manual. Any damages caused by misuse are not included in our
guarantee. We cannot be responsible for any malfunctions &
problems owing to ignoring the manual.

3
1. Safety Instructions
Please keep this User Guide for future consultation. If you sell the unit to
another user, be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using
the unit.
Before operating, ensure that the voltage and frequency of power supply
match the power requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to
avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least
50cm from adjacent surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while
operating as it is fire hazard.
Use safety cable when fixes this unit. DO NOT handle the unit by taking its
head only, but always by taking its base.
Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the
temperature is higher than this Unit surface temperature may reach up to
85℃.
DO NOT touch the housing bare-hands during its operation. Turn off the
power and allow about 15 minutes for the unit to cool down before
replacing or serving.
In case of serious operating problem, stop using the unit immediately. Never
try to repair the unit by yourself. Repairs carried out by unskilled people can
lead to damage or malfunction. Please contact the nearest authorized
technical assistance centre. Always use the same type spare parts.
DO NOT touch any wire during operation as high voltage might be causing
electric shock.
Warning:
To prevent or reduce the risk of electrical shock or fire, do not expose the
unit to rain or moisture.
DO NOT open the unit within five minutes after switching off.

4
The housing, the lenses, or the ultraviolet filter must be replaced if they are
visibly damaged.
Caution:
There are no user serviceable parts inside the unit. DO NOT open the housing or attempt
any repairs by yourself. If your unit requires service, please contact your nearest dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that the
unit is firmly fixed to avoid vibration and slipping while operating. And make sure that
the structure to which you are attaching the unit is secure and is able to support a
weight of 10 times of the unit’s weight. Always use a safety cable that can hold 12 times
of the weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at the safe place
where it is not available for other people.
2.Technical Specifications
Power Voltage: AC 100-240V, 50/60Hz
Power Consumption: 130W
Light Sources: 60W 4in1 RGBW LED
Beam Angle: 4°
Control
DMX Channel: 18 Channel
Control Modes: DMX512, Auto, Master-Slave, Music
Pan/Tilt
Continuous PAN and TILT rotation
Pan/Tilt Resolution: 16 bit
Construction
Display: LCD Display
DMX In/Out socket: 3-pin XLR sockets
Power Socket: Power IN&OUT
Protection Rating: IP20

5
Features
Pan: 540° or infinite rotating
Tilt: 360° or infinite rotating
Strobe:1-25times/sec or random strobe
Variable electronic dimmer (0-100%).
LCD display
Pan/tilt inverts option.
Reset to factory settings option
Size
Dimension: 210*318*210cm
Packing Size:300*415*270MM
Weight
Net Weight: 5.3Kgs
Gross Weight: 6Kgs
3.How to control the device
The DMX512 is widely used in intelligent lighting control system. You can connect
several lights together with a DMX 512 controller. DMX in and DMX out, 3 pin XLR
connectors are: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

6
Display:
Access control panel functions using the four panel buttons located directly
under the LCD Display.
Press <ESC> button, it will show the all the menu options, press the <UP>
<DOWN> button to select menu function, the display will show immediately
the first available option for the selected menu function. Select a menu item,
and press <ENTER> button to save.
Press the <ESC> button repeatedly until you reach the desired menu function.
Use the <UP> and <DOWN> buttons to navigate the menu options. To return
to the previous option or menu without changing the value, press the <ESC>
button.
Dmx512 address set
Dmx512 Address：
【001】...【512】
Run mode
Run mode：
[DMX]
[Slow]
[Fast]
[Sound]
[Manual]
Invert PAN:
Invert PAN/TILT
[No]/[Yes]
Invert TILT:
[No]/[Yes]
Invert word:
[No]/[Yes]
Display set
English/Chinese:
[EN]/[CH]
LCD Backlight on:
[Yes]/[No]

7
PAN
PAN_C
PANMICO
TILT
TILT_C
TILTMICO
XY_SPEED
DIM
Manual set
STROBE
DIM_R
DIM_G
DIM_B
DIM_W
STA_CH
MOV_CH
SHOW_SP
MACRO_CH
Sound sense
Sound sense:
[000%]...[100%]
The version:V1
System information
PAN reset: Normal
Tilt reset: Normal
System set
Default settings?
Default settings:
[Yes?]
Code settings
Enter your 8 codes!
_1 DOWN 7 UP____
Reset
Reset
[Yes?]

8
18 DMX channels mode:
Channel
Value
Function
1
PAN:
0-255
Pan Movement 0~540
PAN Infinite rotating:
2
0-55
Pan rotation stop
56-155
Infinite rotation CW from slow to fast
156-255
Infinite rotation CCW from slow to fast
3
Pan Fine 16bit:
0-255
Fine control of Pan movement
4
TILT:
0-255
Tilt Movement 0~360
TILT Infinite rotating:
5
0-55
Tilt rotation stop
56-155
Infinite rotation CW from slow to fast
156-255
Infinite rotation CCW from slow to fast
6
Tilt Fine 16bit:
0-255
Fine control of Tilt movement
7
Speed Pan/Tilt movement:
0-225
Speed fast to slow
8
Dimmer:
0-225
0-100% linear Dimmer, from dark to bright
Strobe:
0-55
Neutral
9
56-155
Synchronize strobe speed from slow to fast
156-205
Random strobe
206-255
Thunder strobe
10
Red:
0-255
Red Color ( 0%~100% )

9
11
Green:
0-255
Green Color ( 0%~100% )
12
Blue:
0-255
Blue Color ( 0%~100% )
13
White:
0-255
White Color ( 0%~100% )
Effect of Static Perform:
0-24
Effect 1
25-49
Effect 2
50-74
Effect 3
75-99
Effect 4
14 100-124 Effect 5
125-149 Effect 6
150-174 Effect 7
175-199 Effect 8
200-224 Effect 9
225-249 Effect 10
250-255 Effect of running water, speed control from 16 channel
Effect of move perform:
0-49 Effect 1, speed control from 16channel
15 50-99 Effect 2, speed control from 16channel
100-149 Effect 3, speed control from 16channel
150-255 Effect 4, speed control from 16channel
Lighting show speed:
16
0-255 Speed from fast to slow
Marco:
0-49 No function
17 Effects of static perform(built-in effect)
cooperate 15,16,8 channel to use
100-149 Effect of dynamic perform(built-in effect)
50-99

10
cooperate 15,16,8channel to use
150-199
Auto running
200-255
Sound control
Reset
18
0-250
No function
251-255
Fixture reset, 3s effective

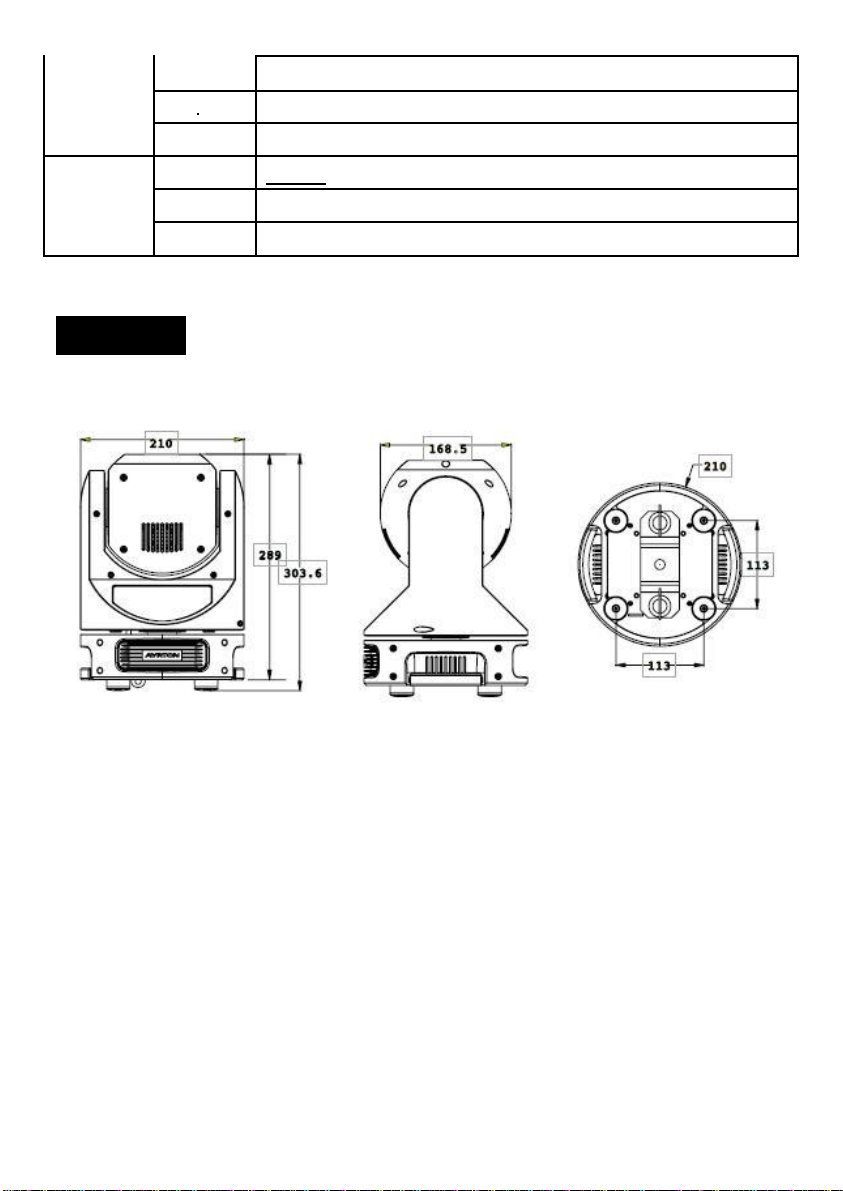

4.Diagram

11
5.Trouble Shooting
There are a few common problems presented below, that may occur during operation.
Here are
some suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if they are linked
properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on
PCB of the unit or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or alongside to high voltage cables that may
cause damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor ’ s drive IC on the PCB might be out of condition.
6. Cleaning the device
Cleaning of internal and external optical lenses and/or mirrors must be carried out
periodically to optimize light output. Cleaning frequency depends on the environment in
which the unit operates: damp, smoky or particularly dirty surrounding can cause greater
accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least
every 30/60 days.
