CLASSIC TIERTM OWNER’S MANUAL
ASSEMBLY AND OPERATING INSTRUCTIONS
ENDURA
™
EXTRA-LONG RUNNING SOLAR POWERED ACCENT LIGHTS

1
HOW YOUR CLASSIC TIERTM
SOLAR-POWERED LIGHTS WORK
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR SOLAR LIGHT.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
BEFORE FIRST USE – Pull out to remove the clear plastic strip
with orange sticker in the light fixture to charge battery.
Install your Classic Tier solar light in direct sunlight and charge for 10-12
FULL, SUNNY DAYS. The light will turn on automatically at night. Allow at
least 10-12 cycles (i.e., 10-12 days and nights of charging and discharging)
for the battery to charge to its full capacity.
The rechargeable Ni-Cd battery must be allowed to fully charge to operate
properly. Partially charging the battery on a consistent basis will drastically
reduce the life of the battery.
IMPORTANT: The EPA Certified RBRC®
Battery Recycling Seal on the nickel-cadmium
(Ni-Cd) battery contained in our product
indicates The Brinkmann Corporation is
voluntarily participating in an industry program
to collect and recycle these battery at the end
of their useful life, when taken out of service in
the United States or Canada. The RBRC®
program provides a convenient alternative to
placing used Ni-Cd battery into the trash or the
municipal waste stream, which may be illegal
in your area. Please call 1-800-8-BATTERY™
for information on Ni-Cd battery recycling and
disposal bans/restrictions in your area. The
Brinkmann Corporation’s involvement in this
program is part of our commitment to
preserving our environment and conserving
our natural resources.

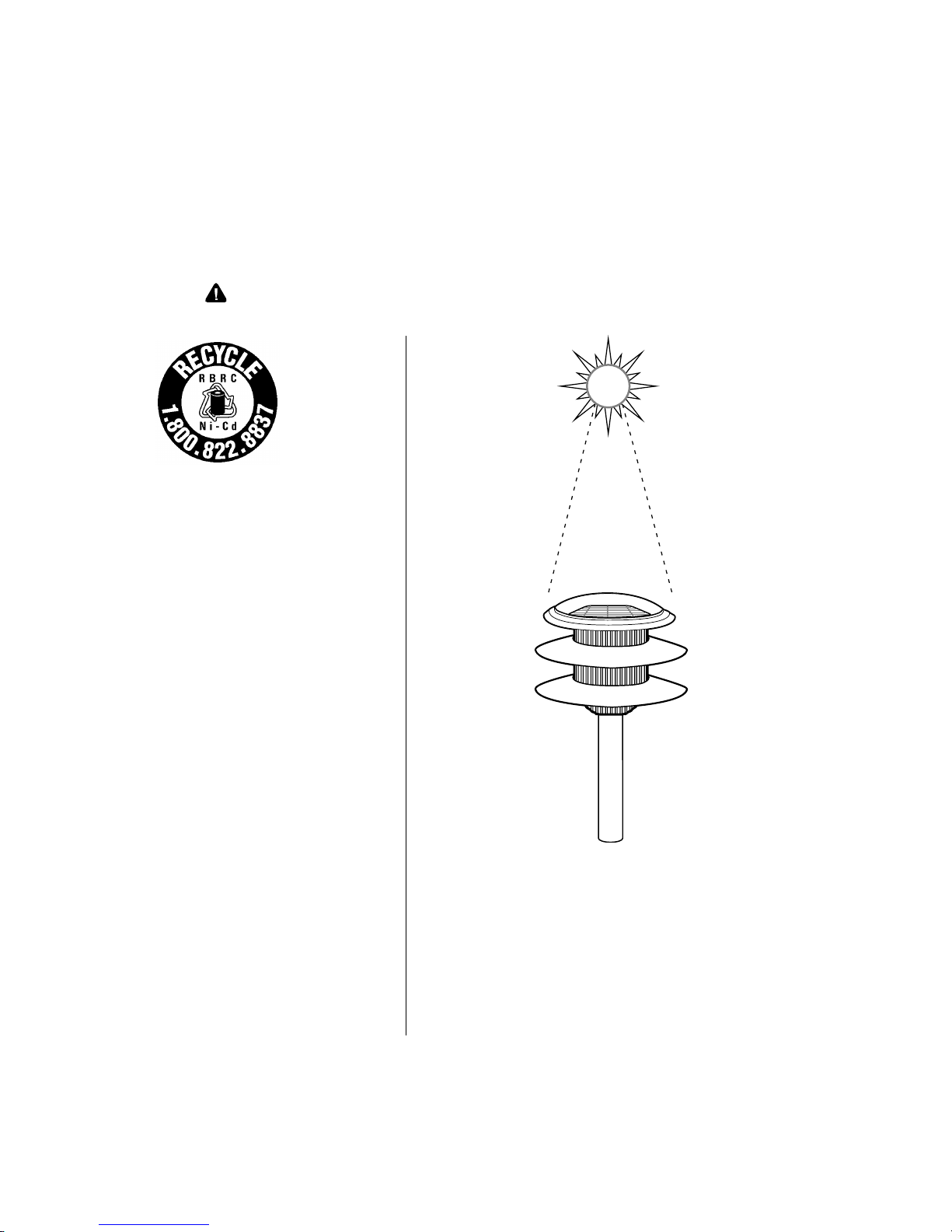

During the day, the solar panel converts sunlight
into electricity and recharges the battery. At
night, the light turns on automatically using the
electricity stored during that day.
The number of hours the light will stay on is
dependent on your geographical location, weather
conditions and seasonal lighting availability.
Solar lights do not receive as much direct
sunlight in winter months. Therefore, the
number of hours the light will stay on will be
reduced during winter.

2
ASSEMBLY INSTRUCTIONS
Inspect contents of the box to ensure all parts are included and undamaged.
A flathead screwdriver is required for
mounting the wall bracket.
Select a location with full, direct sunlight.
Shady locations will not allow the battery to
charge fully and will reduce the hours of
nighttime light.
NOTE: The rechargeable Ni-Cd battery
must be allowed to fully charge to
operate properly. Partially charging
the battery on a consistent basis
will drastically reduce the life of
the battery.
The selected location should not be near a
nighttime light source such as a porch light or
street light, as these might keep the solar
lights from automatically turning on. The solar
lights should not be placed closer than 5 feet
from one another. This could cause the solar
lights to flicker from the adjacent light source.

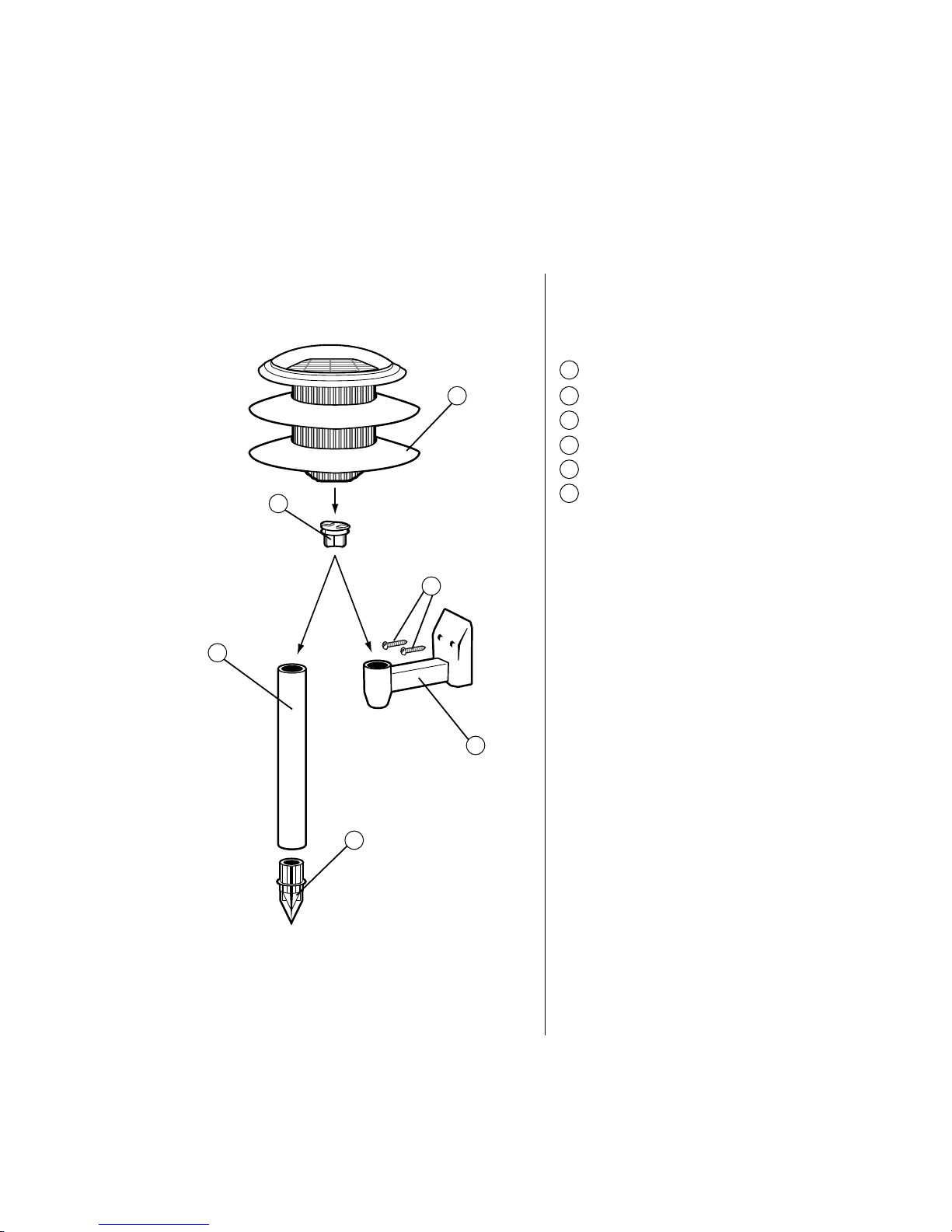

PARTS LIST:
Classic Tier Light Head Fixture
Connector
Ground Stake
Ground Connector w/Point
Deck/Wall/Fence Mounting Bracket
Mounting Screws (2)
1
2
3
4
5
6
4
3
5
6
2
1

3

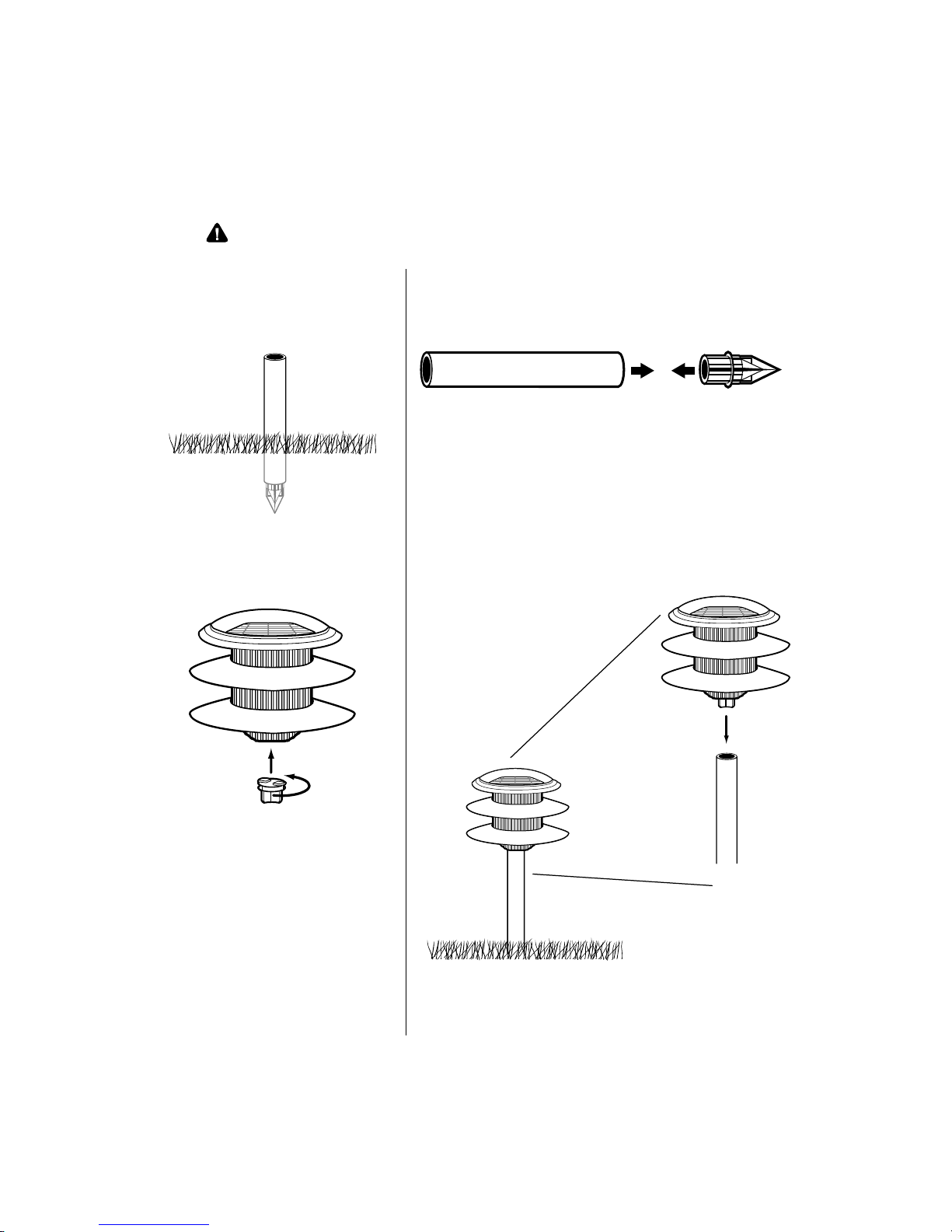

Step 1
Attach the ground stake to a pointed
connector. Push approximately 3" of the
ground stake into the ground. If the ground
is too hard, soak area with water to soften.
Step 2
Align the connector to the grooves
on bottom of light head. Turn
counter-clockwise to set in place.
Step 3
Insert light head into ground stake. The
photocell light sensor should point away
from other nighttime light sources.
Step 4
Charge in direct sunlight for 10-12 FULL,
SUNNY DAYS. The light will turn on
automatically at night. Allow at least
10-12 cycles (i.e., 10-12 days and nights
of charging and discharging) for the
battery to charge to its full capacity.
OPERATING INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR SOLAR LIGHT.
SAVE THIS MANUAL FOR FUTURE REFERENCE.

4

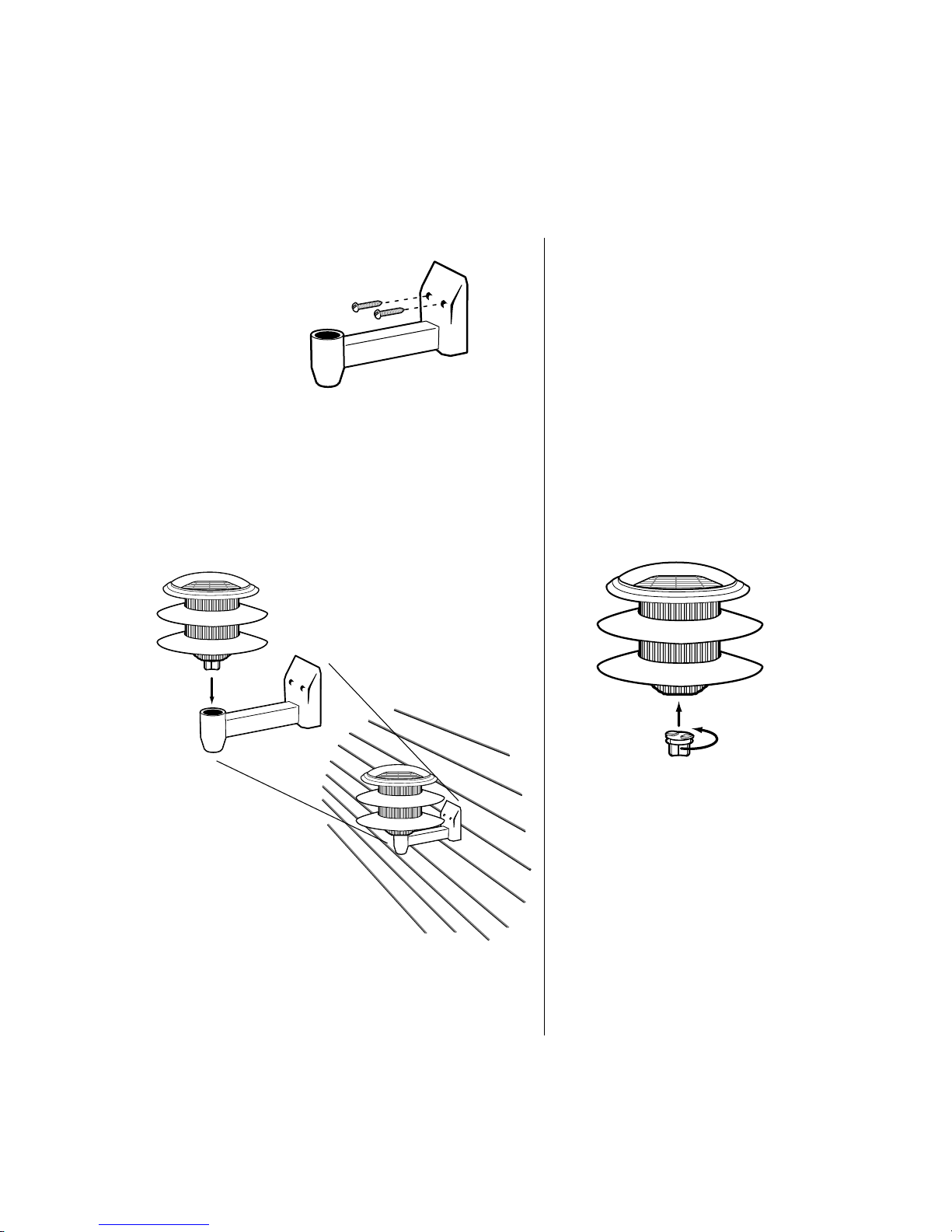

Deck/Wall/Fence
Mounting:
Select a location with full, direct sunlight.
Shady locations will not allow the battery
to charge fully and will reduce the hours of
nighttime light.
Step 1
Mount the bracket to a deck, wall or fence
using the two screws provided.
Step 2
Align the connector to the grooves
on bottom of light head. Turn
counter-clockwise to set in place.
Step 3
Insert light head into bracket. The photocell
light sensor should point away from other
nighttime light sources.
Step 4
Charge in direct sunlight for 10- 12 FULL,
SUNNY DAYS. The light will turn on
automatically at night. Allow at least
10-12 cycles (i.e., 10-12 days and nights
of charging and discharging) for the
battery to charge to its full capacity.

5
Changing Battery
It is important that the solar panel is kept free of
dirt and debris. A dirty solar panel will not allow
the battery to fully charge. This will shorten the
life of the battery and cause the light to
malfunction. Clean regularly with a dampened
cloth or paper towel.
Cleaning
IMPORTANT: The EPA Certified RBRC®Battery
Recycling Seal on the nickel-cadmium (Ni-Cd)
battery contained in our product indicates The
Brinkmann Corporation is voluntarily
participating in an industry program to collect
and recycle these batteries at the end of their
useful life, when taken out of service in the
United States or Canada. The RBRC®program provides a convenient
alternative to placing used Ni-Cd batteries into the trash or the
municipal waste stream, which may be illegal in your area. Please
call 1-800-8-BATTERY™ for information on Ni-Cd battery recycling and
disposal bans/restrictions in your area. The Brinkmann Corporation’s
involvement in this program is part of our commitment to preserving
our environment and conserving our natural resources.

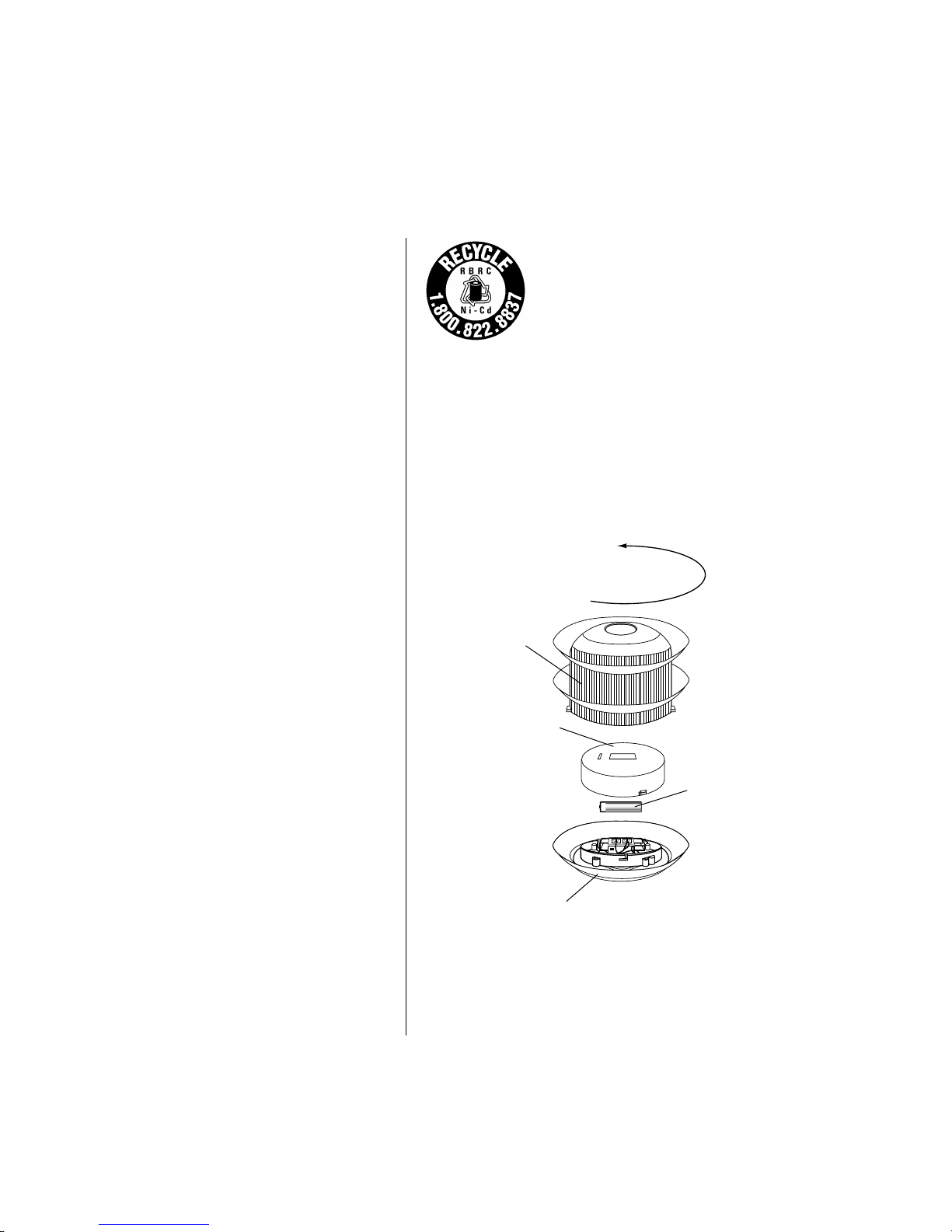

Housing Plate
Top Housing
Lens
Battery
Step 1
Remove lens from top housing by turning
lens counter-clockwise.
Step 2
With top housing upside down (solar panel
facing down), unlock housing plate by
turning counter-clockwise.
Step 3
Remove battery. Replace with new Ni-Cd
rechargeable battery.
Step 4
Lock housing plate by turning clockwise.
Step 5
Attach the lens by aligning the slots with
the grooves in top housing. Turn clockwise
to lock in place.
NOTE: These lights utilize L.E.D. (Light
Emitting Diode) technology. There are
no bulbs to replace.

6
• Clean snow and debris off the solar panel to allow battery to recharge.
• Check and replace battery periodically throughout the year, especially
after winter months.
Wintertime
Tips
If your solar light does not turn on at night, it may be caused by one the
following conditions:
• Battery is not fully charged or needs replacement:
a. Make sure your light is located in an area where the solar panel gets
the maximum amount of full, direct sunlight every day. Allow
sunlight to recharge the battery for 10 to 12 FULL, SUNNY DAYS.
b. If the weather has been cloudy or overcast during the day, the
battery will not be recharged for operation at night. The solar light
must have direct sunlight every day to fully charge the battery. If the
solar light does not receive enough sunlight one day, it will recharge
the next sunny day and resume normal operation.
c. Check and replace the battery periodically throughout the year,
especially after winter months. Replacement batteries may be
purchased from The Brinkmann Corporation Customer Service
Department by calling 1-800-468-5252.
• Other light sources: If your solar lights are located too close to a street
light, porch light or another solar light, it may not turn on automatically
at night. The built-in photocell light sensor is reacting to the other light
source. Eliminate the other light source or relocate your solar lights.
• Dirty solar panel: A dirty solar panel will not allow the battery to fully
charge. This will shorten the life of the battery and cause the light to
malfunction. Clean regularly with a dampened cloth or paper towel.
After correcting the problem, check the light operation immediately after
dark or in a dark room. If the light will only operate for a short time, the
battery needs recharging.
Troubleshooting
Information
Solar lights can be left outside year round, even in cold weather. However, if
you wish to store your light indoors for more than two or three days, follow
these steps to prevent damage to rechargeable batteries:
• Store at room temperature in a dry location.
• Store solar light where it can receive some sunlight or room light each
day. The batteries needs light to maintain a charge during storage.
• During prolonged storage, units must be fully discharged and charged
once every month or remove batteries and replace with new Ni-Cd
rechargeable battery when ready for use. Check and replace batteries
periodically throughout the year.
• Do not store solar lights in a box, or a dark room without a source of
light on the solar panel. This will damage the batteries and prevent their
ability to hold a charge.
• For best performance, do not store for prolonged periods.
Storage Tips

For 1-year from date of purchase, The Brinkmann Corporation warrants the Classic Tier solar light against defects due to workmanship or
materials to the original purchaser. The Brinkmann Corporation’s obligations under this warranty are limited to the following guidelines:
• This warranty does not extend to the L.E.D. or battery.
• This warranty does not cover solar lights that have been altered or damaged due to: normal wear, abuse, improper maintenance, improper
use, disassembly of parts and/or attempted repair by anyone other than an authorized employee of The Brinkmann Corporation.
• This warranty does not cover surface scratches or weathering as this is considered normal wear.
• Warranty service is limited to repair or replacement of solar lights which prove defective under normal use and which upon examination
shall indicate to Brinkmann’s satisfaction, they are defective. If Brinkmann confirms the defect and approves the claim, Brinkmann will elect
to repair or replace the solar light as covered by the terms of this warranty.
• This warranty extends to the original purchaser only and is not transferable or assignable to subsequent purchasers.
The Brinkmann Corporation requires reasonable proof of purchase. Therefore, we strongly recommend that you retain your sales receipt or
invoice. To obtain repair or replacement of your Classic Tier solar light under the terms of this warranty, please call Customer Service
Department at 1-800-527-0717 for a Return Authorization Number and further instructions. A receipt or proof of purchase will be required.
Solar lights returned to Brinkmann must include your name, address and telephone number. Please make sure the light is properly packed,
postage prepaid, and insured. A Return Authorization Number must be clearly marked on the outside of the box. Brinkmann cannot be
responsible for any solar lights forwarded to us without a Return Authorization Number.
EXCEPT AS ABOVE STATED, THE BRINKMANN CORPORATION MAKES NO OTHER EXPRESS WARRANTY. THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO 1-YEAR FROM THE DATE OF PURCHASE. SOME
STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
ANY LIABILITY FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE FAILURE OF THE CLASSIC TIER SOLAR LIGHT
TO COMPLY WITH THIS WARRANTY OR ANY IMPLIED WARRANTY IS EXCLUDED. CUSTOMER ACKNOWLEDGES THAT THE PURCHASE PRICE
CHARGED IS BASED UPON THE LIMITATIONS CONTAINED IN THE WARRANTY SET OUT ABOVE. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO
YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
1-YEAR LIMITED WARRANTY
