HOW YOUR CYPRESS™
SOLAR-POWERED L.E.D. LIGHTS WORK
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR SOLAR LIGHT.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
IMPORTANT: The EPA Certified RBRC®Battery
Recycling Seal on the nickel-cadmium (Ni-Cd)
battery contained in our product indicates The
Brinkmann Corporation is voluntarily participating
in an industry program to collect and recycle
these batteries at the end of their useful life,
when taken out of service in the United States or
Canada. The RBRC®program provides a
convenient alternative to placing used Ni-Cd
batteries into the trash or the municipal waste
stream, which may be illegal in your area.
Please call 1-800-8-BATTERY™ for information
on Ni-Cd battery recycling and disposal
bans/restrictions in your area. The Brinkmann
Corporation’s involvement in this program is part
of our commitment to preserving our environment
and conserving our natural resources.

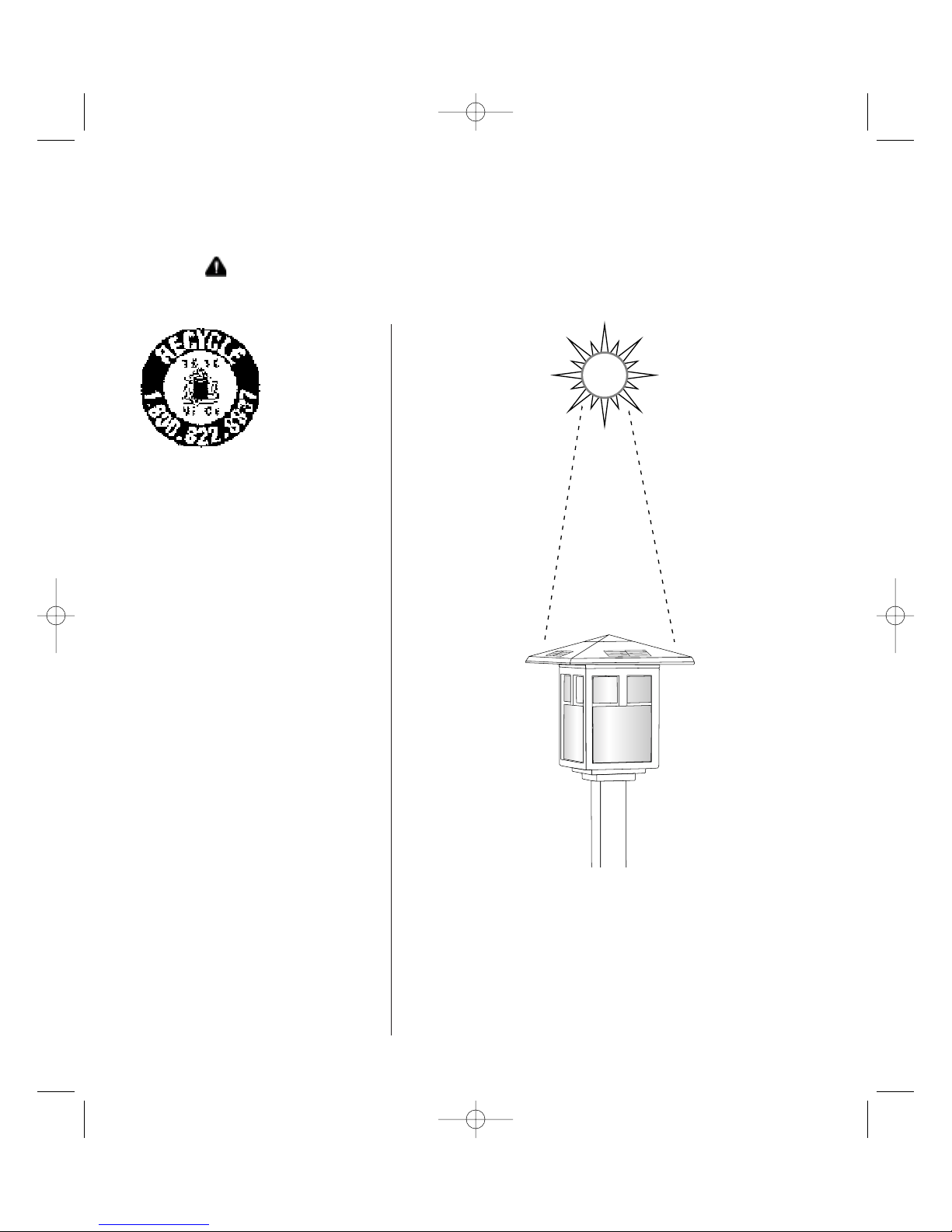

During the day, the solar panel converts sunlight
into electricity and recharges the battery. At
night, the light turns on automatically using the
electricity stored during that day.
The number of hours the light will stay on is
dependent on your geographical location, weather
conditions and seasonal lighting availability.
Solar lights do not receive as much direct
sunlight in winter months. Therefore, the
number of hours the light will stay on will be
reduced during winter.
BEFORE FIRST USE – Pull out to remove the clear plastic strip
with orange sticker in the light fixture to charge battery.
Install your Cypress solar light in direct sunlight and charge for 10-12 FULL,
SUNNY DAYS. The light will turn on automatically at night. Allow at least 10-12
cycles (i.e., 10-12 days and nights of charging and discharging) for the battery
to charge to its full capacity.
The rechargeable Ni-Cd battery must be allowed to fully charge to operate
properly. Partially charging the battery on a consistent basis will drastically
reduce the life of the battery.
INSTR_Cypress 5/13/03 9:29 AM Page 3

PARTS LIST:
Cypress Light Head Fixture
Ground Stake
Connector w/Point
Connector
Deck/Wall/Fence Mounting Bracket
Mounting Screws (2)
ASSEMBLY INSTRUCTIONS
Inspect contents of the box to ensure all parts are included and undamaged.
1
2
4
1
2
3
2
A flathead screwdriver is required for
mounting the wall bracket.
Select a location with full, direct sunlight.
Shady locations will not allow the battery to
charge fully and will reduce the hours of
nighttime light.
NOTE: The rechargeable Ni-Cd battery
must be allowed to fully charge to
operate properly. Partially
charging the battery on a
consistent basis will drastically
reduce the life of the battery.
The selected location should not be near a
nighttime light source such as a porch light or
street light, as these might keep the solar
lights from automatically turning on. The solar
lights should not be placed closer than 5 feet
from one another. This could cause the solar
lights to flicker from the adjacent light source.
4
5
6
3
5
6
INSTR_Cypress 5/13/03 9:29 AM Page 6

3

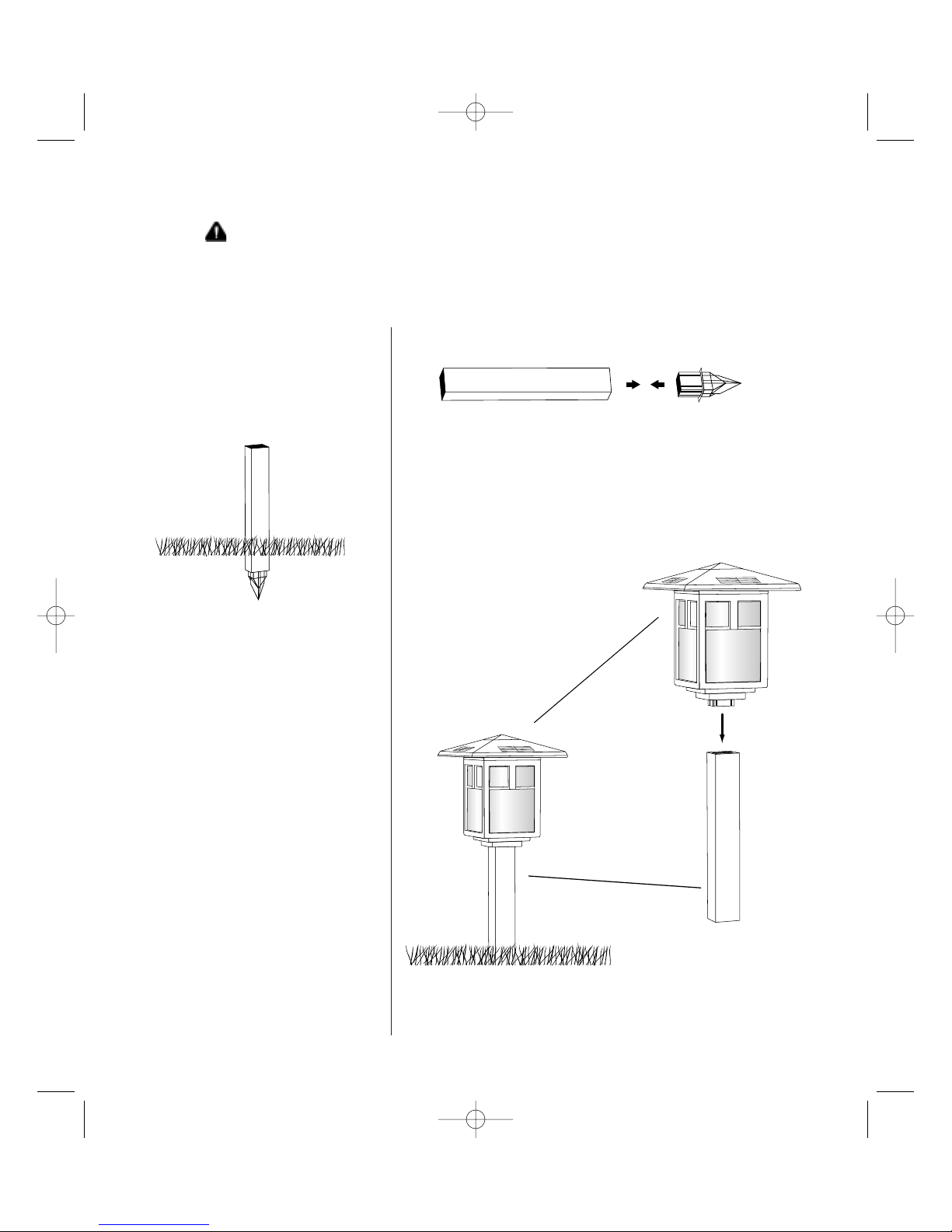

Step 1
Attach the ground stake to a pointed
connector. Push approximately 3" of the
ground stake into the ground. If the ground
is too hard, soak area with water to soften.
Step 2
Insert light head into ground stake. The
photocell light sensor should point away
from other nighttime light sources.
Step 3
Charge in direct sunlight for 10-12 FULL,
SUNNY DAYS. The light will turn on
automatically at night. Allow at least
10-12 cycles (i.e., 10-12 days and nights of
charging and discharging) for the battery to
charge to its full capacity.
OPERATING INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR SOLAR LIGHT.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
INSTR_Cypress 5/13/03 9:29 AM Page 7

4
Deck/Wall/Fence
Mounting:
Select a location with full, direct sunlight.
Shady locations will not allow the battery to
charge fully and will reduce the hours of
nighttime light.

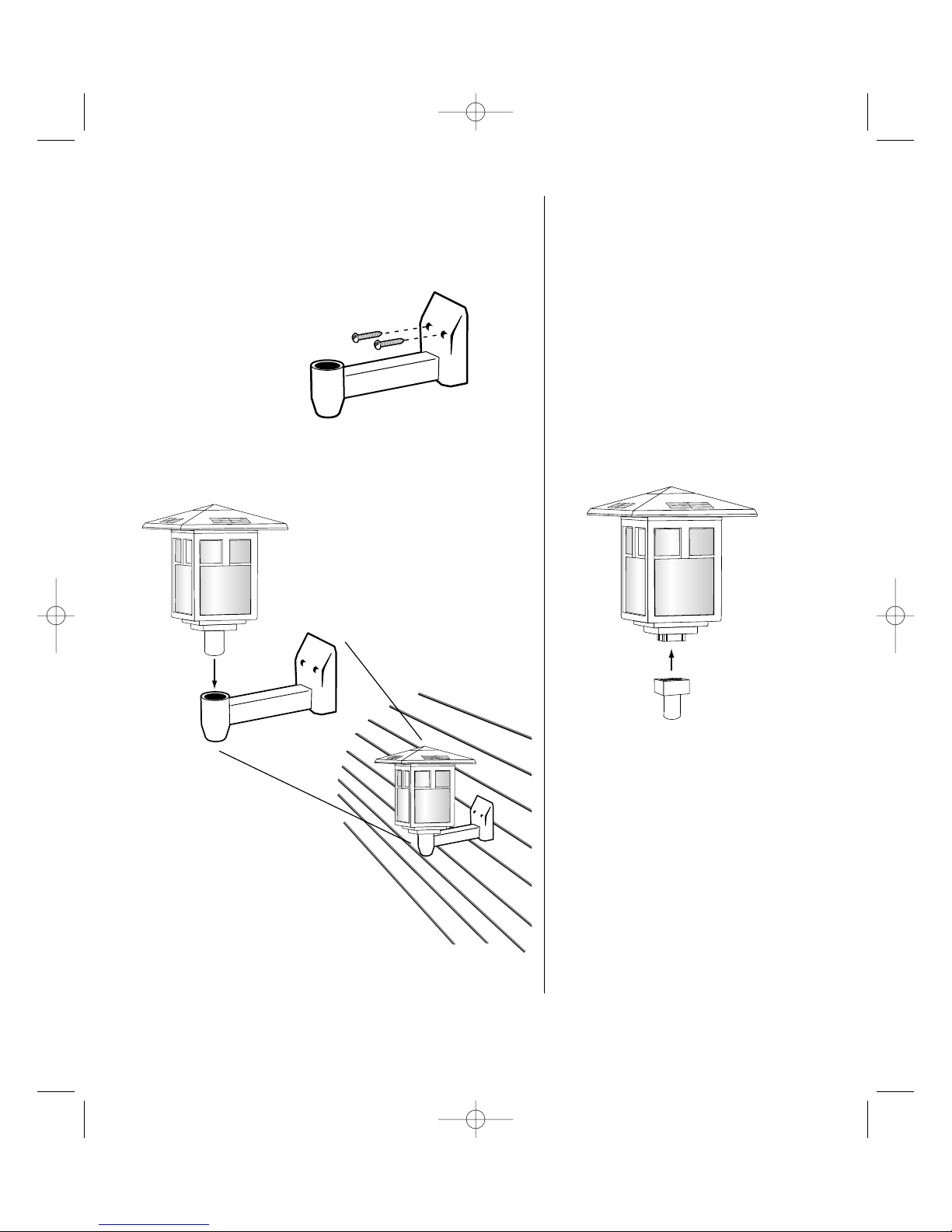

Step 1
Mount the bracket to a deck, wall or
fence using the two screws provided.
Step 2
Insert the square portion of the
connector to the bottom square hole of
the light fixture.
Step 3
Insert light fixture with connector into
bracket. The photocell light sensor
should point away from other nighttime
light sources.
Step 4
Charge in direct sunlight for 10-12 FULL,
SUNNY DAYS. The light will turn on
automatically at night. Allow at least
10-12 cycles (i.e., 10-12 days and nights
of charging and discharging) for the
battery to charge to its full capacity.
INSTR_Cypress 5/13/03 9:29 AM Page 8

Top Housing
Lens
Battery

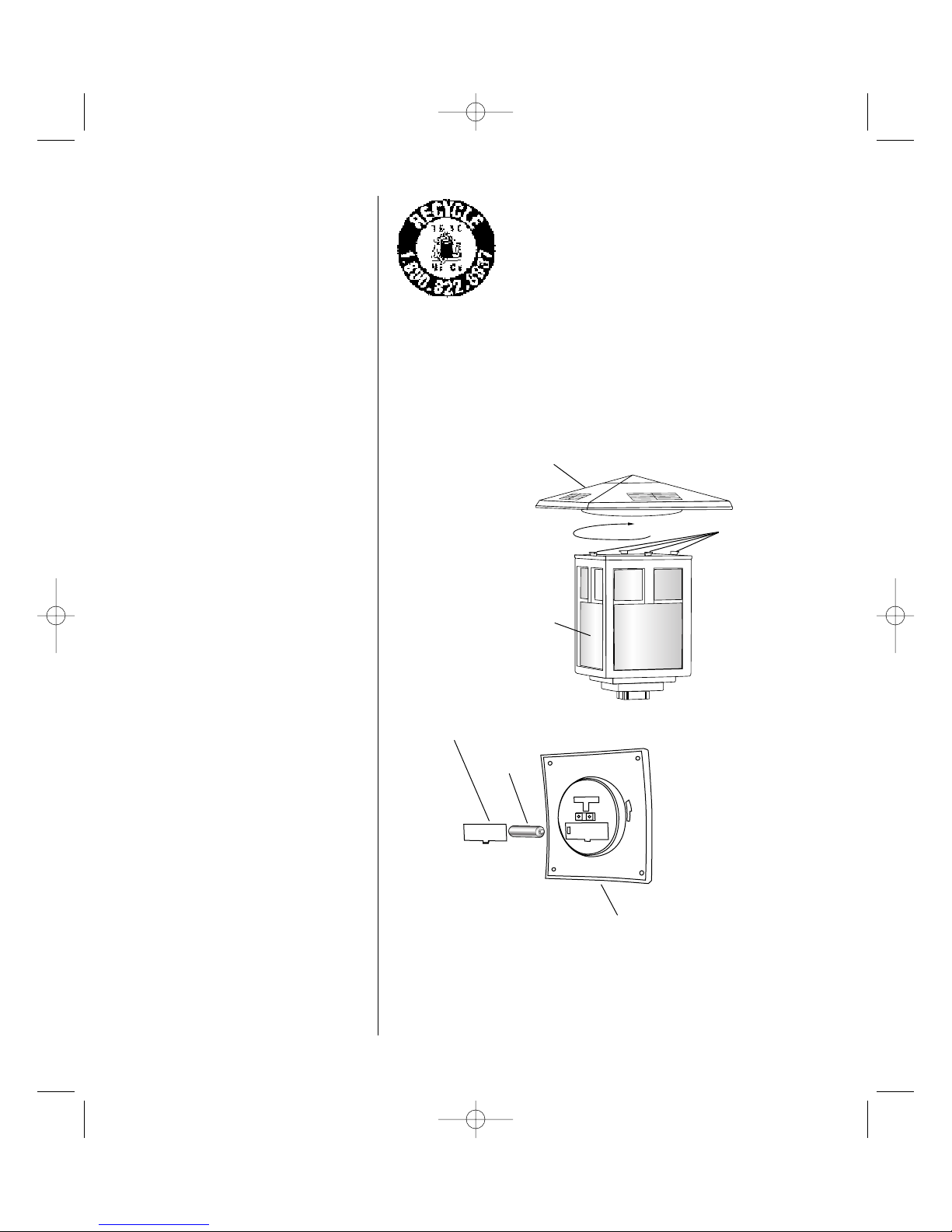

Changing Battery
Step 1
Remove lens from top housing by
turning lens clockwise.
Step 2
With top housing upside down (solar
panel facing down), push tab on battery
compartment lid and remove the lid.
Step 3
Remove battery. Replace with new Ni-Cd
rechargeable battery.
Step 4
Replace battery compartment lid.
Step 5
Attach the lens by aligning the tabs with
the slots in top housing. Turn
counter-clockwise to lock in place.
NOTE: These lights utilize L.E.D. (Light
Emitting Diode) technology. There
are no bulbs to replace.
Top Housing
Battery
Compartment Lid
It is important that the solar panel is kept free
of dirt and debris. A dirty solar panel will not
allow the battery to fully charge. This will
shorten the life of the battery and cause the
light to malfunction. Clean regularly with a
dampened cloth or paper towel.
Cleaning
5
Tabs
IMPORTANT: The EPA Certified RBRC®Battery Recycling
Seal on the nickel-cadmium (Ni-Cd) battery contained in our
product indicates The Brinkmann Corporation is voluntarily
participating in an industry program to collect and recycle
these batteries at the end of their useful life, when taken out
of service in the United States or Canada. The RBRC®
program provides a convenient alternative to placing used
Ni-Cd batteries into the trash or the municipal waste stream, which may be illegal
in your area. Please call 1-800-8-BATTERY™ for information on Ni-Cd battery
recycling and disposal bans/restrictions in your area. The Brinkmann Corporation’s
involvement in this program is part of our commitment to preserving our
environment and conserving our natural resources.
INSTR_Cypress 5/13/03 9:29 AM Page 5

6
Solar lights can be left outside year round, even in cold weather. However, if you
wish to store your light indoors for more than two or three days, follow these steps
to prevent damage to rechargeable batteries:
• Store at room temperature in a dry location.
• Store solar light where it can receive some sunlight or room light each day.
The battery needs light to maintain a charge during storage.
• During prolonged storage, units must be fully discharged and charged once
every month or remove batteries and replace with new Ni-Cd rechargeable
batteries when ready for use. Check and replace batteries periodically
throughout the year.
• Do not store solar lights in a box, or a dark room without a source of light on
the solar panel. This will damage the batteries and prevent their ability to hold
a charge.
• For best performance, do not store for prolonged periods.
Storage Tips
• Clean snow and debris off the solar panel to allow battery to recharge.
• Check and replace battery periodically throughout the year, especially after
winter months.
Wintertime
Tips
If your solar light does not turn on at night, it may be caused by one the
following conditions:
• Battery is not fully charged or needs replacement:
a. Make sure your light is located in an area where the solar panel gets the
maximum amount of full, direct sunlight every day. Allow sunlight to
recharge the battery for 10-12 FULL, SUNNY DAYS.
b. If the weather has been cloudy or overcast during the day, the battery will
not be recharged for operation at night. The solar light must have direct
sunlight every day to fully charge the battery. If the solar light does not
receive enough sunlight one day, it will recharge the next sunny day and
resume normal operation.
c. Check and replace the battery periodically throughout the year, especially
after winter months. Replacement batteries may be purchased from The
Brinkmann Corporation Customer Service Department by calling
1-800-468-5252.
• Other light sources: If your solar lights are located too close to a street light,
porch light or another solar light, it may not turn on automatically at night. The
built-in photocell light sensor is reacting to the other light source. Eliminate the
other light source or relocate your solar lights.
• Dirty solar panel: A dirty solar panel will not allow the battery to fully charge.
This will shorten the life of the battery and cause the light to malfunction.
Clean regularly with a dampened cloth or paper towel.
After correcting the problem, check the light operation immediately after dark or in a
dark room. If the light will only operate for a short time, the battery needs recharging.
Troubleshooting
Information
INSTR_Cypress 5/13/03 9:29 AM Page 4
