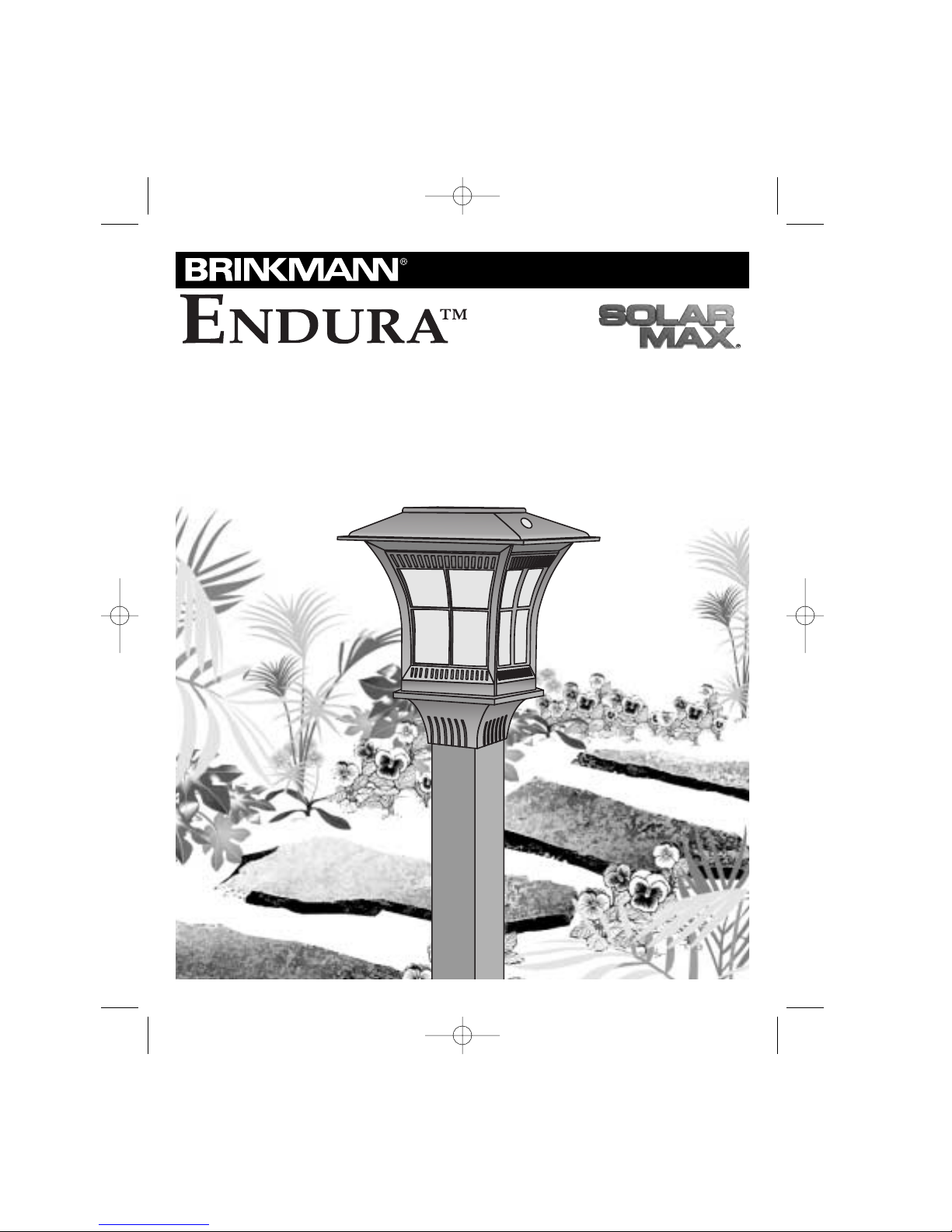

MINI POST LIGHT™
OWNER’S MANUAL
ASSEMBLY AND OPERATING INSTRUCTIONS
EXTRA-LONG RUNNING SOLAR POWERED ACCENT LIGHTS
INSTR-minipost-stake.qxd 1/8/04 3:16 PM Page 1

1
HOW YOUR MINI POST LIGHT™
SOLAR-POWERED L.E.D. LIGHTS WORK
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR SOLAR LIGHT.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
IMPORTANT: The EPA Certified RBRC®
Battery Recycling Seal on the nickel-
cadmium (Ni-Cd) battery contained in our
product indicates The Brinkmann Corporation
is voluntarily participating in an industry
program to collect and recycle these batteries
at the end of their useful life, when taken out
of service in the United States or Canada.
The RBRC®program provides a convenient
alternative to placing used Ni-Cd batteries
into the trash or the municipal waste stream,
which may be illegal in your area. Please call
1-800-8-BATTERY™ for information on Ni-Cd
battery recycling and disposal
bans/restrictions in your area. The Brinkmann
Corporation’s involvement in this program is
part of our commitment to preserving our
environment and conserving our natural
resources.
During the day, the solar panel converts
sunlight into electricity and recharges the
battery. At night, the light turns on automati-
cally using the electricity stored during that
day.
The number of hours the light will stay on is
dependent on your geographical location,
weather conditions and seasonal lighting
availability.
Solar lights do not receive as much direct
sunlight in winter months. Therefore, the
number of hours the light will stay on will be
reduced during winter.
BEFORE FIRST USE – Pull out to remove the clear plastic strip with
orange sticker in the light fixture to charge batteries.
Your new solar light’s rechargeable Ni-Cd battery is fully charged and
ready for use. Install the solar light in direct sunlight. For optimum
performance, it is best to charge the solar light for a FULL, SUNNY DAY.
The light will turn on automatically at night. The Ni-Cd rechargeable
battery provides increased brightness and stays on longer as it cycles
over time (days and nights of charging and discharging). The more direct
sunlight that the light receives during the day, the brighter and longer the
light will stay on at night.
The rechargeable Ni-Cd battery must be allowed to fully charge to
operate properly. Partially charging the battery on a consistent basis will
drastically reduce the life of the battery.
INSTR-minipost-stake.qxd 1/8/04 3:16 PM Page 2

PARTS LIST:
Mini Post Light Head Fixture
Ground Stake
Connector w/Point
ASSEMBLY INSTRUCTIONS
Inspect contents of the box to ensure all parts are included and undamaged.
1
3
1
2
3
2
2
Select a location with FULL, DIRECT
SUNLIGHT. Shady locations will not allow
the battery to charge fully and will reduce
the hours of nighttime light.
NOTE: The rechargeable Ni-Cd
battery must be allowed to
fully charge to operate
properly. Partially charging
the battery on a consistent
basis will drastically reduce
the life of the battery.
The selected location should not be near a
nighttime light source such as a porch
light or street light, as these might keep
the solar lights from automatically turning
on. The solar lights should not be placed
closer than 5 feet from one another. This
could cause the solar lights to flicker from
the adjacent light source.
INSTR-minipost-stake.qxd 1/8/04 3:16 PM Page 3

Step 1
Attach the ground stake to a pointed
connector. Push approximately 3" of the
ground stake into the ground.
NOTE: Ground can be softened by soaking
area with water first.
Step 2
Insert light head into ground stake. The
photocell light sensor should point
away from other nighttime light
sources.
Step 3
For optimum performance, it is best to
charge the solar light for a FULL,
SUNNY DAY. The light will turn on
automatically at night. The Ni-Cd
rechargeable battery provides increased
brightness and stays on longer as it
cycles over time (days and nights of
charging and discharging). The more
direct sunlight that the light receives
during the day, the brighter and longer
the light will stay on at night.
OPERATING INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR SOLAR LIGHT.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
3
Assembly
INSTR-minipost-stake.qxd 1/8/04 3:16 PM Page 4

4
Top Housing
Battery
Battery
Compartment Lid
Lens
Top Housing
Tabs
IMPORTANT: The EPA Certified RBRC®Battery Recycling
Seal on the nickel-cadmium (Ni-Cd) battery contained in
our product indicates The Brinkmann Corporation is
voluntarily participating in an industry program to collect
and recycle these batteries at the end of their useful life,
when taken out of service in the United States or Canada.
The RBRC®program provides a convenient alternative to
placing used Ni-Cd batteries into the trash or the municipal waste stream,
which may be illegal in your area. Please call 1-800-8-BATTERY™ for
information on Ni-Cd battery recycling and disposal bans/restrictions in your
area. The Brinkmann Corporation’s involvement in this program is part of our
commitment to preserving our environment and conserving our natural
resources.
Changing Battery
Step 1
Remove lens from top housing by
turning lens clockwise.
Step 2
With top housing upside down (solar
panel facing down), push battery
compartment tab and lift off battery
compartment lid.
Step 3
Remove battery. Replace with new
Ni-Cd rechargeable battery.
Step 4
Replace battery compartment lid.
Step 5
Attach the lens by aligning the tabs
with the slots in top housing. Turn
counter-clockwise to lock in place.
NOTE: These lights utilize L.E.D. (Light
Emitting Diode) technology. There
are no bulbs to replace.
It is important that the solar panel is kept
free of dirt and debris. A dirty solar panel
will not allow the battery to fully charge.
This will shorten the life of the battery and
cause the light to malfunction. Clean
regularly with a dampened cloth or paper
towel.
Cleaning
INSTR-minipost-stake.qxd 1/8/04 3:16 PM Page 5

Solar lights can be left outside year round, even in cold weather. However, if you
wish to store your light indoors for more than two or three days, follow these
steps to prevent damage to rechargeable batteries:
• Store at room temperature in a dry location.
• Store solar light where it can receive some sunlight or room light each day.
The battery needs light to maintain a charge during storage.
• During prolonged storage, units must be fully discharged and charged
once every month or remove batteries and replace with new Ni-Cd
rechargeable batteries when ready for use. Check and replace batteries
periodically throughout the year.
• Do not store solar lights in a box, or a dark room without a source of light
on the solar panel. This will damage the batteries and prevent their ability
to hold a charge.
• For best performance, do not store for prolonged periods.
Storage Tips
If your solar light does not turn on at night, it may be caused by one the
following conditions:
• Battery is not fully charged or needs replacement:
a. Make sure your light is located in an area where the solar panel gets
the maximum amount of FULL, DIRECT SUNLIGHT every day.
b. If the weather has been cloudy or overcast during the day, the battery
will not be recharged for operation at night. The solar light must have
direct sunlight every day to fully charge the battery. If the solar light
does not receive enough sunlight one day, it will recharge the next
sunny day and resume normal operation.
c. Check and replace the battery periodically throughout the year,
especially after winter months. Replacement batteries may be
purchased from The Brinkmann Corporation Customer Service
Department by calling 1-800-468-5252.
Troubleshooting
Information
5
INSTR-minipost-stake.qxd 1/8/04 3:16 PM Page 6

6
• Clean snow and debris off the solar panel to allow battery to recharge.
• Check and replace battery periodically throughout the year, especially
after winter months.
Wintertime
Tips
• Other light sources: If your solar lights are located too close to a street
light, porch light or another solar light, it may not turn on automatically at
night. The built-in photocell light sensor is reacting to the other light
source. Eliminate the other light source or relocate your solar lights.
• Dirty solar panel: A dirty solar panel will not allow the battery to fully
charge. This will shorten the life of the battery and cause the light to
malfunction. Clean regularly with a dampened cloth or paper towel.
After correcting the problem, check the light operation immediately after dark or
in a dark room. If the light will only operate for a short time, the battery needs
recharging.
Troubleshooting
Information
(Continued)
INSTR-minipost-stake.qxd 1/8/04 3:16 PM Page 7

140-2500-2
12/03 Owner’s Manual for Model
822-2500-2
For 1-year from date of purchase, The Brinkmann Corporation warrants the Mini Post Light solar light against defects due to
workmanship or materials to the original purchaser. The Brinkmann Corporation’s obligations under this warranty are limited
to the following guidelines:
• This warranty does not extend to the L.E.D. or battery.
• This warranty does not cover solar lights that have been altered or damaged due to: normal wear, abuse, improper
maintenance, improper use, disassembly of parts and/or attempted repair by anyone other than an authorized
employee of The Brinkmann Corporation.
• This warranty does not cover surface scratches or weathering as this is considered normal wear.
• Warranty service is limited to repair or replacement of solar lights which prove defective under normal use and which
upon examination shall indicate to Brinkmann’s satisfaction, they are defective. If Brinkmann confirms the defect and
approves the claim, Brinkmann will elect to repair or replace the solar light as covered by the terms of this warranty.
• This warranty extends to the original purchaser only and is not transferable or assignable to subsequent purchasers.
The Brinkmann Corporation requires reasonable proof of purchase. Therefore, we strongly recommend that you retain your
sales receipt or invoice. To obtain repair or replacement of your Mini Post Light solar light under the terms of this warranty,
please call Customer Service Department at 1-800-527-0717 for a Return Authorization Number and further instructions. A
receipt or proof of purchase will be required. Solar lights returned to Brinkmann must include your name, address and
telephone number. Please make sure the light is properly packed, postage prepaid, and insured. A Return Authorization
Number must be clearly marked on the outside of the box. Brinkmann cannot be responsible for any solar lights
forwarded to us without a Return Authorization Number.
EXCEPT AS ABOVE STATED, THE BRINKMANN CORPORATION MAKES NO OTHER EXPRESS WARRANTY.
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN
DURATION TO 1-YEAR FROM THE DATE OF PURCHASE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
ANY LIABILITY FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE FAILURE OF THE MINI
POST LIGHT SOLAR LIGHT TO COMPLY WITH THIS WARRANTY OR ANY IMPLIED WARRANTY IS EXCLUDED.
CUSTOMER ACKNOWLEDGES THAT THE PURCHASE PRICE CHARGED IS BASED UPON THE LIMITATIONS CONTAINED IN
THE WARRANTY SET OUT ABOVE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
1-YEAR LIMITED WARRANTY
