ALUMINUM TIER OWNER’S MANUAL
ASSEMBLY AND OPERATING INSTRUCTIONS
EXTRA-LONG RUNNING SOLAR POWERED L.E.D. GARDEN ACCENT LIGHTS
INST_822-2513-2.qxd 2/1/05 9:41 AM Page 1

1
HOW YOUR ALUMINUM TIER
SOLAR-POWERED L.E.D. LIGHTS WORK
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR SOLAR LIGHT.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
IMPORTANT:
The EPA Certified RBRC®Battery Recycling
Seal on the nickel-cadmium (Ni-Cd) battery
contained in our product indicates The
Brinkmann Corporation is voluntarily
participating in an industry program to
collect and recycle these batteries at the
end of their useful life, when taken out of
service in the United States or Canada. The
RBRC®program provides a convenient
alternative to placing used Ni-Cd batteries
into the trash or the municipal waste
stream, which may be illegal in your area.
Please call 1-800-8-BATTERY™ for
information on Ni-Cd battery recycling and
disposal bans/restrictions in your area. The
Brinkmann Corporation’s involvement in
this program is part of our commitment to
preserving our environment and conserving
our natural resources.
During the day, the solar panel converts sunlight
into electricity and recharges the battery. At night,
the light turns on automatically using the electricity
stored during that day.
The number of hours the light will stay on is
dependent on your geographical location, weather
conditions and seasonal lighting availability.
Solar lights do not receive as much direct sunlight
in winter months. Therefore, the number of hours
the light will stay on will be reduced during winter.
BEFORE FIRST USE – Pull out to remove the clear
plastic strip with orange sticker in the light fixture
to charge batteries.
Your new solar light’s rechargeable Ni-Cd battery
is fully charged and ready for use. Install the solar
light in direct sunlight. For optimum performance,
it is best to charge the solar light for a FULL,
SUNNY DAY. The light will turn on automatically
at night. The Ni-Cd rechargeable battery provides
increased brightness and stays on longer as it
cycles over time (days and nights of charging and
discharging). The more direct sunlight that the light
receives during the day, the brighter and longer the
light will stay on at night.
The rechargeable Ni-Cd battery must be allowed to
fully charge to operate properly. Partially charging
the battery on a consistent basis will drastically
reduce the life of the battery.
INST_822-2513-2.qxd 2/1/05 9:41 AM Page 2

2
ASSEMBLY INSTRUCTIONS
Inspect contents of the box to ensure all parts are included and undamaged.
1
2
3
PARTS LIST:
Aluminum Tier Light Head Fixture
Ground Stake
Ground Stake Tip
1
2
3
Select a location with FULL, DIRECT
SUNLIGHT. Shady locations will not allow
the battery to charge fully and will reduce the
hours of nighttime light.
NOTE: The rechargeable Ni-Cd battery
must be allowed to fully charge to
operate properly. Partially
charging the battery on a
consistent basis will drastically
reduce the life of the battery.
The selected location should not be near a
nighttime light source such as a porch light
or street light, as these might keep the solar
lights from automatically turning on. The
solar lights should not be placed closer than
5 feet from one another. This could cause the
solar lights to flicker from the adjacent light
source.
INST_822-2513-2.qxd 2/1/05 9:41 AM Page 3

READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR SOLAR LIGHT.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
3

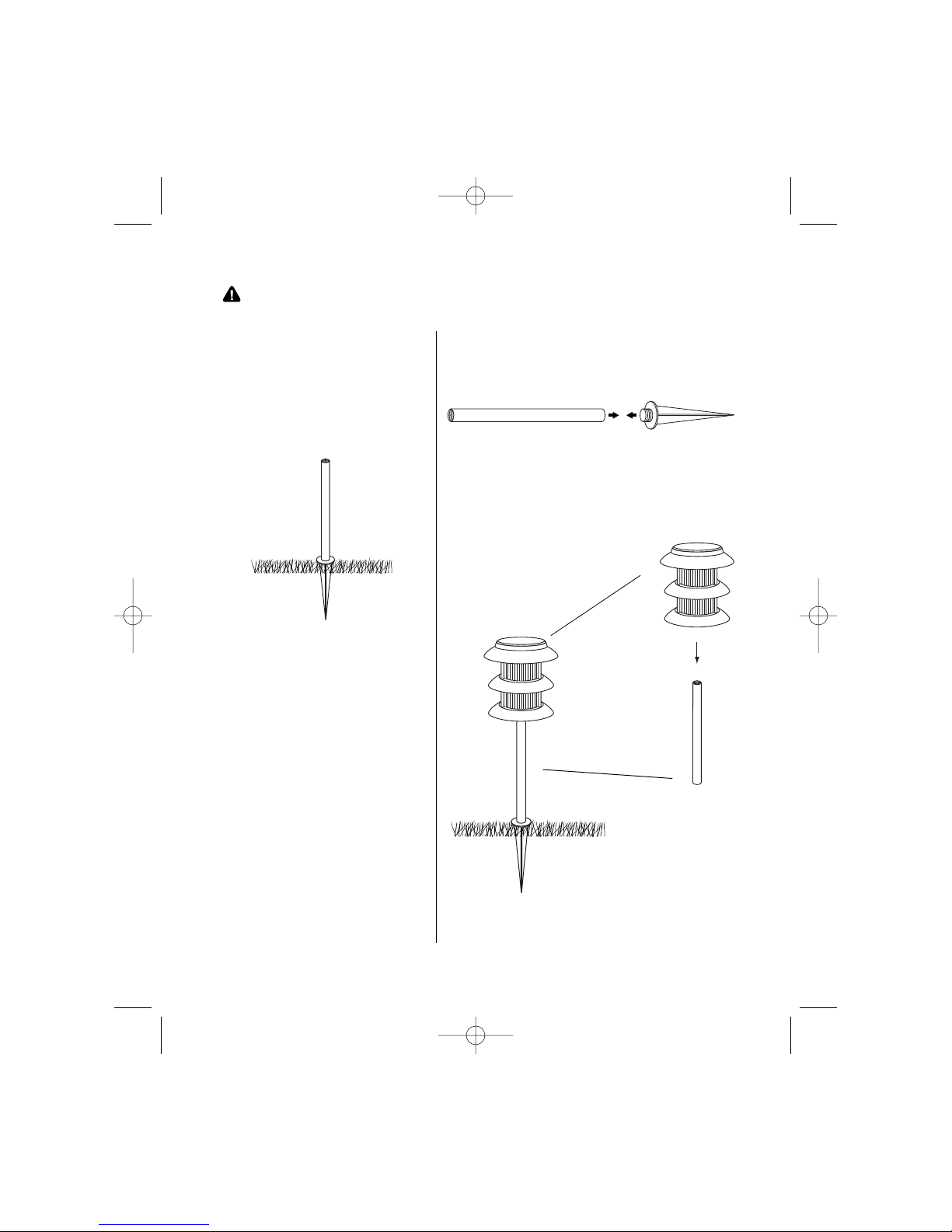

OPERATING INSTRUCTIONS
Step 1
Attach the ground stake to a ground
stake tip by screwing together. Push
ground stake tip fully into the
ground.
NOTE: Ground can be softened by
soaking area with water first.
Step 2
Attach light head to ground stake by
inserting together. The photocell light
sensor should point away from other
nighttime light sources.
Step 3
For optimum performance, it is best
to charge the solar light for a FULL,
SUNNY DAY. The light will turn on
automatically at night. The Ni-Cd
rechargeable battery provides
increased brightness and stays on
longer as it cycles over time (days
and nights of charging and
discharging). The more direct
sunlight that the light receives during
the day, the brighter and longer the
light will stay on at night.
INST_822-2513-2.qxd 2/1/05 9:41 AM Page 4

4

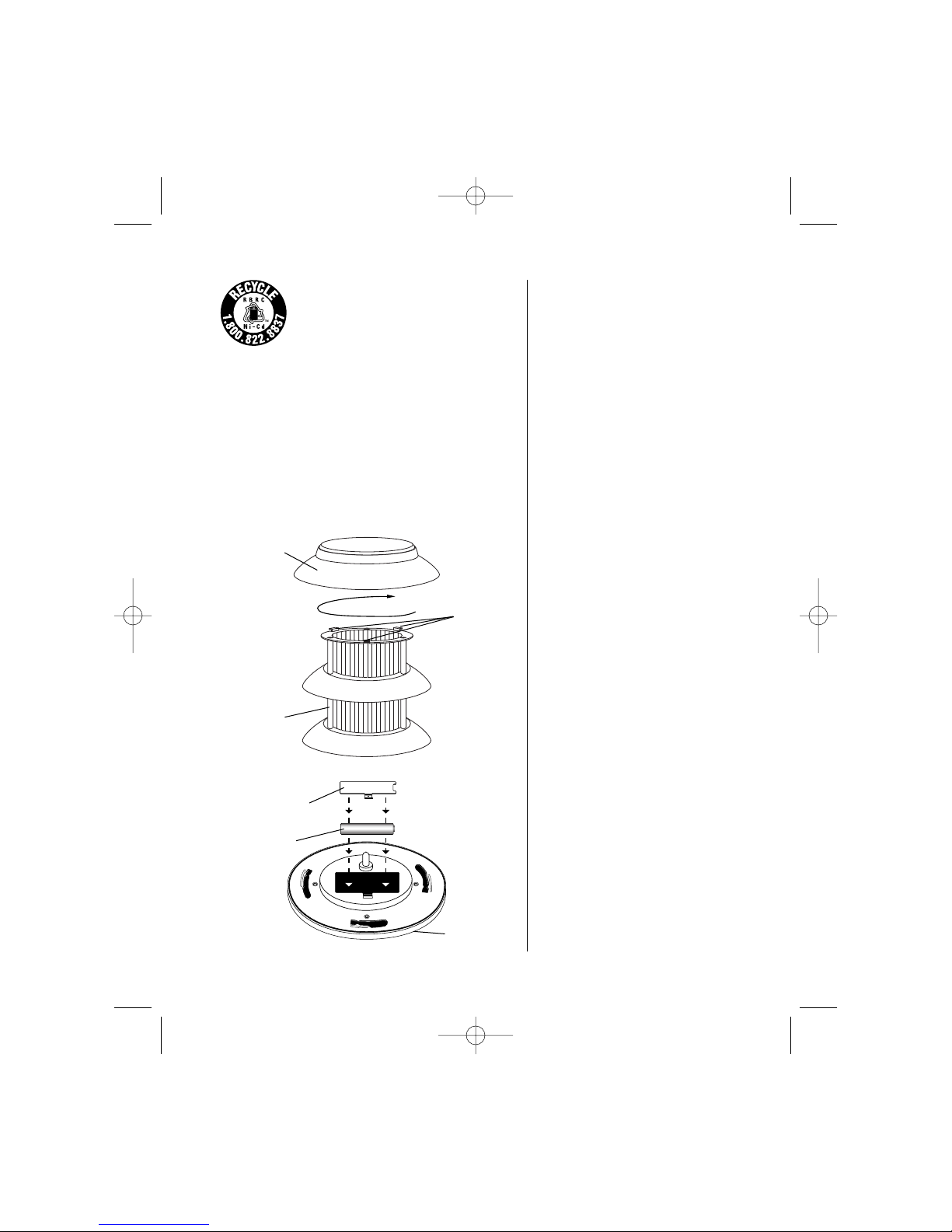

Top Housing
Lens
Battery
Changing Battery
Step 1
Remove lens from top housing by
turning lens clockwise.
Step 2
With top housing upside down
(solar panel facing down), push
tab on battery compartment lid
and remove the lid.
Step 3
Remove battery. Replace with new
Ni-Cd rechargeable battery.
Step 4
Replace battery compartment lid.
Step 5
Attach the lens by aligning the
tabs with the slots in top housing.
Turn counter-clockwise to lock in
place.
NOTE: These lights utilize L.E.D.
(Light Emitting Diode)
technology. There are no
bulbs to replace.
Top Housing
Battery
Compartment Lid It is important that the solar panel is
kept free of dirt and debris. A dirty
solar panel will not allow the battery to
fully charge. This will shorten the life
of the battery and cause the light to
malfunction. Clean regularly with a
dampened cloth or paper towel.
Cleaning
Tabs
IMPORTANT:
The EPA Certified RBRC®Battery
Recycling Seal on the nickel-cadmium
(Ni-Cd) battery contained in our product
indicates The Brinkmann Corporation is
voluntarily participating in an industry program to collect
and recycle these batteries at the end of their useful life,
when taken out of service in the United States or Canada.
The RBRC®program provides a convenient alternative to
placing used Ni-Cd batteries into the trash or the
municipal waste stream, which may be illegal in your
area. Please call 1-800-8-BATTERY™ for information on
Ni-Cd battery recycling and disposal bans/restrictions in
your area. The Brinkmann Corporation’s involvement in
this program is part of our commitment to preserving our
environment and conserving our natural resources.
INST_822-2513-2.qxd 2/1/05 9:41 AM Page 5

5
Solar lights can be left outside year round, even in cold weather. However, if
you wish to store your light indoors for more than two or three days, follow
these steps to prevent damage to rechargeable batteries:
• Store at room temperature in a dry location.
• Store solar light where it can receive some sunlight or room light each day.
The battery needs light to maintain a charge during storage.
• During prolonged storage, units must be fully discharged and charged
once every month or remove batteries and replace with new Ni-Cd
rechargeable batteries when ready for use. Check and replace batteries
periodically throughout the year.
• Do not store solar lights in a box, or a dark room without a source of light
on the solar panel. This will damage the batteries and prevent their ability
to hold a charge.
• For best performance, do not store for prolonged periods.
Storage Tips
If your solar light does not turn on at night, it may be caused by one the
following conditions:
• Battery is not fully charged or needs replacement:
a. Make sure your light is located in an area where the solar panel gets
the maximum amount of FULL, DIRECT SUNLIGHT every day.
b. If the weather has been cloudy or overcast during the day, the battery
will not be recharged for operation at night. The solar light must have
direct sunlight every day to fully charge the battery. If the solar light
does not receive enough sunlight one day, it will recharge the next
sunny day and resume normal operation.
c. Check and replace the battery periodically throughout the year,
especially after winter months. Replacement batteries may be
purchased from The Brinkmann Corporation Customer Service
Department by calling 1-800-468-5252.
• Other light sources: If your solar lights are located too close to a street
light, porch light or another solar light, it may not turn on automatically
at night. The built-in photocell light sensor is reacting to the other light
source. Eliminate the other light source or relocate your solar lights.
• Dirty solar panel: A dirty solar panel will not allow the battery to fully
charge. This will shorten the life of the battery and cause the light to
malfunction. Clean regularly with a dampened cloth or paper towel.
After correcting the problem, check the light operation immediately after dark
or in a dark room. If the light will only operate for a short time, the battery
needs recharging.
Troubleshooting
Information
• Clean snow and debris off the solar panel to allow battery to recharge.
• Check and replace battery periodically throughout the year, especially after
winter months.
Wintertime
Tips
INST_822-2513-2.qxd 2/1/05 9:41 AM Page 6

1-YEAR LIMITED WARRANTY
©2005 The Brinkmann Corporation
Dallas, Texas 75244 U.S.A
www.brinkmanncorp.com
140-2513-0
01/05
Owner’s Manual for Model
822-2513-2
For 1-year from date of purchase, The Brinkmann Corporation warrants the Aluminum Tier solar light
against defects due to workmanship or materials to the original purchaser. The Brinkmann Corporation’s
obligations under this warranty are limited to the following guidelines:
• This warranty does not extend to the L.E.D. or battery.
• This warranty does not cover solar lights that have been altered or damaged due to: normal wear,
abuse, improper maintenance, improper use, disassembly of parts and/or attempted repair by anyone
other than an authorized employee of The Brinkmann Corporation.
• This warranty does not cover surface scratches or weathering as this is considered normal wear.
• Warranty service is limited to repair or replacement of solar lights which prove defective under
normal use and which upon examination shall indicate to Brinkmann’s satisfaction, they are defective.
If Brinkmann confirms the defect and approves the claim, Brinkmann will elect to repair or replace the
solar light as covered by the terms of this warranty.
• This warranty extends to the original purchaser only and is not transferable or assignable to
subsequent purchasers.
The Brinkmann Corporation requires reasonable proof of purchase. Therefore, we strongly recommend
that you retain your sales receipt or invoice. To obtain repair or replacement of your Aluminum Tier solar
light under the terms of this warranty, please call Customer Service Department at 800-527-0717 for a
Return Authorization Number and further instructions. A receipt or proof of purchase will be required.
Solar lights returned to Brinkmann must include your name, address and telephone number. Please make
sure the light is properly packed, postage prepaid, and insured. A Return Authorization Number must be
clearly marked on the outside of the box. Brinkmann cannot be responsible for any solar lights
forwarded to us without a Return Authorization Number.
EXCEPT AS ABOVE STATED, THE BRINKMANN CORPORATION MAKES NO OTHER EXPRESS
WARRANTY.
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
LIMITED IN DURATION TO 1-YEAR FROM THE DATE OF PURCHASE. SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT
APPLY TO YOU.
ANY LIABILITY FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE
FAILURE OF THE ALUMINUM TIER SOLAR LIGHT TO COMPLY WITH THIS WARRANTY OR ANY IMPLIED
WARRANTY IS EXCLUDED. CUSTOMER ACKNOWLEDGES THAT THE PURCHASE PRICE CHARGED IS
BASED UPON THE LIMITATIONS CONTAINED IN THE WARRANTY SET OUT ABOVE. SOME STATES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
