BRIO CLPOURO420SCV2 User guide

Point of Use
Water Dispenser
Setup Manual
Model No.: CLPOURO420SCV2

2
Table of Contents
Safety Information .................................................................... 3
Intended Use ......................................................................... 4
Product Features ..................................................................... 4
Indicator Panel Description ..............................................................5
Product Dimensions ....................................................................5
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Materials Needed ..................................................................... 5
Installation ........................................................................... 6
Determine Installation Location...........................................................6
Connect to the Cold Water Supply ........................................................6
Make the Reverse Osmosis Waste Connections ............................................7
Flush the Filters ........................................................................8
Install the Filters and Complete the Installation .............................................9
Operation............................................................................10
Turn the Dispenser On/O ..............................................................10
Dispense Cold Water ..................................................................10
Dispense Hot Water and Activate Child Safety Lock........................................10
Troubleshooting ......................................................................11
Cleaning and Maintenance .............................................................12
Use the Self-Cleaning Ozone Feature ...................................................12
Care and Maintenance .................................................................12
Filter Replacement Schedule............................................................13
Replace the Filters.....................................................................13
Filter Specifications ....................................................................13
Warranty.............................................................................14

3
Safety Information
WARNING: To reduce risk of injury and property damage, you must read this entire guide before assembling,
installing and operating the dispenser.
WARNING: This product dispenses water at very high temperatures. Failure to use properly can cause personal
injury. When operating this dispenser, always exercise basic safety precautions, including the following:
•Prior to use, this dispenser must be properly assembled and installed in accordance with this
manual.
•For indoor use only. Keep the water dispenser in a dry place away from direct sunlight. Do NOT use
outdoors.
•Install and use only on a hard, flat and level surface.
•Do NOT place the water dispenser in an enclosed space or cabinet.
•Do NOT operate the dispenser in the presence of explosive fumes.
•Use only properly grounded outlets.
•Do not use an extension cord.
•Always grasp the plug and pull straight out from the outlet. Never unplug by pulling on the power
cord.
•Do NOT use the dispenser if the cord becomes frayed or otherwise damaged. If the supply cord is
damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
•To protect against electric shock, do NOT immerse cord, plug, or any other part of the dispenser in
water or other liquids.
•Ensure the water dispenser is unplugged prior to cleaning.
•Never allow children to dispense hot water without proper and direct supervision. Unplug the unit to
prevent unsupervised use by children.
•Service should be performed only by a certified technician.
•The appliance must not be cleaned by a water jet and is not suitable for installation in an area where
a water jet could be used.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
•This appliance should work under environment of temperatures from 4°C~40°C (39°F~104°F) and
humidity ≤90%.
•Never turn the machine upside down or lean it more than 45°.
•After turning the dispenser o, allow the dispenser to sit idle for 3 minutes before turning on again.

4
Intended Use
This appliance is intended to be used in household and similar applications such as:
•Sta kitchen areas in shops, oces and other working environments
•Farm houses
•Clients in hotels, motels and other residential type environments
•Bed and breakfast type environments
•Catering and similar non-retail applications
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Product Features
1
2
3
4
7
6
5
8
9
10
11
12
13
14
16
15
17
18
21
20
19
22
Part Description Part Description
1 Hot water button 12 Reverse Osmosis (RO) filter
2 Room temperature water button 13 Post carbon filter
3 Cold water button 14 RO pump
4 Indicator panel 15 Self-cleaning switch
5 Hot water tap 16 Cold water switch
6 Room temperature water tap 17 Hot water switch
7 Cold water tap 18 Condenser
8 Drip tray 19 Filter reset switch
9 Filter cabinet 20 Drain outlet
10 Sediment filter 21 RO water inlet
11 Carbon block filter 22 Water outlet

5
Indicator Panel Description

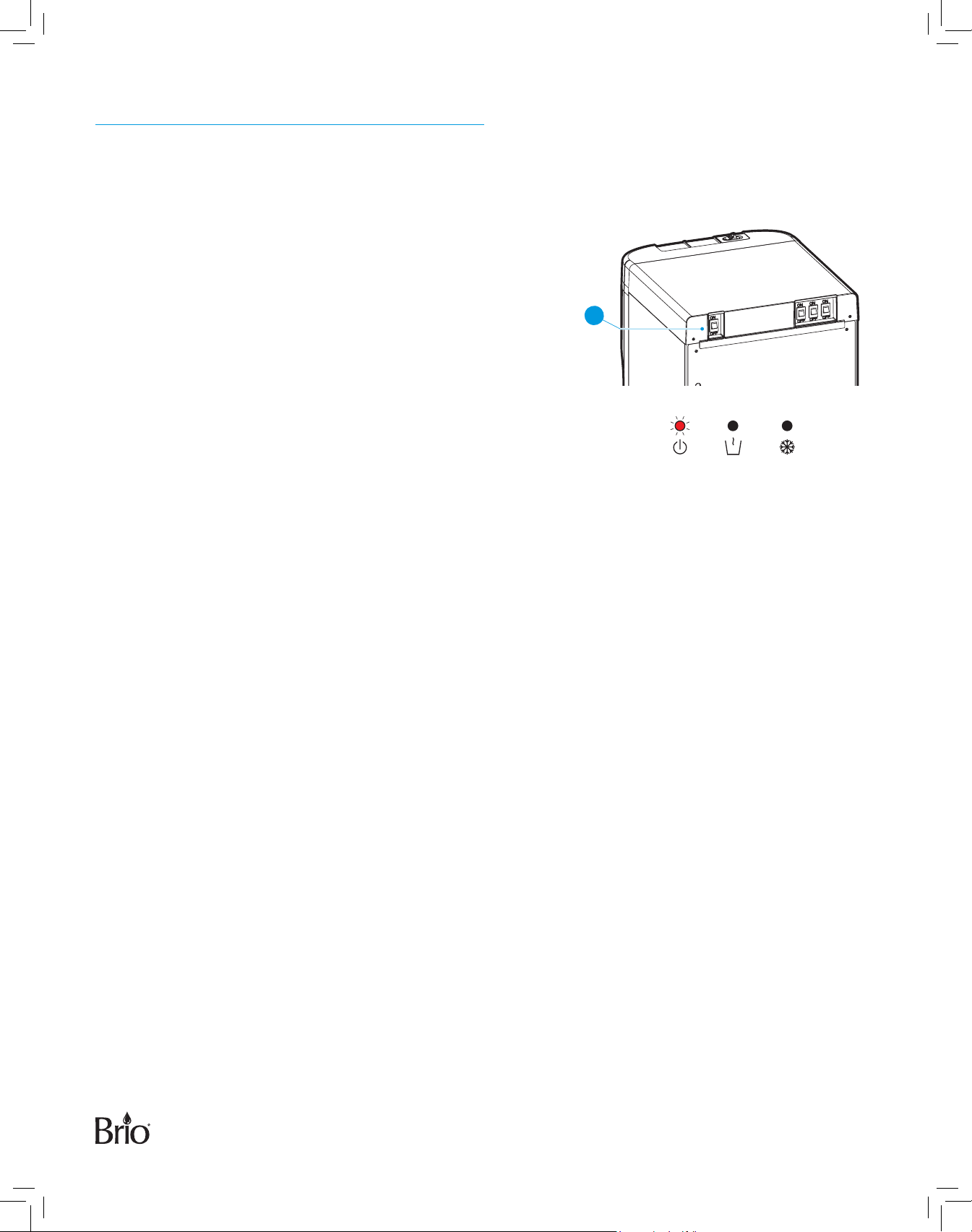

1. Power indicator light – When illuminated, indicates that the dispenser is
on.
2. Hot water indicator light – When illuminated, indicates that the dispenser
is heating water.
3. Cold water indicator light – When illuminated, indicates that the
dispenser is cooling water.
Product Dimensions
Height Width Depth
104.4 cm (41.1 in.) 31.1 cm (12.2 in.) 35.4 cm (14.0 in.)
Package Contents
A
B
G
C
D
E
F
H
Part Description Quantity
A Filter flushing tube 1
B Shut-o valve tube (7 ft.) 1
C Filter housing (for filter flushing) 1
D Filters 4
E Feed water adapter (with extra nut) 1
F Plumber’s tape 1
G Drain saddle with foam gasket 1
H RO water outlet tube 1
Materials Needed
Wrench Electric drill with 1/4 in. drill bit
1 2 3

6
Installation
1. Determine Installation Location
A. Place the dispenser upright.
B. Locate the dispenser on a hard and level
surface in a cool shaded location near a
grounded wall outlet.
NOTICE: Do NOT plug in the power cord
until the entire installation section
is completed.
C. Position the back of the dispenser no closer
than 20 cm (8 in.) from a wall and permit
free airow between the wall and water
dispenser.
2. Connect to the Cold Water Supply
CAUTION: DO NOT CONNECT THIS WATER LINE TO A HOT WATER SUPPLY LINE. The water supply to the unit
MUST be from the COLD WATER LINE. Using HOT WATER will severely damage your filters.
A. Turn off and then disconnect the
current cold water supply line.
B. Connect the feed water adapter (E) to
the cold water supply line.
C. Connect the cold water supply line on
top of the feed water adapter (E).
NOTE: An extra adapter nut is included
on top of the feed water
adapter (E) to attach to a 3/8 in.
or 1/2 in. feed plumbing line.
E
D. Insert the shut-off valve with tube (B)
straight into the quick connector piece
of the feed water adapter (E).
E
B

7
E. Gently tug on the tube (B) to ensure a
secure connection with the feed water
adapter (E). E
B
3. Make the Reverse Osmosis Waste Connections
The “RO” filter assembly requires a drain line connection to be
installed, which removes rejected water to the sewer. The drain
saddle connects the drain line from the dispenser to your drain pipe.
The drain saddle is designed to fit around a standard 1.5 in. OD (outer
diameter) drain pipe.
Always install the drain saddle before the P-trap and on a
straight vertical or horizontal section of the pipe.
To avoid clogging the drain line with debris, do not install the
drain saddle after the drain pipe meets a garbage disposal or
dishwasher drain.
To make the Reverse Osmosis (RO) drain connections:
A. Determine the location for your drain saddle (G) and then make a
mark on the drain pipe for the opening (1).
B. Use your drill and a 1/4 in. drill bit to drill a hole at the mark,
ensuring you only drill through one side of the drain pipe.
C. Find the half of the drain saddle (G) with the hole in the center,
remove the backing from the foam gasket, align the gasket with
the hole on the drain saddle (G), and stick the adhesive side of
the gasket to the drain saddle (G).
D. Position both halves of the drain saddle (G) on the drain pipe with
the saddle’s opening aligned over the drilled hole, and insert your
drill bit through the saddle (G) and drilled hole to ensure proper
alignment.
E. Secure both ends of the drain saddle (G) together using the bolts
and nuts, but do not over-tighten.
F. Connect the RO water outlet tube (H) to the drain saddle (G).




G
1
H

8
4. Flush the Filters
IMPORTANT: Follow this procedure every time you replace your filters.
IMPORTANT: Ensure the water supply is o before you begin.
A. Connect a lter (D) to the lter housing (C)
by twisting the lter (D) clockwise. C
D
B. Connect the tip of the shut-off valve tube (B)
to the left side of the lter housing (C).
C. Connect the lter ushing tube (A) to the
right side of the lter housing (C) and lay the
open end of the lter ushing tube (A) over
a sink or receptacle to collect water. A
C
B
D. Flush each lter for a minimum of
5minutes. The recommended rate is
1.5‑3gallons of water (about 10 minutes)
oruntil the water is clear in appearance.
E. Shut off the valve at the water source and
remove the lter housing from the tube (B).
B

9
5. Install the Filters and Complete the Installation
A. After ushing, twist each lter (D)
clockwise into the lter housings
located inside the dispenser cabinet.
The sediment lter goes on the left,
followed by the carbon, RO, and post
carbon lter.
D
B. Remove the safety plug from the
water inlet hole on the back of the
dispenser by pushing in the inlet hole
collar and then gently pulling out the
plug.
C. Connect the RO water outlet tube (H)
from the RO drain saddle (G) to the
RO water outlet.
D. Connect the tip of the shut-off valve
tube (B) into the water inlet hole on
the back of the dispenser. Then turn
on the main water supply and ensure
the valve in the tube (B) is on.
B
H

10
Operation
IMPORTANT: This unit has been tested and sanitized prior to packing and shipping. During transit, dust and
odors can accumulate in the tank and lines. Dispense and dispose at least one quart of water prior
to drinking any water.
Turn the Dispenser On/O
IMPORTANT: Before you activate the hot and cold switches, ensure water has filled the tanks inside the
dispenser in order to prevent dry heating.
1. Plug in the dispenser and turn the On/Off switch to On.
2. Run water through the cold and hot water taps until water begins to dispense.
3. To power on the cooling system, ip the cooling switch to the On position.
4. To power on the heating system, ip the heating switch to the On position.
Dispense Cold Water
NOTE: Water will take approximately 1 hour after plugging in and turning on to become completely chilled. The
cooling light will turn o once the water has been fully chilled.
1. Press a drinking glass or container against the cold water faucet to dispense cold water.
2. Release when your container is full.
Dispense Hot Water and Activate Child Safety Lock
CAUTION: This unit dispenses water at temperatures that can cause severe burns. Avoid direct contact with hot
water. Keep children and pets away from the unit while dispensing. Never allow children to dispense
hot water without proper and direct supervision. Disable the heating feature by switching the heating
convenience switch to the O position.
NOTE: Water will take approximately 15-20 minutes after plugging in and turning on to reach its hottest
temperature. The heating light will turn o once the water has been fully heated.
1. This water dispenser is equipped with a child safety feature in order to prevent inadvertent dispensing. To
enable dispensing of hot water, press and hold the red lock button and then press your mug or container
against the paddle directly beneath the red lock button.
2. Release the paddle once your container is full.

11
Troubleshooting
Problem Solution
The cold water is not
cold.
•It takes up to one hour after setup to dispense cold water.
•Make sure the power cord is properly connected to a working
outlet.
•Make sure the back of the dispenser is at least 20 cm from a wall
and there is free airflow on all 20 cm sides of the dispenser.
•Make sure green power switch on back of dispenser is On.
•If water still isn’t cold, call customer service at [phone] for
assistance.
The hot water is not hot.
•It takes 15-20 minutes after setup to dispense hot water.
•Make sure the power cord is properly connected to a working
outlet.
•Make sure red power switch on back of dispenser is On.
The dispenser is noisy. •Ensure the dispenser is located on a level surface.
•The heating tube may be generating a slight noise. This is normal.
There is water leakage.
If the 3 lights are flashing, a leak was detected.
•The pipe is not connected properly. Check all water connections
and tubes to ensure everything is connected properly.
•The water and PE pipes have burst. Replace the water and PE pipe.
The machine is not
dispensing water.
•The dispenser has become too cold and the lines are blocked
by ice. Turn the cooling switch o for at least 4 hours to allow the
water in the lines to thaw.

12
Cleaning and Maintenance
Use the Self-Cleaning Ozone Feature
It is highly recommended that you use the self-cleaning feature on a weekly basis to sanitize tanks and water lines.
To activate the self-cleaning cycle, press in the
self-cleaning switch (15), hold for 5 seconds, and release.
The power indicator light on the front of the
dispenser will begin blinking, indicating the
cleaning process is underway.
During the cleaning cycle, ozone is produced and injected into the water system. This ozone kills bacteria and biofilms
typically found in water dispensers. By the time the cleaning cycle ends, the ozone is converted to harmless oxygen
and emitted into the air.
IMPORTANT: The cycle takes 90 minutes to complete. During this time do not dispense and drink the water.
Doing so may result in an odd taste. For your convenience, we recommend that you do this during
a period when the dispenser is not in use, such as overnight hours or when sta is away from the
oce. During the cycle you may smell a faint trace of ozone.
Care and Maintenance
•Keep this dispenser in a dry and cool place and avoid direct sunshine.
•Ensure the back of the dispenser is at least 20 cm (8 in.) away from the wall.
•Never put the dispenser on paper or foam, which may store water and then cause creepage. Never put anything
flammable beside this machine.
•Do not use the dispenser outdoors or in a place that can be splashed by water.
•If the dispenser is not in use for longer than a 24-hour period, turn o the heating switch or the refrigerating
switch to save power and drain any remaining water.
•Clean your cabinet, controls, bottle probe and spout each time you change your water bottle. Use a clean soft
cloth and a food grade sanitizer or bleach.
•Empty and clean the drip tray, grid and float as needed.
•Periodically check the filter reset switch (19) on the back of the dispenser to ensure your filter is changed every 6
to 12 months, depending on how heavily the unit is used. This switch will flash red when it is time to change your
filter.
15
1 2 3
Self Clean

13
Filter Replacement Schedule
Filter Type Replacement Schedule Function
Sediment 6 months or 950 gallons
Performs a coarse filtration of original
water. Removes mud, sand, iron, rust,
and suspensions, and impurities.
Pre-Carbon 6 months or 950 gallons Reduces chlorine, taste and odor, lead
and cysts.
Reverse Osmosis
(RO) 6 months or 1,900 gallons
Removes up to 99% of contaminants
including arsenic, lead, fluoride, heavy
metals and more.
Post Carbon 6 months or 950 gallons Taste and impurity removal.
Replace the Filters
IMPORTANT: Only replace the filters with new filters designed for this dispenser. Any other type of filter will
damage the machine and void any warranty.
When a filter is approaching the end of its life, the filter reset switch (19) flashes red. To change filters:
1. Shut off the water supply.
2. Remove the old lters and replace with new lters. Ensure the sediment lter is on the left and the carbon block
lter is on the right.
3. To ush your new lters, follow the instructions in Step 5 ‑ Flush the Filters and Complete the Installation.
4. Press and hold the lter reset switch (19) until the red indicator light turns off to reset the internal timer.
Filter Specifications
Sediment Filter Pre-Carbon Filter
(Sediment, Dirt, and Rust Removal) (Chlorine, Taste, and Odor Reduction)
Filter Capacity 950 Gallons Filter Capacity 950 Gallons
Flow Rate 0.8 GPM Flow Rate 0.8 GPM
Suggested PSI 14.5 - 58 psi Suggested PSI 14.5 - 58 psi
Temperature 33 - 100 °F Temperature 33 - 100 °F
RO Filter Post Carbon Filter
(Reduce Impurities to 0.0001 Micron) (Taste and Impurity Removal)
Filter Capacity 1,900 Gallons Filter Capacity 950 Gallons
Flow Rate 0.035 GPM Flow Rate 0.8 GPM
Suggested PSI 58 - 116 psi Suggested PSI 14.5 - 58 psi
Temperature 33 - 100 °F Temperature 33 - 100 °F

14
Warranty
Brio (“Vendor”) warrants to the original purchaser of the Brio Water Coolers (the “Product”), and to no other person,
that if the Product is assembled and operated in accordance with the printed instructions accompanying it, then
for a period of one (1) year from the date of purchase, all parts in the Product shall be free from defects in material
and workmanship. This Limited Warranty shall be limited to repair or replacement of parts, which prove defective
under normal use and service and which Vendor shall determine in its reasonable discretion upon examination to be
defective. To take advantage of this Limited Warranty, please follow these steps:
1. Please retain your sales slip or invoice, as Vendor may require reasonable proof of your date of purchase.
2. Contact Vendor’s Customer Service Department using the contact information listed below.
3. Return parts to Vendor, per Vendor’s instructions, at your cost and expense.
4. Upon receipt by Vendor, Vendor shall advise you in writing whether a defect covered by this Limited Warranty exists
in any returned part and whether your claim has been approved or denied.
5. Upon Vendor’s approval of your claim, Vendor will replace such defective part without charge to you.
WHAT THIS LIMITED WARRANTY DOES NOT COVER: This Limited Warranty does not cover any failures or operating
diculties of the Product due to accident, abuse, misuse, alteration, misapplication, improper installation or improper
maintenance or service by you or any third party, or failure to perform normal and routine maintenance on the Product,
as set out in the User’s Manual. In addition, this Limited Warranty does not cover damages to the finish, such as
scratches, dents, discoloration or rust after purchase.
This Limited Warranty is the only express warranty given on the Product and is in lieu of all other express warranties.
Vendor disclaims all warranties for products that are purchased from seller other than authorized retailers or
distributors. THIS LIMITED WARRANTY RESTRICTS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION, THE IMPIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE TO THE ONE (1) YEAR TERM OF THIS LIMITED WARRANTY. UPON THE EXPIRATION OF
THE ONE (1) YEAR TERM OF THIS LIMITED WARRANTY, VENDOR DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, THE PRODUCT BEING THUS SOLD AS-IS, WITH ALL FAULTS. FURTHER, VENDOR
SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT,
PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. OTHER THAN THIS LIMITED WARRANTY, THERE ARE
NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. Vendor assumes no
responsibility for any defects caused by third parties. This Limited Warranty gives you specific legal rights, and you
may have other rights which vary from state to state. State law may also override statements in this Limited Warranty
regarding the restriction on the duration of implied warranties. Some jurisdictions do not allow exclusion or limitation of
special, incidental or consequential damages, or limitations on how long awarranty lasts, so the above exclusion and
limitations may not apply to you.

Contact Us
Call: [phone]
©2020 DTWUSA
