Britax AHR Air Cushion 7200 A 2010 User manual

Rearward Facing
For use with children
up to approximately 12 months.
Forward Facing.
For use with children from
approximately 12 months to
approximately 4 years of age.
IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT
AHR Air Cushion™
Convertible Child Restraint
Series No. 7200/A/2010

INTRODUCTIONINDEX
23
INTRODUCTION
WARNINGS
SHOULDER HEIGHT MARKERS A GROWING CHILD
SHOULDER HEIGHT MARKERS
SHOULDER HEIGHT MARKERS THE NEXT STEP
SPECIAL FEATURES: REARWARD-FACING
SUITABLE FOR USE
HOW TO SETUP
HOW TO INSTALL
HOW TO USE
SPECIAL FEATURES: FORWARD-FACING
SUITABLE FOR USE
HOW TO SETUP
HOW TO INSTALL
HOW TO USE
CARE & MAINTENANCE
ACCESSORIES
TRAVELLING TIPS
INSTALLATION OF CAR ANCHOR FITTING
IN CASE OF ACCIDENT
3
PAGE
7
4
6
11
8
9
13
19
25
29
36
31
32
43
40
51
54
56
60
To be used only in a rearward-facing position for an infant until their shoulders reach the lower
shoulder height marker (approximately 12 months of age). Then to be used in a forward-facing
position until their shoulders reach the upper shoulder height marker (approximately 4 years of age).
Continue to use this child restraint until the child reaches this limit.
Do not use forward facing until child's shoulders are above the lower shoulder height marker.
Infants are at risk of serious injury if they face forward too early.
Children are at risk of serious injury if they move to booster seats too early.
Children that have outgrown this restraint are safest in a booster seat until their shoulders reach the
upper shoulder height marker of the booster seat.
CAREFULLY READ ALL THE INSTRUCTIONS FOR INSTALLATION. IN THE EVENT OF DOUBT ABOUT
THE METHOD OF INSTALLATION, CONSULT BRITAX CHILDCARE OR AGENT OR A CHILD RESTRAINT
FITTING STATION AUTHORISED BY A RELEVANT TRANSPORT AUTHORITY OR, IN NEW ZEALAND,
THE AGENT FOR THE VEHICLE.
No child restraint can guarantee absolute protection from injury in every crash. However, to ensure
that your child gets all the protection designed into the restraint PLEASE READ AND FOLLOW THESE
INSTRUCTIONS EXACTLY and use only Safe-n-Sound (Britax) recommended parts and accessories.
You purchased a model with the added protection of a Side Impact Cushion Technology™headrest
you can see the Side Impact Cushion tted on the sides of the headrest. There is no installation or
assembly required to activate the Side Impact Cushion, it only functions in a side crash to provide
additional protection to the occupant.
THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT ANCHORAGE POINT IN THE CAR.
REFER TO CAR OWNER’S HANDBOOK FOR LOCATION OF ANCHORAGE POINTS. REFER TO A CHILD
RESTRAINT FITTING STATION IF NO ANCHORAGE POINTS ARE IN THE MOTOR CAR.
Always store the instruction book in the pocket provided on the side or the back of the cover.

• Use the restraint exactly as shown in the instructions.
• Fit the restraint rmly to the car seat.
• Fit the harness rmly to the child.
• A loose restraint or harness is dangerous.
• Supervision of children is needed because they may be able to undo buckles and adjusters.
• DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
• Do not alter or modify this restraint.
• Repairs must only be done by the manufacturer or agent.
• Do not allow the restraint to come into contact with polishes, oils, bleach and other chemicals.
• Destroy the restraint if it has been in a severe crash, even if no damage is visible.
• DO NOT USE THIS RESTRAINT WITHOUT A COVER.
• Regularly check the restraint components, straps & other tments for correct function and
condition. Seek prompt repair.
• To ensure baby’s back is evenly supported do not put more than one nappy on the baby and
make sure the nappy is not thickly folded at the back.
• If an airbag is tted in the desired seating position where the child restraint is to be tted, follow
the vehicle manufacturer's warnings and instructions.
• DO NOT USE A REAR-FACING CHILD RESTRAINT WHERE AN AIRBAG IS FITTED IN THE FRONT
OF THE SEATING POSITION.
• The restraint should not be purchased or sold as a second hand item. It is recommended not to
use child restraints older that 10 years as the protection in an accident may be reduced.
• THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE ANCHORAGE STRAP MAY FALL
INTO A SPLIT IN THE SEAT BACK (E.G. HATCHBACK OR WAGON). DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
• The restraint should not be purchased or sold as a second hand item. It is recommended not to
use child restraints older that 10 years as the protection in an accident may be reduced.
• The restraint is not intended to be a substitute baby cot or bed. It is only designed to enable safe
transportation of children in motor vehicles. Do not leave a baby in the restraint for long periods
of time.
• Upper anchorage straps and extension straps may be damaged by unsecured cargo in a
collision. Secure or remove hazardous cargo before using this strap. Hatchback or wagon: Do
not use the child restraint where the upper anchorage strap may fall into a split in the seat back.
• Protect all webbing from abrasion and cutting by sharp corners and edges.
• Do not lift the seat by the headrest.
• Do not store in areas that may get hot, like in car boots, roof space, beside shed walls which get
hot in summer. Do not place heavy items on top of the seat as this may distort the plastic.
45
:

67

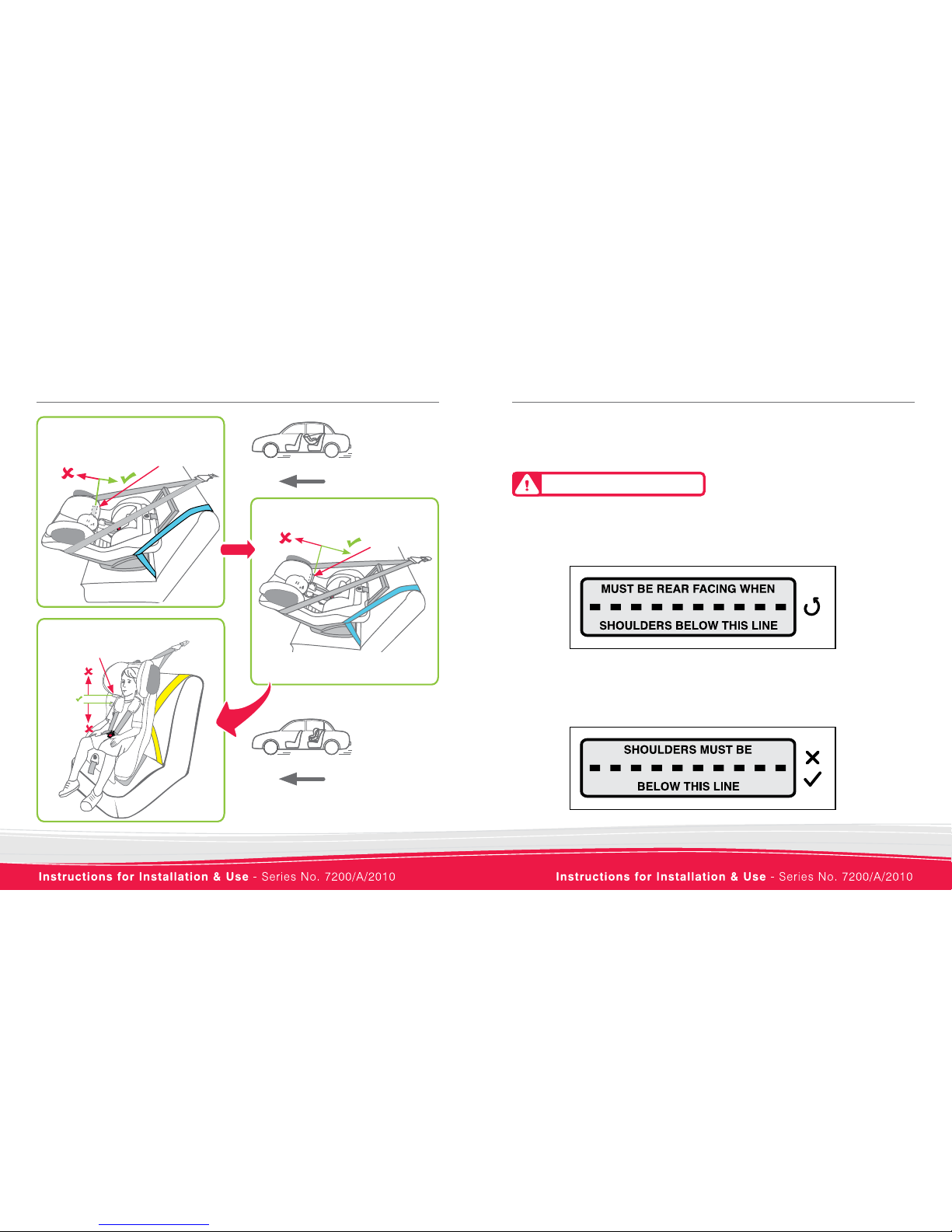

SHOULDER HEIGHT MARKERS
A GROWING CHILD SHOULDER HEIGHT MARKERS
Shoulder height markers are provided on this restraint for a visual indication that the child is safe to
ride in this restraint. Do not turn to forward-facing until the child's shoulder's reach the lower marker.
Do not continue to use the restraint if the child's shoulders are above the top marker.
LOWER SHOULDER HEIGHT MARKER : Label A
When the child's shoulders reach the lower marker, the child restraint must be turned to face towards
the front of the vehicle or move the child to another Forward Facing seat with in built harness.
Approximately 12 months of age.
UPPER SHOULDER HEIGHT MARKER : Label B
When the child's shoulders reach this upper marker, the child is now too big for the child restraint. It is
now time to move too the next child restraint. Approximately 4 years of age.
Newborn (Rearward Facing)
Shoulder height
label (hidden)
Label A Rearward Facing
Forward Facing
Child Use (Forward Facing)
Shoulder Height Labels
Label A
Label B
Shoulder
height label
Label A
Older baby (Rearward Facing)
Turn to forward-facing when the child's
shoulders reach the lower shoulder height marker.
Move to the next form of child restraint when the child's
shoulders reach the upper shoulder height marker.
IMPORTANT: Follow this advice.

Booster seat
and lap-sash seat
belt.
Convertible Booster
seat used with
internal harness
until approximately
4 years and then as
a booster seat.
Booster seat and
accessory Child
Harness.

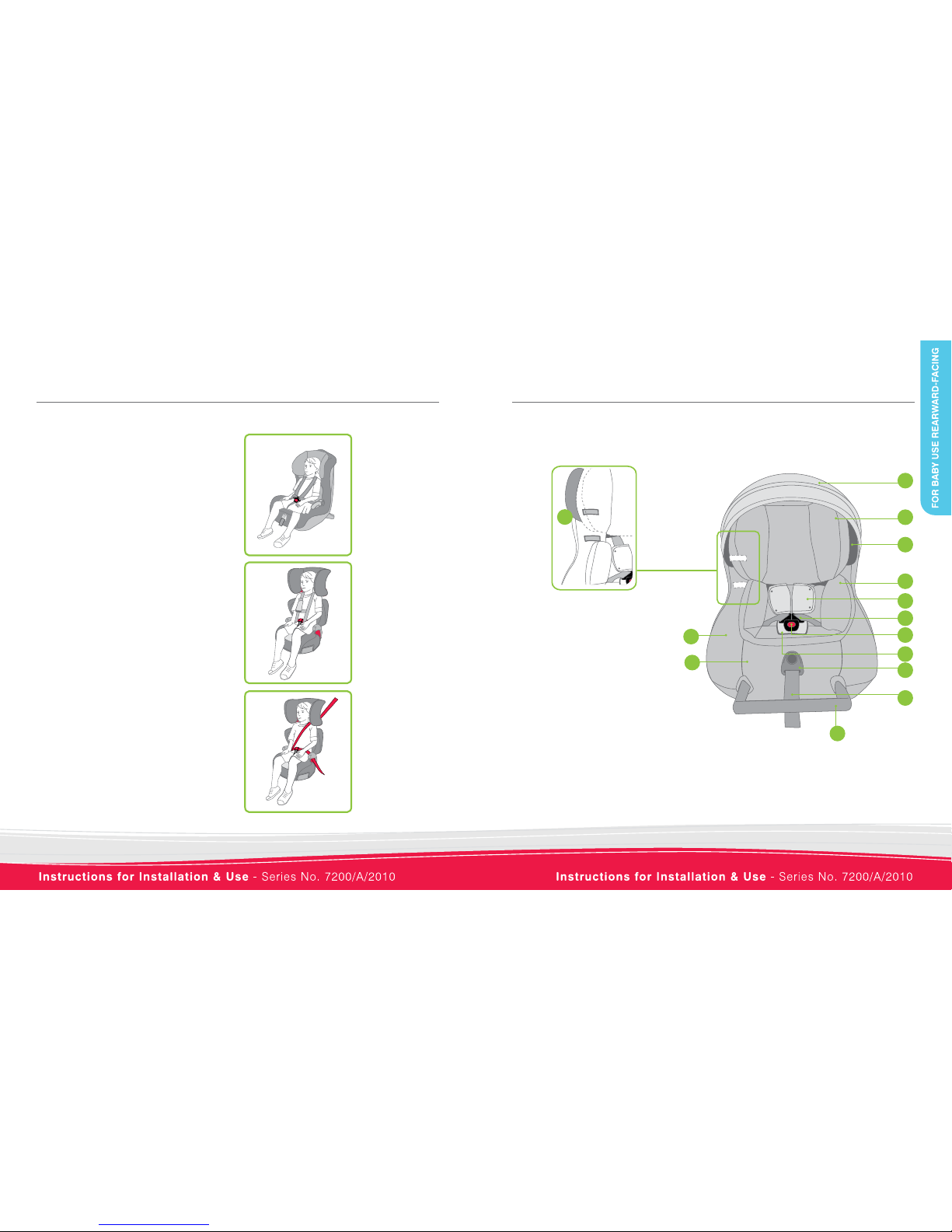

For the next child restraint choose
from:
• Convertible Booster Seat ( Note: you can
move to a convertible booster seat once the
child's shoulders reach the lower shoulder
height marker),
OR
• Booster Seat and an accessory Child Harness
(A Child Harness must be used if the car is
tted with a lap only seat belt in the desired
seating position),
OR
• Booster seat and lap-sash seat belt.
SHOULDER HEIGHT MARKERS
THE NEXT STEP
89
1. Canopy (if tted)
2. AHR Tilt & Adjust Headrest
3. Side Impact Cushion Technology™
4. Infant Safety Cushion Insert
5. Shoulder Pads
6. Fully adjustable 6 point harness
7. Quick Release Buckle (Red button)
8. Crotch Pad
9. Harness Adjustment Button
10. Harness Adjustment Strap
11. Stabilising Bar for Baby use
12. Seat Pad
13. Padded cover for baby’s comfort (may vary in style)
14. Shoulder Height Markers (Hidden behind headrest)
Shoulder Height
Markers hidden
under headrest in
lowest position.
SPECIAL FEATURES: REARWARD-FACING
To be used only in a rearward-facing position until the infant's shoulders reach the lower shoulder
height marker (approximately 12 months of age).
1
2
3
6
7
10
11
13
12
14
4
8
9
5

1110
SUITABLE FOR USE
TO BE USED WITH A LAP SASH OR LAP ONLY SEAT BELT IN
THE BACK OF MOST CARS WITH FORWARD-FACING SEATS.
To be used only in a rearward-facing position until the
child's shoulders reach the lower shoulder height marker
(approximately 12 months of age). Then to be used in
forward-facing position until the shoulders reach the upper
shoulder height marker (approximately 4 years of age).
Continue to use this restraint in this rear facing mode until the
child's shoulders reach the limit of the lower shoulder height
marker before turning the seat to face forward. A baby's neck
muscles may be unable to support their head thus the baby
should remain rear facing until the neck muscles become
stronger.
The purchaser should check the measurements between the
front of the seat back of the rear seat and all front seats in
the car in which the child restraint is intended to be used, to
ensure that the space is sufcient. If you have the restraint
check it ts in your car.
Regional Road Rules may prohibit the use of this restraint
in the front seat until the child is 4 years of age. Check your
Regional Road Rules for exemptions.
465mm
615mm

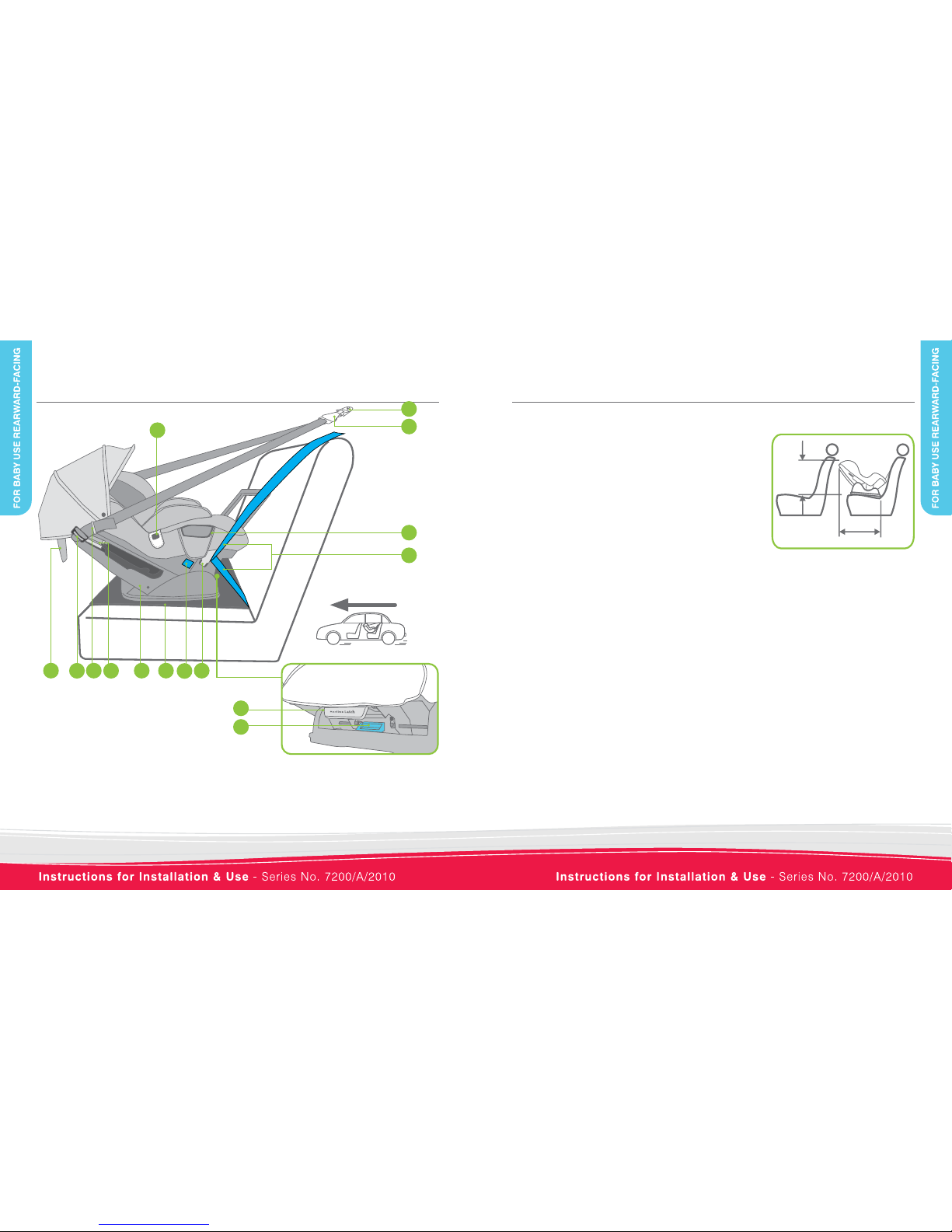

RECLINE MECHANISM
15. Car's Anchor Fitting
16. Attachment Clip
17. Pocket
18. Vehicle seat belt
19. Blue Release Latch
20. Grey Recline Latch
21. Rear facing Lock-off
22. Blue REARWARD FACING BELT PATH label
23. Messy Mat™ (if supplied)
24. Base (shown in baby use mode)
25. Forward facing sash belt lock-off
26. Upper Anchorage Storage Band
27. Upper Anchorage Strap Adjuster
28. Pocket for Instruction Manual (Behind Restraint)
29. Helpful Harness Holder™
SPECIAL FEATURES: REARWARD-FACING
Front of Vehicle
24 23
19
17
18
20
21
25
26
27
28
29 16
22
15

12 13

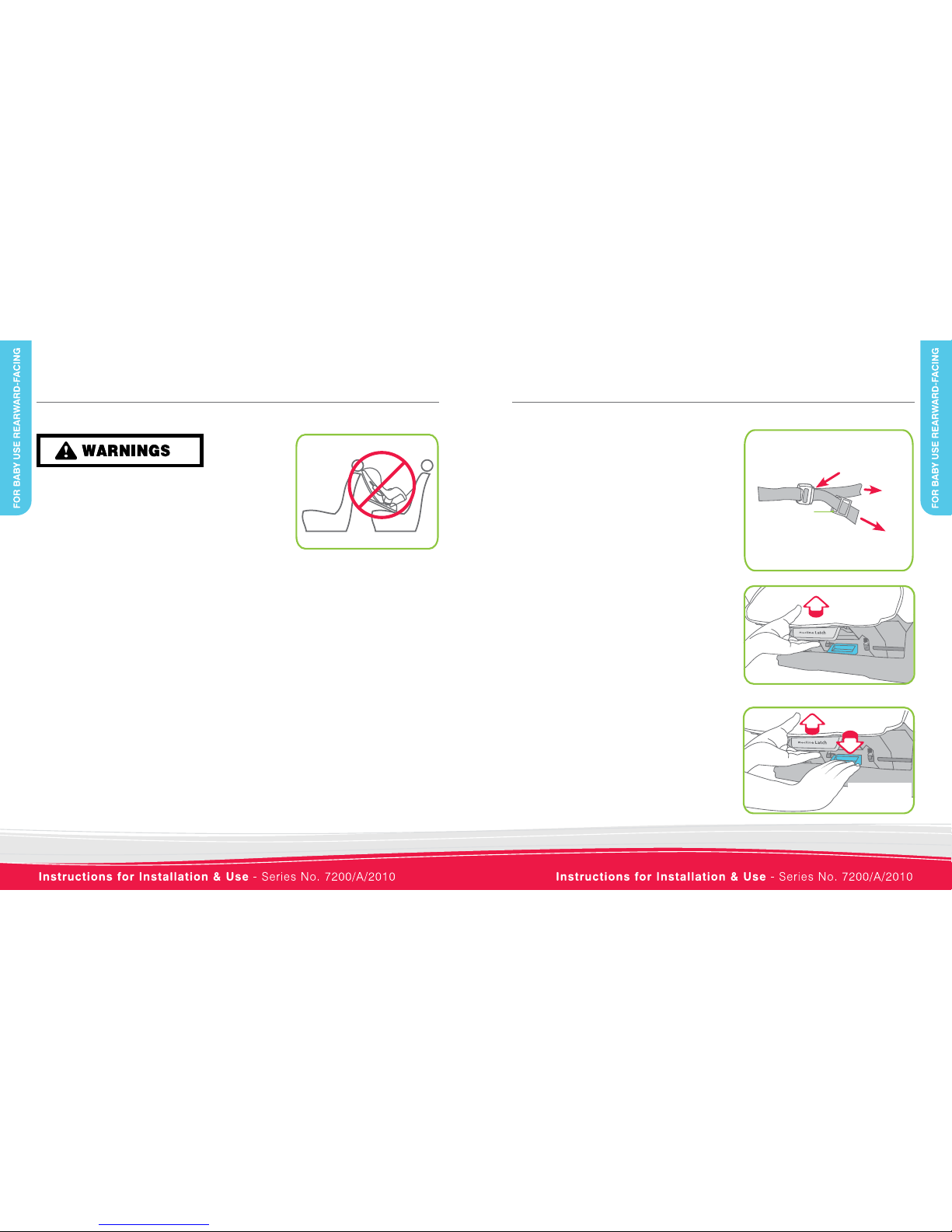

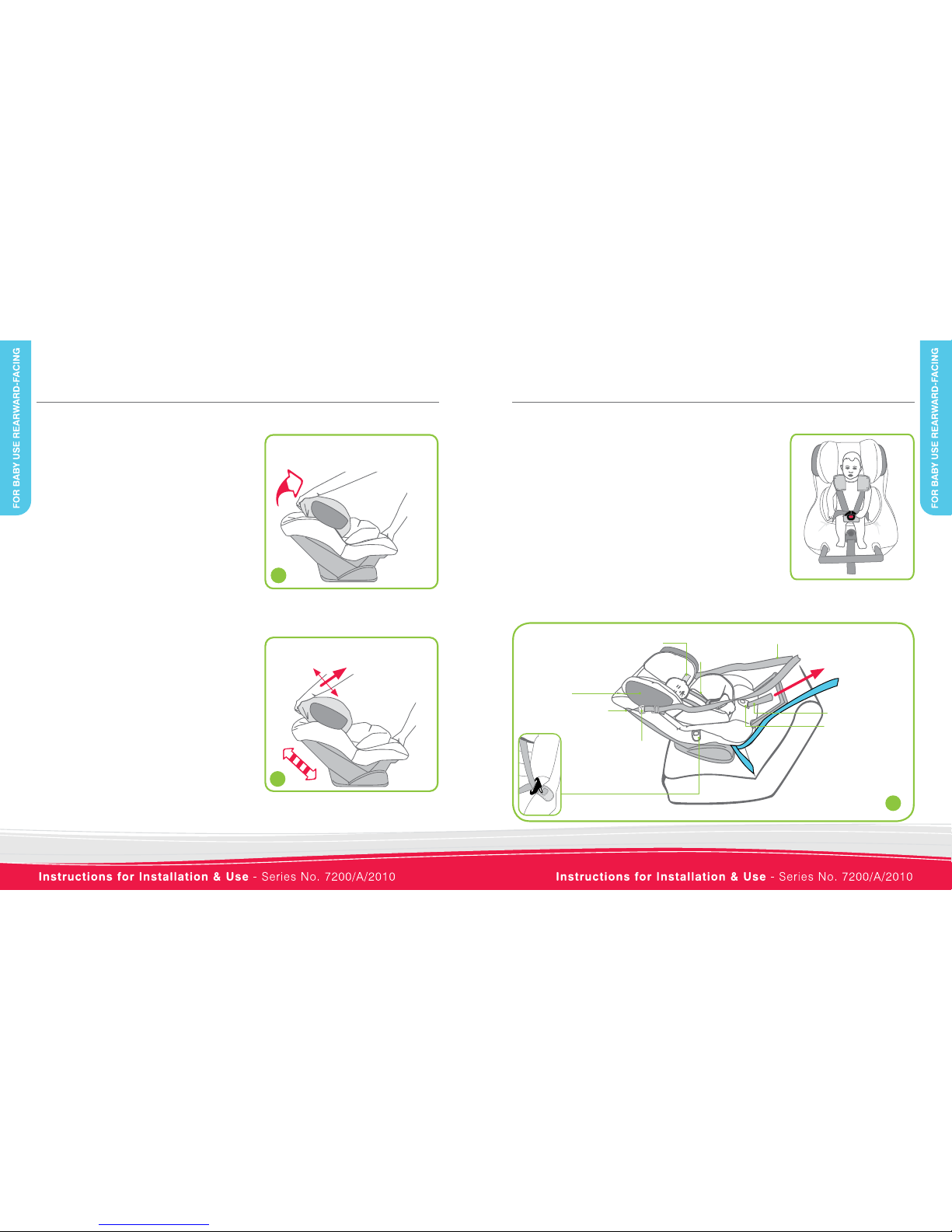

HOW TO SETUP
FULLY RECLINE IN CHILD USE MODE:
Place one hand on the front corner of the base rmly
while with the other hand lifts the Grey Recline Latch up
to unlock, continue pulling restraint forward until fully
reclined. The Blue Release Latch prevents over reclining
when installed forward facing. The seat belt may need to
be slackened and retightened.
CONVERT TO BABY USE MODE:
Once fully reclined, press the Blue Release Latch located
under the restraint body while with the other hand lift
the Grey Recline Latch up to unlock, continue pulling the
restraint forward until fully reclined into baby use mode.
Lift Grey
Recline Latch
Lift Grey
Recline Latch
Fully press Adjuster Button (A)
while pulling Upper Anchorage
Strap (B) to lengthen.
Pull Adjustment
Strap to remove
slack
B
A
Storage
Band

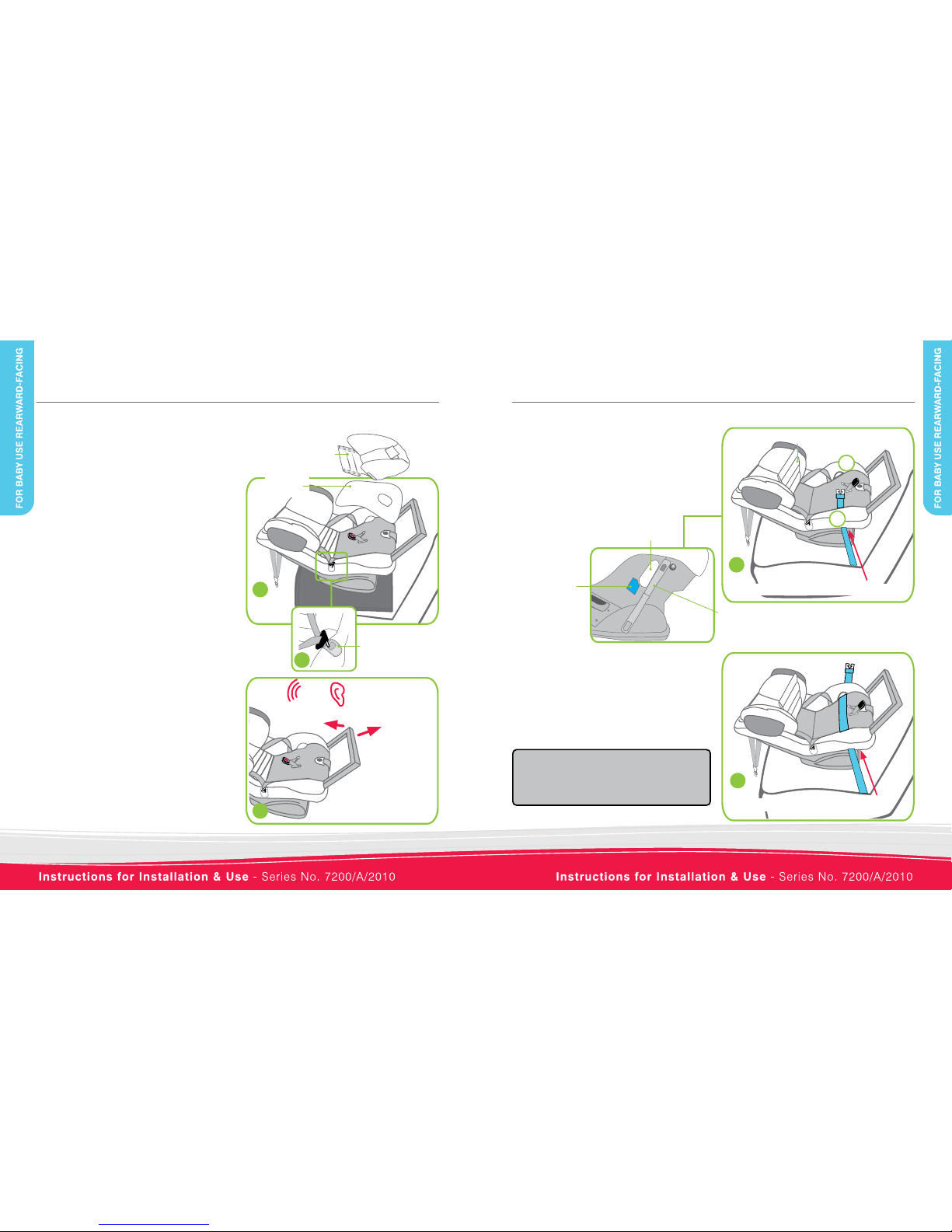

INSTALLING INTO VEHICLE REARWARD
FACING
A. The restraint is normally packaged in the fully upright
child use mode so if you need to use it for baby use
you must rst fully recline the restraint. Convert the
restraint to baby use mode by referring to steps below,
B. If Upper Anchorage Strap is folded up for storage
undo Storage Strap then lengthen. Fully press Adjuster
Button (A) while pulling Upper Anchorage Strap (B) to
lengthen.
Press Blue
Release Latch
SUITABLE FOR USE
DO NOT USE RESTRAINT IN REARWARD FACING
MODE WITHOUT STABILISING BAR FULLY EXTENDED.
Do not use the restraint without the Upper Anchorage
Strap correctly attached.
DO NOT USE A REAR FACING CHILD RESTRAINT
WHERE AN AIRBAG IS FITTED IN FRONT OF THE
SEATING POSITION.
Do not use on any vehicle seat which faces sideways
or rearwards.
Never leave babies or toddlers in a stationary car in the sun because of the risk of heat exhaustion.
Ensure babies and toddlers have adequate ventilation and are shaded from direct sunlight through side
or rear windows.
Do not allow the front seat to alter
the installed position of the restraint.
It is permissible to allow the restraint
to touch the front vehicle seat.
CHILD RESTRAINT ANCHORAGE
To use this child restraint, the car will need a child restraint anchor tting in the seating position that
you intend to use. Refer to the car owner's handbook.
If no anchor tting is provided then you will need to install an anchor tting. Refer to pages 56 to 59.
The anchor tting is required for attaching the upper anchorage strap in both rear facing mode and
forward facing mode covered later in the these instructions.

HOW TO SETUP
14 15
A
Then push bar
forward
Pull out
Stabilising
bar
Click
Helpful Harness
Holder™
INSTALLING INTO THE CAR
A. Place restraint rearward facing in the chosen
seating position with the Messy Mat™(if tted)
positioned centrally in the seating position.
Remove Infant Safety Cushion Insert, and gently
remove the Seat Pad.
B. Undo the buckle and place buckle tongues in the
Helpful Harness Holder™.
C. Pull out stabilising bar and gently push bar
forward until a click is heard. Stabilising bar is
now latched in place.
Infant Safety
Cushion Insert
Remove
Seat Pad
B
C
HOW TO SETUP
D
E
D. If using a lap-sash seabelt, disengage the
rear facing Lock-off. Fully lengthen seat belt
and feed the seat belt through the closest
seatbelt path slot and pass across the
seating surface behind the crotch buckle
straps and through the opposite slot. Follow
the blue REARWARD FACING BELT
PATH label.
E. Engage seat belt buckle & tongue and
tighten the seat belt allowing the sash to
fully retract. Use the rear facing seat belt
lock-offs to prevent the seat belt loosening.
See illustrations on page 17. Do not use the
lock-off if the buckle interferes with closing
the lock-off.
Lock-off (open)
Seatbelt path slot
Blue -
REARWARD
FACING BELT
PATH label.
Pass buckle tongue through slots 1and 2.
2
1
Headrest trim end
Pass buckle tongue through here
NOTE: Seat belt buckle and tongue must not
rest between restraint cover and restraint. If
seat belt buckle is adjustable, adjust buckle as
low as possible away from the restraint.

HOW TO SETUP
16 17
F. Ret the harness buckle through Seat Pad and
t the Seat Pad around the Push Button adjuster
moulding. Ret the Seat Pad by connecting with
the seat cover along the seat surface and up the
backrest. For smaller babies replace the Infant
Safety Cushion Insert. Do not use the Insert if
the child's shoulders reach the Lower Shoulder
Height Marker, remove the Insert for longer use
whilst still rear facing. See page 23 for advice on
positioning the shoulder straps.
HOW TO SETUP
G. Align restraint centrally to the chosen seating position. Pull sash portion of seat belt until all slack is
removed from Lap portion of seat belt. Adjust seat belt to hold the restraint rmly against the vehicle
seat back. For retractor seat belts. Allow excess belt to feed back into retractor. Lock the rear facing
seat belt lock-off to prevent the seat belt slackening.
On the car seat belt buckle side, pass both lap
and sash seat belt through the lock-off and lock
in place
Rear facing
seat belt
lock-off
On the opposite side to the
seat belt buckle, only pass
the lap portion of the belt
through the lock-off and
lock in place (optional).
If placing the restraint in a seating position with a lap only seat belt, tighten the seatbelt so as to hold
the restraint rmly against the vehicle seat back.

18 19

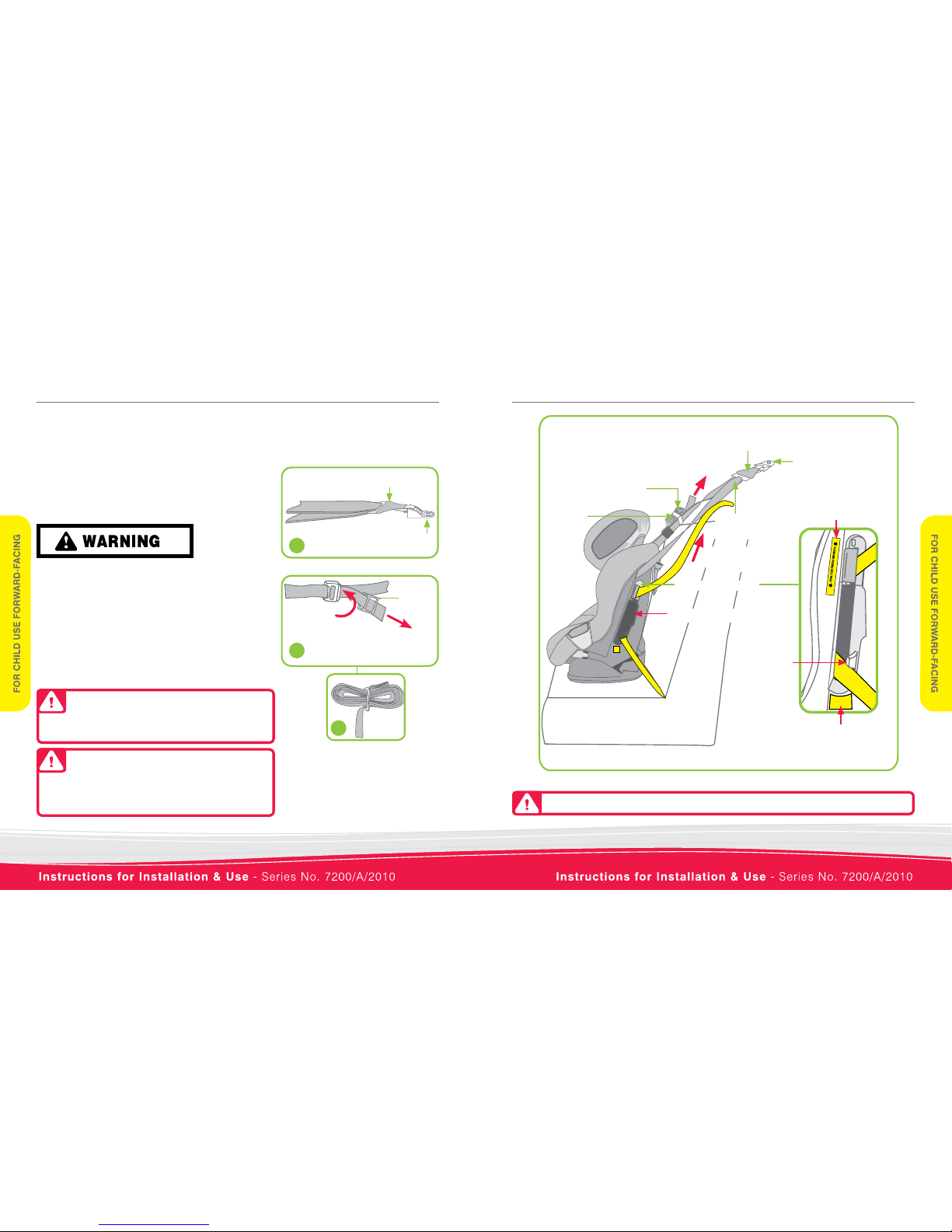

H. Fit the attachment clip to the car's anchor
tting as shown. Make sure to remove as
many twists as possible from the upper
anchorage strap. Refer to the car owner's
handbook for the location of the child
restraint anchor tting.
The strap will usually t around the outside
of the Side Impact Cushion. Do not tighten
the strap so that it causes the headrest to
become narrower. Just remove the slack
from the upper anchorage strap.
I. Tighten adjustable upper anchorage strap
by pulling adjustment strap (C) to remove
slack, but do not over-tighten causing the
restraint base to lift off the vehicle seat. This
will usually be done once the baby has been
harnessed into the seat. Roll up excess strap
tightly so the webbing is thick enough to be
held in the storage band.
HOW TO SETUP
Fully press Adjuster Button
(A) while pulling Upper
Anchorage Strap (B) to
lengthen.
Pull Adjustment Strap
to remove slack
Roll up excess strap
tightly so the webbing is
thick enough to be held
in the storage band.
B
A
Storage
Band
I
H
Attachment Clip
Car's Anchor Fitting
C
Attachment Clip
Car's Anchor Fitting
HOW TO INSTALL
DO NOT USE RESTRAINT IN REARWARD FACING MODE WITHOUT STABILISING BAR
FULLY EXTENDED.
THE UPPER ANCHORAGE STRAP MUST ALWAYS BE FITTED WHEN THE CHILD
RESTRAINT IS USED IN A VEHICLE.
ALWAYS ATTACH THE HOOK AND REMOVE THE SLACK.
Ensure Upper Anchorage Strap is tightened,
attached to the Anchor Fitting and that straps are
the same length on both sides of Attachment Clip.
Pull sash portion of seat
belt to remove slack.
A single
twist is
required in
baby use.
Do not use this
slot for baby use
installation
Feed seat belt between restraint cover and
restraint body, (see previous page).
Engage the Lock-offs to prevent the seat belt slacking.
Do not use the Lock-off if the seat buckle interferes.

HOW TO INSTALL
Extension
Strap
Attachment Clip should
not be in front of the
vehicle seat front.
Attachment Clip
should be behind
the front of the
vehicle seat front.
Attachment Clip
20 21
HOW TO INSTALL
ANGULAR ADJUSTMENT OF RESTRAINT
Some vehicle seats have more rearward slope than others. If the angle of the seat causes the baby to
be too upright for comfort, the angle may be altered by placing a rm packing between the seat and
the underside of the base. Packing can be a rmly rolled up towel or nappy.
Do not remove all of the rearward slope by over packing. Always leave a rearward slope angle of
approximately 10 to 15 degrees as shown
10° to 15°
IMPORTANT: If using an Extension Strap, positioning the Attachment Clip above the baby may lead
to injury in an accident therefore make sure that the Attachment Clip is not positioned in front of the
vehicle seat. Use a shorter extension strap or no extension strap.

23
HOW TO INSTALLHOW TO INSTALL
22

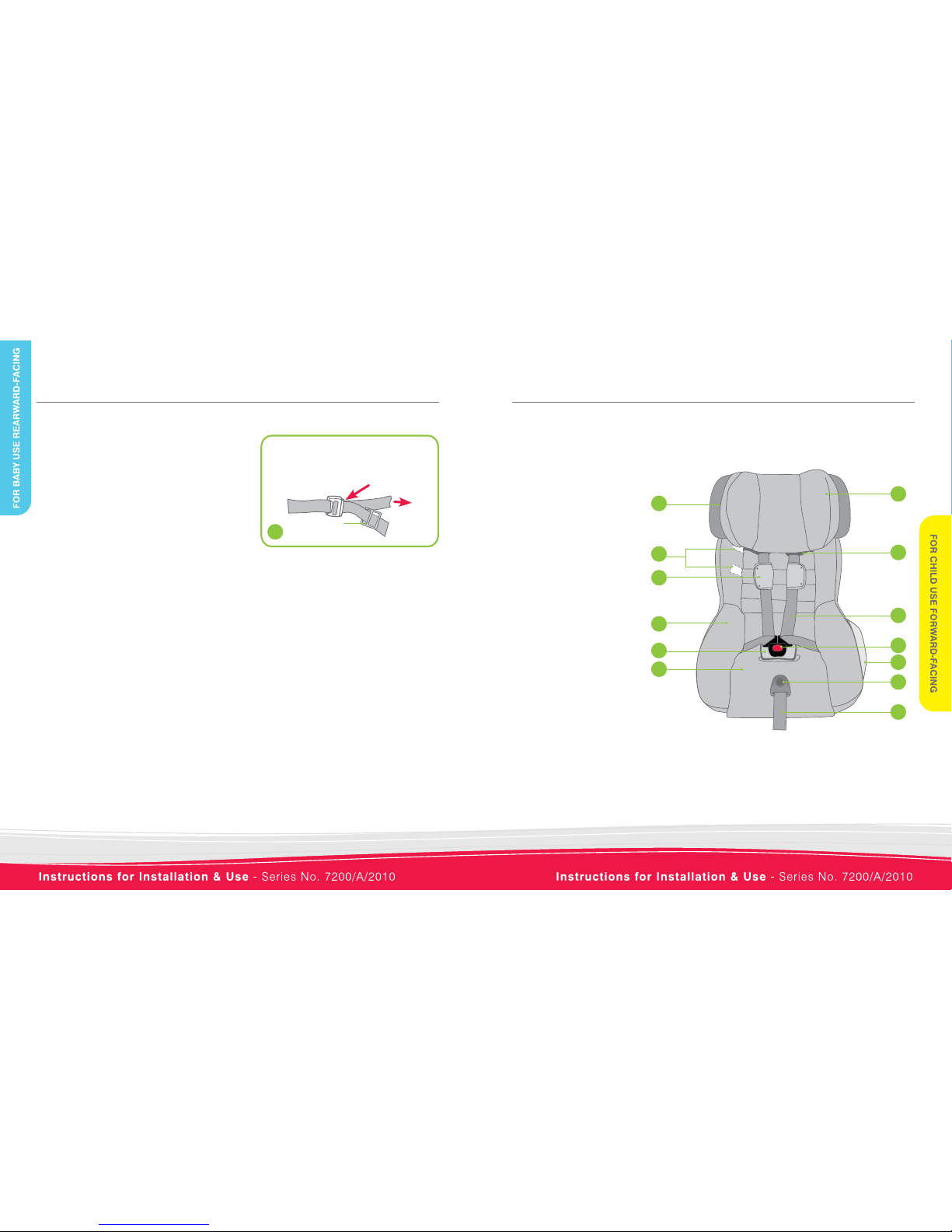

Harness Shoulder slots.
Harness tongues and buckle.
Lap strap slots.
Crotch strap slots.
Harness adjuster strap.
Lower shoulder
height marker.
Adjuster button.
REARWARD-FACING BELT PATH;
shown as blue.
ADJUSTING HARNESS STRAP HEIGHT & HEADREST:
FOR BABY USE REARWARD-FACING
Correct tment of the harness is very important as it restrains the baby in the restraint. The headrest
must be in the correct position and the harness must t rmly around upper torso of the baby and be
positioned so as to leave the baby's arms and legs free.
For babies in rear facing mode the headrest must be in the position where the top of the shoulder strap
slots are nearest to the child’s shoulders, but not lower than the child’s shoulders. Instructions for
adjusting the headrest is on the next page. If your baby has reached the lower shoulder height marker
then the restraint should be converted for “child use” (Refer to Forward Facing section starting on
page 29).
1. The shoulder straps must be in the slots which are nearest to the child's shoulders, but not lower
than the child's shoulders. There is only one set of slots so the seat will always have the shoulder
straps in place.
2. Use the Infant Safety Cushion Insert when rear facing for smaller babies until their shoulders reach
the Lower Shoulder Height Marker. Remove the Infant Safety Cushion for longer use whilst still in
rear facing.
3. Discontinue the use of the Infant Safety Cushion Insert if there is insufcient room for the baby or
shoulders reach the Lower Shoulder Height Marker.

HOW TO INSTALL
24
HOW TO USE
25
PLACING BABY INTO RESTRAINT
A. Ensure the headrest and shoulder straps are adjusted to the
correct height for your child (see page 6 and 7).
B. Slacken the Upper Anchorage Strap and allow the straps to fall to
the sides of the restraint for easy access to the baby.
C. Slacken Harness Straps by pushing and holding the Harness
Adjustment Button, grasping BOTH shoulder harness straps
and pulling out the desired amount of slack. Release harness
adjustment button when there is enough slack.
D. Lay the baby on their back into restraint and t harness as shown
above. Make sure the baby is dressed to allow harness buckle
to be pulled up between baby’s legs e.g. a jump suit. Make sure
the baby’s arms and legs are free. Never wrap baby in a blanket
before placing in restraint.
ADJUSTING AHR TILT & ADJUST
HEADREST AND HARNESS STRAP
HEIGHT
A. Loosen the harness straps before adjusting the
headrest.
B. You do not need to remove the restraint from the
vehicle to adjust the harness or headrest positions.
Small adjustments may be possible with the baby
still in the seat, the baby will need to be supported
to allow the headrest to be rotated forward for
adjustment.
C. To adjust the headrest, gently pull the top of the
headrest forward as shown (see illustrations), and
pull up or push down so that the shoulder strap slot
is level with or slightly above your child’s shoulder.
Do not adjust the headrest by pulling on the Side
Impact Cushion.
D. Release headrest so that it moves back and locks
into position. Ensure that it has locked in position by
gently pushing down on it.
E. Ensure there are no twists in the harness strap and
the buckle tongues face the correct way.
F. If the headrest is moved up, then down with the
child in the seat, check that the headrest cover has
not bunched up behind child’s back which will cause
discomfort.
While holding forward, move up or down
to desired position.
Pull forward to
unlock headrest
C
C
Adjuster Strap
Harness
Adjustment Button
Slackened Upper Anchorage Strap
Harness
shoulder straps
Lower shoulder height marker hidden
when headrest is the lowest position.
AHR Headrest with
Side Impact Cushion
Technology™
Helpful Harness Holder™
Adjuster for the
Upper Anchorage
Strap
Half twist in the Upper
Anchorage Strap
Pull Adjustment Strap
to tighten the harness
D

HOW TO USE
27
HOW TO USE
26
E. Fit either harness tongue into
the harness buckle followed by
the other tongue until a click is
heard. Should the second tongue
not insert, press the red button
and reinsert the tongues. Ensure
secure engagement by pulling
harness straps.
F. Remove slack from harness lap
straps by pulling shoulder straps.
Then pull the Adjuster Strap below
the push button - See illustration D
on page 25.
G. Retighten Adjustable Upper Anchorage Strap
by pulling Adjustment Strap to remove slack
as shown.
H. Always roll up excess strap tightly so the
webbing is thick enough to be held in the
storage band.
Click
Tongue Buckle
Storage
Band
Press
Harness Lap Straps
Shoulder Straps
Crotch Straps
Pull to remove
slack from
harness lap
straps
Pull Adjustment
Strap to remove
slack
Roll up excess
strap tightly so the
webbing is thick
enough to be held
in the storage band.
REMOVING BABY FROM RESTRAINT
A. Press Upper Anchorage Strap Adjuster Button while
pulling Upper Anchorage Straps to slacken. Allow
Upper Anchorage Straps to fall to the sides for easy
access into restraint.
B. Push and hold the Harness Adjustment Button while
pulling both Shoulder Harness Straps to slacken
harness to the desired amount.
C. Press the red button on Harness Buckle then both
Harness tongues will be released. Insert buckle
tongues into Helpful Harness Holder™ to hold
harness strap away from the child. Move each
shoulder strap to baby’s side then pick up baby.
E
F
G
H
Helpful Harness
Holder™
Make sure that nothing is obstructing harness straps and that baby’s arms and legs are free with
the straps in the correct location - see previous page.
Do not use restraint if straps do not tighten and contact Britax Childcare Customer Service. Refer
to back cover for details.
The Infant Safety Cushion Insert is designed to snugly support baby for extra support and comfort
and must be used for smaller babies. Discontinue use when baby's shoulder's reach the Lower
Shoulder Height Marker or the Insert is a tight t or creates discomfort for larger babies.
CAUTION: A LOOSE HARNESS IS DANGEROUS.
IMPORTANT:

HOW TO USE
TO REMOVE RESTRAINT FROM
VEHICLE
A. Disengage seat belt tongue from buckle and remove
from restraint.
B. Release the stored strap and fully press Upper
Anchorage Strap Adjuster Button (A) while pulling
Upper Anchorage Strap (B) to slacken as shown
right. In some vehicles loosening of the Upper
Anchorage Strap may be difcult. If so, try pushing
the restraint against the vehicle seat back or slightly
lifting the restraint to release the tension.
C. Disengage Attachment Clip from Anchor Fitting. The
child restraint is now disconnected.
See pages 32 and 33 for the storage of the
stabilising bar and returning the seat to the upright
position for forward facing mode or storage.
Fully press Adjuster Button (A)
while pulling Upper Anchorage
Strap (B) to lengthen.
B
A
Storage
Band
SPECIAL FEATURES: FORWARD-FACING
To be used only in a forward-facing position by children whose shoulder's have reached the lower
shoulder height marker (approximately 12 months of age) until the shoulders reach the upper shoulder
height marker (approximately 4 years of age.)
1. AHR Tilt & Adjust Headrest
2. Headrest Slots
3. Fully Adjustable 6 point harness
4. Quick Release Harness Buckle (Red button)
5. Pocket
6. Harness Adjuster Button
7. Harness Adjustment Strap
8. Seat Pad
9. Crotch Pad
10. Padded Cover for comfort
11. Shoulder Pads
12. Shoulder Height Markers (Hidden behind headrest)
13. Side Impact Cushion Technology™
29
28
B
1
2
3
6
7
10
11
12
13
4
9
85

14. Car's Anchor Fitting
15. Vehicle seat belt
16. Pocket for Instruction Manual (Behind Restraint)
17. Forward facing sash belt lock-off
18. Yellow FORWARD-FACING BELT PATH labels
19. Base (shown in child use mode)
20. Blue Release Latch
21. Grey Recline Latch
22. Messy Mat™ (if supplied)
23. Rear facing Lock-off
24. Helpful Harness Holder™
25. Side Impact Cushion Technology™
26. Upper Anchorage Strap Adjuster
27. Upper Anchorage Storage Band
28. Adjuster Upper Anchorage Strap
29. Attachment Clip
SPECIAL FEATURES: FORWARD-FACING
30 31
Front of Vehicle
RECLINE MECHANISM
TO BE USED WITH A LAP SASH OR LAP ONLY SEAT BELT IN THE BACK OF MOST CARS WITH
FORWARD-FACING SEATS.
Once the child's shoulders reach the lower shoulder height marker then the seat can be changed to the
forward-facing position and used until the child's shoulders reach the upper shoulder height marker.
Continue to use this restraint in this forward-facing mode until the child's shoulders reaches the limit
of the upper shoulder height marker. The child should not sit forward-facing until the baby's neck
muscles are able to support their head. Do not move to a Booster Seat until the child has outgrown
this child restraint.
Regional Road Rules may prohibit the use of this restraint in the front seat of the vehicle until the child
is 4 years of age. Check your Regional Road Rules for exemptions.
DO NOT USE RESTRAINT IN FORWARD- FACING MODE WITH THE REAR FACING MODE STABILISING
BAR PULLED OUT.
Do not use the restraint without the Upper Anchorage Strap correctly attached.
If your vehicle is not tted with an anchor point, please contact a Safety Restraint Fitting Station
authorised by the relevant State Government Body for correct tment of the restraint. In New Zealand
contact the agent for the vehicle. The upper anchorage strap must be attached to an anchorage point
using an extension strap if necessary.
Do not use on any vehicle seat which faces sideways or rearwards.
Do not use the Infant Safety Cushion Insert in Forward Facing ‘Child Use’ mode.
If an airbag is tted in the desired seating position where the child restraint is tted, follow the vehicle
manufacturer's warnings and instructions.
Children are of risk of serious injury if they move to a booster seat too early.
SUITABLE FOR USE
22
16
14
27 28 29
15
15
17
19
20
23
5
25
24
26
18
21

32
HOW TO SETUP HOW TO SETUP
33
INSTALLING INTO VEHICLE FORWARD FACING
(UPRIGHT OR RECLINED)
DO NOT USE RESTRAINT IN
FORWARD-FACING POSITION WITH
THE STABILISING BAR PULLED OUT.
Do not recline into baby position when
using restraint in forward facing child
use mode.
Ensure harness and headrest are in the
correct position (Refer to page 38).

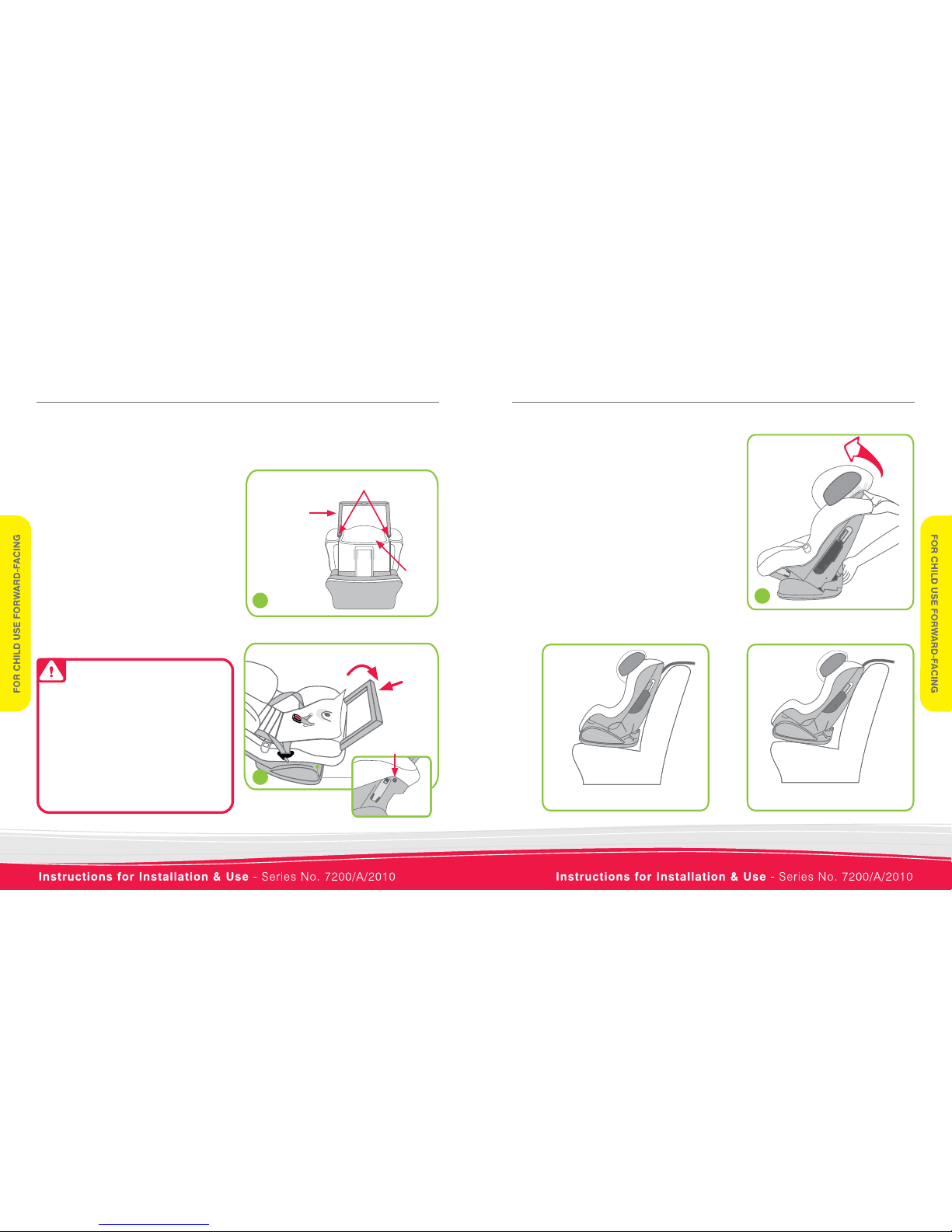

A. Remove the seat from the vehicle by
disengaging the seat belt and upper anchorage
strap refer to page 42.
B. Remove the Baby Infant Safety Cushion Insert
as this is no longer required.
C. To store the Stabilising Bar, lift the Seat Pad
at the end of the seat which uncovers the
stabilising bar storage recess.
D. Press button on left side (facing seat) and
gently push stabilising bar back and then down
into the recessed area.
E. Re-attach the Seat Pad at the end of the seat.
Stabilising bar
Seat
Pad
Hook and Loop attachment
1. Rotate backwards
2. Then push
inwards
F. Convert the restraint to child use mode by placing
one hand over rear corner of the base and lift the
top end of restraint with the other hand until audible
click is heard.
G. Determine whether an upright or reclined position
is preferred and adjust if necessary.
FULLY UPRIGHT CHILD USE MODE FULLY RECLINED CHILD USE MODE
C
D
F
Button under trim
IMPORTANT:

HOW TO SETUP
34
HOW TO SETUP
35
H. Place one hand on the front corner of base
rmly, while with the other hand push the Grey
Recline Latch up to unlock and push back until
the restraint is at the desired position. Ensure
the Grey Recline Latch is engaged into position
by pushing on the restraint.
I. Position restraint in forward-facing mode and
align restraint centrally to the chosen seating
position as shown on page 33.
Some vehicle seat fabrics (particularly velours)
may be damaged by a child restraint used
continuously. We recommend the use of a
messy mat or thick towel to keep the vehicle
seat in good condition.
Lift Grey Recline
Latch
H
Engage
Seatbelt
buckle
Ensure lap part of seat
belt is below the hooks
Seat belt
lock-off lever
Lap Seat Belt
Hook
Pull sash portion of seat
belt through the lock-off
to remove slack
J. Fully lengthen seat belt. Thread the seat belt into child use seat belt path (yellow marker) as shown
below, ensuring that the seat belt is behind the harness straps and that the lap part of the seat belt is
below the hook as shown below, on each side.
K. Engage seat belt buckle and tongue, ensure to remove all slack from lap part of seat belt by pulling
sash belt. Adjust the seat belt to hold the restraint rmly against the vehicle seat. Feed the sash belt
into seat belt lock-off pulling the sash tight through the lock-off. Press the lock-off lever to secure
the seatbelt. For inertia/retractable seat belts, allow excess belt to feed back into retractor.
L. If using just a lap seat belt, thread the seat belt through the back of the seat following the belt path.
Keep the belt under the hook on each side. Then engage the buckle and tighten the seatbelt so the
restraint is held rmly against the car's back.
Yellow
FORWARD-
FACING
BELT PATH
label
NOTE: Seat belt extenders should not be used. If the seat belt is not long enough to secure the
child restraint. If they are used then the buckle tongue must not enter the seating zone.

HOW TO INSTALL
36
INSTALLING INTO VEHICLE FORWARD-FACING
(UPRIGHT OR RECLINED)

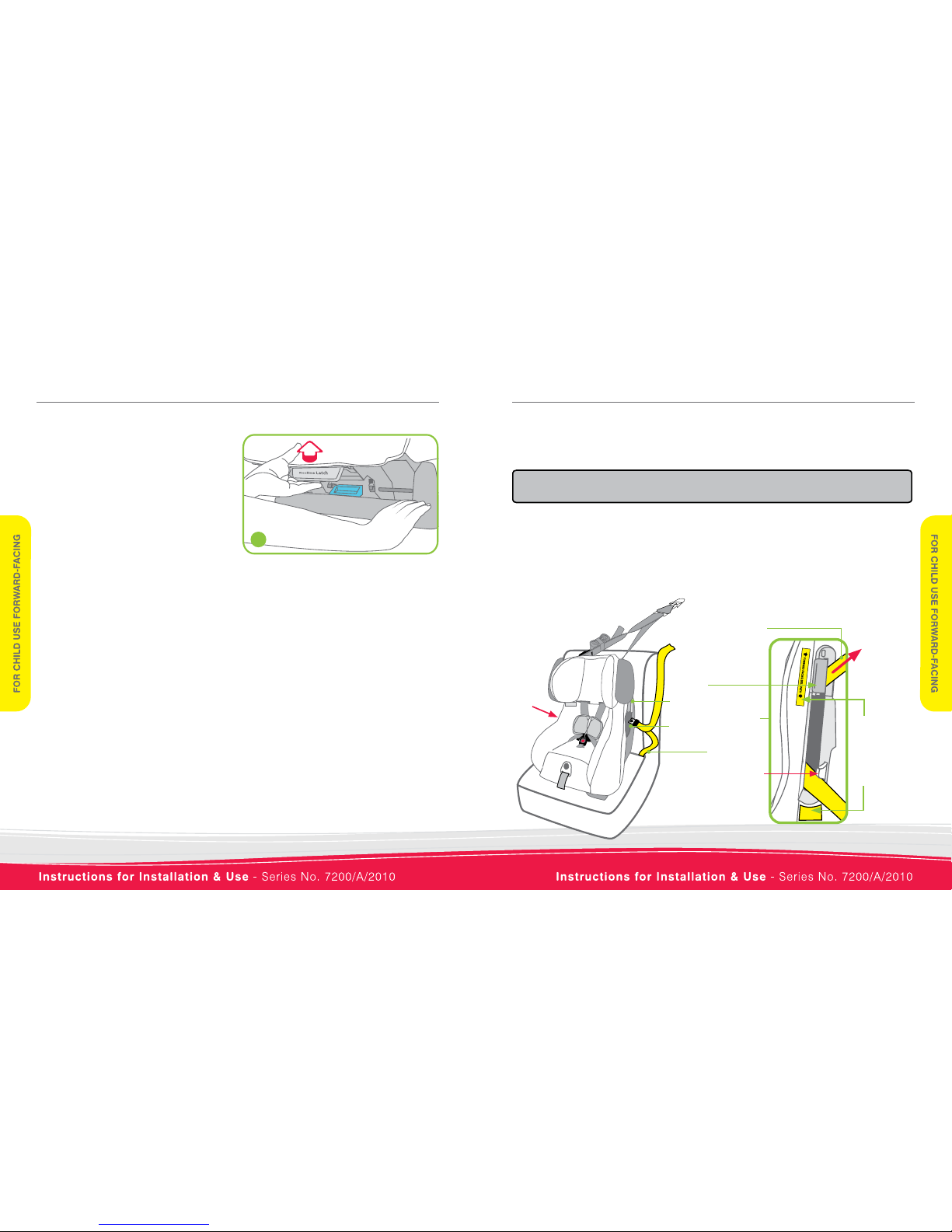

N. Tighten Adjustable Upper Anchorage Strap by pulling
adjustment strap to remove slack as shown below, but
do not over-tighten causing the restraint base to lift off
the vehicle seat.
O. Roll up excess strap tightly so the webbing is thick
enough to be held in the storage band and is away from
child's reach.
M. Fit the attachment clip to the anchor tting as shown.
Make sure to remove as many twists as possible from the
upper anchorage strap. Refer to the car owners handbook
for the location of the child restraint anchor tting.
Always attach the hook and remove slack
Attachment Clip
Car's Anchor Fitting
HOW TO INSTALL
37
Pull Adjustment Strap
to remove slack
Storage
Band
Press
Car's Anchor Fitting
Pull to remove
slack, then store
the strap as shown
Attachment
Clip
Storage
Band
Upper Anchorage
Adjustment Strap
M
N
O
Seat belt 'Lock-off'
Pull to
tighten belt
Child use seat belt path
Upper Anchorage
Strap
FORWARD-FACING
BELT PATH;
marked in yellow.
FORWARD-FACING
BELT PATH;
marked in yellow.
Hook
CAUTION:
IMPORTANT:
Always roll up the excess strap otherwise it may hang
outside the car door or could strangle a child.
Check that the belt is not twisted and the diagonal belt
is only clamped by the lock-off which is located on
the opposite side from the car seat buckle. IMPORTANT: Always roll up the excess Upper Anchorage Adjustment Strap.

HOW TO INSTALL
38
ADJUSTING HARNESS STRAP
HEIGHT AND HEADREST: FOR
CHILD USE FORWARD-FACING
Correct tment of the harness is very
important as it restrains the child in the
restraint. The harness must t rmly
around the upper torso of the child and be
positioned so as to leave the child's arms
and legs free.
The headrest must be in the position where
the top of the shoulder slots are nearest to
the child’s shoulders, but not more than
25mm below the child’s shoulders. If the
headrest is in the top position and the
shoulders are above the upper shoulder
height marker then the child is too tall for
the restraint and the restraint should not be
used; move to next type of restraint (see
pages 8 and 9).
The shoulder straps must be in the slots
which are nearest to the child's shoulders,
but not more than 25mm below the child's shoulders.
HOW TO INSTALL
39
While holding the
headrest forward,
pull up or down to
desired position.
Rotate back to lock headrest.
Tilt headrest
forward to unlock
Adjuster
button
Harness Shoulder slots.
Harness
tongues
Harness
buckle
Lap strap
slots
Crotch
strap ap
Harness adjuster strap
Upper shoulder
(Height marker
hidden when
the headrest
is not at full
height)
Lower
shoulder
height
marker
C
C
ADJUSTING AHR TILT & ADJUST
HEADREST AND HARNESS STRAP
HEIGHT
A. Loosen the harness straps before adjusting the
headrest.
B. You do not need to remove the restraint from
the vehicle to adjust the harness or headrest
positions. Small adjustments maybe done with the
child the seat, the child will need to lean forward
to allow the headrest to be pulled forward.
C. To adjust the headrest, gently pull the top of
the headrest forward and then pull up or push
down so that the shoulder strap slots are level
with or slightly above your child’s shoulders. If
the headrest is just above the shoulders then the
harness level will be correct.
D. Release headrest so that it moves back and locks
into position. Ensure that it has locked in position
by gently pushing down on it.
E. Ensure there are no twists in the harness strap
and the buckle tongues face the correct way.
F. If the headrest is moved up, then down with
the child in the seat, before use, check that the
headrest cover has not bunched up behind child’s
back.
NOTE: This child restraint does not require the strap to be disconnected to adjust their height, only
the headrest needs to be moved to adjust the shoulder strap position.
NOTE: For comfort ensure the bottom edges of the
headrest are not contacting the child’s shoulders
