FORWARD
FACING
4 years to
8-10 years
(approx).
(if fitted)
BOOSTER SEAT
IMPORTANT: KEEP THIS BOOKLET IN THE PLACE
PROVIDED ON THE CHILD RESTRAINT

Instructions for Installation & Use
2

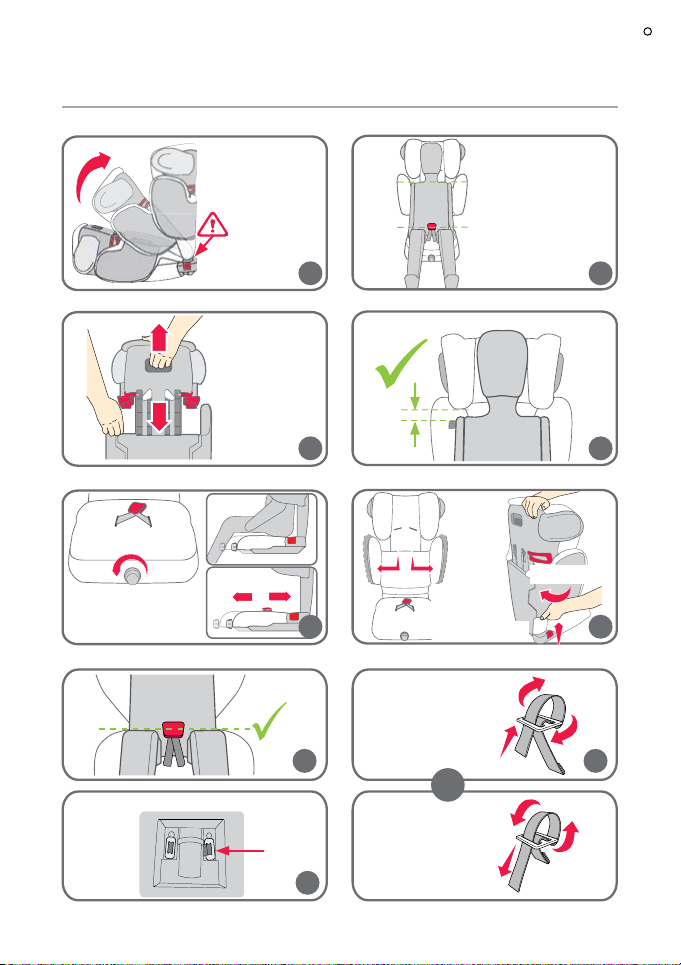

SEATBELT QUICK SETUP
1
3
2
9
4
Rotate to lengthen
base
Unfold Seat
Risk of trapping
hand/finger
Raise/Lower
headrest
Check and adjust
SecureGuard™ Device
Check and adjust
headrest
30 mm
2. Lift
1. Push
down
and out
3. Push back
TO
SHORTEN
TO
LENGTHEN
5
7
6
8
OR
Under booster seat
Adjuster

Instructions for Installation & Use 3
SEATBELT QUICK SETUP
Attach top tether to
anchorage
Store excess
strap in pocket
Feed slack
to retractor
Engage lap belt
10 11
1312
14
16 17
15
Remove slack

Instructions for Installation & Use
4
INTRODUCTION
To be used with a lap-sash seatbelt by a child whose shoulders are above the lower shoulder
height marker with head restraint in lowest position (approximately 4 years of age) until the
child’s shoulders reach the upper shoulder height marker with head restraint in highest position
(approximately 8 to 10 years of age).
Can also be used with child harness that is approved for use with this booster seat.
Continue to use this booster seat until the child reaches this limit. Children are safest in a
booster seat until their shoulders reach the upper shoulder height marker of the booster seat.
Do not use this booster seat until child’s shoulders are above the lower shoulder height marker.
Gamitin kasama ang isang lap-sash na seatbelt ng isang bata na ang mga balikat ay lampas
na sa ibabang marka ng taas ng balikat (humigit-kumulang 4 na taong gulang) hanggang sa
maabot ngmga balikat ng bata ang itaas na marka ng taas sa balikat (humigit-kumulang 6-8
taong gulang).
Maaari ring gamitan ng guwarnisyon ng bata na naaprubahang gamitin kasama ang upuang
booster na ito.
Patuloy na gamitin ang upuang booster na ito hanggang sa maabot ng bata ang limitasyong
ito. Ang mga bata ay pinakaligtas sa isang upuang booster hanggang sa maabot ng kanilang
mga balikat ang itaas na marka ng taas ng balikat ng upuang booster.
Huwag gamitin ang upuan booster na ito hanggang sa ang mga balikat ng bata ay lumampas
sa ibabang marka ng taas ng balikat.
Kung ang mga tuhod ay hindi makaliko sa harap ng kutson ng upuan ng sasakyan ay patuloy
na gamitin ang upuang booster.
Ang paggamit lamang ng seatbelt ay hindi inirerekomenda para sa mga bata na nakalakhan na
ang upuang ito. Gumamit ng mas malaking upuang booster.

4
108





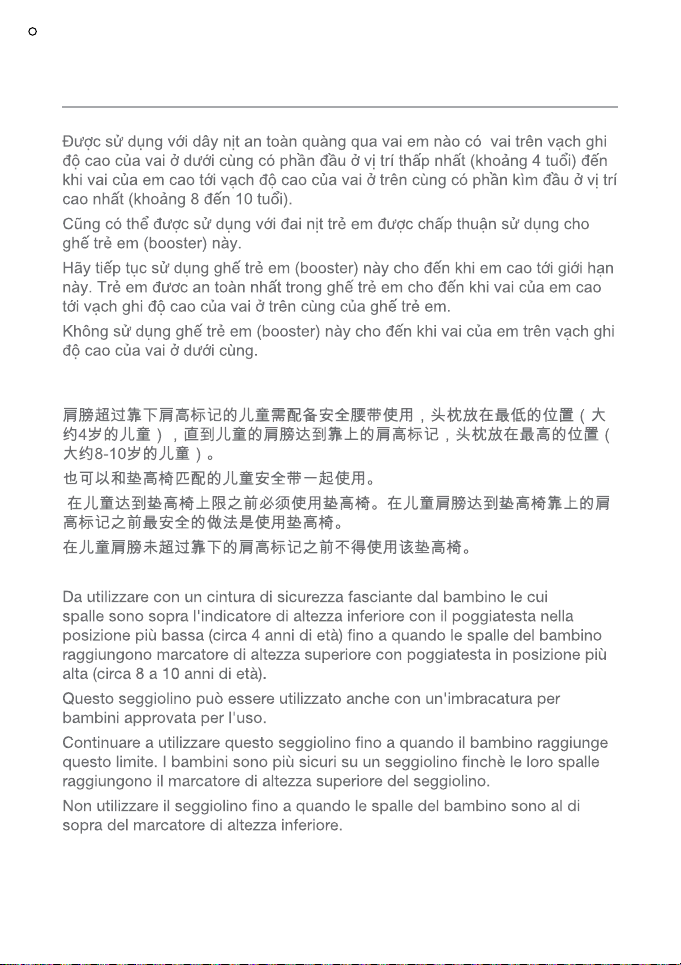

Instructions for Installation & Use 5
INTRODUCTION

Instructions for Installation & Use
6
INTRODUCTION

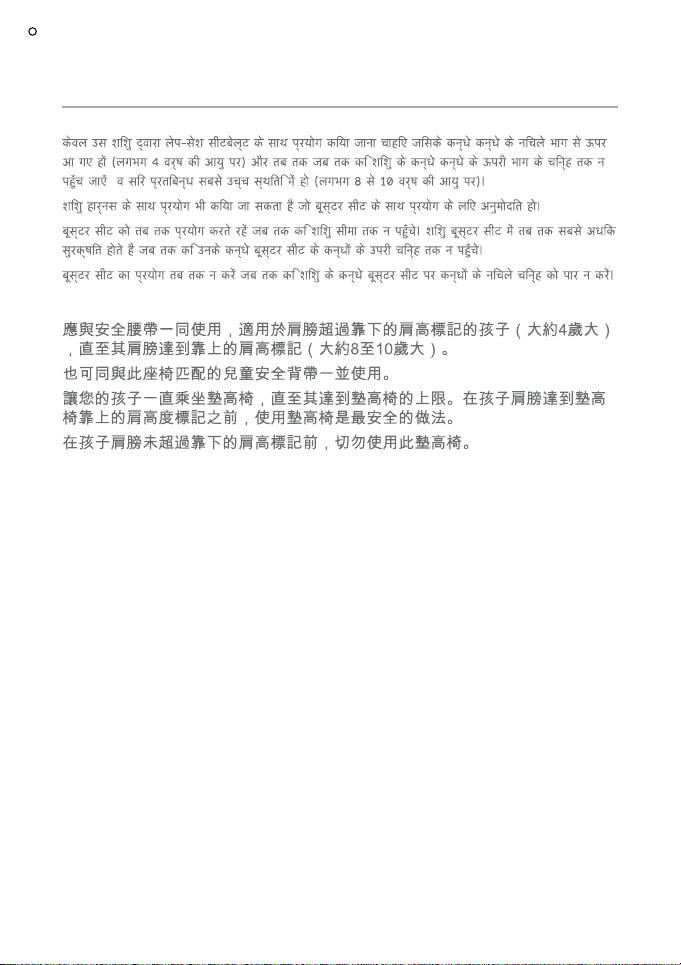

Instructions for Installation & Use 7
INTRODUCTION

Instructions for Installation & Use
8
INTRODUCTION
Carefully read all of the instructions for installation in this book. If in doubt about the method
of installation, consult Britax Childcare or agent or a child restraint fitter or, in New Zealand,
consult the agent for the vehicle.
This booster seat can be used by a child whom has reached the upper shoulder height marker
of their forward facing child seat. It may be suitable for a child of approx 4 yrs old progressing
from rearward facing child restraint. Ensure the child's shoulders are above the lower height
marker of this booster seat to enable use.
This booster seat should be used until the child no longer fits in this seat or the child can sit in
the car’s seat with their lower legs able to hang over the car's seat cushion.
This Booster Seat is fitted with the VERSATETHER™ catch that allows it to be used with an
approved child harness. This booster seat is suitable for use with the following child harness:
Britax Safe-n-Sound Protecta PLUS™ Series 220/2013.
This booster seat is not designed to be reclined.
THIS RESTRAINT MUST BE USED IN CARS WITH FORWARD-FACING SEATS WITH A
LAP-SASH SEATBELT OR WITH A SEATBELT AND CHILD HARNESS.
THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT UPPER ANCHORAGE
POINT IN THE CAR. REFER TO CAR OWNER'S HANDBOOK FOR LOCATION OF UPPER
ANCHORAGE POINTS. REFER TO A CHILD RESTRAINT FITTING STATION IF NO UPPER
ANCHORAGE POINTS ARE IN THE MOTOR CAR.
No child restraint can guarantee absolute protection from injury in every crash. However, to
ensure that your child gets all the protection designed into the restraint PLEASE READ AND
FOLLOW THESE INSTRUCTIONS EXACTLY.
This child restraint is not suitable for use on an aircraft.
This instruction book is stored in the pocket on the rear of the booster seat. This is a
shared pocket with the top tether strap.

Instructions for Installation & Use 9
INTRODUCTION
WARNINGS
SHOULDER HEIGHT MARKERS
- A GROWING CHILD
- THE NEXT SEAT
SPECIAL FEATURES
HOW TO SET-UP BOOSTER SEAT
HOT TO INSTALL INTO VEHICLE
HOW TO USE WITH SEATBELT
CHILD HARNESS PREPARATION
HOW TO INSTALL CHILD HARNESS
HOW TO REMOVE
CARE AND MAINTENANCE
ACCESSORIES & FEATURES
INSTALLATION OF CAR UPPER ANCHORAGE POINT
IN CASE OF ACCIDENT
WARRANTY
PAGE
4
10
12
14
16
20
22
26
30
37
38
44
45
49
52
CHILD USE (BOOSTER SEAT MODE)
CHILD USE (CHILD HARNESS)
CARE & MAINTENANCE
INDEX

Instructions for Installation & Use
10
• DO NOT USE WITH JUST A LAP BELT. You must use with lap-sash seat belt, or with a
seat belt and child harness.
• The lap part of the seatbelt must be firmly across the thighs and the sash belt fitted
diagonally across the chest and on the shoulder.
• If used with a child harness, the lap belt must be adjusted firmly first, and then the harness,
so that the lap belt is not lifted off the child’s lap when the harness is adjusted.
• Use the restraint exactly as shown in the instructions.
• Supervision of children is needed because they may be able to undo the buckles and/or
special features.
• DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR
• Do not alter or modify this restraint.
• Repairs must only be done by the manufacturers or agent.
• Do not allow the restraint to come into contact with polishes, oils, bleach and other
chemicals.
• Destroy the restraint if it has been in a severe crash, even if no damage is visible.
• DO NOT USE THIS RESTRAINT WITHOUT THE COVER.
• IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD RESTRAINT
IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURER’S WARNINGS AND
INSTRUCTIONS.
• The child in the seat must not slump or slouch such that the lap belt is on the abdomen.
The lap belt on the abdomen is dangerous. The lap belt positioning SecureGuard™ Anti
Submarining Device must always be used.
• Always secure the loose end of the top tether strap. Do not use the child restraint where this
strap may fall into a split in the seat back or off the side of the seat.
• ALWAYS ATTACH HOOK AND REMOVE SLACK.
• VERSATETHER - ONLY USE FOR ATTACHMENT OF CHILD HARNESS.
• DO NOT ATTACH THIS CHILD RESTRAINT TO ANY ISOFIX LOW ANCHORAGE. ISOFIX
low anchorage is cars are designed to withstand only those loads imposed by children aged
up to approximately 4 years of age in a correctly fitted and approved ISOFIX compatible
child restraint.
• This child restraint is not approved for use with any connectors that connect to the car's
ISOFIX low anchorages.

Instructions for Installation & Use 11
IMPORTANT :
• Protect all webbing from abrasion and cutting by sharp corners and edges.
• This restraint must be used facing forward and in conjunction with a lap-sash seat belt or
converted seatbelt and approved child harness.
• THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE TOP TETHER STRAP MAY
FALL INTO A SPLIT IN THE SEAT BACK OR OFF THE SIDE OF THE SEAT.
• Seatbelt extenders are not recommended to be used if the seatbelt is not long enough to
secure the child restraint. If seatbelts are too short then seek advice from a child restraint
fitter and consider their recommendations before using a seatbelt extender. If you use a
seatbelt extender then ensure that the seatbelt buckle does not contact the child.
• This child restraint is not approved for use with any connectors that connect to the car’s
ISOFIX low anchorages
• Do not use in a front seat, unless your child is over 4 years of age or in accordance with the
applicable Road Rules in your region. Research shows that children under 12 years old are
at a greater risk of serious injury when travelling in the front seat.
• Do not use on any vehicle seat which faces sideways or rearwards.
• Use of aftermarket accessories (i.e. items not provided in the box with the child restraint),
can reduce the safety provided by the child restraint and may cause injury or death.
• Use a towel or seat protector (messy mat) to protect the vehicle seat. Protection of both
underneath and behind the booster seat may be required.
• Do not store in hot places or underneath heavy objects. The plastic may distort.
• The restraint should not be purchased or sold as a second hand item. It is recommended
not to use child restraints older than 10 years as the protection in an accident may be
reduced.
• Regularly check the restraint components, straps and other fitments for correct function,
cracking & condition. Seek immediate repair.
• Do not lift the seat by the headrest or the Side Wings.

Instructions for Installation & Use
12
SHOULDER HEIGHT MARKERS AND
A GROWING CHILD
SMALLER CHILD

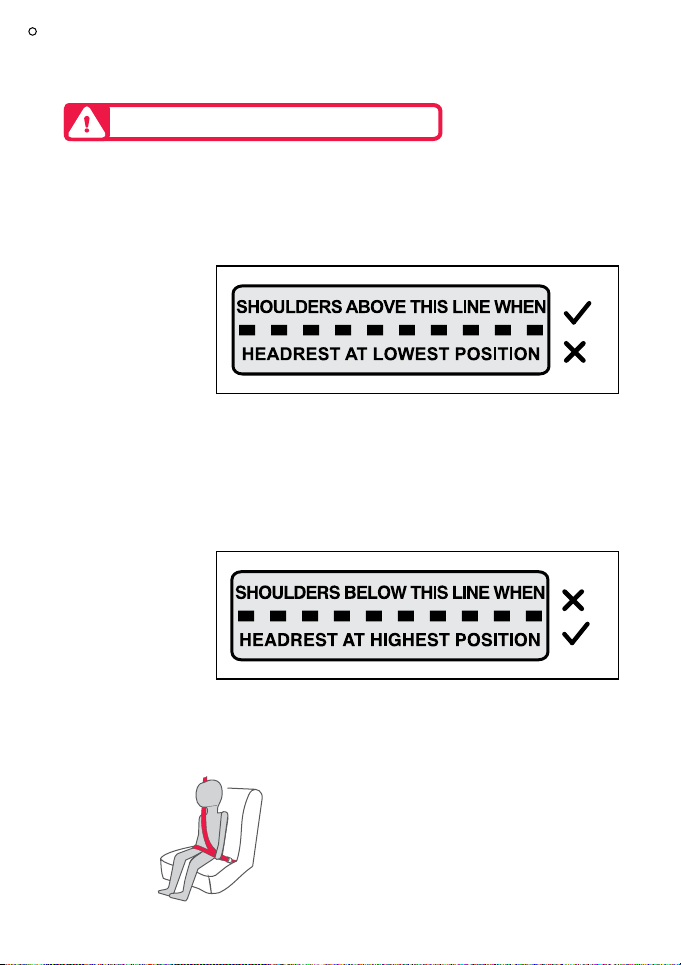

Shoulders must not be below the Lower
Shoulder Height Marker (A) when the headrest
is at the lowest position.
From approximately 4 years of age.
TALLER CHILD
Shoulders must not be above the Upper
Shoulder Height Marker (B) when the
headrest is at the highest position.
To approximately 8 to 10 years of age.
Upper Height label will be behind the child’s neck.
Front of Vehicle
Marker B
Marker A
Marker B
Marker A
NOTE: These heights also apply if you are using a Child Harness with the booster seat.

Instructions for Installation & Use 13

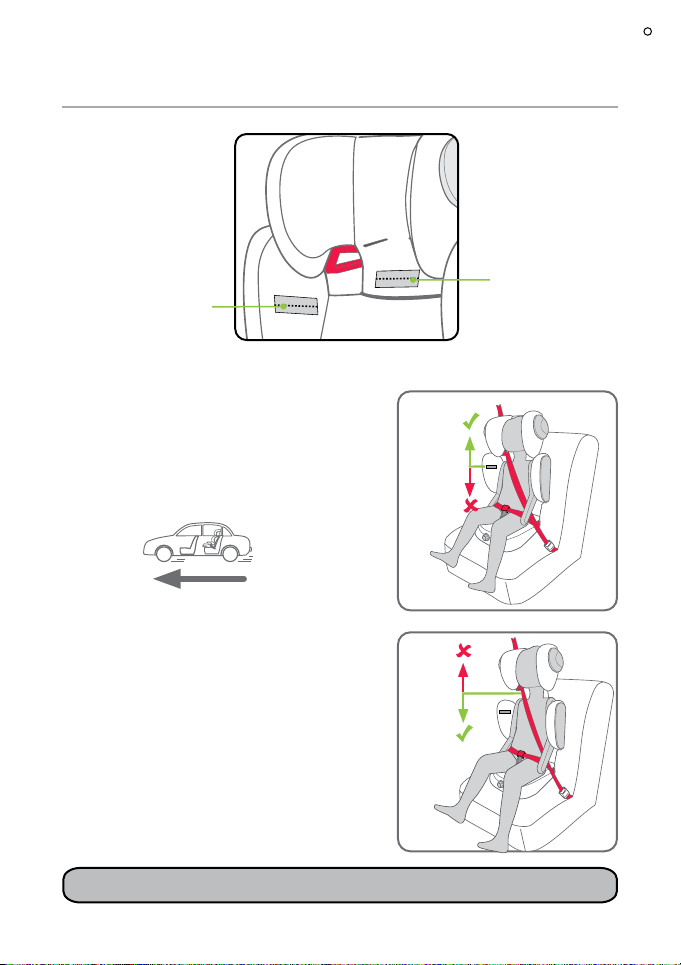

SHOULDER HEIGHT MARKERS
FROM APPROXIMATELY 4 YEARS OF AGE.
LOWER SHOULDER HEIGHT MARKER (Marker A)
A Child who has outgrown their child restraint with in-built harness will have their shoulders in
line or above the lowest shoulder height marker (label A) of this booster seat with the headrest
in the lowest position. If
the child’s shoulders are
below this marker the
child needs to stay in a
child restraint with an
in-built harness.
TO APPROXIMATELY 8 TO 10 YEARS OF AGE.
UPPER SHOULDER HEIGHT MARKER (MARKER B)
The seat can be used until the child’s shoulders reach the Upper Marker (label B) with the
headrest fully raised. Usually the shoulders will contact the bottom of the headrest, it is then
time to move to the next
form of restraint.
For maximum safety
continue to use this seat
as long as the child fits in
the seat.
Just the car's lap-
sash seatbelt.
IMPORTANT: Follow this advice.
Next type of restraint that can be used in the car for your child.
When your child has outgrown the seat, you can then use:
Safe-n-Sound recommend to keep your child in the
appropriate restraint suitable for their age and size, only
moving to the car's lap-sash seatbelt setup when he/she
no longer fits a dedicated child restraint.

Instructions for Installation & Use
14
SPECIAL FEATURES
Front of Vehicle
10
9
7
6
6. Seatbase Adjustment knob
7. SecureGuard™ Anti Submarining Device
8. Shoulder Height Markers
9. Sash Guide (one each side of headrest)
10. Shoulder slots for use with Child Harness
1. Side Impact Cushion Technology Headrest
(SICT™) (if fitted)
2. Adjustable Height Headrest
3. Adjustable Side Wings
4. Padded cover for comfort
5. Booster Seatbelt path indicator
2
1
4
5
3
8

Instructions for Installation & Use 15
SPECIAL FEATURES
11. Headrest Adjustment handle
12. Adjustable Top Tether Strap
13. Attachment Clip
14. Car's Upper Anchorage fitting
15. Top Tether Strap Adjuster
16. Storage Pocket: Top Tether and Instruction Book (attached to cover)
14 13 15
Rear View of Booster Seat
16
12
10
11
9

Instructions for Installation & Use
16

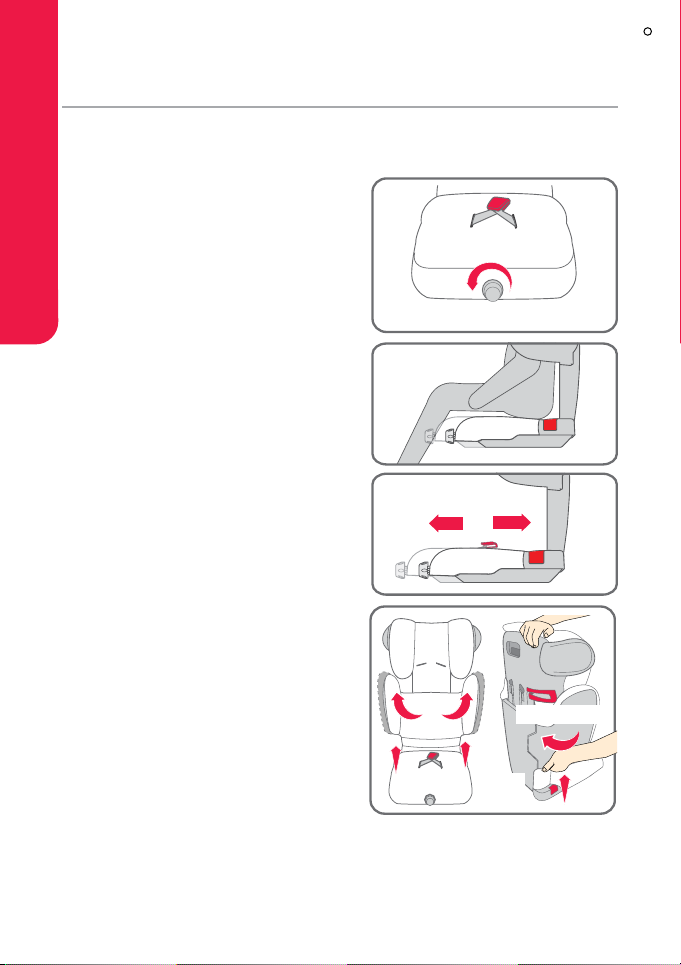

HOW TO SETUP
Seat
base
Seat
back

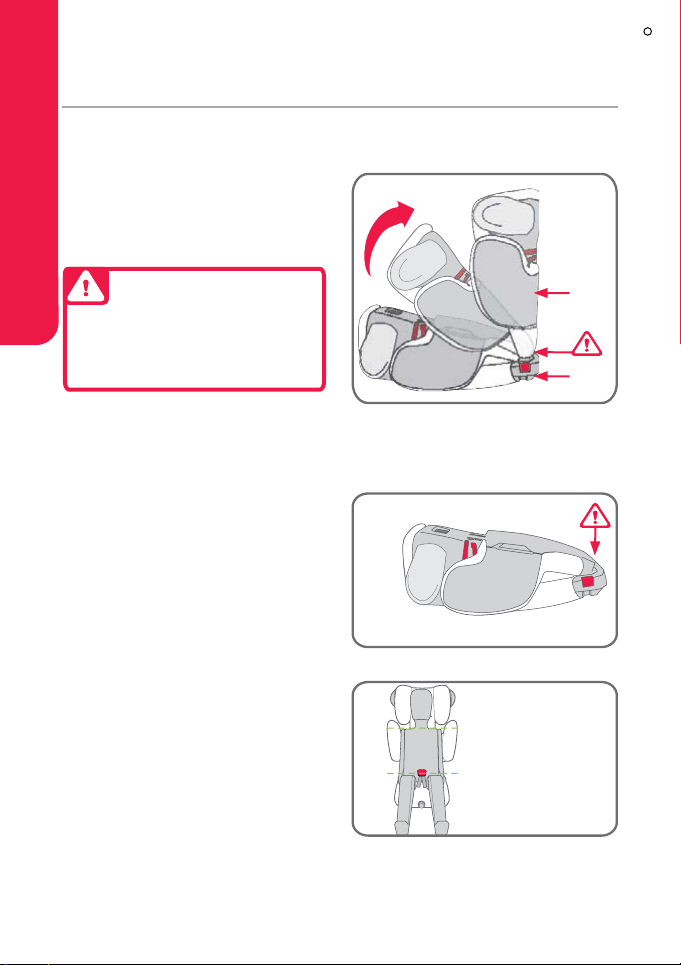

UNFOLDING THE BOOSTER SEAT
If the seat is in a folded position, grip the
Booster seat back and seat base and unfold
till you hear it lock into position. Check that
the seat has locked into position.
DO NOT PLACE FINGERS IN BETWEEN
SEAT BACK & SEAT BASE WHEN
FOLDING OR UNFOLDING. RISK OF
TRAPPING HAND/FINGER
CAUTION:
FOLDING THE BOOSTER SEAT
To store the Booster seat, push to fold the
seat forward.
BEFORE INSTALLING THE
SEAT IN TO THE CAR
Place child in booster seat and check height
for headrest and SecureGuard™ Device set
up. Adjust as shown on pages 17 to 19.
Extend seatbelt if required.
Check and adjust
SecureGuard™
Check headrest position
CHILD USE
(BOOSTER SEAT MODE)

Instructions for Installation & Use 17
HOW TO SETUP
ADJUSTING THE HEADREST

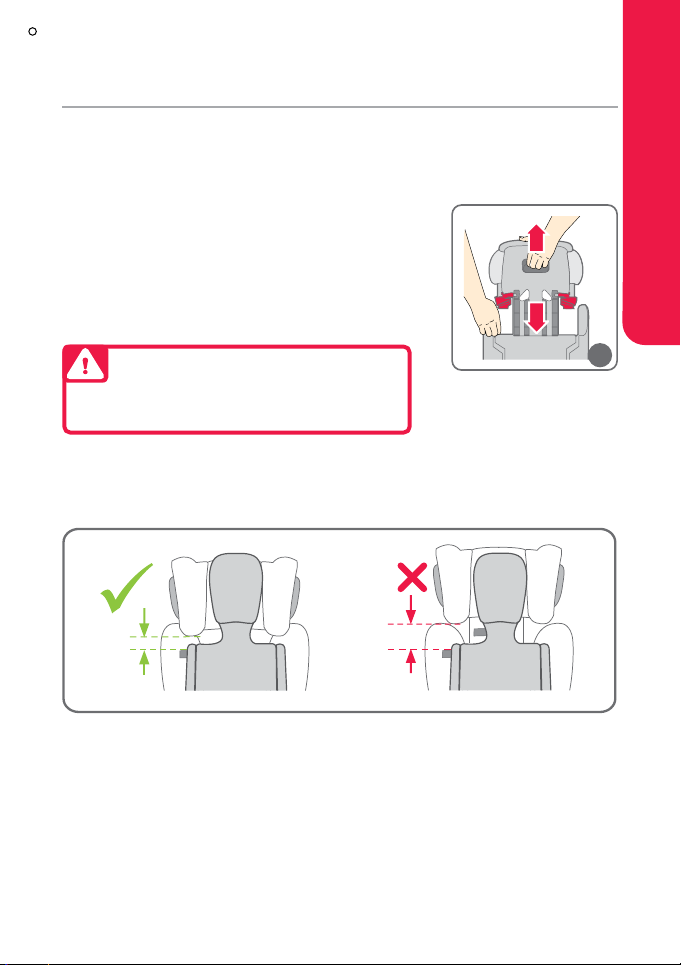

A. The headrest can be adjusted to lock into different height
locations. This can be done with the child in the seat.
B. Hold backrest as shown and squeeze the headrest
adjustment handle at the back of the headrest with the
other hand, to move the headrest up or down.
C. Adjust the headrest height so that the bottom of the sash
guide is level with or just above your child’s shoulder
(but not more than 30mm above).
D. When the headrest is in the correct position let go of the headrest adjustment handle and
ensure it has locked into place.
If fitted with SICT™ Do not adjust the headrest by pulling on the Side Impact Cushion.
Keep hands away from gap at the back of the lower
backrest whilst adjusting.
CAUTION: B
Less than
30mm
Greater than
30mm
CHILD USE
(BOOSTER SEAT MODE)

Instructions for Installation & Use
18
HOW TO SETUP
ADJUSTING BASE EXTENSION
ADJUSTING THE SIDE WINGS
This booster seat has a base extension which can
be easily adjusted by rotating the knob. This is to
accommodate the leg length of larger children.
When should the base be extended?
Extend the base so that the front edge of the base
is close to the back of your child’s knees. The
upper thigh section of their legs will be supported
and the seating position is made more comfortable
by reducing pressure points.
The Adjustable Side Wings can be adjusted to
provide more width for a larger child or can be
kept narrow to reduce the width of the Booster
seat.
To adjust, hold seat or headrest with one hand
and use the other hand to lift up side wing and
rotate, let it click down into place, then do the
same for the other side wing.
When should the wings be adjusted?
When your child's arms and shoulders require
more room within the seat, adjust the expandable
side wings to the widest position to create more
space for your child. Alternatively keep narrow if
there are width restrictions in the car.
Rotate to lengthen base
1. Lift
2. Push back
CHILD USE
(BOOSTER SEAT MODE)

Instructions for Installation & Use 19
HOW TO SETUP
ADJUSTING THE SECUREGUARD™ DEVICE
The SecureGuard™ Device crotch strap must be
adjusted so that it fits the seatbelt correctly to the
child. The crotch strap length adjuster can be found
under the seat. The seat base trim will need to be
removed to aid adjustment.
A. Underneath the base the length of the crotch
strap can be adjusted by threading webbing
through the adjuster in the direction of the arrows
shown below.
B. Adjust the crotch straps of the SecureGuard™
Device so that the Lap portion of the seatbelt
is positioned as low as possible on the child's
hips and thighs and the lap belt is prevented
from rising up the abdomen. Ensure the
SecureGuard™ Device does not push into your
child's thighs as this may cause discomfort.
Adjust the crotch strap to a shorter length when
using the seat with a smaller child.
TO SHORTEN TO LENGTHEN
Bottom edge of
SecureGuard™
Device level
with top of legs
(with all slack
removed from
crotch straps).
SecureGuard™ position
TOO HIGH
SecureGuard™ position
OK
The SecureGuard™ Device must always be setup to position the lap belt correctly on
the child's hips and thighs. The occupant may be injured in an vehicle crash if the
SecureGuard™ Device is set too high. DO NOT attempt to remove or dismantle the crotch
strap and SecureGuard™ Device.
CAUTION:
ALWAYS USE THE SECUREGUARD™ DEVICE
Under booster seat
Adjuster
CHILD USE
(BOOSTER SEAT MODE)

Instructions for Installation & Use
20
HOW TO INSTALL
INSTALLING INTO VEHICLE
A. Position the restraint in the car facing-forward in the
chosen seating position. Adjust the headrest to the
correct height for your child (refer to page 17).
B. Lengthen the top tether strap and connect the
Attachment Clip to the vehicle upper anchorage
point making sure to remove as many twists as
possible.
To lengthen the top tether strap, fully press Adjuster
Button (A) while pulling top tether strap (B) to
slacken as shown right.
Ensure the seating position has a child restraint
anchorage fitting. Refer to your vehicle owner’s
manual for the location of the upper anchorage
point in the car. If the vehicle is not fitted with a
child restraint upper anchorage point then refer
to page 45 to 48 for the installation of the upper
anchorage point provided with this child restraint.
Top Tether Attachment Clip
Car's Upper Anchorage Point
B
A
Fully press Adjuster Button (A)
while pulling top tether strap (B)
to lengthen.
Always attach the hook and
remove slack
CAUTION:
CHILDREN CAN BE INJURED OR RESTRAINTS AND TOP TETHER STRAP DAMAGED
BY UNSECURED CARGO IN A COLLISION. SECURE OR REMOVE HAZARDOUS CARGO
BEFORE USING THIS CHILD RESTRAINT.
CHILD USE
(BOOSTER SEAT MODE)
