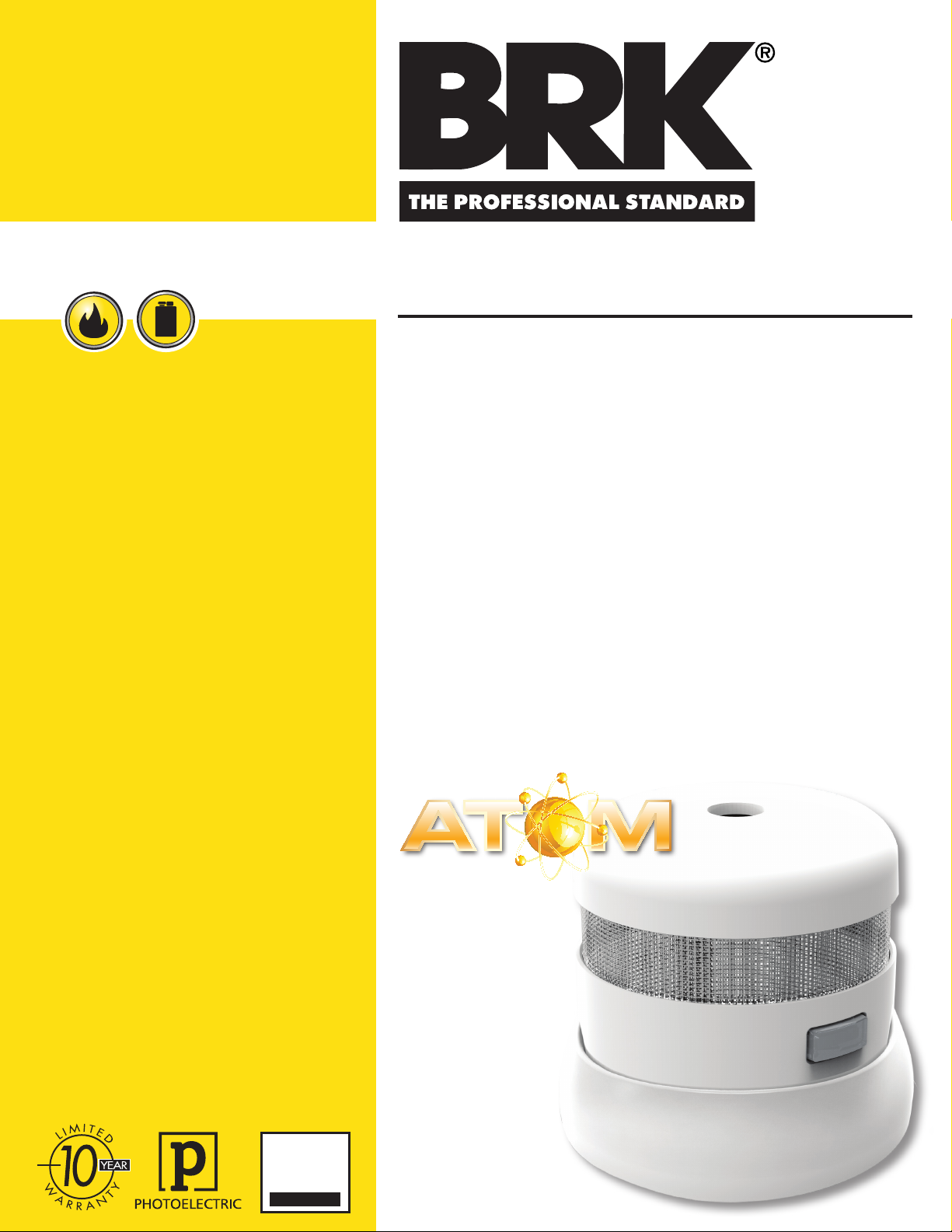

BRK electronic First Alert P1010 User manual

SMOKE
ALARM
CAT. P1010
MICRO DESIGN
Sleek, contemporary design blends into
any décor.
10-YEAR
LITHIUM POWER
10 years of continuous protection
under normal operating conditions.
No battery change required. Provides
audible notice when alarm has reached
its end of life.
TAMPERPROOF
SEALED ALARM
Powercell cannot be removed.
PHOTOELECTRIC
Photoelectric technology is generally
more sensitive at detecting large par-
ticles, which tend to be produced in
greater amounts by smoldering fires.
SILENCE FEATURE
Silences nuisance alarms.
Description:
First Alert P1010 is a 3V lithium power single station smoke alarm specifically
designed for residential and institutional applications including sleeping rooms of
hospitals, hotels, motels, dormitories, and other multifamily dwellings as defined
in standard NFPA 101. First Alert P1010 has been fully tested and complies with,
UL217, CSFM, NFPA 72, HUD and NFPA 101 and other agencies that model their
codes after the above agencies. It meets building codes where tamperproof 10-
year sealed lithium battery operated photoelectric smoke alarms are required and
with model building codes published by the ICC.
First Alert P1010 is a state of the art photoelectric micro smoke alarm designed
to provide early warning of a fire. It features a fully insect screened Photoelectric
smoke sensing chamber, an 85dB horn, a sealed 10-year lithium power cell power
supply that is permanently installed, a full function test switch, a silence feature
to silence unwanted nuisance alarms, an LED light that indicates DC power or
alarm. The tamperproof design will not allow the powercell to be removed. The
low power warning indicator will cause the alarm to “chirp” when it reaches the
end of its service life and needs to be replaced. Upon end of life, the unit meets
UL requirements for disabling the alarm and non-reinstallation of unit to mounting
bracket. The sleek, micro design complements any décor. Designed for wall or
ceiling mounting. Includes mounting anchors and screws.
Sealed 3V Lithium Power
Listed to
Standard
UL 217
10-YEAR SEALED
TM
10

CAT. P1010
ARCHITECTURAL AND ENGINEERING SPEC
TECHNICAL SPECS
SHIPPING SPECS
INSTALLATION OF ALARM
The smoke alarm shall be a BRK/First Alert Model P1010 and shall provide at a
minimum the following features and functions:
1. A photoelectric smoke sensing chamber.
2. A micro design
3. The unit shall be capable of self restoring.
4. A fully screened sensing chamber to resist entry of small insects thereby reducing
the probability of unwanted alarms.
5. Powered by a sealed 10-year lithium powercell with a tamperproof design. The
tamperproof design shall not allow the powercell to be removed. A low power
warning indicator shall cause the alarm to “chirp” when it reaches the end of
its service life and needs to be replaced. Upon end of life, the unit shall meet UL
requirements for disabling the alarm and the non-reinstallation of unit to
mounting bracket.
6. A visual LED power-on indicator to confirm unit is receiving power or is in alarm.
7. A full function test button. The test button should check all alarm functions by
stimulating the chamber to simulate a smoke condition, causing the unit to alarm.
The unit should also have a silence feature to silence unwanted nuisance alarms.
8. The unit shall be capable of operating between 40°F (4°C) and 100°F (38°C) and
relative humidity between 10% and 95%.
9. The unit shall contain mounting hardware and shall be listed for wall or ceiling
mounting.
10. The unit shall at a minimum meet the requirements of UL217, CSFM, NFPA 72,
NFPA 101, ICC.
Alarm Dimensions: 1.8”Dia. x 1.8”H
Weight: 2.0 oz
Operating Voltage: 3V Lithium Power Cell
Temperature Range: 40°F (4°C) to 100°F (38°C)
Humidity Range: 10% to 95% relative humidity (RH)
Audio Alarm: 85dB at 10 feet
Test/Silence: Electronically simulates smoke condition, causing the
unit to alarm. Press and hold test/silence button.
Alarm Reset: Automatic when smoke clears
Smoke Sensor: Photoelectric
Indicator Lights/Sounds:
DC Power: Intermittent Red LED
Local Alarm: Audio alarm and rapidly flashing Red LED
Listing: Listed to UL217 Standard
Individual Clamshell Dimensions 6.875”W x 2.38”D x 8.44”H
Weight 0.43 lbs.
Cube 0.02 ft3
UPC 0 29054 01196 1
Master Carton Dimensions 7.06 ”L x 5.06”W x 9.25”H
Master Pack 3
Weight 0.93 lbs.
Cube: 0.19 ft3
I2of5: 400 29054 01196 9
Pallet Information
Cases per Layer 48
Number of Layers: 5
Cases per Pallet: 240
Units per Pallet: 720
Cube: 52.7 ft3
Weight: 287 lbs.
©2015 BRK Brands, Inc. a Jarden Corporation
Company (NYSE: JAH)
3901 Liberty Street Road
Aurora, IL 60504-8122
All rights reserved
First Alert is a registered trademark of the First Alert Trust
BRK is a registered trademark of BRK Brands, Inc.
CM3255
brkelectronics.com
Installation of this smoke alarm must conform to NFPA 72. Always check your local
building codes. Follow all instructions for placement as outlined in the user’s manual in
sections titled “Recommended Locations for Smoke Alarms” and “Locations to Avoid for
Smoke Alarms”.

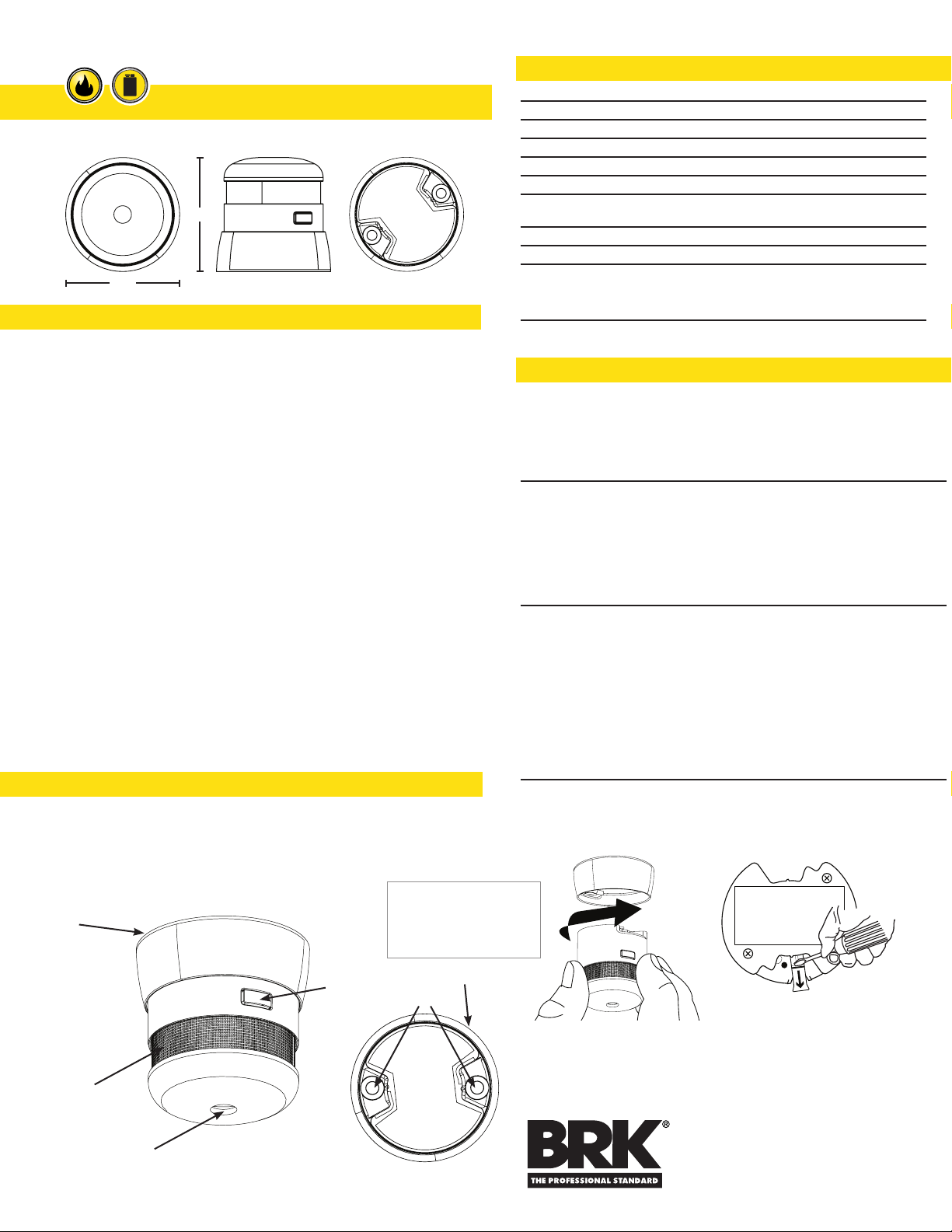

THE PARTS OF THIS ALARM
