BRK electronic SMOKE & CO SC7010B User manual

CAT. SC7010B
10YR CO SENSOR
10YR ALARM LIFE
SMOKE & CO COMBO
Electrochemical CO sensor; Photoelec-
tric smoke sensor.
LATCHING ALARM
INDICATOR
Remembers which unit initiated an alarm.
SILENCE FEATURE
Silences nuisance alarms.
END OF LIFE SIGNAL
Provides audible notice when alarm
needs to be replaced after 10 years.
SPREAD SPECTRUM
HORN TONE
Easier for elderly with normal age
related hearing loss to hear the horn.
OPTIPATH 360
TECHNOLOGY TM
Provides 360 degrees of direct access
to the smoke sensing chamber.
Description:
The BRK Model No. SC7010B is a wire-in, 120V AC 60Hz single and/or multiple
station combination smoke and carbon monoxide alarm specifically designed for
residential and institutional applications including sleeping rooms of hospitals, ho-
tels, motels, dormitories and other multi-family dwellings as defined in standard
NFPA 101. Model SC7010B complies with UL217 and UL2034, CSFM, NFPA 72 and
NFPA 720, HUD, FHA and other agencies that model their codes after the above
agencies. It meets building codes where AC/DC photoelectric smoke and carbon
monoxide alarms are required.
The BRK SC7010B is a state-of-the-art hardwired with battery backup smoke/CO
combo alarm that features a photoelectric smoke sensing chamber, an electro-
chemical CO sensor and an End of Life signal. The Spread Spectrum Horn Tone has
a lower and varying frequency that makes it easier for the elderly with normal age
related hearing loss to hear the horn. This alarm features two latching features and
two silence features. Alarm Latch: Easily identifies initiating alarm even after alarm
condition has subsided. Low Battery Latch: Identifies which unit is in low battery
condition by blinking the green power light. Low Battery Silence: Temporarily si-
lence the low battery chirp for up to eight hours. Alarm Silence: Silence alarm for
several minutes. Other features include an 85dB horn, single button test/silence,
an easy access battery drawer and dust cover. OptiPath 360 Technology: Exclusive
patented technology provides 360 degrees of direct access to the smoke sensor.
Two locking features are provided to prevent battery theft and/or theft of the unit.
Connection to AC power is made with a Quick-Connect wiring harness. Installation
is quick, easy and cost effective.
120V AC, 60Hz Wire-in
with 3V (two 1.5V AA) Battery Backup
SMOKE & CO
COMBO
ALARM

CAT. SC7010B

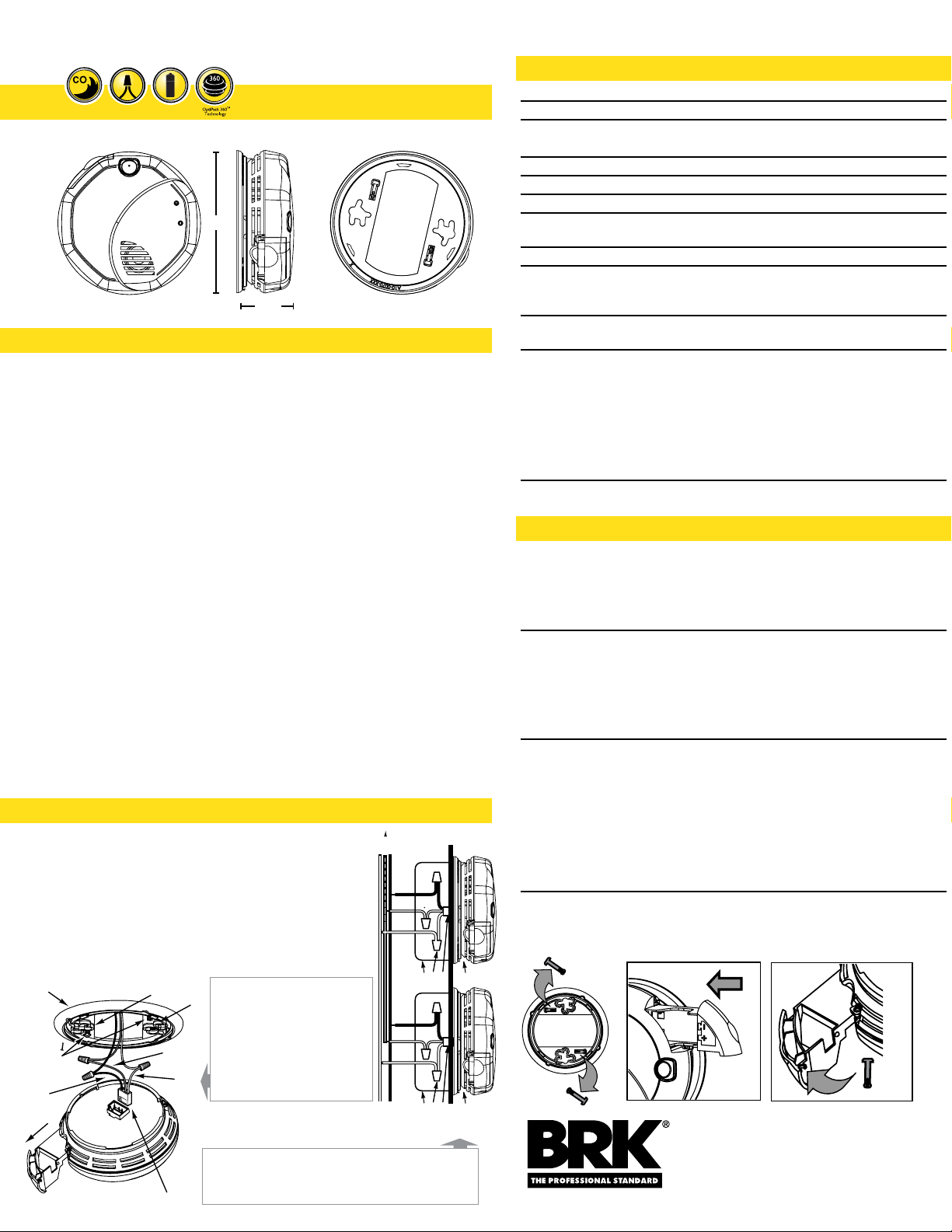

ARCHITECTURAL AND ENGINEERING SPEC
TECHNICAL SPECS
SHIPPING SPECS
INSTALLATION OF ALARM
The combination smoke and carbon monoxide alarm shall be a BRK Model SC7010B and
shall provide at a minimum the following features and functions:
1. A photoelectric smoke sensing chamber and an electrochemical CO sensor both with
a 10 year service life.
2. Powered by 120V AC, 60Hz and have a monitored battery backup and a solid state
piezo horn rated at 85dB at 10 ft. and shall be capable of self restoring.The horn
shall have a lower and varying horn frequency to to make it easier for the elderly with
normal age related hearing loss to better hear the horn.
3. The unit shall have an “End of Life” signal (5 chirps). This signal should be capable of
temporarily being silenced for up to 2 days. After about 2 days, the signal will resume.
After about 2-3 weeks the signal cannot be silenced.
4. A visual power-on indicator to confirm unit is receiving AC power or has switched to
battery backup mode. Separate LED ‘s to indicate a smoke or CO alarm.
5. The CO sensor is adjusted not to detect CO levels below 30 PPM and will not alarm
when exposed to constant levels of 30 PPM for 30 days. It will alarm at the following
levels: 400 PPM CO between 4 and 15 minutes, 150 PPM CO between 10 and 50
minutes and 70 PPM CO between 60 and 240 minutes.
6. Two Latching features: Alarm Latch to easily identify initiating alarm after alarm
condition has subsided. Low battery latch: to visually identify which unit is in low
battery condition. Two Silence Features: Alarm Silence to temporarily silence nuisance
alarms. Low Battery Silence to silence low battery chirp for up to 8 hours.
7. Two Locking features - tamper resistant locking pins that lock battery drawer and/or
alarm to mounting bracket.
8. The unit shall be capable of operating between 40°F (4°C) and 100°F (38°C) and
relative humidity between 10% and 95%.
9. The unit shall have a plug in connector and be capable of interconnection of up to 18
alarms, 12 of which can be smoke alarms.
10. The unit shall at a minimum meet the requirements of UL217 and UL2034, CSFM,
NFPA 72 and 720 and the ICC.
Alarm Dimensions: 5.0”dia. x 2.0”H
Weight: 9.3 oz
Operating Voltage: 120V AC 60Hz with 3V alkaline battery backup (two 1.5V)
Operating Current: 0.05 amps (standby/alarm)
Temperature Range: 40°F (4°C) to 100°F (38°C)
Humidity Range: 10% to 95% relative humidity (RH)
Audio Alarm: 85dB at 10 feet
Test/Silence: Electronically simulates smoke or CO condition, causing the
unit to alarm. Press and hold test/silence button.
Alarm Reset: Automatic when smoke or CO clears
Interconnections: Up to 18 units of First Alert or BRK Smoke, CO and Heat
Alarms. Maximum of 12 smoke alarms. See user’s manual
for details.
Smoke Sensor: Photoelectric
CO Sensor: Electrochemical
Indicator Lights/Sounds:
AC Power: Constant Green LED
DC Power: Intermittent Green LED
Local Alarm: Red LED flashes rapidly
Remote Alarm: Red LED off
Latching Alarm: Red LED flashes every 5 seconds after local alarm
Low Battery Latch: “Power” LED flashes green on for 2 sec, off for 2 sec
Listing: Listed to UL217 and UL2034 Standards
Individual Carton Dimensions 5.13”L x 2.38”W x 5.13”H
Weight 0.74 lbs.
Cube 0.04 ft3
UPC 0 29054 00228 0
Master Carton Dimensions 10.75”L x 7.88”W x 11.06”H
Master Pack 12
Weight 9.4 lbs.
Cube: 0.54 ft3
I2of5: 100 29054 00228 7
Pallet Information
Cases per Layer 22
Number of Layers: 4
Cases per Pallet: 88
Units per Pallet: 1,056
Cube: 54.0 ft3
Weight: 892 lbs.
©2015 BRK Brands, Inc. a Jarden Corporation
Company (NYSE: JAH)
3901 Liberty Street Road
Aurora, IL 60504-8122
All rights reserved
First Alert is a registered trademark of the First Alert Trust
BRK is a registered trademark of BRK Brands, Inc.
CM3234
brkelectronics.com
Installation of this smoke alarm must conform to all local
electrical codes and Article 760 of the National Electrical Code
(NFPA 70) and NFPA 72. Interconnected units must meet the
following requirements: Total length of wire interconnecting
units should be less than 1000 feet, be #18 gauge or larger
and be rated at least 300V. It is recommended that all units
be on the same fuse or circuit breaker. If local codes do not
permit, be sure the neutral wire is common to both phases.
THE PARTS OF THIS SMOKE ALARM
1. Mounting bracket
2. Mounting Slots
3. Locking Pins
4. Hot (Black) AC Wire
5. Nuetral (White) AC Wire
6. Interconnect (Orange) Wire
7. Pull-out battery drawer
8. Quick-Connect Plug
MOUNTING
BRACKET
TOP VIEW SIDE VIEW
5.0”
2.0”
1. Smoke /CO Alarm
2. Ceiling or Wall
3. Power Connector
4. Wire Nut
5. Junction Box
6. Neutral Wire (White)
7. Interconnect Wire (Orange)
8. Hot Wire (Black)
A. Unswitched 120VAC 60 Hz source
B. To additional units; Maximum = 18 total
(Maximum 12 Smoke Alarms)
2
8
1
7
6
5
4
3
2
678
43 1
5 2
A
B
}}
43 15
BATTERY DRAWER LOCK
Remove Pin from
Mounting Bracket
Close Door. Insert Pin in Holes
through alarm and Battery Drawer
