Premium "T" Gas Grill
Owner’s Manual
MODELS:
T3-2, T3W-2, T3N-2, T3WN-2,
T3C-2, T3CW-2, T3CN-2, T3CWN-2,
T3CF-2, T3CFW-2, T3CFN-2, T3CFWN-2,
T3CA-2, T3CAW-2, T3CAN-2, T3CAWN-2
GAS-FIRED

Page 2 B101361-0-1008
WARNING
Reference this manual for proper installation and maintenance instructions. Improper installa-
tion, adjustment, alteration, service or maintenance can cause personal injury or property dam-
age. For assistance or additional information consult a qualified installer, service agency or the
gas supplier.
WARNING
Broilmaster® Gas Grills must ONLY use propane cylinders equipped with an Overfill Protection
Device (OPD). Use only a reputable propane dealer when exchanging or filling cylinders. An
overfilled or improperly filled propane cylinder can be dangerous.
!
DANGER
IF YOU SMELL GAS:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open the grill lid.
4. If odor continues, keep away from the appliance and immediately
call your gas supplier or fire department.
CAUTION:
Parts may have sharp edges. Wear leather work gloves and handle parts carefully during the
unpacking, assembly and installation.
!
WARNING
1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any
other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
IMPORTANT
This manual should be read thoroughly by the person installing the grill and all persons who will
use and maintain the grill. The installer should be sure the manual is left in the possession of the
user. The user should retain this manual for future reference when using or cleaning the grill and
to properly identify any repair parts that may be required.

Page 3B101361-0-1008
Congratulations!
Welcome to the beauty, durability, and prestige of a Premium Gas Grill by
Broilmaster®. With award-winning excellence built into every feature and du-
rability that surpasses other Premium gas grills, Broilmaster has manufactured
the ultimate gas grill for discriminating outdoor chefs for over 30 years.
At Broilmaster, we continually strive to enhance the performance and quality
of our products for your grilling enjoyment. Every effort will be made to en-
sure that Broilmaster continues to be your choice as the Premium grill of the
future.
Whether you are at the lake or in the privacy of your own backyard, the Broil-
master Premium Gas Grill performs far beyond the ordinary and is designed to
provide your family with years of outdoor cooking pleasure.
Thank You!

Page 4 B101361-0-1008
Model No. Dealer
Serial No. Dealer Phone No.
Gas Type: Propane Natural Date of Purchase
Your Broilmaster Premium Gas Grill is identified by model number, serial number, and gas type. This
information is provided on a product identification label located on the grill’s control panel. For your
convenience, complete this section for future reference when contacting your dealer.
Hardware Package ...............................................................................................................................................5
Parts Diagram .......................................................................................................................................................6
Parts List .................................................................................................................................................................7
Grill Assembly ...............................................................................................................................................8-12
Propane Gas Grills ........................................................................................................................................13-15
Gas Conversion ..................................................................................................................................................16
Natural Gas Grills ..............................................................................................................................................17
Operation- Propane & Natural Grills ............................................................................................................18-19
Maintenance ...........................................................................................................................................................20
Troubleshooting ....................................................................................................................................................21
Warranty ................................................................................................................................................................22
Notes ......................................................................................................................................................................23
Congratulations!
You have chosen the finest grill for your outdoor cooking pleasure. Please take time to read this entire manual
before assembling your Premium Broilmaster gas grill.
TABLE OF CONTENTS

Page 5B101361-0-1008

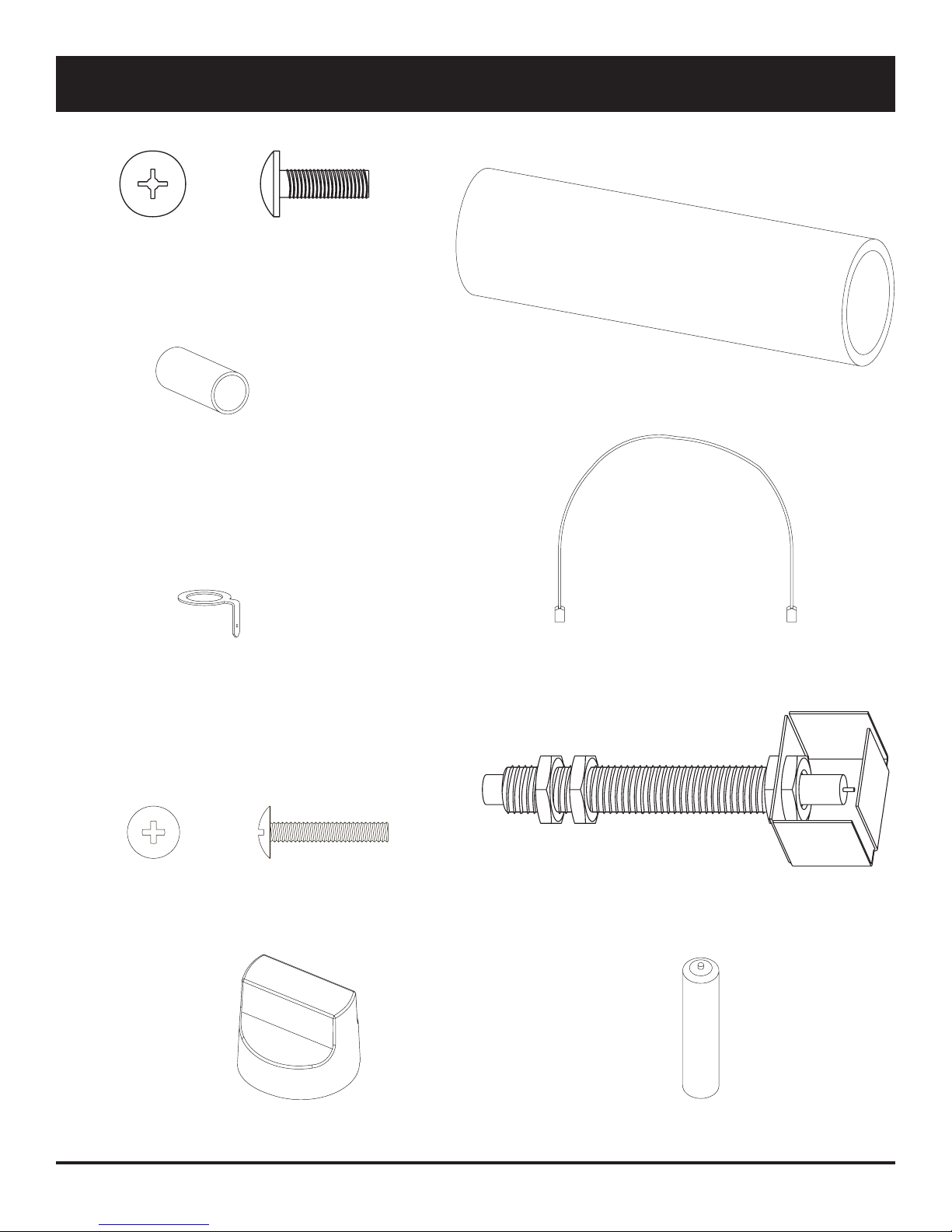

HARDWARE PACKAGE
B101082 SPACER, IGNITOR
B069747 LUG, IGNITOR GROUND
B073097 FOAM GRIP
B101048 WIRE, IGNITOR GROUND
B076529 BATTERY, AA
R3918 KNOB
B101212 COLLECTOR BOX ASSEMBLY
B072217 SCREW 1/4-20 X 3/4 PH TRUSS HEAD SS
B073978 SCREW #10-24 X 1 PHILLIPS TRUSS STAINLESS

Page 6 B101361-0-1008
All repair part orders should be placed through your local Broilmaster dealer. To locate a dealer in your area,
contact Broilmaster Customer Service at 800-851-3153 • www.broilmaster.com. To ensure prompt and accurate
service, please provide the following information when placing a repair part order: Model Number, Serial Number,
Part Name, Part Number, and Quantity of parts needed.

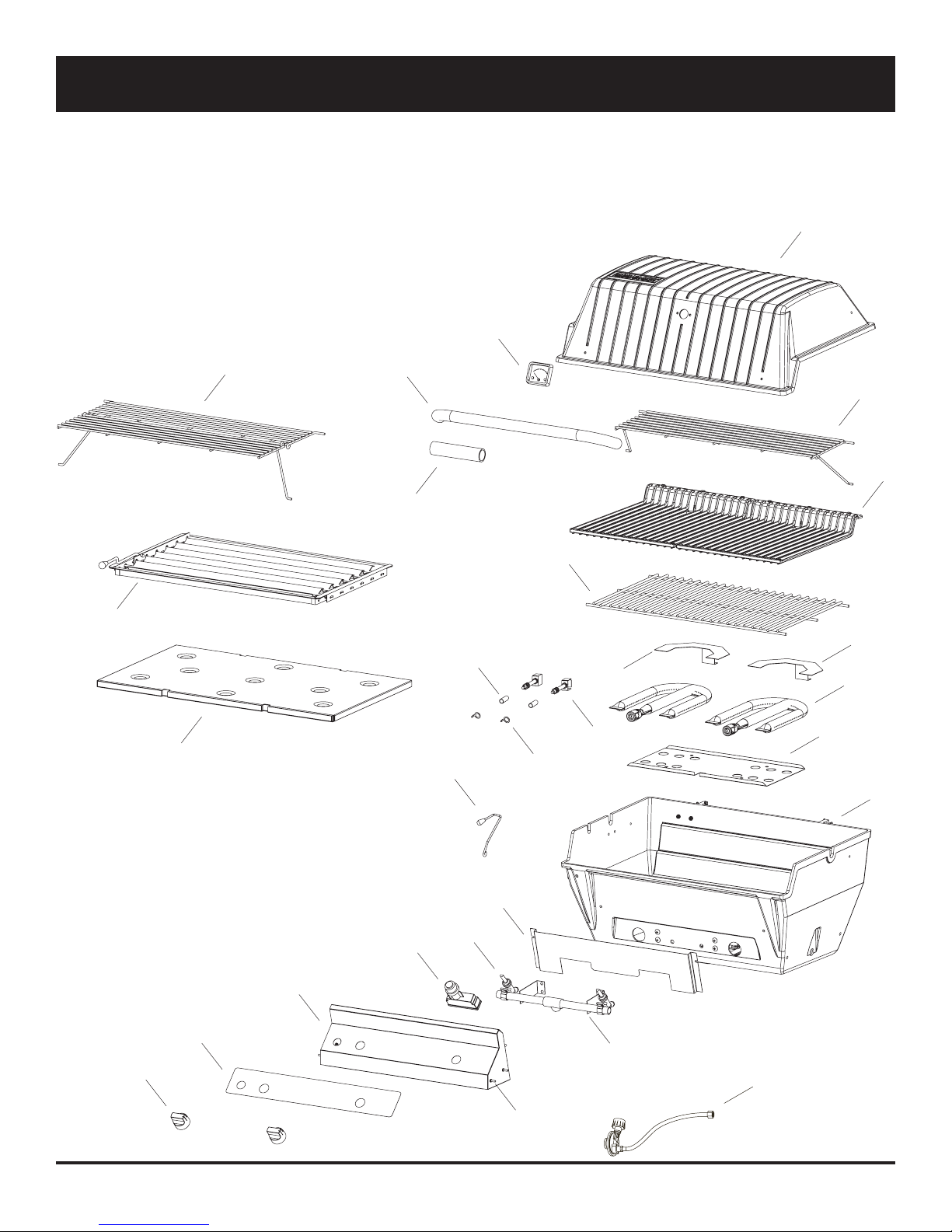

PARTS DIAGRAM
5
4
3
2
1
5
6
7
8
11
9
15 12
10 13
14
16
17
19
18
24
23
20
21
22
26
25
25

Page 7B101361-0-1008
PARTS LIST
Index No. Description
Part Number
T3 & T3W T3C &
T3CW
T3CF &
T3CFW
T3CA &
T3CAW
T3N &
T3WN
T3CN &
T3CWN
T3CFN &
T3CFWN
T3CAN &
T3CAWN
1 Grill Body Top - Black B101039 B101039 B101039 B101039 B101039 B101039 B101039 B101039
2 Heat Indicator (Stainless) B101118 B101118 B101118 B101118 B101118 B101118 B101118 B101118
3 Lid Handle (Stainless) B070486 B070486 B070486 B070486 B070486 B070486 B070486 B070486
4 Foam Grip B073097 B073097 B073097 B073097 B073097 B073097 B073097 B073097
5 Retract-A-Rack B100594 B072695 B072695 B072695 B100594 B072695 B072695 B100594
6 Cooking Grid (Single) B101053 B101053 B101053 B101053 B101053 B101053 B101053 B101053
7 Briquet Rack B101061 B101061 N/A B101061 B101061 B101061 N/A B101061
8 Burner B101030 B101030 B101030 B101030 B101030 B101030 B101030 B101030
9 Flavor Screen N/A N/A DPA103 N/A N/A N/A DPA103 N/A
10 Collector Box Assembly B101212 B101212 B101212 B101212 B101212 B101212 B101212 B101212
11 Ignitor Spacer B101082 B101082 B101082 B101082 B101082 B101082 B101082 B101082
12 Ground Lug B069747 B069747 B069747 B069747 B069747 B069747 B069747 B069747
13 Radiation Shield B101045 B101045 B101045 B101045 B101045 B101045 B101045 B101045
14 Grill Body Bottom - Black B101044 B101044 B101044 B101044 B101044 B101044 B101044 B101044
15 Lid Stop Kit N/A DPA106 DPA106 DPA106 N/A DPA106 DPA106 DPA106
16 Valve Shield B101046 B101046 B101046 B101046 B101046 B101046 B101046 B101046
17 Valve Assembly (No Orifice) B101042 B101042 B101042 B101042 B101042 B101042 B101042 B101042
18 Manifold And Valve Assembly B101040 B101040 B101040 B101040 B101112 B101112 B101112 B101112
19 Electronic Ignitor B072218 B072218 B072218 B072218 B072218 B072218 B072218 B072218
20 Control Panel Assembly B101033 B101066 B101066 B101066 B101033 B101066 B101066 B101033
21 Control Panel Label B101028 B101028 B101028 B101028 B101028 B101028 B101028 B101028
22 Valve Knob R3918 R3918 R3918 R3918 R3918 R3918 R3918 R3918
23 Hose And LP Regulator B069756 B069756 B069756 B069756 N/A N/A N/A N/A
24 Pin, Shelf B073963 B073963 B073963 B073963 B073963 B073963 B073963 B073963
25 Burner Shield B101154 B101154 B101154 B101154 B101154 B101154 B101154 B101154
26 Smoker Shutter N/A N/A N/A B100445 N/A N/A N/A B100445
Not Shown Char-Master Briquets B058122 B058122 N/A B058122 B058122 B058122 N/A B058122
Not Shown Hardware Pack B101218 B101218 B101218 B101219 B101219 B101219 B101219 B101219
Not Shown Ignitor Ground Wire B101048 B101048 B101048 B101048 B101048 B101048 B101048 B101048
Not Shown Bridge Pin B057805 B057805 B057805 B057805 B057805 B057805 B057805 B057805
Not Shown Hinge Pin B057804 B057804 B057804 B057804 B057804 B057804 B057804 B057804
Not Shown Natural Gas Conversion Kit B101062 B101062 B101062 B101062 N/A N/A N/A N/A
Not Shown Orifice, LP 1.25mm B101111 B101111 B101111 B101111 N/A N/A N/A N/A
Not Shown Orifice, NAT #49 N/A N/A N/A N/A B101063 B101063 B101063 B101063
Not Shown Stainless Steel Cooking Grid
(Single) - "W" Models Only
B101282 B101282 B101282 B101282 B101282 B101282 B101282 B101282

Page 8 B101361-0-1008
Recommended Tools
These items are recommended for the assembly of your
grill:
• Phillips screwdriver
• Adjustable wrench set
• Socket set
• Soapy water solution (to test for leaks)
• Liquid soap (for foam grip)
Grill Mountings
Assemble your base option before assembling your Broil-
master grill head.
Refer to the Broilmaster Cart, Base, and Post instructions
provided with each accessory for assembly, installation, and
mounting procedures.
Before You Begin
All Broilmaster grills require some assembly and installation.
Follow all instructions unless noted to apply only to other
specific models.
If you purchased an accessory with your Broilmaster, follow
the instructions provided with the accessory for assembly
and installation. If an instruction refers to a step that is not
required for your grill model, please continue to the next
step.
In each step, parts are identified with “Key” numbers. Key
numbers appear in parenthesis after a part name is mentioned
for the first time in the instructions. You can reference each
part by its key number on the Parts List if you need help in
identifying a part.
Compare the parts found in the shipping container to the
parts list provided. If any parts are missing contact your
Broilmaster dealer before beginning assembly.
CAUTION: FOR YOUR SAFETY
Parts may have sharp edges. Wear leather work
gloves and handle parts carefully during the unpack-
ing, assembly and installation.
GRILL ASSEMBLY

Page 9B101361-0-1008

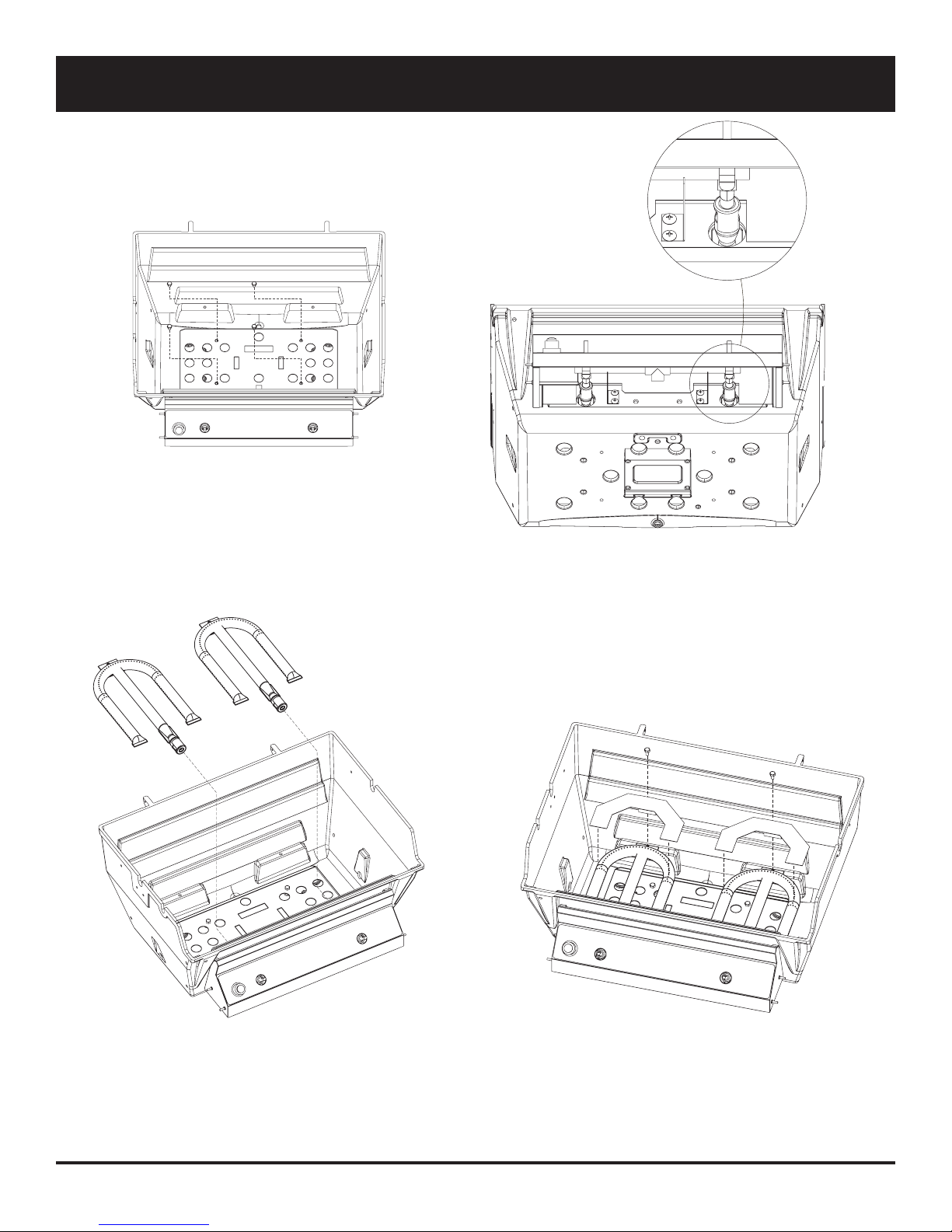

1. Mount grill onto cart, post or base per the mounting in-
structions.
2. Place radiation shield (13) (flange side up) onto four
raised bosses located on the interior bottom of the grill.
Secure with four 1/4-20 x 3/4 screws. See Figure 1.
3. Place burners (8) into grill and insert burner tubes over
orifice fittings on valve (17). Secure each burner and
burner shield (25) with one (1) 1/4-20 x 3/4 phillips
screw. See Figures 2, 3 and 4.
GRILL ASSEMBLY
Figure 1
Figure 2
Figure 3
Figure 4

Page 10 B101361-0-1008

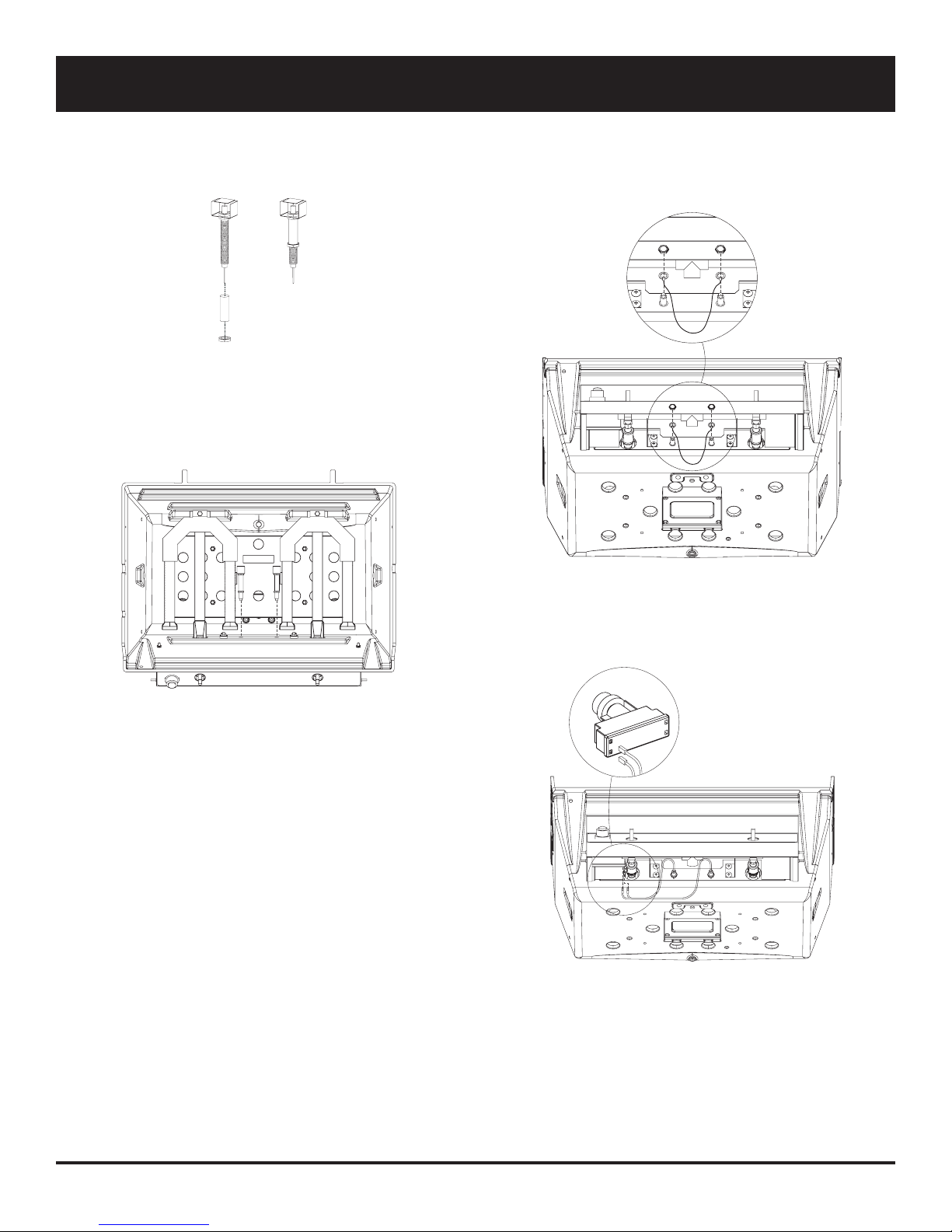

4. Slide ignitor spacers (11) onto collector box assem-
blies (10) and secure with nuts. See Figure 5.
Attention: Do not cut or damage ignitor wires.
5. Insert collector box assemblies into holes adjacent to
burners. The opening of the collector box should be
facing the burner. See Figure 6.
6. Attach ignitor ground wire ends onto ground lugs. Slide
ground lugs (12) over ignitor wires and onto collector
box assemblies. Slide nuts over ignitor wires and se-
cure collector box assemblies to grill. See Figure 7.
7. Remove ignitor from the control panel by unscrewing
the ignitor button and nut. Attach ignitor wires to termi-
nals on the ignitor. See Figure 8.
GRILL ASSEMBLY
Figure 5
Figure 6
Figure 7
Figure 8

Page 11B101361-0-1008
8. Re-attach the ignitor to the control panel , then tighten
nut and insert AA battery, positive side down, and re-
place ignitor button. See Figure 9.
9. Install foam grip (4) on lid handle (3). See Figure 10.
Tip: For ease of installation, slightly lubricate the lid
handle with liquid soap before pushing the foam grip
into place.
10. Fasten the lid handle to the grill body top (1) with two
#10-24 x 1" screws. See Figure 11.
11. Place the briquet rack (7) or flavor screen (9) over the
burners. See Figure 12.
12. T3 and T3C models only: Position the Char-Master bri-
quets evenly on the briquette rack without overlapping.
See Figure 12.
Figure 9
Figure 10
Figure 11
GRILL ASSEMBLY

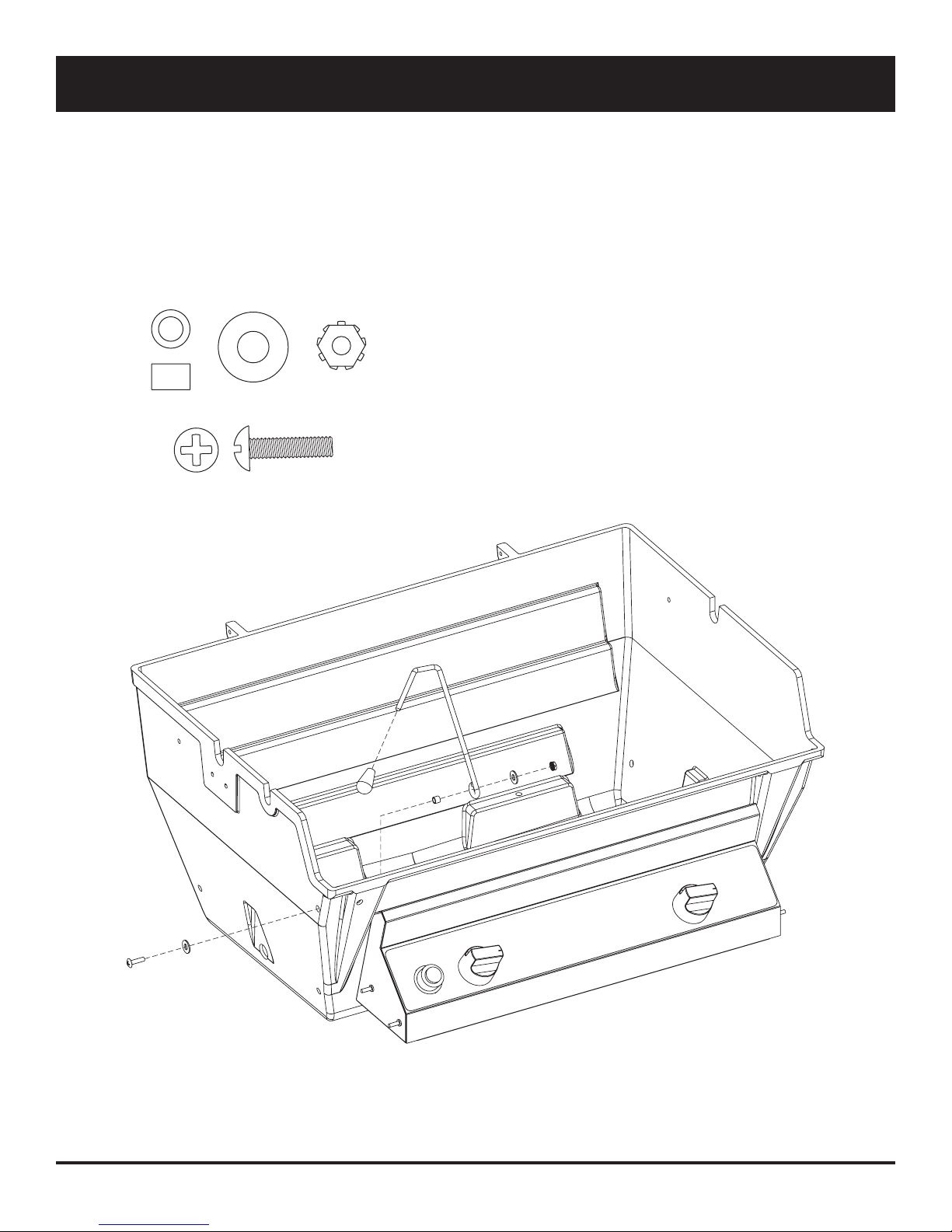

13. T3CA models only: Position Smoker Shutter (26) see
the DPA100 instruction manual included with the T3CA
grills. See Figure 12.
14 Set the cooking grids (6). See Figure 12.
15. Push valve knobs (22) on to valves.
Installing Char-Master Briquets
Individually place the ‘Char-Master’ briquets in a single layer
evenly on your grill’s briquet rack; DO NOT dump them onto
the briquet rack. A single layer of ‘Char-Master’ briquets is
all that’s needed. DO NOT overlap or stack the briquets.
See Figure 12.
After properly placing the ‘Char-Master’ briquets on your
grill’s briquet rack, there may be some briquets left over.
Save them for future use.
Before cooking, always preheat the grill as directed by the
grill’s operating instructions. Hot briquets cause better,
quicker cooking and better flavor.
Cleaning
Routine preheating and routine burn-off (also called post
heating) of a grill will clean the ‘Char-Master’ briquets. Pe-
riodically turn the briquets over while they are cool.

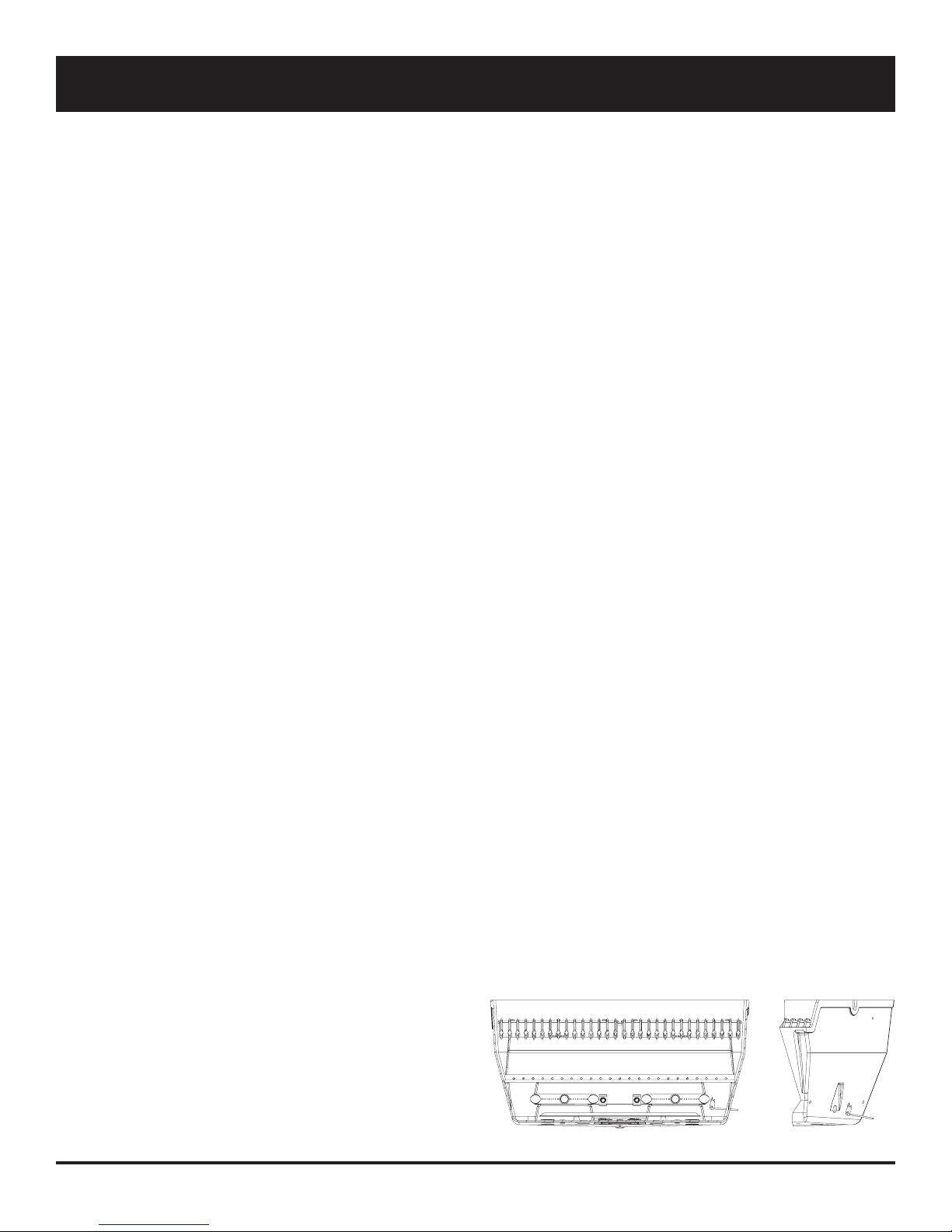

Figure 12
T3 & T3C MODELS T3CF MODELS

Page 12 B101361-0-1008
GRILL ASSEMBLY
Lid Stop
Attach the lid stop assembly to the grill bottom as shown.
Figure 13.
Figure 13
Lid stop assembly hardware

Page 13B101361-0-1008
Never use Liquid Propane (LP) gas with a grill designed for
Natural gas, or Natural gas with a grill designed for Liquid
Propane gas. The type gas required for your grill can be
determined from the product identification label located on
the grill’s control panel. Questions regarding different types
of gases should be directed to your gas supplier.
Cylinder Requirements
Your Broilmaster Premium Gas Grill requires a standard
twenty (20) pound propane gas cylinder.
The maximum height allowable for a replacement cylinder is
approximately twelve (12") inches (30.5 centimeters).
The propane gas cylinder used must be:
1. Constructed and marked in accordance with the speci-
fications for LP gas cylinder of the U.S. Department
of Transportation (D.O.T.) or the National Standard of
Canada, CAN/CSA-B339, Cylinders, Spheres, and Tubes
for Transportation of Dangerous Goods; and Commission
as applicable.
2. Provided with a listed overfilling protection device
(OPD).
3. Provided with a listed safety device having direct access
with the vapor space of the cylinder and the cylinder
supply system must be arranged for vapor removal.
4. Provided with a shutoff valve terminating in a valve outlet
as specified in the Standard for Compressed Gas Cylinder
Outlet and Inlet Connections, ANSICGA-V-1.
5. Provided with a plug to effectively seal off the cylinder
outlet when the cylinder is being stored or transported.
6. Provided with a collar to protect the cylinder valve.
Caution: Do not use a propane gas cylinder which has a
capacity greater than twenty (20) pounds with this grill
and side burner.
Gas TypeGrill Location
When choosing the ideal location for your Broilmaster Pre-
mium Gas Grill, remember this grill is designed for outdoor
use ONLY.
You should never install or operate your grill in any building,
garage, or other enclosed area.
For your safety, this grill should not be installed or operated
under any combustible materials, such as carports, covered
porches, awnings, or overhangs.
Never install or operate your grill in or on any recreational
vehicle or boat.
CAUTION: The installation and operation of this
grill at clearances less than specified below may
lead to the possibility of fire, property damage, or
personal injury.
A minimum clearance of sixteen (16") inches is required from
the sides of the grill to any combustible material.
A minimum clearance of eighteen (18") inches is required
from the back of the grill to any combustible material.
Some examples of combustible materials are a wall, a fence,
patio furniture, or the wall of your home.
The area surrounding the grill should be clear to ensure
proper ventilation. Do not obstruct the flow of combustion
and ventilation air in any way. The ventilation openings on
the propane cylinder enclosure must also remain free and
clear of debris.
Portable grills should be level and positioned away from
direct wind prior to each use.
WARNING: Do not install or operate this grill where
gasoline or other flammable materials are used or
stored. Failure to comply with this warning could
result in explosion or fire causing property damage
or personal injury.
PROPANE GAS GRILLS

Page 14 B101361-0-1008
Propane Cylinder Safety
Liquid Propane (LP) gas has a long history of safe use
when the safety precautions provided in this manual are
followed.
Failure to follow these safety precautions could result
in a fire or explosion causing property damage or
personal injury.
Propane gas cylinders should always be handled, stored,
and transported with extreme caution in a secured upright
position.
Never attempt to use or repair a propane gas cylinder that has
been damaged. Never attempt to use or repair a cylinder with
a faulty or damaged valve outlet. A cylinder that has been
dropped, dented, or otherwise damaged must be replaced.
A propane gas cylinder should never be transported in the
passenger area of a vehicle.
Keep cylinders out of direct sunlight and never apply any
other source of direct heat to them.
When refilling your cylinder, always insist on a reputable,
qualified gas dealer. Your propane gas cylinder is filled by
weight, and should never exceed eighty (80%) percent of its
weight limit. If the cylinder is not completely empty, the gas
dealer must make necessary adjustments to ensure it is not
overfilled. Never use an overfilled Propane gas cylinder.
Cylinder Storage
Your grill must be stored outdoors in a well ventilated area
if the cylinder is attached to it.
Disconnected cylinders must have a threaded valve plug
tightly installed and must not be stored in any building, ga-
rage, or other enclosed area.
Flammable materials (gasoline, grill covers, etc.) must not
be stored in the cylinder enclosure.
Always store Propane cylinders in a secured upright position,
out of the reach of children.
Caution: Never use Liquid Propane (LP) gas in a grill
designed for Natural gas, or Natural gas in a grill designed
for Liquid Propane gas. Questions regarding different
types of gases should be directed to your local gas sup-
plier.
Installation must conform to local codes or in the absence of
local codes, with the National Fuel Gas Code, ANSI Z223.1/
NFPA 54, Natural Gas and Propane Installation Code, CSA
B149.1, or Propane Storage and Handling Code, B149.2.
Warning: Broilmaster Premium Gas Grills require Liq-
uid Propane (LP) cylinders equipped with an Overfill
Protection Device (OPD). An overfilled or improperly
filled Propane cylinder can be dangerous.
Always use the pressure regulator and hose assembly supplied
with your Propane gas grill.
Note: Not all valve and cylinder combinations are compat-
ible. Check warning tag on valve and cylinder as well as
external fitting threads.
All Broilmaster pressure regulators and hose assemblies
require Propane cylinders with a Type 1 connection device
as illustrated. Figure 14.
Connection Requirements
Figure 14
PROPANE GAS GRILLS

Page 15B101361-0-1008
Connecting to Propane Gas / Cylinder Retention Means
Position the cylinder in the opening in the bottom of the cart and secure with the cylinder retaining bracket. Figure 15.
The pressure regulator has an outlet pressure of not more than eleven (11") inches water column. It must be connected to
the Propane gas cylinder’s male valve outlet before the grill can be operated.
Caution: Operation of a Propane gas grill without the pressure regulator and hose assembly will cause gas
leaks which could lead to fire or explosion, resulting in property damage or personal injury.
The pressure regulator’s fitting must remain clean and free of nicks and scratches. A dirty, nicked or scratched fitting can
cause a gas leak, resulting in an explosion or fire. Use only genuine Broilmaster replacement parts unless otherwise speci-
fied by the manufacturer.
Pressure Regulator and Hose Assembly
Attach the pressure regulator to the Propane gas cylinder’s
valve using the plastic handwheel. Tighten in a clockwise
motion to achieve a gas tight seal. See Figure 16.
Caution: Do not use a wrench or any other tool to
tighten. Use of a wrench or other tool will damage the
plastic handwheel.
To disconnect the Propane gas cylinder, turn OFF the cylin-
der’s valve and the grill’s control valve. Remove the regulator
by turning the plastic handwheel counterclockwise.
When not in use, the cylinder's valve must be closed.
Attention: Propane gas cylinders that are acceptable for use
with this grill must comply with "Cylinder Requirements"
section (Page 13) and "Connection Requirements" section
(Page 14.)
Caution: Assure hose does not touch the casting or
mounting components.
Figure 15
Clockwise
Clockwise
Figure 16
PROPANE GAS GRILLS

Page 16 B101361-0-1008
GAS CONVERSION TO NATURAL GAS
1. Remove cooking grids, flavor screen or, briquets and
briquet rack from grill.
2. Remove burners and burner shields from grill (one (1)
1/4-20 x 3/4 phillips screw for each burner). See Figure
17.
3. Remove LP burner orifice marked 1.25mm from each
orifice fitting. See Figure 18.
4. Install natural gas burner orifice marked 49 into each
orifice fitting. Apply pipe compound to threads on ori-
fices prior to installation.
5. Place burners into grill and insert burner tubes over ori-
fice fittings. Secure each burner with one (1) 1/4-20 x
3/4 phillips screw from Step 2.
6. Grasp valve knobs and remove from valves.
7. The low input adjustment screws are located inside
the two valve stems. Use a small screwdriver to turn
each adjustment screw clockwise 1/4 turn (90 degrees).
When valves are in the "OFF" position, the slot in the
adjustment screw should be vertical. See Figure 19.
8. Remove the hose and regulator from the gas connection
on grill with adjustable wrench.
9. Connect the grill to the natural gas supply.
Attention: Before lighting your grill check all gas
connections including the adjustment screws in valve
stems for gas leaks with a soapy water mixture.
Caution: Do not use the grill if a gas leak is detect-
ed until gas leak is corrected. If a gas leak can not be
stopped, do not use grill. You must contact a qualified
repair person.
10. Push valve knobs onto valves.
11. Apply the completed conversion label adjacent to the
rating plate label on the grill.
12. The natural gas inlet pressure at the grill is to be set at
7.0" of inlet pressure.
13. Ignite burners on grill and observe flame pattern. If
flame is yellow in color or flame is lifting off burner,
the air shutter on burners will require adjustment.
14. Beneath the control panel you can access the air shut-
ters which are located on the end of the burner tubes.
15. Loosen phillips screw at air shutter, open air shutter for
a yellow flame or close air shutter for a lifting flame.
Tighten phillips screw at air shutter.
16. Ignite burners on grill to verify burner flame character-
istics.
17. Replace flavor screen or briquet rack and briquets and
cooking grids.
Installation must conform to local codes or in the absence of
local codes, with the National Fuel Gas Code, ANSI Z223.1/
NFPA 54, Natural Gas and Propane Installation Code, CSA
B149.1, or Propane Storage and Handling Code, B149.2.
Caution: The grill and its individual shutoff valve must
be disconnected from the gas supply piping system dur-
ing any system pressure testing at test pressures in ex-
cess of 1/2 PSIG.
Caution: The grill must be isolated from the gas sup-
ply piping system by closing its individual manual shut-
off valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than 1/2
PSIG.
Figure 17
Figure 18
LPG
NAT
ADJUSTMENT SCREW ADJUSTMENT SCREW
Figure 19

Page 17B101361-0-1008
Gas Type
The type gas required for your grill can be determined from
the product identification label located on the grill’s control
panel. Questions regarding different types of gases should
be directed to your local gas supplier.
Caution: Never use Liquid Propane (LP) gas in a
grill designed for Natural gas, or Natural gas in a
grill designed for Liquid Propane gas. Questions
regarding different types of gases should be directed
to your local gas company.
Connection Requirements
Broilmaster grills are not equipped with pressure regulators.
Your gas grill operates at a manifold pressure of seven (7")
inches water column.
Connect cart mounted Natural gas grills to a pre-installed
gas supply line using the twelve (12’) foot flexible hose and
quick disconnect kit which can be purchased from your lo-
cal dealer.
Grill Location
When choosing the ideal location for your Broilmaster Pre-
mium Gas Grill, remember this grill is designed for outdoor
use ONLY.
You should never install or operate your grill in any building,
garage, or other enclosed area.
For your safety, this grill should not be installed or operated
under any combustible materials, such as carports, covered
porches, awnings, or overhangs.
Never install or operate your grill in or on any recreational
vehicle or boat.
CAUTION: The installation and operation of this
grill at clearances less than specified below may
lead to the possibility of fire, property damage, or
personal injury.
A minimum clearance of sixteen (16") inches is required from
the sides of the grill to any combustible material.
A minimum clearance of eighteen (18") inches is required
from the back of the grill to any combustible material.
Some examples of combustible materials are a wall, a fence,
patio furniture, or the wall of your home.
The area surrounding the grill should be clear to ensure
proper ventilation. Do not obstruct the flow of combustion
and ventilation air in any way. The ventilation openings on
the propane cylinder enclosure must also remain free and
clear of debris.
Portable grills should be level and positioned away from
direct wind prior to each use.
WARNING: Do not install or operate this grill where
gasoline or other flammable materials are used or
stored. Failure to comply with this warning could
result in explosion or fire causing property damage
or personal injury.
NATURAL GAS GRILLS

Page 18 B101361-0-1008
Operating Instructions
Before each use, inspect all hoses. If it is evident there is
excessive abrasion or wear, or the hose is cut, it must be
replaced prior to using your Broilmaster grill. Call your local
Broilmaster dealer for a replacement.
Using the Ignitor
Caution: If a burner fails to light after 5 seconds, turn
the burner OFF for 5 minutes, to allow the gas to clear,
then try again.
Note: Each burner must be lit individually.
1. Turn knob on the grill CLOCKWISE to the OFF posi-
tion.
2. Turn ON gas at the source.
3. With the grill lid open, push and turn the burner control
knob COUNTERCLOCKWISE to Hi.
4. Push and hold the ignitor button until the burner lights
(approximately 5 seconds).
5. If a burner does not light, turn OFF all gas and refer to
the Troubleshooting section of this manual.
6. Repeat steps 3 through 5 for other burner.
Using Matches
Caution: If a burner fails to light after 5 seconds, turn
the burner OFF for 5 minutes, to allow the gas to clear,
then try again.
Note: Each burner must be lit individually.
1. Turn knob on the grill CLOCKWISE to the OFF posi-
tion.
2. Turn ON gas at the source.
3. Open the grill lid.
4. Insert a burning long wooden match through the lighter
hole on either side of the grill. See Figure 20.
5. Turn the burner control knob COUNTERCLOCKWISE
to HI.
6. If a burner does not light, turn OFF all gas and refer to
the Troubleshooting section of this manual.
7. Repeat steps 3 through 6 for other burner.
Checking for Gas Leaks
Check for gas leaks every time you connect your Broilmaster
propane gas grill to a Propane gas cylinder, when a connected
cylinder has not been used recently, or when either a natural
or propane grill is being used for the first time.
Caution: Do not use an open flame when checking for
leaks. Checking for leaks with an open flame may lead
to a fire or explosion, resulting in property damage or
personal injury.
To check for gas leaks:
1. Use dish washing liquid and a little water to make a soapy
solution.
2. Turn OFF the knob on the control panel.
3. Turn ON the gas at the supply or cylinder. A hissing sound
indicates a leak. Turn OFF the gas and repair the leak.
4. Apply the soapy water solution to all gas connections.
5. Look for bubbles. Bubbles indicate a leak.
6. If there are bubbles turn OFF the gas and repair the
leak.
7. Turn the gas back ON and repeat the above procedures
until all leaks are repaired.
Air Shutter Adjustment
The burner (venturi) tube air shutter is preset at the factory
so that after five minutes the burner flames are blue with well
defined cones. If, after five minutes the flame is yellow, or
there is a gap between the burner and the flame, adjust the
burner (venturi) tube air shutter as follows:
1. Turn gas OFF and let the burner cool.
2. Beneath the control panel you can access the air shutter(s)
which are located on the end of the burner tubes.
3. Loosen shutter set screw
4. Close the air shutter to the minimum opening.
5. Light the burner, wait five minutes and then carefully open
the air shutter until the flame is blue and well defined.
6. Retighten the set screw.
Figure 20
OPERATION - PROPANE & NATURAL GAS GRILLS

Page 19B101361-0-1008
Electrical Accessories
If an electrical accessory (e.g. rotisserie) is used on your grill,
the accessory must be electrically grounded in accordance
with local codes or, in the absence of local codes, with the
National Electric Code, ANSI/NFPA 70. In Canada, the elec-
trical accessory must be electrically grounded in accordance
with the applicable section of the current Canadian Electrical
Code, CSA C22.1.
Any electrical accessory should be equipped with a three-
prong (grounding) plug, and plugged into a properly grounded
three-prong receptacle or wall outlet. Do not cut or remove
the grounding prong from the plug.
If an extension cord is required, use only a three-prong cord
and plug into a properly grounded receptacle as described
above.
Do not expose an electrical accessory to water. Avoid using
any electrical accessory in wet weather as it may present a
shock hazard.
Keep any electrical cord and fuel supply hose away from all
heated surfaces.
Before Cooking
Before cooking on a grill for the first time, it should be
operated to burn off any oil residue from the manufacturing
process.
1. Raise the grill lid.
2. Light grill burners.
3. Burn on HI for ten minutes.
4. Close the lid and burn on HI for an additional ten
minutes.
5. Turn OFF gas. The grill is now ready for use.
Preheating
Before cooking on a gas grill, allow the grill to preheat on
HI for 5 minutes with the lid closed.
This uses very little fuel and provides better flavor.
Cooking
Broilmaster is happy to provide a cookbook with each of
its grills. The cookbook contains helpful cooking tips and
instructions as well as great tasting recipes for preparing
many delicious foods on your grill.
OPERATION

Page 20 B101361-0-1008
Cleaning the Grill
Caution: To prevent injury, use care when cleaning a
hot grill.
Note: Do not use a commercial cleaner on the cooking
grids. Do not brush grids while they are hot. Do not
scrape grids. This can damage the porcelain coating and
void the warranty on the cooking grids.
For baked on residue use a BRASS (NOT STEEL) brush on
the cooking grid and other components.
Burn Off
This process is much like that used in self-cleaning ovens
and is most efficient when completed after each use of the
grill.
Caution: Do not open the grill during the burn off
process. Opening the grill during the burn off process
may cause a sudden grease fire flare up that could burn
your face and arms. Wait until the grill has cooled before
opening.
1. Turn gas knob to HI. Close lid and allow the grill to
burn for ten minutes, or until no smoke is present. Do
not allow the grill to burn for more than 30 minutes.
2. Turn gas knob and supply to OFF and allow the grill to
cool.
3. Wipe COOL grill with a damp cloth to remove soot.
Grill Bottom
Periodically remove cooking grids and Char-Master Briquets
or flavor screen to clean the interior of the grill. Scrape off
baked on residue with a putty knife or brass brush and rinse
with water. Clean the bottom air holes with a small knife.
Burner Maintenance
Visually inspect the burner flames with each use. Five minutes
after lighting, the flames should be blue and have well defined
cones. See Figure 21. See the troubleshooting section if the
flames are yellow or lift off the burner.
Stainless steel burners often turn reddish brown after use.
This does not effect the performance of the grill. When
cleaning the interior of the grill, remove the burners and clean
with a brass brush. Wash with water and a mild detergent.
Grease Tray
Empty periodically. Replacement tray liners can be
purchased at most supermarkets where disposable aluminum
baking pans are displayed.
Burner (Venturi) Tubes
The burner (venturi) tubes allow air and gas to mix prior
to burning, thus ensuring an efficient flame. Spiders or
other small insects may build webs or nests inside the
tubes obstructing air flow. Fire, or flashback, can occur,
in and/or around obstructed burner (venturi) tubes and can
cause damage to components beneath the grill or an unsafe
condition. To reduce risk, inspections and cleaning should
be performed at least twice monthly when spiders are active.
If the grill has been unused for an extended period of time
inspect the tubes before using the grill.
Clean burner (venturi) tubes as follows:
1. Remove the cooking grids and briquette rack or flavor
screen.
2. Remove the burner from the grill.
3. Use a small flexible brush to remove any debris from the
burner (venturi) tube.
4. Flush with water.
5. Allow the burner (venturi) tube to dry before
reinstalling.
6. Reinstall the burner, briquet rack and briquets or flavor
screen, and cooking grids.
Exterior
Clean regularly with a solution of mild detergent and hot
water. Touch-up paint is available from your dealer. Broil-
master protective covers are recommended. Stainless steel
components can be easily cleaned with a spray-on stainless
steel cleaner found in most hardware stores.
Char-Master Briquettes
If the briquettes did not come clean during burn off, after
cooling turn them over. The residue will burn off during
warm-up for the next use.
MAINTENANCE
Figure 21
Correct Flame Pattern Incorrect Flame Pattern
