Brookstone BKWIFICAMDR User manual

USER MANUAL
For more products please visit www.brookstone.com
WiFi Video Doorbell
FCC ID: 2AG7CBELL5

For more products please visit www.brookstone.com
FCC Statement:
1. This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Caution: The user is cautioned that changes or modifications not
expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
2. This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20cm between
the radiator and any part of your body.

For more products please visit www.brookstone.com
WARRANTY INFORMATION
One Year Limited Warranty.
Customer Service: 732-994-2301; email: [email protected]
©Smartpoint LLC,
250 Liberty Street Metuchen NJ, Suite 1A
The BROOKSTONE trademark, names and logos are owned by
BKST Brand Holdings LLC ©2020. All rights reserved
Manufactured, marketed and distributed by Smartpoint LLC, under license
Google, Android and Google Play are trademarks of Google LLC.
App Store®is a registered trademark of Apple, Inc
All trademarks and Registered trademarks are property of their respective owners
Made in China

SPECIFICATIONS
Model: BKWIFICAMDR
Resolution:1920x1080
Alarm: Motion detection, button triggering
Viewing angle: 145°
Night Vision: Up to 32 feet
Frame rate: Up to 25 fps
Sensor: 2.0 Megapixel/ Color CMOS
Audio: Microphone & Speaker built-in
Micro SD Card Storage: Up to 128GB (FAT32 format)
Compression: H.264
Video Format: .mp4
Power: AC 12V~24V
Accessory: Mechanical chime kit
Operating Temperature: -4°F ~ 122°F
Waterproof Rating: IP54
Dimensions: 4.53” x 1.77” x 1.1”
Security: User Authentication,
Software encryption
Wireless: 2.4G WIFI(IEEE802.11b/g/n)
Operating System:
Android™ 5.0 or higher, iOS 10.0 or higher

FEATURES
• Wi-Fi remote controlled through App
• Works with existing Mechanical Chimes
• Hardwired and hooks up to electrical
• Night vision
• Motion detection
(Create customized detection zones)
• Two way audio
• Live video
• Video recording
• Cloud storage or Micro SD Card storage
• Takes still photos
• Weatherproof
• Easy install
Items included in package:
Camera and User Manual.

PRODUCT CONFIGURATION
Camera Lens
Button
Status
Light
Microphone
External
Power ports
Speaker
Micro SD Card Slot
Reset Button
USB Port

WHAT’S IN THE BOX
Video Doorbell Angled
Wall Mount
Chime Kit
Screws and
Wall Anchors
Reset Pin Screwdriver
3M Adhesive Wire Terminal Connecting Wires
Manual

Installing Camera without angled bracket
CAUTION: Before handling wiring of your house make
sure to turn off breaker in fuse box to existing doorbell
to avoid injury or death.
1. After turning power off,
remove old doorbell.
2. Place bracket on wall
and mark where screws
will go.
3. If you are installing on
brick or concrete, use
(B)wall anchors. If
installing on wood or
metal just use (A)screws.
4. Attach bracket to wall using
(A)screws. Make sure bracket is
level. Run the wires coming
from the house through the
opening in the bracket. Make
sure the bracket is installed
with the (UP) arrow pointing up.

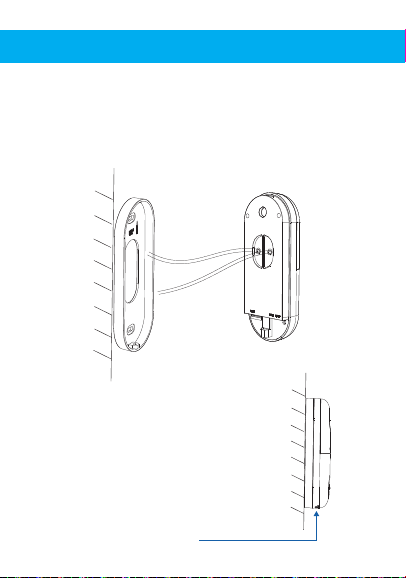

5. Attach wires from house to wires on camera
using the wire terminal. (You can use your own
twist on connectors if you wish). It does not matter
which wire connects to which wire from the house.
6. Fit the camera into the
bracket and use the (D)screw
at the bottom of the bracket
to secure camera into bracket.
(D) screw location

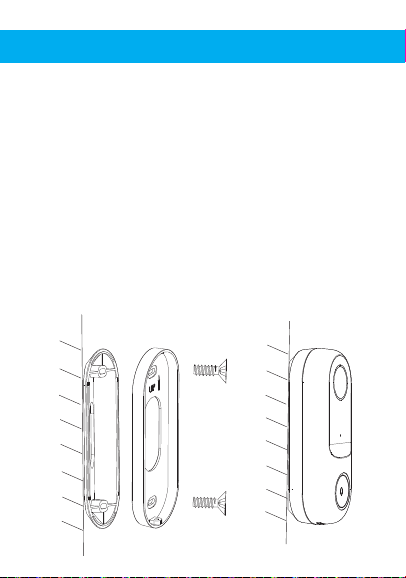

Installing Camera with angled bracket
1. If you want your camera to be angled in a left or
right direction use the included angled bracket.
2. If you choose to install the angled bracket,
install it directly onto the wall before the camera
bracket in the desired angled position using
(A)screws and (B)wall anchors if needed.
3. Attach camera bracket to angled bracket using
(C) screws. Then follow steps 5 and 6 on previous
page.

Installing Mechanical Chime
CAUTION: Before installing mechanical chime make
sure to turn off breaker in fuse box to mechanical
chime box to avoid injury or death.
1. Find your mechanical chime that is a rectangular
box that produces the sound when your doorbell is
rung. It may(or may not)be mounted immediately
inside your FRONT door. Once found, remove the
cover.
2. Locate the Chime Kit included in the packaging
and the terminals on the inside of the chime.
Connect one of the Chime Kit's prongs to the
transformer terminal (usually labeled TRANS, T, AC,
or 0). Connect the other prong to the chime's front
terminal (usually labeled FRONT, F, 1, or C1).Either
prong on the Chime Kit can be connected to
either of the terminals on the chime.

3. To connect the prongs, slightly unscrew both
screw terminals and place prongs from the Chime
Kit under each screw and tighten(It does not
matter which color wire from the Chime Kit
connects to which screw).
4. Using the included 3M adhesive, stick the Chime
Kit to your chime wherever there is space and
replace the cover. Be careful not to interfere with
any of the chime's moving parts.
Mount on the outside of the chime if there is not
enough room to mount inside. And replace
your chime's cover.

DOWNLOAD APP
Brookstone Smart
1. Android: download “Brookstone Smart” app
on Google Play.
2. iPhone: download “Brookstone Smart” app
from the App Store.
1. Run the “Brookstone Smart” app from your
smart phone.
2. Register and login.
*

REGISTRATION AND LOGIN
1. Run the “Brookstone Smart” app from your
smart phone.
2. Register and login.
*Screenshots may slightly differ from actual app.
*

1. Plug in Video Doorbell with USB cable into USB block
in outlet or connect to electrical of house. If the light
is not already blinking, insert the provided reset pin
gently into the reset hole for 3-6 seconds until you
hear a chime, then release. Then wait a few
seconds. The light should then start blinking rapidly.
Camera is now ready to be set up.
2. Make sure phone is connected to your Wi-Fi
network and that it is a 2.4GHz network.
3. Press the (+) symbol in the top right corner of
the app and select the Smart Camera from
the list of devices to add.
ADD DEVICE

1. Plug in Video Doorbell with USB cable into USB block
in outlet or connect to electrical of house. If the light
is not already blinking, insert the provided reset pin
gently into the reset hole for 3-6 seconds until you
hear a chime, then release. Then wait a few
seconds. The light should then start blinking rapidly.
Camera is now ready to be set up.
2. Make sure phone is connected to your Wi-Fi
network and that it is a 2.4GHz network.
3. Press the (+) symbol in the top right corner of
the app and select the Smart Camera from
the list of devices to add.
4. Press the “next step” button
5. Make sure phone is connected to the Wi-Fi
network that the device will be connected to.
Enter your password for the Wi-Fi network.
6. Follow the directions in the app and hold the
QR code on the screen in front of the view of the
camera.

7. Connecting process will begin. Do not turn off
Video Doorbell or phone while connecting. Wait for
connection process to complete.
8. Once device has been successfully added, name
the device what you would like it to be called in
the app. The Video Doorbell is ready for use.
9. Unplug camera and begin installation where old
doorbell was. Once camera is hooked up to power
it should reconnect to Wi-Fi network. If it does not
repeat set up steps.
4. Press the “next step” button
5. Make sure phone is connected to the Wi-Fi
network that the device will be connected to.
Enter your password for the Wi-Fi network.
6. Follow the directions in the app and hold the
QR code on the screen in front of the view of the
camera.

PUSH NOTIFICATIONS
1. You can turn on/off notifications for all devices
connected to app by clicking on the “Me” button at the
bottom right of the screen.
2. Then click on ”Settings” button. From there you can turn
on/off all notifications.
3. To view notifications in the app, click on “message
center” on the “me” tab on the bottom.

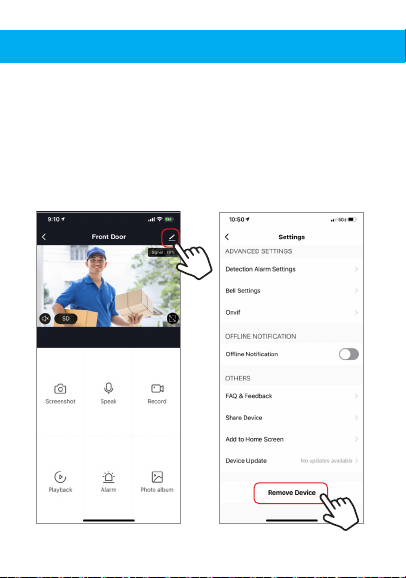

REMOVE A DEVICE
1. From the home screen, click on the device you would like
to remove.
2. Then click on the edit symbol on the top right of the
screen.
3. From there you would then click the “Remove Device”
button at the bottom of the screen.

APP FUNCTIONS

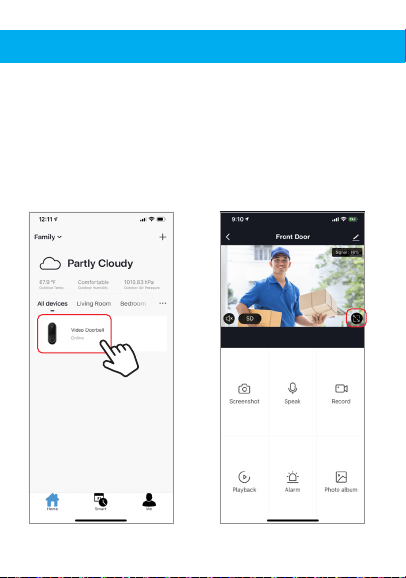

Live Video
To view live video simply click on the device under “All
devices” and you will see your live video at the top
immediately. Hit the full screen button at the bottom right
corner of the live video to see your live footage at full screen
on your phone.
