Brother DCP 330C - Color Inkjet - All-in-One User manual

STEP 1
STEP 2
Setup is Complete!
Quick Setup Guide
Setting Up the Machine
Installing the Driver & Software
DCP-330C
DCP-540CN
Before you can use the machine, you must set up the hardware and install the software.
Please read this Quick Setup Guide for the correct setup procedure and installation instructions.
Keep this Quick Setup Guide, the User’s Guide and the supplied CD-ROM in a convenient place for
quick and easy reference at all times.
Version A

Symbols used in this guide
Warning
Caution Improper Setup
Warnings tell you what to do to prevent
possible personal injury.
Cautions specify procedures you must
follow or avoid to prevent possible
damage to the machine or other objects.
Improper Setup icons alert you to
devices and operations that are not
compatible with the machine.
Note
User’s Guide, Software User’s Guide or
Network User’s Guide
Notes tell you how you should respond
to a situation that may arise or give tips
about how the current operation works
with other features.
Indicates reference to the User’s Guide,
Software User’s Guide or Network
User’s Guide we have supplied.

Table of Contents
1
Getting Started
Carton components...................................................................................................................................... 2
Control panel................................................................................................................................................ 3
STEP1 – Setting Up the Machine
Removing the protective parts ..................................................................................................................... 4
Loading paper .............................................................................................................................................. 4
Connecting the power cord .......................................................................................................................... 6
Installing the ink cartridges........................................................................................................................... 6
Print quality check ........................................................................................................................................ 8
Choosing your language (Canada only)....................................................................................................... 9
Setting the LCD contrast ............................................................................................................................ 10
Setting the date and time ........................................................................................................................... 10
STEP2 – Installing the Driver & Software
Windows®
For USB Interface Users
(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition) ................................... 14
For Network Interface Users (DCP-540CN only)
(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition) ................................... 17
Macintosh®
For USB Interface Users
(For Mac OS®X 10.2.4 or greater) ........................................................................................................... 21
For Network Interface Users (DCP-540CN only)
(For Mac OS®X 10.2.4 or greater) ........................................................................................................... 24
For Network Users
BRAdmin Professional configuration utility (For Windows®users) ............................................................ 27
Installing the BRAdmin Professional configuration utility ...................................................................... 27
Setting your IP address, Subnet Mask and Gateway using BRAdmin Professional ............................ 27
BRAdmin Light configuration utility (For Mac OS®X users) ...................................................................... 28
Setting your IP address, Subnet Mask and Gateway using BRAdmin Light ........................................ 28
Consumables
Replacement consumables........................................................................................................................ 29
Ink cartridge .......................................................................................................................................... 29

Getting Started
2
1
Carton components
Carton components may vary from one country to another.
Save all packing materials and the carton in case for any reason you must ship your machine.
An interface cable is not a standard accessory. You need to purchase the proper interface cable for the interface
you want to use (USB or network).
USB cable
Please make sure you use a USB 2.0 cable that is no longer than 6 feet long (2 meters).
Your machine has a USB interface that is compatible with the USB 2.0 specification. This interface is also
compatible with Hi-Speed USB 2.0; however, maximum data transfer rate will be 12 Mbits/s. The machine can
also be connected to a computer that has a USB 1.1 interface.
DO NOT connect the interface cable at this time.
Connecting the interface cable is done during the software installation process.
When you use a USB cable, make sure you connect it to the USB port of your computer and not to a USB port
on a keyboard or a non-powered USB hub.
Network cable (DCP-540CN only)
Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet
Network.
Quick Setup Guide CD-ROM User’s Guide
Accessory Order Form
Black (LC51BK) Yellow (LC51Y) Cyan (LC51C) Magenta (LC51M)
Ink Cartridges

Getting Started
3
Control panel
1 Number of Copies key
2 Menu keys
3 Start keys
4 Stop/Exit key
5On/Offkey
6Inkkey
7 Scan key
8 PhotoCapture key
9 Warning LED
10 LCD (Liquid Crystal Display)
For the details of the control panel, see Control panel overview in Chapter 1 of the User’s Guide.
Illustrations in this Quick Setup Guide are based on DCP-330C.
COPY
Quality
Enlarge/Reduce
Paper Type
Paper Size
Brightness
Normal
100%
Plain Pa
Letter
0
01
p
76
54
123
10 9
8

Setting Up the Machine
4
STEP1
1
1 Removing the protective
parts
1Remove the protective tape and film covering
the scanner glass.
2Remove the foam bag containing the ink
cartridges from on top of the paper tray.
Improper Setup
DO NOT connect the interface cable.
Connecting the interface cable is done during
the software installation process.
2 Loading paper
You can load up to 100 sheets of 20 lb
(80 g/m2) paper.
For details, see Acceptable paper and other
media in Chapter 2 of the User’s Guide.
1Pull the paper tray completely out of the
machine and lift the output paper tray cover (1).
2Press and slide the paper side guides (1) and
paper length guide (2) to fit the paper size.
1
2
1

Setting Up the Machine
5
3Fan the stack of paper well to avoid paper jams
and misfeeds.
4Gently put the paper into the paper tray print
side down and top edge first.
Check that the paper is flat in the tray.
Note
When you use Legal size paper, press and hold
the universal guide release button as you slide out
the front of the paper tray.
5Gently adjust the paper side guides with both
hands to fit the paper.
Make sure that the paper side guides and
paper length guide touch the edges of the
paper.
Note
Be careful that you do not push the paper in too
far; it may lift at the back of the tray and cause
paper feed problems.
6Close the output paper tray cover.
7Slowly push the paper tray completely into the
machine.

Setting Up the Machine
6
STEP1
8While holding the paper tray in place, pull out
the paper support ( ) until it clicks, and then
unfold the paper support flap ( ).
Note
Do not use the paper support flap for Legal paper.
Note
You can use the photo bypass tray is located on
the top of the paper tray to print on photo 4
× 6 in.
(10
× 15 cm) and photo L size paper.
For details, see Loading photo paper in Chapter 2
of the User’s Guide.
3 Connecting the power cord
1Connect the power cord.
Improper Setup
DO NOT connect the interface cable.
Connecting the interface cable is done during
the software installation process.
Note
The control panel warning LED will stay on until
you have installed the ink cartridges.
4 Installing the ink cartridges
Warning
If ink gets in your eyes, wash them out with water
at once, and if irritation occurs consult a doctor.
1Make sure that the power is turned on.
The LCD shows:
No Cartridge
Black
Yellow
Cyan
Magenta
2Open the ink cartridge cover (1).
3Pull all the lock release levers down and
remove the yellow protective part (1).
Note
Do not throw away the yellow protective part. You
will need it if you transport the machine.
1
1

Setting Up the Machine
7
4Take out the ink cartridge.
5Carefully remove the protective yellow cap (1).
Improper Setup
DO NOT touch the area shown in the
illustration below.
Note
If the protective yellow cap comes off when you
open the bag, the cartridge will not be damaged.
6Install each ink cartridge in the direction of the
arrow on the label.
Take care to match the color of the lock release
lever (1) with the cartridge color (2), as shown
in the diagram below.
7Lift each lock release lever and gently push it
until it clicks, and then close the ink cartridge
cover.
Note
If the LCD prompts you to re-insert the ink
cartridge correctly, after you install the ink
cartridges, check that the ink cartridges are
installed properly.
1
Mbrother
XXXX

Setting Up the Machine
8
STEP1

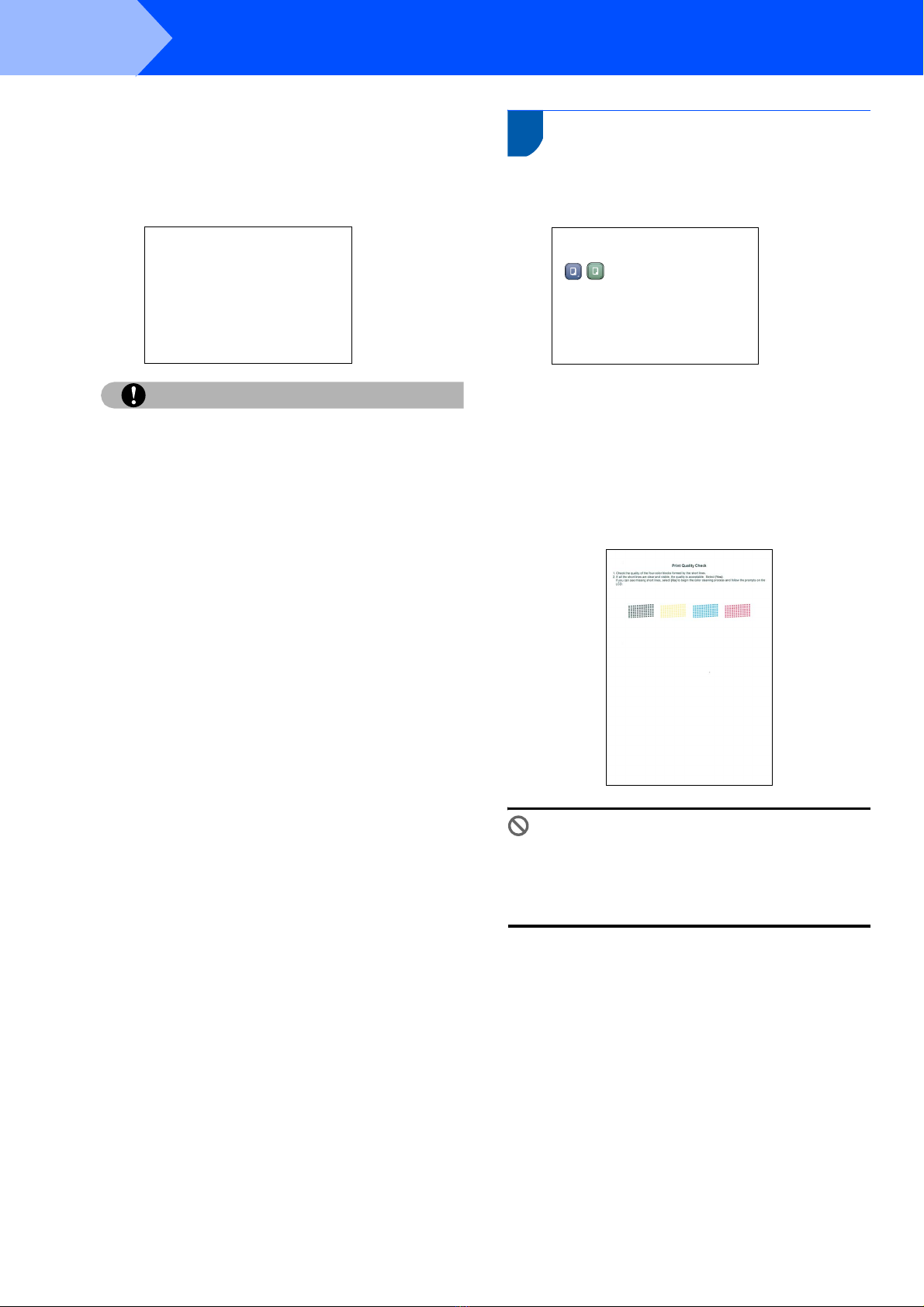

The machine will clean the ink tube system for
use for the first time. This process will occur
only once, the first time ink cartridges are
installed. The cleaning process will last
approximately four minutes.
The LCD shows:
Cleaning
iiiii
Preparing System
Approx 4 Minutes
Caution
• DO NOT take out ink cartridges if you do not
need to replace them. If you do so, it may
reduce the ink quantity and the machine will
not know the quantity of ink left in the
cartridge.
• DO NOT shake the ink cartridges. If ink stains
your skin or clothing, wash with soap or
detergent at once.
• DO NOT repeatedly insert and remove the
cartridges. If you do so, ink may seep out of the
cartridge.
• If you mix the colors by installing an ink
cartridge in the wrong position, clean the print
head several times after correcting the
cartridge installation. (See Cleaning the print
head in Appendix B of the User’s Guide.)
• Once you open an ink cartridge, install it in the
machine and use it up within six months of
installation. Use unopened ink cartridges by
the expiration date written on the cartridge
package.
• DO NOT dismantle or tamper with the ink
cartridge, this can cause the ink to leak out of
the cartridge.
• Brother strongly recommends that you do not
refill the ink cartridges provided with your
machine. We also strongly recommend that
you continue to use only Genuine Brother
Brand replacement ink cartridges. Using or
attempting to use potentially incompatible
inks and/or cartridges in your machine may
cause damage to the machine itself and/or it
may result in unsatisfactory print quality. Our
warranty coverage does not apply to any
problem that was caused by the use of
unauthorized third party ink and/or cartridges.
To protect your investment and guarantee
your print quality please continue to replace
consumed ink cartridges with only Genuine
Brother Branded Supplies.
5 Print quality check
1After the cleaning cycle is finished, the LCD
shows:
Set Paper and Press
2Make sure paper is loaded in the paper tray.
Press Color Start.
The machine starts printing the Print Quality
Check Sheet (only during initial ink cartridge
installation).
3Check the quality of the four color blocks on the
sheet.
(black/ yellow/ cyan/ magenta)
Improper Setup
Avoid touching the printed surface of the
paper immediately after printing, the surface
may not be completely dry and may stain your
fingers.
