Brother HL-5470DW User manual

Quick SetupGuideC €®
StartHere
(EU only)
HL-5470DW(T
HL-6180DW(T
Thank youforchoosingBrother,yoursupportis important tousandwevaiueyour business. YourBrother product
is engineeredandmanufacturedtothehigheststandardstodeliverreiiabieperformance,day-inandday-out.
Please readtheProductSafetyGuidefirst,thenreadthisQuickSetupGuideforthecorrectsetupandinstallation
procedure.
To viewtheQuickSetupGuideinotherlanguages,pleasevisithttp://solutions.brother.com/.
(HL-6180DW(T)) inUSA:
Please gototheBrotherSolutionsCenterathttp://solutions.brother.com/andclickManualsonyourmodelpage
todownloadtheothermanuals.
Note
Notailmodelsareavailableinallcountries.
1

A WARNING
WARNING indicatesa potentially hiazardoussituationwhicti,ifnotavoided,
couidresultindeathorseriousinjuries.
A CAUTION
CAUTiON indicatesa potentiaiiy hazardoussituationwhich,ifnotavoided,may
resultinminorormoderateinjuries.
!WARNING
Plastic bagsareusedinthepackingofyourmachine.Plasticbagsarenottoys.Toavoidthedanger
ofsuffocation,keepthesebagsaway from babiesandchildrenanddisposeofthemcorrectiy.
Ifyouusea LowerTray,DONOTcarrythemachine with theLowerTrayasyoumaybeinjuredor cause
damagetothemachinebecauseit isnotattachedtotheLowerTray.
y Note
Keep a minimumgaparoundthemachineasshownintheillustration.
•
150 mm(6in.)
•Thecomponentsincludedintheboxmay differ dependingonyourcountry.
•Werecommend that you save theoriginalpackaging.
•Ifforanyreasonyoumustshipyourmachine,carefullyrepackthemachineintheoriginalpackagingtoavoid
any damage during transit.Themachineshouldbeadequatelyinsured with thecarrier.Forhowtorepack
themachine,seePacking and shipping the machine inthe User's Guide.
•IllustrationsinthisQuickSetupGuidearebasedontheHL-5470DW.
•Theinterfacecableisnota standardaccessory.Buytheappropriateinterfacecablefortheconnectionyou
wanttouse(USBorNetwork).
USB cable
Itisrecommendedtousea USB2.0cable(TypeMB) that isnolongerthan2 meters(6feet).
Network cable
For HL-5470DW(T), usea straight-through Category5 (orgreater)twisted-paircablefor 10BASE-T,
100BASE-TX Fast EthernetNetwork.
For HL-6180DW(T), usea straight-through Category5e(orgreater)ShieldedTwisted-Pair (STP) cablefor
10BASE-T, 100BASE-TX Fast EthernetNetworkor 1000BASE-T GigabitEthernetNetwork.Whenyou
connectthemachinetoa GigabitEthernetNetwork,usethenetworkdevicescomplying with 1000BASE-T.
2

O
Remove thepacking
materialfromthe
machine
OImportant
DO NOTconnecttheACpowercordyet.
3Removethepackingtapefromtheoutsideof
themachine.
bOpentheMPtrayO.andremovethepacking
tapeQ fromtheMPtraysupport,thenciose
theMPtray.
C Press the front cover release button andopen
the front cover.Removethe silica gelpackO-
|A CAUTION IMIIIIIIill
DO NOTeatthe silica gelpack. Please throw
away. Ifingested, seek medicalattention
immediately.
d Take outthedrumunitandtonercartridge
assembly.
©Removetheorangeprotectivematerialfrom
thedrumunitandtonercartridgeassembly.
Holdthedrumunitandtonercartridge
assembly levelwith both handsandgently
shake itfromsidetoside several timesto
distributethetonerevenlyinsidethecartridge.
C| Putthedrumunitandtonercartridgeassembly
firmlybackinthemachine.
h Close the front coverofthemachine.

1
Load paperinthepaper
tray
9Pullthepapertraycompletelyoutotthe
machine.
Whilepressingthegreenpaper-guiderelease
lever 0<slidethepaperguidestotitthepaper
size youareloadinginthetray.Makesurethat
theguidesare tirmly intheslots.
Note
For LegalorFolio size paper,presstherelease
button O inthe bottom otthepapertrayandthen
puii outthebackotthepapertray.
(Legal orFolio size paperarenotavailablein
some regions.)
Fan thestackofpaperwelltoavoidpaperjams
andmisteeds.
Put thepaperinthetrayandmakesure:
•Thepaperisbelowthemaximumpaper
mark (TTT) O.
Over tilling thepapertray wili cause paper
jams.
•Thesidetobeprintedonisfacedown.
•Thepaperguidestouchthesidesotthe
papersoitwiilteedproperly.
Put thepapertrayfirmlybackinthemachine.
Makesurethatitiscompletelyinserted into the
machine.
LiftupthesupportflapO topreventpaper from
slidingofttheface-down output tray.
For moreinformationaboutrecommended
paper,seeRecommended paper and print
media inthe User's Guide.
4

Turnonthemachine
O Important
DO NOTconnect ttie interfacecable
yet.
3ConnecttheACpowercordtothemachineand
thenconnectittoanACpower outlet.
bTurnthemachine'spowerswitchon.
Wireless setup
(ifneeded)
For wirelesssetupusinga Macintoshcomputeror
mobiledevice,gotoa.
For Windows® users (aiiconnections)andMacintosh
users usingtheUSBandwirednetworkconnections,
gotob.
3Ityouareusinga Macintoshcomputeror a
mobiledeviceona wirelessnetwork,pressA to
choose Yes.
Then gotostep9 onpage17tocontinuethe
wireless setup.
Afterfinishingthewirelesssetupyou wiil need
toreturntostep6 tofinishthemachinesetup.
^ Note
Ityouwanttochangethelanguageonyour
machinefirst,youcanchooseNoandyou wiil he
abletoconfigurethewirelesssettingslater.
Ityouareusinga Windows®computerorwant
toconnectyourMacintoshusingUSBorwired
network,pressT tochooseNo.
Then gotostep6.
The wirelesssetuptorWindows® users wili he
covered inlatersteps.

Printa testpage
3 Press Go.Themachinewill print a testpage.
Check thatthetestpagehasprintedcorrectiy.
Boo
Note
This function wili notheavailahleafterthefirst
print johyousend from yourcomputer.
Set yourlanguage
3 Press A orT tochoose GeneralSetup.
Press OK.
b Press OKtochoose Local Language.
C Press A orT tochooseyourlanguage.
Press OK.
d PressCancel.
Nowgoto
Nextpagetoinstalltheprinterdriver.

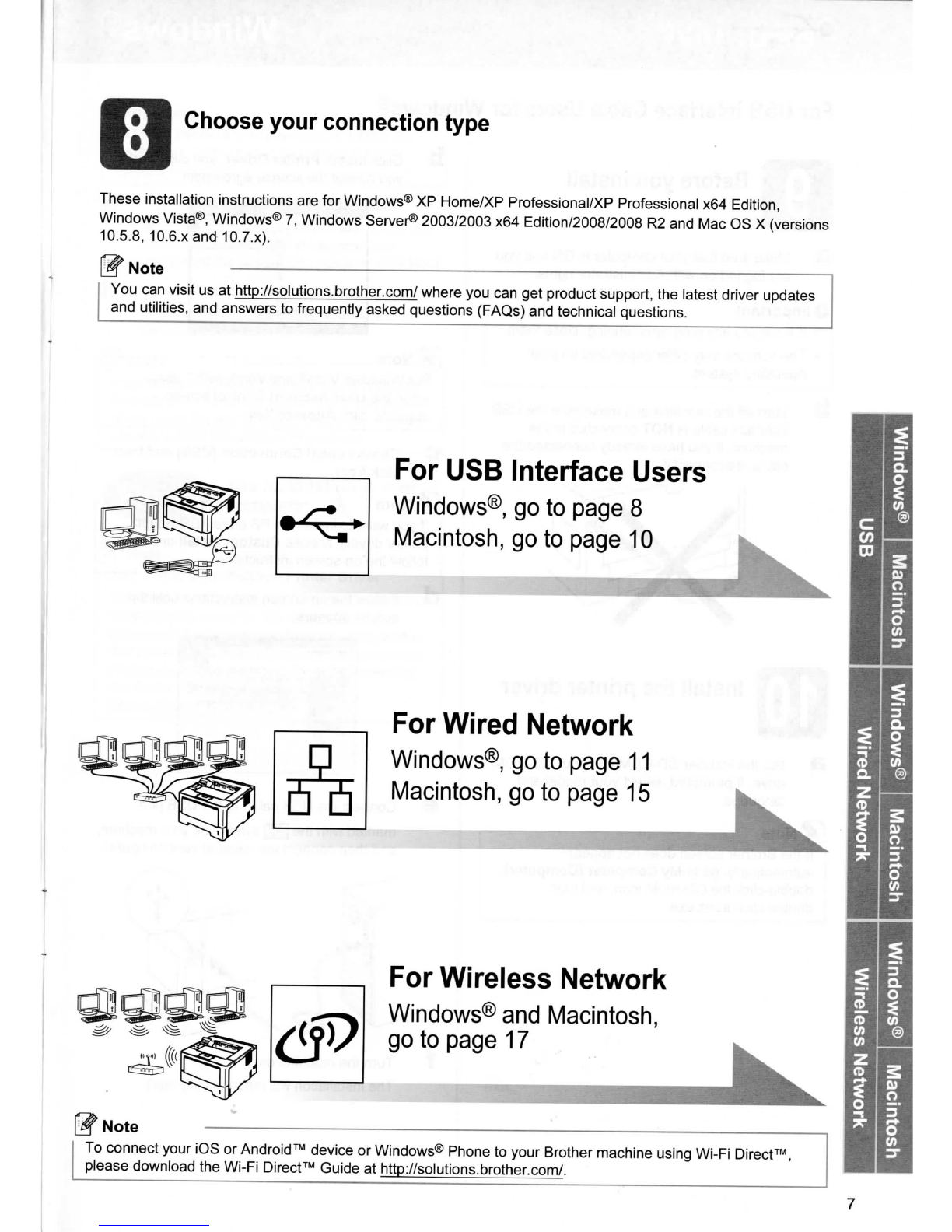

Choose yourconnectiontype
These installationinstructionsareforWindows®XPHome/XPProfessionai/XPProfessionaix64Edition,
WindowsVista®,Windows®7,WindowsServer®2003/2003x64Edition/2008/2008R2andMacOSX (versions
10.5.8, 10.6.xand 10.7.x).
Note
You canvisitusathttp://soiutions.brother.com/whereyoucanget product support,thelatestdriverupdates
andutilities,andanswerstofrequentlyaskedquestions (FAQs) andtechnicalquestions.
For USBInterface Users
Windows®,gotopage8
Macintosh,gotopage10
For Wired Network
Windows®,gotopage11
Macintosh,gotopage15
For Wireless Network
Windows®andMacintosh,
gotopage17
Note
To connectyourICSorAndroid™deviceorWindows®PhonetoyourBrothermachineusingWi-FiDirect^
please downloadtheWi-FiDirect™Guideathttp://solutions.brother.com/.

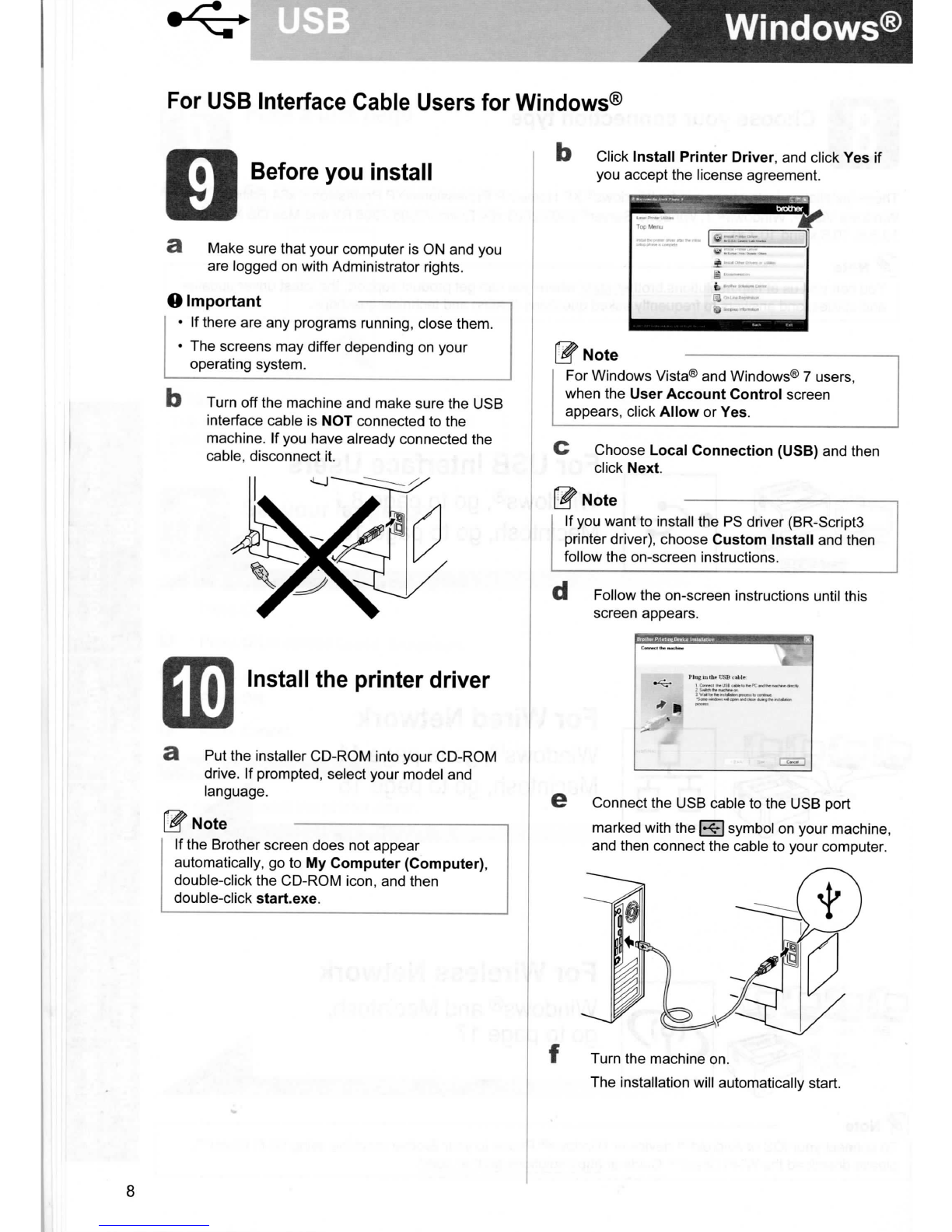

USB ^ Windows®
For USBInterfaceCable Users forWindows®
Before youinstall
3MakesurethatyourcomputerisONandyou
are loggedon with Administratorrights.
OImportant
•Ifthereareanyprogramsrunning,closethem.
'The screens maydifferdependingonyour
operating system.
Turn offthemachineandmakesuretheUSB
interfacecableisNOTconnectedtothe
machine. Ifyouhavealreadyconnectedthe
cable, disconnectit.
bClickInstallPrinterDriver,andclickYesif
youaccept ttie licenseagreement.
4"
Note
For WindowsVista®andWindows®7 users,
when the User AccountControlscreen
appears, clickAlloworYes.
QD
Install theprinterdriver
Put theinstaller CD-ROM into your CD-ROM
drive. Ifprompted,selectyourmodeland
language.
Note
CChoose Local Connection(USB)andthen
click Next.
r# Note
IfyouwanttoinstallthePSdriver (BR-Script3
printerdriver),chooseCustomInstallandthen
follow theon-screeninstructions.
dFollowtheon-screeninstructions until this
screen appears.
iftheBrotherscreendoesnotappear
automatically,gotoMyComputer(Computer),
double-ciickthe CD-ROM icon,andthen
double-clickstart.exe.
Connect theUSBcabletotheUSB port
marked with the\^}symbolonyourmachine,
and thenconnectthecabletoyourcomputer.
Turn themachineon.
The installation wili automaticaiiystart.

USB 1^Windows®
Oimportant
DO NOTcancelanyofthe screens during the
installation,itmaytakea fewsecondsforail
screens toappear.
WhentheOn-LlneRegistrationscreen
appears, makeyourselectionand follow the
on-screen instructions.Onceyouhave
completedtheregistrationprocess,click Next.
WhentheSetupCompletescreenappears,
check thehexoftheactionyouwantto
perform,andthenclick Finish.
Note
Dependingonyoursecuritysettings,a Windows®
Security orantivirussoftwarewindowmayappear
whenusingthemachineoritssoftware. Piease
allowor permit thewindowtocontinue.
The installationIsnow
complete.
Note
XMLPaperSpecificationPrinterDriver
The XMLPaperSpecificationPrinterDriveristhe
mostsuitabledriverforWindowsVista®and
Windows®7 when printing from theapplications
that usetheXMLPaperSpecificationdocuments.
Please downloadthelatestdriverbyaccessing
theBrotherSoiutionsCenterat
http://soiutions.hrother.com/.
9

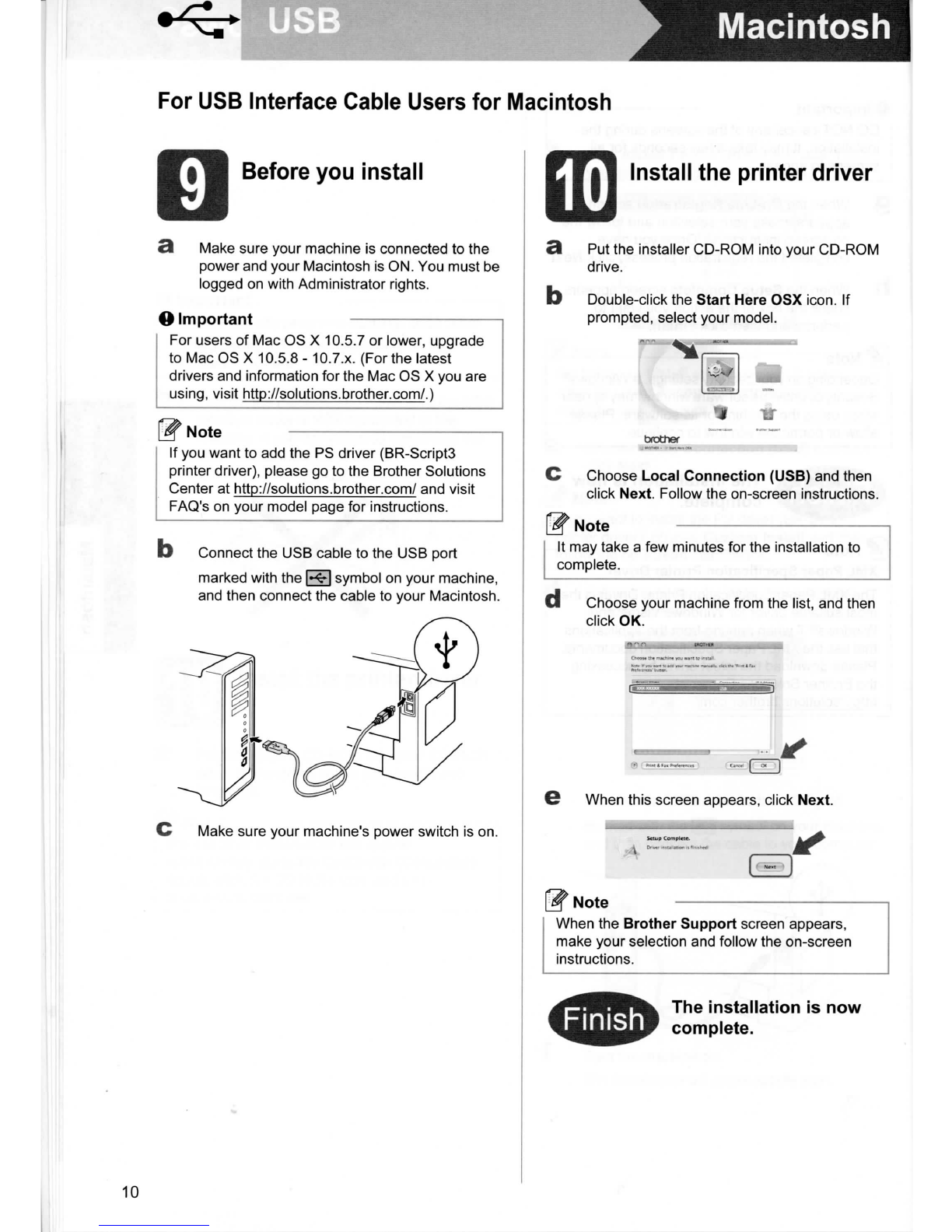

For USBInterfaceCable Users forMacintosh
Beforeyouinstall
3Makesureyourmachineisconnectedtothe
powerandyourMacintoshisON.Youmustbe
loggedon with Administratorrights.
OImportant
For users ofMacOSX 10.5.7orlower,upgrade
toMacOSX 10.5.8-10.7.x.(Forthelatest
drivers andinformationfortheMacOSX youare
using, visithttp://soiutions.brother.com/.)
^Note
ifyouwanttoaddthePSdriver (BR-Script3
printerdriver),pleasegototheBrotherSolutions
Center athttp://solutions.brother.com/andvisit
FAQ's onyourmodelpageforinstructions.
Connect theUSBcabletotheUSB port
marked with thesymbolonyourmachine,
andthenconnectthecabletoyourMacintosh.
CMakesureyourmachine'spowerswitchIson.
Installtheprinterdriver
3PuttheinstallerCD-ROM into yourCD-ROM
drive.
bDouhie-ciicktheStartHereCSXicon.If
prompted,selectyourmodel.
brother
CChoose Local Connection(USB)andthen
click Next.Followtheon-screeninstructions.
Note
Itmaytakea fewminutesfortheinstallationto
complete.
dChooseyourmachine from thelist,andthen
ciick OK.
©Whenthisscreenappears,ciickNext.
Note
WhentheBrotherSupportscreenappears,
make yourselectionand follow theon-screen
instructions.
The installationIsnow
complete.
10

WiredNetworkWindows®
For WiredNetworkInterfaceCable Users forWindows®
(For Peer-to-Peernetwork users)
Before youInstall CConnectthenetworkinterfacecabletothe
Ethernet port, andthenconnectittoa free port
onyourhuh.
ORouter
9 Machine
^ Note
Ifyouare going toconnectthemachinetoyour
network,werecommendthatyoucontactyour
system administrator prior toinstallation.
Make sureyourmachine'spowerswitchison.
3MakesurethatyourcomputerisCNandyou
are loggedon with Administratorrights.
OImportant
IE
Install theprinterdriver
Ifthereareanyprogramsrunning,ciosethem.
The screens maydifferdependingonyour
operating system.
bRemovetheprotectivecap from theEthernet
port marked with a ^9symbol.
Put theinstaller CD-RCM into your CD-RCM
drive. Ifprompted,selectyourmodeland
language.
' Note
IftheBrotherscreendoesnotappear
automaticaiiy,gotoMyComputer(Computer),
double-ciickthe CD-RCM icon,andthen
double-ciickstart.exe.
Click InstallPrinterDriver,andciickYesIf
youacceptthelicenseagreement.
brother
Top Menu
M
•V'
•——
9—'--
i
Note
For WindowsVista®andWindows®7 users,
when the User AccountControlscreen
appears, clickAlloworYes.
Choose WiredNetworkConnection
(Ethernet)andthenclickNext.
^Note
IfyouwanttoinstallthePSdriver (BR-Script3
printerdriver),chooseCustomInstallandthen
follow theon-screeninstructions.
11

WiredNetwork

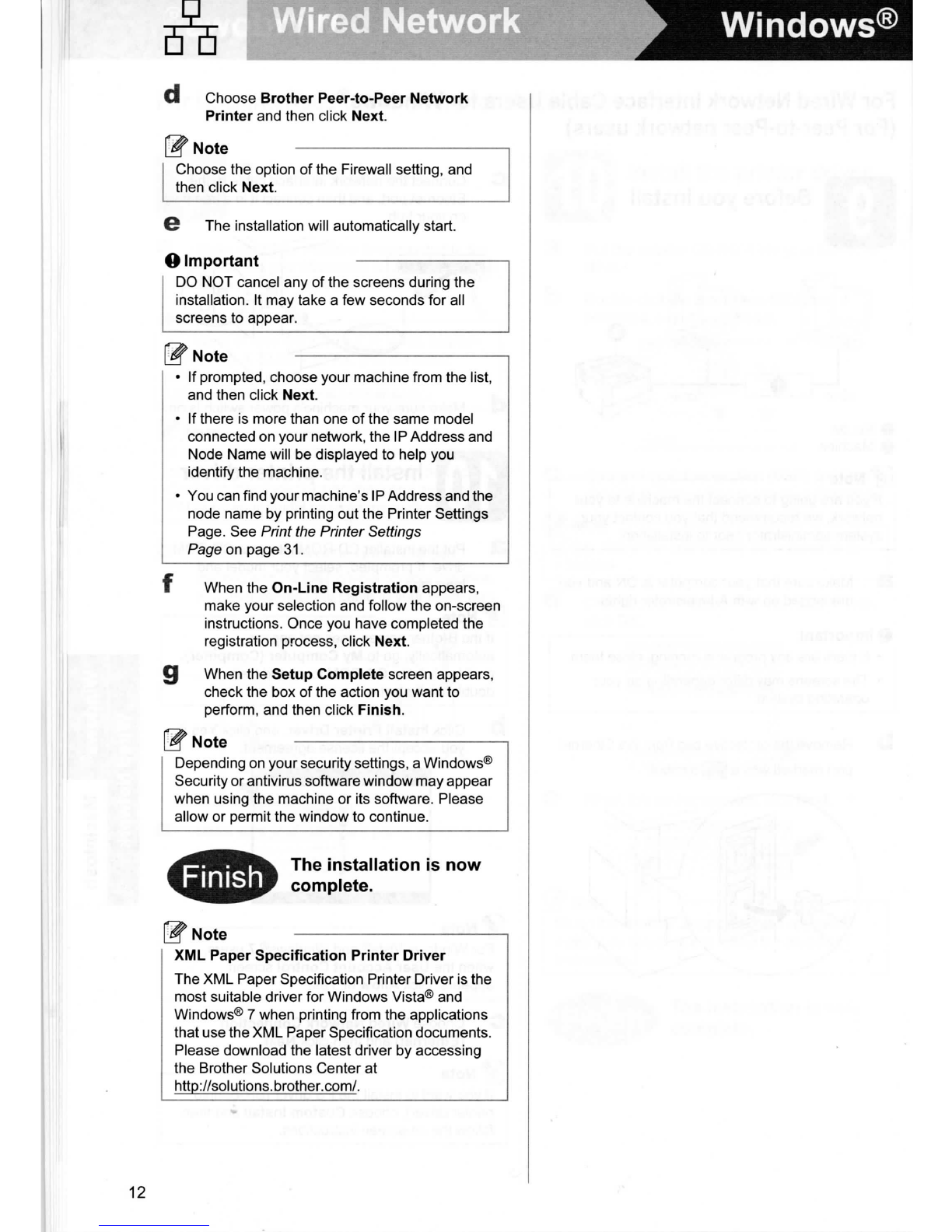

3 ChooseBrotherPeer-to-PeerNetwork
PrinterandthenclickNext.
~^ Note
Choose the option oftheFirewallsetting,and
thenciickNext.
©Theinstallation wiii automaticallystart.
OImportant
DC NCTcancelanyofthe screens duringthe
installation,itmaytakea fewsecondsforall
screens toappear.
' Note
Ifprompted,chooseyourmachine from thelist,
andthenciickNext.
ifthereismorethanoneofthesamemodel
connectedonyournetwork,theIPAddressand
NodeName wiii bedisplayedtohelpyou
identify ttie mactiine.
You can find yourmachine'sIPAddressandthe
nodenameby printing outthePrinterSettings
Page. SeePhnt the Printer Settings
Page onpage31.
WhentheOn-LineRegistrationappears,
make yourselectionand follow theon-screen
instructions. Cnce youhavecompletedthe
registrationprocess,ciickNext.
WhentheSetupCompletescreenappears,
check theboxoftheactionyouwantto
perform,andthenclick Finish.
Note
Dependingonyoursecuritysettings,a Windows®
Security orantivirussoftwarewindowmayappear
whenusingthemachineoritssoftware. Please
alloworpermitthewindowtocontinue.
The installationIsnow
complete.
XMLPaperSpecificationPrinterDriver
The XML Paper SpecificationPrinterDriveristhe
mostsuitabledriverforWindowsVista®and
Windows®7 when printing from theapplications
thatusetheXML Paper Specificationdocuments.
Please downloadthelatestdriverby accessing
theBrotherSolutionsCenterat
http://solutions.hrother.com/.

WiredNetworkWindows®
For WiredNetworkInterfaceCable Users forWindows®
(For shared network users)
Before youinstall IE Install theprinterdriver
Put theinstaller CD-ROM into your CD-ROM
drive. Ifprompted,selectyourmodeland
language.
Note
O Clientcomputer
OComputerknownas "Server" or"Printserver"
e TCP/IP orUSB
O Machine
^Note
Ifyouare going toconnectthemachinetoyour
network,werecommendthatyoucontactyour
system administrator prior toinstallation.
St MakesurethatyourcomputerIsONandyou
are loggedon with Administratorrights.
OImportant
•ifthereareanyprogramsrunning,closethem.
•The screens maydifferdependingonyour
operating system.
IftheBrotherscreendoesnotappear
automaticaiiy,gotoMyComputer(Computer),
double-ciickthe CD-ROM icon,andthen
douhie-ciickstart.exe.
Click InstallPrinterDriver,andclickYesif
youacceptthelicenseagreement.
brother
M
\i>
«* _
m-—-
9——
»'•——
^Note
For WindowsVista®andWindows®7 users,
when the User AccountControlscreen
appears, clickAlloworYes.
Choose WiredNetworkConnection
(Ethernet)andthenclickNext.
I^Note
Make sureyourmachine'spowerswitchIson.
IfyouwanttoinstallthePSdriver (BR-Script3
printerdriver),chooseCustomInstallandthen
follow theon-screeninstructions.
dChooseNetworkSharedPrinterandthen
click Next.
©Chooseyourmachine'squeue,andthenclick
OK.
13

Wired Network
^ Note
Contactyouradministratorifyoudonotknowthe
locationorthenameofthemachinequeueonthe
network.
I Theinstallationwillautomaticallystart.
OImportant
DO NOTcancelanyofthe screens duringthe
installation,itmaytakea fewsecondsforall
screens toappear.
WhentheOn-LineRegistrationscreen
appears, makeyourselectionand follow the
on-screen instructions.Onceyouhave
completedtheregistrationprocess,ciickNext.
WhentheSetupCompletescreenappears,
check theboxoftheactionyouwantto
perform,andthenclick Finish.
Note
Dependingonyoursecuritysettings,a Windows®
Security orantivirussoftwarewindowmayappear
whenusingthemachineoritssoftware. Piease
alloworpermitthewindowtocontinue.
TheinstallationIsnow
complete.
I^Note
XMLPaperSpecificationPrinterDriver
The XML Paper SpecificationPrinterDriveristhe
mostsuitabledriverforWindowsVista®and
Windows®7 when printing from theapplications
thatusetheXML Paper Specificationdocuments.
Please downloadthelatestdriverby accessing
theBrotherSoiutionsCenterat
http://soiutions.brother.Gom/.
.•-A.it
14

WiredNetwork Macintosh
For WiredNetworkInterfaceCable Users forMacintosh
BeforeyouInstall
3Makesureyourmachineisconnectedtothe
powerandyourMacintoshisON.Youmustbe
loggedon with Administratorrights.
OImportant
For users ofMacOSX 10.5.7orlower,upgrade
toMacOSX 10.5.8- 10.7.x.(Forthelatest
drivers andinformationfortheMacOSX youare
using, visithttp://solutions.brother.com/.)
IEInstalltheprinterdriver
Note
ifyouwanttoaddthePSdriver (BR-Script3
printerdriver),pleasegototheBrotherSoiutions
Center athttp://soiutions.hrother.com/andvisit
FAQ's onyourmodelpageforinstructions.
bRemovetheprotectivecap from theEthernet
port marked with a symbol.
Connect thenetworkinterfacecabletothe
Ethernet port, andthenconnectittoa free port
onyourhuh.
Makesureyourmachine'spowerswitchison.
3PuttheInstallerCD-ROM into yourCD-ROM
drive.
bDouhie-ciicktheStartHereOSXicon,if
prompted,selectyourmodel.
r
ir
brother
CChooseWiredNetworkConnection
(Ethernet)andthenclickNext.Foliowthe
on-screen instructions.
^ Note
Itmaytakea fewminutesfortheinstaiiationto
[ complete.
dChooseyourmachine from thelist,andthen
click OK.
^ Note
Ifthereismorethanoneofthesamemodel
connectedonyournetwork,theMACAddress
(Ethernet Address)willhedisplayedafterthe
modelname.
You can find yourmachine'sMACAddress
(Ethernet Address)andIPAddressby printing
outthePrinterSettings Page. SeePhnt the
Printer Settings Page onpage31.
3
a
i
? 2.
JT 3
15

WiredNetwork Macirdto^
©Whenthisscreenappears,ciickNext.
Note
WhentheBrotherSupportscreenappears,
make yourseiectionand foiiow theon-screen
instructions.
s
1^ TheinstallationIsnow
1^complete.

For Wireless NetworkInterface Users
%W Beforeyoubegin
First youmustconfigurethewireiessnetworksettingsofyourmachinetocommunicate with yourwireless access
pcint/rcuter.Afterthemachineisccnfiguredtoccmmunicate with yourwireiess access pcint/rcuter,computers
andmchiledevicesonyournetworkwiilhave access tothemachine.Tousethemachine from a computer,ycu
willneedtoinstalltheprinterdriver.Thefcliowingsteps wili guideycu through theccnfiguraticnandinstaiiation
process.
OImportant
•Ifycuare going toccnnectthemachinetoyournetwork,werecommendthatycucontactyoursystem
administrator prior toinstaiiation.Ycumustknewyourwireiessnetworksettingshefcreycuproceed with this
installation.
•Ifyouhavepreviouslyconfiguredthewirelesssettingsofthemachine,ycumustresetthenetwork(LAN)
settingshefcreycucanconfigurethewirelesssettingsagain.
1. Onyourmachine,pressA orT tocheeseNetwork,andpressOK.
2. Press A orT tocheeseNetwork Reset, andpressOK.
3. WhenRebootOK?appears,pressA tocheeseYesforrehcct.
•Toachieve optimum results with normaleverydaydocumentprinting,placetheBrothermachineascloseto
thewireiess access pcint/rcuteraspcssihie with minimalchstructicns.Largechjectsandwallshetweenthe
twodevicesaswellasinterference from etherelectronicdevicescanaffectthedatatransferspeedofyour
documents.
Due tothesefactors,wirelessmaynothethehestmethodofccnnectlcnforalltypesofdocumentsand
appiicatlcns. Ifycuare printing largefiles,suchasmulti-pagedocuments with mixedtextandlargegraphics,
ycu maywanttoconsidercheesingwiredEthernetfora fasterdatatransferorUSBforthefastest throughput
speed.
•AlthoughtheBrother HL-5470DW(T) and HL-6180DW(T) canheusedinhctha wiredandwirelessnetwork,
onlyoneoftheccnnectlcnmethodscanheusedata time.
•Ifycuuseyourmachineinan IEEE 802.1xsupportedwireiessnetwork,seeUsing iEEE 802.1x
authentication intheNetwork User's Guide.
Infrastructure Mode
OWireless access pcint/rcuter
QWireiessNetworkmachine(yourmachine)
O Wireiesscapahlecomputerconnectedto
thewireless access pcint/rcuter
O Wiredcomputerccnnectedtothewireiess
access pcint/rcuter
0 Mchiledeviceconnectedtothewireiess
access pcint/rcuter
17

For Wireless Network Users
Choose your wireless setupmethod
The followinginstructionswillofferthreemethodsforsettingupyourBrothermachineona wireless network.It
ycu beganthe wireless setupfromstep5 onpage5 (forMacintoshandmchile devices), gotomethodb (Setup
Wizard). Foraiiother users, choosethemethodycupreferforyourenvironment.
Note
To setupyourmachineinanyether wireless environment,ycucan find instructionsintheNetwork User's
Guide.
3SetupusingtheInstallerCD-ROMandtemporarilyusinga USBcable(Windows®only)
J
itisrecommendedthatycuusea PCwirelesslyccnnectedtoyournetworkforthismethod.
OImportant
Ycu needtotemporarilyusea USBcableduringconfiguration(cablenetIncluded).
itycuareusingWindows® XP, orusinga networkcabletoccnnectyourcomputerwithyour wireiess
access pcint/rcuter,ycuneedtoknewthe SSID andNetworkKeyofyour wireless access point/router
beforeycuproceed. Piease writedownyour wireless networksettingsinthe area helcw.
Please donetcontactBrotherCustomer Service for assistance without the wireiess security
information.Wecannot assist ycuinlocatingyournetworksecuritysettings.
Item
Record thecurrent wireless networksettings
SSID (NetworkName)
NetworkKey(SecurityKey/EncryptionKey)
The NetworkKeymay also hedescribedasthe Password, SecurityKeyorEncryptionKey.
' Note
ityoudonetknewthisintcrmaticn (SSID andNetwork Key), ycucannotcontinuethe wireless setup.
Hew canI find thisinformation (SSID andNetwork Key)?
1. Ycushouldseethedocumentationprovidedwithyour wireless access pcint/rcuter.
2. Theinitialnetworknamecouldhethemanufacturer'snameorthemodelname.
3. Itycudonetknewthesecurityintcrmaticn, please consulttheroutermanufacturer,yoursystem
administrator,orinternetprovider.
Nowgoto
page 20
18

For Wireless Network Users
bManualsetupfromthecontrolpanelusingtheSetupWizard(Macintosh,mobile devices and
Windows®)
Ifyour wireless access pcint/rcuter dees netsupportWPS (Wi-Fi ProtectedSetup™)orAOSS™,
writedownthe wireless networksettingsofyour wireless access pcint/rcuterInthe area below.
OImportant—————————— —
Please donetccntactBrotherCustomer Service for assistance without the wireiess security
information.Wecannot assist ycuinlocatingyournetworksecuritysettings.
Item
Record thecurrent wireless networksettings
SSID (NetworkName)
NetworkKey(SecurityKey/EncryptionKey)
The NetworkKeymay also bedescribedasthe Password, SecurityKeyorEncryptionKey.
^ Note
Ifycudonetknewthisinformation (SSID andNetwork Key), ycucannotcontinuethe wireless setup.
Hew cani find thisinformation (SSID andNetwork Key)?
1. Ycushouldseethedccumentatlcnprovided with your wireiess access pcint/rcuter.
2. Theinitialnetworknamecouldhethemanufacturer'snameorthemodelname.
3. Ifycudonetknewthesecurityinformation, piease consulttheroutermanufacturer,yoursystem
administrator,orinternetprovider.
Nowgoto
page 22
COne push setupusingWPSorAOSS™(Windows®andMacintosh)
ifyour wireless access pcint/rcutersupportsautomatic wireiess (one-push)setup (WPS orAOSS™)
Nowgoto
page 24 I1
(D (A
II
^ O
V)
19

SetupusingtheInstallerCD-ROMandtemporarilyusinga USB
cable (Windows®only)
Setupthewireless
settings
O Important
'Youneedtotemporarilyusea USBcable during
configuration(cablenetincluded).
'IfycuareusingWindows®XP,orusinga
networkcabietoccnnectyourcomputer with
yourwireless access pcint/rcuter,ycuneedto
knewthe SSID andNetworkKeyofyour
wireless access pcint/rcuterycuwrotedownin
step10-aonpage18hefcreycuproceed.
Note
Ifycuuseyourmachineinan IEEE 802.1x
supportedwirelessnetwork,seeUsing iEEE
802.1x authentication intheNetwork User's
Guide.
Put theinstallerCD-ROM into yourCD-ROM
drive.Ifprompted,selectyourmodeland
language.
Note
IftheBrotherscreendeesnetappear
automatically,gotoMyComputer(Computer),
dcuhle-clicktheCD-ROMicon,andthen
dcuhle-clickstart.exe.
Click InstallPrinterDriverandthenclickYes
ifycuacceptthelicenseagreement.
A-
3 •
Note
For WindowsVista®andWindows®7 users,
whentheUserAccountControlscreen
appears, clickAlloworYes.
Choose WirelessNetworkConnectionand
thenclickNext.
Note
IfycuwanttoinstallthePSdriver(BR-Script3
printer driver),cheeseCustomInstallandthen
follow thecn-screeninstructicns.
Cheese BrotherPeer-to-PeerNetwork
PrinterorNetworkSharedPrinter,andthen
clickNext.
Note
IfycuchooseNetworkSharedPrinter,cheese
yourmachine'squeue,andthenclickOK.
Choose the option oftheFirewallsetting,and
thenciickNext.
Cheese Yes,I havea USBcabletousefor
Installation,andthenclickNext.
^Note
Ifthe Important Noticescreenappears,readthe
notice.Checktheboxafterycuconfirmthe SSID
andNetworkKey,andthenciickNext.
TemporarilyconnecttheUSBcable(net
included)directlytothecomputerandthe
machine.
Dooneofthefciicwing:
•IftheInstallationconfirmationscreen
appears, checkthehexandclickNext,go
toh.
•Ctherwise,gotoi.
20
