Browan TBSL100 Series User manual

Sound Level Sensor
Reference Manual
TBSL100-915
TBSL100-868
Model Name: TBSL100
DOC ver.: BQW_02_0011.001

Table of Contents
1. Description 1
2. Specifications 3
2.1 Mechanical 3
2.1.1 Sensor 3
2.2 Environmental 3
2.3 Radio 3
2.4 Certifications and Conformity 3
2.5 Power 3
2.6 User Interface 3
2.7 Additional Features 3
3. Operation 4
3.1 Transport Mode 4
3.2 Default Operation 4
4. Messages 4
4.1 Status 4
4.1.1 Triggers 4
4.1.2 Payload 4
4.1.2 Payload 5
5. Battery 6
5.1 Replacement 6
5.2 Cautions 6
6. Label format information 7
6.1 Round label 7
6.1.1 All QR code 7
6.1.2 JoinEUI 7
6.1.3 DevEUI 7
6.1.4 Model number 7
6.1.5 Factory check code 8
6.1.6 Model Name 8
6.2 PE Bag & Back Label Label Barcode 8
7. Important Product & Safety Instructions 9
8. Warnings 10
9. Notices 11
10. Cautions 11
11. Regulatory 12
11.1 Federal Communication Commission
Interference Statement 12
11.2 Industry Canada statement: 13
Appendix. Configuration Downlink Command 14
Appx. 1 Payload 14
Appx. 2 Response Content 15
Appx. 3 Frame Count 0 Content 15

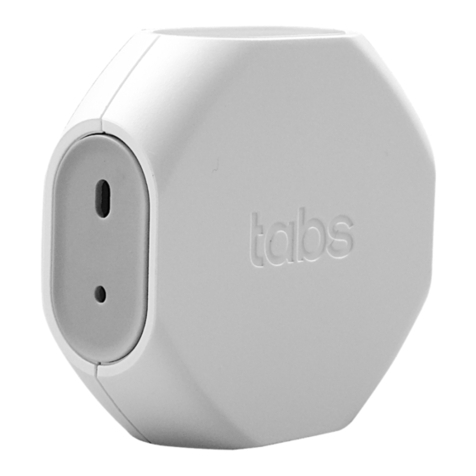

1. Description
The Sound Level Sensor utilizes LoRaWAN
connectivity to provide to easily measure
and investigate sound levels in decibels
(dBA) in a variety of building
environments.
© 2019 Browan Communications Inc. All rights reserved.
1

2. Specifications
2.1 Mechanical
2.1.1 Sensor
Length x Width x Height
50mm x 20mm x 50mm
Weight
30g without battery
40g with battery
Sensor
• MEMS microphone
• Measuring range:
60~100dB(A)
• Frequency Response:
100~10,000 Hz
• Resolution: 1 dB
2.2 Environmental
Temperature
0°C to +50°C
IP Rating
IP 40 equivalent
2.3 Radio
Frequency
• 863–870MHz for EU
• 902–928MHz for North
America
Tx Power
US: +19dBm
EU: +17dBm
Rx Sensitivity
-135dBm
Antenna Gain
-2dBi Peak, -5dBi Avg
2.4 Certifications and Conformity
FCC ID: pending
IC:
CE
ROHS REACH
2.5 Power
Source
3.6V 1⁄2 AA Li-SOCl2 1200mAh
battery
Maximum Voltage
3.6V
Minimum Voltage
3.1V
Current
TBD
2.6 User Interface
LEDs
One blue LED
2.7 Additional Features
PCB Temperature
Battery Monitoring
© 2019 Browan Communications Inc. All rights reserved.
2

3. Operation
3.1 Transport Mode
They are shipped with a plastic battery isolation tab that must be removed to enable
operation.
3.2 Default Operation
While in default operation the device will send a join request message after booting.
After joining successfully, the device will detect the decibel value every 5 minutes. If the
decibel value over the threshold, the sensor will send a status message.
4. Messages
LoRaWAN Packets for this device use port 105.
4.1 Status
4.1.1 Triggers
Packet Triggers: detect decibel value per 5 minutes or the decibel value is more than the
threshold.
4.1.2 Payload
Port
105
Payload Length
4 bytes
Bytes
0
1
2
3
Field
Status
Battery
Temp
Decibel
© 2019 Browan Communications Inc. All rights reserved.
3

4.1.2 Payload
Status
Sensors status
Bit [0]
Bit [7:1]
0 -> keep alive, 1 -> trigger threshold event.
RFU
Battery
Battery level
Bits [3:0]
Bits [7:4]
unsigned value ν, range 1 – 14;
battery voltage in V = (25 + ν) ÷ 10.
RFU
Temp
Temperature as measured by on-board NTC
Bits [6:0]
Bit [7]
unsigned value τ, range 0 – 127;
temperature in °C = τ - 32.
RFU
measurement range -32 to 95°C
Decibel
Decibel value
Bits [7:0]
unsigned value τ, range 40 ~ 100 (dBA).
255(0xFF) => Sensor cound not measure decibel value.
© 2019 Browan Communications Inc. All rights reserved.
4

5. Battery

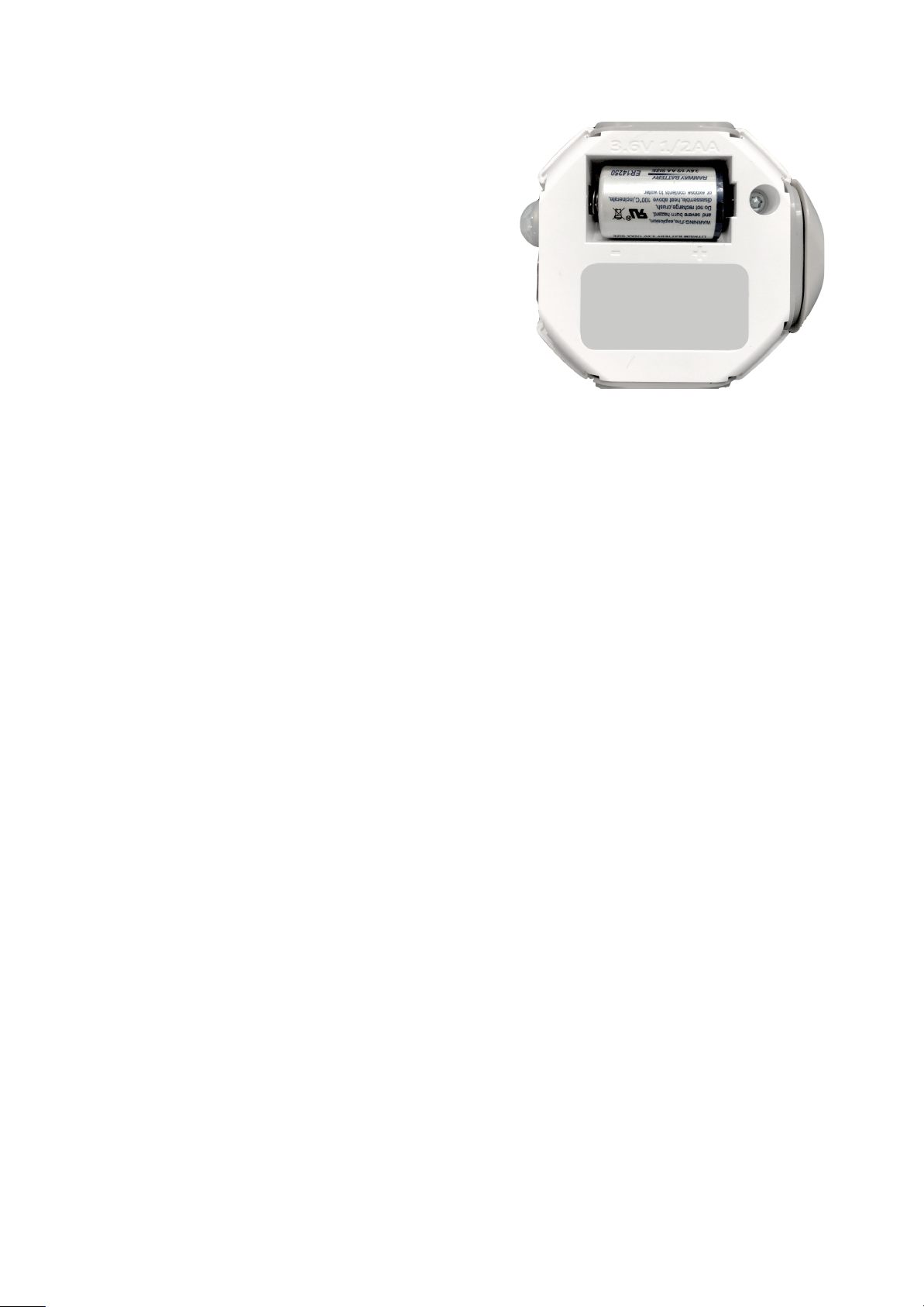

5.1 Replacement
Use ER14250 or equivalent.
Remove the upper cap and replace the
battery.
5.2 Cautions
CAUTION: Disposal of a battery (or battery pack) into a fire or a hot oven, or
mechanically crushing or cutting of a battery (or battery pack) can result in an
EXPLOSION!
Leaving a battery (or battery pack) in an extremely high temperature
surrounding environment that can result in an EXPLOSION or leakage of
flammable liquid or gas.
A battery (or battery pack) subjected to extremely low air pressure may also
result in an EXPLOSION or leakage of flammable liquid or gas.
Discard used batteries according to the manufacturer's instructions.
CAUTION: The unit is provided with a battery-powered circuit.
There is a danger of explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to the manufacturer’s
instructions.
Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used
Batteries According to the Instructions.
© 2019 Browan Communications Inc. All rights reserved.
5

6. Label format information
6.1 Round label
6.1.1 All QR code
URN:LWDP:58A0CB0000210000:58A0CBFFFFFEFFFF:TBMS100915:4D4483B1.
The total maximum resulting character sentence is 72 alphanumeric characters long.
6.1.2 JoinEUI
900MHz: 58A0CB0000210000. (US/AU/AS923/BR)
800MHz: 58A0CB0001500000. (EU/IN/RU)
Uses a hexadecimal representation resulting in 16 characters.
6.1.3 DevEUI
58A0CBFFFFFEFFFF.
Uses a hexadecimal representation resulting in 16 characters
6.1.4 Model number
Non-reserved characters(except ":" and space) with a maximum length of 20
characters.
© 2019 Browan Communications Inc. All rights reserved.
6

6.1.5 Factory check code
4D4483B1.
Checksum of the factory production line.
6.1.6 Model Name
MODEL:TBSL100.
Fixed code, not including in QR code.

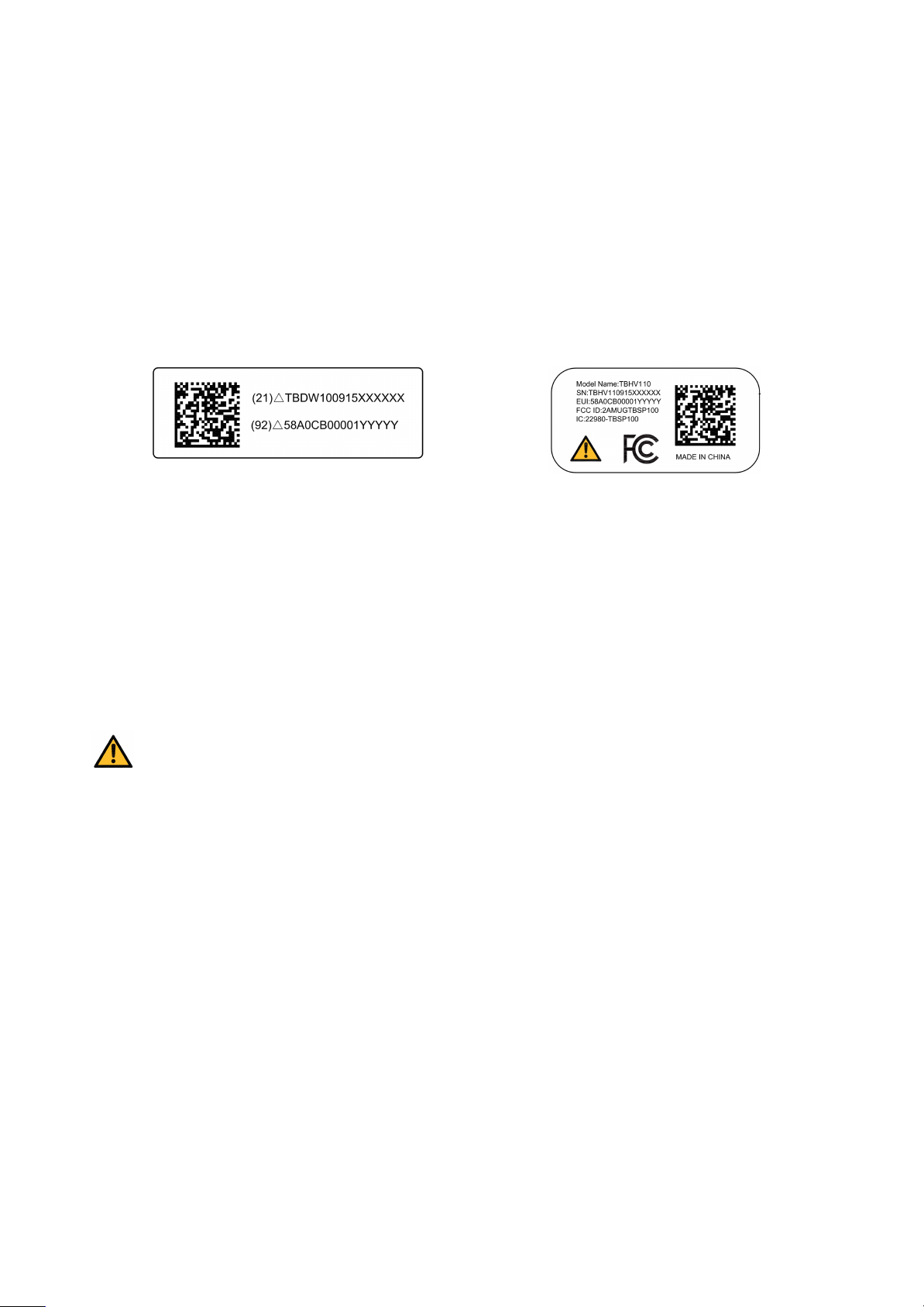

6.2 PE Bag & Back Label Label Barcode
PE Bag Label
Back Label
Definition of Back Label and PE Bag Barcode Label:
GS1 DataMatrix
●The GS1 Application Identifier (21) indicates that the GS1 Application Identifier data
field contains a serial number.
●The GS1 Application Identifier (92) assigned to the company’s internal information is
DevEUI.
: Caution! For more information please refer to chapter 5.2 and chapter 10.
© 2019 Browan Communications Inc. All rights reserved.
7

7. Important Product & Safety Instructions
For the most current and more detailed information about Tabs features and settings
as well as safety instructions, please download the user manual for the products
online at www.browan.com before the use of any Tabs products or services.
Certain sensors contain magnets. Keep away
from ALL Children! Do not put in nose or mouth.
Swallowed magnets can stick to intestines
causing serious injury or death. Seek immediate
medical attention if magnets are swallowed.
These products are not toys and contain small
parts that can be dangerous to children under 3
years old. Do not allow children or pets to play
with products.
Observe proper precautions when handling
batteries. Batteries may leak or explode if
improperly handled.
Observe the following precautions to avoid a sensor
explosion or fire:
●Do not drop, disassemble, open, crush,
bend, deform, puncture, shred, microwave,
incinerate or paint the sensors, Hub or other
hardware.
●Do not insert foreign objects into any
opening on the sensors or Hub, such as the
USB port.
●Do not use the hardware if it has been
damaged—for example, if cracked,
punctured or harmed by water.
Disassembling or puncturing the battery
(whether integrated or removable) can
cause an explosion or fire.
●Do not dry the sensors or battery with an
external heat source such as a microwave
oven or hairdryer.
© 2019 Browan Communications Inc. All rights reserved.
8

8. Warnings
●Do not place naked flame sources, such as
lighted candles, on or near the equipment.
●The battery shall not be exposed to
excessive heat such as sunshine, fire or the
like.
●Do not dismantle, open or shred battery
pack or cells.
●Do not expose batteries to heat or fire.
Avoid storage in direct sunlight.
●Do not short-circuit the battery. Do not
store batteries in a box or drawer where
they may short-circuit each other or be
short-circuited by other metal objects.
●Do not remove a battery from its original
packaging until required for use.
●Do not subject batteries to mechanical
shock.
●In the event of a battery leaking, do not
allow the liquid to come in contact with the
skin or eyes. If contact has been made,
wash the affected area with copious
amounts of water and seek medical advice.
●Do not use any charger other than that
specifically provided for use with the
equipment.
●Observe the plus (+) and minus (-) marks
on the battery and equipment and ensure
correct use.
●Do not use any which is not designed for
use with the product.
●Do not mix cells of different manufacture,
capacity, size or type within a device.
●Keep batteries out of the reach of children.
●Seek medical advice immediately if a
battery has been swallowed.
●Always purchase the correct battery for
the equipment.
●Keep batteries clean and dry.
●Wipe the battery terminals with a clean dry
cloth if they become dirty.
© 2019 Browan Communications Inc. All rights reserved.
9

9. Notices
●Avoid exposing your sensors or batteries to
very cold or very hot temperatures. Low or
high temperature conditions may
temporarily shorten the battery life or cause
the sensors to temporarily stop working.
●Take care in setting up the Hub Gateway and
other hardware. Follow all installation
instructions in the User Guide. Failure to do
so may result in injury.
●Do not install hardware equipment while
standing in water or with wet hands. Failure
to do so can result in electric shock or death.
Use caution when setting up all electronic
equipment.
●When charging the sensors, do not handle
the sensors with wet hands. Failure to
observe this precaution could result in
electric shock.
●PROP 65 WARNING: This product contains
chemicals known to the State of California to
cause cancer and birth defects or other
reproductive harm
●Cleaning Tabs Products: Use a clean dry cloth
or wipe to clean Tabs products. Do not use
detergent or abrasive materials to clean the
Tabs products, as this may damage the
sensors.
10. Cautions
CAUTION: Disposal of a battery (or battery pack)
into a fire or a hot oven, or mechanically crushing
or cutting of a battery (or battery pack) can result
in an EXPLOSION!
Leaving a battery (or battery pack) in an extremely
high temperature surrounding environment that
can result in an EXPLOSION or leakage of
flammable liquid or gas.
A battery (or battery pack) subjected to extremely
low air pressure may also result in an EXPLOSION
or leakage of flammable liquid or gas.
Discard used batteries according to the
manufacturer's instructions.
CAUTION: The unit is provided with a
battery-powered circuit.
There is a danger of EXPLOSION if the battery is
incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Discard used
batteries according to the manufacturer’s
instructions.
Risk of EXPLOSION if Battery is replaced by an
Incorrect Type. Dispose of Used Batteries
According to the Instructions.
© 2019 Browan Communications Inc. All rights reserved.
10

11. Regulatory
Hereby, Browan Communications Inc. declares that the radio equipment for Tabs products
is in compliance with Directive 2014/53/EU.
This device complies with Part 15 of the FCC Rules and RSS Standards of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This symbol means that according to local laws and regulations your product should be
disposed of separately from household waste. When this product reaches its end of life,
take it to a collection point designated by local authorities. Some collection points accept
products for free. The separate collection and recycling of your product at the time of
disposal will help conserve natural resources and ensure that it is recycled in a manner
that protects human health and the environment.
11.1 Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
The product complies with the US portable RF exposure limit set forth for an uncontrolled environment
and is safe for intended operation as described in this manual. The further RF exposure reduction can be
© 2019 Browan Communications Inc. All rights reserved.
11

achieved if the product can be kept as far as possible from the user body or set the device to lower output
power if such a function is available.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
11.2 Industry Canada statement:
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two
conditions :
(1) This device may not cause interference
(2) This device must accept any interference, including interference that may cause undesired operation
of the device
Cet appareil contient des émetteurs / récepteurs exempts de licence qui sont conformes au (x) RSS (s)
exemptés de licence d'Innovation, Sciences et Développement économique Canada. L'opération est
soumise aux deux conditions suivantes :
(1) Cet appareil ne doit pas causer d'interférences
(2) Cet appareil doit accepter toute interférence, y compris les interférences pouvant provoquer un
fonctionnement indésirable de l'appareil
The product complies with the Canada portable RF exposure limit set forth for an uncontrolled
environment and are safe for intended operation as described in this manual. The further RF exposure
reduction can be achieved if the product can be kept as far as possible from the user body or set the
device to lower output power if such a function is available.
This equipment should be installed and operated with minimum distance 0cm between the radiator &
your body.
Déclaration d'exposition aux radiations :
Le produit est conforme aux limites d'exposition pour les appareils portables RF pour les Etats-Unis et le
Canada établies pour un environnement non contrôlé. Le produit est sûr pour un fonctionnement tel que
décrit dans ce manuel. La réduction aux expositions RF peut être augmentée si l'appareil peut être
conservé aussi loin que possible du corps de l'utilisateur ou que le dispositif est réglé sur la puissance de
sortie la plus faible si une telle fonction est disponible.
Cet équipement doit être installé et utilisé avec un minimum de 0 cm de distance entre le radiateur et
votre corps.
© 2019 Browan Communications Inc. All rights reserved.
12

Appendix. Configuration Downlink Command
Port
204
Appx. 1 Payload
Bytes
0
1~4
Field
Cmd
Config
Cmd
Command
1 byte
Bit [7:0]
0x00 – Set keep-alive interval.
default value : => 300 sec
value range : 15~65535
0x01 – Set sensor detection interval.
default value : 300 (sec)
value range : 0 or 15~65535
0x02 – Set sensor’s decibel threshold to trigger events.
default value : 80 (dBA)
value range: 40~100
Note:
The keep-alive interval should be greater than or equal to the
detection interval.
Config
Configuration 0~2 bytes
See the table as follows:
Cmd
Command Description
Config Length
0x00
Get Sensor Configuration
(Only for unconfirmed downlink)
0 bytes
0x00
Set keep-alive interval
*Note: little-endian format.
2 bytes
0x01
Set sensor detection interval
*Note: little-endian format.
2 bytes
0x02
Set sensor’s decibel threshold to trigger event
1 byte
© 2019 Browan Communications Inc. All rights reserved.
13

Payload Content
Command content
Ex:
00100E || 011E00 || 023C
00 100E => Set keep alive interval : 0x0E10 -> 3600 sec
01 1E00 => Set sensor detection interval : 0x001E -> 30 sec
02 3C => Set sensor’s decibel threshold to trigger event : 0x3C -> 60
Appx. 2 Response Content
(Only for unconfirmed downlink)
Port
204
Payload Length
8 bytes
Payload Content
Response content
Ex:
00100E011E00023C
00 100E => Keep-alive interval : 0x0E10 -> 3600 sec
01 1E00 => Sensor detection interval : 0x001E -> 30 sec
02 3C => Sensor’s decibel threshold to trigger event : 0x3C -> 60
Appx. 3 Frame Count 0 Content
Payload Length
17 bytes
Payload Content
Frame count 0 content
Ex:
0106000000001600007ff1f102e2d4f6ee
01 => command ID
06000000 => bootloader version : 0x00000006 ( little-endian format)
00160000 => HW ID : 0x00001600 ( little-endian format)
7ff1f102 => FW CRC : 0x02f1f17f ( little-endian format)
e2d4f6ee => PubKey ID : 0xeef6d4e2 ( little-endian format)
© 2019 Browan Communications Inc. All rights reserved.
14
