Brown Products Trench Master R450H User manual

REDEFINER
R450H, R450HA
WIREMASTER MOLE
R460HA
CONVERSION KITS
460-001 WIREMASTER
459-001 EDGER
BEDEDGER BANTAM
B565H, B590H
BANTAM MOLE
B765H, B790H
FEATURED MODEL #’s
04/2021
Manual #12727

ReDe�iner/WireMaster Mole/ReDe�iner Edger Kit Manual
BedEdger Bantam/Bantam Mole Manual
INTRODUCTION
You are now the owner of a Brown TRENCHMASTER®.
The term TRENCHMASTER®is used throughout this
manual to include the following products: R450H, HA
ReDefiner, R460HA WireMaster “Mole” and the
ReDefiner Edger Kit. The TRENCHMASTERS® are very
versale trenchers which, when properly equipped,
will trench in almost any soil condion. The
TRENCHMASTER®is an inexpensive alternaveto the
much heavier, more bulky and less maneuverable
trenchers on the market.
This TRENCHMASTER
® is manufactured by Brown
Products, Inc. which has been developing and
producing quality farm equipment, right-of-way
maintenance equipment, and outdoor power
equipment since 1943. Brown Products is proud of the
reputaon it has earned for quality products and
customer service.
If you have any quesonsor problems with your
TRENCHMASTER®, please contact your dealer or
distributor. If they cannot answer your quesonsor
solve your problem, feel free to call.
376 County Road 563 • Midland City, AL 36350
[phone] • Fax: [phone]
http://www.brownproducts.com

TABLE OF CONTENTS
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Supplemental Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Owner/Warranty Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Scheduled aintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Parts Lists & Drawings:
• ReDefiner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
• Rotors for Redefiner & Wiremaster ole . . . . . . . . . . . . . . . . . .14
• Redefiner Parts List & Drawings . . . . . . . . . . . . . . . . . . . .15 & 16
• Wire aster ole & Edger Kit - Parts . . . . . . . . . . . . . . . . . . . . .17
• Wire aster ole & Edger Kits - Drawings . . . . . . . . . . . . . . . . .18
Installation, Operation & Assembly Instructions:
• Wire aster ole Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
• Wire aster ole Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
• Wire aster ole Kit - Installation & Operation . . . . . . . . . . . . .21
• Edger Kit & ReDefiner Assembly Instructions . . . . . . . . . . . . . .22
Parts Lists & Drawings:
• BedEdger Bantam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
• BedEdger Bantam Assembly Instructions . . . . . . . . . . . . . . . . .24
• BedEdger Bantam Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
• BedEdger Bantam Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . .26
• Bantam ole Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
• Bantam ole Kits Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
• Bantam ole Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
• Bantam ole Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Installation, Operation & Assembly Instructions:
• Bantam ole Operating Instructions . . . . . . . . . . . . . . . . . . . . .31
• Bantam ole Kit Installation & Assembly Instructions . . . . . . . .31
• Rotors for Bantam & Bantam ole . . . . . . . . . . . . . . . . . . . . . .32

3
WARRANTY STATEMENT
STATEMENT OF POLICY
In accordance with our established policy of constant improvement, we reserve the right to amend these
specificaons at any me without noce.
ENGINE WARRANTY
Warranty of all engines and engine parts is the sole responsibility of the parcular engine manufacturer. See engine
warranty in the engine manual. Engine problems must be checked and approved for warranty by an authorized
engine manufacturer’s service center. Brown Products, Inc. is not an authorized service center for any engine
manufacturer and accepts no responsibility for engine warranes, either express or implied.
WARRANTY BY MANUFACTURER
Dealer/distributor understands and agrees that the manufacturer extends only the following warranty to its
customers. In the event dealer/distributor extends any addional warranty such as enlarging the scope or period of
warranty or undertaking a warranty of fitness for any parcular purpose or obligaon not encompassed in
manufacturer’s warranty, dealer/distributor shall be solely responsible therefore and shall have no recourse against
manufacturer with respect thereto.
WARRANTY
LIMITED WARRANTY
Brown Products, Inc. hereby warrants that Brown’s TRENCHMASTER®products will be free from defects in material
and workmanship under normal use according to the provisions and limitaons herein set forth. All parts,
specifically EXCLUDING expendable “wear” parts, that become unserviceable within one year (12 months) from
date of purchase, shall be repaired or replaced at Brown’s opon – at no cost to purchaser.
LIMITATIONS
The obligaon of Brown for breach of warrant shall be limited to products manufactured by Brown (1) that are
installed, operated and maintained according to Brown’s instrucon furnished and/or available to the purchaser
upon request, (2) that are installed according to all other applicable Federal, State and local codes or regulaons,
and (3) that the purchaser substanates were defecve in material and workmanship notwithstanding that they
were properly installed and correctly maintained as set forth and were not abused or misused. The obligaon of
Brown shall be limited to replacing or repairing the defecve product, at the opon of Brown. Brown shall not be
responsible for any labor or cost of removal or re-installment of its products and shall not be liable for
transportaon costs to and from its plant in Midland City, Alabama. Use of parts for modificaon or repair of
TRENCHMASTERS®or any component part thereof not authorized or manufactured by Brown specifically for the
TRENCHMASTERS®shall void this warranty. This warranty shall not apply to any damage to or defect in
TRENCHMASTERS®that is directly or indirectly caused by (1) FORCE MAJEURE, Act of God or other accident not
related to an inherent product defect, of (2) abuse, misuse or neglect of the TRENCHMASTER®, including any
damage caused by improper assembly, installaon, service maintenance or faulty instrucon of the purchaser.
Other than as expressly set forth hereinabove, Brown makes no other warranty, express or implied, with respect to
the TRENCHMASTER®, including but not limited to any warranty of merchantability or fitness for a parcular
purpose. And in no event shall Brown be responsibility for any incidental or consequenal damages of any nature
suffered by purchaser or any other person or enty caused in whole or in part by the TRENCHMASTER ®. Any
person or enty to whom this warranty extends and who claims breach of warranty against Brown must bring suit
thereon within one year from the date of occurrence of such breach of warranty or be forever barred from any and
all legal or other remedies for such breach of warranty. Brown is not responsible for and hereby disclaims any
undertaking, representaon or warranty made by any dealer, distributor or other person that is inconsistent with or
in any way more expansive that the provisions of this limited warranty. This warranty grants specific legal rights and
shall be read in conformity with applicable state law. In some jurisdicons, the applicable law mandates warranty
provisions that provide greater rights than those proved for herein. In such case, this limited warranty shall be read
to include such mandates provisions; and any provision herein that is prohibited or unenforceable in any such
jurisdicon shall, as to such jurisdicon, be ineffecve to the extent of such prohibion or unenforceability without
invalidang the remaining provisions and without affecng the validity or enforceability of such provisions in any
other jurisdicon(s).

4R450H & HA REDEFINER
SUPPLEMENTAL WARRANTY STATEMENT
The Brown R450H & HA ReDefiner is designed for themaintenance
of existing beds only. It is not intendedfor new bed construction.
Use of the R450H & HA onnew beds voids all warranties!
Operating the ReDefiner with an unbalanced rotorcreates
destructive vibrations and operations shouldcease immediately if
this occurs. Determine what iscausing the unbalanced issue and
correct by removingdebris buildup on the rotor or replace with a
newbalanced rotor. One missing rotor tooth will be causefor
changing the rotor.
Use of any part not manufactured by Brown Products,Inc. will
void all warrantees. The use of a re-manufactured rotor will also
void the warranty.
SUPPLEMENTALWARRANTYSTATEMENT
B565H&B590HBEDEDGERBANTAM
B765H&B790HBANTAMMOLE
•OperatingtheBedEdgerBantamwithanunbalancedrotorcreates
destructivevibrationsandoperationsshouldceaseimmediatelyif
thisoccurs.Determinewhatiscausingtheunbalancedissueand
correctbyremovingdebrisbuildupontherotororreplacewitha
newbalancedrotor.Onemissingrotortoothwillbecausefor
changingtherotor.
•UseofanypartnotmanufacturedbyBrownProducts,Inc.will
voidallwarrantees.Theuseofare‐manufacturedrotorwillalso
voidthewarranty.

5
This page intentionally left blank.

6
TrenchMaster®Owner’s Warranty Card
Name ___________________________________ Model ________________________________
Address _________________________________ Serial Number _________________________
City/State _______________________________ Date Purchased ________________________
Phone __________________________________ TrenchMaster® Dealer ___________________
E-Mail __________________________________
IMPORTANT: TO PLACE THE BROWN WARRANTY INTO EFFECT, THE
WARRANTY CARD ATTACHED BELOW MUST BE COMPLETED AND
MAILED WITHIN 30 DAYS AFTER RECEIVING THIS EQUIPMENT.
376 County Road 563 • Midland City, AL 36350Phone: [phone] • Fax: [phone]http://www.brownproducts.com
For additional information and inquiries, pleasecontact:
TM
TM
NOTE: FILL IN THE ABOVE INFORMATION AND RETAIN IN YOUR MANUAL
FOR YOUR RECORDS. THEN MAKE A COPY & MAIL TO BROWN PRODUCTS, INC.
OR GO TO WWW.BROWNPRODUCTS.COM, CLICK ON “REGISTER WARRANTY”
& REGISTER YOUR MACHINE ONLINE.

7
WARNING
SAFETY PRECAUTIONS
WARNING: Engine exhaust from this product contains chemicals known, in
certain quanes, to cause cancer, birth defects, or other reproducve harm.
DO NOT assemble TRENCHMASTER®before reading assembly instrucons.
DO NOT start TRENCHMASTER®before reading operang instrucons.
DO NOT modify TRENCHMASTER®in any way.
DO NOT operate without all shields in place.
DO NOT operate without eye protecon. Goggles are provided with each TRENCHMASTER®.
DO NOT litrencher offthe ground unl engine is switched offand rotor has stopped.
DO NOT drop the TRENCHMASTER®to the ground from truck tailgate or bed of trailer.
DO NOT operate unless safety area is clear of people, animals, vehicles, and glassed areas that
may be damaged by possible projecles. (See Soil & Debris Exhaust chart showing area of
possible projecles, pg 10.)
DO NOT begin operaon unl all underground pipes, electrical and communicaons lines and
sprinkler lines have been located and marked. The ulity companies will be glad to provide
informaon on their facilies.A ruptured gas line or cut electrical cable may cause injury or
death.
DO NOT place hands or feet near belts or rotor mechanisms while engine is running.
DO NOT operate TRENCHMASTER®without wearing proper shoes (high top leather shoes or
boots are recommended).
DO NOT allow bystanders or spectators to be within 50 feet of TRENCHMASTER®while
engine is running. (See Soil & Debris Exhaust chart showing areas of possible projecles, pg
10.)
DO NOT operate TRENCHMASTER®unlall surface obstrucons have been cleared from
area. All rocks and debris should be removed from area.
DO NOT disconnect oil alert on engines. To do so may void your engine warranty.
WARNING: "This product contains Benzene and Methyl
Isobutyl Ketone, chemicals known to the State of California
to cause cancer, birth defects and reproducve harm." For more informaongo to www.P65Warnings.ca.gov

8
TRENCHMASTER®
SOIL & DEBRIS EXHAUST CHART

OPERATING INSTRUCTIONS
Brown TRENCHMASTER®
BEFORE STARTING ENGINE
1. Check machine.
a. Read and be familiar with equipment operating instructions.
b. Be sure you have the proper rotor for trench size and soil conditions.
c. Check rotor retaining nut for tightness.
d. Be sure belts and pulleys are properly aligned and adjusted.
e. Check hood mounting bolts and nuts for tightness.
f. Check set screws in pulleys and lock collars for tightness.
g. Check all other nuts and bolts for tightness.
h. Check Clutch Cable tension. Tension is adjusted using the turnbuckle so that the
clutch spring stretches approximately ¾” to 1”when clutch in engaged.
2. Check machine
CAUTION: NEW ENGINES SHIPPED WITH MACHINES ARE NOT SERVICED.
ADD OIL TO CRANKCASE BEFORE STARTING.
WARNING: Gasoline is extremely flammable and highly explosive under
certain conditions. Always stop the engine and do not refill tank while you are
smoking or near open flame or sparks.
WARNING: Never start or run the engine while in an area where fumes
may collect. Carbon Monoxide from the exhaust is an odorless and deadly gas
which must have adequate space or ventilation to allow rapid dispersal.
a. Be familiar with manufacturer’s operating and safety instructions for engine.b. Check oil level with dipstick and add if necessary. Do not overfill.
c. Check air filter and clean if necessary. Clean frequently if operating in dusty
conditions.
d. Use only clean fuel. Unleaded fuel is recommended in all engines.
e. Be sure muffler and exhaust deflector are installed, are in proper position, and are
in good operating condition. (Deflector should exhaust to the left, away from the
air intake.)
3. Start engine
a. Be sure clutch lever is in disengaged position and no tension is on drive belts.
b. Turn ignition switch to “ON” position.c. Turn fuel on.
d. Close choke if engine is cold.
e. Pull start cord rapidly.

1Starting Engine Continued
f. When engine starts, gradually open choke and let engine warm up at about ¼
speed.
WARNING: Do not operate machine without rotor hood installed and
secure.
WARNING: Do not operate the machine within a 50’ radius of people,animals, automobiles or glassed areas which might be damaged by projectiles.
WARNING: Operator must wear eye protection when operating the
TRENCHMASTER®.
WARNING: Operator must locate and stay clear of all underground gas,
electric, water and communications lines before starting trenching operation.
CALIFORNIA PROPOSITION 65 WARNING: Engine exhaust from this product contains
chemicals known to the State of California to cause cancer, birth defects, or other
reproductive harm.
4. Operations
a. To start trenching, set throttle full open. Before engaging the clutch lever, the
handle must be pushed toward the ground enough to allow the rotor to turn
without hitting the ground. Engage clutch and when rotor attains operating speed,
the handle should be raised slowly so that the rotor engages the ground and
gradually digs to trench depth.
b. When trench depth is achieved, the operator should pull the machine to the rear
at such a speed that the trencher will dig without overloading the engine.
WARNING: Starting the trench is the most critical time for dangerous flying
projectiles. Be especially cautious by policing the area for rocks or other possible
projectiles and ensure the area is completely clear of people, animals, vehicles,
etc. that may be damaged by projectiles.
c. When trenching, if trencher strikes an underground object, stop immediately to
determine what the object is. Investigation should be done visually since touching
an exposed electric wire could be fatal.
d. When trencher strikes a rock, either the trench or rock should be moved.
e. When digging in extremely hard clay or other difficult soils, it may sometimes be
necessary to use an oscillating action by applying and releasing pressure on
handlebar, front to rear, alternately.

SCHEDULED MAINTENANCE
Good maintenance practices are critical if you are to enjoy trouble free operation and long life
from your Brown TRENCHMASTER®. Most required maintenance procedures are shown in
this section. However, other common sense maintenance practices such as cleanliness and
storage must be followed.
1. See Manufacturers operating and maintenance instructions for engine maintenance
procedures.
2. Check all bolts and nuts for tightness before operation and periodically thereafter.
3. Check all set screws in belt pulleys and bearing lock collars before operation and
periodically thereafter. If set screws are vibrating loose, Locktite’s Threadlocker #242should be applied to the threads and the set screw retightened.
4. Check drive belts for proper tension before operation. Adjust if necessary. Adjust belt
tension using the turnbuckle to ensure the spring stretches approximately ¾” to 1”. Keepbelt free of dirt and grease at all times.
5. Rotor points must be checked for wear before operation and periodically thereafter.
Check at least every 200 feet initially. When working in difficult soil conditions, they
should be checked more often. In good soil conditions, they may be checked less often but
never less than each 500 feet of trenching.
6. Check rotor bearings for wear every 2000 feet. This is done by lifting the front of the
machine off the ground so that the rotor may be turned by hand. Then grasp the end of
the rotor firmly and try to move it from side to side. If there is more than ¼” movementfrom side to side, the bearings must be replaced.
7. Check the idler pulley for wear before operation and replace if necessary.
8. Periodically check the idler arm for lateral movement. If the pivot bolt is badly worn, or
the bolt is loose, the idler arm may have enough lateral movement to cause the belts to
come off the pulley. The pivot belt should be tight enough to prevent lateral movement,
but not so tight that it restricts free pivoting of the idler arm.

TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Burning Belts Improper tension on belts Adjust belt tension using the turnbuckle on
the clutch cable. Spring should stretch
approximately ¾” to 1” when clutch lever is fully engaged.
Pulleys not aligned Align pulleys
Pulleys worn excessively Replace pulleys
Pulleys broken or burrs on Replace pulleys
pulley
Wrong type belt Replace with Kevlar belts
Excessive Rotor bearings worn Replace bearings
vibration excessively
Rotor points broken or Replace points or rotor
missing
Rotor bent Replace rotor
Rotor striking Rotor too close to hood Loosen eccentric lock collars on spindle and
move rotor away from hood.
CAUTION: Use thread lock on all set screws
and tighten securely.
Rotor bent Replace rotor
Pulleys coming Pulley set screw not tight Remove set screws and apply thread lock to
off shaft set screws, then tighten very firmly.



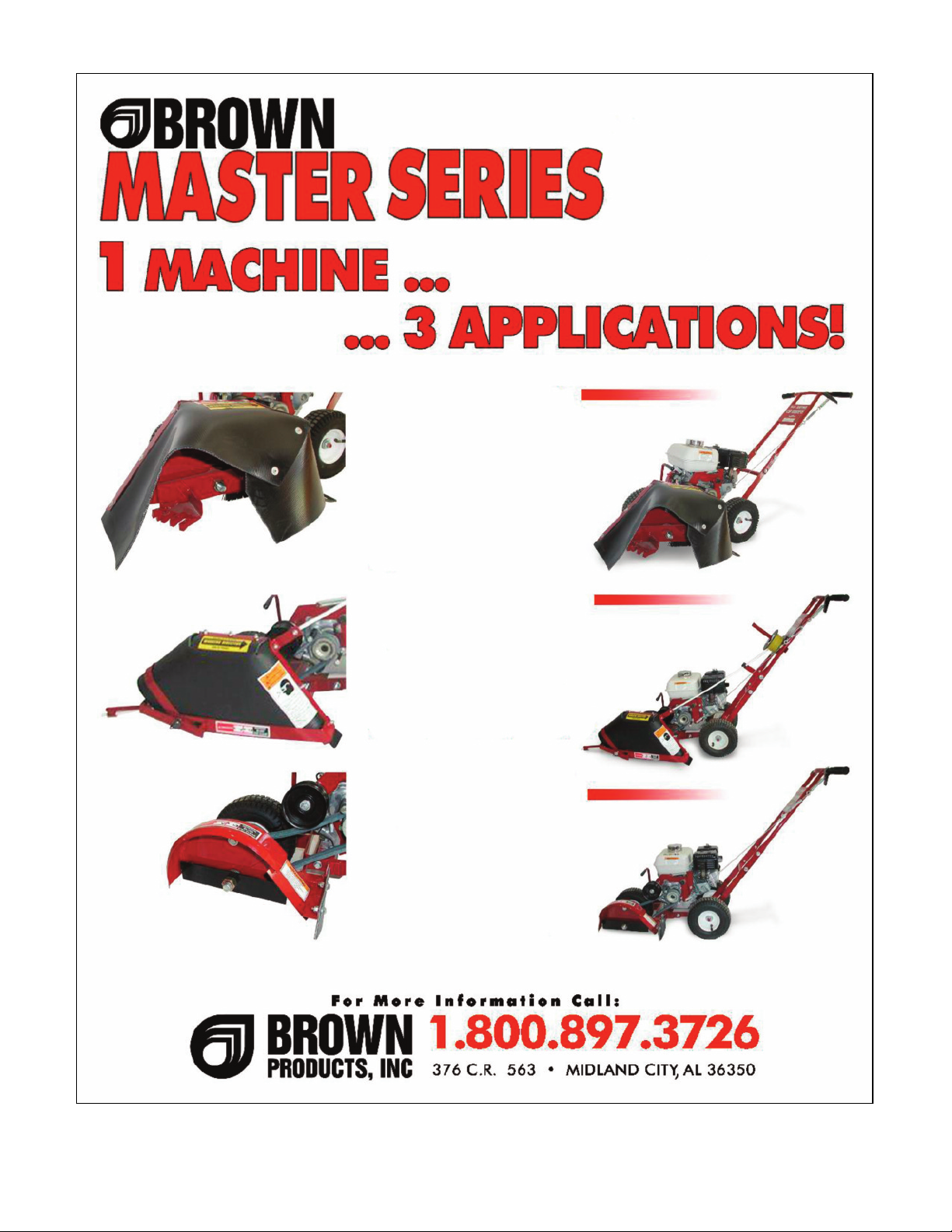

MODEL R450HA REDEFINER
MODEL R460HA WIREMASTER
MODEL R450/460 W/EDGER
CONVERSION KIT INSTALLED
•Redefines existing mulch beds at
speeds up to 60 ft. per minute.
• GX160 Honda engine (5.5 HP)
• Very maneuverable, for making
tree rings & fancy designs.
•All models shown weigh less
than 95 lbs.
•All speeds vary depending on
blade depth and soil conditions.
•Install invisible dog fence up to
25 ft. per min.
•Digs trench, lays wire and cover
trench all in one pass.
•WIREMASTER kit (part#460-001)
available to convert the
R450H/HA REDEFINER to a
R460 WIREMASTER
•Edger conversion kit (part #459-001)
available to convert the R450/460
units to a sidewalk edger
• Kits easily installed
•All machines sold with one year
warranty (commercial and rental)

ROTORS FOR BROWN REDEFINER R450H/HA
AND THE WIREMASTER MOLE R460HA
The REDEFINER ( odels R450H & HA) is designed to redefine existing beds. The
rotor which is standard on the R450 will dig a trench 3” deep with a 4” angled width.
If a 4” depth is desired, reposition the front wheel to the top position. The depth of
the trench is determined by the position of the front wheel. There are 3 positons (2”,
3”, 4”). The bottom position will dig 2” deep, the middle positon (standard setting
from the factory) will dig 3” deep and the top positon will dig 4” deep. The spoil dirt
from the trench is dispersed widely into the bed which minimizes having to spread
the dirt with a rake.
The following rotors will fit on the Redefiner and will dig a trench as indicated below.
The drawback of using a trenching rotor on the Redefine is that the machine is de-
signed to disperse the dirt into the bed so there is no dirt available to cover the
trench.
Rotor #450-100 3” Redefining Rotor (3” deep x 4” wide) The total length from tip
to tip is 13” inches. Rotor #460-002 (3” deep x ¾” wide) will fit on the Redefiner but
will not leave dirt piled to fill the trench.
The WIREMASTER MOLE ( odel R460HA) is designed to install invisible dog/pet
fence and wire for remote devices/mowers at a depth of 3” to 4”, depending on the
front wheel setting. The R460HA is shipped from the factory with Rotor #460-002 in-
stalled at the standard front wheel position (middle position) which will dig a trench
3” deep and 3/4” wide (total length, tip to tip is 13”). If the desired depth is 4” deep,
reposition the front wheel to the top position. The Wiremaster ole will dig a trench,
install the wire and refill the trench, all in one operation/pass.
ROTOR NUT REMOVAL
Turn Left
to Remove
Turn Right
to Tighten



    

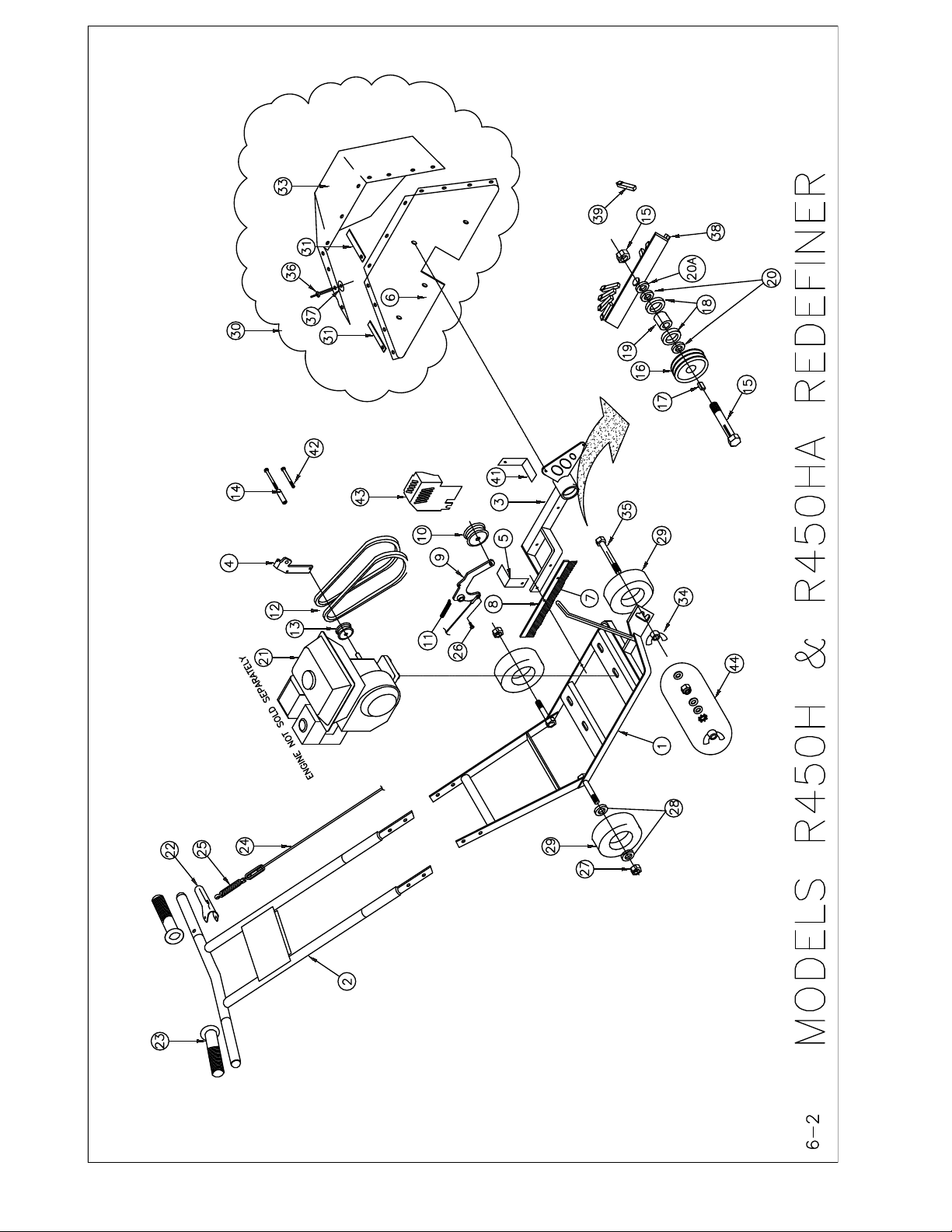

1 450-001 Frame 1
2 450-002 Handlebar 1
3 450-003 Assembly, Rotor Arm with Bearings & Space 1
4 450-251 Bracket, Idler Arm 1
5 450-024 Stop, Belt, Engine Pulley 1
6 450-253 Plate, Hood Back 1
7 450-752 Brush 1
8 450-503 Channel, Brush 1
9 991-05 Arm, Idler 1
10 12-22-2A Pulley, Double Idler 1
11 991-06 Spring, Idler Arm Return 1
12 780-30 Belt, 31” Kevlar, odel R450H Only, 3.5” O.D. Pulley (A29K) 2
12 450-767 Belt, 33” Kevlar, odel R450HA Only, 4.5” O.D. Pulley (A31K) 2
13 701-02-2 Pulley, Engine, Double Groove, 21/2” O.D. x 3/4” Bore 1
14 230-0002 Stop, Belt 1
15 450-502 Spindle, Rotor w/Nut 1
16 450-501 Pulley, Double Rotor, odel R450H Only, 3.5” O.D. (NLA) 1
16 450-768 Pulley, Double Rotor, odel R450HA Only, 4.5” O.D. 1
17 450-758 Key, 3/16” x 3/16” x 3/4” Long, Rotor Pulley 1
18 450-751 Bearing, Rotor 2
19 450-004 Spacer, Bearing 1
20 450-765 Washer, 3/4” SAE Rotor Spindle (against each bearing) 2
20A 450-766 Flatwasher, 3/4” (against back of rotor), USS 1
21
Not Sold Seperately Engine, Honda GX160 1
22 450-259 Clutch Lever, Over Center 1
22 450-504 Lever, Clutch, Black 1
23 701-25 Grip, Handle 2
24 450-770 Cable, Clutch, For over Center Handle 1
24 450-754 Cable, Clutch w/Clevis & Turnbuckle, Black Lever 1
25 701-24A Spring, Clutch 1
26 12-09 Pin, Sheave w/Cotter Pin 1
27 701-06A Nut, 5/8” Nylon Lock 2
28 702-27B Bearing, 5/8” Wheel (2 per wheel) 6
29 702-50C Wheel, Pneumatic w/ 5/8” Bearing 3
30 450-007 Hood w/ Drape 1
31 450-005 Strap, Hood Drape Flap 1
33 450-753 Drape, Hood 1
34 450-755 Nut, Height Adjuster Wing - 5/8” 1
35 450-764 Bolt, Front Axle - 5/8” x 4” 1
36 450-756 Rivet, Hood Drape, 3/16” x 3/4” w/ Steel Nail 10
37 450-757 Washer, Rivet Back-up 10
38 450-100 Rotor, 3” Redefining, 3/4” Bore 1
39 450-507 Point, Rotor (2 1/4” straight) N/A
40 450-762 Assembly, Front Axle (Bolt, Nuts, Washers & Wing Nut) 1
41 450-023 Stop, Belt, Rotor Pulley, odel R450H Only, 3.5” O.D. 1
41 450-025 Stop, Belt, Rotor Pulley, odel R450HA Only, 4.5” O.D. 1
42 450-763 Stop, Idler Arm, 5/16” x 3 1/2” NF Bolt 1
43 450-260 Guard, Drive Pulley 1
15

16



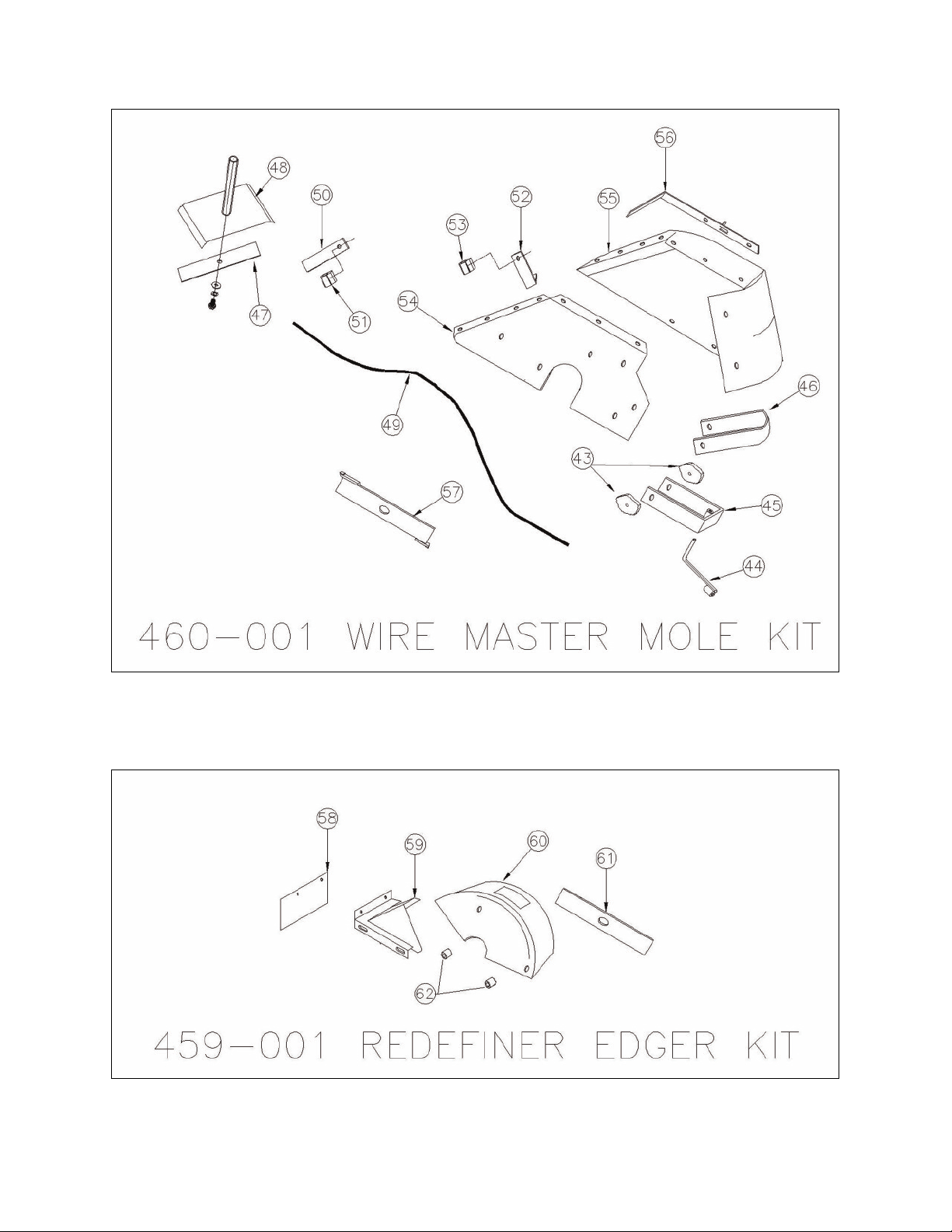

WireMaster Mole Kit 460-001
Parts List
Ref #
Part #
Description
# Req'd
43
460-503
Knob, Up/Down Adjustment
44
460-007
Rod, Ground
1
45
460-008
Bracket, Front, Up-Down
1
46
460-004
Bracket, Drape Retainer
1
47
460-010
Clamp, Wire Spool Bracket
1
48
460-013
Bracket, Wire Spool Mount
1
49
460-014
Tube, Wire Conduit, PEX
1
50
702-78
Strap
1
51
460-505
Clip, 10mm
1
52
460-009
Bracket, Pex, Tube
1
53
460-504
Clip, 12 mm
1
54
460-252
Hood, Back Plate
1
55
460-501
Drape, Hood
1
56
460-251
Brace, Outside
1
57
460-002
58
Rotor, 3" x , Wir
" emaster (Adj. to 4” depth) Assembly, Hood with Drape
1
54   
460-015
1
ReDiner Edger Kit 459-001
Parts List
Ref # Part # Description #Req'd
58 E-200-025 Flap, Rubber 1
59 459-004 Extension, Blade Guard 1
60 459-003 Guard, Blade 1
61 459-002 Blade, 10 inch (Flat, 10”x 2” w/ 3/4” Bore) 1
62 459-005 Spacer, Blade Guard 2





    
1 450-001 Frame 1
2 450-002 Handlebar 1
3 450-003 Assembly, Rotor Arm with Bearings & Spacer 1
4 450-251 Bracket, Idler Arm 1
5 450-024 Stop, Belt, Engine Pulley 1
6 450-252 Hood, Back Plate 1
7 450-752 Brush 1
8 450-503 Channel, Brush 1
9 991-05 Arm, Idler 1
10 12-22-2A Pulley, Double Idler 1
11 991-06 Spring, Idler Arm Return 1
12 780-30 Belt, 31” Kevlar, odel R450H Only, 3.5” O.D. Pulley (A29K) 2
12 450-767 Belt, 33” Kevlar, odel R450HA Only, 4.5” O.D. Pulley (A31K) 2
13 701-02-2 Pulley, Engine, Double Groove, 21/2” O.D. x 3/4” Bore 1
14 230-0002 Stop, Belt 1
15 450-502 Spindle, Rotor w/Nut 1
16 450-501 Pulley, Double Rotor, odel R450H Only, 3.5” O.D. (NLA) 1
16 450-768 Pulley, Double Rotor, odel R450HA Only, 4.5” O.D. 1
17 450-758 Key, 3/16” x 3/16” x 3/4” Long, Rotor Pulley 1
18 450-751 Bearing, Rotor 2
19 450-004 Bearing, Spacer 1
20 450-765 Washer, 3/4” SAE Rotor Spindle (against each bearing) 2
20A 450-766 Flatwasher, 3/4” (against back of rotor), USS 1
21
Not Sold Seperately Engine, Honda GX160 1
22 450-259 Clutch Lever, Over Center 1
22 450-504 Lever, Clutch, Black 1
23 701-25 Grip, Handle 2
24 450-770 Cable, Clutch, For over Center Handle 1
24 450-754 Cable, Clutch w/Clevis & Turnbuckle, Black Lever 1
25 701-24A Spring, Clutch 1
26 12-09 Pin, Sheave w/Cotter Pin 1
27 701-06A Nut, 5/8” Nylon Lock 2
28 702-27B Bearing, 5/8” Wheel (2 per wheel) 6
29 702-50C Wheel, Pneumatic w/ 5/8” Bearing 3
30 702-78 Strap 1
31 460-009 Bracket, Pex, Tube 1
33 460-501 Drape, Hood 1
34 450-755 Nut, Height Adjuster Wing - 5/8” 1
35 450-764 Bolt, Front Axle - 5/8” x 4” 1
36 460-504 Clip, 12mm 1
37 460-505 Clip, 10mm 1
38 460-002 Rotor, 3” x 3/4”, Wiremaster (Adj. to 4” depth) 1
39 450-507 Point, Rotor (2 1/4” straight) N/A
40 450-762 Assembly, Front Axle (Bolt, Nuts, Washers & Wing Nut) 1
41 450-025 Stop, Belt, Rotor Pulley, odel R450HA Only, 4.5” O.D. 1
42 450-763 Stop, Idler Arm, 5/16” x 3 1/2” NF Bolt 1
43 460-503 Knob, Up/Down Adjustment 2
44 460-007 Rod, Ground 1
45 460-008 Bracket, Front, Up/Down 1
46 460-004 Bracket, Drape Retainer 1
47 460-010 Clamp, Wire Spool Bracket 1
48 460-013 Bracket, Wire Spool ount 1
49 460-014 Tube, Wire Conduit, PEX 1
50 460-260 Guard, Drive Pulley 1
6, 32 & 33 460-015 Assembly, Hood with Drape
1
19
