BRP BUDS2 User manual

USER MANUAL

1
Summary
Legal Notices................................................................................................................................................2
Installation....................................................................................................................................................2
Start-up ........................................................................................................................................................5
Preferences................................................................................................................................................10
About BUDS2.............................................................................................................................................10
General functions .......................................................................................................................................11
Summary Page...........................................................................................................................................11
Keys Page..................................................................................................................................................16
Faults Page................................................................................................................................................16
Measurements Page ..................................................................................................................................18
Flash Page.................................................................................................................................................20
Functions Page ..........................................................................................................................................21
Settings Page.............................................................................................................................................21
File Management Page...............................................................................................................................22

2
Legal Notices
We have made all efforts to offer current, correct and clearly-expressed information within the BUDS2 End
User Documentation.
However, we cannot guarantee that the contents are completely free of errors. Neither KPIT Technologies
GmbH (LTD) nor the authors of this document accept any legal responsibility for its contents or any
consequences, including direct or indirect liability, arising from its use.
KPIT Technologies GmbH (LTD) reserves the right to revise or change information contained in this
document at any time without notice or justification to any person or entity.
Installation
The hardware, software and internet connection of your computer are all critical to ensure an optimal
BUDS2 performance. BRP may not be able to assist you if your configuration doesn’t match the following
minimum requirements:
•Processor type:
oIntel: 3rd generation or later Core i5 or Core i7 processor, or
oAMD: FX or Ryzen processor
•Processor frequency:
o2 GHz or higher for dual-core processors, or
o1.5 GHz or higher for processors with four cores or more
•RAM:
o8GB or more
•Storage
oat least 5 GB available on the C drive:
oa solid-state disk (SSD) is recommended
•Screen
oresolution of at least 1366 by 768
•USB
otwo USB ports available
•Operating system
oMicrosoft Windows 7 with service pack 1, 64-bit, or
oMicrosoft Windows 10, 64-bit
•Internet
oa high-speed internet connection is required
oa connection with a download speed of 30 Mbps or higher is recommended
BRP recommends using the PC for BUDS2, BossWeb and other BRP usages only. Diagnostic tools from
other powersport vendors, some computer security suites and some remote administration software have
occasionally interfered with the correct operation of BUDS2.
Computer administrator privileges are required for BUDS2 installation, as well as for module update
operations using a USB-to-USB cable connection.
To install BUDS2, execute the installation program called ‘BUDS2_Setup.exe’. If you are not logged-in as
Windows administrator, please run the installation program as Windows administrator. To do this, right-click
on the installer and click on Run as administrator. If Windows opens a security warning, accept it by clicking
on ‘Run’. If you want to cancel the installation process, press the ‘Cancel’ button or the ‘X’ on the top right
of the window at any point of the installation.

3
Figure 1: Running as Administrator
When the installer opens, select the installation language from the drop-down menu.
Figure 2: Language selection for installation process
Next, the install location and disk space requirements are shown. The install location cannot be changed. If
the required disk space exceeds the available disk space, prepare additional disk space and re-start the
installation program.
Figure 3: Information of the installation folder
Then, you can choose the folder of the Windows start menu to which you want to add a startup shortcut. By
default, it is set to ‘BRP/BUDS2’. If you do not want to create a shortcut in the start menu, select the
checkbox ‘Do not create shortcuts’. Acknowledge the configuration by selecting ‘Install’.
In case the error message ‘BUDS2 already running, you have to shutdown all program instances’ is shown,
you need to stop the currently running BUDS2 application and restart the installation program.
It is not possible to install two versions of BUDS2. Thus, in case of the warning message ‘BUDS2 already
installed …’, you need to confirm to uninstall the currently installed version of BUDS2. If you want to keep
captured BUDS2 files, backup them first.

4
Figure 4: Shortcut in Windows start menu
If you have never installed BUDS2 before, you need to install drivers for the VCI. If you had a BUDS2
version installed before, you do not need to install the VCI drivers again. The VCI installation is part of the
BUDS2 installation. Thus, the VCI driver can be installed by selecting ‘Yes’ in the next confirmation dialog:
Figure 5: VCI driver installation
Finally, BUDS2 will be installed on your computer.
Figure 6: Installation of BUDS2
After installation, an information dialog will show the outcome of the installation process. If VCI drivers were
installed, a reboot of the computer is required. Otherwise you can select to run BUDS2 immediately from
the installer. Otherwise the installer quits after selecting ‘Finish’.

5
Figure 7: Installation completed
Start-up
To start BUDS2, you can select BRP->BUDS2 from the Windows start menu if you selected to add a
shortcut in the installation process. Otherwise navigate to ‘C:\Program Files (x86)\BRP\BUDS2\’and
double-click on the BUDS2 executable called ‘BUDS2.exe’.
BUDS2 will prompt you a login dialog, first. Enter your BOSSWeb information to log in.
Figure 8: BOSSWeb internet login
During the opening, BUDS2 will check for updates and install them if this is the case. At the end, you will be
asked to restart the program. You will have to re-enter your BOSSWeb data.

6
Figure 9: Checking for updates
Figure 10: Install updates
Figure 11: restart of the application
A disclaimer may show you important legal information during the startup process. Read it carefully and
accept the disclaimer to start BUDS2. Declining it will close BUDS2.
Figure 12: Disclaimer
BUDS2 can work in two different modes:

7
•VCI mode: All data is read from the VCI. VCI mode is only available if a VCI is connected and the
VCI drivers have been installed successfully.
•File mode: Data is read from a BUDS2 file which is a stored snapshot of a previous vehicle scan.
BUDS2 is in file mode if a BUDS2 file has been opened.
If a VCI is connected at startup, BUDS2 will start up in VCI mode and start scanning the vehicle.
Figure 13: Connecting VCI
Figure 14: Reading ECUs
If no VCI is connected at startup, BUDS2 will prompt you to open a BUDS2 file. A file dialog will open and
you can select the BUDS2 file to open. In this case BUDS2 will start up in file mode.
Figure 15: No VCI found
Figure 16: Opening a BUDS2 file

8
In both file and VCI mode, BUDS2 brings us to the main screen below:
Figure 17: BUDS2 main page
Status bar
The status bar at the bottom of the page includes the name of the BUDS2 file and the VIN. It can also
indicate the key status (ON or OFF) and the battery voltage.
Figure 18: Status bar
Vehicle diagnostic dashboard
The dashboard, always shown in the left part of the window, visualizes an overview of the connected VCI,
the vehicle and its modules. An element like VCI, vehicle or module can be selected by clicking on it. As a
result, BUDS2 will show information about the selected element. If a module is selected, information of this
module is shown (if available). If a VCI or a vehicle is selected, information about the vehicle or all
contained modules is shown.

9

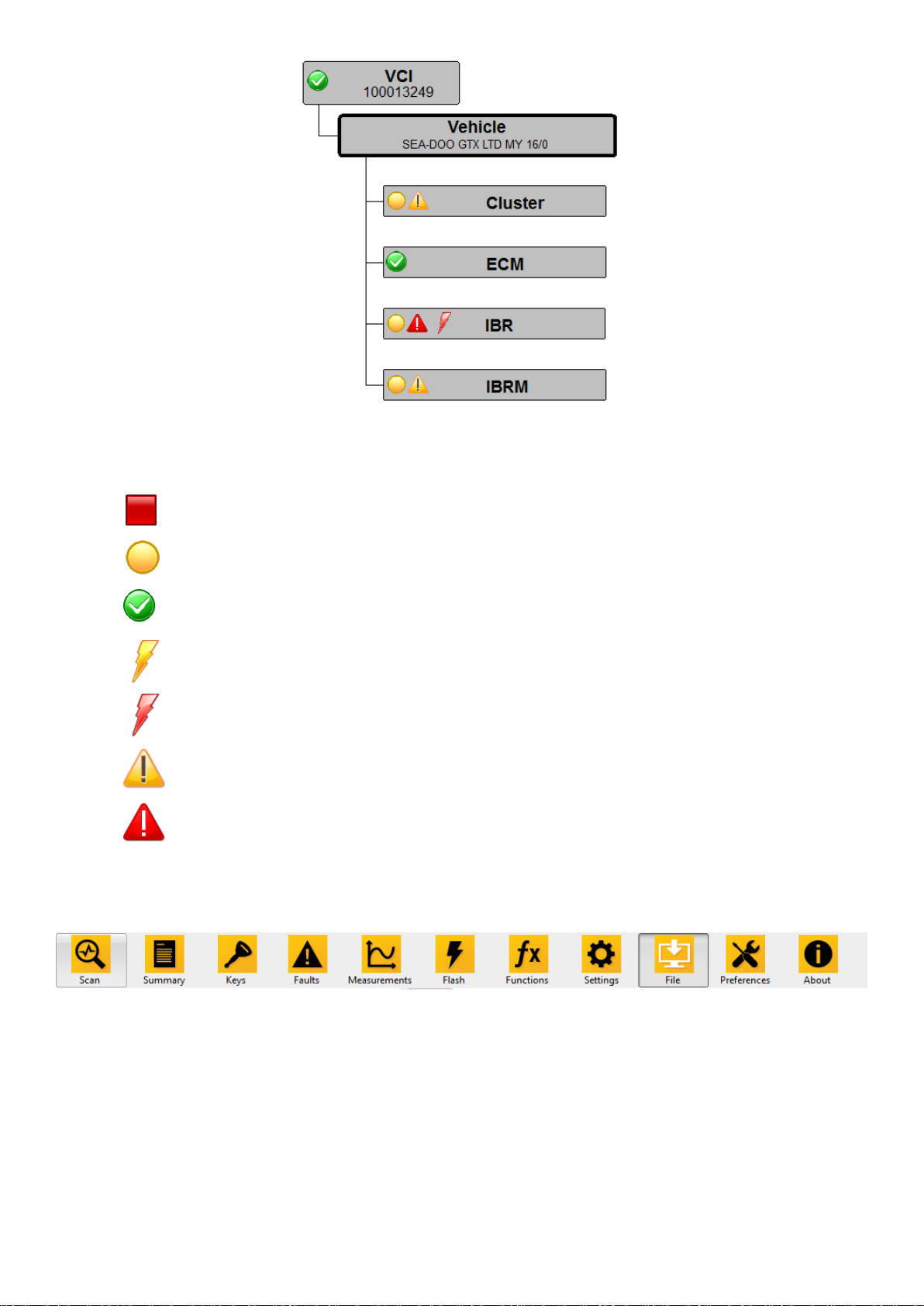

Figure 19: Vehicle diagnostic dashboard
Each module shows different status icons:
Module is in boot mode
Module is in boot mode and application is valid;
or fault codes or firmware updates have been found
Module is not in boot mode and application is valid.
No fault codes or valid firmware updates available
Optional or recommended flash file
Mandatory flash files
Occurred fault codes found
Active fault codes found
Toolbar
In the toolbar, shown on the top of the window, you can select the task you want to perform next.
Figure 20: Toolbar
Scan
To scan a vehicle connected via the VCI, select ‘Scan’ in the toolbar. A progress dialog shows you the
progress of the scanning process. Pressing ‘Cancel’ in the progress dialog will stop the scanning process
and clear all data which has already been read. The scanning is not interruptible at any time and, thus,
cancellation may not respond immediately.

10
Figure 21: Progress of a vehicle scan
Preferences
oDisclaimer: the disclaimer can be (de)activated
oLanguage: allows to select BUDS2 user interface language
oLicense: displays your license information
oMeasurements: The measurement rate can be adjusted
oUnits: Metric or Imperial unit system can be selected
oUpdates: allow to change the frequency of the updates
Figure 22: Preferences
About BUDS2
Information on BUDS2, such as version number, can be seen. Clicking on Open Manual will open this
manual.
Figure 23: About BUDS2

11
General functions
Search function
Above every table, there is a text field which can be used to search through the table entries.
Figure 24: Search function
Table sorting
By clicking on the column name, the sorting of the table columns can be changed from default sorting to
alphanumerical sorting either descending or ascending. The default sorting is based on the order of
occurrence.
Figure 25: Table sorting (default, descendant, and ascendant)
Column and window sizes
The size of columns and windows can be changed by clicking on the column separator, or window border
respectively, and dragging it to the preferred size.
Scroll bars
If needed, scroll bars are shown either in the window or inside tables. Select and drag the knob of the scroll
bar to change the view port.
Summary Page
All information on the vehicle connected can be seen in the Summary Page. The vehicle information is
divided into three categories on the right, Summary, Health and Statistics.
Summary
By selecting the VCI or the vehicle in the dashboard on the left, general information on the vehicle is shown
on the right side. ‘Vehicle model’ as well as the ‘Customer’ settings can be changed, by changing the value
in the text field. The value is written whenever the focus is moved away from the text field.

12
Figure 26: Summary Page
By clicking on ‘Reset Service’, the maintenance can be reset if a reset is supported by the vehicle.
Figure 27: Reset of last service
The view on the right changes if a specific module, for example ECM (Engine Control Module), is selected.
Information on the selected module can then be seen in the Summary tab.
Health
On the top, the Health tab shows a legend for the icons in the dashboard. Below, general problems on the
vehicle are reported. The view is set up dynamically and shows which faults appear in which module. A
description can be seen for every problem.

13
Figure 28: Health Page
Statistics
Statistics is divided into Last instants, Min/Max, Run Time, RPM Profile, and Speed Profile tabs.
Last instants
Measurements of last 120 seconds are saved. The table at the bottom of the page shows a table with all
these measurements. By selecting any of the options such as Engine Speed (rpm), Engine Temperature
(°C), Intake Manifold Pressure (mbar), Present Torque ("Miist") (%), Throttle Accelerator Sensor (%),
Throttle Position (%) in the top of the page, the corresponding information is shown and displayed
graphically.

14

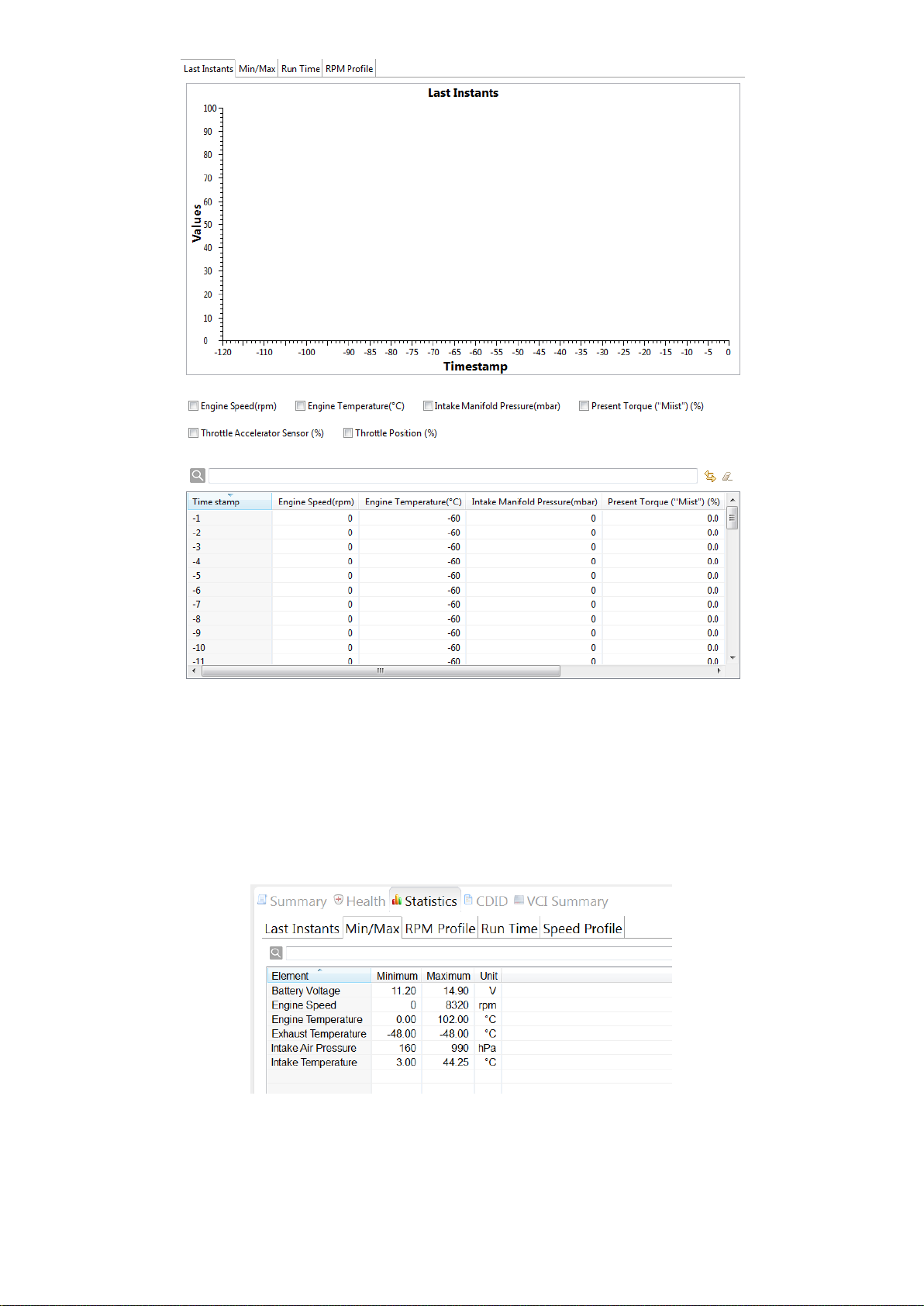

Figure 29: Last Instants Page
By selecting the refresh or clear button on the top right of the Last Instants tab, values are reloaded from
the vehicle, or cleared, respectively.
Min/Max
The module saves the minimum and maximum value of the following elements: Battery Voltage, Engine
Temperature, Exhaust Temperature, Intake Air Pressure, Intake Temperature).
Figure 30: Min/Max Page
By selecting the refresh or clear button on the top right of the Min/Max tab, values are reloaded from the
vehicle, or cleared, respectively.

15
Run Time
The different keys of the vehicle are listed, learning key, limp home, normal key and rental key. Information
on how long the vehicle was run with the respective key is shown.
Figure 31: Run Time Page
By selecting the clear button on the top right of the Run Time tab, the values are cleared in the vehicle.
RPM Profile
Indication how long the vehicle was run in which RPM range (revolutions per minute).
Figure 32: RPM Profile Page
By selecting the clear button on the top right of the RPM Profile tab, the values are cleared in the vehicle.
Speed Profile
This tab shows how long the vehicle has been operating in various speed ranges.

16

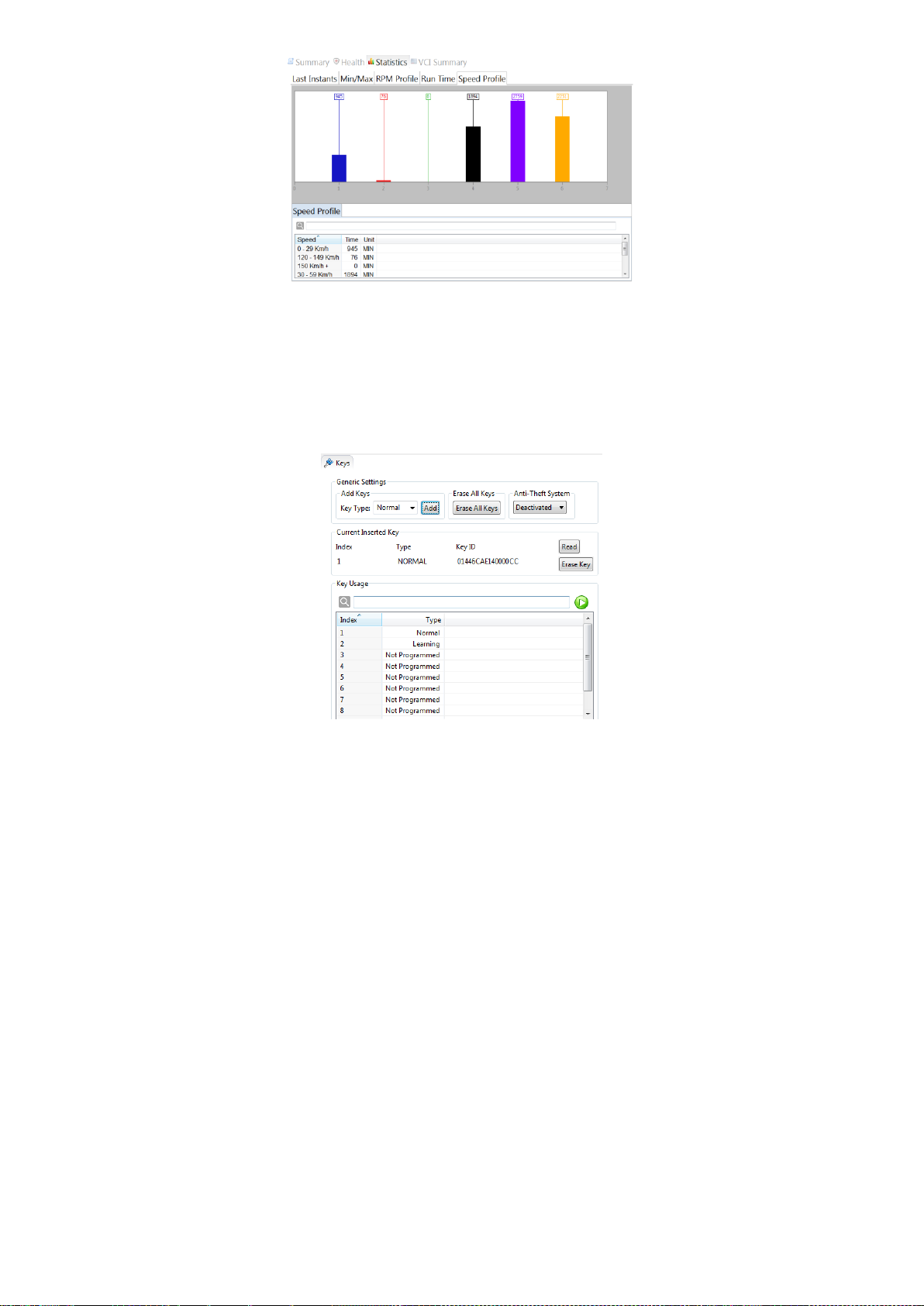

Figure 33: Speed profile page
Keys Page
To program keys into the vehicle or read the currently programmed keys, open the Keys Page.
Figure 34: Keys Page
Programming a new key:
1. Press on ‘Read’ to read the currently connected key
2. Select the key type, e.g. normal or rental
3. By clicking on ‘Add’, the currently connected key will be registered with the selected key type
4. The new key will be shown in the table ‘Key Usage’ which shows all programmed keys
To change the key type of an already programmed key, double-click on a key in the table or press the
green ‘Play’ button after selecting a key in the table.
Selecting ‘Erase Key’ will remove the currently connected key.
By clicking on ‘Erase All Keys’, all key settings are reset.
The keys are only programmed when the Anti-Theft System is enabled.
Faults Page
All faults are listed and described (Module, State, Code, Description) on the top right.

17
Active/Occurred
Active: Active faults
Occurred: Faults occurred but are no longer active
By selecting the refresh or clear button on the top right of the Active/Occurred tab, the faults are reloaded
from the vehicle, or cleared, respectively.
Figure 35: Active/Occurred Faults Page
Inactive
The Inactive Faults tab shows all inactive faults, i.e. faults that did not occur.
In the bottom section of the page more details on the faults are given.
Environmental Data
The status of the vehicle when the fault occurred is shown (i. e. speed, ignition angle, ...).

18
Figure 36: Environmental Data
Possible Causes
The reasons which may have causes the fault are mentioned in the Possible Causes tab.
Service Actions
Information on how to solve the issues is given in the Service Actions tab.
Measurements Page
The Measurements Page contains the Presets and Custom tabs.
Presets
In the Presets tab, there are graphs of the basic elements and a list of predefined measures.
Figure 37: Presets
Custom
For a custom visualization of measurements, select the Custom tab. It offers 3 different graph types:

19
•Line graph visualizes one or more numeric measurement values
•Gauge graph visualizes one numeric measurement value
•Switch graph visualizes one Boolean value (On/Off or Enabled/Disabled)
In the left view, the measurement values are listed. If they are selected in the table, the according value is
updated. To show a graph in the line graph, gauge graph or switch graph, select the respective graph type
in the graph column. Once the graph type is selected, the graph is displayed in the right view.

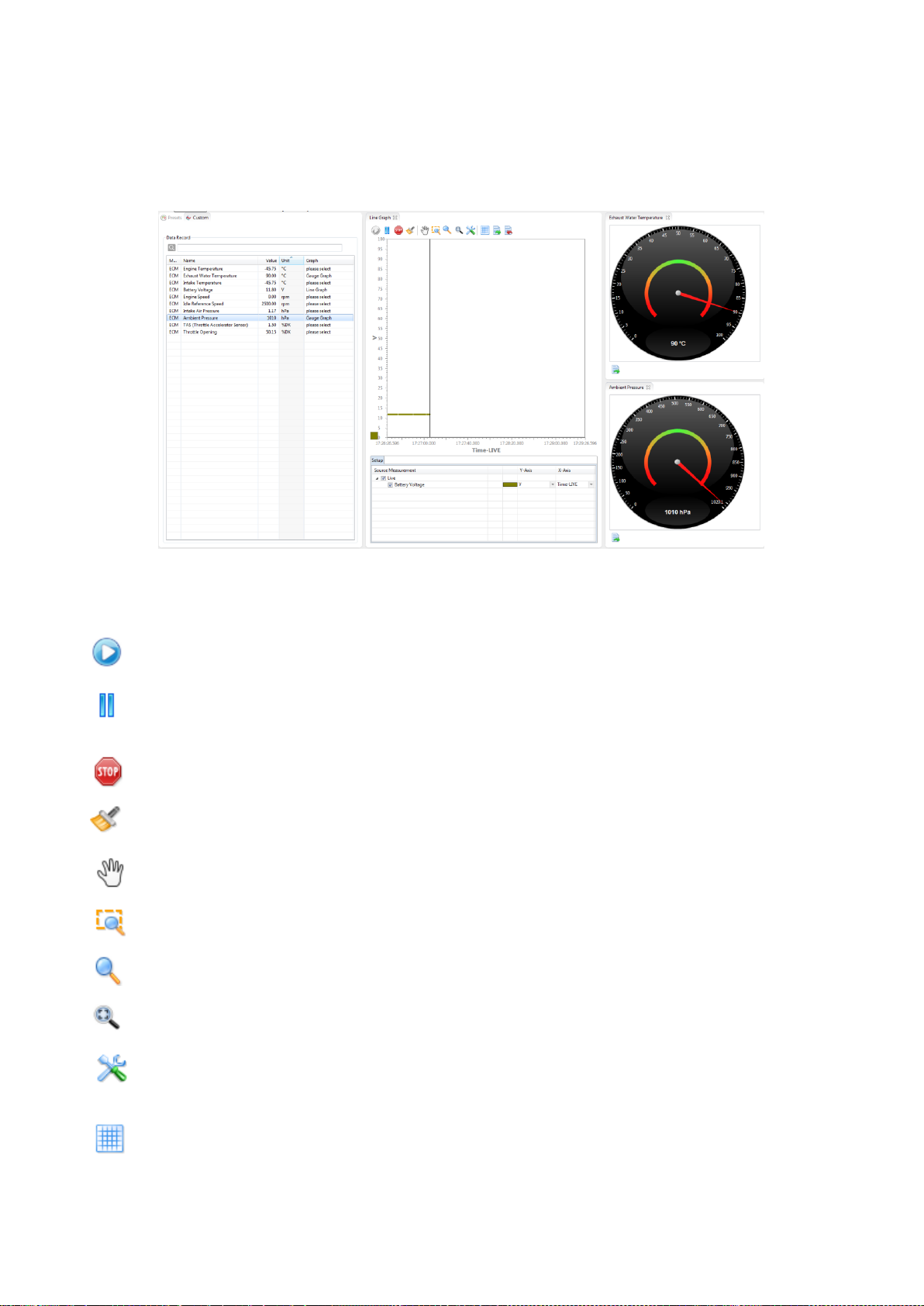

Figure 38: Custom Measurements
The line graph can be controlled by the following buttons in the toolbar.
start the graph drawing (visualizes and keeps samples)
pause the graph drawing (pauses sampling). After pausing the visualization and sampling can
be restarted by pressing the start button
stop the graph drawing (clears all samples)
clear the samples on the graph
move the graphic to the preferred view port
define an area with the pointer which will be the new view port
zoom in at the current position of the cursor
reset the zoom to the original settings
open the settings dialog which lets the user change the graph style like color, line width, etc.
(see below)
reset the cursor
