Brunton GEO LITE TRANSIT F-5030 User manual

Brunton Outdoor Inc. 1795 Dogwood Street, Louisville, CO 80027 | www.brunton.com | 800-443-4871
10232020 v.1.1
Geo Lite Transit User Manual
PRECISION MADE IN THE USA

Brunton Outdoor Inc. 1795 Dogwood Street, Louisville, CO 80027 | www.brunton.com | 800-443-4871
10232020 v.1.1
TABLE OF CONTENTS
1. Introduction
2. Component diagrams
3. Magnetic declination adjustment
4. Measuring horizontal bearings
5. Measuring vertical inclination
6. Measuring dip direction and dip angle
7. Measuring trend and plunge
8. Baseplate protractor use
9. Warranty and service information
GEO LITE SPECIFICATIONS
Model: F-5030
Magnetism: NdFeB magnet
Dimensions (closed): 2.5 x 4.1 x 0.7” | 6.35 x 10.4 x 1.8 cm
(open): 2.5 x 7.4 x 0.7” | 6.35 x 18.8 x 1.8 cm
Weight (with lanyard): 3.0 ounces | 83g (global)
Compass Bearing Accuracy: +/- 1° with 2° graduations
Vial Inclinometer Accuracy: +/-2.5° with 5°graduations
Lid Dip Dial Accuracy: +/-2.5° with 5°graduations
Baseplate Protractor Accuracy: +/- 1°with 2° graduations
1. INTRODUCTION
Congratulations on your purchase of the GEO LITE, a geology-specific
version of the TruArc15 compass. This compass was designed with a new
clip-off lanyard and fixed drive ring and reversed bearings in order to make
it direct-reading and similar in function to one of our professional transits.
The needle has been fully redesigned to give accurate bearings and back
bearings and match well with our new azimuth ring. In order to facilitate
map work and angle measurement, the baseplate has been printed as a
protractor and the inclinometer spans a full 360 degrees. Additionally,
the cover is made of super strong 50% glass-fill nylon (that is 100%
recycled) and should protect your compass for years to come. Please fa-
miliarize yourself with the rest of this user manual to fully understand the
GEO LITE’s functionality.

Brunton Outdoor Inc. 1795 Dogwood Street, Louisville, CO 80027 | www.brunton.com | 800-443-4871
10232020 v.1.1

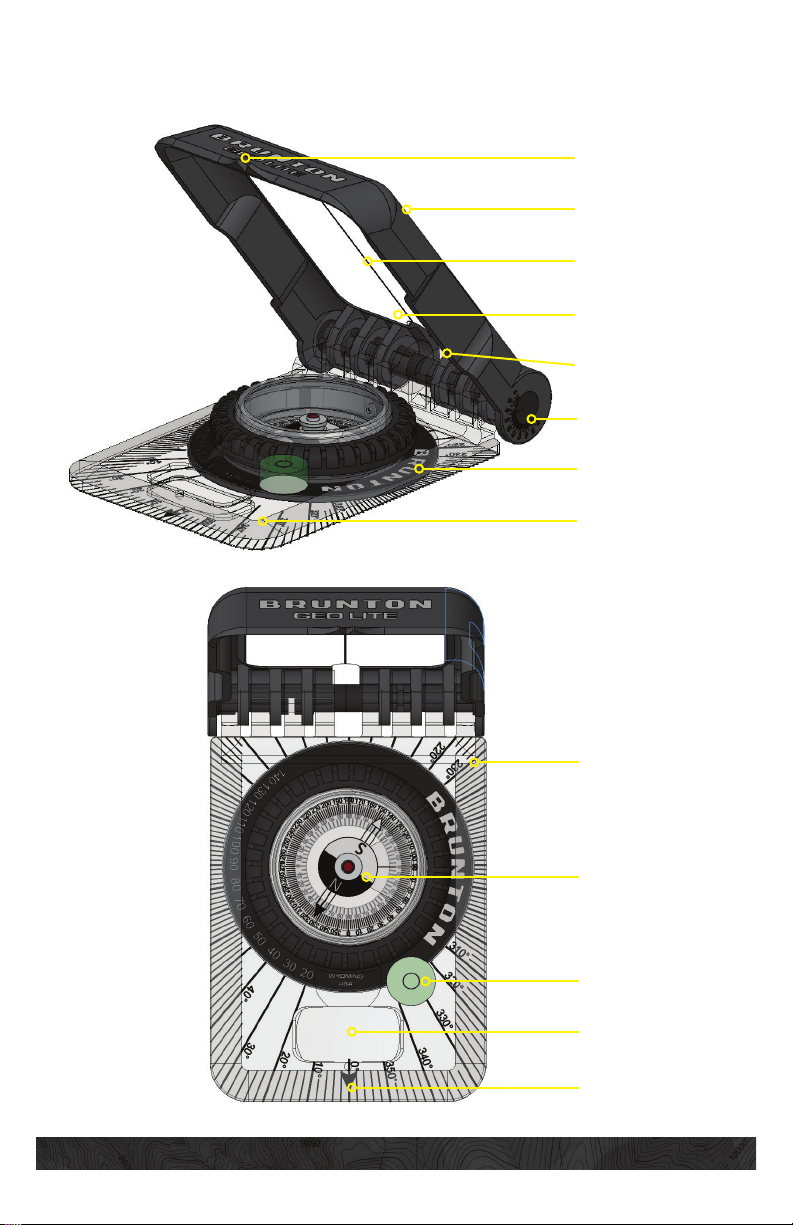

Sight
Cover
Mirror Center Line
Mirror
Sight Hole
Hinge Dip Dial
Drive Ring (Fixed)
Baseplate
Bubble Level
Protractor
Orientation Arrow
Magnification Lens
Vial
2. COMPONENT DIAGRAMS
Figure 2a
Figure 2b

Brunton Outdoor Inc. 1795 Dogwood Street, Louisville, CO 80027 | www.brunton.com | 800-443-4871
10232020 v.1.1

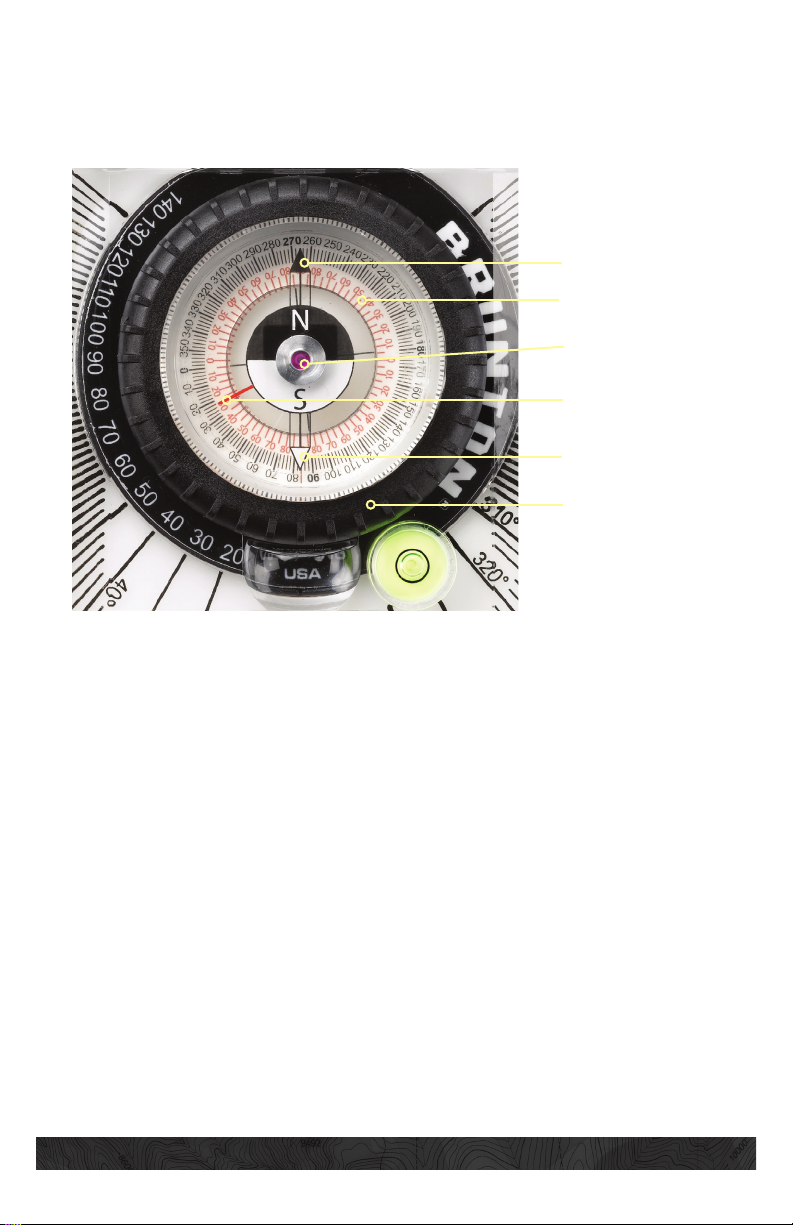

Inclinometer Scale
Center X Hair for
Protractor
Azimuth Ring
Inclinometer
South Needle
North Needle
2. COMPONENT DIAGRAMS
Figure 2c

Brunton Outdoor Inc. 1795 Dogwood Street, Louisville, CO 80027 | www.brunton.com | 800-443-4871
10232020 v.1.1
Inclinometer Scale
Azimuth Ring
Inclinometer
South Needle
North Needle
Turn vial (the black numbers)
clockwise for EAST declination
Turn vial (the black numbers)
counterclockwise for WEST
declination
3. MAGNETIC DECLINATION ADJUSTMENT
The vial in the GEO LITE can be turned without using tools to adjust for
declination in a clockwise or counterclockwise direction. It comes set
to zero declination. To adjust, simply pinch the center of the vial top
and bottom with your thumb and index finger and rotate clockwise for
east declination and counterclockwise for west declination. The red
inclinometer degree marks will not turn with the vial and you should line
the long red index line up with your local declination measurement.
Figure 3a shows 17 degrees EAST declination
Figure 3b shows 19 degrees WEST declination
Lorem ipsum

Brunton Outdoor Inc. 1795 Dogwood Street, Louisville, CO 80027 | www.brunton.com | 800-443-4871
10232020 v.1.1
4. MEASURING HORIZONTAL BEARINGS
Sight your landmark and capture your bearing one of two ways:
5. MEASURING VERTICAL INCLINATION
Your GEO LITE is equipped with a plumb-bob inclinometer within the vial
that rotates and reads a full 360 degrees. Place the long edge of the
compass on the sloping that you want to measure (dotted line in Figure
5) and note the angle that the red line matches (in the circle in Figure 5).
No mirror: spot your landmark
(the tree in Figure 4a) and point
orientation arrow towards it.
Then read the bearing that the
Nside of the needle indicates.
Mirror: spot your landmark (the tree
in Figure 4b) through the peephole
while looking at the vial through the
mirror and read the bearing that the
Sside of the needle indicates.
Figure 4a
Figure 5
Figure 4b

Brunton Outdoor Inc. 1795 Dogwood Street, Louisville, CO 80027 | www.brunton.com | 800-443-4871
10232020 v.1.1
6. MEASURING DIP DIRECTION AND DIP ANGLE
To measure the dip direction and dip angle of a plane at the same
time, place the GEO LITE lid flush to the surface to be measured
(dotted line in Figure 6a). Level the baseplate and bubble level
(A in Figure 6a). Measure the dip direction off of the needle (B in
Figure 6a) and the dip angle from the lid dip dial (C in Figure 6a).
Alternatively, you can measure strike directly by holding the long edge
of the compass level against the dipping slab (line in Figure 6b).
Figure 6b
Figure 6b
A
B
C

Brunton Outdoor Inc. 1795 Dogwood Street, Louisville, CO 80027 | www.brunton.com | 800-443-4871
10232020 v.1.1
7. MEASURING TREND AND PLUNGE
Identify the linear feature that you would like to measure the trend
and plunge of (the RED tape for enhanced visibility in Figure 7a).
Place an object such as your map board (the GREEN sheet labeled A in
Figure 7b) directly on the linear feature (RED tape labeled B in Figure
7b) and then place the side edge of the GEO LITE flush against the
board. Keeping the map board on the line, rotate the board until the
bubble level is centered (labeled C in Figure 7b) and the board is dead
vertical. The needle now reads the trend, or plunge direction.
Figure 7a
Figure 7b
A
C
B

Brunton Outdoor Inc. 1795 Dogwood Street, Louisville, CO 80027 | www.brunton.com | 800-443-4871
10232020 v.1.1
Plunge angle can then be determined by holding the back of the GEO
LITE flush against the board in the same vertical orientation (yellow
dotted line in Figure 7c) on the lineation and then by reading the red
inclinometer (labeled A in Figure 7c).
The GEO LITE can also be used to measure simultaneous trend and
plunge (Figure 7d). Level the baseplate (A in Figure 7d) while holding it
against your board (yellow dotted line in figure 7d) and align the lid
with the dipping plan (thick yellow line in figure 7d)
Then read the dial on the cover for dip angle and the appropriate end
of the needle for dip direction or dip azimuth.
Figure 13
Figure 7c
Figure 7d
A
A

Brunton Outdoor Inc. 1795 Dogwood Street, Louisville, CO 80027 | www.brunton.com | 800-443-4871
10232020 v.1.1
8. BASEPLATE PROTRACTOR USE
The protractor printed onto the bottom of the baseplate (A in
Figure 8a) can be used in many ways and the following section will
show how to measure angles and draw them.
To measure the agular difference between two features (B and C in
Figure 8a):
Align the cross hairs that are printed on the bottom of the vial (D
in Figure 8a) the vertex of two intersecting lines dead center under
the pivot, which is where all of the protractor lines converge. The
difference is the dotted arrow (also an angle).
S
N
A
D
B
C
Figure 8a

Brunton Outdoor Inc. 1795 Dogwood Street, Louisville, CO 80027 | www.brunton.com | 800-443-4871
10232020 v.1.1
To draw a 32° angle using the protractor, follow the steps below (Fig-
ures 8b, 8c, 8d,8e, 8f and 8g). This is a common practice done when
creating geologic maps or cross sections.
1. Draw a line (Figure 8b).
3. It should look like this (Figure
8d).
2. Make a small 90° cross mark to
center the pivot on (Figure 8c).
4. Match cross mark with the
cross hairs on the vial and mark
the desired angle (Figure 8e).
5. Use the edge of the baseplate to draw the angle (Figures 8f & 8g).
Figure 8b
Figure 8d
Figure 8f
Figure 8c
Figure 8e
Figure 8g

Brunton Outdoor Inc. 1795 Dogwood Street, Louisville, CO 80027 | www.brunton.com | 800-443-4871
10232020 v.1.1
9. BRUNTON LIMITED WARRANTY
Brunton warrants your manufactured product to remain free of
defects during the warranty period. Brunton’s products are intend-
ed to be used in harsh outdoor environments. As such, the Brunton
Limited Warranty does not cover normal wear and tear, damage due
to misuse or rough handling or chemical exposure, and alteration.
Products not registered will not be covered under the Brunton
Limited Warranty.
Warranty Period:
The Brunton Limited Warranty is valid for one year from the date of
purchase. Products seeking warranty must be accompanied by
proof of original purchase and completion of Product Registration
on Brunton.com.
Obtaining access to Brunton Limited Warranty:
Requests for warranty may be made by contacting Warranty
Services at 1-800-443-4871 or [email protected].
Should a defect occur in your Brunton branded product which is not
due to negligence or by fault or accident, and if the product quali-
fies for the Brunton Limited Warranty, we shall, at our option, either
repair or replace itwithout charge, and will pay the cost of return
shipment to you (you must pay for cost of shipment to Brunton).
Refunds are only available for those items purchased directly from
Brunton.com within 30 days of purchase.
Limitation of Liability:
BRUNTON SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES. THERE ARE NO OTHER EXPRESS WARRANT0IES
BEYOND THE BRUNTON LIMITED WARRANTY UNLESS MANDATORY
LAW PROVIDES OTHERWISE. THESE WARRANTY TERMS ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
