Brush Bandit 2250R User manual

STUMP GRINDER
MODEL 2250R
OPERATING & PARTS MANUAL
BUILT WITH QUALITY
AND DESIGN FIRST
2250R
ATTENTION:
Depending on what replacement
parts you are ordering, we will
need the following information:
GRINDER COMPONENTS
Serial Number
Model Number of Grinder
ENGINE COMPONENTS
Brand
Engine Serial Number
Engine Model Number
Copyright 3/15
MANUFACTURED BY
BANDIT INDUSTRIES, INC.
6750 Millbrook Road
REMUS, MICHIGAN, USA 49340
PHONE: (800) 952-0178 IN USA
PHONE: (989) 561-2270 OR 561-2272
FAX: (989) 561-2273 ~ SALES DEPT.
FAX: (989) 561-2962 ~ PARTS/SERVICE
E-MAIL: www.banditchippers.com
Model No: _____________________
Serial No: _____________________
Engine Make: __________________
Serial No: _____________________
Clutch Make: __________________
Model: ___________ S/N ________
Delivery Date: __________________
DEALER:
Name: _______________________
Address: ______________________
City/State: _____________________
Phone No: _____________________

WARNING
!
ADVERTENCIA
!
Breathing diesel engine
exhaust exposes you to
chemicals known to the
State of California to cause
cancer and birth defects or
other reproductive harm.
• Always start and
operate the engine in a
well-ventilated area.
• If in an enclosed area,
vent the exhaust to the
outside.
• Do not modify or tamper
with the exhaust system.
• Do not idle the engine
except as necessary.
For more information go to:
www.P65warnings.ca.gov/diesel
Respirar gases de escape de
motores diesel le expone a
quÍmicos conocidos por el estado
de California como causales de
cáncer y defectos congénitos u
otros daños reproductivos.
Para mayor informaciÓn visite:
www.P65warnings.ca.gov/diesel
• Siempre encienda y opere el
motor en áreas bien ventiladas.
• Si está en un área cerrada,
ventile escape hacia el exterior.
• No modifi que ni altere el
sistema de escape.
• No deje el motor en ralentÍa no
ser que sea necesario.
SPW-46 8/18
SPW-47 8/18
Cancer and
Reproductive
Harm
WARNING
!
ADVERTENCIA
!
Cáncer y daño
reproductivo
www.P65warnings.ca.gov
CALIFORNIA PROPOSITION 65

Copyright 4-14 FORM #WV-124
I have inspected this equipment and nd it in correct working condition. To the best of my knowledge,
the customer and his/her personnel are aware of, and agree to the above procedures.
Signed: ________________________________________________________ Date: ______________
(Dealer Representative)
The equipment has been thoroughly checked by the above named dealer representative, and I am
satised with his/her instructions. I have also read, understand, and agree to reverse side of page.
Signed: ________________________________________________________ Date: ______________
(Customer)
IT IS VERY IMPORTANT THAT THIS FORM IS FILLED OUT COMPLETELY & ACCURATELY. IF WE
CANNOT READ THE PURCHASER’S INFORMATION OR IT IS INCORRECT, OUR CUSTOMER LIST
WILL NOT BE ACCURATE.
IMPORTANT - THIS FORM MUST BE RETURNED TO THE
CUSTOMER DATA DEPARTMENT WITHIN TEN
(10) DAYS IN ORDER TO VALIDATE WARRANTY
Customer Data Department
6750 Millbrook Road
Remus, MI, USA 49340
Phone: (800) 952-0178 in USA
Phone: (989) 561-2270
Fax: (989) 561-2273
E-mail: www.banditchippers.com
WARRANTY VALIDATION FORM
(STUMP GRINDER)
1. ____ Customer has been instructed and understands operation and all safety aspects of operating the equipment.
2. ____ Customer has been instructed and understands that everyone within 100 feet (30 m) of machine must wear
personal safety equipment (i.e. hard hat, face shield, safety glasses, gloves, ear protection, etc.)
3. ____ Customer has been instructed and understands equipment maintenance schedules, procedures, and that
it is their responsibility to perform maintenance (i.e. retightening all fasteners as needed, clutch and belt
adjustments, etc.)
4. ____ Customer has been advised and understands not to reach near the cutter head with hands or feet or to be
locatednearthedebriseldwithenginerunning.Themachineoperatorsmustalways be located within
easy reach of all control and shut down devices.
5. ____ Customer understands to not start grinding a stump without checking for power lines, water lines, sewer
lines, phone lines, etc.
6. ____ Customer understands the purpose of and how to operate the shut down/shut off devices, and will not
attempt to override any safety devices or guards.
7. ____ Customer has been instructed and understands to always remove the ignition key and completely disconnect
battery from cables, wait for the cutter head to come to a complete stop, and to install the cutter head
lock before performing any type of maintenance on the machine. Allow all the time necessary for the
cutter head to come to a complete stop before opening the cutter head guard or starting any maintenance or
service procedures. Customer has been shown and understands the purpose of the beltshield inspection
holeandtonotattemptanymaintenanceuntilbeltsarevisuallyconrmedtohavecometoacompletestop.
8. ____ Customerhasbeeninstructedandunderstands:ToNot operate this machine without the factory approved
cutterheadguardassemblyinplace.ToNot operate this machine with any type of make shift cutter head
guard.ToNot operate this machine under any circumstances with the cutter guard open or unsecured.
9. ____ Customer has reviewed and understands limited warranty, and all written and visual instructions.
10. ____ Customer has received, been advised, and understands the manuals, and the Safety/Service video supplied
with the grinder.
11. ____ All Danger, Warning and Operational decals are properly displayed on equipment and fully understood by customer.
12. ____ Customer has been instructed, understands, and agrees that all potential operators must: See the supplied video,
be instructed on all Danger, Warning, and Operational decals, read the manual and follow the procedures.
PURCHASER / OWNER INFORMATION:
Company Name __________________________________ Contact Name _____________________
Mailing/Street Address _______________________________________ City _______________________
State __________________ Zip Code __________ Phone Number ( ___ ) __________________
E-mail ____________________________ Machine Model No. _________ Serial No. ______________
Date Put Into Service ______ Machine Hours _______ Engine Make __________________________
DEALER / SELLER INFORMATION:
Dealer/Seller Name _______________________________ Contact Name _____________________
Mailing/Street Address _______________________________________ City _______________________
State __________________ Zip Code __________ Phone Number ( ___ ) __________________
Engine Serial No. ______________________

All of the employees that build your equipment strive to manufacturer the very best quality product on
the market. We would appreciate your efforts in letting us know how we are doing.
Wewouldlikeyoutooperateyourmachineforthirty(30)daysandthenlloutthisquestionnaireandmailittous.
Thiswillhelpustokeepproducingagoodproductandimprovingourproductsthroughyourrecommendations.
DATE PURCHASE: ______________________
MODEL: ________________________________
SERIAL NUMBER: _______________________
DEALER NAME: ________________________
_______________________________________
Copyright 7-04 FORM #Q-112
TO BE RETURNED AFTER THIRTY (30)
DAYS OF OPERATION
Please return to: Customer Data Department
6750 Millbrook Road
Remus, MI 49340
Phone: (800) 952-0178 in USA
Phone: (989) 561-2270
Fax: (989) 561-2273
E-mail: www.banditchippers.com
STUMP GRINDER QUALITY REPORT
1. Did your machine perform to your expectations? _______________________________________
2. Was the machine delivered on schedule? _____________________________________________
3. Wasthepaintcolorandnishtoyoursatisfaction?______________________________________
4. Was machine equipment as ordered? ________________________________________________
5. Did all welds appear to be high quality? ______________________________________________
6. Was the overall machine to your liking? ______________________________________________
7. What problems have you experienced? ______________________________________________
8. Have any components regularly loosened that caused problems? __________________________
9. Does the hydraulic system seem to have adequate power? ______________________________
10. Is the machine manufactured to accommodate service in an adequate manner? If not, please explain:
_______________________________________________________________________________
11. General comments and/or suggestions: ________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
12. Would you like to be contacted concerning more of our equipment? ________________________
YOUR COMPANY: ________________________________
NAME: __________________________________________
ADDRESS: ______________________________________
CITY: ___________________________________________
STATE & ZIP: _____________________________________
PHONE: ( ____ ) _________________________________
E-MAIL: _________________________________________

Bandit
1Copyright 3/15
MODEL 2250R TABLE OF CONTENTS
TABLE OF CONTENTS
PAGE
INTRODUCTION & WARRANTY .......................................................... 2
SERIAL NUMBER LOCATION ............................................................. 6
SAFETY PROCEDURES ...................................................................... 7
EQUIPMENT SPECIFICATIONS ........................................................... 11
DECALS ................................................................................................ 12
CONTROLS............................................................................................ 15
MACHINE OPERATION ........................................................................ 19
TRANSPORTATION PROCEDURES ................................................... 23
MAINTENANCE .................................................................................... 25
HYDRAULIC SECTION ................................................................. 37
CUTTER WHEEL SECTION .......................................................... 46
ELECTRICAL SECTION ................................................................ 48
LUBRICATION & COOLANT.......................................................... 50
REPLACEMENT PARTS SECTION ..................................................... 51
FRAME COMPONENTS ................................................................ 52
CUTTER WHEEL ARM COMPONENTS ....................................... 54
CUTTER WHEEL COMPONENTS ................................................ 56
STEERING COMPONENTS .......................................................... 58
CUTTER WHEEL ENGAGEMENT LEVER COMPONENTS......... 59
FUEL TANK COMPONENTS.......................................................... 60
HYDRAULIC TANK COMPONENTS.............................................. 61
HYDRAULIC COMPONENTS ........................................................ 62
SERVICE RECORD ............................................................................... 67
ANY PART, PORTION, DESIGN, NUMBER, SPECIFICATION, AND/OR DIMENSION IN THIS
MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE BY THE MANUFACTURER.
NOTICE

Bandit
2
Copyright 3/15
INTRODUCTION & WARRANTY
INTRODUCTION
Thepurposeof this manualisto provide the userwithspecications and procedures forthe
operation,maintenanceandrepairof thisBANDITproduct. Aswithanypieceofequipment,
safety should always be a constant thought while the machine is being operated, serviced or
stored. In order to highlight this consideration, the material which addresses safety is proceeded
by the following signal words:
Theequipmentisdesigned and manufactured in accordance with the latest productindustry
standards.Thisalonedoesnotpreventinjury.Itistheoperator’sresponsibilitytousegood
judgement and follow the warnings and instructions as indicated in this manual, on the machine
and follow all safety standards per ANSI and OSHA instructions.
Improper use of the product can result in severe personal injury. Personnel using the equipment
mustbequalied,trainedandfamiliarwiththeoperatingproceduresasdenedinthismanual,
prior to operating the product.
It is the responsibility of the owner or employer to ensure that the operator is trained and practices
safe operation while using and servicing the machine. It is also the owner’s responsibility to
provide and follow a regularly scheduled preventative maintenance and repair program on the
product,usingonlyfactoryapprovedreplacementparts.Anyunapprovedrepairsormodications
may not only damage the machine and its performance, but could result in severe personal injury.
Unapprovedrepairsormodicationswillvoidwarrantyandeliminatemanufacturerofanyliability
claims. Consult the equipment manufacturer!!!
Each machine is shipped with a manual, a customer’s check sheet on the product, and any
available parts & service manuals on component parts not produced by this manufacturer.
Additional copies of these manuals and check sheets can be purchased from the manufacturer,
orthroughthedealer.Engineparts,serviceandmaintenancemanualsMUSTbepurchased
through the engine manufacturer or their dealer.
TheproducerofthisBanditproductreservestherighttomakeanymodicationsorrevisionsto
thedesignorspecicationsofitsmachinewithoutadvancenotice.Theproduceralsoreserves
the right to change machine and part prices as needed without advance notice.
Signal Word Likelihood of Occurrence Degree of Potential
Injury or Damage
Will occur if warning is ignored
Can occur if warning is ignored
Will or can occur if warning is ignored
Important, but not hazard related
Severe
Minor
Minor to Severe
Severe
CAUTION
!
NOTICE
NOTICE
WARNING
!
WARNING
!
DANGER
!
WARNING
!


Bandit
6
Copyright 3/15
MODEL 2250R
1. Side of tank or control box
2. W/O # on pivot mount plate
SERIAL NUMBER LOCATIONS
2
1
TYPICAL SERIAL NUMBER AND/OR
WORK ORDER NUMBER LOCATIONS
The engine information is located on the
engine block.
NOTICE

Bandit
7Copyright 3/15
MODEL 2250R
Before starting the machine, take a minute to
check a few things. The grinder should be in an
arearestrictedfrompeoplepassingby.Thisarea
around the grinder must be free of all objects that
can obstruct your movement when working with the
grinder.Themachineshouldbecheckedforloose
tools or foreign objects, especially in the grinding
area. All tools not in use should be secured in a tool
box.
Operators must at all times be located within easy
reach of all control and shut-off devices when the unit
isrunning.Theymustbeattentiveandpreparedto
activate the devices.
Tornorlooseclothingismorelikelytogetcaught
in moving machinery parts. Keep such items as long
hair, shirt sleeves, and shirt tails properly contained.
Avoid wearing necklaces, rings, watches, and
especially neckties while operating this machinery.
Make sure the machine is in excellent condition, and
all the guards are in place, tight and secure.
Wear all personal protection equipment and follow
all safety standards per ANSI and OSHA instructions.
Examples of equipment: hard hat, face shield, safety
glasses, gloves, ear protection, etc. Always keep a
fullychargedreextinguisherwiththemachinewhile
operating or servicing the machine.
SAFETY PROCEDURES
SAFETY PROCEDURES
ThewordsDanger,Warning,Caution,and
Notice are used on the safety decals and throughout
this manual, to make you aware of the safety
procedures.Theseproceduresareveryimportant,
read and obey them.
YOUR SAFETY IS VERY IMPORTANT TO US!
This machine is equipped with safety decals,
guards and designs for your protection.
Don’t ever take the machine for granted, always be
cautious and careful when operating your equipment.
Read and follow all the instructions in your
manual thoroughly. Your safety is dependent on
your knowledge of how to operate and maintain this
machine. You may obtain additional copies of this
manual from your Bandit Dealer.
Before operating machine, you must have all
potential operators; read and understand manuals
and decals, watch the video and follow the
recommendations.
Regardless of how hard a manufacturer tries to
produce a safe machine, accidents still happen.
Normally accidents are caused by people making
mistakes.Theydonotreadthemanual,theyignore
warning decals or do not use lockouts provided for
theirsafety.Thisnormallyhappensaftertheperson
has become accustomed to the machinery. In the
initial start up and operation of the machinery, they
are cautious, they are very careful because they do
not understand the machine.
Thisequipmentisintendedforusebypersonnel
who are experienced with similar equipment. Always
operatesafely.Thereshouldbeatleasttwoqualied
andtrainedoperatorsattheworksite.Theyshould
be positioned in safe working locations, following
safety procedures and instructions, and aware of
eachotherswhereabouts.Thereshould,also,be
at least two people on site during maintenance and
service procedures in case an accident should occur.
Neveroperateanymachinewhileundertheinuence
of drugs or alcohol.
Keep children, bystanders and animals clear of
working area. Never operate equipment that is in
need of repair or adjustment.
! ! !
DANGER
!
DANGER
!
DANGER
!
WARNING
!
NEVER sit, stand, lay, climb or ride anywhere
on this machine while it is running, operating, or in
transit. You will be injured.
DANGER
!

Bandit
8
Copyright 3/15
MODEL 2250R SAFETY PROCEDURES
SAFETY PROCEDURES
It is very important after you have operated a new
machine for approximately an hour to shut down the
machine and recheck all nuts and bolts. It is normal
for nuts and bolts to loosen once on a new piece of
machinery. If you tighten them now, there is a good
possibility they won’t loosen again. Certain nuts and
bolts should be checked periodically such as cutter
teethbolts,etc.fortorqueandt.
Most of the nuts used on the Bandit Grinder are
self locking. After a nut or bolt has been removed
vetimes, itshould bereplaced to ensureproper
tightness. This is especially critical on the cutter
tooth bolts!
After the engine is started, let the grinder wheel
turn at the lowest RPM’s possible. Listen for any
type of noise that is foreign. Any steel on steel noise
isforeign.Ifyouhearanoise,stoptheengine,nd
theproblemandxit.
It is very important after you have operated a new
machine for approximately an hour to shut down the
machineandrecheckallhydraulicttings.Retighten
as needed.
DONOTGONEARHYDRAULICLEAKS!High
pressure oil easily punctures skin causing serious
injury,gangrene,ordeath.Avoidburnsfromuid.
Hotuidunderpressurecancausesevereburns.
DONOTusengersorskintocheckforleaks.Lower
load or relieve hydraulic pressure before loosening
ttings.Relieveallpressureinthesystembefore
disconnecting the lines, hoses, or performing other
work.Useapieceofcardboardtondleaks.Never
use your bare hands. Allow system to cool down to
ambient temperature before opening any coolant or
hydraulic oil system.
In cold weather situations let your hydraulic
system idle for approximately 15 minutes to allow
the system to warm up to operating temperature.
WARNING
!
WARNING
!
Before attempting any type of maintenance
disengage clutch, turn off engine, wait for the cutter
wheel to come to a complete stop, install the cutter
wheel lock pin, disconnect battery, and make sure
the ignition key is in your possession.
ALWAYS install the lock pin into the cutter lock
tube before working on the grinder.
Simply slide the lock pin into the cutter wheel lock
tube.Thisistoensurethatthecutterwheelcannot
be started while you are working on the grinder. If
for some reason the cutter wheel would start to turn,
it would simply hit the lock pin.
DONOToperatethismachineindoors!Exhaust
fumes can be fatal. Never refuel while the machine
is running. Never refuel in the shop or building.
Always refuel in a well ventilated area, away from
sparksoropenames,DONOTSMOKE.Extinguish
all smoking materials. Wipe up all spilled fuel before
restartingtheengine.Donotllabove1/2”(12.7mm)
from top of tank.
To obtain the most from your machine, for the
least amount of cost, it is a good practice to set up
and follow a scheduled preventative maintenance
program. It will eliminate many possible problems
and down time.
Never use jumper cables during freezing
temperatures. Tow the machine inside and allow
the battery time to warm up. If the machine must
be started outside, inspect the battery acid for ice
formation. Explosion will occur with a frozen battery.
If the machine is going to be operated in excessively
cold conditions, a larger cold cranking amp battery
may be needed to ensure proper and prompt
starting.Neverusejumpercablesinaconnedor
unventilated area. Battery acid fumes are explosive.
Battery acid can cause severe burns. Never expose
anopenameorsparknearthebattery.Keepall
burning materials away from the battery. When
servicing the battery, shield eyes and face, and do
not smoke. Service in a well ventilated area.
Keep the machine in good condition. Be sure
the machine is in good operating condition and that
all safety devices, including guards and shields are
installed and functioning properly. Visually inspect
the machine daily before starting the machine. Refer
to the “Daily Start Up & Maintenance”. Make no
modicationstoyourequipmentunlessspecically
recommended or requested by Bandit Industries Inc.
DANGER
!
DANGER
!
DANGER
!
WARNING
!
DONOToperatethismachineunlessallhydraulic
control devises operate properly. They must
function, shift and position smoothly and accurately
at all times. Faulty controls can cause personal
injury!
WARNING
!
CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of its
constituents are known to the State of
California to cause cancer, birth defects,
and other reproductive harm.

Bandit
9Copyright 3/15
MODEL 2250R SAFETY PROCEDURES
SAFETY PROCEDURES
Avoid moving parts. Keep hands, feet, and
clothing away from power driven parts. Keep all
guards and shields in place and properly secured.
DANGER
!
DANGER
!
Never grind materials that might contain wires,
stones, nails, or other metal objects which may
damage the teeth and become dangerous projectiles.
Remove all rocks and stones from stump grinding
area.
DONOTgonearorin-linewiththedebriseldof
the stump grinder while in operation. While grinding
stumps,thechipsandportionsofthestumpyfrom
the cutter wheel and can cause severe injury.
DANGER
!
DANGER
!
Do not attempt to start the engine or engage the
enginePTO(power-take-off)systemonthismachine
if the cutter wheel is jammed or frozen in place.
If you do, you will damage or ruin the drive belts
and/or the PTO which will not be covered under
warranty and will cost you down time and money.
NOTICE
Your machine may or may not be equipped with
a clutch. Depending on the options ordered, some
may be direct drive.
Do not work on the machine if the engine is
running with the clutch disengaged. A clutch can
self engage if either the pilot or throw-out bearing
happens to seize to the main output shaft.
There are various types of clutches (PTO’s)
available for this type of equipment. Make sure
to study the original clutch manufacturer’s manual
that is provided with the machine and follow its
instructions for operation, service, and adjustments.
Some styles require clutch engagement to be
maintained so that it takes a lot of force, others will
require very little force, and some are push button,
electric, manual lever, or hydraulic activation. Each
differentstyleclutch(PTO)isaveryexpensiveitem
that will fail if not correctly maintained and adjusted.
It will be quite costly if a few minutes are not taken
daily, weekly, and monthly to keep the clutch serviced
as required.
Theoperatormusttakecareintheengagement
and disengagement of the clutch, engine RPM
should always be below 1000 RPM. When the
enginehassufcientlywarmedup,bumptheclutch
handle against engagement to start the cutter wheel
turning.Thiswillhavetoberepeateduntilthecutter
wheel is turning at proper ratio with engine RPM.
Then push the handle all the way in gear until it
locks into position securely. After engagement
raise engine RPM to full throttle. Engaging and
disengaging the clutch at high engine RPM will
quickly and excessively wear out clutch plates as
well as bearings. Refer to clutch manufacturer’s
manual for proper service and operation.
DANGER
!
DONOT startto grind a stump unlessyou are
completely sure there are not any power lines, water
lines, sewer lines, phone lines, etc. in the area above
or below the ground level where you are grinding.
DANGER
!
Check laws and regulations. Know and obey all
federal, state, and local laws and regulations that
apply to your work situation and the transportation
of a machine this size.
WARNING
!
CLEAN MACHINE OF ALL DEBRIS! DO NOT
leave this machine unattended until all potential re
debrisis removed,no reor smoldering exists,and
hot spots are cold. The engine creates many hot
spots including: exhaust manifold, exhaust, turbo (if
equipped), etc. Remove all ammable debris such
as wood, chips, leaves, oils, fuels, etc. from engine
exhaust, engine turbo (if equipped), beside, around,
and under engine, around and under tanks, inside
belt shields and guards, inside battery and tool
boxes, inside cabinets (if equipped), and anywhere
materials collect. ALWAYS keep several type A:B:C
reextinguishersoperationalandonthejobatalltimes.
WARNING
!
Engage and disengage cutter wheel at low rpm.
NOTICE
WARNING
!
Sparks can occur if cutter teeth strike rocks,
metal, or other hard objects.
DO NOT use in high or very high re hazard
severity zones.
Operation of this equipment may create sparks
thatcanstartresarounddryvegetation.Aspark
arrester may be required. The operator should
contact local re agencies for laws or regulations
relatingtorepreventionrequirements.
Do Not continue to operate the machine if the
cutter wheel stalls. Immediately lift cutter wheel out
of the stump, dirt, etc. and start again with less bite.
Prolonged cutter wheel stall will ruin the hydraulic
components, creating extreme heat and possible
rehazard.
WARNING
!
DONOTgoneartherotatingcutterwheelforany
reason.DONOTgonearthecutterwheelwhilethe
engine is running or the cutter wheel is coasting to a
stop. Contact with a rotating cutter wheel will result
in serious bodily injury or death.

Bandit
10
Copyright 3/15
MODEL 2250R
Do not attempt to operate the machine on an ascending or descending slope of more than 25° or 46% or
asideslopeofmorethan17°or30%,itisDangerousandcouldbeFatal.Thisisthemaximumslopegrade
the machine can be operated on if the hydraulic system, self propelled undercarriage, and engine are running
at maximum performance and good traction is sustained.
Themachineshouldneverbeparkedonaslopeatanytime.Themachinecancoastorcreepcausing
equipment and/or personal injury.
Make sure everyone is clear of machine before moving the machine. Stay clear of undercarriage travel
system when the machine is moving.
DONOTentanglefeetorhandsinundercarriagetravelsystem.
NEVER sit, stand, lay, climb or ride anywhere on this machine while it is running, operating, or in transit.
You will be injured.
Use EXTREME CAUTIONwhentravelingovernon-levelsurface!Thismachinecantipoverortipbackwards
on non-level surface. You will cause engine damage, machine damage and possible personal injury!
Anyincreasefromthespeciedmaximumoperatinganglesmaycauselossoflubricationfunctionand
damage the engine.

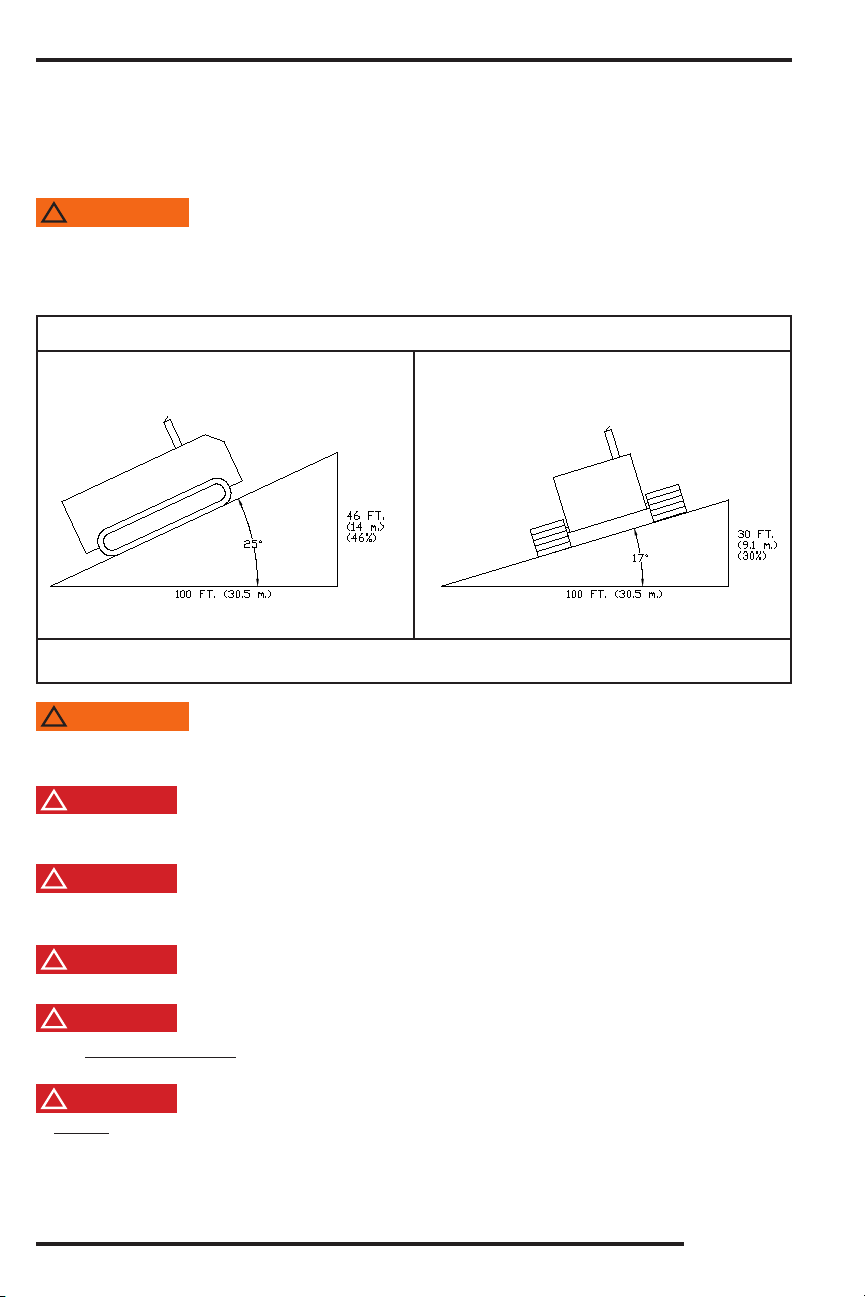

Maximum Slope Grade
Diagram shows percentage to degree of slope.
Percentage is in vertical feet for every 100 horizontal feet.
Ascending or Descending Slope Side Slope
IF MACHINE IS EQUIPPED WITH A SELF PROPELLED UNDERCARRIAGE
Machines equipped with undercarriage tracks are shipped with a manual from the track manufacturer.
Refer to it for service, operation, and safety information.
SAFETY PROCEDURES
SAFETY PROCEDURES
DANGER
!
DANGER
!
DANGER
!
DANGER
!
DANGER
!
WARNING
!
WARNING
!

Bandit
11Copyright 3/15
MODEL 2250R
Approximate Dimensions & Weights
(Dimensions & weights will vary depending on optional equipment)
Approx.
Weight: Model 2250R: 1380 lbs. (625 kg)
(Approximate weights depending on engine and equipment options.)
Overall
Dimension: Model 2250R: Height: 44-1/4” (1.12 m), Length: 112” (2.84 m), Width: 35” (.89 m)
Cutting Depth: 14” (.35 m)
Cutting Height: 24-1/2” (.62 m)
Cutting Swing: 50” (1.27 m)
NumberofTeeth 24onNewRiver“Revolution”Wheel
onCutterWheel: 18onGreenTeethWheel
Cutter Wheel
DiameterwithTeeth: 20”(.51m)
FuelTankCapacity: 83/4Gallons(33Liters)
HydraulicTankCapacity: 83/4Gallons(33Liters)
(Approximate dimension depending on equipment options.)
EQUIPMENT SPECIFICATIONS
EQUIPMENT SPECIFICATIONS

Bandit
12
Copyright 3/15
MODEL 2250R
Decal locations may vary, these are general locations.
DECALS
DECAL LOCATIONS
1,17,28
1,2,11
4,5
8,12,13
7,8,18
6,14,20,26
3
3
1,17,28
1,2,27
1,8,13 8,23 4,5,10
19,24
16,23,25
21

Bandit
13Copyright 3/15
MODEL 2250R
LOCATION NUMBER DESCRIPTION
1. SPD-02 Moving Parts...
2. SPD-20 Flying Objects Stand Clear...
3. SPD-30 Do Not Sit, Stand, Lay, Climb...
4. SPD-35 Extreme Caution...Non-Level Surface...
5. SPD-36 ...Debris Field...
6. SPD-38 Do Not Entangle Feet...
7. SPD-39 Do Not Operate...
8. INST-12 GreaseDaily(Arrow)
9. INST-44 CaliforniaProposition65
10. INST-53 HydraulicOil...HydrexXV...
11. INST-73 CutterHeadLockHole
12. INST-74 CutterHeadLockPin
13. INST-86 GreaseDaily-DoubleArrow
14. INST-88 Controls-4Function
15. INST-101 CanadaEngineDecal
16. INST-285 HydraulicFunctionSpeedControl...
17. N-02 Maintain Lubrication...
18. SPN-06 Decal Maintenance...
19. N-33 Engine Oil Lubrication...Break-In...
20. N-55 ...Oil Cooler Fan Starts...
21. N-58 Engage And Disengage...At Low RPM
22. SPW-01 Do Not Go Near Oil Leaks...
23. SPW-03 Gasoline Fuel Only...
24. SPW-04 Frozen Battery Can Explode...
25. SPW-08 Wear Personal Protection...
26. SPW-09 ...Go Slow Around Corners...
27. SPW-28 ...Fire Hazard...
28. SPW-29 ...Cutter Wheel Stall...
29. 900-8900-34 Basic Safety Decal Kit (Options may require additional decals)
30. 900-8901-90 Bandit Model 2250R Logo Decal Kit
Some decals are for optional equipment. Decal locations may vary, these are general locations.
If any decals become damaged, replace immediately.
DECALS
DECAL LOCATIONS
NOTICE
Modicationsand/oradditionsofdecalstothislistwillhappen.
Consult chipper dealer or manufacturer for most current decal package.

Bandit
14
Copyright 3/15
MODEL 2250R
EXAMPLES:
Decals located on your Bandit equipment contain useful information to assist you in operating your equipment
safely. Some of the decals on your machine and their location are shown in this section.
It is very important that all decals remain in place and in good condition on your machine. Please follow
the care and instructions given below:
1. You should use soap and water to keep your decals clean. Never use mineral spirits or any other
abrasive cleaners.
2. Replaceimmediatelyanymissingordamageddecals.Thelocationthedecalisgoingtobe
applied to must be clean and dry, and at least 40°F (5°C) before applying decal.
3. When the need arises to replace a machine component with a decal attached, be sure and replace
the decal.
4. Replacement decals are available, and can be purchased from the manufacturer or your Bandit Dealer.
5. Peelbackabouthalfofthebackerpaperonthedecal.Positionitontheat,dry,cleansurfaceso
it is smooth and secure. Peel off the remainder of the backer paper as you continue to stick the
decal on the surface.
6. Rub decal from the center outward to remove air bubbles and to secure contact.
7. Combination English / Spanish decals are typically standard. Other foreign language decals are
available and may be purchased. Send translated decals required to Bandit Industries, Inc.
DECALS
DECALS

Bandit
15Copyright 3/15
MODEL 2250R
ENGINE OPERATING SPEEDS
Refer to the Completion/Check Sheet, that is shipped with the machine for the correct engine
rpm. If needed, contact your local dealer or Bandit Industries.
NOTICE

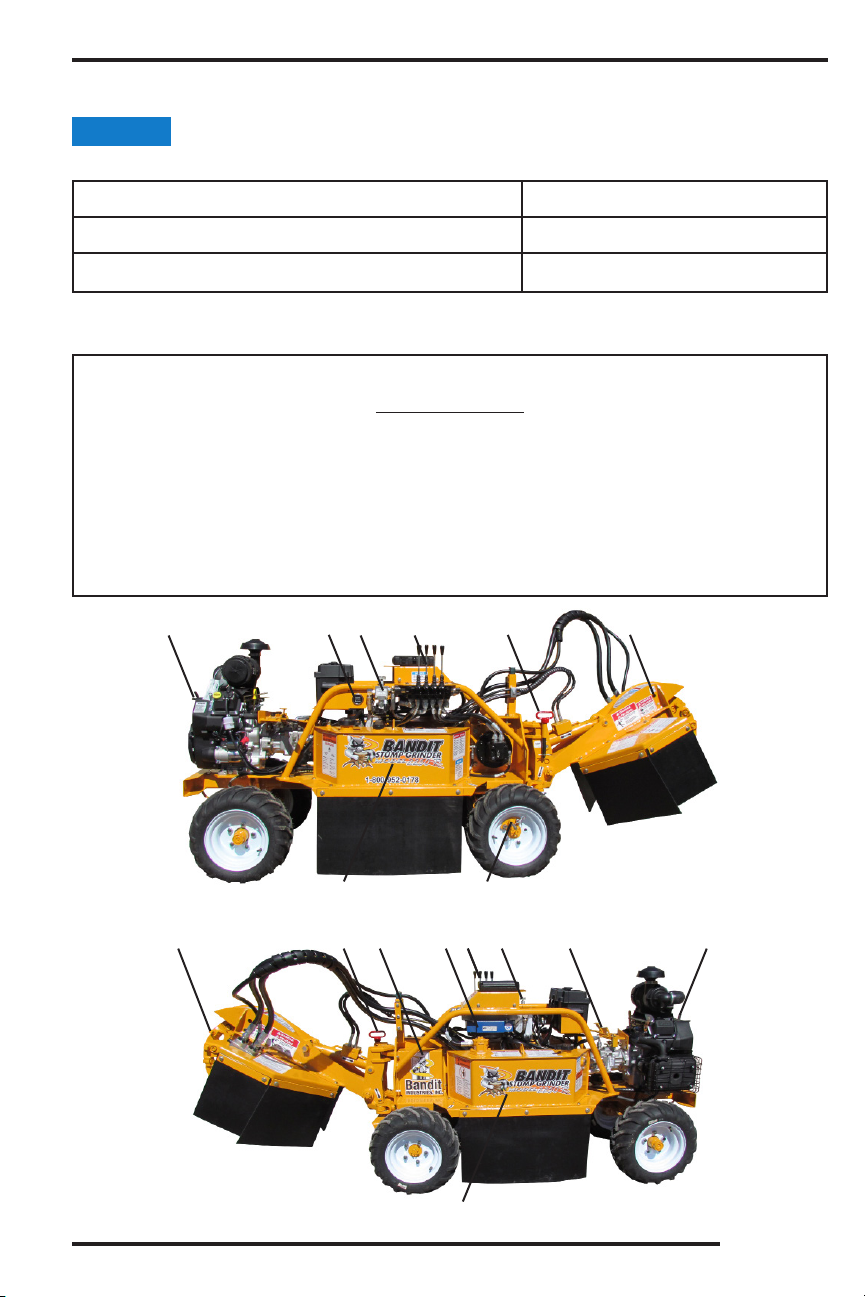

CONTROLS
CONTROLS
LOCATION SHOWN
1. Cutter Wheel Lock Pin
2. Cutter Wheel Lock Pin Hole
3. CutterWheelTeeth
4. Hydraulic Speed Control Valve
5. Manual Controls
6. FuelTank
Basic Location of Controls and Components
7. Hour Meter
8. EngineThrottle&Choke(varieswithengines)
9. Oil Cooler Fan
10. Cutter Wheel Engagement Lever
11. Drive Chain Cover
12. Drive Lock Pin
13. HydraulicTank
1 2
3
4 5
5
7
5
SomeCurrentEngineTypes
Kohler CH730S - 27 Hp
Kohler CH730S - 25 Hp
Maximum RPM
3600
3600
41
8
89 1011
12
13
6

Bandit
16
Copyright 3/15
MODEL 2250R CONTROLS
CONTROLS
LOCATION SHOWN
1. Hydraulic Speed Control Valve
2. Steer Right / Left
3. TravelForward/Reverse
4. Cutter Down / Up
5. BoomTravelLeft/Right
6. Hour Meter
7. Cutter Wheel Engagement Lever
Basic Location of Controls and Components
1 26 3 4 5
67

Bandit
17Copyright 3/15
MODEL 2250R CONTROLS
CONTROL OPERATING PROCEDURES
1. Hydraulic Speed Control Valve:
TheHydraulicSpeedControlValvecontrolstherateatwhichhydraulicuidowstowardseachcontrol
functionsuchasTravelForward/TravelReverse,SteerRight/SteerLeft,etc.Byrotatingtheknob
clockwise various function speed will slow down. By rotating the knob counter-clockwise various function
speed will increase.
2. Steer Right / Left:
To steer the machine to the right, push the handle or switch, away from the operator. To steer the
machinetotheleft,pullthehandleorswitch,towardstheoperator.Thesteeringisstationarywhenthe
handle or switch is in the center location.
3. Travel Forward / Reverse:
Tomovethemachineforward,pushthehandleorswitchawayfromtheoperator.Toreversethemachine,pull
thehandleorswitchtowardstheoperator.Themachineisstationarywhenthehandleorswitchisinthecenter
location.
4. Cutter Down / Up:
Tolowerthecutterwheel,pushthehandleorswitchawayfromtheoperator.Toliftthecutterwheel,pullthe
handleorswitchtowardstheoperator.Thecutterwheelliftisstationarywhenthehandleorswitchisinthe
center location.
5. Boom Travel Left / Right:
Toswingthecutterwheeltotheleft,pushthehandleorswitch,awayfromtheoperator.Toswingthe
cutterwheeltotheright,pullthehandleorswitch,towardstheoperator.Theswingisstationarywhen
the handle or switch is in the center location.
6. Hour Meter:
Displays the number of hours the engine has been on.
7. Cutter Wheel Engagement Lever:
Before engaging or disengaging the cutter wheel, make sure the engine is at an idle.Toengage
thecutterwheel,pressthethumbhandledownandpullthelever,towardstheengine.Todisengage
the cutter wheel, press the thumb handle down and push the lever, away from the engine.

Bandit
18
Copyright 3/15
MODEL 2250R

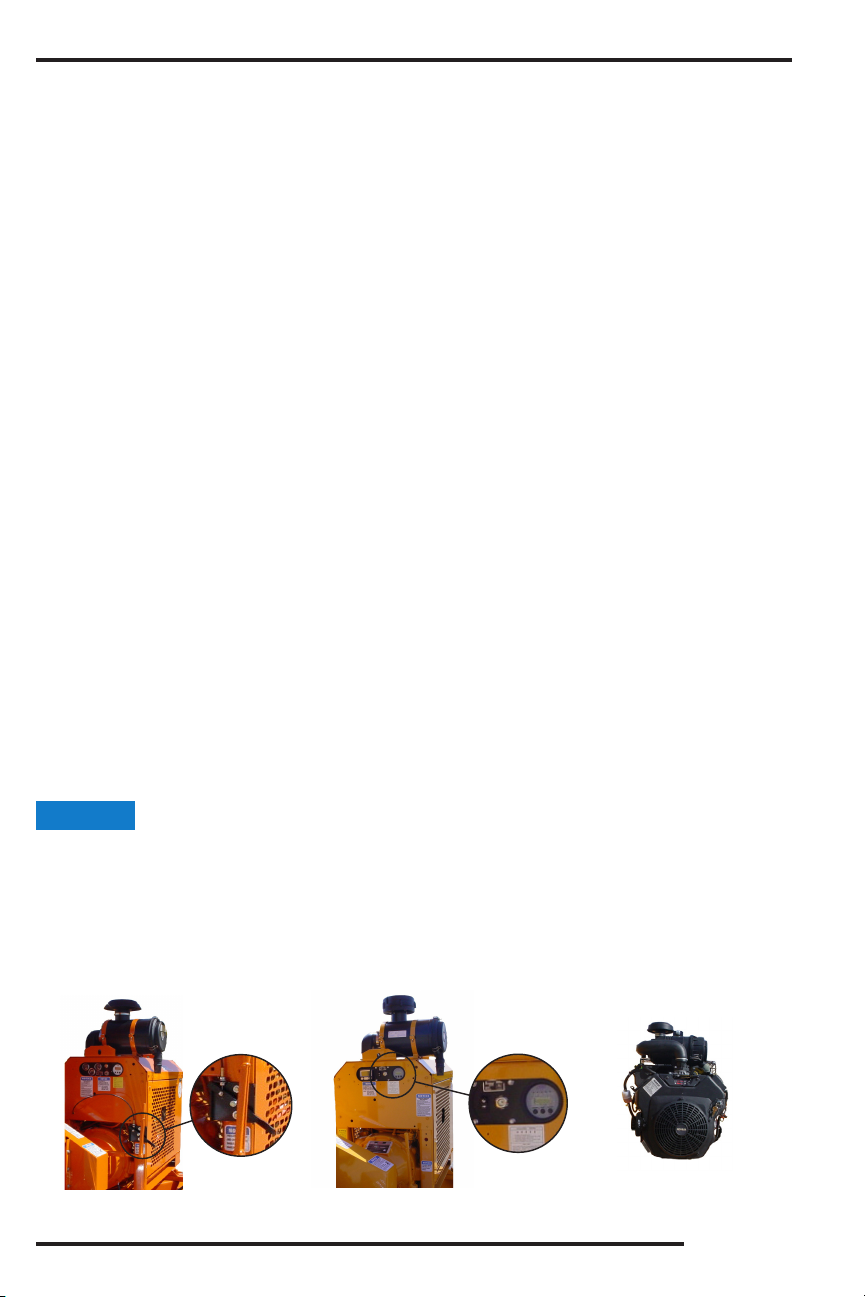

CONSULT THE ENGINE MANUFACTURER’S
MANUAL FOR SPECIFIC CONTROLS, OPERATION, &
MAINTENANCE FOR TYPICAL ENGINES
1. Ignition Switch: Turntheignitionswitchkeyclockwiseonestop(onposition)toturntheelectricalsystem
on.Thekeyshouldremainintheonpositionwhiletheengineisrunning.Turnthekeyfullyclockwise
(startposition)thiswillstarttheengine.Toshutofftheengine,returnthekeytotheoffposition.
2. On/Off Switch - Push Button Start: SomegasolineenginesmayhaveaToggleSwitchoranOn/Off
Switchcombinedwithapushbuttontostarttheengine.FirstturntheOn/OffSwitchorToggleSwitchto
the on position, then depress and hold the Push Button Start until the engine starts, then release the
button.Toshutofftheengine,returntheOn/OffSwitchorToggleSwitchtotheoffposition.
3. Ignition Switch With Preheat: Thetypicaldieselenginemayhaveapreheatsystemtoassistinstarting
theengineduringcoldweather.Toactivatethepreheatsystem,continuetoholdtheignitionkeyinthe
preheat position for 15 to 20 seconds, then attempt to start the engine. If the engine fails to start within
15 seconds, return the key to the preheat position, hold 10 seconds, and try starting again.
4. Choke Adjustment (if equipped): Some gasoline engines may have a choke adjustment, pull the choke
lever out to choke the engine. Push the choke lever in for normal engine operations.
5. Throttle Adjustment (if equipped): Some engines may have a knob or a handle for the throttle adjustment.
Typicallyyouwouldpulltheknobout,orturnthehandletoincreasetheengineR.P.M.’s.Todecrease
you would push in the knob or turn the handle the opposite way.
6. “Bandit” Lever Lock Cable Throttle System (if equipped): TheBanditthrottlesystemhas(2)positions,
HIGH and LOW. Engine R.P.M. is controlled by moving the lever from one position to the other.
7. Push Button Or Electric Throttle System (if equipped): Some engines may have a push button or
electric throttle adjustment. Engine R.P.M. is controlled by pushing a button or switch to raise or lower
the R.P.M.
8. Alternator Warning Light: Thislightwillglowwhenthealternatorisnotcharging,orwhentheignition
switch is turned on and the engine is not running.
9. Oil Pressure Warning Light: Thislightwillglowwhentheoilpressureistolow,orwhentheignition
switch is turned on and the engine is not running.
10. Engine Temperature Warning Light: Thislightwillglowwhentheengine,orenginecoolant,isabove
normal operating temperature. If this occurs allow the engine temperature to cool down. If the engine is
overheating because of a loss of coolant, or a broken fan belt, shut the engine off immediately.
TYPICALGASOLINE
ENGINE
TYPICALDIESELENGINES
BANDITTHROTTLESYSTEM PUSHBUTTONORELECTRIC
THROTTLESYSTEM
CONTROLS
NOTICE
Most engines have an automatic low oil pressure shut down device, but some engines do not for example
the Lombardini 9LD. Expensive damage may occur if the engine oil level and condition is not checked daily.
Followallmaintenanceproceduresspeciedbytheenginemanufacturer’smanual.Checkthefuelleveldaily,
runningoutandreprimingistimeconsuming.Donotoverllthetank,theremustbeexpansionspacein
thetopofthetank.Inspecthoses,ttings,lines,tanks,etc.foranyoil,fuel,enginecoolant,etc.leaksdaily.
Repair or replace any damaged or leaking components.
