Brush Bandit 2900T User manual

STUMP GRINDER
MODEL 2900T
OPERATING & PARTS MANUAL
ATTENTION:
Depending on what replacement
parts you are ordering, we will
need the following information:
GRINDER COMPONENTS
Serial Number
Model Number of Grinder
ENGINE COMPONENTS
Brand
Engine Serial Number
Engine Spec. Number
CLUTCH COMPONENTS
Brand
Serial Number
Assembly of Clutch
MANUFACTURED BY
BANDIT INDUSTRIES, INC.
6750 Millbrook Road
REMUS, MICHIGAN, USA 49340
PHONE: [phone] IN USA
PHONE: [phone] OR 561-2272
FAX: [phone] ~ SALES DEPT.
FAX: [phone] ~ PARTS/SERVICE
E-MAIL: www.banditchippers.com
Model No: _________________
Serial No: _________________
DEALER:
Name: ____________________
Address: __________________
City/State: _________________
Phone No: _________________
Delivery Date: ______________
Engine Make: ______________
Serial No: _________________
Clutch Make: _______________
Model: _________ S/N _______
Copyright 1/07
2900T

Copyright 11-06 FORM #WV-124
IT IS VERY IMPORTANT THAT THIS FORM IS FILLED OUT COMPLETELY & ACCURATELY. IF WE CANNOT READ THE
PURCHASER’S INFORMATION OR IT IS INCORRECT, OUR CUSTOMER LIST WILL NOT BE ACCURATE.
IMPORTANT - THIS FORM MUST BE RETURNED TO THE
CUSTOMER DATA DEPARTMENT WITHIN TEN (10)
DAYS IN ORDER TO VALIDATE WARRANTY
WARRANTY VALIDATION FORM
(STUMP GRINDER)
PURCHASER INFORMATION:
Company Name _____________________________________ Mailing/Street Address __________________________
City __________________________________________ State _________________ Zip Code _________________
Telephone Number ( ____ ) _______________________ E-mail ___________________________________________
Contact Name ___________________________ Stump Grinder Model No. ___________ Serial No. _____________
Date Put Into Service _____________________ Engine Make & S/N _______________________________________
DEALER INFORMATION:
Dealer Name _______________________________ Mailing/Street Address __________________________________
City __________________________________________ State __________________ Zip Code _________________
Telephone Number ( ____ ) ___________________________ Contact Name _________________________________
1. _______ Customer has been instructed and understands operation and all safety aspects of operating the equipment.
2. _______ Customer has been instructed and understands that everyone within 100 feet (30 m) of machine must wear
personal safety equipment (i.e. hard hat, face shield, safety glasses, gloves, ear protection, etc.)
3. _______ Customer has been instructed and understands equipment maintenance schedules, procedures, and that it
is their responsibility to perform maintenance (i.e. retightening all fasteners as needed, clutch and
belt adjustments, etc.)
4. _______ Customer has been advised and understands not to reach near the cutter head with hands or feet or to be
 locatedneardebriseldwithenginerunning.Themachineoperatorsmustalways be located within easy
reach of all control and shut down devices.
5. _______ Customer understands to not start grinding a stump without checking for power lines, water lines, sewer lines,
phone lines, etc.
6. _______ Customer understands the purpose of and how to operate the shut down/shut-off devices, and will not
attempt to override any safety devices or guards.
7. _______ Customer has been instructed and understands to always remove the ignition key and completely disconnect
battery from cables, wait for the cutter head to come to a complete stop, and to install the cutter head lock
before performing any type of maintenance on the machine. Allow all the time necessary for the cutter head
to come to a complete stop before opening the cutter head guard or starting any maintenance or service
procedures. Customer has been shown and understands the purpose of the beltshield inspection hole and to
 notattemptanymaintenanceuntilbeltsarevisuallyconrmedtohavecometoacompletestop.
8. _______ Customer has been instructed and understands: To Not operate this machine without the factory approved
cutter head guard assembly in place. To Not operate this machine with any type of make shift cutter head
guard. To Not operate this machine under any circumstances with the cutter guard open or unsecured.
9. _______ Customer has reviewed and understands limited warranty, and all written and visual instructions.
10. _______ Customer has received, been advised, and understands the manuals, and the Safety/Service videotape
supplied with the grinder. A videotape is supplied for equipment models as available.
11. _______ All Danger, Warning and Operational decals are properly displayed on equipment and fully understood by customer.
12. _______ Customerhas beeninstructed,understands, andagreesthat allpotentialoperatorsmust: Seethesuppliedvideotape,
beinstructedon alltheDanger,WarningandOperationaldecals, readthemanual andfollowtheprocedures.
I have inspected this equipment and nd it in correct working condition. To the best of my knowledge, the customer and
his personnel are aware of, and agree to the above procedures.
Date: _______________________________________________ Signed: ________________________________________
The equipment has been thoroughly checked by the above named dealer representative, and I am satised with his
instructions.
Date: _______________________________________________ Signed: ________________________________________
(Dealer Representative)
(Purchaser)
Customer Data Department
6750 Millbrook Road
Remus, MI, USA 49340
Phone: [phone] in USA
Phone: [phone]
Fax: [phone]
E-mail: www.banditchippers.com

Copyright 7-04 FORM #Q-112
DATE PURCHASED: _________________
MODEL: ___________________________
SERIAL NUMBER: ___________________
DEALER NAME: ____________________
___________________________________
TO BE RETURNED AFTER THIRTY (30) DAYS OF OPERATION
Please return to: Customer Data Department
6750 Millbrook Road
Remus, MI 49340
PH: [phone] in USA
PH: [phone]
FAX: [phone]
E-MAIL: www.banditchippers.com
STUMP GRINDER QUALITY REPORT
All of the employees that build your equipment strive to manufacturer the very best quality product on the market.
We would appreciate your efforts in letting us know how we are doing.
We would like you to operate your machine for thirty (30) days and then ll out this questionnaire and mail it to us.
This will help us to keep producing a good product and improving our products through your recommendations.
1. Did your machine perform to your expectations? ____________________________________________
2. Was the machine delivered on schedule? __________________________________________________
3. Was the paint color and nish to your satisfaction? __________________________________________
4. Was machine equipment as ordered? _____________________________________________________
5. Did all welds appear to be of high quality? _________________________________________________
6. Was the overall machine to your liking? ___________________________________________________
7. What problems have you experienced? ___________________________________________________
8. Have any components regularly loosened that caused problems? _______________________________
9. Does the hydraulic system seem to have adequate power? ____________________________________
10. Is the machine manufactured to accommodate service in an adequate manner? If not, please explain:
___________________________________________________________________________________
11. General comments and/or suggestions: ___________________________________________________
___________________________________________________________________________________
___________________________________________________________________________________
12. Would you like to be contacted concerning more of our equipment? _____________________________
YOUR COMPANY:__________________________________
NAME: __________________________________________
ADDRESS: ______________________________________
CITY: ___________________________________________
STATE & ZIP: ____________________________________
PHONE: ( ______ ) ________________________________
E-MAIL: _________________________________________

Bandit
Copyright 1/07 PAGE 1
MODEL 2900T
TABLE OF CONTENTS
NOTE- ANY PART, PORTION, DESIGN, NUMBER, SPECIFICATION, AND/OR
DIMENSION IN THIS MANUAL IS SUBJECT TO CHANGE WITHOUT
NOTICE BY THE MANUFACTURER.
PAGES
INTRODUCTION & WARRANTY ..................................................... 2
SERIAL NUMBER LOCATIONS ...................................................... 6
SAFETY PROCEDURES ................................................................. 7
EQUIPMENT SPECIFICATIONS ...................................................... 11
DECALS ........................................................................................... 12
CONTROLS ...................................................................................... 15
MACHINE OPERATION ................................................................... 19
TRANSPORTATION PROCEDURES ............................................... 21
MAINTENANCE ............................................................................... 23
HYDRAULIC SECTION ............................................................ 31
CUTTER WHEEL SECTION .................................................... 41
BELT SECTION ........................................................................ 42
LUBRICATION & COOLANT ................................................... 44
ELECTRICAL SECTION .......................................................... 45
REPLACEMENT PARTS SECTION ................................................. 49
UPPER FRAME COMPONENTS ............................................. 50
CUTTERWHEEL COMPONENTS ........................................... 52
FRAME COMPONENTS .......................................................... 54
CHIP PAN COMPONENTS ...................................................... 56
CONTROL BOX COMPONENTS ............................................. 57
GRADING BLADE COMPONENTS ......................................... 58
REMOTE CONTROL COMPONENTS ..................................... 59
HYDRAULIC COMPONENTS .................................................. 60
SERVICE RECORD .......................................................................... 66
TABLE OF CONTENTS

Bandit
Copyright 1/07 PAGE 2
INTRODUCTION
The purpose of this manual is to provide the user with specications and procedures for the operation,
maintenance and repair of this BANDIT product. As with any piece of equipment, safety should always
be a constant thought while the machine is being operated, serviced or stored. In order to highlight
this consideration, the material which addresses safety is proceeded by the following signal words:
Signal Word Likelihood of Occurrence Degree of Potential
Injury or Damage
DANGER
WARNING
CAUTION
NOTICE
Will occur if warning is ignored
Can occur if warning is ignored
Will or can occur if warning is ignored
Important, but not hazard related
Severe
Severe
Minor
The equipment isdesigned and manufactured in accordancewith the latest product industry standards.
This alone does not prevent injury. It is the operator’s responsibility to use good judgement and follow
the warnings and instructions as indicated in this manual, on the machine and follow all safety standards
per ANSI and OSHA instructions.
Improper use of the product can result in severe personal injury. Personnel using the equipment
must be qualied, trained and familiar with the operating procedures as dened in this manual, prior
to operating the product.
It is the responsibility of the owner or employer to insure that the operator is trained and practices
safe operation while using and servicing the machine. It is also the owner’s responsibility to provide
and follow a regularly scheduled preventative maintenance and repair program on the product,
using only factory approved replacement parts. Any unapproved repairs or modications may not
only damage the machine and its performance, but could result in severe personal injury. Unapproved
repairs or modications will void warranty and eliminate manufacturer of any liability claims. Consult
the equipment manufacturer!!!
Each machine is shipped with a manual, a customer’s check sheet on the product, and any
available parts & service manuals on component parts not produced by this manufacturer. Additional
copies of these manuals and check sheets can be purchased from the manufacturer, or through the
dealer. Engine parts, service and maintenance manuals MUST be purchased through the engine
manufacturer or their dealer.
NOTE - The producer of this Bandit product reserves the right to make any
modications or revisions to the design or specications of its machine without
advance notice. The producer also reserves the right to change machine and
part prices as needed without advance notice.
INTRODUCTION & WARRANTY
Minor to Severe
WARNING
WARNING

Bandit
Copyright 1/07 PAGE 6
MODEL 2900T
TYPICAL GRINDER SERIAL NUMBER AND/OR
WORK ORDER NUMBER LOCATIONS
1. Serial Number
2. Work Order Number
NOTE: Theengine information is located on the
engine block. The clutch information
is located on the clutch plate (if
equipped).
SERIAL NUMBER LOCATIONS
2
1

Bandit
Copyright 1/07 PAGE 7
MODEL 2900T
WARNING
SAFETY PROCEDURES
Before starting the machine, take a minute to check a
fewthings. The grindershould bein anarea restricted
from people passing by. This area around the grinder
mustbe freeofall objectsthat canobstruct movement
when working with the grinder. The machine should be
checked for loose tools or foreign objects, especially
in the grinding area. All tools not in use should be
secured in a tool box.
Operators must at all times be located within easy
reachof allfeedcontrolandshut-offdevices whenthe
unit is running. They must be attentive and prepared
to activate the devices.
Torn or loose clothing is more likely to get caught in
moving machinery parts. Keep such items as long hair,
shirt sleeves, and shirt tails properly contained. Avoid
wearing necklaces, rings, watches, and especially
neckties while operating this machinery. Make sure
the machine is in excellent condition, and all the guards
are in place, tight and secure.
Wear all personal protection equipment and follow
all safety standards perANSI and OSHAinstructions.
Examples of equipment: hard hat, face shield, safety
glasses, gloves, ear protection, etc. Always keep a
fully charged re extinguisher with the machine while
operating and servicing the machine.
SAFETY PROCEDURES
DANGER
DANGER
DANGER
The words Danger, Warning, Caution, and
Notice are used on the safety decals and throughout
this manual, to make you aware of the safety
procedures. These procedures are very important,
read and obey them.
YOUR SAFETY IS VERY IMPORTANT TO US!
This machine is equipped with safety decals, guards
and designs for your protection.
Don’t ever take the machine for granted, always
be cautious and careful when operating your
equipment.
Read and follow all the instructions in your
manual thoroughly. Your safety is dependent on
your knowledge of how to operate and maintain this
machine. You may obtain additional copies of this
manual from your Bandit Dealer.
Before operating machine, you must have all potential
operators; read and understand manuals and decals,
watch the video and follow the recommendations.
Regardless of how hard a manufacturer tries to
produce a safe machine, accidents still happen.
Normally accidents are caused by people making
mistakes. They do not read the manual, they ignore
warning decals or do not use lockouts provided for
their safety. This normally happens after the person
has become accustomed to the machinery. In the
initial start up and operation of the machinery, they
are cautious, they are very careful because they do
not understand the machine.
This equipment is intended for use by personnel
who are experienced with similar equipment. Always
operate safely. It is also recommended that someone
else is present while operating or servicing in case an
accident should occur. Never operate any machine
while under the inuence of drugs or alcohol.
Keep children, bystanders and animals clear of
working area. Never operate equipment that is in
need of repair or adjustment.

Bandit
Copyright 1/07 PAGE 8
MODEL 2900T
SAFETY PROCEDURES
Before attempting any type of maintenance
disengage clutch, turn off engine, wait for the cutter
wheel to come to a complete stop, install the cutter
wheel lock pin, disconnect battery, and make sure the
ignition key is in your possession.
ALWAYS install the lock pin into the cutter lock tube
before working on the grinder.
Simply slide the lock pin into the cutter wheel lock
tube. This is to insure that the cutter wheel cannot
be started while you are working on the grinder. If for
some reason the cutter wheel would start to turn, it
would simply hit the lock pin.
DO NOT operate this machine indoors! Exhaust
fumes can be fatal. Never refuel while the machine is
running. Never refuel in the shop or building. Always
refuel in a well ventilated area, away from sparks
or open ames, DO NOT SMOKE. Extinguish all
smoking materials. Wipe up all spilled fuel before
restarting the engine. Do not ll above 1/2” (12.7 mm)
from top of tank.
To obtain the most from your machine, for the least
amount of cost, it is a good practice to set up and follow
ascheduled preventativemaintenanceprogram. It will
eliminate many possible problems and down time.
It is very important after you have operated a new
machine for approximately an hour to shut down the
machine and recheck all nuts and bolts. It is normal
for nuts and bolts to loosen once on a new piece of
machinery. If you tighten them now, there is a good
possibility they won’t loosen again. Certain nuts and
bolts must be checked periodically such as cutter teeth
bolts, etc. for torque and t.
Most of the nuts used on the Bandit Grinder are
self locking. After a nut or bolt has been removed ve
times, it should be replaced to insure proper tightness.
This is especially critical on the cutter tooth bolts!
After the engine is started, let the grinder disc turn
at the lowest RPM’s possible. Listen for any type of
noisethatisforeign. Anysteelon steelnoiseis foreign.
If you hear a noise, stop the engine, nd the problem
and x it.
Never use jumper cables during freezing
temperatures. Haul the machine inside and allow
the battery time to warm up. If the machine must
be started outside, inspect the battery acid for ice
formation. Explosion will occur with a frozen battery.
Never use jumper cables in a conned or unventilated
area. Battery acid fumes are explosive. Never expose
an open ame or spark near the battery.
NEVER sit, stand, lay, climb or ride anywhere
on this machine while it is running, operating, or in
transit. You will be injured.
It is very important after you have operated a new
machine for approximately an hour to shut down the
machine and recheck all hydraulic ttings. Retighten
as needed.
DO NOT GO NEAR HYDRAULIC LEAKS! High
pressure oil easily punctures skin causing serious
injury, gangrene, or death. DO NOT use ngers
or skin to check for leaks. Lower load or relieve
hydraulic pressure before loosening ttings. Use a
piece of cardboard to nd leaks. Never use your bare
hands.
In cold weather situations let your hydraulic system
idle for approximately 15 minutes to allow the system
to warm up to operating temperature.
Do not go near or in-line with the debris eld of
the stump grinder while in operation. While grinding
stumps, the chips and portions of the stump y from
the cutterhead and can cause severe injury.
DO NOT operate this machine unless all hydraulic
control devices operate properly. They must function,
shiftand positionsmoothlyandaccuratelyat alltimes.
Faulty controls can cause personal injury!
SAFETY PROCEDURES
WARNING
WARNING
DANGER
DANGER
DANGER
DANGER
WARNING
WARNING


Diesel engine exhaust and some of its
constituents are known to the State of
California to cause cancer, birth defects,
and other reproductive harm.

Bandit
Copyright 1/07 PAGE 9
MODEL 2900T
SAFETY PROCEDURES
Never grind any materials that might contain wires,
stones, nails, or other metal objects which may
damagetheteeth andbecome dangerousprojectiles.
Remove all rocks and stones from stump grinding
area.
Do Not start to grind a stump unless you are
completely sure there are not any power lines, water
lines, sewer lines, phone lines, etc. in the area above
or below ground level where you are grinding.
Never go near cutter wheel or teeth while engine is
running or cutter wheel is coasting to a stop.
Your machine may or may not be equipped with
a clutch. Depending on the options ordered, some
machines are direct drive.
Do not work on the machine if the engine is running
withthe clutchdisengaged. Aclutch canself engageif
either the pilot or throw-out bearing happens to seize
to the main output shaft.
There are various types of clutches (PTO’s)
available for this type of equipment. Make sure to
study the original clutch manufacturer’s manual that
is provided withthe machine and followits instructions
for operation, service, and adjustments. Some styles
require clutch engagement to be maintained so that it
takes a lot of force, others will require very little force,
and some are push button, electric, manual lever, or
hydraulicactivation. Each differentstyle clutch(PTO)
is a very expensive item that will fail if not correctly
maintained and adjusted. It will be quite costly if a
few minutes are not taken daily, weekly, and monthly
to keep the clutch serviced as required.
The operator must take care in the engagement
and disengagement of the clutch, engine RPM should
always be below 1000 RPM. When the engine has
sufciently warmed up, bump the clutch handle against
engagementto startthecutter wheelturning. This will
have to be repeated until the cutter wheel is turning at
proper ratio with engine RPM. Then push the handle
all the way in gear until it locks into position securely.
After engagement raise engine RPM to full throttle.
Engaging and disengaging the clutch at high engine
RPM will quickly and excessively wear out clutch plates
as well as bearings. Refer to clutch manufacturer’s
manual for proper service and operation.
Do not attempt to start the engine or engage the
engine PTO (power-take-off) system on this machine
if the cutter wheel is jammed or frozen in place. If you
do, you will damage or ruin the drive belts and/or the
PTOwhichwill notbe coveredunderwarrantyand will
cost you down time and money.
SAFETY PROCEDURES
DANGER
DANGER
DANGER
DANGER
NOTICE

Bandit
Copyright 1/07 PAGE 10
MODEL 2900T SAFETY PROCEDURES
SAFETY PROCEDURES
Do not attempt to operate the track machine on an ascending or descending slope of more than 25° or 46%
or a side slope of more than 17° or 30%, it is Dangerous and could be Fatal. This is the maximum slope grade
the machine can be operated on if the hydraulics, tracks, and engine are running at maximum performance and
the tracks sustain good traction.
The track machine should never be parked on a slope at any time. The machine can coast or creep causing
equipment and/or personal injury.
DANGER
Make sure everyone is clear of machine before moving the track machine. Stay clear of tracks when the
machine is moving.
DANGER
DO NOT entangle feet or hands in undercarriage travel system.
DANGER
NEVER sit, stand, lay, climb or ride anywhere on this machine while it is running, operating, or in transit. You
will be injured.
DANGER
Use EXTREME CAUTION when traveling over non-level surface! This machine can tip over or tip backwards
on non-level surface. You will cause engine damage, machine damage and possible personal injury!
DANGER
WARNING
Any increase from the specied maximum operating angles may cause loss of lubrication function and damage
the engine.
WARNING

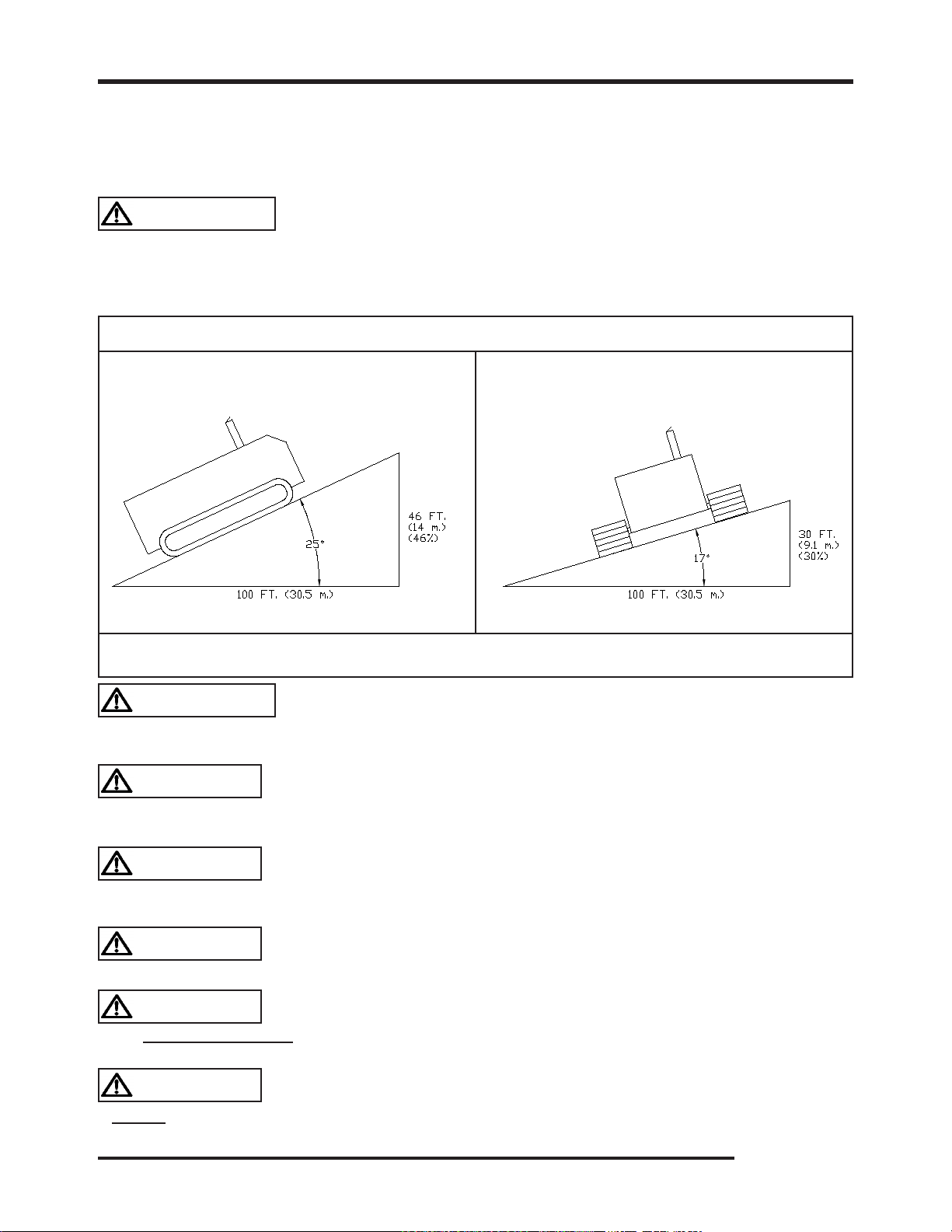

Maximum Slope Grade
Diagram shows percentage to degree of slope.
Percentage is in vertical feet for every 100 horizontal feet.
Ascending or Descending Slope Side Slope
IF MACHINE IS EQUIPPED WITH UNDERCARRIAGE TRACK
Machines equipped with undercarriage tracks are shipped with a manual from the track manufacturer. Refer
to it for service, operation, and safety information.

Bandit
Copyright 1/07 PAGE 11
MODEL 2900T
EQUIPMENT SPECIFICATIONS
Approx.
Weight: 4300 to 4600 lbs. (1950 to 2087 kg)
(Approximate weights depending on engine and equipment options.)
Overall
Dimension: Height: 53” (1346 mm) Length: 138” (3505 mm) Width: 35” or 53” (889 or 1346 mm)
Cutter Wheel: Top of: 45” (1143 mm) Center of: 33” (838 mm) Cutting Depth Below Ground: 22” (559mm)
Cutterhead
Swing: Arc: 67” (1.7 m)
Number of Teeth
on Cutter Wheel: 28
Cutter Wheel
Diameter with Teeth: 24” (610 mm)
Fuel Tank Capacity: 10 Gallons (38 Liter)
Hydraulic Tank Capacity: 28 Gallons (106 Liter)
(Approximate dimension depending on equipment options.)
Approximate Dimensions & Weights
(Dimensions & weights will vary depending on optional equipment)
EQUIPMENT SPECIFICATIONS
WIDTH
CUTTER HEAD
SWING
HEIGHT
LENGTH
TOP OF CUTTER
WHEEL
CUTTING DEPTH
BELOW GROUND
CENTER OF
CUTTER WHEEL

Bandit
Copyright 1/07 PAGE 12
MODEL 2900T
DECAL LOCATIONS
Decal locations may vary, these are general locations.
DECALS
3,6,7,12,21
1,4
11
9
17
23
10
25
10
10
2,5,8,11,18,
22,27,30
9
110
17
14,20
24,26,28,29,31
13
19
10
17
15
16
1
1

Bandit
Copyright 1/07 PAGE 13
MODEL 2900T
DECAL LOCATIONS
Modications and/or additions of decals to this list will happen.
Consult grinder dealer or manufacturer for most current decal package.
LOCATION NUMBER DESCRIPTION
1. SPD-02 Moving Parts Keep Hands...
2. SPD-19 ...Minimum 10 Feet Away From Tracks...
3. SPD-20 Flying Objects Stand Clear...
4. SPD-28 Do Not Insert Fingers...
5. SPD-30 Do Not Sit, Stand, Lay, Climb or...
6. SPD-35 Extreme Caution...Non-Level Surface...
7. SPD-36 ...Debris Field...
8. SPD-39 Do Not Operate...
9. ID-42 Bandit Industries Inc...USA
10. INST-12 Grease Daily
11. INST-44 Proposition 65
12. INST-53 Hydraulic Oil...Hydrex XV...
13. INST-73 Cutter Head Lock Hole
14. INST-74 Cutter Head Lock Pin
15. INST-79 Swing Speed - Counter Clockwise To Slow
16. INST-80 Travel Speed - Counter Clockwise To Slow
17. INST-86 Grease Daily (Double Arrows)
18. INST-101 Canada Engine Decal
19. INST-111 Frame Lock Hole
20. INST-112 Frame Lock Pin
21. N-02 Maintain Lubrication...
22. SPN-06 Decal Maintenance..
23. N-24 Service Under Beltshield...
24. N-33 Engine Oil Lubriacation...Break-In...
25. SPW-01 Do Not Go Near Oil Leaks...
26. SPW-02 Diesel Fuel Only...
27. SPW-04 Frozen Battery Will Explode...
28. SPW-06 Do Not Attempt...Slope Of More Than...
29. SPW-08 Wear Eye & Personal Protection...
30. SPW-09 ...Go Slow Around Corners...
31. SPW-11 Do Not Leave Unit Parked On A Slope...
32. Bandit Model 2900T Vinyl Decals
Note: Some decals are for optional equipment. Decal Locations may vary, these are general
locations. If any decals become damaged , replace immediately.
DECALS

Bandit
Copyright 1/07 PAGE 14
MODEL 2900T
DECALS
Decals located on your Bandit equipment contain useful information to assist you in operating your
equipment safely. Some of the decals on your machine and their location are shown in this section.
It is very important that all decals remain in place and in good condition on your machine. Please follow the
care and instructions given below:
1) You should use soap and water to keep your decals clean. Never use mineral spirits or
any other abrasive cleaners.
2) Replace immediately any missing or damaged decals. The location the decal is going
to be applied to must be clean and dry, and at least 40° F (5°C) before applying decal.
3) When the need arises to replace a machine component with a decal attached, be sure
and replace the decal.
4) Replacement decals are available, and can be purchased from the manufacturer or
your Bandit Dealer.
5) Other language decals may be purchased. Spanish and other foreign language
decals are available. Mail translated decals required to Bandit Industries, Inc.

DECAL MAINTENANCE IS THE
RESPONSIBILITY OF THE OWNER OF THIS
MACHINE. KEEP DECALS LEGIBLE. DECALS
(ETC.)ARE AVAILABLE IN OTHER LANGUAGES.
CONTACT: PARTS DEPARTMENT
6750 MILLBROOK RD.
REMUS, MI 49340
PHONE [phone]
DO NOT insert ngers or
amputation could occur.
DO NOT perform any
maintenance until belts inside this
hole have completely stopped
moving.
DG
DO NOT sit, stand, lay, climb or
ride anywhere on this machine
while it is running, operating or in
transit.
YOU WILL BE INJURED!
DG
EXAMPLES:
DECALS

Bandit
Copyright 1/07 PAGE 15
MODEL 2900T CONTROLS
Basic Location of Controls and Adjustments
LOCATION SHOWN
1. Key Switch
2. Tachometer, Hour Meter
3. Belt Tensioner
4. Poly Chain (Cutter Wheel) Belt
5. Debris Clean Out Door
6. Hydraulic Control Valve
7. Grinder Teeth
8. Upper Frame Lock Pin Hole
9. Cutter Wheel Lock Pin Hole
10. Frame / Cutter Wheel Lock Pin
8
3
1
2
9
5
6
7
4
10

Bandit
Copyright 1/07 PAGE 16
MODEL 2900T CONTROLS
CONTROLS
Basic Location of Controls and Adjustments
LOCATION SHOWN
1. Travel Speed Control 11. Remote / Local
2. Swing Speed Control 12. Swing Enable / Blade Enable
3. Key Switch (Deutz Engine) 13. Left Track Forward / Reverse
4. Tach / Hour Meter 14. Right Track Forward / Reverse
5. Tether Plug Jack 15. Power
6. Lift Down / Up 16. Engine Stop Switch
7. Throttle Up / Down 17. Cutter Wheel Button
8. Cutter On / Off 18. Tracks In / Out
9. Drive Hi / Low 19. Batteries
10. Swing Left (Blade Up) / Swing Right (Blade Down)
1 2
3
4
876 10
12
5
13 11
914
15
18
178
1413 169
12
6 7 10 6 7 8 1012
16 18913 14
Controls On Machine
Remote Control Tether Control
