Brush Bandit 2600 User manual

STUMP GRINDER
MODELS 2600/2700
OPERATING & PARTS MANUAL
BUILT WITH QUALITY
AND DESIGN FIRST
Model No: _____________________
Serial No: _____________________
Engine Make: __________________
Serial No: _____________________
Gear Box Make: _________________
Model: ___________ S/N ________
Delivery Date: __________________
DEALER:
Name: _______________________
Address: ______________________
City/State: _____________________
Phone No: _____________________
MANUFACTURED BY
BANDIT INDUSTRIES, INC.
6750 Millbrook Road
REMUS, MICHIGAN, USA 49340
PHONE: [phone] IN USA
PHONE: [phone] OR 561-2272
FAX: [phone] ~ SALES DEPT.
FAX: [phone] ~ PARTS/SERVICE
E-MAIL: www.banditchippers.com
Copyright 10/14
ATTENTION:
Depending on what replacement
parts you are ordering, we will
need the following information:
GRINDER COMPONENTS
Serial Number
Model Number of Grinder
ENGINE COMPONENTS
Brand
Engine Serial Number
Engine Model Number

Copyright 4-14 FORM #WV-124

I have inspected this equipment and nd it in correct working condition. To the best of my knowledge,
the customer and his/her personnel are aware of, and agree to the above procedures.
Signed: ________________________________________________________ Date: ______________
(Dealer Representative)
The equipment has been thoroughly checked by the above named dealer representative, and I am
satised with his/her instructions. I have also read, understand, and agree to reverse side of page.
Signed: ________________________________________________________ Date: ______________
(Customer)
IT IS VERY IMPORTANT THAT THIS FORM IS FILLED OUT COMPLETELY & ACCURATELY. IF WE
CANNOT READ THE PURCHASER’S INFORMATION OR IT IS INCORRECT, OUR CUSTOMER LIST
WILL NOT BE ACCURATE.
IMPORTANT - THIS FORM MUST BE RETURNED TO THE
CUSTOMER DATA DEPARTMENT WITHIN TEN
(10) DAYS IN ORDER TO VALIDATE WARRANTY
Customer Data Department
6750 Millbrook Road
Remus, MI, USA 49340
Phone: [phone] in USA
Phone: [phone]
Fax: [phone]
E-mail: www.banditchippers.com
WARRANTY VALIDATION FORM
(STUMP GRINDER)
1. ____ Customer has been instructed and understands operation and all safety aspects of operating the equipment.
2. ____ Customer has been instructed and understands that everyone within 100 feet (30 m) of machine must wear
personal safety equipment (i.e. hard hat, face shield, safety glasses, gloves, ear protection, etc.)
3. ____ Customer has been instructed and understands equipment maintenance schedules, procedures, and that
it is their responsibility to perform maintenance (i.e. retightening all fasteners as needed, clutch and belt
adjustments, etc.)
4. ____ Customer has been advised and understands not to reach near the cutter head with hands or feet or to be
  locatednearthedebriseldwithenginerunning.Themachineoperatorsmustalways be located within
easy reach of all control and shut down devices.
5. ____ Customer understands to not start grinding a stump without checking for power lines, water lines, sewer
lines, phone lines, etc.
6. ____ Customer understands the purpose of and how to operate the shut down/shut off devices, and will not
attempt to override any safety devices or guards.
7. ____ Customer has been instructed and understands to always remove the ignition key and completely disconnect
battery from cables, wait for the cutter head to come to a complete stop, and to install the cutter head
lock before performing any type of maintenance on the machine. Allow all the time necessary for the
cutter head to come to a complete stop before opening the cutter head guard or starting any maintenance or
service procedures. Customer has been shown and understands the purpose of the beltshield inspection
  holeandtonotattemptanymaintenanceuntilbeltsarevisuallyconrmedtohavecometoacompletestop.
8. ____ Customerhasbeeninstructedandunderstands:ToNot operate this machine without the factory approved
  cutterheadguardassemblyinplace.ToNot operate this machine with any type of make shift cutter head
  guard.ToNot operate this machine under any circumstances with the cutter guard open or unsecured.
9. ____ Customer has reviewed and understands limited warranty, and all written and visual instructions.
10. ____ Customer has received, been advised, and understands the manuals, and the Safety/Service video supplied
with the grinder.
11. ____ All Danger, Warning and Operational decals are properly displayed on equipment and fully understood by customer.
12. ____ Customer has been instructed, understands, and agrees that all potential operators must: See the supplied video,
be instructed on all Danger, Warning, and Operational decals, read the manual and follow the procedures.
PURCHASER / OWNER INFORMATION:
Company Name __________________________________ Contact Name _____________________
Mailing/Street Address _______________________________________ City _______________________
State __________________ Zip Code __________ Phone Number ( ___ ) __________________
E-mail ____________________________ Machine Model No. _________ Serial No. ______________
Date Put Into Service ______ Machine Hours _______ Engine Make __________________________
DEALER / SELLER INFORMATION:
Dealer/Seller Name _______________________________ Contact Name _____________________
Mailing/Street Address _______________________________________ City _______________________
State __________________ Zip Code __________ Phone Number ( ___ ) __________________
Engine Serial No. ______________________

THIS IS GENERAL INFORMATION REVIEW, UNDERSTAND AND FOLLOW DETAILED
INFORMATION IN MANUALS AND DECALS AT ALL TIMES
START-UP PROCEDURES
Position the engage handle in the
disengaged position and start the
engine. Let the engine warm up at
1000 RPM’s. (Follow engine manual
information.)Themachinemayshow
signs of vibration until the engine can
setatfullthrottle.Theenginecauses
most of this vibration until it is brought
up to full throttle. Engage cutter wheel.
Once the engine is properly warmed
up, bring the engine to full throttle.
(Follow engine break-in procedures.)
Make sure to wear all personal
protection equipment and follow all
safety standards per ANSI and OSHA
instructions. Examples of equipment:
hard hat, face shield, safety glasses,
gloves, ear protection, etc.
Signal Word Likelihood of Occurrence Degree of Potential
Injury or Damage
Will occur if warning is ignored
Can occur if warning is ignored
Will or can occur if warning is ignored
Important, but not hazard related
Severe
Minor
Minor to Severe
Severe
CAUTION
!
NOTICE
DANGER
!
WARNING
!
SAFETY ALERT SYMBOLS AND NOTATIONS
OPERATING INSTRUCTIONS BRUSH BANDIT STUMP GRINDERS
 Torn or loose clothing is more likely to get
caught in moving machinery parts. Keep such
items as long hair, shirt sleeves, and shirt tails
properly contained. Avoid wearing necklaces,
rings, watches, and especially neckties while
operating this machinery. Make sure the
machine is in excellent condition, and all the
guards are in place, tight and secure.
Wear all personal protection equipment and
follow all safety standards per ANSI and OSHA
instructions. Examples of equipment: hard
hat, face shield, safety glasses, gloves, ear
protection,etc.Alwayskeepafullychargedre
extinguisher with the machine while operating
or servicing the machine.
Operators must at all times be located
within easy reach of all feed control and shut-off
deviceswhentheunitisrunning.Theymustbe
attentive and prepared to activate the devices.
 This machine is equipped with safety decals,
guards and designs for your protection.
Don’t ever take the machine for granted, always
be cautious and careful when operating your
equipment.
Read and follow all the instructions in your
manual thoroughly. Your safety is dependent on
your knowledge of how to operate and maintain
this machine. You may obtain additional copies of
this manual from your Bandit Dealer.
Before operating machine, you must have all
potential operators; read and understand manuals
and decals, watch the video and follow the
recommendations.
Regardless of how hard a manufacturer tries to
produce a safe machine, accidents still happen.
Normally accidents are caused by people making
mistakes.Theydonotreadthemanual,theyignore
warning decals or do not use lockouts provided for
theirsafety.Thisnormallyhappensaftertheperson
has become accustomed to the machinery. In the
initial start up and operation of the machinery, they
are cautious, they are very careful because they do
not understand the machine.
 Thisequipmentisintendedforusebypersonnel
who are experienced with similar equipment.
Always operatesafely. Thereshouldbeat least
twoqualiedandtrainedoperatorsattheworksite.
Theyshouldbepositionedinsafeworkinglocations,
following safety procedures and instructions,
and aware of each others whereabouts.  There
should, also, be at least two people on site during
maintenance and service procedures in case an
accident should occur. Never operate any machine
whileundertheinuenceofdrugsoralcohol.
Keep children, bystanders and animals clear of
working area. Never operate equipment that is in
need of repair or adjustment.
DANGER
!
Before starting the machine, take a minute
tocheckafewthings.Thegrindershouldbe
in an area restricted from people passing by.
Thisareaaroundthegrindermustbefreeofall
objects that can obstruct your movement when
workingwiththegrinder.Themachineshould
be checked for loose tools or foreign objects,
especially in the grinding area. All tools not in
use should be secured in a tool box.
WARNING
!
DANGER
!
DANGER
!
Never go near cutter wheel or teeth while
engine is running or cutter wheel is coasting to
a stop.
Never grind materials that might contain wires,
stones, nails, or other metal objects which may
damage the teeth and become dangerous
projectiles. Remove all rocks and stones from
stump grinding area.
 Donotgonearorin-linewiththedebriseld
of the stump grinder while in operation. While
grinding stumps, the chips and portions of the
stumpyfromthecutterwheelandcancause
severe injury.
Do Not start to grind a stump unless you are
completely sure there are not any power lines,
water lines, sewer lines, phone lines, etc. in the
area above or below the ground level where you
are grinding.
DANGER
!
DANGER
!
DANGER
!
DANGER
!
Before attempting any type of maintenance
disengage clutch, turn off engine, wait for
the cutter wheel to come to a complete stop,
install the cutter wheel lock pin, disconnect
battery, and make sure the ignition key is in
your possession.
ALWAYS install the lock pin into the cutter lock
tube before working on the grinder.
Simply slide the lock pin into the cutter wheel
locktube.Thisistoensurethatthecutterwheel
cannot be started while you are working on the
grinder. If for some reason the cutter wheel
would start to turn, it would simply hit the lock
pin.
DANGER
!
WARNING
!
It is very important after you have operated a
new machine for approximately an hour to shut
down the machine and recheck all nuts and
bolts. It is normal for nuts and bolts to loosen
once on a new piece of machinery. If you tighten
them now, there is a good possibility they won’t
loosen again. Certain nuts and bolts should be
checked periodically such as cutter teeth bolts,
etc.fortorqueandt.
Most of the nuts used on the Bandit Grinder
are self locking. After a nut or bolt has been
removed ve times, it should be replaced to
ensure proper tightness.  This is especially
critical on the cutter tooth bolts!
After the engine is started, let the grinder
wheel turn at the lowest RPM’s possible. Listen
for any type of noise that is foreign. Any steel
on steel noise is foreign. If you hear a noise,
stoptheengine,ndtheproblemandxit.

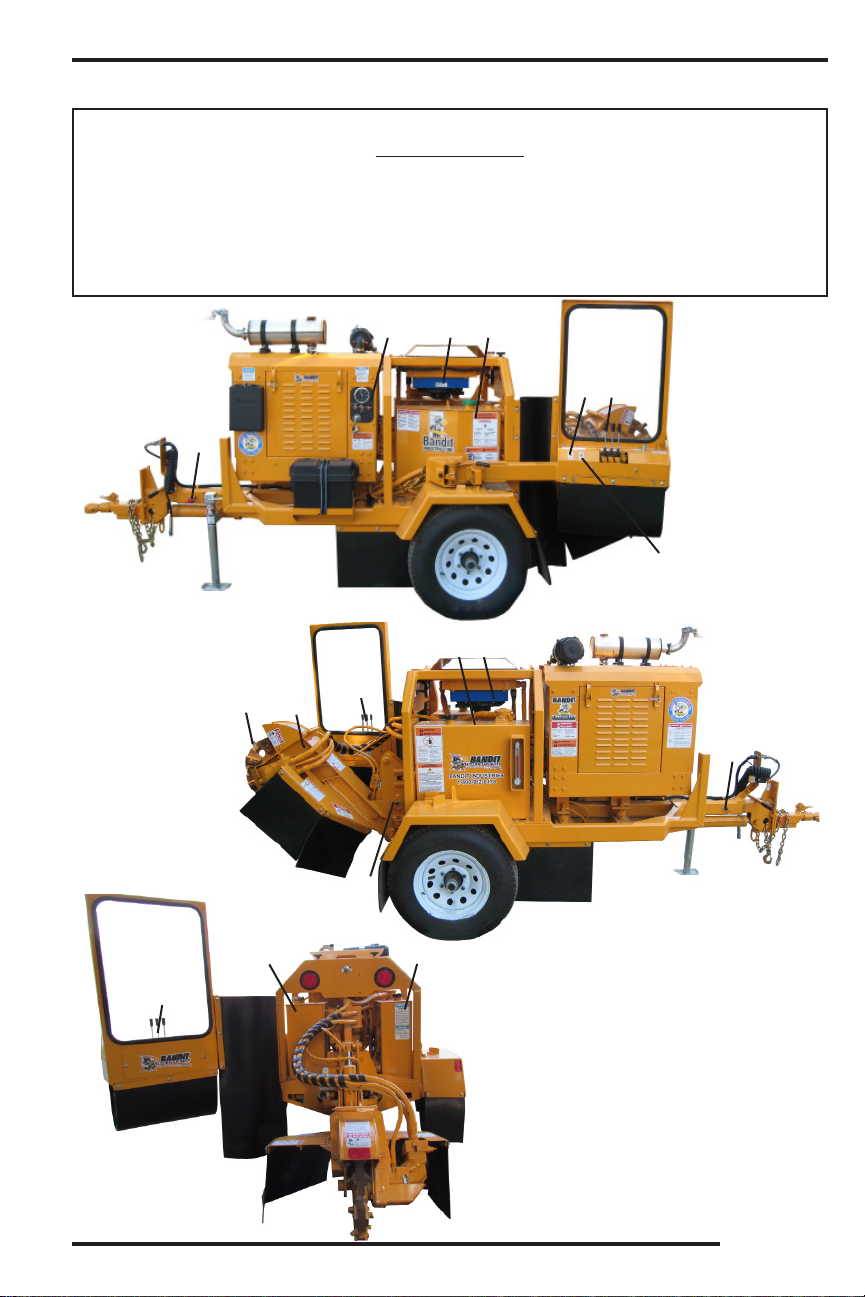

Chip Curtain
Cutter Wheel
Cutter Wheel
Engage Handle
Cutter Wheel
Lock Pin
Cutter Wheel
Guard
Oil
Cooler
Control
Valves

All of the employees that build your equipment strive to manufacturer the very best quality product on
the market. We would appreciate your efforts in letting us know how we are doing.
Wewouldlikeyoutooperateyourmachineforthirty(30)daysandthenlloutthisquestionnaireandmailittous.
Thiswillhelpustokeepproducingagoodproductandimprovingourproductsthroughyourrecommendations.
DATE PURCHASE: ______________________
MODEL: ________________________________
SERIAL NUMBER: _______________________
DEALER NAME: ________________________
_______________________________________
Copyright 7-04 FORM #Q-112
TO BE RETURNED AFTER THIRTY (30)
DAYS OF OPERATION
Please return to: Customer Data Department
6750 Millbrook Road
Remus, MI 49340
Phone: [phone] in USA
Phone: [phone]
Fax: [phone]
E-mail: www.banditchippers.com
STUMP GRINDER QUALITY REPORT
1. Did your machine perform to your expectations? _______________________________________
2. Was the machine delivered on schedule? _____________________________________________
3. Wasthepaintcolorandnishtoyoursatisfaction?______________________________________
4. Was machine equipment as ordered? ________________________________________________
5. Did all welds appear to be high quality? ______________________________________________
6. Was the overall machine to your liking? ______________________________________________
7. What problems have you experienced? ______________________________________________
8. Have any components regularly loosened that caused problems? __________________________
9. Does the hydraulic system seem to have adequate power? ______________________________
10. Is the machine manufactured to accommodate service in an adequate manner? If not, please explain:
_______________________________________________________________________________
11. General comments and/or suggestions: ________________________________________________
_______________________________________________________________________________
_______________________________________________________________________________
12. Would you like to be contacted concerning more of our equipment? ________________________
YOUR COMPANY: ________________________________
NAME: __________________________________________
ADDRESS: ______________________________________
CITY: ___________________________________________
STATE & ZIP: _____________________________________
PHONE: ( ____ ) _________________________________
E-MAIL: _________________________________________


Bandit
1Copyright 10/14
MODELS 2600/2700 TABLE OF CONTENTS
TABLE OF CONTENTS
PAGE
INTRODUCTION & WARRANTY .......................................................... 2
SERIAL NUMBER LOCATION ............................................................. 6
SAFETY PROCEDURES ...................................................................... 7
EQUIPMENT SPECIFICATIONS .......................................................... 11
DECALS ................................................................................................ 12
CONTROLS............................................................................................ 15
MACHINE OPERATION ........................................................................ 20
TRANSPORTATION PROCEDURES ................................................... 22
MAINTENANCE .................................................................................... 23
HYDRAULIC SECTION ................................................................. 35
CUTTER WHEEL SECTION .......................................................... 43
ELECTRICAL SECTION ................................................................ 47
LUBRICATION & COOLANT.......................................................... 54
REPLACEMENT PARTS SECTION ..................................................... 55
FRAME COMPONENTS ................................................................ 56
CUTTER WHEEL ARM COMPONENTS ....................................... 60
CUTTER WHEEL COMPONENTS ................................................ 64
FUEL TANK COMPONENTS ......................................................... 68
HYDRAULIC TANK COMPONENTS ............................................. 70
SWING OUT COMPONENTS ........................................................ 72
CURTAIN COMPONENTS ............................................................. 73
HYDRAULIC COMPONENTS ....................................................... 75
SERVICE RECORD .............................................................................. 79
ANY PART, PORTION, DESIGN, NUMBER, SPECIFICATION, AND/OR DIMENSION IN THIS
MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE BY THE MANUFACTURER.
NOTICE

Bandit
2
Copyright 10/14
INTRODUCTION & WARRANTY
INTRODUCTION
Thepurposeof this manual istoprovide the user withspecicationsandprocedures for the
operation,maintenanceandrepair ofthis BANDITproduct.Aswithanypieceofequipment,
safety should always be a constant thought while the machine is being operated, serviced or
stored. In order to highlight this consideration, the material which addresses safety is proceeded
by the following signal words:
Theequipmentisdesignedand manufactured in accordance with the latest product industry
standards.Thisalonedoesnotpreventinjury.Itis theoperator’sresponsibilitytousegood
judgement and follow the warnings and instructions as indicated in this manual, on the machine
and follow all safety standards per ANSI and OSHA instructions.
Improper use of the product can result in severe personal injury. Personnel using the equipment
mustbequalied,trainedandfamiliarwiththeoperatingproceduresasdenedinthismanual,
prior to operating the product.
It is the responsibility of the owner or employer to ensure that the operator is trained and practices
safe operation while using and servicing the machine. It is also the owner’s responsibility to
provide and follow a regularly scheduled preventative maintenance and repair program on the
product,usingonlyfactoryapprovedreplacementparts.Anyunapprovedrepairsormodications
may not only damage the machine and its performance, but could result in severe personal injury.
Unapprovedrepairsormodicationswillvoidwarrantyandeliminatemanufacturerofanyliability
claims. Consult the equipment manufacturer!!!
Each machine is shipped with a manual, a customer’s check sheet on the product, and any
available parts & service manuals on component parts not produced by this manufacturer.
Additional copies of these manuals and check sheets can be purchased from the manufacturer,
orthroughthedealer.Engineparts,serviceandmaintenancemanualsMUSTbepurchased
through the engine manufacturer or their dealer.
TheproducerofthisBanditproductreservestherighttomakeanymodicationsorrevisionsto
thedesignorspecicationsofitsmachinewithoutadvancenotice.Theproduceralsoreserves
the right to change machine and part prices as needed without advance notice.
Signal Word Likelihood of Occurrence Degree of Potential
Injury or Damage
Will occur if warning is ignored
Can occur if warning is ignored
Will or can occur if warning is ignored
Important, but not hazard related
Severe
Minor
Minor to Severe
Severe
CAUTION
!
NOTICE
NOTICE
WARNING
!
WARNING
!
DANGER
!
WARNING
!

Bandit
3Copyright 10/14
BANDIT INDUSTRIES, INC.
EXPLANATION OF LIMITED WARRANTY
Thereareseveralformsthatmustbecompletely
lledoutandreturnedtousinreferencetoour
portion of warranty. Read and understand the
Bandit Limited Warranty responsibilities. Some
components on your machine are covered by
their respective manufacturers and cannot be
handled through Bandit Industries as stated in
Warranty Section of this manual.
Use this manual to help you resolve what and
where your problem is, in most cases you can
xiteasily. Ifyou stillhaveproblems,work
through the dealer you purchased the machine
through, or contact Bandit Industries direct if
needed.
Make sure the following forms are used, for
us as well as you, to keep track of service and
pending warranty request. It is our company
policy that all parts shipped out will be invoiced
until the possible warranty parts are returned
with a Warranty Claim Form completed for
consideration.
Make sure the Warranty Validation Form is
completed and sent in to us as soon as you
receive the Bandit.  This will activate our
warranty responsibilities.
If Warranty Validation Form is not on le,
all Warranty consideration is null and void.
Themanufacturerwillnotreimbursethecustomerordealerlaborcostsincurredforinstalling
“bolt-on”or“slip-on”items,suchashydraulicpumpsandmotors,controlvalves,owdividers,
belts,sheaves,etc.Themanufacturerwillprovidereplacementpartstothecustomerfordefective
partsduringthewarrantyperiod.Themanufacturerwillnotreimbursethecustomerordealer
unless prior approval has been made for expedited shipping charges for defective parts during
the warranty period. Defective parts must be returned to Bandit Industries, Inc. It will be
the customer’s responsibility to install the replacement parts unless arrangements are made with
the selling dealer.
Themanufacturerwillnotreimbursetravelcoststoservicingdealerunlesspriorapprovalhas
been obtained from the manufacturer. It is the customer’s responsibility to deliver the machine to
dealer’s service facility, unless other arrangements have been agreed to between selling dealer
and customer.
Themanufacturermayelect,atitsdiscretion,toreimbursereasonablelaborcoststocustomer
or dealer for major defect repairs. Diagnostic labor and overtime labor will not be covered under
warranty. Prior approval must be obtained from Bandit Industries, Inc.
 Priortodeliverytonalownerandduringstorage,thismachinemust be serviced and lubricated
to avoid damage that will not be covered under warranty, see “Lubrication & Coolant” page.
Also, damage or premature failure of equipment components because of incorrect or incomplete
service and maintenance by the equipment owner will not be covered under warranty.
All controls, safety devices, guards, and shields must be correctly operational and securely in
place at all times during equipment operation.
NOTICE

Bandit
4
Copyright 10/14
INTRODUCTION & WARRANTY
BANDIT INDUSTRIES INC. LIMITED WARRANTY
[phone]
Bandit Industries Inc., also referred to as “Manufacturer” warrants this new product to be free
of defects in workmanship and material for a period of 1 year or 2000 operating hours, which
evercomesrst.
 Thiswarrantytakeseffectupondeliverytotheoriginalretailpurchaser.Themanufactureratit’s
option will replace or repair at a point designated by the manufacturer, any parts which appear to
havebeendefectiveinmaterialorworkmanship.Themanufacturerisnotresponsibleforlabor,
consequential damages, traveling or down time expenses.
 Thiswarranty andanypossible liabilityofBandit IndustriesInc.,isexpresslyin lieuofany
other warranties, expressed or implied, including but not limited to, any implied warranty or
merchantabilityoftnessforaparticularpurposeandofanynoncontractualliabilitiesincluding
product liabilities based upon negligence or strict liability. Bandit Industries Inc., will not be liable
for consequential damages resulting from breach of warranty.
All parties involved agree that the Owner’s Sole and Exclusive Remedy against the Manufacturer,
whether in contract or arising out of this warranty, instructions, representations, or defects shall
only be for the replacement or repair of defective parts as provided herein. In no event or
circumstancesshalltheManufacturer’sliabilityexceedthepurchasepriceofthemachine.The
buyer also agrees that no other remedy (including but not limited to consequential or incidental
loss) shall be available to him or her.
It is absolutely necessary to return the Warranty Validation Form, completely and accurately
lledout,andnotifyBanditIndustriesInc.,inwritingwithinten(10)daysfromthedateofpurchase
tovalidatethiswarranty.IfWarrantyValidationFormisnotonle,allWarrantyConsiderationis
NULL AND VOID.
 Thiswarrantywillnot apply if the Bandit product is not operated with replacement parts or
equipment not manufactured or recommended by Bandit Industries, Inc.
ThiswarrantywillnotapplyiftheBanditproductisnotoperatedinamannerrecommendedby
themanufacturer.Thefollowingexampleswouldvoidthewarranty:
 1.ThecompletedWarrantyValidationFormisnotonle.
 2.TheBanditproducthasbeenabused,ornotservicedproperly.
3. Repairs or attempted repairs made without prior written authorization.
4. Repairs made due to normal wear are not warrantable.
 5.TheBanditproductwasinvolvedin,ordamagedbyanaccident.
 6.TheBanditproductwasdamagedfromanytypeofforeignmaterial.
 TheownerisresponsibleforallscheduledmaintenanceasexplainedintheOperatorsManuals.
Negligenceofpropermaintenanceoranyothernegligence,accidentorre;norwithfailureto
adjust, tighten, or replace wear items included but not limited to items such as teeth, teeth holders,
belts,lubricationuids,bearings,lters,hydrauliccomponents,loosenutsorbolts,etc.mayvoid
warranty.
All components and parts being returned to Bandit Industries for warranty consideration must
be complete and assembled when delivered. Hydraulic components and parts must be returned
assembledwithalluidportscappedorpluggedandfreeofforeigncontamination,orwarranty
will not be considered.

Bandit
5Copyright 10/14
INTRODUCTION & WARRANTY
BANDIT INDUSTRIES, INC. LIMITED WARRANTY
[phone]
Bandit Industries Inc., reserves the right to alter, improve, revise or modify any parts or products with the
altered,improved,revisedormodiedpartsorproducts.Theyalsomaychangedesign,specications,or
part prices without advance notice.
 Bandit Industries Inc., is NOT responsible for updating or upgrading completed machines with design
changes that are made after it’s production.
Bandit Industries Inc., expects the Customer/Owner to bring their machine to the
Dealer/ManufacturerforWarrantyRepairs.TheManufacturerDOESNOT pay Dealers or Customers for bringing
their machine in for repair. Nor does the Manufacturer furnish loaner machines while the unit is being repaired.
In order to process any warranty claims, it is the owner’s responsibility to report the claims promptly to the
Manufacturer, or our authorized dealer from whom the equipment was purchased.
It is necessary to include the following information on any and all requests for warranty:
  1. WarrantyClaimForm,obtainedfromBanditIndustriesorit’sdealers,completelyandaccuratelylledout.
2. Dealer from whom purchased.
3. Date of delivery.
4. Serial number of unit.
5. Model number of unit.
6. Engine make and serial number.
7. Length of time in use (hours on machine).
8. Date of failure.
9. Nature of failure.
ThiswarrantyappliesonlytonewandunusedequipmentorpartsthereofmanufacturedbyBandit
Industries Inc. and is void if the machine is operated with replacement parts or equipment not manufactured
or recommended by Bandit Industries Inc.
All other components are warranted by their respective manufacturers (i.e. engines, axles, hydraulic pumps
and motors, clutches, tires, batteries, etc.) Any machines used for lease or rental purposes warranty is limited
to90daysfromtherstdayofinitialservice.
NOTICE
Clutch maintenance and adjustments and engine maintenance (air lter maintenance, oil
changes, oil lter maintenance, etc.) are important to your machine. Refer to the clutch or engine
manual for the maintenance schedule. Failure to perform the clutch or engine maintenance will
void the warranty with the respective manufacturer, Bandit Industries Inc. does not warranty these
components!
NOTICE
Briggs & Stratton (Vanguard) Engines 1-414-259-5333 PGL Auto Clutch 1-800-551-2938
 CaterpillarEngines(Thru275Hp) 1-800-551-2938 PTTechClutch 1-330-414-3172
Caterpillar Engines (300Hp & Up) 1-866-228-2111 NACD, Rockford Clutch 1-800-383-9204
 ContinentalEngines 1-800-726-8870 TwinDiscClutch 1-262-638-4000
Cummins Engines 1-248-573-1592 Electronic Solutions 1-866-736-6839
Deutz, Lombardini Engines 1-800-445-5273 I.E.C. (formerly E.S.I.) 1-815-985-0383
Ford, Hatz Engines 1-800-726-8870 L.O.R. MFG. 1-866-644-8622
GM, Perkins Engines 1-800-551-2938 Miratron Inc. 1-866-285-0132
Honda Engines 1-734-453-6258 Omnex Radios 1-419-294-4985
 JohnDeereEngines 1-888-803-0549 Kar-Tech,Inc. 1-262-646-9444
Kohler Engines 1-800-854-9273 Dexter Axles 1-574-295-7888
 KubotaEngines 1-800-457-7056 Tires 1-989-463-4088
 RobinEngines 1-248-399-0002 CaterpillarTracks 1-309-636-1100
 WisconsinEngines 1-800-726-8870 ChermackTracks 1-715-458-2655
Interstate Batteries 1-989-684-1382 Petro-Canada Hydrex XV 1-888-284-4572
(Phone numbers for outside the continental U.S. can be supplied from your phone directory or local Bandit dealer.)
CONTINENTAL U.S. INFORMATION PHONE NUMBERS FOR ACCESSORIES
(NOT COVERED UNDER PRODUCT WARRANTY PROGRAM)

Bandit
6
Copyright 10/14
MODELS 2600/2700
TYPICAL SERIAL NUMBER AND/OR
WORK ORDER NUMBER LOCATIONS

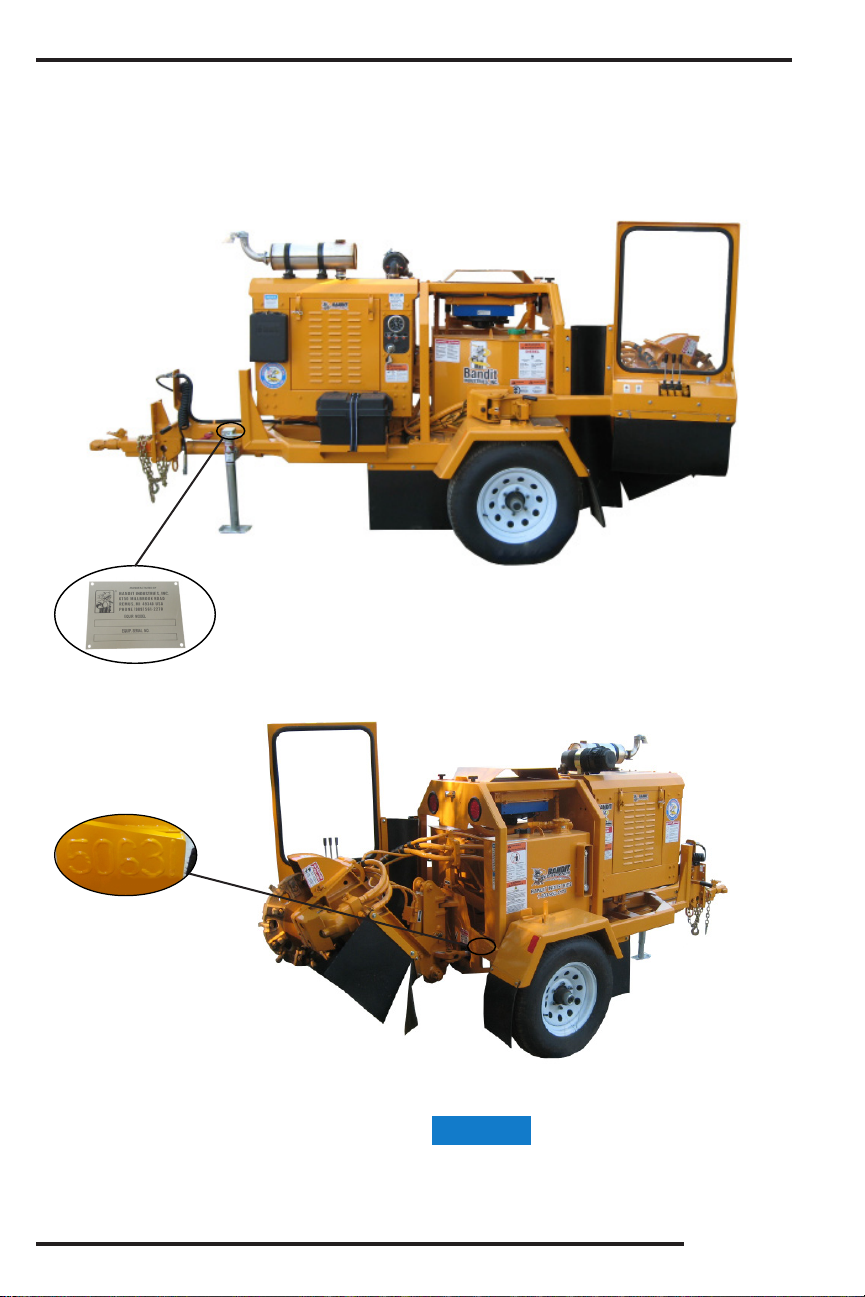

1. S/N on side of trailer tongue
2. W/O # on pivot mount plate The engine information is located on the
engine block.
SERIAL NUMBER LOCATIONS
NOTICE
2
1

Bandit
7Copyright 10/14
MODELS 2600/2700
Before starting the machine, take a minute to
check a few things.  The grinder should be in an
arearestrictedfrompeoplepassingby.Thisarea
around the grinder must be free of all objects that
can obstruct your movement when working with the
grinder.Themachineshouldbecheckedforloose
tools or foreign objects, especially in the grinding
area. All tools not in use should be secured in a tool
box.
Operators must at all times be located within easy
reach of all control and shut-off devices when the unit
isrunning.Theymustbeattentiveandpreparedto
activate the devices.
 Tornorlooseclothingismorelikelytogetcaught
in moving machinery parts. Keep such items as long
hair, shirt sleeves, and shirt tails properly contained.
Avoid wearing necklaces, rings, watches, and
especially neckties while operating this machinery.
Make sure the machine is in excellent condition, and
all the guards are in place, tight and secure.
Wear all personal protection equipment and follow
all safety standards per ANSI and OSHA instructions.
Examples of equipment: hard hat, face shield, safety
glasses, gloves, ear protection, etc. Always keep a
fullychargedreextinguisherwiththemachinewhile
operating or servicing the machine.
SAFETY PROCEDURES
SAFETY PROCEDURES
 ThewordsDanger,Warning,Caution,and
Notice are used on the safety decals and throughout
this manual, to make you aware of the safety
procedures.Theseproceduresareveryimportant,
read and obey them.
YOUR SAFETY IS VERY IMPORTANT TO US!
 This machine is equipped with safety decals,
guards and designs for your protection.
Don’t ever take the machine for granted, always be
cautious and careful when operating your equipment.
Read and follow all the instructions in your
manual thoroughly. Your safety is dependent on
your knowledge of how to operate and maintain this
machine. You may obtain additional copies of this
manual from your Bandit Dealer.
Before operating machine, you must have all
potential operators; read and understand manuals
and decals, watch the video and follow the
recommendations.
Regardless of how hard a manufacturer tries to
produce a safe machine, accidents still happen.
Normally accidents are caused by people making
mistakes.Theydonotreadthemanual,theyignore
warning decals or do not use lockouts provided for
theirsafety.Thisnormallyhappensaftertheperson
has become accustomed to the machinery. In the
initial start up and operation of the machinery, they
are cautious, they are very careful because they do
not understand the machine.
 Thisequipmentisintendedforusebypersonnel
who are experienced with similar equipment. Always
operatesafely.Thereshouldbeatleasttwoqualied
andtrainedoperatorsattheworksite.Theyshould
be positioned in safe working locations, following
safety procedures and instructions, and aware of
eachotherswhereabouts.Thereshould,also,be
at least two people on site during maintenance and
service procedures in case an accident should occur.
Neveroperateanymachinewhileundertheinuence
of drugs or alcohol.
Keep children, bystanders and animals clear of
working area. Never operate equipment that is in
need of repair or adjustment.
! ! !
DANGER
!
DANGER
!
DANGER
!
WARNING
!
NEVER sit, stand, lay, climb or ride anywhere
on this machine while it is running, operating, or in
transit. You will be injured.
DANGER
!

Bandit
8
Copyright 10/14
MODELS 2600/2700 SAFETY PROCEDURES
SAFETY PROCEDURES
It is very important after you have operated a new
machine for approximately an hour to shut down the
machine and recheck all nuts and bolts. It is normal
for nuts and bolts to loosen once on a new piece of
machinery. If you tighten them now, there is a good
possibility they won’t loosen again. Certain nuts and
bolts should be checked periodically such as cutter
teethbolts,etc.fortorqueandt.
Most of the nuts used on the Bandit Grinder are
self locking. After a nut or bolt has been removed
vetimes, itshould bereplaced toensure proper
tightness.  This is especially critical on the cutter
tooth bolts!
After the engine is started, let the grinder wheel
turn at the lowest RPM’s possible. Listen for any
type of noise that is foreign. Any steel on steel noise
isforeign.Ifyouhearanoise,stoptheengine,nd
theproblemandxit.
It is very important after you have operated a new
machine for approximately an hour to shut down the
machineandrecheckallhydraulicttings.Retighten
as needed.
 DONOTGONEARHYDRAULICLEAKS!High
pressure oil easily punctures skin causing serious
injury,gangrene,ordeath.Avoidburnsfromuid.
Hotuidunderpressurecan causesevere burns.
DONOTusengersorskintocheckforleaks.Lower
load or relieve hydraulic pressure before loosening
ttings.Relieveallpressureinthesystembefore
disconnecting the lines, hoses, or performing other
work.Useapieceofcardboardtondleaks.Never
use your bare hands. Allow system to cool down to
ambient temperature before opening any coolant or
hydraulic oil system.
In cold weather situations let your hydraulic
system idle for approximately 15 minutes to allow
the system to warm up to operating temperature.
WARNING
!
WARNING
!
Before attempting any type of maintenance
disengage clutch, turn off engine, wait for the cutter
wheel to come to a complete stop, install the cutter
wheel lock pin, disconnect battery, and make sure
the ignition key is in your possession.
ALWAYS install the lock pin into the cutter lock
tube before working on the grinder.
Simply slide the lock pin into the cutter wheel lock
tube.Thisistoensurethatthecutterwheelcannot
be started while you are working on the grinder. If
for some reason the cutter wheel would start to turn,
it would simply hit the lock pin.
 DONOToperatethismachineindoors!Exhaust
fumes can be fatal. Never refuel while the machine
is running. Never refuel in the shop or building.
Always refuel in a well ventilated area, away from
sparksoropenames,DONOTSMOKE.Extinguish
all smoking materials. Wipe up all spilled fuel before
restartingtheengine.Donotllabove1/2”(12.7mm)
from top of tank.
 To obtain the most from your machine, for the
least amount of cost, it is a good practice to set up
and follow a scheduled preventative maintenance
program. It will eliminate many possible problems
and down time.
Never use jumper cables during freezing
temperatures.  Tow the machine inside and allow
the battery time to warm up. If the machine must
be started outside, inspect the battery acid for ice
formation. Explosion will occur with a frozen battery.
If the machine is going to be operated in excessively
cold conditions, a larger cold cranking amp battery
may be needed to ensure proper and prompt
starting.Neverusejumpercablesinaconnedor
unventilated area. Battery acid fumes are explosive.
Battery acid can cause severe burns. Never expose
anopenameorsparknearthebattery.Keepall
burning materials away from the battery. When
servicing the battery, shield eyes and face, and do
not smoke. Service in a well ventilated area.
Keep the machine in good condition. Be sure
the machine is in good operating condition and that
all safety devices, including guards and shields are
installed and functioning properly. Visually inspect
the machine daily before starting the machine. Refer
to the “Daily Start Up & Maintenance”. Make no
modicationstoyourequipmentunlessspecically
recommended or requested by Bandit Industries Inc.
DANGER
!
DANGER
!
DANGER
!
WARNING
!
 DONOToperatethismachineunlessallhydraulic
control devises operate properly.  They must
function, shift and position smoothly and accurately
at all times. Faulty controls can cause personal
injury!
WARNING
!
CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of its
constituents are known to the State of
California to cause cancer, birth defects,
and other reproductive harm.

Bandit
9Copyright 10/14
MODELS 2600/2700 SAFETY PROCEDURES
SAFETY PROCEDURES
Avoid moving parts. Keep hands, feet, and
clothing away from power driven parts. Keep all
guards and shields in place and properly secured.
Never go near cutter wheel or teeth while engine
is running or cutter wheel is coasting to a stop.
DANGER
!
DANGER
!
Never grind materials that might contain wires,
stones, nails, or other metal objects which may
damage the teeth and become dangerous projectiles.
Remove all rocks and stones from stump grinding
area.
 Donotgonearorin-linewiththedebriseldof
the stump grinder while in operation. While grinding
stumps,thechipsandportionsofthestumpyfrom
the cutter wheel and can cause severe injury.
DANGER
!
DANGER
!
Do not attempt to start the engine or engage the
enginePTO(power-take-off)systemonthismachine
if the cutter wheel is jammed or frozen in place.
If you do, you will damage or ruin the drive belts
and/or the PTO which will not be covered under
warranty and will cost you down time and money.
NOTICE
Your machine may or may not be equipped with
a clutch. Depending on the options ordered, some
may be direct drive.
Do not work on the machine if the engine is
running with the clutch disengaged. A clutch can
self engage if either the pilot or throw-out bearing
happens to seize to the main output shaft.
 There are various types of clutches (PTO’s)
available for this type of equipment. Make sure
to study the original clutch manufacturer’s manual
that is provided with the machine and follow its
instructions for operation, service, and adjustments.
Some styles require clutch engagement to be
maintained so that it takes a lot of force, others will
require very little force, and some are push button,
electric, manual lever, or hydraulic activation. Each
differentstyleclutch(PTO)isaveryexpensiveitem
that will fail if not correctly maintained and adjusted.
It will be quite costly if a few minutes are not taken
daily, weekly, and monthly to keep the clutch serviced
as required.
 Theoperatormusttakecareintheengagement
and disengagement of the clutch, engine RPM
should always be below 1000 RPM. When the
enginehassufcientlywarmedup,bumptheclutch
handle against engagement to start the cutter wheel
turning.Thiswillhavetoberepeateduntilthecutter
wheel is turning at proper ratio with engine RPM.
Then push the handle all the way in gear until it
locks into position securely. After engagement
raise engine RPM to full throttle. Engaging and
disengaging the clutch at high engine RPM will
quickly and excessively wear out clutch plates as
well as bearings. Refer to clutch manufacturer’s
manual for proper service and operation.
DANGER
!
Do Not start to grind a stump unless you are
completely sure there are not any power lines, water
lines, sewer lines, phone lines, etc. in the area above
or below the ground level where you are grinding.
DANGER
!
Check laws and regulations. Know and obey all
federal, state, and local laws and regulations that
apply to your work situation and the transportation
of a machine this size.
WARNING
!
CLEAN MACHINE OF ALL DEBRIS! DONOT
leavethismachineunattendeduntilallpotentialre
debrisisremoved,noreorsmolderingexists,and
hotspotsarecold.Theenginecreatesmany hot
spots including: exhaust manifold, exhaust, turbo (if
equipped),etc.Removeallammabledebrissuch
as wood, chips, leaves, oils, fuels, etc. from engine
exhaust, engine turbo (if equipped), beside, around,
and under engine, around and under tanks, inside
belt shields and guards, inside battery and tool
boxes, inside cabinets (if equipped), and anywhere
materials collect. ALWAYS keep several type A:B:C
reextinguishersoperationalandonthejobatall
times.
WARNING
!
Engage and disengage cutter wheel at low rpm.
NOTICE
WARNING
!
Sparks can occur if cutter teeth strike rocks,
metal, or other hard objects.
 DO NOT use in high or very high re hazard
severity zones.
Operation of this equipment may create sparks
thatcanstartresarounddryvegetation.Aspark
arrester may be required.  The operator should
contact local re agencies for laws or regulations
relatingtorepreventionrequirements.
Do Not continue to operate the machine if the
cutter wheel stalls. Immediately lift cutter wheel out
of the stump, dirt, etc. and start again with less bite.
Prolonged cutter wheel stall will ruin the hydraulic
components, creating extreme heat and possible
rehazard.
WARNING
!

Bandit
10
Copyright 10/14
MODELS 2600/2700
Do not attempt to operate the machine on an ascending or descending slope of more than 25° or 46% or
asideslopeofmorethan17°or30%,itisDangerousandcouldbeFatal.Thisisthemaximumslopegrade
the machine can be operated on if the hydraulic system, self propelled undercarriage, and engine are running
at maximum performance and good traction is sustained.
 Themachineshouldneverbeparkedonaslopeatanytime.Themachinecancoastorcreepcausing
equipment and/or personal injury.
Make sure everyone is clear of machine before moving the machine. Stay clear of undercarriage travel
system when the machine is moving.
DONOTentanglefeetorhandsinundercarriagetravelsystem.
NEVER sit, stand, lay, climb or ride anywhere on this machine while it is running, operating, or in transit.
You will be injured.
Use EXTREME CAUTIONwhentravelingovernon-levelsurface!Thismachinecantipoverortipbackwards
on non-level surface. You will cause engine damage, machine damage and possible personal injury!
 Anyincreasefromthespeciedmaximumoperatinganglesmaycauselossoflubricationfunctionand
damage the engine.

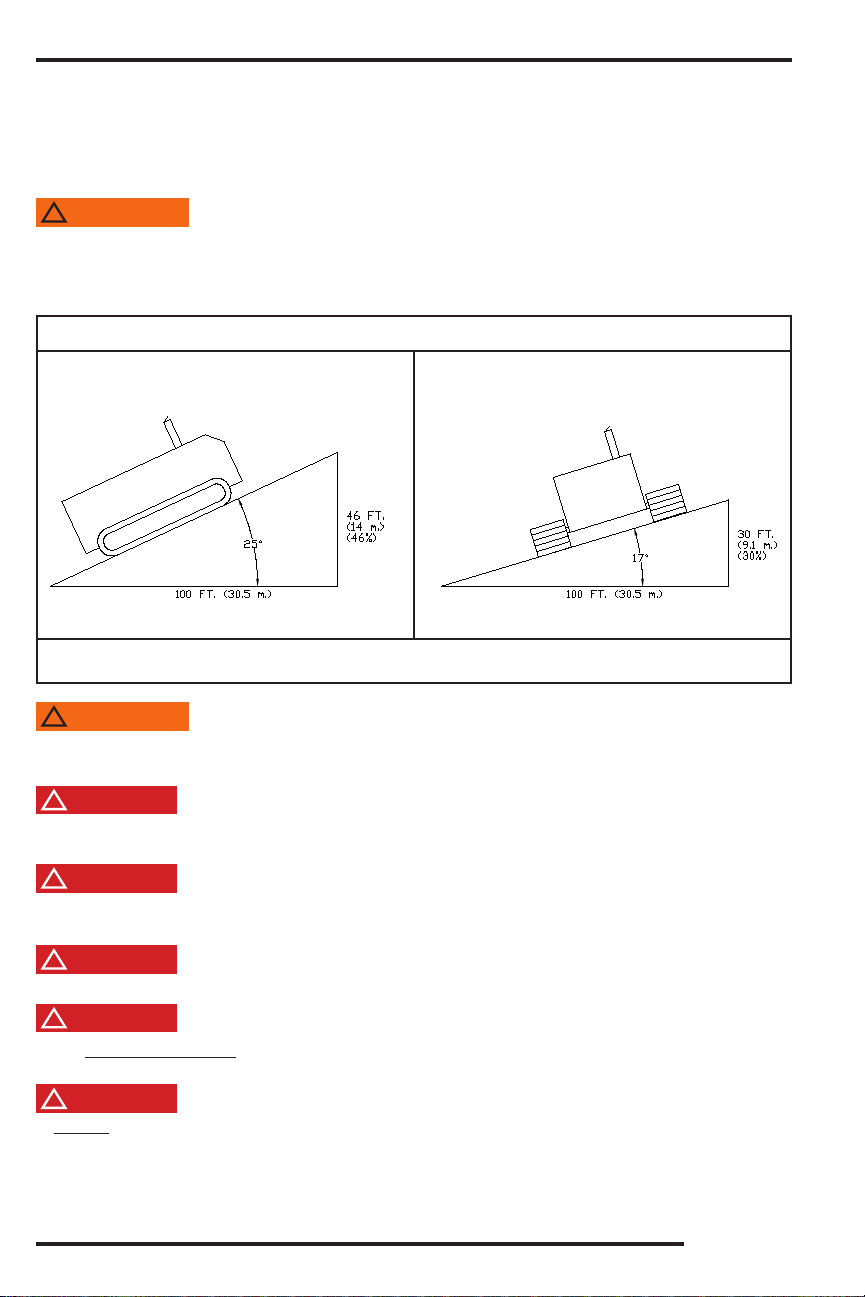

Maximum Slope Grade
Diagram shows percentage to degree of slope.
Percentage is in vertical feet for every 100 horizontal feet.
Ascending or Descending Slope Side Slope
IF MACHINE IS EQUIPPED WITH A SELF PROPELLED UNDERCARRIAGE
Machines equipped with undercarriage tracks are shipped with a manual from the track manufacturer.
Refer to it for service, operation, and safety information.
SAFETY PROCEDURES
SAFETY PROCEDURES
DANGER
!
DANGER
!
DANGER
!
DANGER
!
DANGER
!
WARNING
!
WARNING
!

Bandit
11Copyright 10/14
MODELS 2600/2700

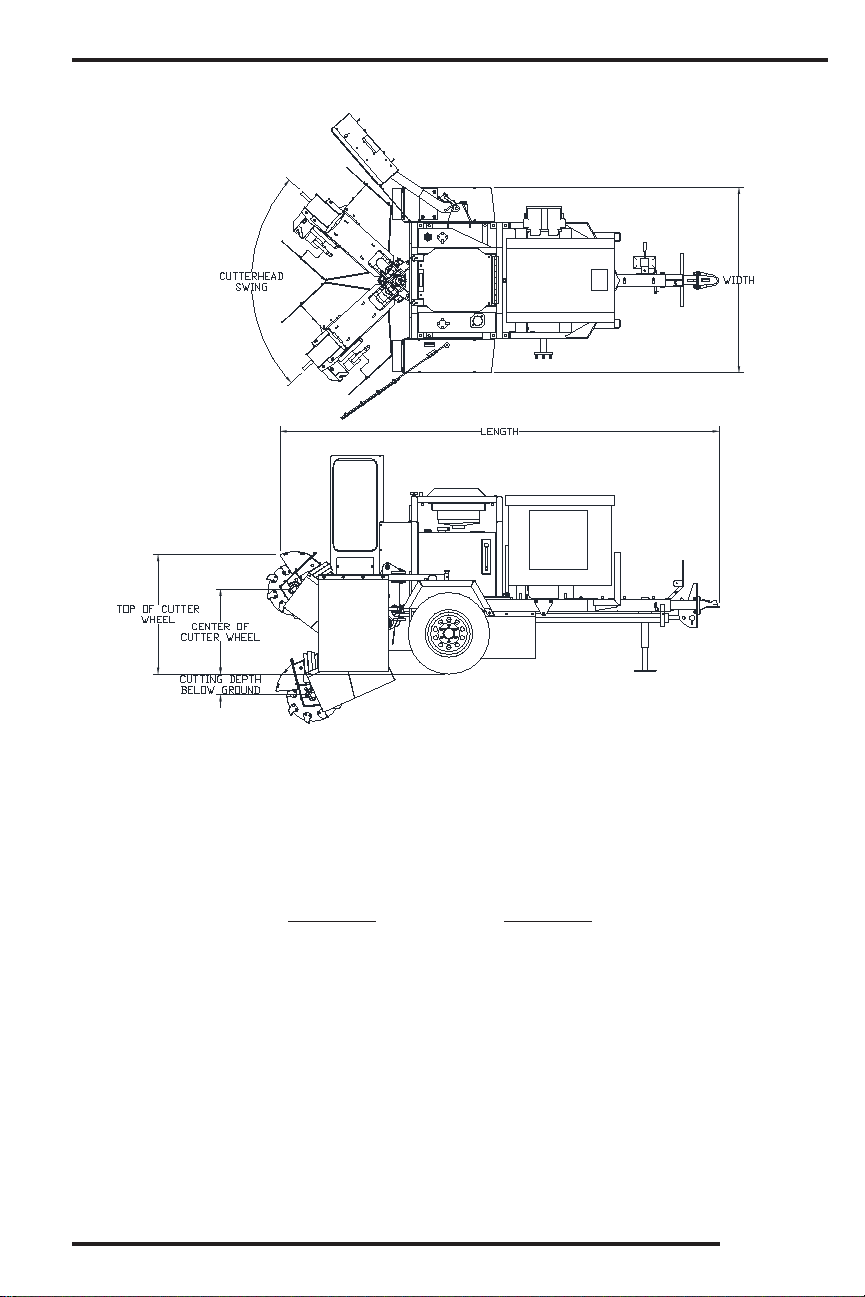

Approximate Dimensions & Weights
(Dimensions & weights will vary depending on optional equipment)
Approx.
Weight: Model 2600: 3720 lbs. (1685 kg)
Model 2700: 4660 lbs. (2110 kg)
Overall
Dimension: Model 2600: Height: 72” (1.83 m), Length: 155” (3.90 m), Width: 63” (1.60 m)
Model 2700: Height: 80” (2.03 m), Length: 169” (4.30 m), Width: 63” (1.60 m)
Model 2600: Model 2700:
Cutting Depth: 22” (.55 m) 25.5” (.64 m)
Cutting Height: 27.5” (.69 m) 31 (.78 m)
Cutting Swing: 68” (1.72 m) 72 (1.82 m)
NumberofTeeth
on Cutter Wheel: 18 24
Cutter Wheel
DiameterwithTeeth: 21-21.125”(.53-.54m) 24.5-25.5”(.62-.64m)
FuelTankCapacity: 20Gallons(75.7Liters) 25.5Gallons(96.5Liters)
HydraulicTankCapacity: 19.5Gallons(73.8Liters) 27.5Gallons(104.1Liters)
EQUIPMENT SPECIFICATIONS
EQUIPMENT SPECIFICATIONS

Bandit
12
Copyright 10/14
MODELS 2600/2700
Decal locations may vary, these are general locations.
DECALS
DECAL LOCATIONS
25,28
8
32
27 731,33
1,36
4
4,8
9
3,34
1,2,5,16,36
4
11,30,35
17,20,23,24
6,15
26,29
1,9,14,16,22
2,5
1,36
2,5,13
18

Bandit
13Copyright 10/14
MODELS 2600/2700
LOCATION NUMBER DESCRIPTION
1. SPD-02 Moving Parts...
2. SPD-20 Flying Objects Stand Clear...
3. SPD-30 Do Not Sit, Stand, Lay, Climb...
4. SPD-35 Extreme Caution...Non-Level Surface...
5. SPD-36 ...Debris Field...
6. SPD-38 ... Do Not Entangle Feet...
7. SPD-39 Do Not Operate...
8. ID-42 Bandit Industries Inc...USA
9. INST-12 GreaseDaily-SingleArrow
10. INST-44 CaliforniaProposition65
11. INST-53 HydraulicOil...HydrexXV...
12. INST-62 RemoteOn-ControlsOff-MachineOn
13. INST-73 CutterHeadLockHole
14. INST-74 CutterHeadLockPin
15. INST-79 SwingSpeed-CounterClockwiseToSlow
16. INST-86 GreaseDaily-DoubleArrow
17. INST-87 Controls-3Function
18. INST-95 ElectricPlug-InSchematic
19. INST-101 CanadaEngineDecal
20. INST-110 WindowWashingInstructions...
21. INST-111 FrameLockHole
22. INST-112 FrameLockPin
23. INST-180 ...Cutter...On/Off...
24. INST-192 ...Throttle...Up/Down...
25. INST-197 ...EPAEmissionStandards...
26. N-02 Maintain Lubrication...
27. N-33 Engine Oil Lubrication...Break-In...
28. N-55 ...Oil Cooler Fan...
29. SPN-06 Decal Maintenance...
30. SPW-01 Do Not Go Near Oil Leaks...
31. SPW-02 Diesel Fuel Only
32. SPW-04 Frozen Battery Can Explode...
33. SPW-08 Wear Personal Protection...
34. SPW-09 ...Go Slow Around Corners...
35. SPW-28 ...Fire Hazard...
36. SPW-29 ...Cutter Wheel Stall...
37. SPW-31 Explosion Hazard...
38. SPW-32 ...TetherCord...
39. 900-8900-34 Basic Safety Decal Kit (Options may require additional decals)
40. 900-8902-31 Bandit Model 2600 Logo Decal Kit
41. 900-8902-86 Bandit Model 2700 Logo Decal Kit
Some decals are for optional equipment. Decal locations may vary, these are general locations. If any decals
become damaged, replace immediately.
DECALS
DECAL LOCATIONS
NOTICE
Modicationsand/oradditionsofdecalstothislistwillhappen.
Consult chipper dealer or manufacturer for most current decal package.

Bandit
14
Copyright 10/14
MODELS 2600/2700

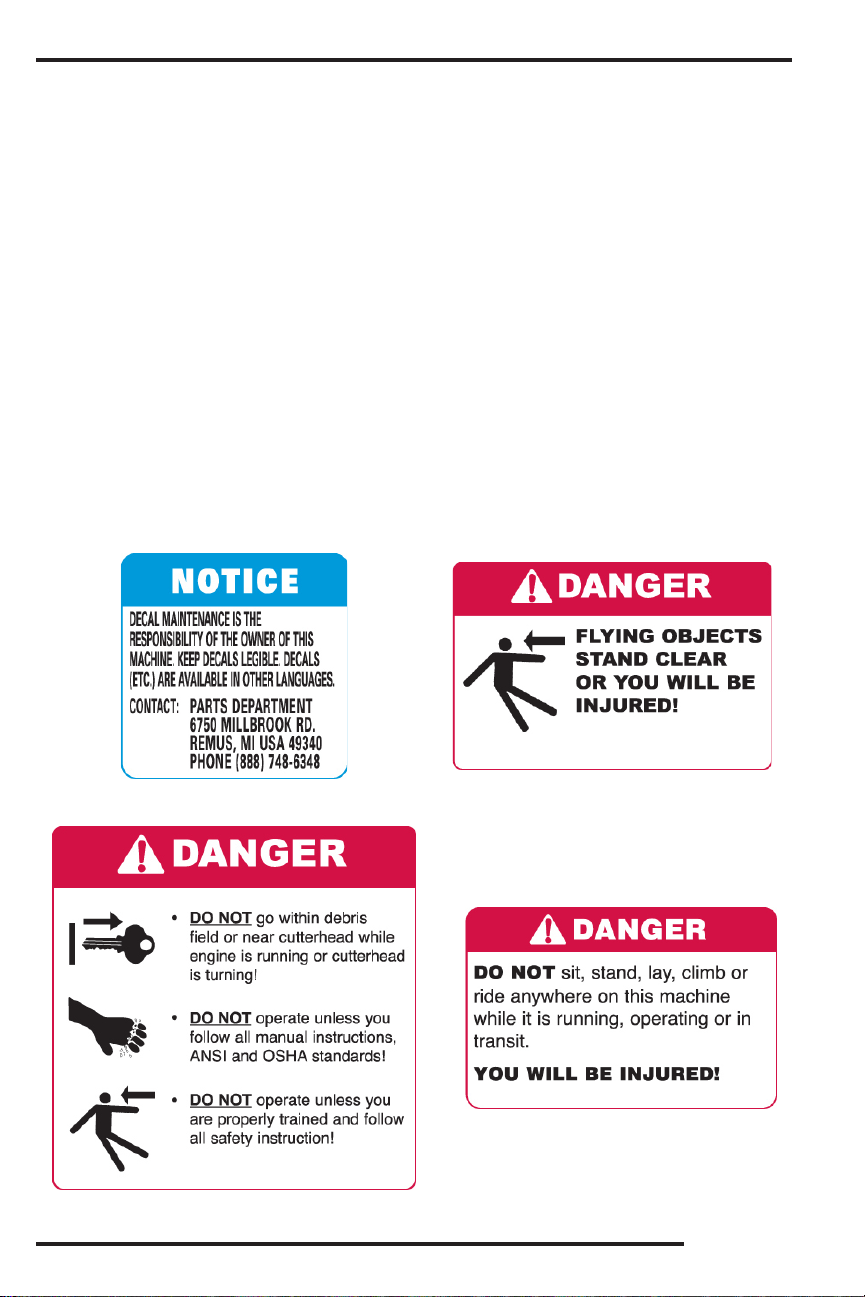

EXAMPLES:
Decals located on your Bandit equipment contain useful information to assist you in operating your equipment
safely. Some of the decals on your machine and their location are shown in this section.
It is very important that all decals remain in place and in good condition on your machine. Please follow
the care and instructions given below:
1. You should use soap and water to keep your decals clean. Never use mineral spirits or any other
abrasive cleaners.
 2. Replaceimmediatelyanymissingordamageddecals.Thelocationthedecalisgoingtobe 
applied to must be clean and dry, and at least 40°F (5°C) before applying decal.
3. When the need arises to replace a machine component with a decal attached, be sure and replace
the decal.
4. Replacement decals are available, and can be purchased from the manufacturer or your Bandit Dealer.
 5. Peelbackabouthalfofthebackerpaperonthedecal.Positionitontheat,dry,cleansurfaceso
it is smooth and secure. Peel off the remainder of the backer paper as you continue to stick the
decal on the surface.
6. Rub decal from the center outward to remove air bubbles and to secure contact.
7. Combination English / Spanish decals are typically standard. Other foreign language decals are
available and may be purchased. Send translated decals required to Bandit Industries, Inc.
DECALS
DECALS

Bandit
15Copyright 10/14
MODELS 2600/2700 CONTROLS
CONTROLS & COMPONENTS
LOCATION SHOWN
Basic Location of Controls and Components
 1. FuelTank
 2. HydraulicTank
3. Oil Cooler Fan
4. Frame Lock Pin Hole
5. Cutter Wheel Lock Pin Hole
 6. CutterWheelTeeth
7. Engine Controls (varies with engines)
 8. Tach/HourMeter
 9. TelescopingTongueLockPin
10. Machine Control Functions
11. Cutter Wheel Engage Switch
12. ThrottleSwitch
4
2
1
2
11
10
1
3
5
7,8
10
10
6
3
9
9
12
9
