Installation Instructions
SYSTXBBECC01--B
EvolutionRConnextControl
NOTE: Read the entire instruction manual before starting the installation.
NOTE:Please refer to the literature provided with the connected HVAC equipment
for more details on system operations with specific pieces of equipment.
The features and functions outlined in the Installation Instructions reflect Version 1
software. See the Evolution Connex product page on the HVACPartners.com website or
the Downloads section of the www.MyEvolutionConnex.Bryant.com website for the
latest software release and literature.
US Patents: CarrierrU.S. Pat No. 7,243,004, CarrierrU.S. Pat No. 7,775,452,
pointSETtU.S. Pat No. 7,415,102

TABLE OF CONTENTS
PAGE
1.Safety Considerations 1.............................................
2.Introduction 2.....................................................
3.Quick Start 3......................................................

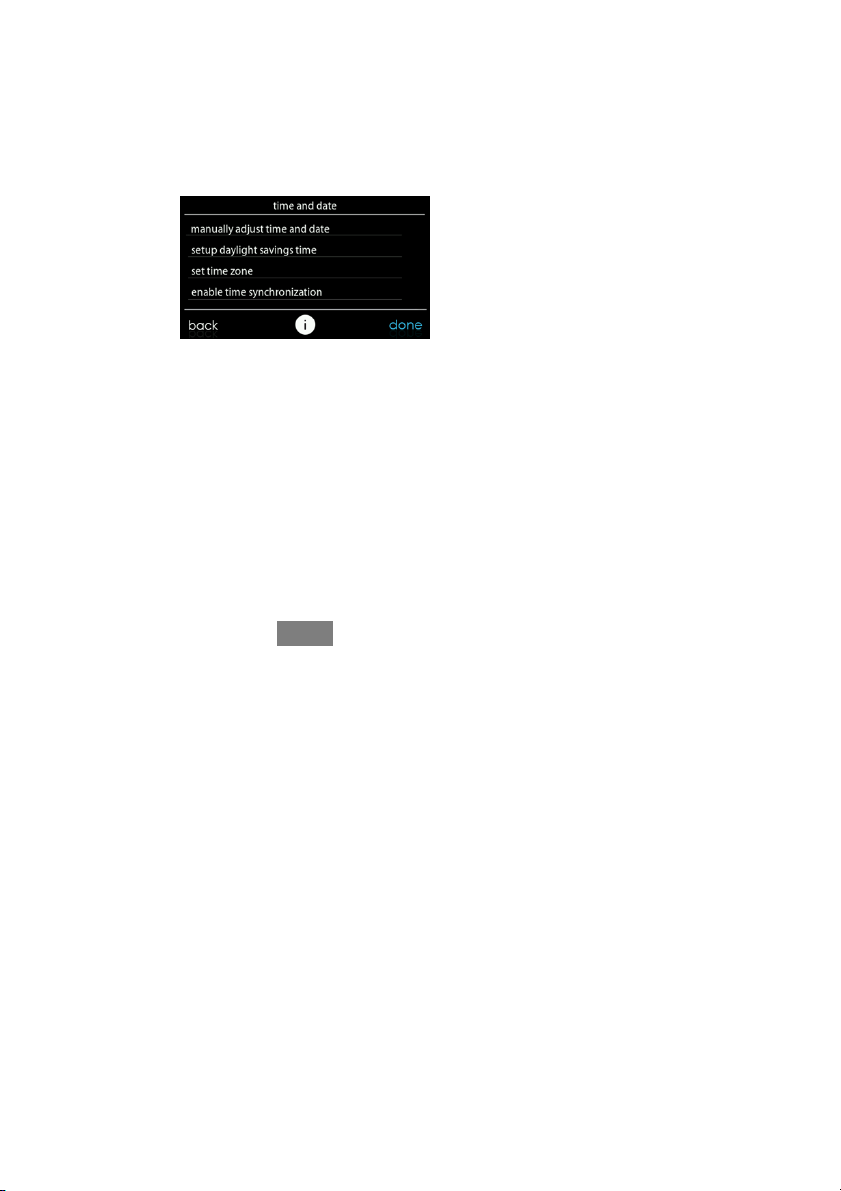

3.1. Set Time and Date 3............................................
3.1.1. Manually Adjust Time and Date 3............................
3.1.2. Setup Time Zone 4........................................
3.1.3. Enable Time Synchronization 4..............................
3.2. Set Dealer Information 5........................................
4.Installation 7......................................................
4.1. Overview 7...................................................
4.2. Check Equipment 7............................................
4.3. Location 8....................................................
4.3.1. Wall Control 8...........................................
4.3.2. Remote Room Sensors 9...................................
4.3.2.1.Remote Room Sensor Averaging 9...........................
4.3.3. Smart Sensors (for zoning applications) 10.....................
4.4. Wiring Considerations 10........................................
4.4.1. Shielded Wire 13.........................................
4.4.2. Damper Control Module 14.................................

TABLE OF CONTENTS (cont.)
PAGE
4.5. Mounting 14..................................................
4.5.1. Decorative Backplate 15...................................
4.6. Humidifier Connections 16......................................
4.6.1. Bypass Humidifier 16......................................
4.6.2. Fan Powered Humidifiers 16................................
5.Commissioning 16.................................................
5.1. Searching for Indoor Unit 17.....................................
5.2. Searching for Outdoor Unit 18....................................
5.3. Indoor Evaporator Selection 19...................................
5.4. Electric Heater Selection 19......................................
5.4.1. Hydronic Heat Application 20...............................
5.5. Searching SAM Module (If Applicable) 20..........................
5.6. Searching for Zones (If Applicable) 21.............................
5.7. Filter Type Selection 21.........................................
5.8. Humidifier Installation 22........................................
5.9. Ultraviolet Lights Installation 22..................................
5.10.Equipment Summary 22........................................
5.11.Airflow Verification Check 23....................................
5.12.Duct Assessment (zoned systems only) 23..........................

TABLE OF CONTENTS (cont.)
PAGE
6.Service Menu 26...................................................
6.1. Equipment Summary 27.........................................
6.2. Installation 27.................................................
6.3. Set up 28.....................................................
6.3.1. Thermostat 29............................................
6.3.1.1.Auto Mode set up 30......................................
6.3.1.2.Heat/Cool Deadband 31...................................
6.3.1.3.Offsets 32..............................................
6.3.1.4.Reset factory defaults 33...................................
6.3.1.5.Scheduling Enable 33.....................................
6.3.1.6.Smart Recovery Enable 34.................................
6.3.1.7.Room Occupancy Setup 35.................................
6.3.2. Fan Coil 35..............................................
6.3.2.1.Airflow 36..............................................
6.3.2.2.Altitude 37.............................................
6.3.2.3.Fan Coil Dehumidification 37...............................
6.3.2.4.Fan Coil G--Terminal 38...................................
6.3.2.5.Fan Coil G--Terminal Alert 39...............................
6.3.2.6.Fan Coil G--Terminal Label 39..............................

TABLE OF CONTENTS (cont.)
PAGE
6.3.3. Furnace 40..............................................
6.3.3.1.Furnace Airflow 41.......................................
6.3.3.2.AC/HP Air Flow 41.......................................
6.3.3.3.Furnace Staging 42.......................................
6.3.3.4.Furnace Airflow Limits (modulating furnace only) 43............
6.3.3.5.Furnace Off Delay 43.....................................
6.3.3.6.Altitude 43.............................................
6.3.3.7.Furnace Dehumidifier Drain 44.............................
6.3.3.8.Furnace G Terminal 44....................................
6.3.3.9.Furnace G Terminal Alert 45...............................
6.3.3.10.Furnace G Terminal Alert Label 45.........................
6.3.4. AC/Heat Pump 46........................................
6.3.4.1.Latching 46.............................................
6.3.4.2.Cooling Lockout 48......................................
6.3.4.3.Defrost Interval 48.......................................
6.3.4.4.Low Ambient Cooling 48..................................
6.3.4.5.Quiet Shift 49...........................................
6.3.4.6.AC/Heat Pump RPM Max 49...............................

TABLE OF CONTENTS (cont.)
PAGE
6.3.4.7.Defrost Fan Delay 49.....................................
6.3.4.8.Brownout Disable 49.....................................
6.3.4.9.Low Air Multiplier 50.....................................
6.3.4.10.Energy Efficiency 50.....................................
6.3.5. Heat Source Lockout 50....................................
6.3.6. Stages / Latch for 18VS 51..................................
6.3.7. Geo HP 52..............................................
6.3.7.1.Freeze Limits 52.........................................
6.3.7.2.Lockout Count 53........................................
6.3.7.3.Brownout Override 53....................................
6.3.7.4.Geothermal HP Energy Tracking 54..........................
6.3.8. Zoning (If Applicable) 54...................................
6.3.8.1.Zoning Disable 55........................................
6.3.8.2.Zone Offsets 55..........................................
6.3.8.3.Zone Airflow Limits 55....................................
6.3.8.4.Duct Assessment Time 56..................................

TABLE OF CONTENTS (cont.)
PAGE
6.3.9. Accessories 56...........................................
6.3.9.1.Filter 57................................................
6.3.9.2.Humidifier 58...........................................
6.3.9.3.Ultraviolet Lights 58......................................
6.3.9.4.Ventilator 58............................................
6.3.10. Utility Curtailment 59......................................
6.3.11. Hydronic Airflow 60......................................
6.4. Check out 61.................................................
6.4.1. Electric Heat 61..........................................
6.4.2. Furnace 61..............................................
6.4.3. Hydronic 62.............................................
6.4.4. Air Conditioning 62.......................................
6.4.5. Heat Pump Heating 63.....................................
6.4.6. Heat Pump Cooling 64.....................................
6.4.7. Humidifier 64............................................
6.4.8. Ventilator 65.............................................

TABLE OF CONTENTS (cont.)
PAGE
6.4.9. Zoning (If Applicable) 65...................................
6.4.9.1.Airflow Limits 65........................................
6.4.9.2.Damper/Sensor Check 65..................................
6.4.9.3.Zone Duct Assessment 66..................................
6.4.9.4.Sensor Type 66..........................................
6.5. Service Information 67..........................................
6.5.1. Advanced Diagnostics 67...................................
6.5.2. Fan Coil Status 67........................................
6.5.3. Furnace Status 68.........................................
6.5.4. AC Status 68.............................................
6.5.5. Heat Pump Status 69......................................
6.5.6. Geo HP Status 69.........................................
6.5.7. Zoning Status 70..........................................
6.5.8. Last 10 System Events 70...................................
6.5.9. Run/Fault History 71......................................
6.5.10. Model/Serial Numbers 72...................................
6.5.11. Service Phone Number 72..................................
6.5.12. Energy Tracking 72.......................................

TABLE OF CONTENTS (cont.)
PAGE
6.6. Refrigerant Charging: Greenspeed, 18VS, 19VS Systems 73.............
6.6.1. Charging 74.............................................
6.6.2. Pump down 76...........................................
6.6.3. Evacuation 76............................................
6.6.4. EXV Position 77..........................................
6.7. Dealer Logo 77................................................
6.8. Utility Event Setup 79..........................................
7.Wireless Setup 80..................................................
7.1. Setup and Status Information (Homeowner’s Router) 80................
7.2. Setup and Status Information (Dealer--provided Router) 84..............
8.Wiring Diagrams 88................................................
9.Statement Information 99............................................
9.1. FCC Interference Statement 99....................................
NOTE: See the Owner’s Manual for information regarding software upgrades.

1
1. Safety Considerations
Improper installation, adjustment, alteration, service, maintenance, or use can cause
explosion, fire, electrical shock, or other conditions which may cause death,
personal injury or property damage. Consult a qualified installer, service agency or
your distributor or branch for information or assistance. The qualified installer or
agency must use factory--authorized kits or accessories when modifying this HVAC
system. Refer to the individual instructions packaged with the kits or accessories
when installing.
Follow all safety codes. Wear safety glasses, protective clothing, and work gloves.
Have a fire extinguisher available. Read these instructions thoroughly and follow
all warnings and cautions included in literature and attached to the unit. Consult
local building codes and the current edition of the National Electrical Code (NEC)
NFPA 70. In Canada, refer to the current editions of the Canadian Electrical Code
CSA C22.1.
Recognize safety information. When you see this symbol on the unit and in
instructions or manuals, be alert to the potential for personal injury. Understand the
signal words DANGER,WARNING,andCAUTION. These words are used with
the safety--alert symbol. DANGER identifies the most serious hazards, which will
result in severe personal injury or death. WARNING signifies hazards, which could
result in personal injury or death. CAUTION is used to identify unsafe practices,
which may result in minor personal injury or product and property damage. NOTE
is used to highlight suggestions which will result in enhanced installation,
reliability, or operation.

2
2. Introduction
The EvolutionrSystem consists of several intelligent communicating components
which include the EvolutionrConnex Control (or User Interface), variable speed
furnace or FE fan coil, 2--stage AC and HP, (including Geothermal units),
multi--stage AC and HP, variable capacity HP and AC units, and Evolution Connex
System Package units which continually communicate with each other via a
four--wire connection called the ABCD bus. Commands, operating conditions, and
other data are passed continually between components over the ABCD bus. The
result is a new level of comfort, versatility, and simplicity.
All Evolution System furnaces or fan coils are variable--speed and multi stage for
maximum flexibility, efficiency, and comfort. They support controlled ventilation,
humidification, dehumidification, and air quality control. Either an Evolution
System (communicating), or a standard single--stage 24VAC controlled outdoor unit
may be used.
When using conventional single--stage outdoor units, the Evolution System furnace
or fan coil provides the 24 volt signals needed to control them. When using
multi--stage conventional outdoor units or heat pumps, an Evolution System
Network Interface Module or ”NIM” (P/N SYSTXBBNIM01) may be required to
provide additional control outputs. Also, the NIM allows connection of a Bryant
HRV or ERV without the need for separate wall control.
When using a Bryant HRV or ERV with a zoned system, the Evolution System Zone
board allows connection of a Bryant HRV or ERV without the need for separate
wall control or NIM.
All system components are controlled through the wall mounted Evolution Connex
Control, which replaces the conventional thermostat and provides the homeowner
with a single wall control for all features of the system.

3
3. Quick Start
NOTE: See Section 4 for installation instructions.
3.1. Set Time and Date
The time and date can either be set manually or can be synchronized with the web
server (only for Wi--Fi enabled units). From the main screen, touch MENU,onthe
bottom of the control. The TIME/DATE icon will bring up the time and date menu.
A14215
3.1.1. Manually Adjust Time and Date
dTo set the HOUR, MINUTE, MONTH, DAY, or YEAR touch the feature
you wish to change.
dUse the Up (Y) and Down (B) buttons to make the appropriate changes.
dWhen you have completed all of the settings touch SAVE.

4
A14216
3.1.2. Setup Time Zone
The time zone can be selected by selecting the set time zone from the menu. Then
select the time zone for the location. Time zones for both US and Canada are
included.
A14217
3.1.3. Enable Time Synchronization
For Wi--Fi®capable Evolution Connex Controls, after setting up the time zone, the
time synchronization can then be done, after connection to the Internet server. Both
setting the time zone and enabling time synchronization must be done in order to
enable time synchronization.

5
3.2. Set Dealer Information
From the main screen, touch MENU, on the bottom of the control, then Down (B)
button so that the SERVICE icon is shown. The SERVICE icon allows you to
upload your contact information into the Evolution Connex Control.
A150172
SFormat your contact information and logo (if applicable) using the PC/MAC
Desktop application available at
www.MyEvolutionConnex.Bryant.com/Evolution/Downloads, and save it to a
standard SD card. See Section 6.7 for more information.
STouch the SERVICE icon for about 10 seconds, then touch DEALER LOGO
UPLOAD.
SPlace the SD card into the SD card slot on the bottom of the Evolution Connex

6
Control and follow the on screen prompts.
SMore detailed information can be found on HVACPartners.com under the
Product tab> Thermostats & Controls> SYSTXBBECC01> Documents &
Downloads> Marketing/Miscellaneous> Evolution Connex Control Dealer
Logo Application -- Instructions.

7
4. Installation
4.1. Overview
This instruction covers installation of the Evolution Connex Control and the
Evolution Wireless Access Point only. Physical installation instructions for the
indoor and outdoor equipment, and accessories are provided with each unit.
Setup, commissioning, operation, and troubleshooting of the Evolution System are
covered in this installation instruction at a high level. More detailed information
may be available in the Evolution System HVAC equipment Installation
Instructions. It is the guide to connecting the system components and
commissioning the system once all physical components are installed. Special
screen prompts and start--up capabilities are provided in the Evolution System to
simplify and automate the initial commissioning of the system.
SInstall the Evolution Connex Control according to this instruction.
SInstall indoor unit, outdoor unit, and accessories according to their instructions.
SWire complete system according to this instruction.
SSetup, commission, and operate system according to this instruction, and as
supplemented in the HVAC equipment Installation Instructions, to assure a
smooth and trouble free start--up.
SNote that some detailed equipment configuration and service information may
be included with the equipment instructions. Please refer to the equipment
installation instruction manuals, and applicable technical training materials, for
all devices for complete information.
4.2. Check Equipment
Inspect equipment. File a claim with shipping company prior to installation if
shipment is damaged or incomplete.

8
4.3. Location
ELECTRICAL OPERATION HAZARD
Failure to follow this warning could result in personal injury
or death.
Disconnect power before routing control wiring.
!WARNING
All wiring must comply with national, state, and local codes.
4.3.1. Wall Control
The Evolution Connex Control is the command center for the Evolution System. It
should be located where it is easily accessible and visible to the adult homeowner
or end user. For accurate temperature measurement, the following guidelines should
be followed:
TheEvolution Connex Control and Remote Room Sensors SHOULD be mounted:
SApproximately 5--ft (1.5 m) from the floor.
SClose to or in a frequently used room, preferably on an inside partitioning wall.
SOn a section of wall without pipes or ductwork.
The Evolution Connex Control and Remote Room Sensors SHOULD NOT be
mounted:
SClose to a window, on an outside wall, or next to a door leading to the outside.
SExposed to direct light or heat from a lamp, sun, fireplace, or other
temperature--radiating objects which could cause a false reading.

9
SClose to or in direct airflow from supply registers.
SIn areas with poor air circulation, such as behind a door or in an alcove.
4.3.2. Remote Room Sensors
A Remote Room Sensor can be used with the Evolution Connex Control to take the
place of the control’s internal temperature sensor. This allows the Evolution Connex
Control to be mounted in areas with less than optimal airflow (such as near an
exterior door, window or in a closet). The remote sensor can be wired to the
terminal block connectors labeled S1 and S2 at the control’s backplate, or the ZS1
and ZS1C connection at the Damper Control Module. In either case, the Evolution
Connex Control will automatically detect the Remote Room Sensor and ignore its
internal temperature sensor.
NOTE: Humidity sensing will occur ONLY at the Evolution Connex Control. The
Remote Room Sensor does NOT have humidity sensing capability.
4.3.2.1. Remote Room Sensor Averaging
Typically, one remote sensor is used but, multiple sensors may be used and
averaged in some applications. Averaging requires a special series--parallel wiring
method with a specific number of sensors. See figure below. It is also important to
note the humidity sensor cannot be remotely located, so do not locate the Evolution
Control in an area where humidity sensing may not be accurate.

10
Sensor 1 Sensor 2
Sensor 3 Sensor 4
Damper Control
Module
ZS_
Damper Control
Module
ZS_C
A03233
4.3.3. Smart Sensors (for zoning applications)
Any zone may use a Smart Zone Sensor (SYSTXBBSMS01). It provides a
temperature display and buttons to adjust the desired temperature in that zone only.
It also displays outdoor temperature and indoor humidity sensed at the Zone 1
Evolution Connex control. Only one Smart Sensor may be used per zone. They
cannot be averaged like Remote Room Sensors. If a Smart Sensor is used in a zone,
a Remote Room Sensor may also be used in the same zone. The Remote Room
Sensor has priority over the Smart Sensor. The Smart Sensor will display the
Remote Room Sensor temperature.
NOTE: Smart Sensors must be addressed to identify which zone it will control. See
Smart Sensor Installation Instructions for details.
4.4. Wiring Considerations
Ordinary thermostat wire is recommended. Continuous wire lengths over 25 ft.
should use 18 AWG wiring.

11
NOTE: ABCD bus wiring only requires a four--wire connection; however, it is
good practice to run thermostat cable having more than four wires in the event of a
damaged or broken wire during installation.
Each communicating device in the Evolution Zone System has a four--pin
connector labeled ABCD. It is recommended that the following color code be used
when wiring each device:
A — Green = Data A
B — Yellow = Data B
C — White = 24VAC (Com)
D — Red = 24VAC (Hot)
ABCD
A03193
It is not mandatory that the above color code be used, but each ABCD connector in
the system MUST be wired consistently.
NOTE: Some outdoor units, typically those with multiple compressor stages,
provide their own low--voltage power source and do not require the “C” (24VAC
common) and “D” (24VAC power) connections. See the outdoor unit installation
instructions for more information.
