BSR Stinky Feet DUCK User manual

“DUCK”
ARCADE OPERATIONS MANUAL
Version 042017
www.bobsspaceracers.com
Bob’s Space Racers®Inc. ©2017
427 15th Street, Daytona Beach, Florida 32117
Tel: [phone] Fax: [phone]
Be sure to read this Operation Manual before using your machine to ensure safe operation.
WARNING!

Bob’s Space Racers®Inc. © 2017 P a g e | 2
Table of Contents
MODEL VIEW …………………………………………………………………………………………………………………
3
SPECIFICATIONS ……………………………………………………………………………………………………………
4
Rated power supply: ……………………………………………………………………………………………………….
4
Power consumption: ………………………………………………………………………………………………………..
4
Dimensions: …………………………………………………………………………………………………………………
4
Weight: ………………………………………………………………………………………………………………………
4
INTRODUCTION ……………………………………………………………………………………………………..………
5
Overview: ……………………………………………………………………………………………………………………
5
To Maintain Safety: …………………………………………………………………………………………………………
5
WARNING!: or CAUTION!: ………………………………………………………………………………………………..
5
NOTE: or NOTICE: …………………………………………………………………………………………………………
5
IMPORTANT SAFETY INFORMATION: …………………………………………………………………………………..
6
SET UP: ……………………………………………………………………………………………………………………….
6
PACKAGE CONTENTS ……………………………………………………………………………………………………..
7
INSTALLATION ………………………………………………………………………………………………………………
8
Play zone (Operation Zone): ………………………………………………………………………………………………
8
Locations to avoid: ………………………………………………………………………………………………………….
8
Game Leveling: ……………………………………………………………………………………………………………..
8
Connecting the power cord ………………………………………………………………………………………………..
9
INSTRUCTION FOR PLAY …………………………………………………………………………………………………
10
OPTION PROGRAMMING ………………………………………………………………………………………………….
11
Programming Instructions …………………………………………………………………………………………………
11
Option Settings ……………………………………………………………………………………………………………..
12
MAINTENANCE AND INSPECTION ………………………………………………………………………………………
13
Maintenance: ……………………………………………………………………………………………………………….
13
Cleaning: ……………………………………………………………………………………………………………………
13
TROUBLESHOOTING ………………………………………………………………………………………………………
14
General Troubleshooting: …………………………………………………………………………………………………
15
PARTS LIST ………………………………………………………………………………………………………………….
16
CALLING FOR SERVICE …………………………………………………………………………………………………..
24
POLICIES ……………………………………………………………………………………………………………………..
25
WARRANTY ………………………………………………………………………………………………………………….
26
REVISION ……………………………………………………………………………………………………………………..
28

Bob’s Space Racers®Inc. © 2017 P a g e | 3

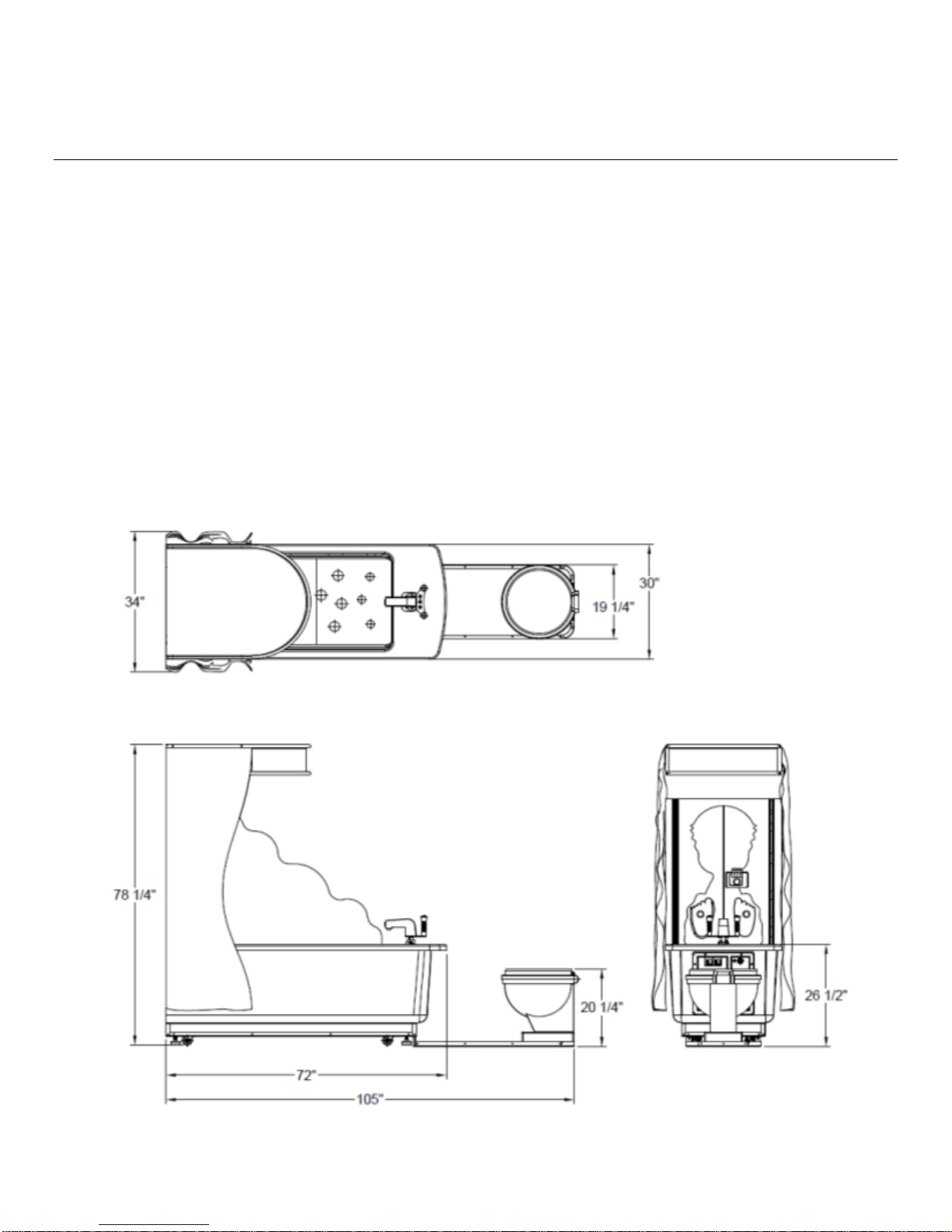

MODEL VIEW
Stinky Feet™Arcade Game

Bob’s Space Racers®Inc. © 2017 P a g e | 5
SPECIFICATIONS
Rated power supply:
110VAC ± 10%, 60 Hz ± 3 Hz.
(Note: Please refer to the label on the game for the actual voltage).
Power consumption:
660W
Dimensions:
105” L x 30” W x 78 1/4” H
Weight:
386 lbs
NOTE: Game parameters are subject to change without notice.

Bob’s Space Racers®Inc. © 2017 P a g e | 5
INTRODUCTION
Overview:
Thank you for purchasing the new STINKY FEET™ from Bob's Space Racers® (BSR). Built on a
long tradition of value, the new STINKY FEETTM retains all of the great game play you have come to
expect of a game from BSR, and is specifically designed for today's Arcade environment. The new
game uses technology specifically developed for this application.
This owner’s Manual is intended to provide detailed descriptions together with all the necessary
information covering the general operation of electronic assemblies, servicing control, spare parts,
etc. pertaining to the game.
This manual is intended for the owner, personnel and managers in charge of operation of the product.
Operate the product after carefully reading and sufficiently understanding the instructions. If the
product fails to function satisfactorily, non-technical personnel should under no circumstances touch
the internal system.
To Maintain Safety:
To ensure the safe usage of the product, be sure to read the following before using the product. The
following instructions are intended for the users, operators and the personnel in charge of the
operation of the product. After carefully reading and sufficiently understanding the warning display
and cautions, handle the product appropriately. Be sure to keep this operation manual nearby the
product or elsewhere convenient for referring to it when necessary.
Herein, explanations which require special attention are in sign of warning. Depending on the
potentially hazardous degrees, the terms of NOTICE, WARNING, and CAUTION,etc. are used. Be
sure to understand the content of the displays before reading the text.
WARNING: or CAUTION:
Disregarding this text could result in serious injury or damage to the machine.
NOTE: or NOTICE:
NOTE: ONLY QUALIFIED TECHNICAL PERSONNEL SHOULD WORK ON THIS GAME. FAILING TO COMPLY CAN
CAUSE SEVERE INJURY.

Bob’s Space Racers®Inc. © 2017 P a g e | 6
IMPORTANT SAFETY INFORMATION:
WARNING!
Unplug the game from the AC wall receptacle when servicing this product. Failure to do so
could result in serious injury to yourself or others.
Use only a GROUNDED AC receptacle. Failure to do so could result in improper operation or damage
to the game and could void your warranty. If you are unsure that your AC receptacle is properly
grounded, have a qualified electrician perform this check for you.
Always be sure power to the game is turned off when doing even routine maintenance. Otherwise,
moving parts could activate unexpectedly causing injury.
This product is heavy, necessitated by the design. When moving this game, be sure you have adequate
help. Use a suitable dolly or hand truck where practical. Use back support when needed.
SET UP:
1. Be sure that the game is on a level surface. If the game is rocking on the floor adjust the legs to
remove the rocking of the game.
2. Be sure to plug the game into the proper A.C. GROUNDED receptacle. Do not use long extension
cords unless absolutely necessary and if so, be sure it is a heavy duty cord of at least 16 Ga. and no
longer than 20 ft. Check the label on the back of the game to make sure the power requirements of the
game match that of your location.
3. Turn the game on and check to be sure there are no unusual sounds and that everything appears to
be working correctly.

Bob’s Space Racers®Inc. © 2017 P a g e | 7

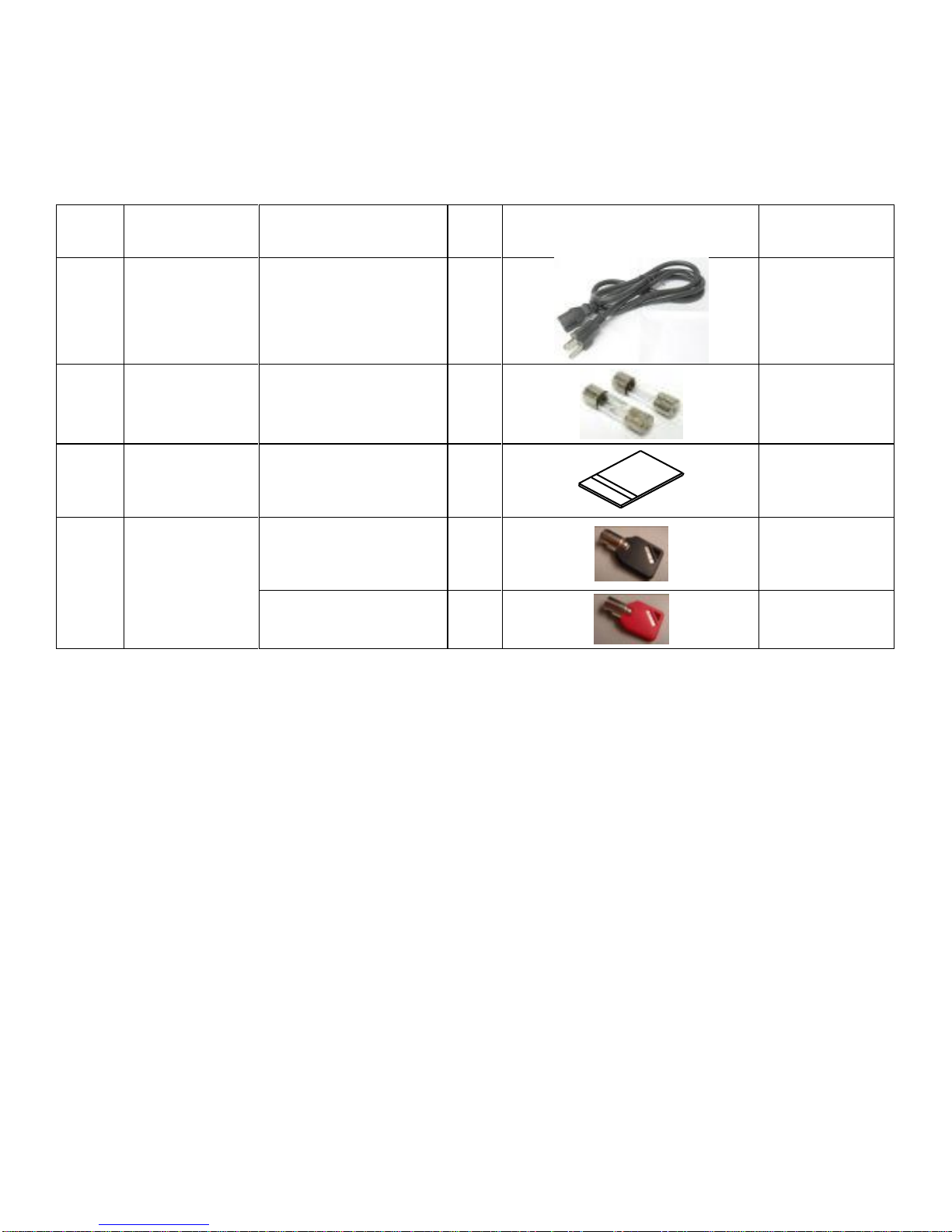

PACKAGE CONTENTS
Be sure to check that you have received all packages indicated below.
Game Unit
Accessories
No
Name
Regulation
Qty
Note
1
Power wire
10A/250V 1.8m
1
2
Fuse
6.3 A/250V Φ5-20MM
1
220V
3
Manual
1
4
Key
X919
2
Front and back
door
X818
1
Coin box

Bob’s Space Racers®Inc. © 2017 P a g e | 8
INSTALLATION
Check the parts list before installation. Verify that all parts that have been received and are in good
condition.
Play Zone (Operation Zone):
This machine requires space for playing the game. Be sure to leave enough space when installing the
machine.
Locations to avoid:
Game Leveling:
Install this machine on a flat surface. Adjust levelers to lift the legs and level game.
Make sure that the machine is level with the floor. If the machine is not level, the game may not play
well.
FOR INDOOR USE ONLY!
ATTENTION!
● Be sure to check the Electrical Specifications.
Ensure that this product is compatible with your location’s power supply, voltage
and frequency requirement. A plate describing Electrical Specifications is
attached to the product. Non-compliance with the Electrical Specifications can
cause a fire and electric shock.
● Putting many loads on one electrical outlet can cause generation of heat and a fire
resulting from overload.
WARNING!
The machine is designed for indoor use only. Never install
this machine outdoors or in any of the following:
● Locations exposed to direct sunlight
● Locations subject to rain or water leakage.
● Unstable locations or locations subject to vibration.
● Dusty, hot, or damp locations
NOTICE
!

Bob’s Space Racers®Inc. © 2017 P a g e | 9
Connecting the power cord
WARNING!
●Do not put heavy items on power cord.
●Hold the power plug instead of the wire to draw the power cord out of the socket.
●Do not touch the power plug with wet hands.
●Do not draw or twist the cord or near a heat source.
●Do not place the cord where the player can easily trip over or come in contact with it.
●Operate this game with the correct power and fuse configuration. (The machine’s supply
Voltage is 110VAC, please refer to the label on the machine, connect the actual supply voltage, if
not, it can cause an electric shock or malfunction.)
Power socket
Power plug
Electrical wire box
•Disconnect game power before moving
•Make sure all wheels are intact. Replace any wheels that are damaged or
broken before moving the game.
•When moving the game, DO NOT slide the game across the floor
•Ensure the game is level before connecting the power
WARNING!

Bob’s Space Racers®Inc. © 2017 P a g e | 10
INSTRUCTION FOR PLAY
1. Insert coin(s), the game starts.
2. When the game play starts, aim your gun at the lighted targets. The gun will shoot water
automatically. All you have to do is aim.
3. Tickets will be awarded for each game play.
4. Bonus Tickets are awarded for beating the high score and the bonus score.

Bob’s Space Racers®Inc. © 2017 P a g e | 11
OPTION PROGRAMMING
Programming Console
*Located at the front of the game*
Programming Instructions
NOTE: SEE CHART BELOW ON PAGE 12.
1. Press the “TEST” button to view the first game option.
2. Press the “ENTER” Button to scroll through the desired option value. (Pressing the ERASE
button will return your option value back to the beginning).
3. Repeat steps 1 –2 for more options and settings.
4. When finished, continue pressing the “TEST” button until the game returns to play mode.
Not Used
Enter Option
Setting/s
Not Used
Not Used
Scroll Up Through
Option Values.
Resets Option
Value to Beginning.

Bob’s Space Racers®Inc. © 2017 P a g e | 12
Option Settings
Option Number
Description
Variation
BSR
1
Coins per play
(1 -5)
2
2
High Score to Beat
(100 - 350)
100
3
Water Gun Demo Time (Gun fires for 15 secs)
(0 - 300)
0
4
Bonus Ticket Start Value
(0 - 100)
10
5
Bonus Ticket Adder
(0 - 5)
1
6
Max Bonus Payout
(0 - 500)
100
7
Score per Ticket
(0 - 60)
5
8
Game Time
(10 - 50)
20
9
Mercy Ticket
(0 - 7)
0
10
Points per hit
(1 - 15)
5
11
Demo Sound 15 secs of music every 45 seconds
(0 - 1)
0
12
Target "On" Speed 10=1.0 Sec. (fastest) 45=4.5 Sec.
(slowest)
(10 - 45)
30
13
Triangle or Random Pattern (0 - T, 1 - R)
(0 - 1)
1
14
Progressive Speed
(0 - 10)
0

Bob’s Space Racers®Inc. © 2017 P a g e | 13
MAINTENANCE AND INSPECTION
Maintenance:
➢Due to the design of the machine, very little periodic maintenance is required.
➢Start the game and verify the correct operation before putting the game into everyday operations.
➢Clean the surface of the game as needed.
➢After about a month of game operation, check to be sure all parts are secure and in proper working
order.
1. Remove power before servicing game.
To avoid a short circuit, the power must be removed before touching the inside of the game.
2. Choose the appropriate replacement parts.
Using the wrong parts could lead to malfunction or damage to the game and components.
3. Do not substitute or change equipment, without authorization.
Doing so could lead to a short circuit and machine malfunction, or fire.
4. Do not put containers of water, cups or soda cans on the machine. In addition,
chemicals or heavy items should not be allowed around the game.
The spill could cause a short circuit. Falling items could injure people or destroy the machine.
Cleaning:
Clean the outer surfaces of the game with a commercial spray type cleaner.
DO NOT USE commercial chemical sprays on vinyl graphics.
DO USE a good quality spray type furniture polish to keep the game looking good.
Vacuum the inside of the game occasionally to help keep the dust and ticket debris off of
all the electronics.
Cleaning Formica (Clean-On-The-Go Glass®, De-Solve-It®, Furniture Polish, Baby oil)
Cleaning Glass (Windex®, Clean-On-The-Go Glass®, Brillianize®)
Cleaning Stainless Steel (Clean-On-The-Go Glass®, Furniture Polish, Baby oil)
Cleaning Plexiglas® (De-Solve-it®, Brillianize®, 3812S Enamel Reducer®)
Cleaning Other Metals (Soft Scrub®, Furniture Polish, Baby oil)

Bob’s Space Racers®Inc. © 2017 P a g e | 14
TROUBLESHOOTING
TROUBLESHOOTING PHILOSOPHY
When troubleshooting any product, certain general guidelines should be followed.
1. Always check to be sure that your game is turned on. Be sure that all of the fuses in the
game are functional and check to see that the AC voltage is in the proper operating range for
your game.
2. Check to be sure that all of the game harnessing is plugged in properly and that all of the
pins are firmly seated in the connectors. It is always possible that a harness can be damaged
by rough shipping or moving.
3. Check game harnessing to be sure that none of the wires have become or are damaged.
Using a handheld multi-meter, check continuity of the wires to make sure they are not broken.
4. Check for obvious damage to the P.C. Boards or electrical components.
5. If you have multiple games or multiple parts on a game, change or exchange the parts and
see if the problem goes away or moves to another location. This way you can quickly eliminate
certain parts as being the problem with the game.
6. When changing electronic or electrical components, ALWAYS disconnect power by
unplugging the game.
7. Test power supplies for the specified voltages to the P.C. Boards and components as shown
in the manual.
For your safety, and to reduce risk of damage to your game read the Important Safety
Information on page 7 before attempting any troubleshooting procedure.
WARNING!

Bob’s Space Racers®Inc. © 2017 P a g e | 15
General Troubleshooting:
Symptom
Possible Problem
Solution
POWER
POWER
Game will not score
Power not on switch
Sensor output not correct
Signal not getting to main board
Signal gets to main board but board doesn’t see it
Check wiring harness for 12 volts on switch
Repair / Replace switch
Repair / Replace harness
Replace main board
Sound Problems
-No sound
-Low Sound
-Intermittent Sound
Low Volume
Check Volume Control and adjust as necessary
Faulty speaker harnessing
Check connections and/or repair harnessing
Faulty speaker
Check and/or replace speaker
Faulty sound board or sound board harnessing
Check connections or Replace Sound Board
Faulty Main P.C. Board
Check and/or repair or replace Main PCB Board
Game does not take or add
money correctly
Coin switch out of adjustment
Re-bend coin switch wire
Coin mech dirty or improperly adjusted
Clean and adjust mech as necessary
Faulty Coin switch
Check and/or replace switch
Faulty coin switch harness or connector
Check and/or repair harnessing
Game improperly programmed
Check programming options and adjust
Faulty Main P.C. Board or component
Repair and/or replace Main P.C. board
Ticket Dispenser not
working properly, or no
tickets being dispensed
No tickets in the game
Refill ticket dispenser
Tickets jammed in dispenser
Clear ticket jam
Ticket dispenser sensor blocked with debris
Clean off sensor
Poor connection on the ticket dispenser
Check and/or replace connectors
Game improperly programmed
Check ticket programming options
Faulty ticket dispenser
Replace dispenser
Faulty ticket dispenser harnessing
Check and/or repair harnessing
Faulty Main P.C. Board
Replace or repair Main P.C. Board
Game will not start.
Game power off
Electrical Power Switch Open
Check on/off switch and power cord
Close Electrical Power Switch
Main fuse blown
Check and/or replace fuse as necessary
Power Supply problem or failure
Check Power Supply output and connections
Faulty P.C. board or component
Repair and/or replace main P.C. board
Game stops or is stopped
with nothing displayed
The power connector is disconnected.
Reconnect the connector securely.
Possible faulty connection or short circuit.
Check all circuitry for faulty connections or short
circuits.
NOTE:
CONTACT YOUR DISTRIBUTOR IF NONE OF THE CASES LISTED IN THIS MANUAL APPLIES TO THE PROBLEM,
OR IF THE ACTION LISTED DOES NOT APPEAR TO RESOLVE THE PROBLEM.

Bob’s Space Racers®Inc. © 2017 P a g e | 16

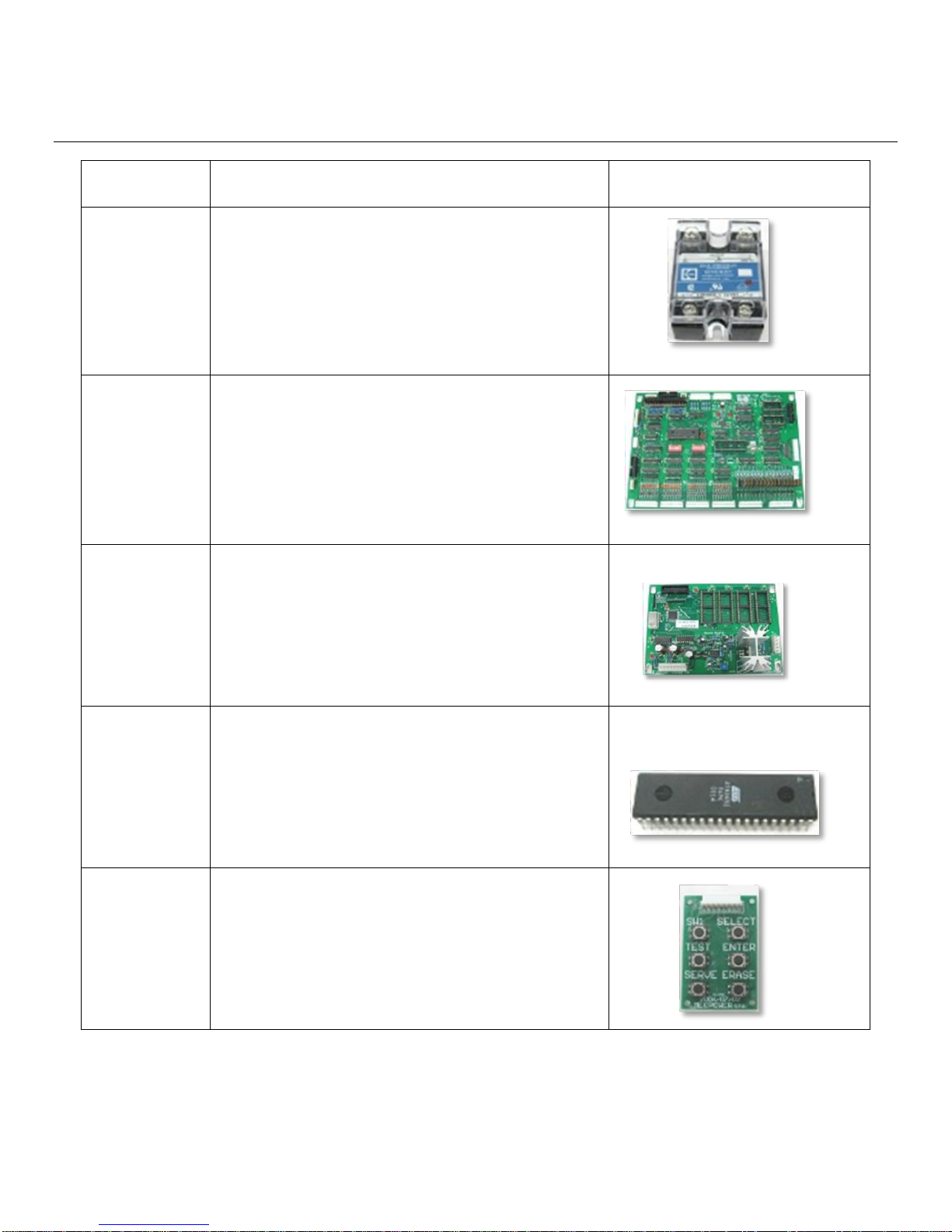

PARTS LIST
Part Number
Description
E0801000
Solid State Relay 25A
E0801001
Main Board
E0801002
Sound Board
E0801003
Main Board Chip Set
M0801015
Programming Board

Bob’s Space Racers®Inc. © 2017 P a g e | 17
E0801004
I/O Board
E0801005
Display Board
(3-Digit)
E0801006
Power Supply (5V6A / 12V8A)
E0801007
Power Supply (+12 V / - 12 V)
E0801008
LED Light Board 1
E0801009
LED Spot Light

Bob’s Space Racers®Inc. © 2017 P a g e | 18
E0801010
Speaker Chase Light
E0801012
Chase Light Board (Soap)
E0801014
Target Paddle Magnet –Short (Feet & Soap)
E0801015
Chase Light Board (Left Foot)
E0801016
Chase Light Board (Right Foot)
E0801017
Target Magnetic Switch

Bob’s Space Racers®Inc. © 2017 P a g e | 19
E0801028
LED Target Ring (Encapsulated) w/ W/ Ring Holder
E0801028-A
LED Target Ring w/ Wire Connector
E0801028-B
LED Target Ring Holder w/ Screws and Nuts
M0801201
Complete Set –2 Feet, 1 Soap
M0801201-A
Complete Left Foot Target Assembly

Bob’s Space Racers®Inc. © 2017 P a g e | 20
M0801201-A1
Complete Left Foot Acrylic Box Assembly
M0801201-A2
Left Foot Plastic Cover w/ LED Ring
M0801201-A3
Left Foot Plastic Cover - Bare
M0801201-A4
Left Foot Acrylic Box
