WELCOME TO 1908 ALLEY
Congratulations on your 1908 Alley purchase!
Skee-Ball has been entertaining audiences at boardwalks, fairs and entertainment
centers for over 110 years, and now you can bring the nostalgia home!
The 1908 Alley features all the fun of Skee-Ball –minus the coin slot—so you can
keep the fun rolling! With a sleek design and simple-to-assemble cabinet, 1908 will
complement any home game room
Please take a moment to read through this manual as it contains a lot of helpful
information. Be sure to contact our factory if you have any questions, or would like
more information.
Thank you for your purchase! Your business is important to us and we hope you enjoy
this game as much as we do!
GAME INSPECTION
Please inspect the game for any damaged, loose, or missing parts.
If damage is found, please contact your freight carrier first.
Then, contact Bay Tek Entertainments’ Service Department at
[phone] Ext. 1102
Or email them at [email protected] for further assistance.

5

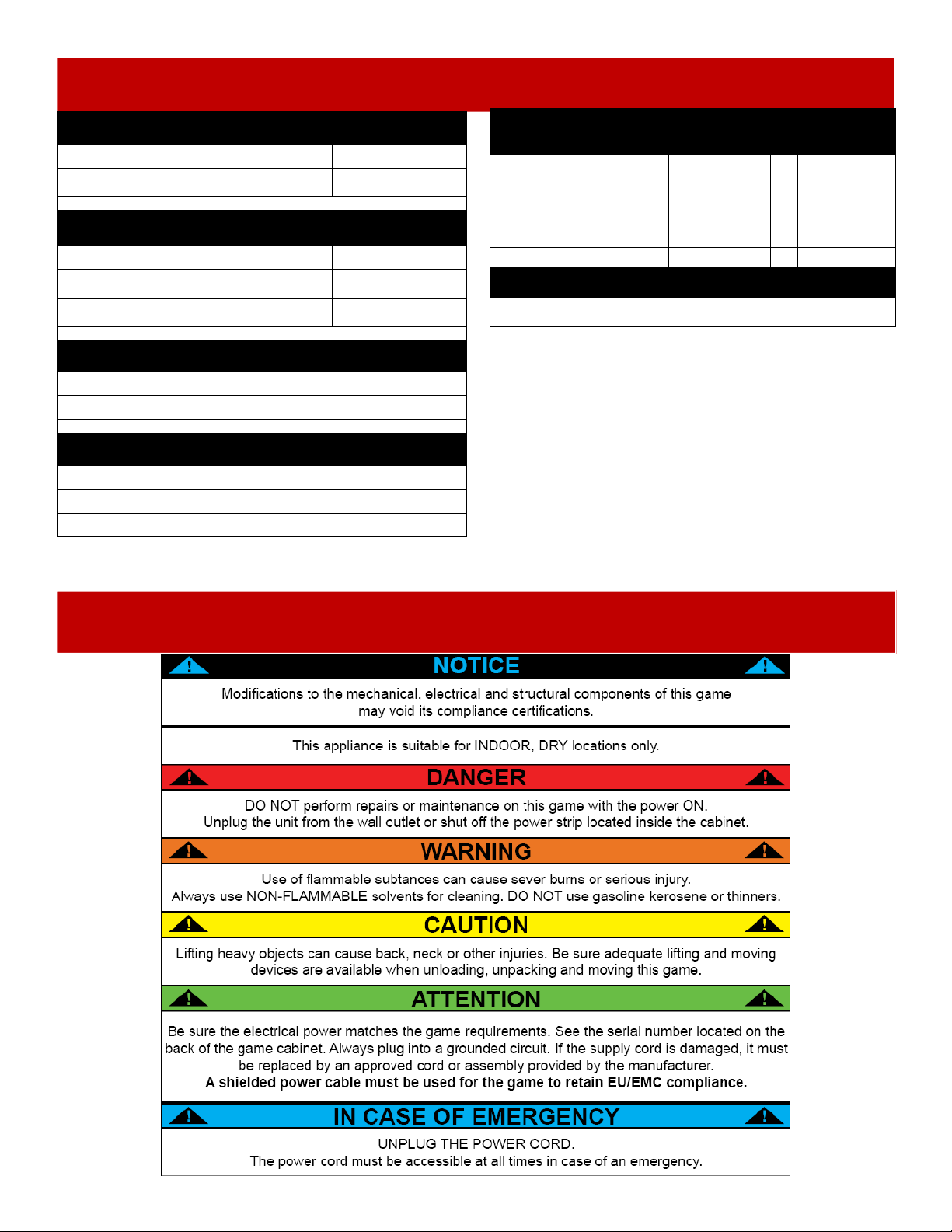

SAFETY PRECAUTIONS
GAME SPECIFICATIONS
WEIGHT
NET WEIGHT 485 lbs. 220 kg
SHIP WEIGHT 540 lbs. 245 kg
GAME DIMENSIONS
WIDTH 30.5” 77.5 cm
DEPTH 123" 313 cm
HEIGHT 75" 191 cm
OPERATING TEMPERATURE
FAHRENHEIT 45 - 80 F
CELSIUS 7.2 - 26.7 C
SHIPPING DIMENSIONS
WIDTH 32"
DEPTH 80"
HEIGHT 92"
POWER REQUIREMENTS
INPUT VOLTAGE
RANGE
100 to 120
VAC
220 to 240
VAC
INPUT FREQUENCY
RANGE 50 Hz
60 Hz
MAX OPERATING CURRENT
2.8 AMPS @ 120 VAC / 1.8 AMPS @ 220VAC

6
The game will arrive on one pallet.
Please inspect the pallet for shipping damage
and report immediately to the freight company if
any damage is found.
1908 ALLEY GAME SETUP
Important:
The 2 sections of this game are large and heavy. We recommend using
2 people to install and set up this game.

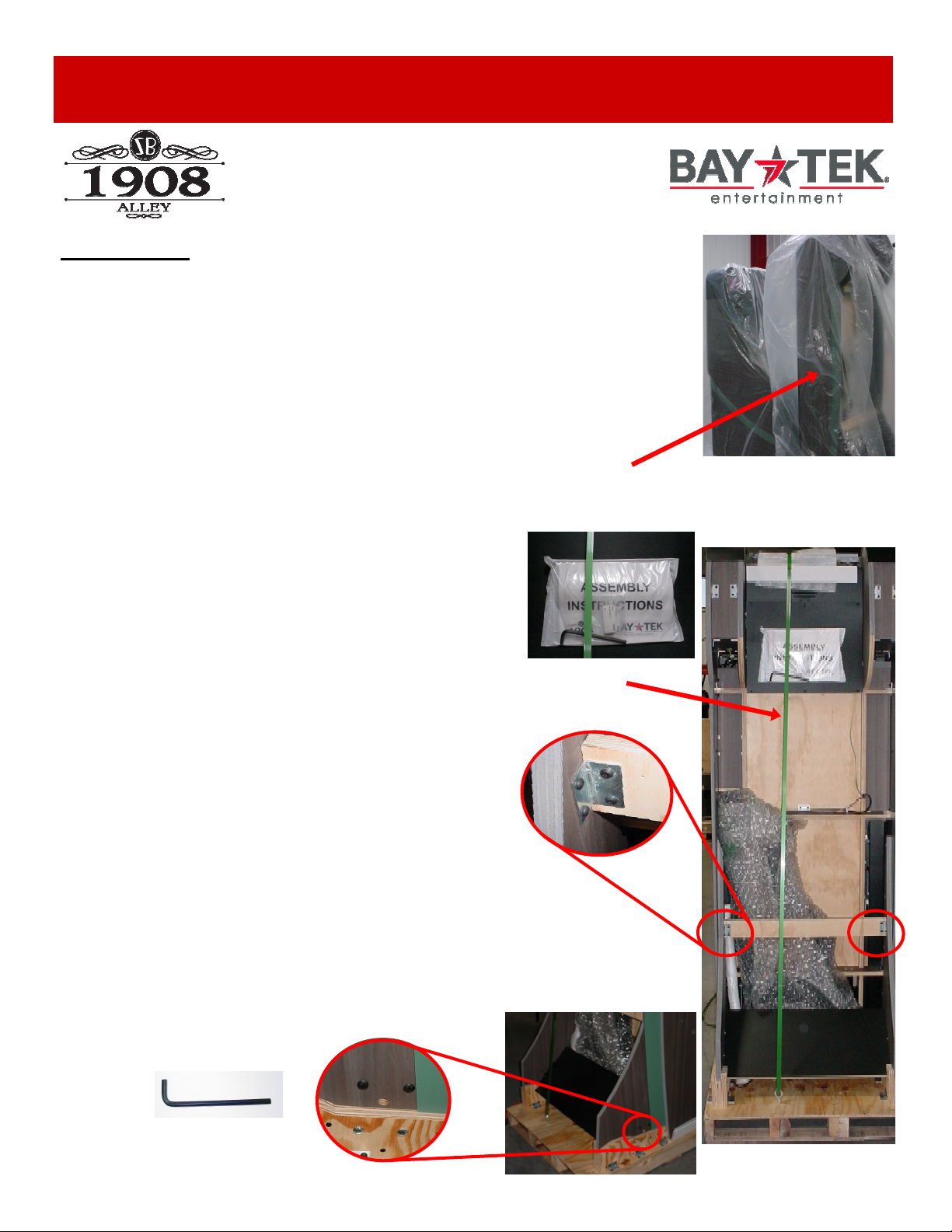

Unbox the pallet and remove the plastic wrap from the ramp section.
Remove the “Assembly Instructions” from the clear plastic envelope and
remove the 2 small bits and hex key tool that can be
used to assemble the game.
Carefully snip the plastic banding material using a Diagonal Cutting
Pliers (Snips)
Remove the left and right “L” Brackets from the middle
shipping brace to access parts, using the #2 square
screwdriver bit.
This is a shipping bracket and can be discarded.
Remove the bubble wrapped net assembly and the 2
rods from the shipping location and set aside for use later.
Important:
Both bottom edges of the ramp are secured to the wood supports using
the same internal locking mechanism that will later secure the ramp
section to the target section.
Insert the hex key tool in the hole in each side and
turn to completely unlock the
ramp section from the pallet.
Make sure
to unlock both sides.
Not to scale
Tools Needed:
9/16” Socket wrench Diagonal Cutting Pliers (Snips) 2 People
A Phillips bit, # 2 Square bit, and 5/16” Allen hex tool (A5WR3800) These 3
parts are included in the Assembly Instructions clear plastic envelope sleeve.

7
The box contains the Service Manual, Hardware Kit, keys, 9 balls
(#A5BA8106), and large 5/16” Allen wrench (A5WR3800)
Remove the plastic wrap from the target section.
Remove the cardboard box from the bottom of target section.
1908 ALLEY GAME SETUP
Carefully remove alley section from pallet, lower it to the floor, this will
be slid up to the target section after it is removed from the pallet.

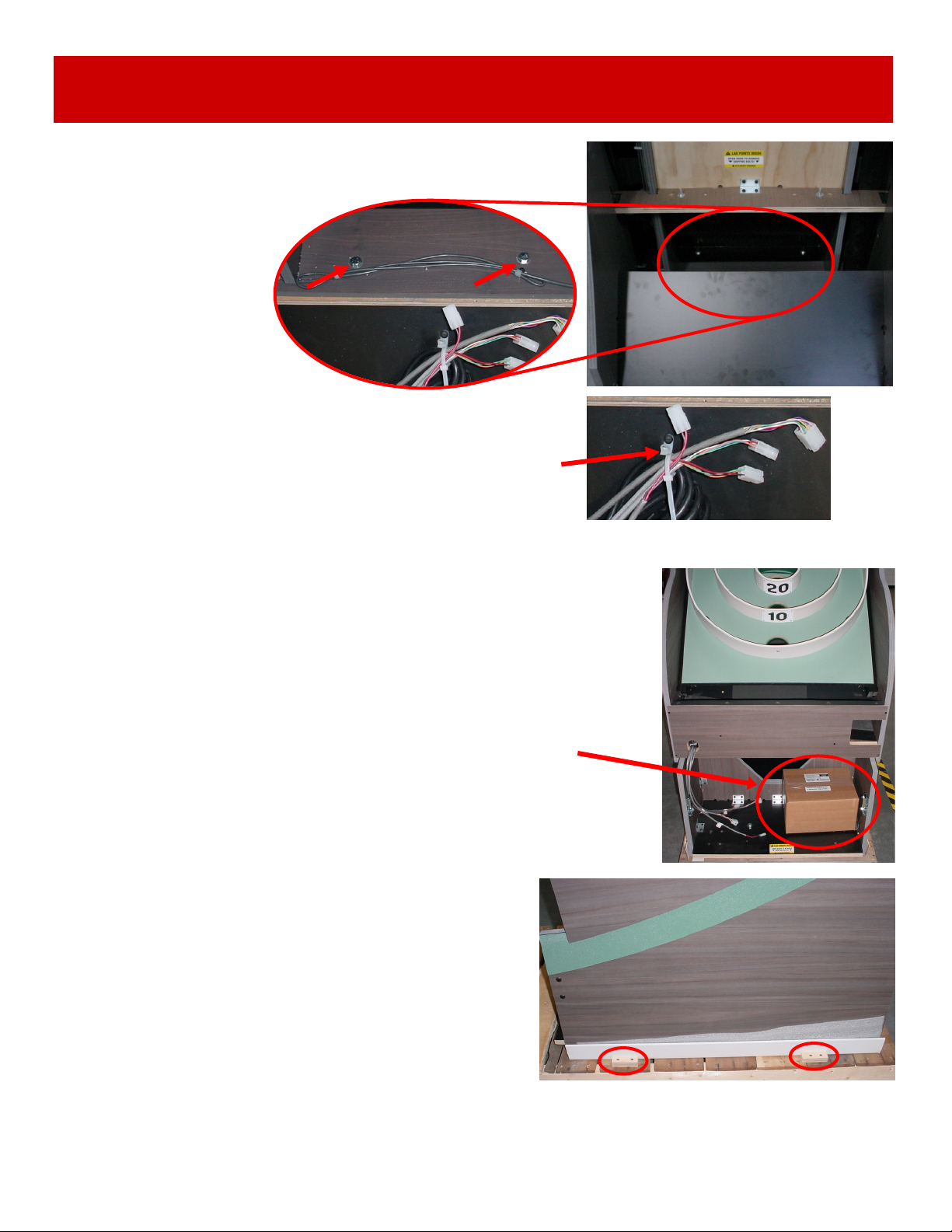

Remove the 2 shipping bolts underneath in the bottom of
the ramp section using a 9/16” socket wrench.
Carefully cut the plastic tie wrap holding cables using a
side cutters (snips).
Make sure not to cut the wire harness!
Remove the 2 wood shipping blocks on one side of the
target section using the #2 square screwdriver bit.

8

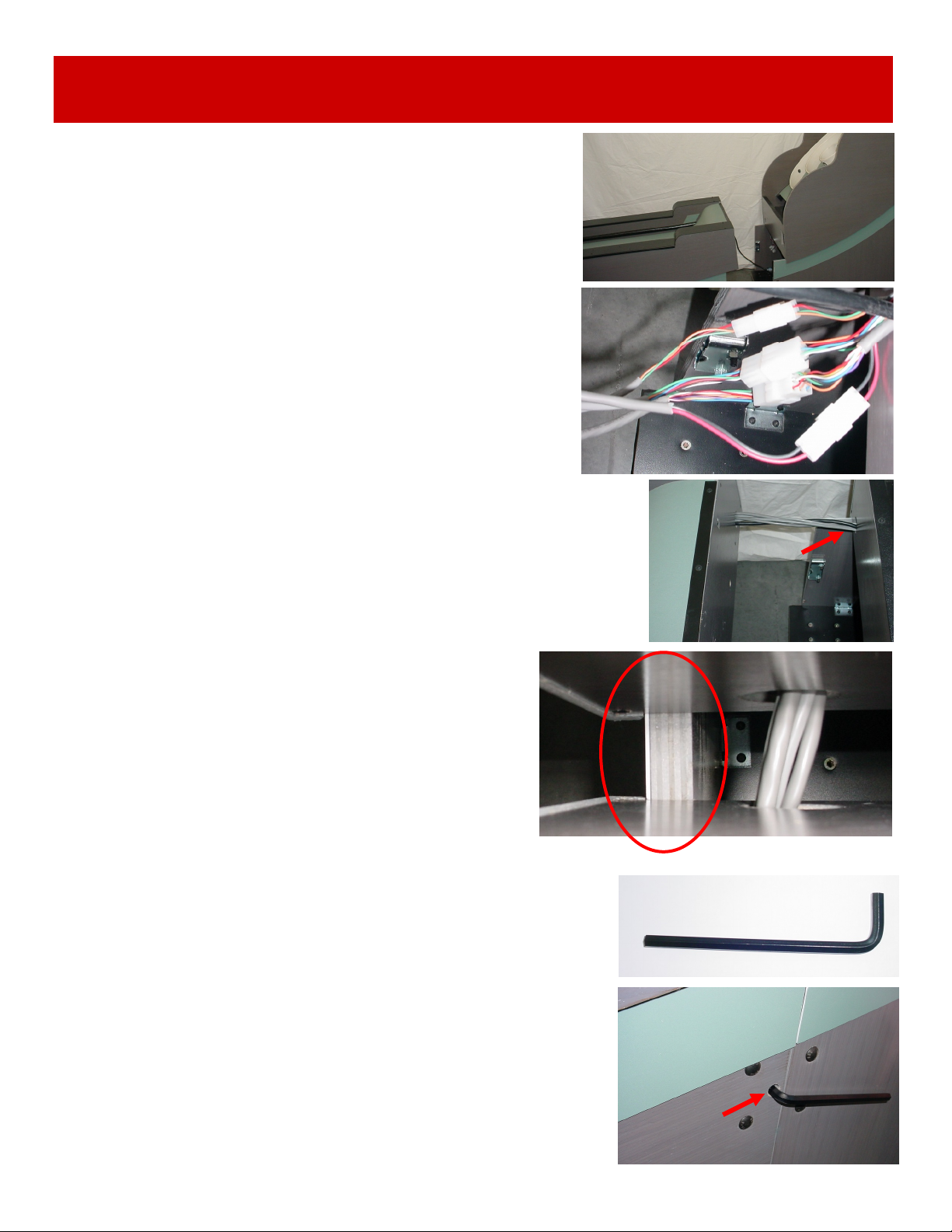

Align the Cables:
At the back of the ramp section, push the AC power cable
through the hole, then push the 4 signal cables through the
hole.
At the front of the target section, push the AC power cable
through the hole, and pull it all the way to the back of the
game, and out through the hole in the back wall of the target
section.
At the front of the target section, pull
the 4 signal cables through the hole,
toward the other 4 cables.
1908 ALLEY GAME SETUP
Remove the 2 shipping bolts underneath the target section using a
9/16” socket wrench.
Carefully remove target section from pallet and place in final game
position.
Carefully move ramp section and place about 2 feet from target section.

9
1908 ALLEY GAME SETUP
Position alley section closer to the target section as shown.
Plug the 4 connectors together with the matching set of
connectors.
Push the connected plugs back into the target section of the game.
The cables should be straight so they do not pinch as the sections
are pushed together.
Push the two game sections together, lining
up the edges as shown.
Push the two game sections together completely so both sides
are flush.
Insert the large Allen wrench into the right side hole and turn
clockwise until latch is completely locked in place.
Similarly, insert the large Allen wrench into the left side hole, but
turn counter-clockwise until latch is completely locked in place.
Not to scale
Secure Ramp and Target Sections Together:
Using the large 5/16” Allen hex tool (A5WR3800) used earlier
from inside the clear plastic instruction bag.

10
Attach the Cages to the Game:
1908 ALLEY GAME SETUP
Locate the side cages and unwrap from the bubble wrap.
This assembly will be installed on the curved side of the
target section.
Press the side cages onto the curved side of the target section.
There are pilot holes in the wood that must be aligned with the
holes in the black plastic.
Example:
Pilot Hole in Wood
Hole in the Black Plastic
The black plastic must be raised
a bit more for this hole to line up.
Locate the small black Philips screws from hardware kit
inside cardboard box.
Part # A5SCPH075 (6 X 1/2” Phillips)
Install 3 screws on the outside lower edge of the side cage.
Move to the other side of the cabinet, and install 3 screws on
the outside lower edge of the side cage.
A5SCPH075

11
Locate the large brackets inside the cabinet near
the top of the side plastic assemblies.
Locate the 4 black screws from hardware kit
inside the cardboard box.
Part # A5SCPH151 (#8 Square Drive)
Install 2 screws into each side using the #2 square
screwdriver bit.
Install the middle rod by threading the rod through the
net - above, then below, then above the net so that it is
supported by the rod.
Locate 2 of the black machine Philips screws from
hardware kit inside cardboard box.
Part # A5SCPH215 (8-32 X 1” Phillips)
Tighten both sides using the Phillips screwdriver bit.
1908 ALLEY GAME SETUP
A5SCPH151
A5SCPH215
Locate the large brackets inside the cabinet near the
bottom of the side plastic assemblies.
Locate the 4 black screws from hardware kit inside
the cardboard box.
Part # A5SCPH151 (#8 Square Drive)
Install 2 screws into each side using the #2 square
screwdriver bit.
A5SCPH151
Install Spacing Rods Above Net:
There are 2 rods through the top of the net to provide rigidity to the net.

12
Power On Game:
Locate the 9 balls (part # A5BA8106) from the cardboard box and
roll them up into target area.
The balls should roll smoothly into the right side of alley.
Plug the power cord into a grounded wall socket.
The game is now set up and ready for play!
Pull lever toward you to start game.
Adjust volume level on main board under the left lane cover
if desired.
1908 ALLEY GAME SETUP
Install the front rod by pushing the rod through the gap in
the front vinyl edge. Push it through so the rod protrudes
out the opposite end.
Locate 2 of the black machine Philips screws from hard-
ware kit inside cardboard box.
Part # A5SCPH215 (8-32 X 1” Phillips)
Tighten both sides using the Phillips screwdriver bit.
A5SCPH215

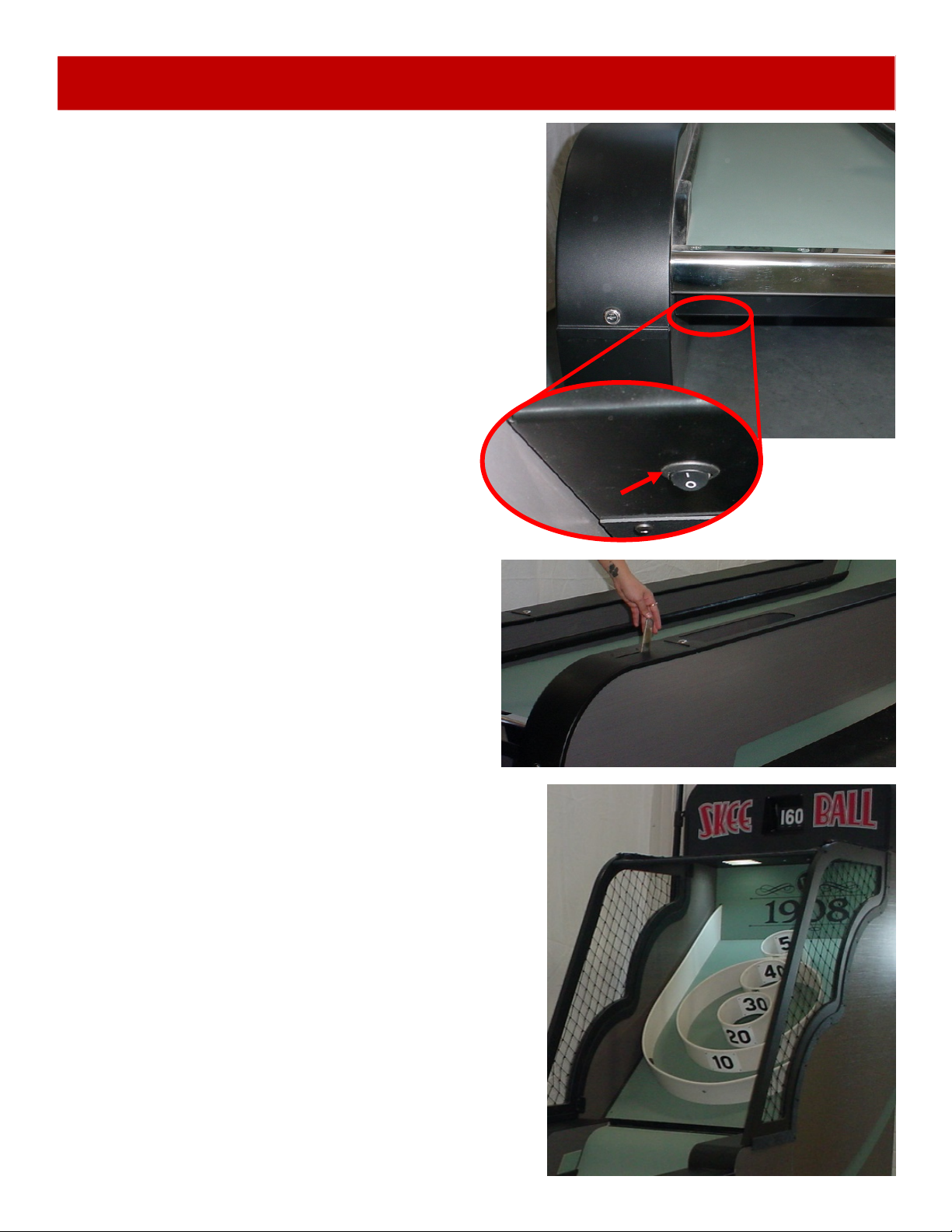

The power switch is cleverly hidden under the left
front edge of alley.
The Osymbol is off.
Flip this switch to the I symbol as shown.

13
HOW TO PLAY
Turn the game on by flipping the power switch under
the left front edge of alley.
Flip this switch to the I symbol as shown.
Pull the lever back to start a game.
Roll the balls up the alley and into the targets to
score points.
Repeat and enjoy!

14
HOW TO ACCESS MAIN BOARD & POWER SUPPLY
HOW TO ACCESS BALL RELEASE

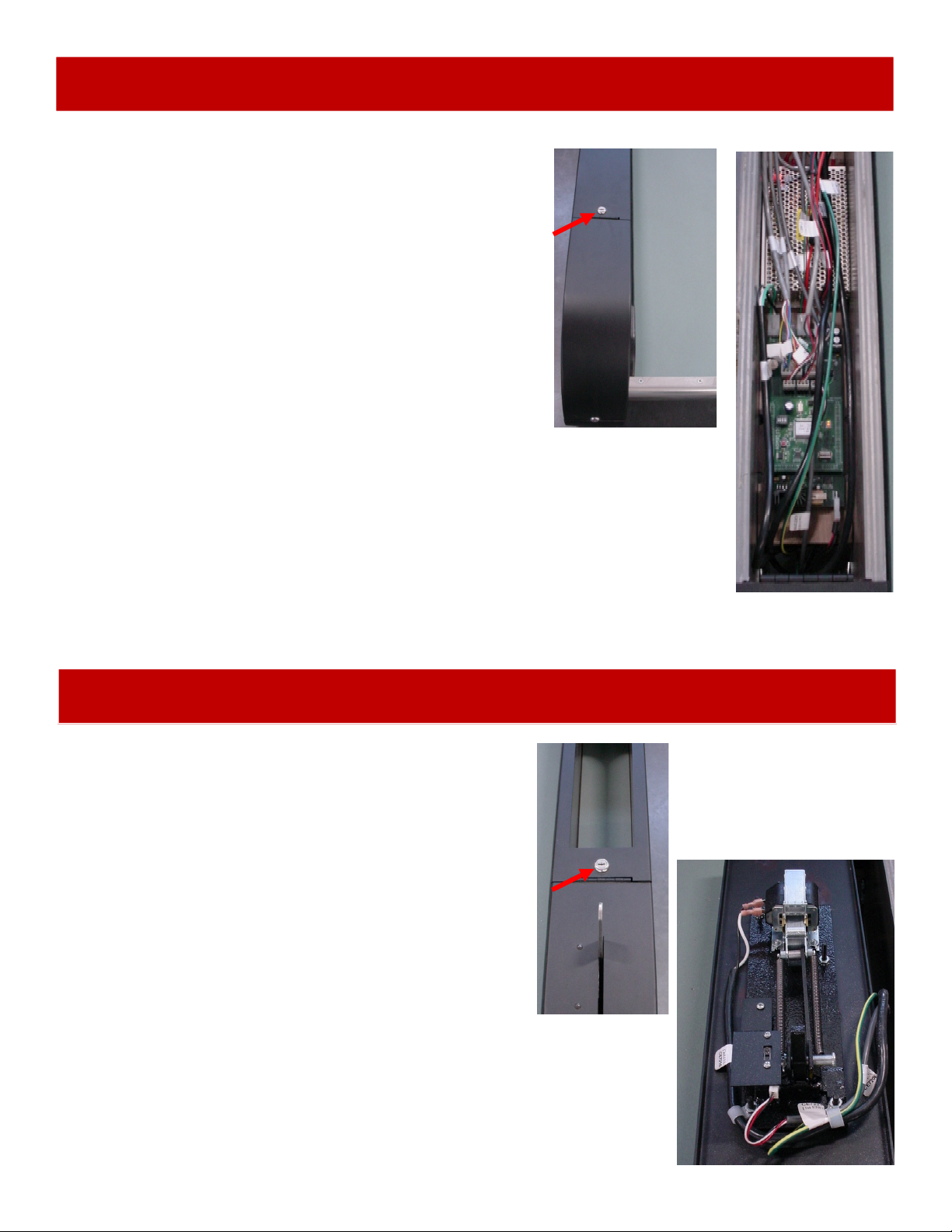

Insert H95 key into left side rail cover, unlock, and
slide cover toward you to remove.
The main board, power supply, and cabling are now
accessible.
Insert H95 key into right side rail cover, unlock, and
slide cover toward you to remove.
The solenoid cables will prevent the cover from com-
pletely coming off.
Flip the cover upside down and rest on edge of alley.
The ball release and ball release sensor are now ac-
cessible.

15
HOW TO ACCESS TARGET SENSORS

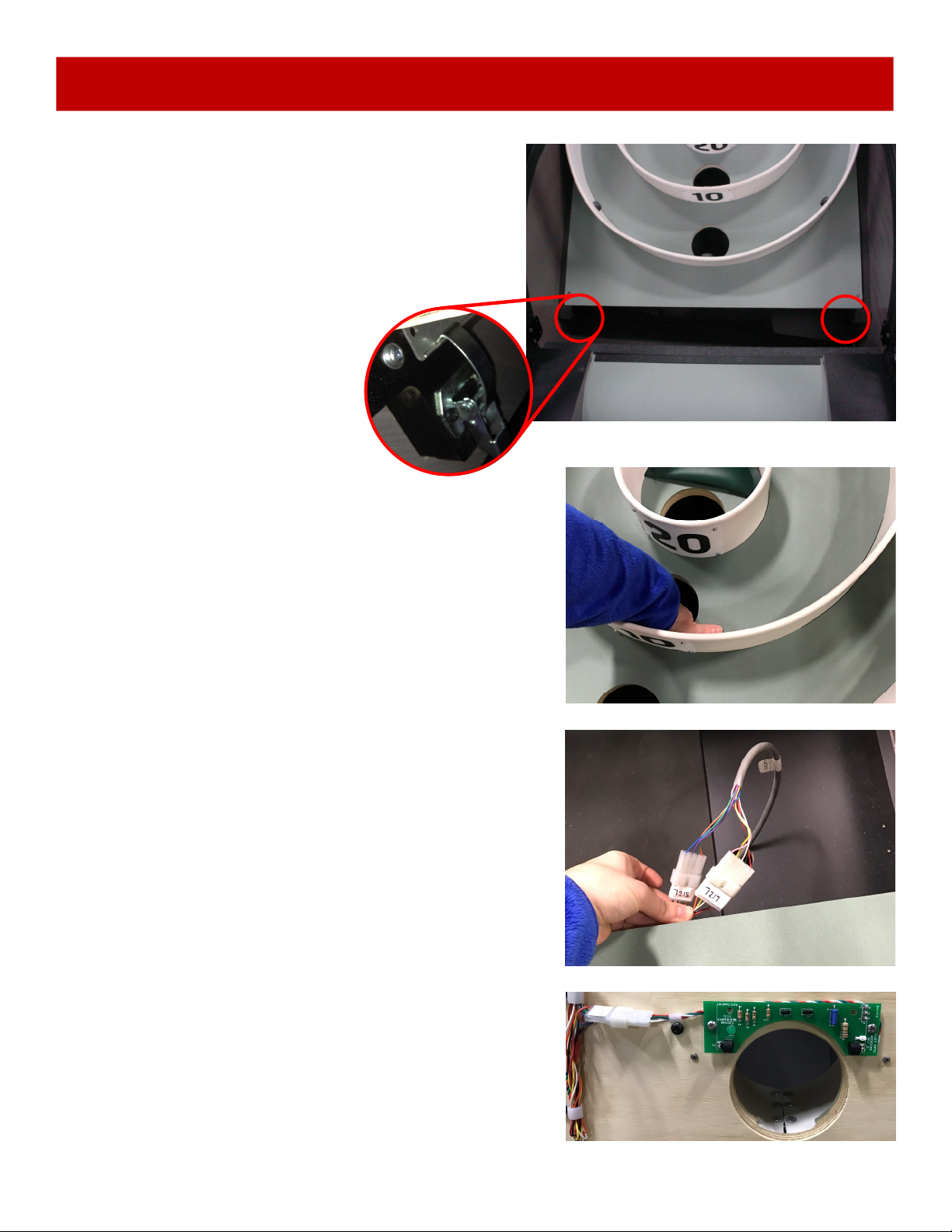

Reach under both bottom corners of the playfield
and unlatch the 2 latches.
Reach into a score hole to lift up on the playfield,
slide it out and unplug the 2 cables behind.
The ball sensors are attached to the back of the
playfield. Part # AACB2203A

16

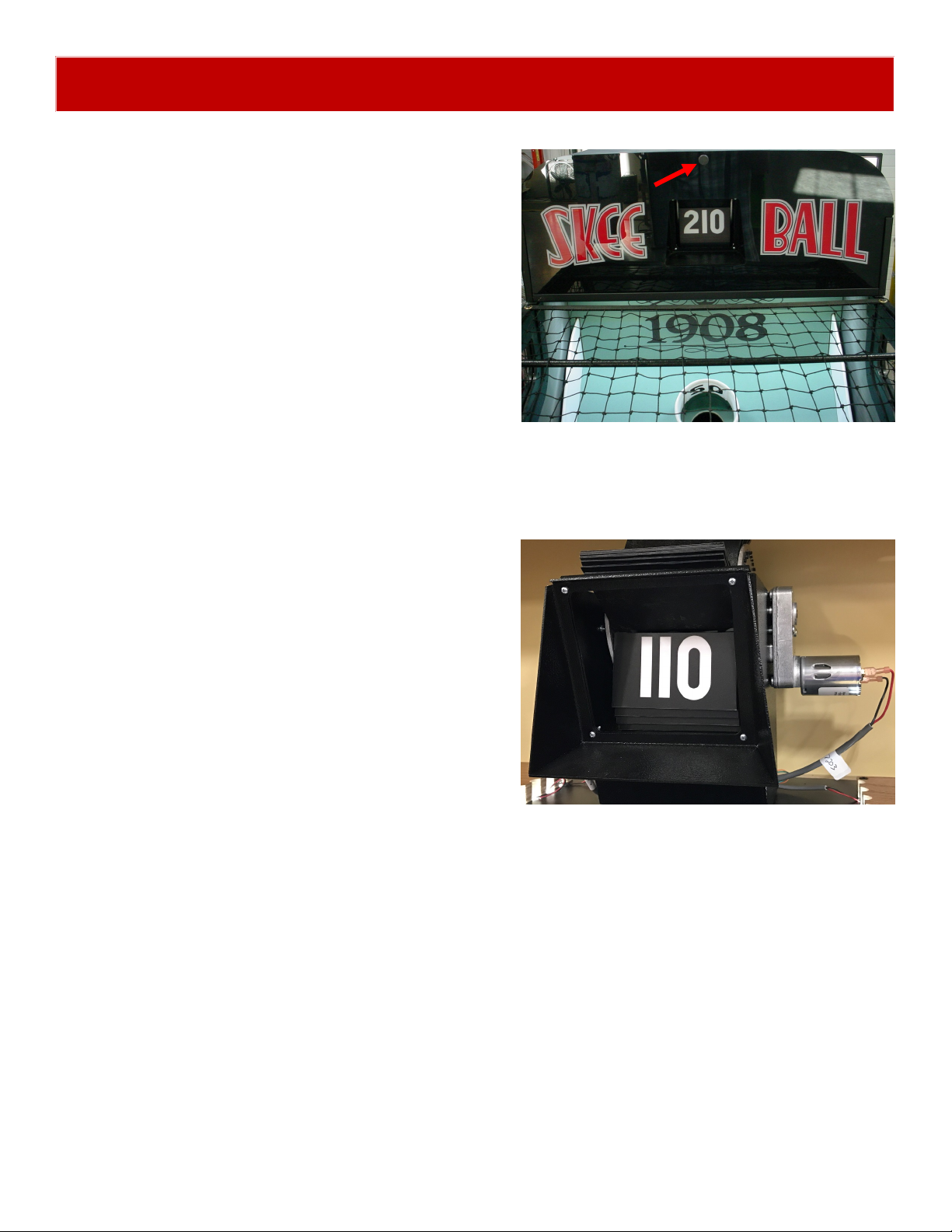

HOW TO ACCESS SCORE DISPLAY MOTOR
Unscrew the center knob on the marquee faceplate
counter-clockwise and remove.
Slide the marquee faceplate up to remove from
game.
Refer to trouble shooting section to diagnosis issues
with the flip display.

17
TROUBLESHOOTING GUIDE
Problem Probable Cause Remedy
No power to
the game.
Unplugged.
Rocker switch off or faulty.
Circuit breaker tripped.
Bad or overloaded power
supply.
Check wall outlet cable (AACE7213) to front of game
under alley. Check power cables to power supply.
(AACE7220 & AACE7215)
Check rocker switch located in front of game under alley.
Ensure power cords are connected securely.
Refer to Power Supply Diagnostics
Left and right
marquee lights
not on.
Faulty Cable
Faulty LED
Bad or overloaded power
supply.
Check for proper connection from power supply to LED
strips. Check continuity. (AACE7225, AACE7201,
AACE7219)
Swap LED from the other side to verify. Replace LED
(AACE7219)
Refer to Power Supply Diagnostics
Sound
Issues
Volume dial on main board
needs to be adjusted.
Loose wire.
Faulty Main Board
Located small dial on main board and adjust as
needed.
Check audio cable connections from main board
to speakers. (AACE8811, AACE7208, AAMB7200)
Replace main board. (Part # AAMB7200)
Game does not
start
The lever moves
a reflective
surface in front
of an optical
Sensor.
Ensure the lever is moving
freely.
Ensure the optical sensor
and lever surface is clean
and free of debris.
Pinched, broken, or
disconnected wiring.
Faulty Sensor.
Faulty Main Board
Inspect and replace mechanical assembly if needed.
(Part # AAHA7200)
Clean sensor and clean lever surface which passes
in front of the sensor.
Check connections from sensor to main board.
Check continuity on cable AACE7210
Replace sensor. Part # A5SE0001
Replace main board. (Part # AAMB7200)

18

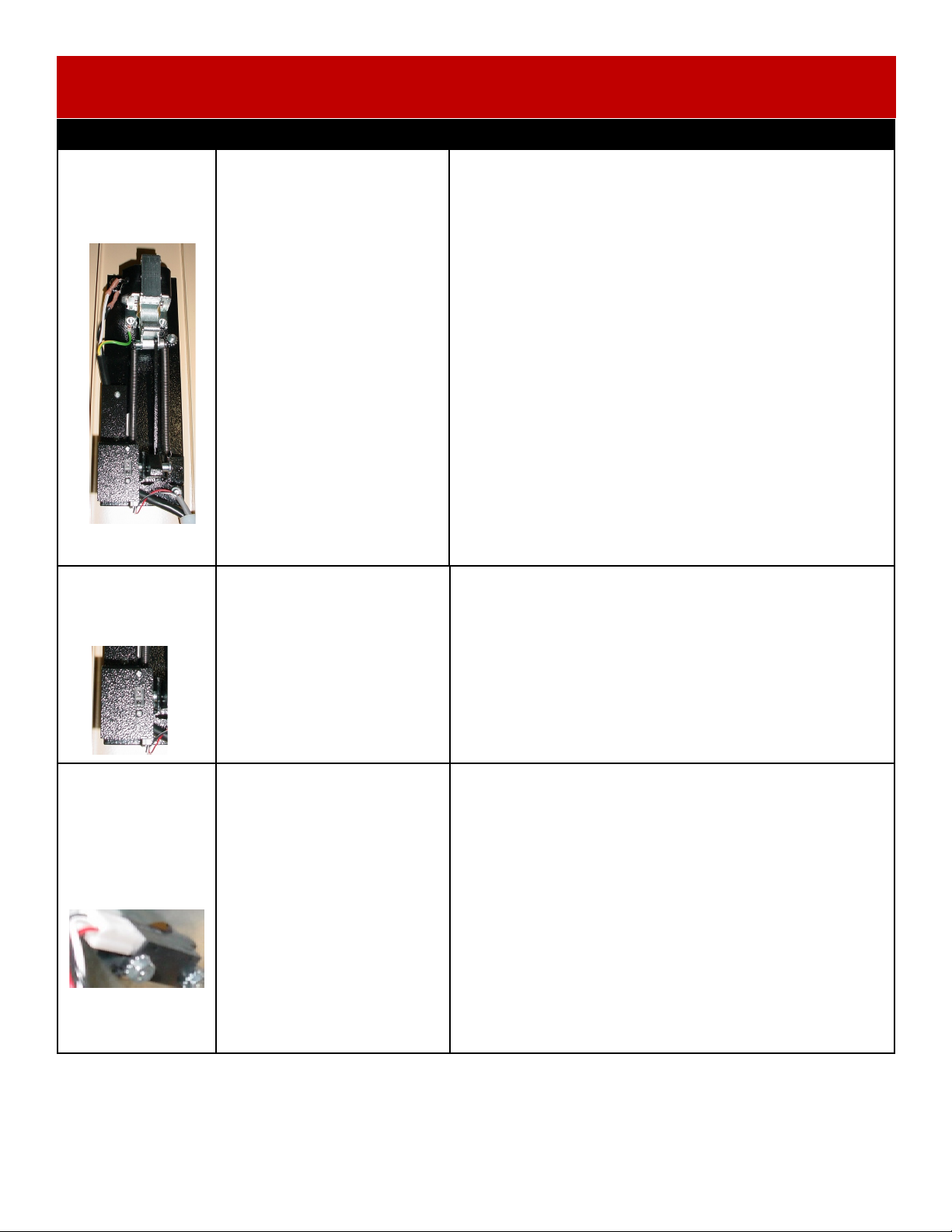

TROUBLESHOOTING GUIDE
Balls are not
released.
Ensure game is starting.
Make sure the previous
game is over.
Game will not start if there
are balls to be played.
Ball release solenoid
sticking.
Pinched, broken, or
disconnected wiring.
Main Board defective.
Display will flip through and stop at zero at game start.
The balls will the automatically release. Turn game off,
wait 30 seconds and turn game back on and try
starting a game again.
Remove right lane cover and check for free movement
of assembly. Check for 110 Volt AC pulse at solenoid.
Check cable connections from main board to solenoid.
(AACE7222, AACE7216, AAMB7200) Check the 2 Amp
fuse in the AACE7222 cable.
Check for green LED on main board near high voltage
section of board.
The green LED will be ON when balls are held in place
Green LED will go OFF when balls are supposed to be
released.
If LED does go off and cable wiring is ok, then
replace ball release assembly.
If LED stays ON when balls are supposed to be
released, replace main board. (AAMB2700)
Too many balls
are released.
Sensor at ball release
blocked, dirty, or faulty.
Springs on ball release are
worn and balls are sneaking
past the ball release arm.
Pinched, broken, or
disconnected wiring.
Clean sensor. Replace if needed (A5SE0001)
Replace ball release assembly. (AABR8105)
Check connections from sensor board to main board.
Check continuity on wires. (AACE7206)
Not enough balls
are released
Game is waiting for
player to throw balls
and there are none
left in track.
The game needs 9 scores
or 9 balls thrown before it
will go to game over.
Ball count sensor in far end
of ball track not seeing balls
Ball count sensor is
defective
Pinched, broken, or
disconnected wiring
Sensor at ball release is
defective
Count the balls thrown as you play.
Determine which score hole is not scoring.
This ball count sensor will count balls thrown that miss
all the scoring holes.
If this sensor misses a ball, the game will
continue waiting. Replace sensor. A5SE0001
Check connections from sensor boards to
main board. Check continuity on wires. (AACE7206
AACE7207)
This sensor may see 2 balls instead of one.
Replace sensor. (A5SE0001)
Problem Probable Cause Remedy

19
Score holes not scoring:
Each hole has an optical sensor that reads the ball passing through the hole.
This sensor is programmed to make noises as the ball passes through.
It will make ding noises corresponding to the value of the hole.
Example: The 10 point hole will ding once, and the 40 point hole will ding 4 times.
Play the game and verify that all holes make the ding noise from the speaker the correct number of times.
You might have to turn the volume up on the main board to hear the dings clearly.
If all score holes make the correct number of ding sounds, then continue to Flip Display Not Working
If a score hole is not making a sound -
Remove the playfield to inspect and clean sensors.
Remove 2 screws from bottom of playfield
Flip playfield over and inspect and clean sensors.
Inspect wiring from sensor to main board.
Follow wiring diagram for details - Cable #’s: AACE7217,
AACE7218, AACE7212, AACE7226
Replace sensor if needed Part # AACB2203A
There are two separate areas that could cause the game to not score correctly:
1.) Score holes not scoring
2.) Flip display not working correctly
The flip display will show the value of the hole scored.
It has a home sensor and encoder sensor to keep track of where it is.
To test:
Turn off power to game. Wait 30 seconds. Turn game ON.
The flip display will flip around and stop at zero.
If the display keeps flipping:
The Home Sensor is not seeing the home notch on the assembly.
Make sure wire is secure on the home sensor.
Follow cable back to main board and ensure the
wires are not damaged. Part #’s: AACE7204 , AACE7224
If the display stops flipping, but stops at 10 or 20:
The motor is turning too fast and not stopping when it sees the home notch.
Turn the power supply voltage down on the small dial on power supply.
Play game and watch the flip display as the ball scores - if it flips too far:
The encoder sensor is not seeing the notches around the outside of the display wheel.
Make sure wire is secure on the home sensor. Follow cable back to main board and ensure the
wires are not damaged. Part #’s: AACE7204 , AACE7224
Replace sensor if needed. Part # A5SE0001
Turn the power supply voltage down on the small dial on power supply.
A5SE0001
Home Sensor
A5SE0001
Encoder
Sensor
GAME SCORING ISSUES
FLIP DISPLAY NOT WORKING CORRECTLY

20
2.) Check AC power connection to power supply.
There should be 110 Volts AC between the white and black wires.
3.) Check for 12 volts DC on these black and red wires.
(LED should be brightly on)
1.) Verify AC power to front of game. The ON switch is located in front of game, under alley.
Turn game power OFF. Disconnect the CE7209 cable from
main board. Turn power ON.
Power supply LED bright
and 12 VDC present?
Power supply LED is off and
no 12 VDC?
Replace Power
Supply.
Turn power OFF. Unplug all outputs from Main Board. Reconnect
CE7209 cable on main board. Turn power ON.
Power supply LED bright
and 12 VDC present?
Power supply LED is off and
no 12 VDC?
Turn power OFF.
Reconnect the outputs
at the Main Board one
at a time. Wait 1
minutes between tests
to turn power ON.
Power supply LED bright
and 12 VDC present?
Short in Main Board -
Replace Main Board
This cable is OK.
Plug in next cable.
Power supply LED is
off and no 12 VDC?
This cable or component on this
cable such as a motor is causing
an overload. See Cable Pin-Outs
in manual to see which component
might be at fault.
If no 12 Volts on red and black output, but AC to power supply is OK
This means that either:
1.) Power supply is faulty.
2.) There is a 12 volt short in cabinet causing power supply to remain off to protect itself.
POWER SUPPLY DIAGNOSTICS
