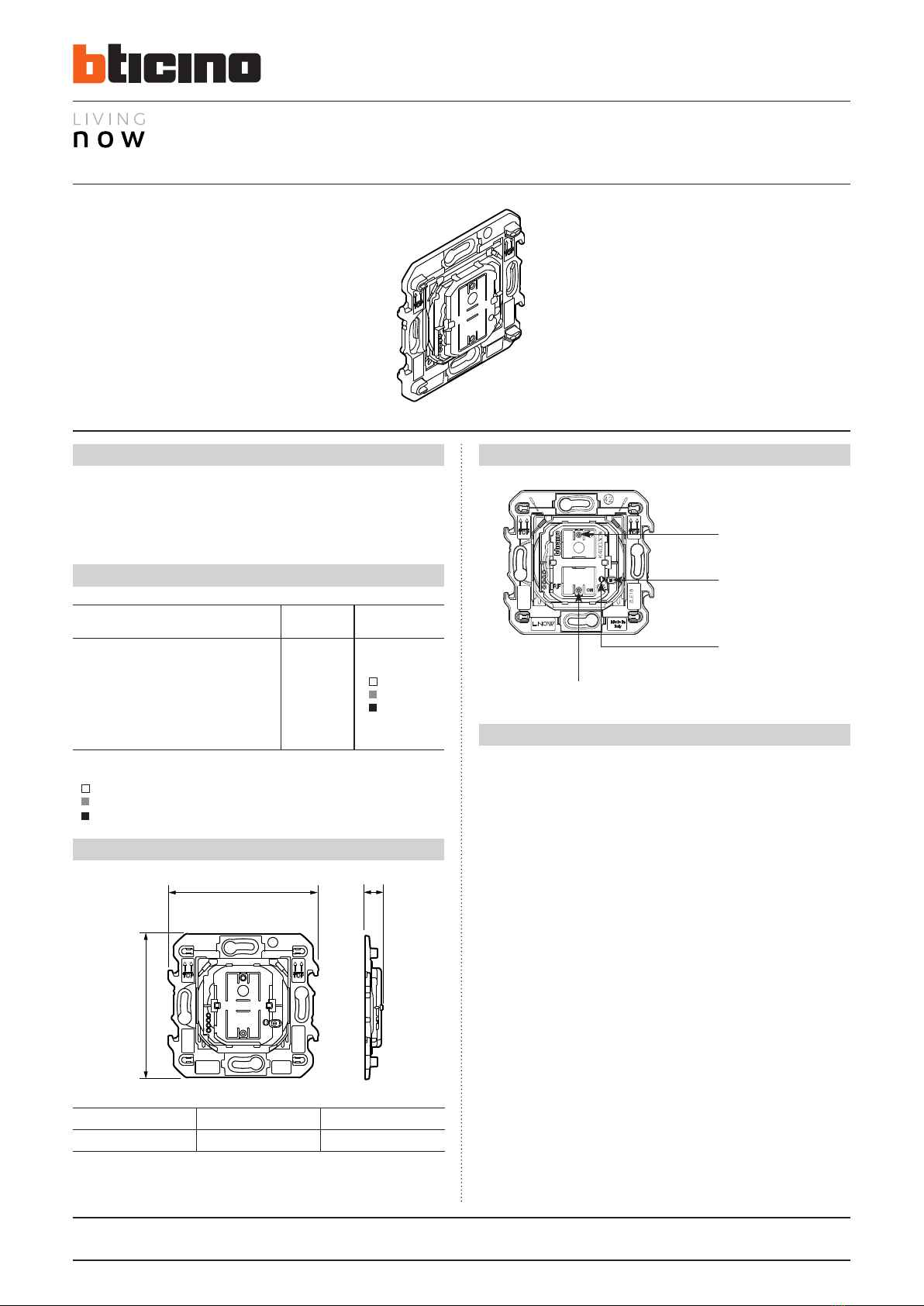

Bticino LIVING NOW K4003CW User manual

Cat. No(s): K4003CW
Technical data sheet: F02737EN/00 Updated: Created: 24/07/2018
1/2
Viale Borri, 231 - 21100 VARESE - Italy
www.bticino.com
Wireless light switch
4. OPERATION
 5.1 Mechanical characteristics
Protection against impacts: IK 02
Protection against solid bodies/liquids: IP 20 without plate or rocker plate
 5.2 Material characteristics
Mechanism casing with grid: Fibreglass-reinforced (10 %) PC
Mechanism functional cover : PC/ABS
Supporting base: berglass-reinforced PA (60%)
Halogen-free
UV resistant
Self-extinguishing: 650°C/30 s
5.3 Electrical characteristics
Powered by a CR2032 - 3 V lithium battery (supplied)
Battery life: 8 years for 10 activations a day
ZigBee radio technology frequency: 2.4 GHz to 2.4835 GHz
Power level: REC 70-03: < 20 dBm
Wireless mesh network, self-adaptive and secure (AES 128), conforming
to standard IEEE 802.15.4 (LR-WPAN)
 5.4 Climate characteristics
Usage temperature: +5°C to +45°C
Storage temperature: 0°C to +45°C
1. USE
It allows the ON/OFF control of one or more connected devices for the
lighting control. Surface installation with repositionable stickers (supplied)
or onto a flish mounting box. Integrated LED for low battery ndication.
Powered by battery 3V type CR2032 (supplied) with an autonomy of 8
years - 2 modules.
Colours code:
White
Sand
Black
Designation Cat. Nos. Related
Cover code
Wireless lighting and socket control, for
ON/OFF, dimmer, centralisation function.
Supplied complete with battery.
Equipped with an LED indicator (congu-
ration) and a RESET button (hidden) used to
return to factory settings.
Repositionable self-adhesive xings sup-
plied.
K40003CW
KW42M2
KM42M2
KG42M2
A
BC
A B C
73 76 9
3. DIMENSIONS
2. RANGE LED indicator:
usefull during installation
Control Pushbutton
Control Pushbutton
RESET button
5. TECHNICAL CHARACTERISTICS

2/2
Cat. No(s): K4003CW
Technical data sheet: F02737EN/00 Updated: Created: 24/07/2018
Wireless light switch
6. CARE
Clean the surface with a cloth.
Do not use acetone, tar-removing cleaning agents or trichloroethylene.
Resistant to the following products: Hexane (EN 60669-1), methylated
spirit, soapy water, diluted ammonia, bleach diluted to 10%, window-
cleaning products, pre-impregnated wipes.
The plates must not be painted.
Take care to recycle the battery appropriately
8. STANDARDS AND APPROVALS
The undersigned, BTICINO, declares that the radio-electric equipment
type (K4003CW) complies with directive 2014/53/EU.
The full text of the EU declaration of conformity is available on the
following website: www.bticino.it/red
Caution: Always test before using special cleaning products.
