Package Contents:
• TeraStation Live
• Ethernet Cable
• Power Cable
• TeraNavigator Installation CD
• Quick Setup Guide
• Warranty Card
Quick Setup Guide
TeraStation Live
English

3
Step 1: Connect your Cables

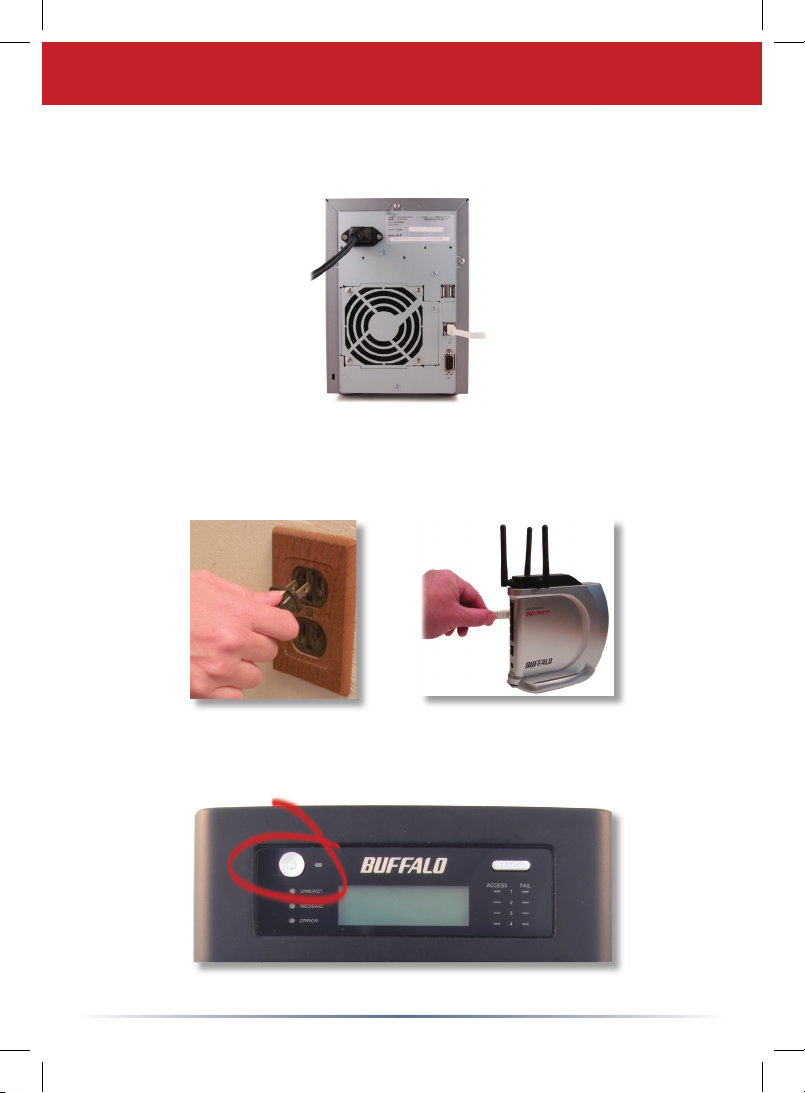

Plug TeraStation’s power cord and Ethernet cable into the back of the
TeraStation.
Connect the power plug to a power outlet or surge protector. Plug the other
end of the Ethernet cable into a hub, switch, or router on the network.
Press the power button on the front panel to turn yourTeraStation on.

4

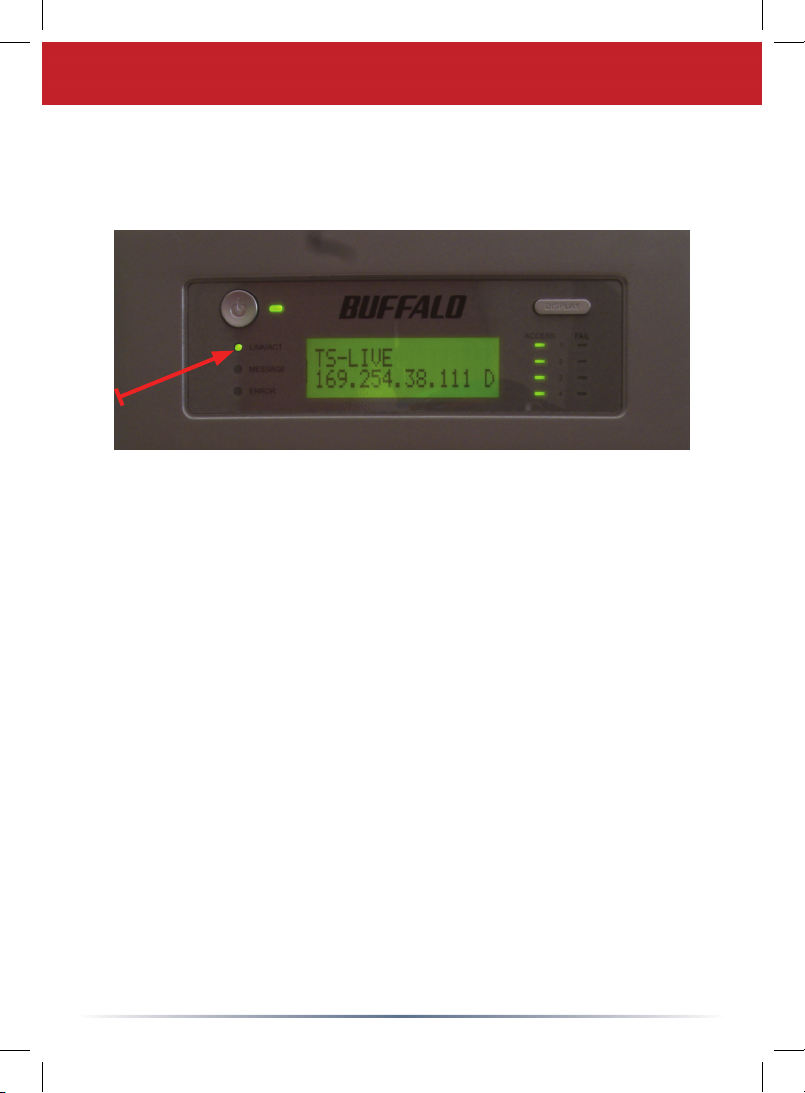

Check the LINK/ACT LED on the front of the TeraStation. If it’s lit, then your
TeraStation is connected to your network. Please turn to page 5 to continue
setup.
If the LINK/ACT LED on the front of TeraStation is not lit, your TeraStation is
not properly connected to your network. Make sure that:
If problems persist, contact our technical support.
• both TeraStation and the hub, switch, or PC are powered on.
• the Ethernet cable is securely fastened to both devices.
• the Ethernet cable is not damaged. To verify, try using another Ethernet cable.
Step 2: Check your Connection

5
Insert the TeraNavigator CD
into your computer’s CD-ROM
drive. If Setup doesn’t launch
automatically, you can launch
it manually by clicking Start,
then Run.... When the Run
dialog opens, type d:\setup.exe
(where “d” is the drive letter of
your CD-ROM). Press OK to
continue. If you are installing the software on a Mac, open the
CD and click on theTeraNavigator icon to begin installation.
If you’re installing on a Mac, skip to
the next page.
If you’re installing on a PC, click on
Connect this PC toTeraStation
(the green, lower button).

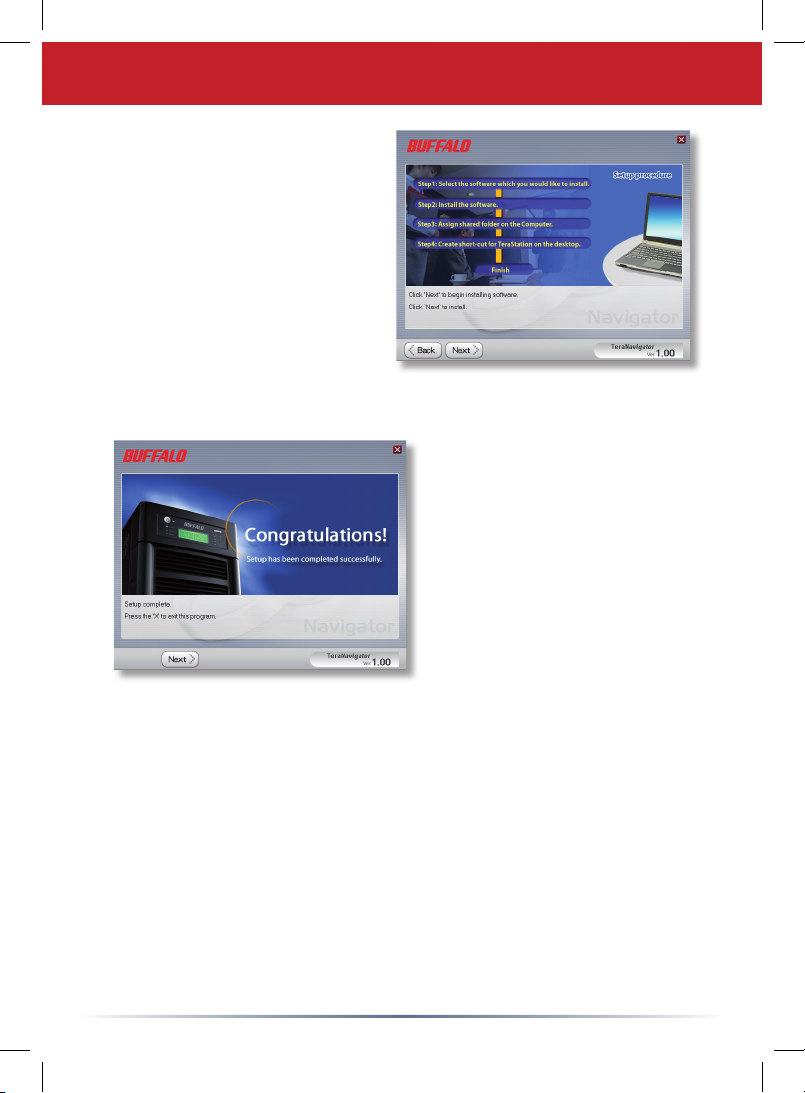

Click Next to step through the
installation.
Step 3: Installing Software
Click on Begin Installation.

6
Continue pressing Next to step
through the installation.
When installation is complete, you
may close the installation window.
Congratulations!Your TeraStation is ready to use.
Please see the TeraStation User Manual on yourTeraStation CD for more
help and configuration options.
Step 3: Installing Software (cont’d)

7
The TS-Live shortcut will open the folders on your
TeraStation.
Share is the main folder that you can put files and folders
in. Info contains a copy of your user manual.
Using yourTeraStation with a Windows PC
The Buffalo NAS Navigator icon opens the
TeraStation’s client utility.This lets you easily view
system information for your TeraStation(s). If you
click Setup and choose Confi guration Settings,
it will take you to the settings configuration
GUI, where you may change yourTeraStation’s
settings. Until you change it, the default username
is “admin” and the password is “password”.
Consult your user manual for more information
on the Buffalo NAS Navigator and the Settings
Configuration GUI.
Another way to access folders and data on your
TeraStation is through the mapped driveletter
‘T’.When the installation program ran, it added
yourTeraStation’s main “share” folder to your
“My Computer” folder as drive ‘T’. Use this
virtual hard drive like any other hard drive on
your computer.You may add additional shares and
mapped drive letters to your TeraStation and PC; consult your user manual for more
information.
If you’re using a Windows PC, two new icons will be on
your desktop: Shortcut for your TS-Live and Buffalo
NAS Navigator.

8
After installing the TeraNavigator software, your
Mac will have two new icons on the desktop.
The Share folder is the main folder that you can
put files and folders in. NAS Navigator is the
TeraStation’s client utility.
Using yourTeraStation with a Mac
Clicking NAS Navigator
opens the TeraStation’s client
utility.This lets you easily view
system information for your
TeraStation(s). If you click
Setup and choose Browser
Management, it will take you
to the settings configuration
GUI, where you may change
yourTeraStation’s settings. Until
you change it, the GUI’s username is “admin” and the password is “password”.
Consult your user manual for more information on the Buffalo NAS Navigator
and the Settings Configuration GUI.
Clicking Share opens the main
folder on the TeraStation. You
may add additional shares
to yourTeraStation; consult
your user manual for more
information.
Firmware Language -The default language for the web interface is English.
This can be changed on both PC & Mac by selecting the Basic screen, and then
choosing your desired language from the Display Language drop down.You will
also need to select the corresponding Windows Client Language. Click on Apply
to implement your changes.You must log out and log in again to view your
changes.

9
Technical Support
Buffalo Technology offers free technical support. See the back page of this quick
start guide for contact information. Please also visit the web site at:
http://www.buffalo-technology.com.
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
Technical Specifi cations
LAN Standards: IEEE 802.3u 100BASE‑TX; IEEE 802.3 10BASE‑T
Transmission: 1000/100Mbps/10 Mbps, 1000BASE‑T: 8B1Q4,
PAM5, X 4B/5B, MLT‑3; 10BASE‑T Manchester Code
Access Media: CSMA/CD
Media Interface: RJ‑45
USB Standard: USB 2.0
Hi‑Speed (HS)
Full‑Speed (FS)
Low‑Speed (LS)
USB Connector: USB A Connector (2)
Data Transmission Speed: Max: 480 Mbps (HS Mode)
Max: 12 Mbps (FS Mode)
Electric Current: 220‑240V A/C
Power Consumption: ~17W (Varies based on size)
Dimensions: 170 x 235 x 310 mm
Weight: ~7Kg. (Weight varies based on size)
Operating Temperature: 5-35˚ C; 20-80% non-condensing
Data Transmission Speed:
Max: 480 Mbps (HS Mode)
Max: 12 Mbps (FS Mode)
Power Consumption:
~17W (Varies based on size)
Access Media:
CSMA/CD
LAN Standards:
IEEE 802.3u 100BASE‑TX; IEEE 802.3 10BASE‑T
