Welcome to the next generation of remote support with BühlerVision. The BühlerVision
solution will make the support process easier, faster and cheaper by utilizing the latest
remote support software and the latest generation of smart glasses. With the head
mounted camera and display the BühlerVision service desk member can give you
real-time support and see what you see. Your hands will be free to immediately start
to perform tasks and to solve issues without the need to hold a display or instructions.

3
Page No.
Chapter 1: Initial setup hardware 4
1.1 Familiarize yourself with the HMT-1 4
Using the HMT with a Hard Hat 5
1.2 Check your eye dominance 7
1.3 Put the HMT-1 on 7
1.4 Charging the HMT-1 8
1.5 Battery 9
1.6 Turn the HMT-1 on 10
Chapter 2: Initial setup software 10
2.1 Getting started with setup: 10
2.2 Troubleshooting Wi-Fi Conguration & Login 11
Chapter 3: How to start a remote support call 12
3.1 Create a case at https://myBühler.com 12
3.2 Get ready for the call 13
3.3 Conducting a remote support call 14
3.4 Functionalities within a support call 15
3.6 Settings Menu 16
Table of Contents

4
Chapter 1:
Initial setup hardware.
1.1 Familiarize yourself with the HMT-1.

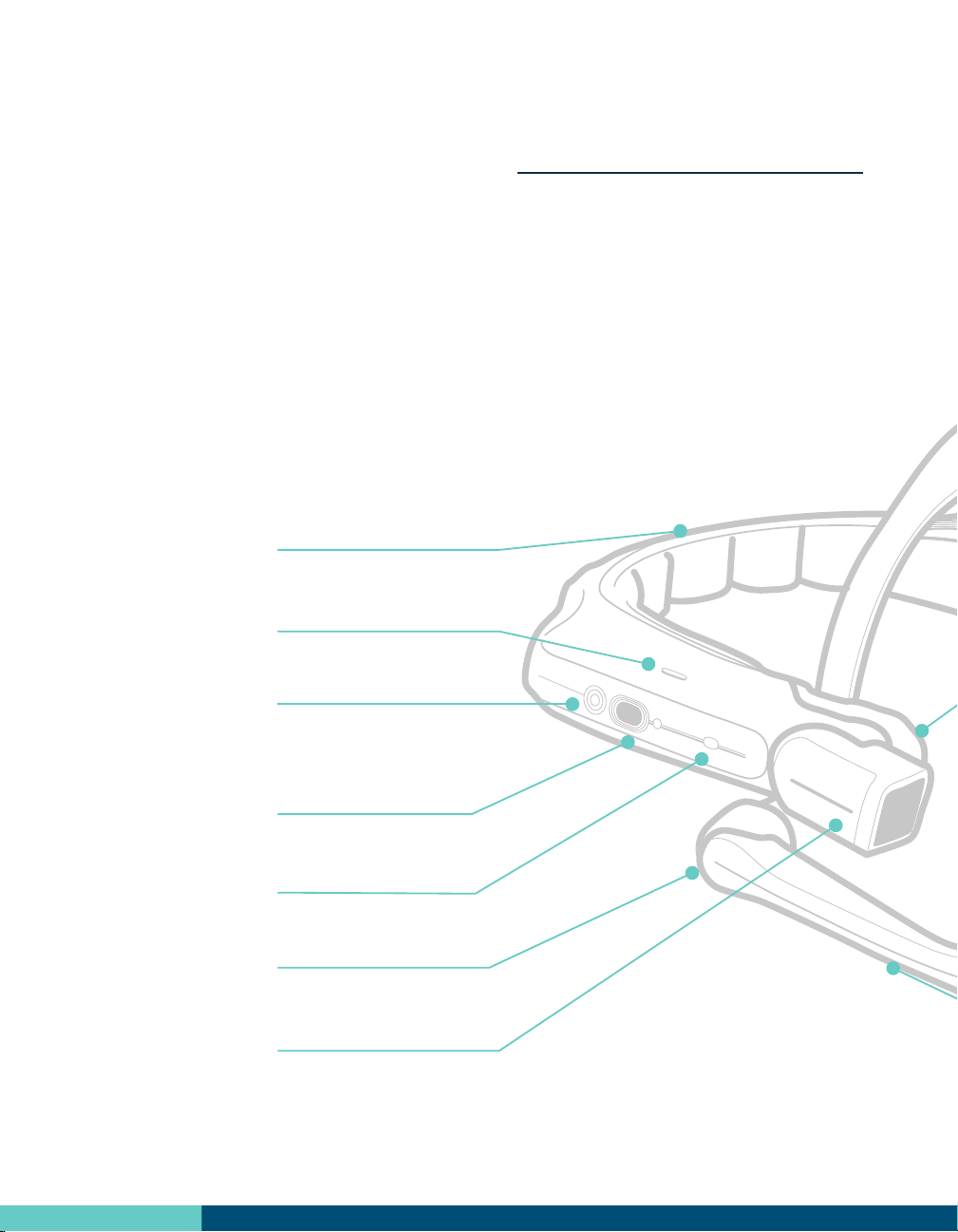

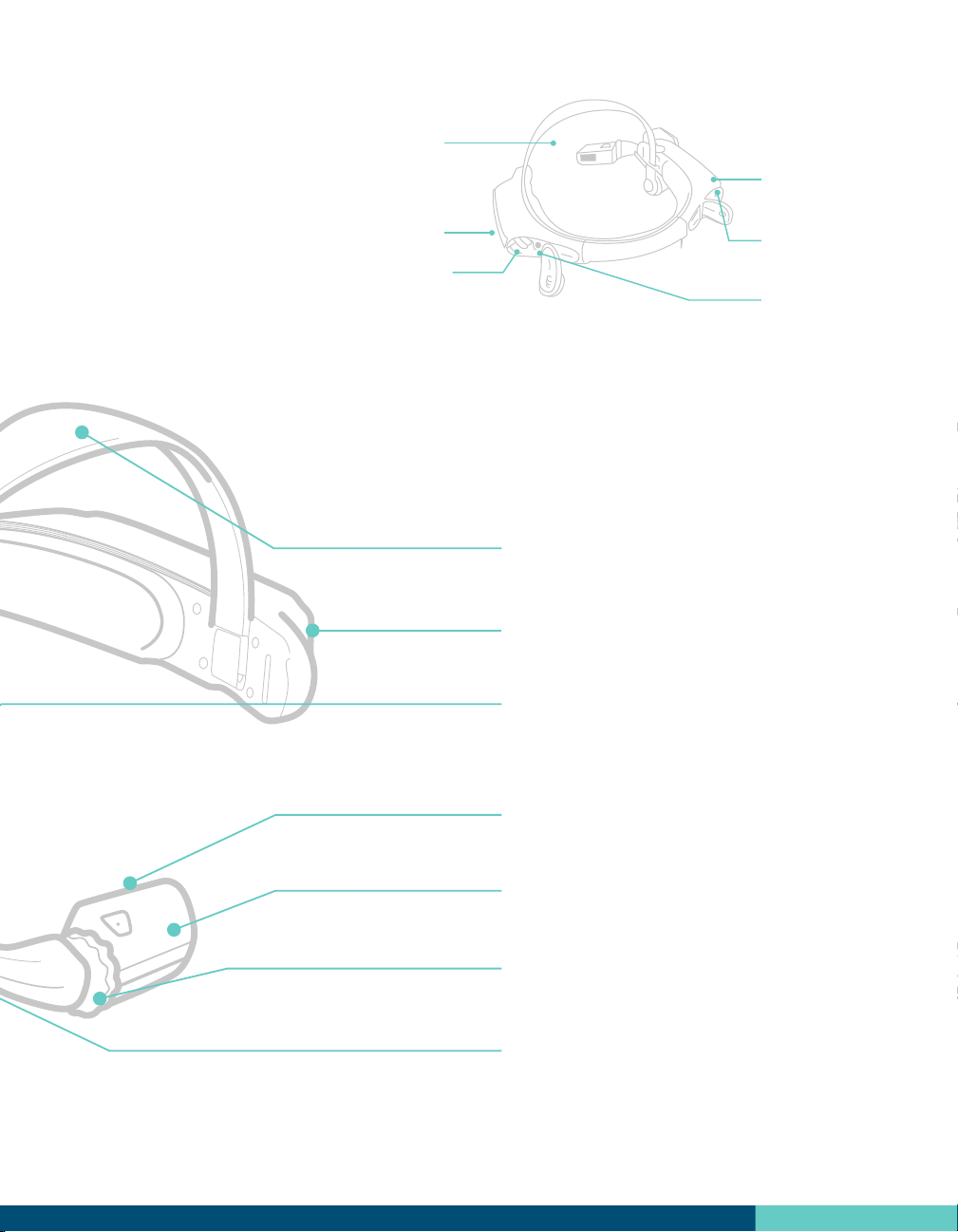

Speaker
Rear Head Pad
(removable)
Power Button
Action Button
MicroSD Door
Elbow Joint
Camera Pod

5
Overhead Strap
(removable)
Mic B1
Boom Arm
Wrist Joint Locking Ring
Mic A1 (A2 on opposite side)
Display Pod
Shoulder Joint
My Programs
12.24 AM
Mar 11, 2017
Show Help
100%
My Camera My file
Display
Window
Mic B2
Removable
Battery Micro USB
Audio
Jack
USB-C

6
Using the HMT with a Hard Hat.

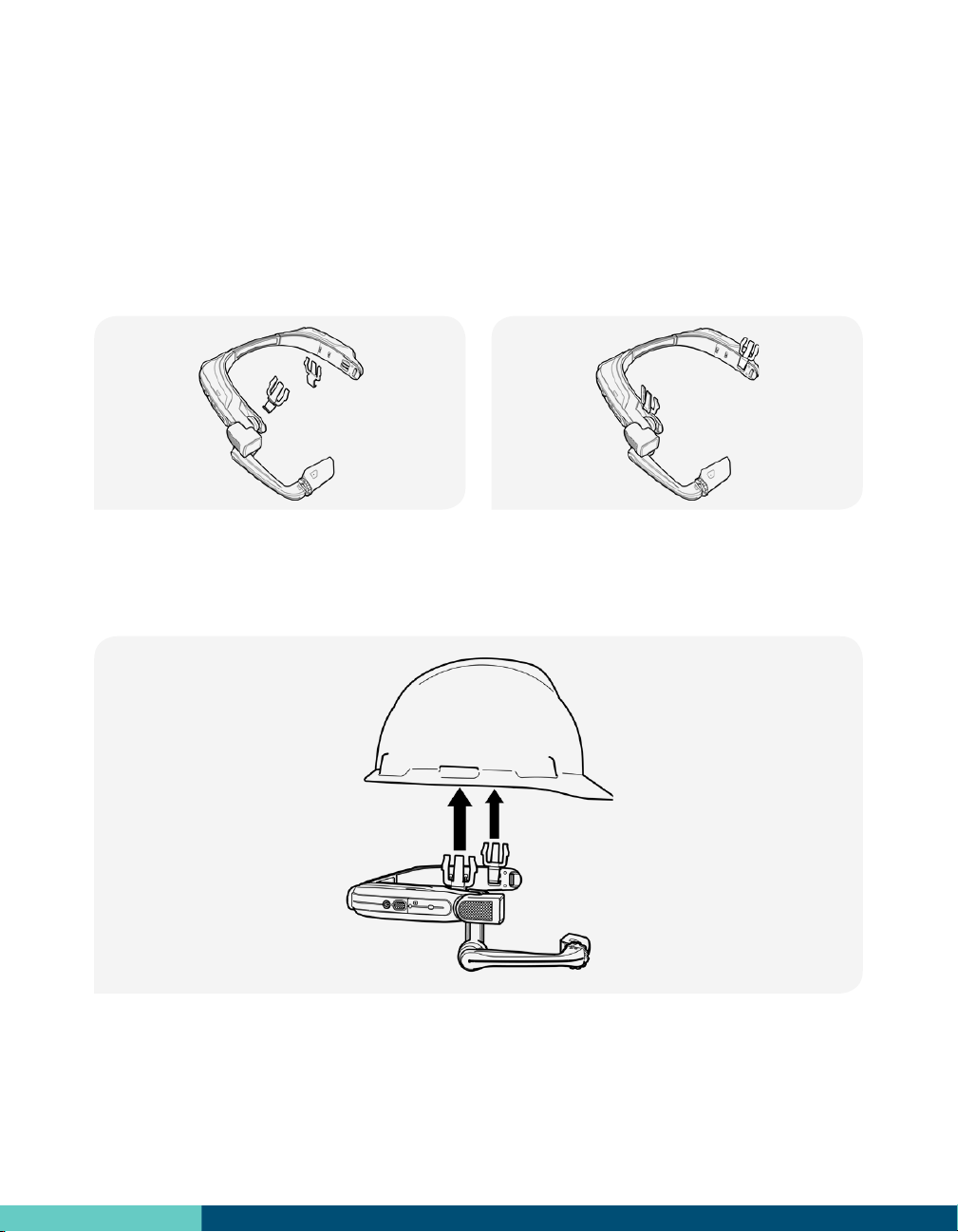

To attach your HMT to a hard hat, you’ll need Hard Hat Clips which you can purchase at
shop.realwear.com.
When you have the clips ready, complete the following steps:
1. Hook the Hard Hat Clips into the HMT band and snap them into place.
2. Slide the clips into the hard hat accessory slots; the HMT band should sit outside
of the hard hat’s harness.
3. Put on the hard hat and if applicable, tighten until secure and comfortable.
4. To remove the HMT from the hard hat, pinch the clip ngers and push the clip out
of the hard hat slots.

7

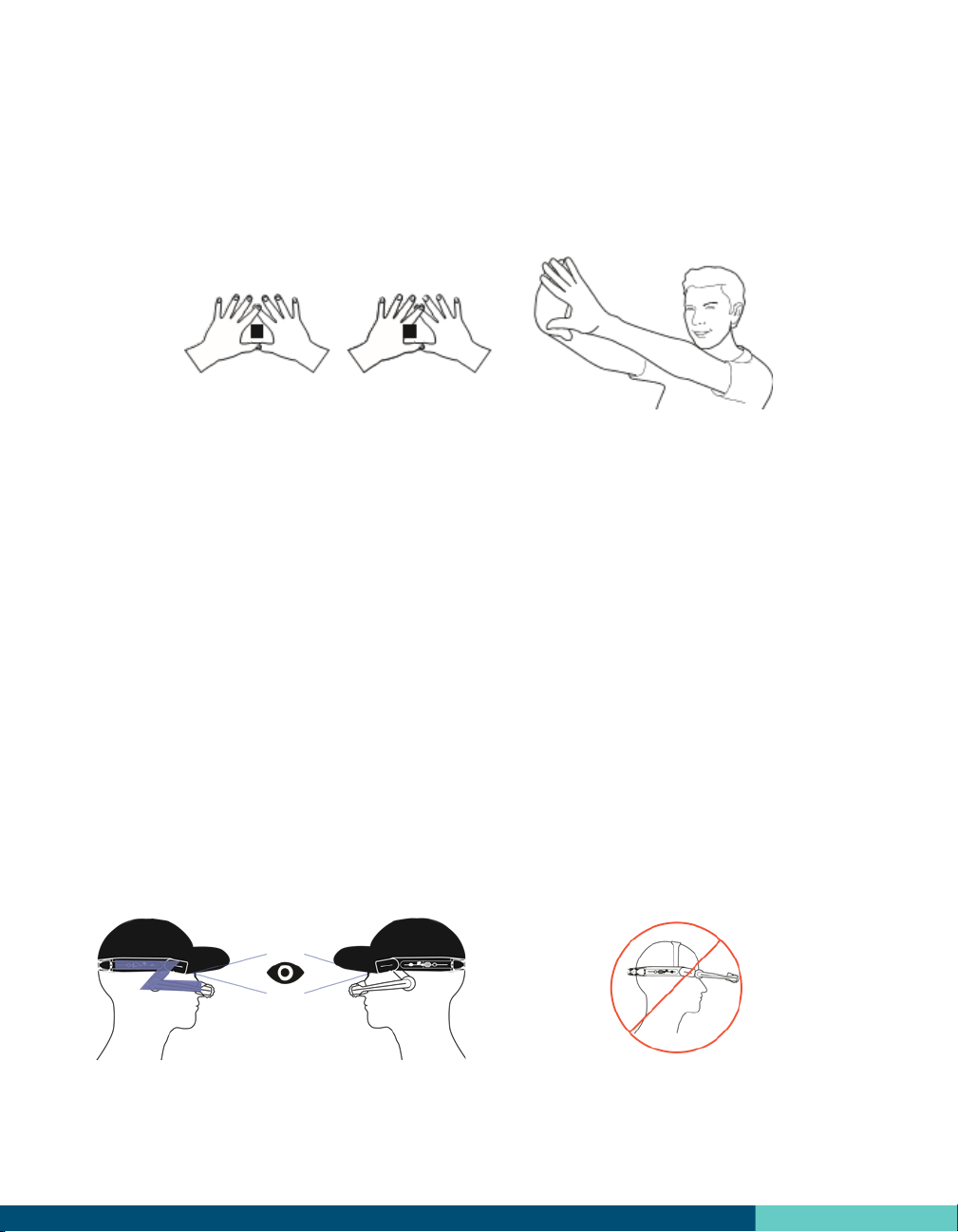

Eye dominance is the tendency to prefer visual input from one eye to the other. Most people
are right-eye dominant; however, in a small portion of the population neither eye is dominant.
It is best to use your dominant eye when viewing the display. To determine which eye is
dominant:
1. Form a triangle with your hands placed together at arm’s length.
2. With both eyes open, focus on any distant object centered in the triangle.
3. Maintaining focus on the object centered in the triangle, close your right eye. If the object
is still in the triangle, you are left eye dominant.
4. Maintaining focus on the object centered in the triangle, close your left eye. If the object is
still in the triangle, you are right eye dominant.
5. If the object is in the triangle with either eye then you are dominant eye neutral.
6. Repeat test to conrm.
Do not extend the display too far from your eye. Keep the display as close to the eye as
possible for the best viewing experience. Position the shoulder and elbow joints into a “Z”
shape, below the line of sight, left or right eye.
The HMT-1 comes with hard hat clips. Attach the clips as shown and put the device on.
Position the shoulder and elbow joints into a “Z” shape,
below the line of sight, left or right eye.
Do not extend the display too far from your
eye. Keep the display as close to the eye as
possible for the best viewing experience.
1.2 Check your eye dominance.
1.3 Put the HMT-1 on.

8
Regional wall charger
(Packaged separately)
USB-C charge cable
USB-C
1.4 Charging the HMT-1.
1.5 Battery.
NOTE: Your HMT-1 is shipped partially charged from the factory. If you nd that the battery level is too low, please
follow the charging instructions.
Please note that the battery can only be charged when it is in the device. Once the spare battery is empty you
will need follow the instructions in Step 1.4. To order a new/spare battery please go to https://shop.realwear.com/
collections/accessories.

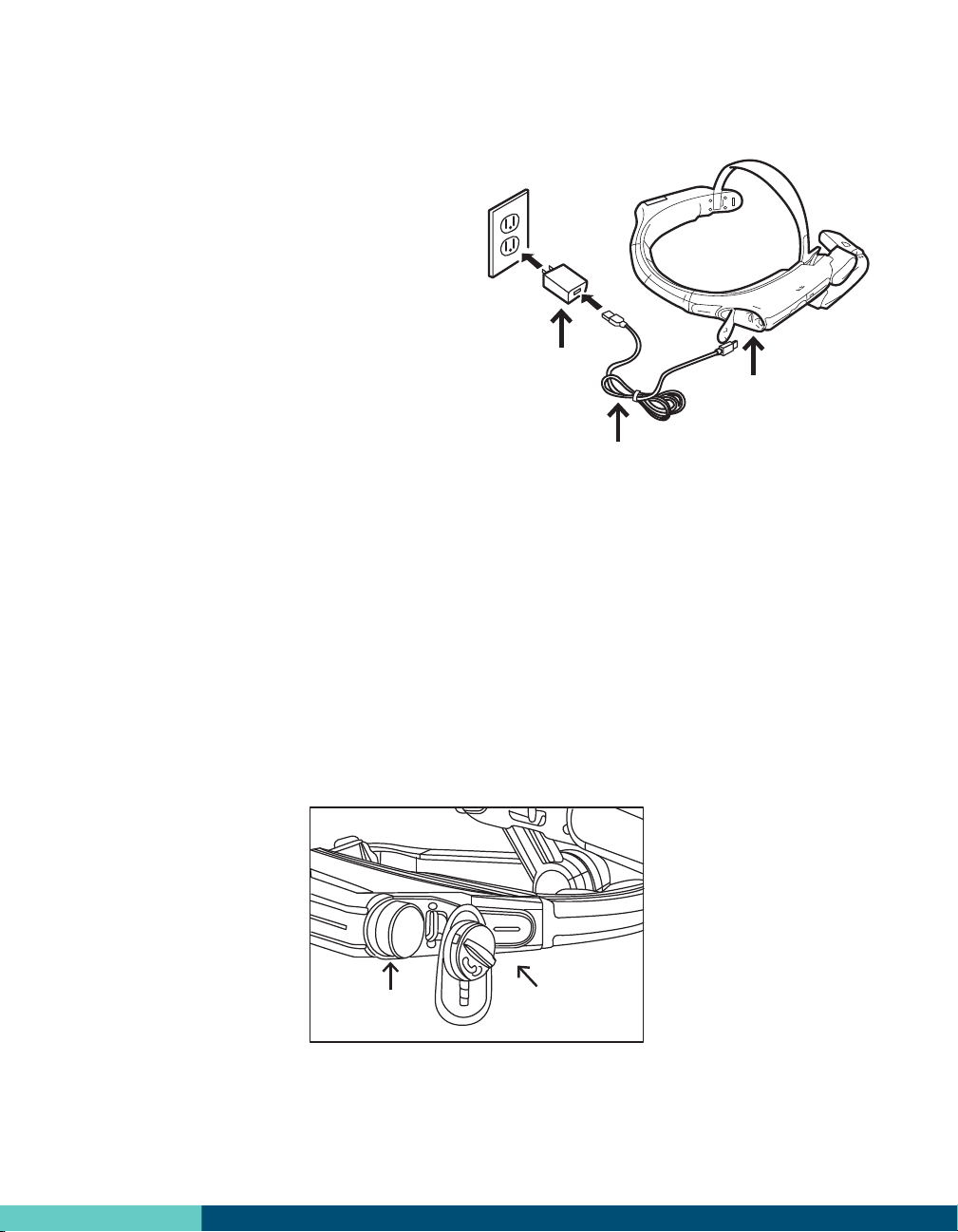

1. Connect the USB-C charge
cable to the USB-C port located
under the rear cover on the same
side as the boom arm.
2. Connect the charge cable to the
regional wall charger and then
plug the charger into the wall
socket.
3. The power button will blink RED
while charging. The power button
will be GREEN when the battery
is fully charged.
You can swap a spare battery with the battery in the device in case it is empty. Make sure you
charge the battery before you start using the HMT-1. Please note that the battery can only be
charged in the device.
My Programs
12.24 AM
Mar 11, 2017
Show Help
100%
My Camera My file
Battery Cap
Removable
Battery

9

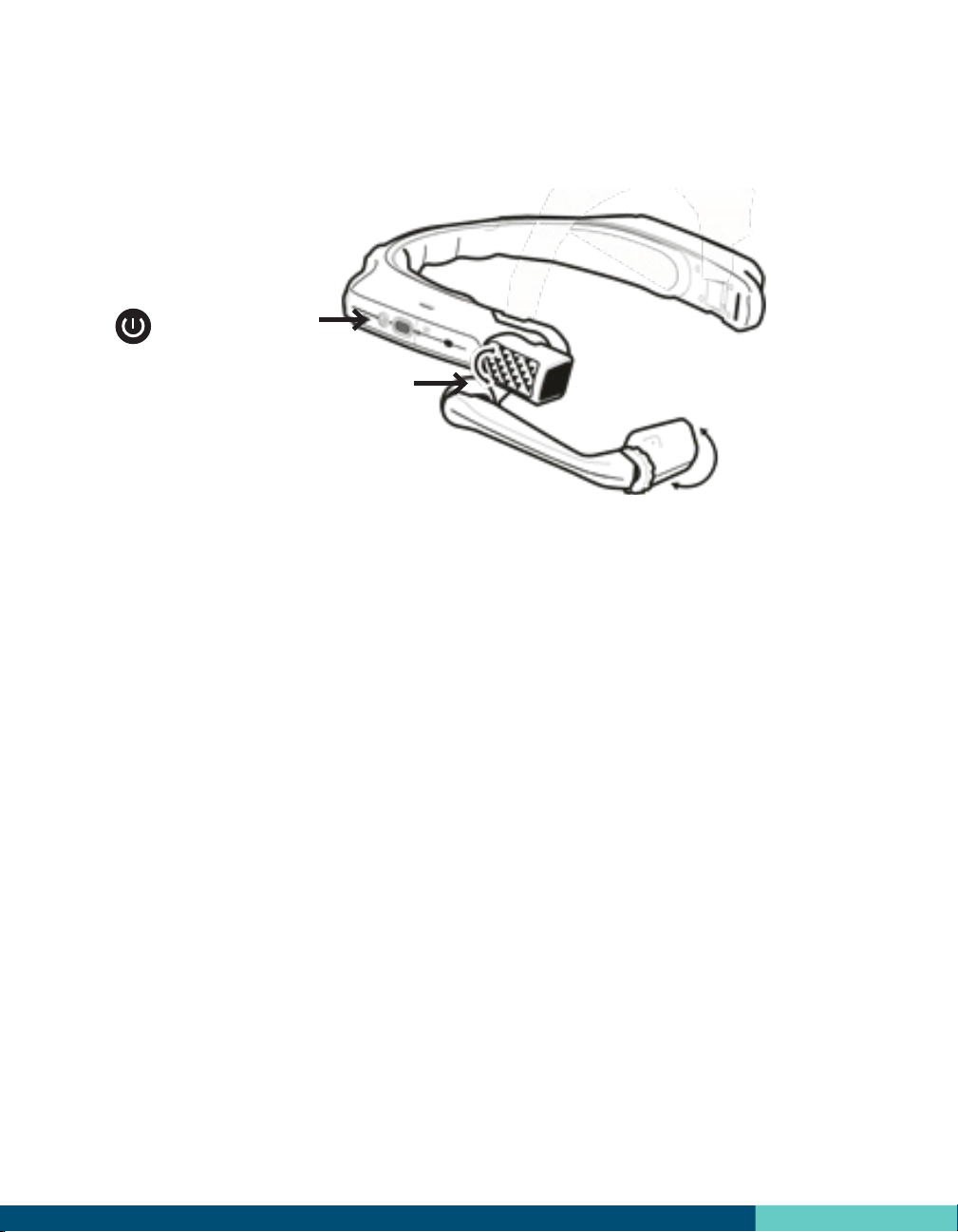

1.6 Turn the HMT-1 on.
When using the HMT-1 device you can always say “Show Commands”
to get a list with all available voice commands for the step you are in.
Press and hold the
Power Button for
3 seconds to turn
on the device. Rotate
camera up/
down to get
best view.

10
Chapter 2:
Initial setup software.
2.1 Familiarize yourself with the HMT-1.
2.2 Troubleshooting Wi-Fi Conguration & Login.
To connect the HMT-1 to your Wi-Fi network and get it setup please follow the instructions
below
Step 1: Have your HMT-1 charged and already tted according to the instructions in Chapter 1
Step 2: Have your Wi-Fi network name and password handy1
Step 3: Have the latest version of the Chrome browser installed (https://www.google.com/
chrome/) on your PC
Step 4: Go to: https://buhler.apps.newforgetech.com/ and use the login credentials that have
been provided to you in the delivery box.
Part A: Wi-Fi Conguration

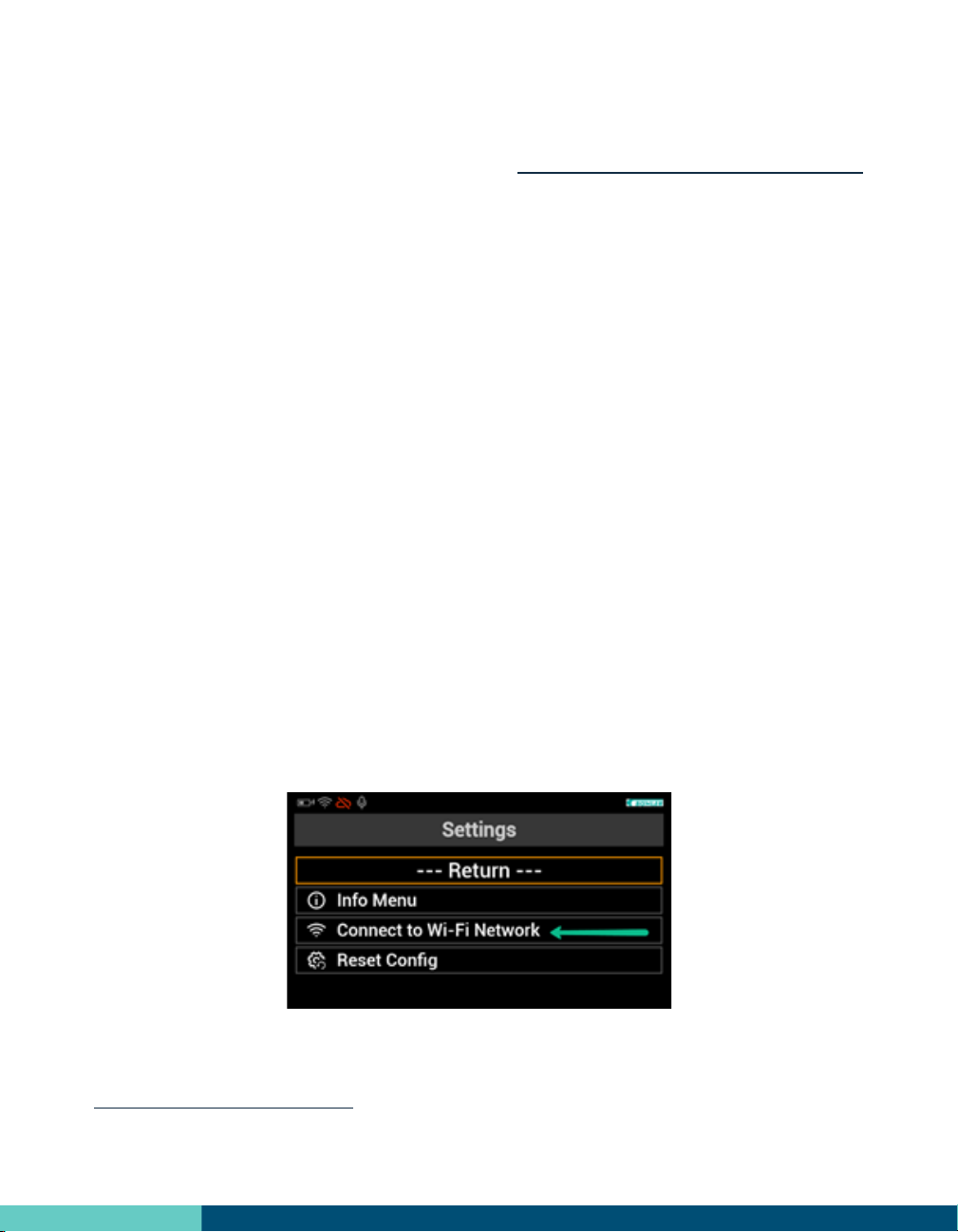

Step 1: On the HMT-1, go to “Settings”
Step 2: Say “Connect to Wi-Fi Network”
Step 3: Go to Chrome browser on your PC and type in: https://buhler.apps.newforgetech.com
1Please note that only WPA and WPA2 encrypted networks are supported

11

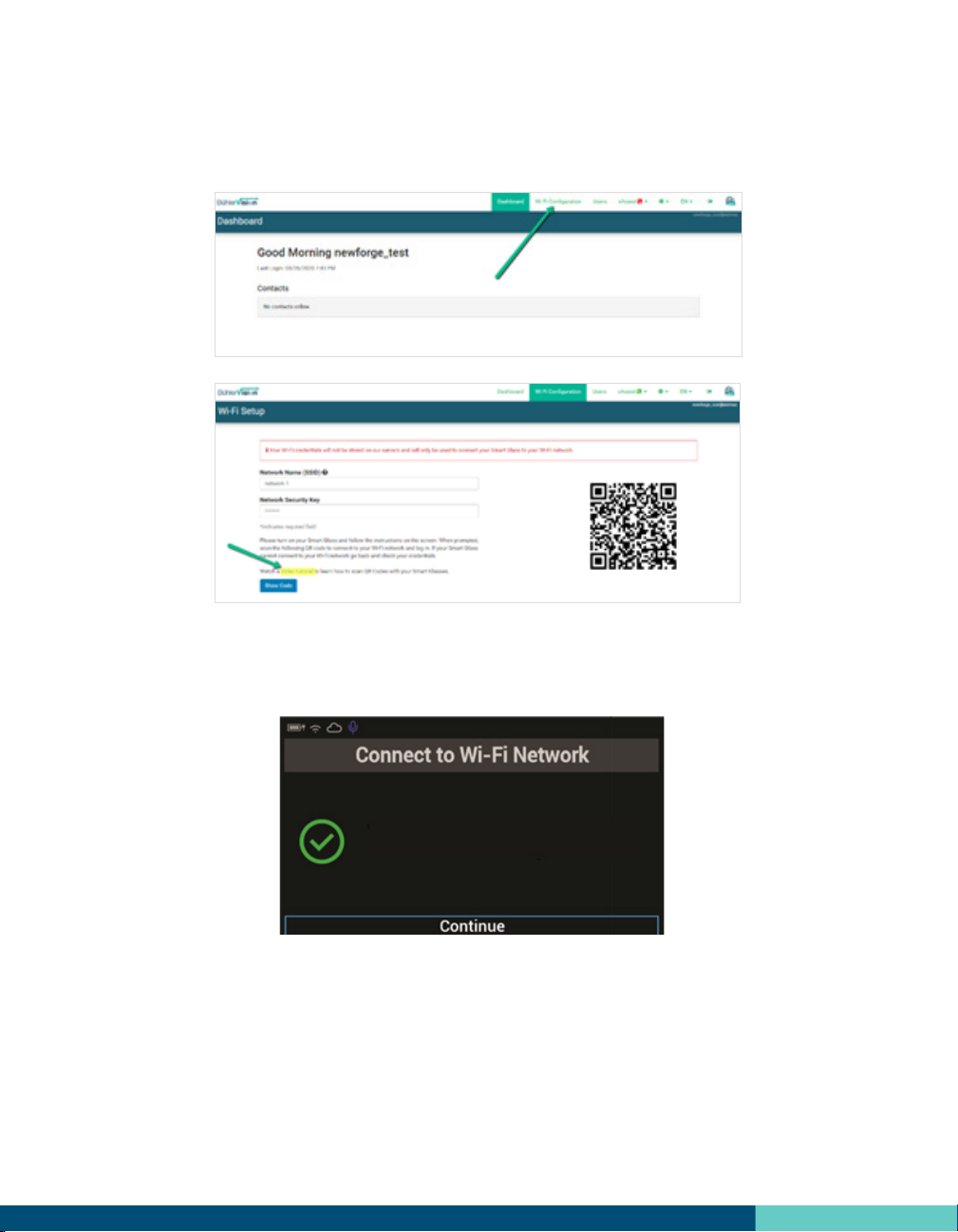

Step 4: Go to “Wi-Fi Conguration” tab and enter the name of your Wi-Fi network and the
password. When you click on “Show Code”, the QR code will be generated. A video tutorial is
available via a link.

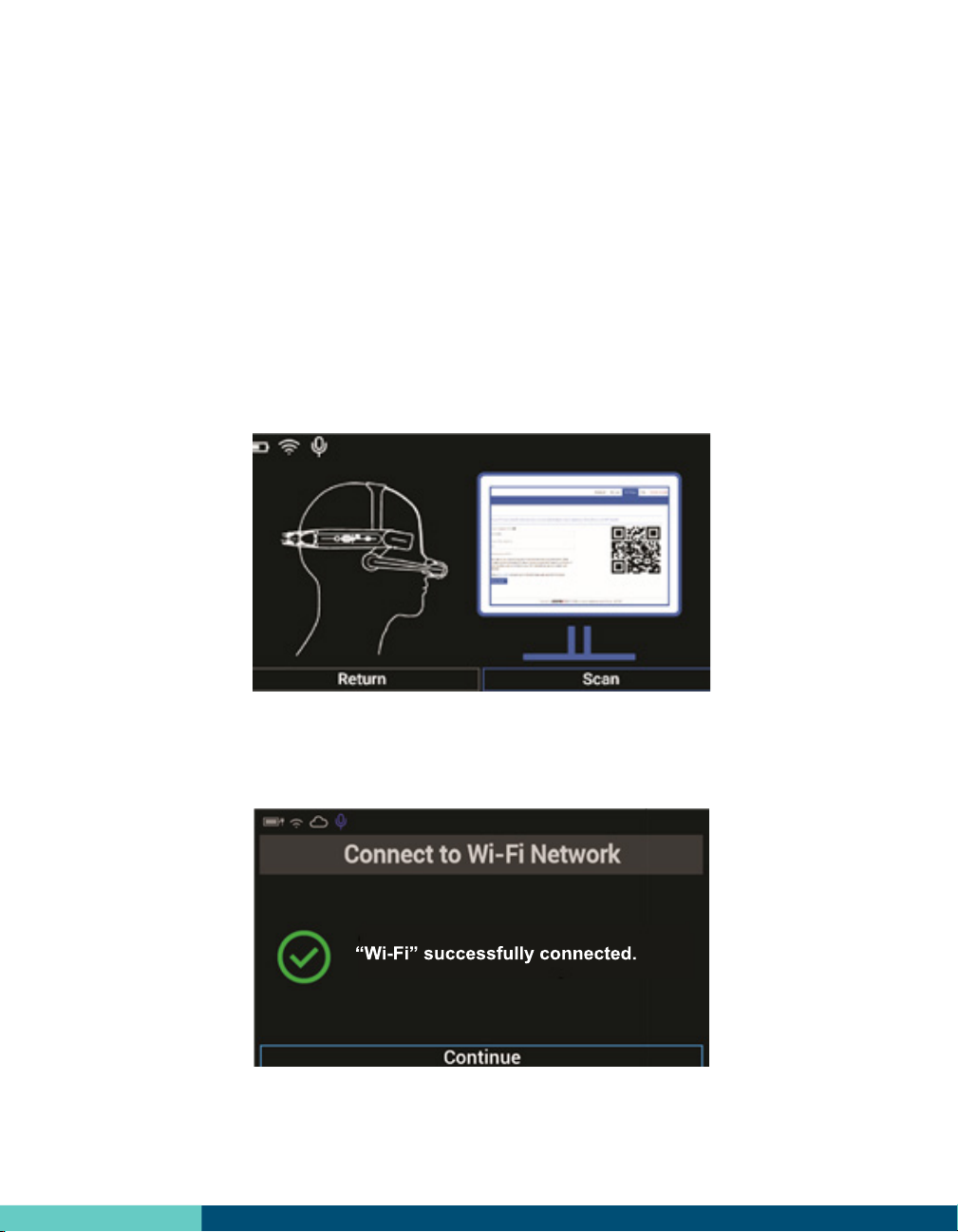

Step 5: On the HMT-1 say “Continue” and scan the QR code. If the connection was
successful you will see the screen below. Say “Continue” to get to the home screen.
Part B: User Login
Step 1: Go to: https://buhler.apps.newforgetech.com/
Step 2: Enter your username and password.
Step 3: Once you are logged in, go to “User Prole” and then “My Login” and scan the code
with the HMT-1. This will trigger the app to restart and nalize the setup
“Wi-Fi” successfully connected.

12
Chapter 3:
How to start a remote support call.
3.1 Create a case at https://myBühler.com
As the rst step, always open a case in the myBühler system.
Please refer to your service guidelines to submit a ticket for an issue and start a
support call.
3.2 Get ready for the call.
Always make sure the device is charged (please refer to Chapter 1 for details)
Switch the device on: Press the Power Button for 3 seconds (for instructions refer
to Chapter 1 on this booklet)

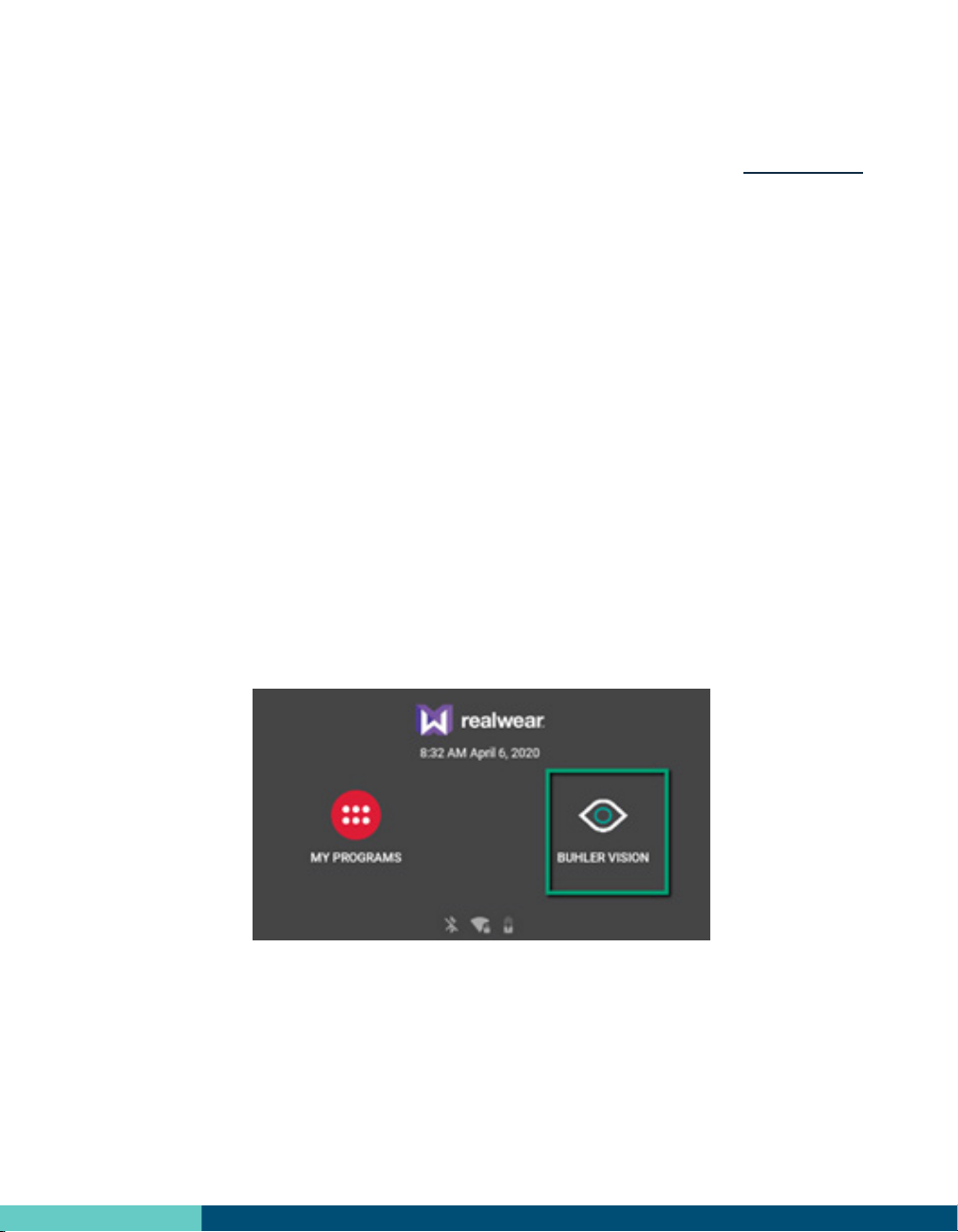

The following screen will appear. Wait 10 seconds, the app will start, once open,
say “BühlerVision” on the following screen.

13
3.3 Conducting a remote support call.
Make a call: When you are ready to, you can say “call support”
The support person(s) will be listed who are available and online.

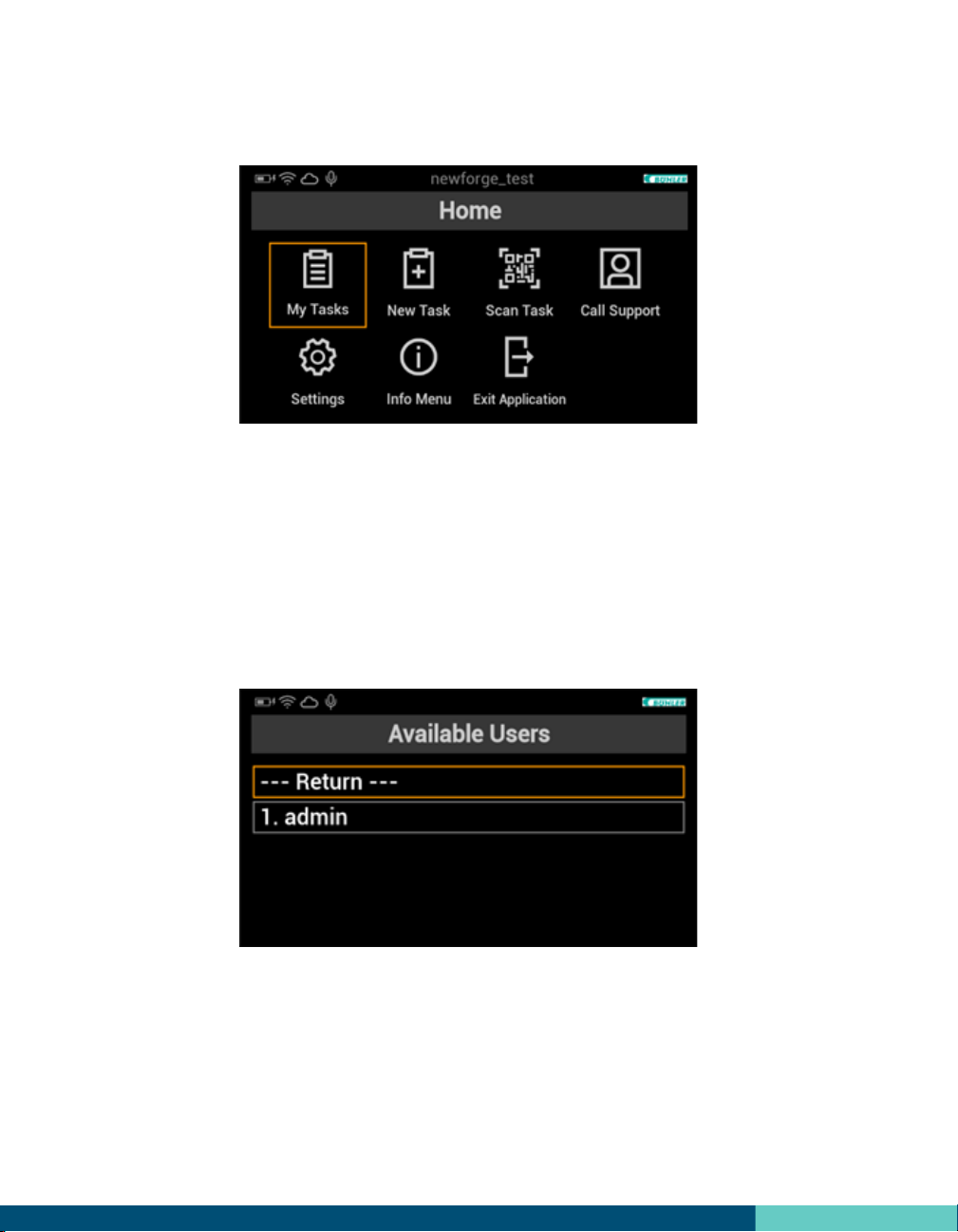

You can say the support name desired or say “select #”, i.e. in the case below,
either say “admin” or “select 1” to start your call.
You will be on the home screen now. The HMT-1 is controlled by using your voice.
Simply say what you see on the screen.

14
Receiving a call: The ashlight of the HMT-1 will start to ash and an audible ringtone will
sound when you receive an incoming call. Once you see the screen below say “Accept”
3.4 Functionalities within a support call.
To see a list of all available functions you can say “Show Commands” this will display a menu
with all commands and functions that are available during a remote support call.
Hang Up Call: Ends the call
Turn Volume Up/Down: Turns the volume of the call up or down
Microphone On/O: Switches the microphone on or o
Video On/O: Turns the video recording on the HMT-1 camera on or o
Next Page: Goes to the next page to list other available commands
Take Picture: Takes a picture with the HMT-1 camera and sends it to the expert

15
3.5 Settings Menu
To navigate in the home screen, say what you see e.g. “Settings”
The following settings menu will open
Flashlight On/O: Switches the ashlight of the HMT-1 on or o
Turn Screen On/O: Switches the display of the HMT-1 on or o
Say “Exit Application” and press the Power Button until the device shuts down. Please
charge the device while you are not using it.

16

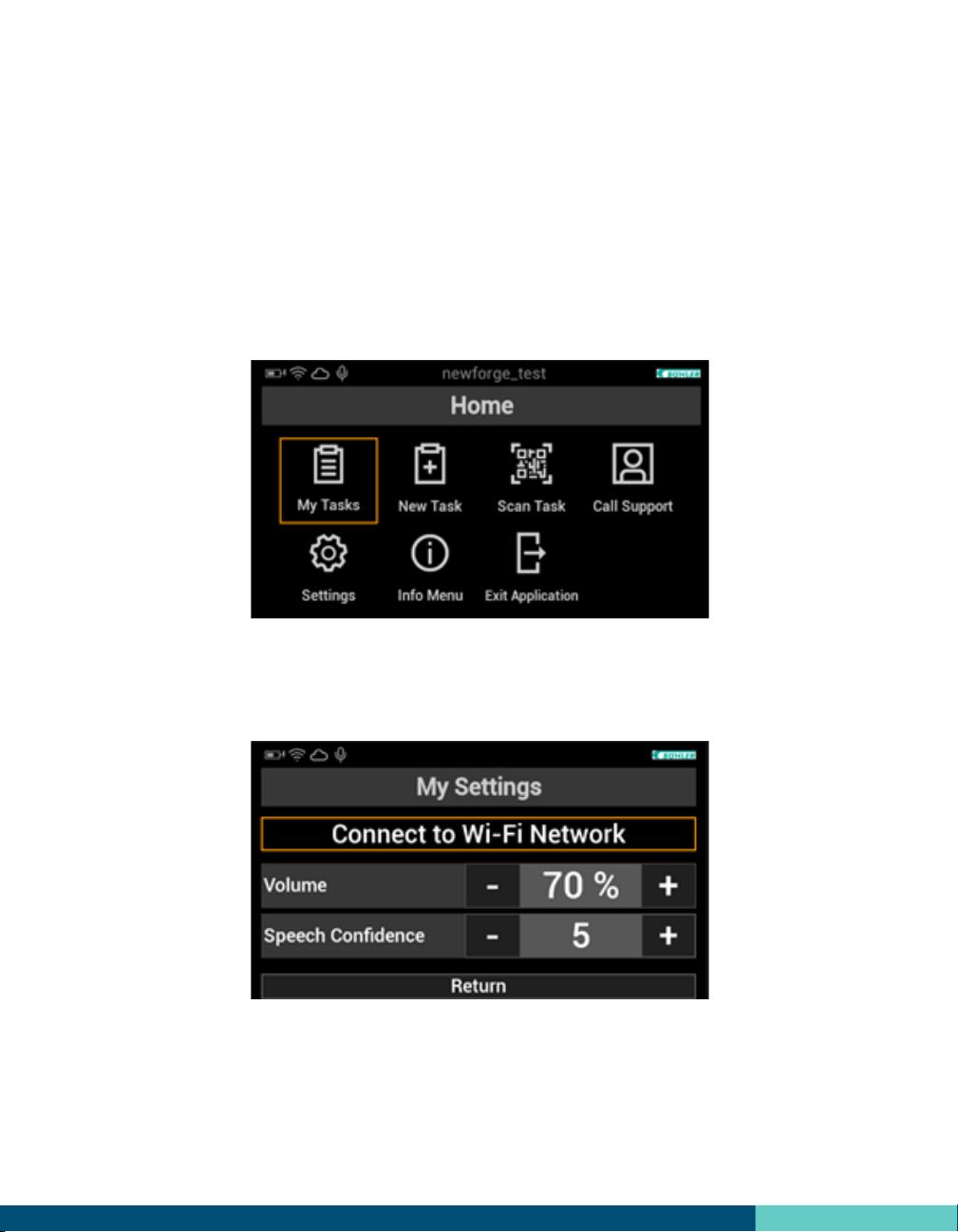

You can now use the following voice commands to navigate through the settings:
Connect to Wi-Fi Network
Use this option when you want to switch to another Wi-Fi network
Step 1: On the HMT-1 say “Connect to Wi-Fi Network”
Step 2: Go to Chrome browser on your PC and type in:
https://buhler.apps.newforgetech.com/then login with your username and password
Step 3: Go to “Wi-Fi Conguration” tab and enter the name of your Wi-Fi network
and the password
Step 4: On the HMT-1 say “Scan” and scan the QR code
Step 5: If the setup was successful you will see the following screen. Say “Continue” to
get to the home screen

17
Volume
This is only for the volume of the notication sounds not for the volume in a call:
You can set the volume level to a value between 0-100%: e.g. say
“Volume 40” to set the volume level to 40%
Speech Condence
The lower the condence the easier the HMT-1 accepts the voice commands you give it
and vice versa
Say, for example “Speech Condence 6” to set the speech condence level to 6. The
recommended speech condence level is 5.

18

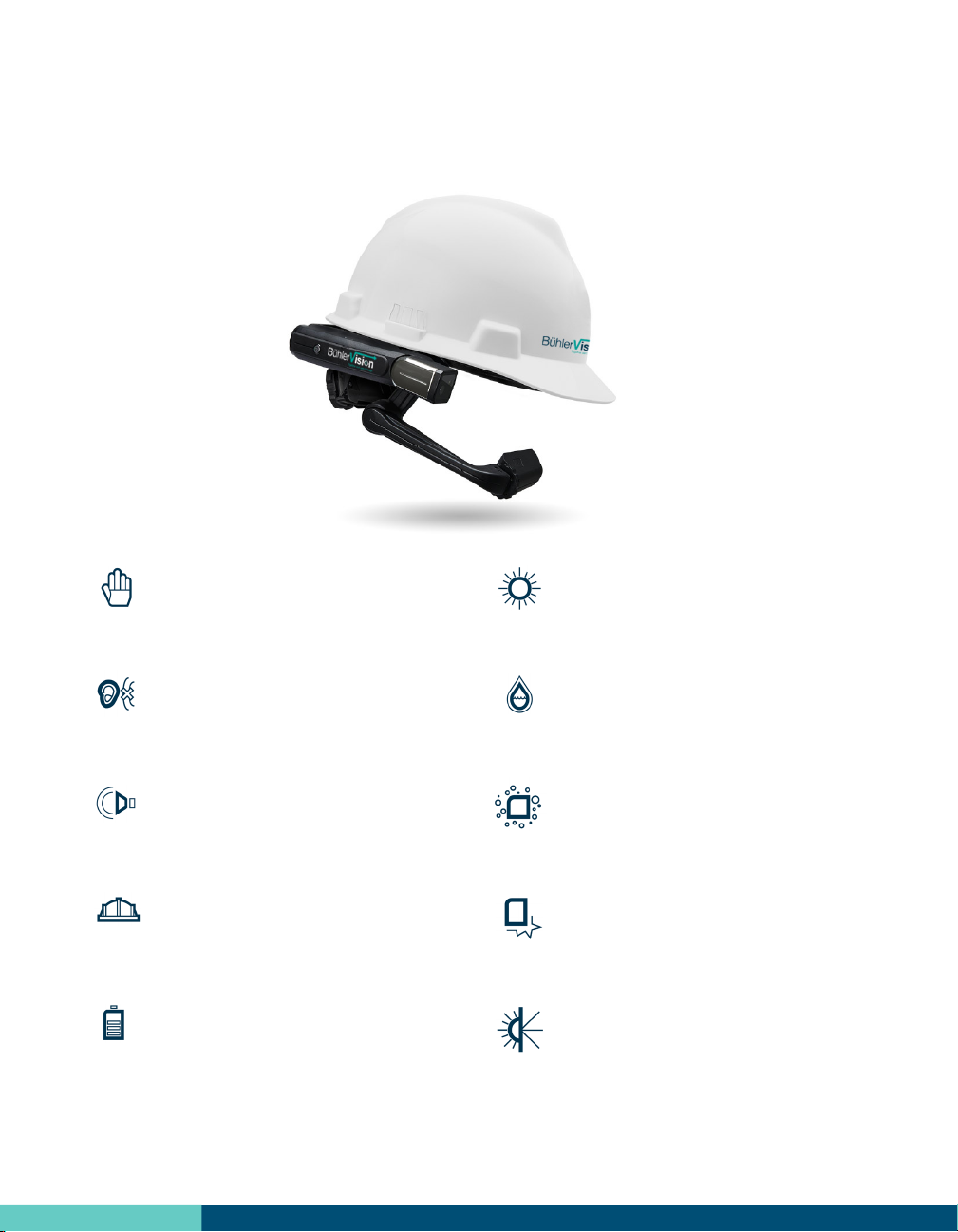

Smart Technology Features.
100% Hands Free
Voice based operating system with
local speech recognition in loud areas
Unmatched Noise Cancellation
Four digital microphones and
advanced algorithms
Powerful Audio
Integrated speaker and 3.5mm audio
jack for use with hearing protection
PPE Compatible
Designed to work with standard hard
helmets, bump caps and safety glasses
Full Shift Internal Battery
Field swappable for continuous use
Outdoor Display
Appears size of 7” tablet, viewable in
bright sunlight
Water Resistant
IP66 – Protected against heavy seas
or powerful jets of water
Dust Tight
IP66 – Complete protection against
the ingress of micro particles
Drop Proof
Resistant to 2 meter drops onto
concrete from any angle
Built Rugged
Fully operational from 20° C to + 50° C
MIL-STD-810G

19
If you have any questions,
we are here to help!
Call the BühlerVision
Support Hotline
[phone]
(Mo-Fr: 8am – 5pm EST)
If you need help or if you have any
questions regarding the solution,
hardware or warranty you can contact
our service desk via
email: [email protected]
For the latest version of this quick
start guide, manuals and instructional
videos check out the “Extra” tab on
the BühlerVision Portal: https://buhler.
apps.newforgetech.com
