BUNNING LOWLANDER MSL60 Guide

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page 1
Thank you for buying a Bunning spreader.
For your Bunning guarantee please fill in the form below and return it to G.T. Bunning
Ltd.
Customer Name
Post Code
Telephone
Fax
Email
Machine ID Number
Date of delivery
LOWLANDER WARRANTY REGISTRATION FORM
Company Name
ID No. Exampl e 01/01/9999/U/MSL60
Dealer
Address
Important Data Protection Information.
We or our business partners may contract you by mail, telephone, e-mail or other electronic messaging services with offers of goods
and services or information that may be of interest to you.
By providing us with your telephone number or email address you consent to being contacted by these methods.
If you do not wish to receive marketing information by these methods from GT Bunning or our business partners please tick this box.
GT Bunning & Sons Ltd
The Green
Gressenhall, Dereham
Norfolk
NR20 4DT ENGLAND

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page 2
Pre-Delivery Inspection sheet
The purpose of this document is to ensure that the operator, hirer or owner is fully appraised of all safey
guidelines and operating and maintenance methods before taking possession of the machine.
Bunning Lowlander Mk4 60
5
LIGHTING
12
Check operation of lights
13
1
2
Draw attention to the safety decals
located on the machine.
GENERAL
Ensure the operator receives a copy of the
instruction & spares manual.
OPERATOR
DEALER
I have received a copy of the instruction & spares manual and
understand the method of operation, the safety requirements
and the maintenance methods.
I have given basic instruction in the method of operation, the
position of safety stickers and methods of maintenance, and
ensured that the owner/operator is in possession of the
Manual.
3
Explain the functions of the machine.
Check hydraulic cylinder for leaks and
damage.
SIGNATURE
DATE:
19
Check wheel nut torque. (Check daily for first
week of use)
7
Check operation of parking brake.
8
Check operation of service brake.
Check condition of cabling & 7 pin connector.
HYDRAULICS & PNUEMATICS
14
Check hydraulic hose condition especially
brake hoses & connectors.
16
Check oil level of floor drive gearbox and
auger drive gearbox.
4
Locate, identify & explain spreader to
towing vehicle air ,hydraulic and electric
connectors.
STRUCTURE
9
Check condition of body, drawbar & augers
15
Check air system hose condition and
connectors. (Option).
WHEELS & TYRES
17
Check condition of tyres.
6
Explain how to cut the PTO guard to size and
where to fit the safety chains.
BRAKING
11
Grease all points if necessary.(see
manual).
10
Check condition of all cylinders & pins.
18
Ensure tyre pressures are correct for speed &
load.

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page 3
CHASSIS SERIAL NUMBER...............................................................
SECTION & CONTENTS PAGE
Preface. 6
How to use this manual. 6
Operating on public roads. 6
Introduction. 7
Disposal. 7
EC Declaration of Conformity. 8
Machine over view. 9
1. OPERATING INSTRUCTIONS
1.1 Hitching to tractor. 10
1.2 Coupling of hydraulic hoses. 11
1.3 Hand brake. 12
1.4 Brake adjustment. 12
1.5 Floor adjustment. 12
1.6 Method of operation. 12
1.7 Slurry door. 12
2. MAINTENANCE
2.1 Lubrication of spreader. 13
2.2 Servicing intervals 13
2.3 Service record. 17
2.4 Shearbolt protection. 18
2.5 Greasing points 18
DRAWINGS AND PARTS LISTS
3. FLOOR DRIVE
3.1 Hydraulic circuit for floor drive. 19
3.2 Floor speed control unit. 21
3.3 Floor drive relief valves. 22
3.4 Floor drive gearbox. 23
3.5 Rear floor shaft assembly. 25
3.6 Front shaft and chains. 27

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page 4
4 AUGERS AND DRIVES
4.1 Shredding augers. 29
4.2 Gearbox STANDARD 540 / 360. 31
5. P.T.O AND TRANSMISSION
5.1 Transmission. 33
5.2 Problems and possible solutions. 35
5.3 Comer series V PTO shaft assembly. 37
5.4 Comer wide angle guard complete. 38
5.5 Comer wide angle grease points 38
5.6 Comer T60 underbody driveshaft. 39
5.7 Comer plastic guard assembly. 41
5.8 Comer guard safety chain fixing. 42
5.9 PTO stowage. 43
6. BRAKE & AXLE ARRANGEMENTS
6.1 Brake parts 355x80. 44
6.2 Brake parts 300x90. 45
6.3 Axle hub and bearing parts EF938 46
6.4 Axle hub and bearing parts 309E 47
6.5 Hydraulic brake ram assembly 30mm bore. 48
6.6 Hydraulic brake circuit –single axle. 49
6.7 Hydraulic brake circuit –rear drawbar clevis. 50
7. AXLES & SPRUNG DRAWBAR
Safety notice. 51
General information. 52
Axle maintenance and adjustment. 53
Minimum program of maintenance sheet. 64
8. TYRES AND WHEELS
8.1 Tyre and wheel maintenance. 65
8.2 Tyre pressure settings. 66
8.3 Wheel type and torque settings. 70

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page 5
9. OPTIONS
9.1Rear clevis drawbar. 71
9.2 Guillotine slurry door. 72
9.3 Guillotine slurry door hydraulic circuit drawing. 73
9.4 Support Leg. 74
9.5 Toolbox. 74
9.6 Handbrake control multi-stroke MS45. 75
9.7 Body seal rubber. 75
9.8 Simple canopy. 76
9.9 Border control. 76
10. ELECTRICS
10.1 Wiring for 12v 7 pin plug. 77
10.2 Rear lamps. 78
10.3 Marker lamp.
798
11. HEALTH AND SAFETY & POTENTIAL HAZARDS
11.1 Hazardous machinery warning. 79
11.2 Loss of control. 79
11.3 Operation around bystanders. 79
11.4 Hydraulic fluid penetration or burning. 79
11.5 Electrocution. 79
11.6 Body entry. 79
11.7 Coupling / decoupling. 79
11.8 Machinery start up. 80
11.9 Machinery shut down. 80
11.10 Additional driver protection. 80
11.11 PTO Connection and guarding. 80
11.12 Personal protective equipment. 80
11.13 Safety decal location. 80
11.14 Safety operating hazard area 81
11.15 Warnings 82
12. WARRANTY 83
13. IMPORTANT INFORMATION 83
14. NOTES 84
15. IDENTIFICATION PLATE 85
16. TECHNICAL DATA & SPECIFICATIONS 86
17. MACHINE DIMENSIONS 87

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page 6
PREFACE
The instructions in the manual must be read carefully and followed by all persons concerned
with the operation, maintenance, repair or inspection of this machine in order to prevent
accidents.
Read especially sections relating to safety, operating instructions and maintenance.
The use of spare parts, accessories and additional equipment which is not originally
manufactured checked and release by GT Bunning Ltd can have a negative effect on specific
design features of the machine and on its operability. This may impair its operating safety, as
well as safety at work for the operator and could invalidate warranty.
GT Bunning will in no way be liable for damage or personal injury caused by the use of other
than original GT Bunning parts, accessories and additional equipment.
Technical specifications, dimensions and weights are given with the usual tolerances (+/-2%).
GT Bunning Ltd operates a policy of continual improvement; as such some items in this manual
may differ slightly from that of your machine. GT Bunning reserves the right to make changes to
the machine or manual without notice. If in any doubt regarding any aspect of the design or
operation of this machine contact GT Bunning Ltd or your GT Bunning Ltd agent for clarification.
HOW TO USE THIS MANUAL
The manual contains sections that cover all of the following, Safety, Operating instructions,
Maintenance, Specifications and Technical data. Refer to the contents pages for the relevant
page number.
Before use of the machine familiarise yourself with the manual and its contents
The machine should only be operated, serviced and repaired by persons who are familiar with
the machine and who have read and understood this manual, and are informed of the risks.
This manual should stay with the machine/operator at all times.
OPERATING ON PUBLIC ROADS
Before operating on public roads the spreader must be correctly connected to the towing
vehicle, the lights must be connected and function of the lighting equipment must be checked.
The braking system of the spreader must be correctly connected to the towing vehicle, check for
correct operation.

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page 7
INTRODUCTION
This manual provides information on the use, adjustment and servicing of the GT Bunning range
of Lowlander spreader.
Following the advice on the correct maintenance and servicing procedures will ensure maximum
performance and a long service life of your machine.
Failure to carry out maintenance work correctly or incorrect operation will result in poor
machine efficiency and loss of valuable time.
By ensuring the correct operation, and by carrying out maintenance and service work with care,
you will be able to make full use of the technical knowledge and the experience with which your
Lowlander spreader was originally designed.
DISPOSAL
Upon completion of the useful life of the machine, all parts can be disposed of at a suitable
waste disposal facility.
Care must be taken if oxy-acetylene cutting equipment is to be used.
The wheels and tyres, hydraulic cylinders, valves and hoses must be removed before using
cutting equipment.
Oil must be drained collected and disposed of in accordance with current legislation.
Electrical components must be disposed of in accordance with the relevant legislation.

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page 8
G.T.BUNNING & SONS LIMITED
SPREADERS, TRAILERS & TANKS
Telephone: [phone] Registered Office:
Fax: [phone] Smithy House,
TheGreen
E-mail: [e-mail] Gressenhall, Dereham
www.gtbunning.co.uk Norfolk, NR20 4DT
EC MACHINERY DIRECTIVE
2006/42/EC
DECLARATION OF CONFORMITY
We hereby ceritify that the machinery stipulated below complies with all the relevant provisions
of the EC Machinery Directive 2000/42/EC & regulations adopting the Directive.
Modifications to this machine without prior written approval from the undersigned will render
the declaration null & void.
Machine Description: Unbalanced trailer for the
carriage & application of manure
Machine Type: Agricultural manure spreader
Model: Lowlander MSL60
Serial Number: / / /U/MSL
Standards used.
BS ISO 4251-1:2005+A1:2012, BS EN ISO 12100-1:2010, BS EN ISO 4254-1:2009, BS EN 690: 1994+A1:2009,
BS EN 15811: 2009, BS EN ISO 13857:2008, BS EN 349:1993+A1:2008, BS EN 12965:2003+A2:2009,
BS EN 953:1997+A1:2009, BS EN ISO 5674:2009, BS ISO 4413:2010.
Signed Date :
Name: Greg Shepherd Position: Joint Managing Director

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page 9

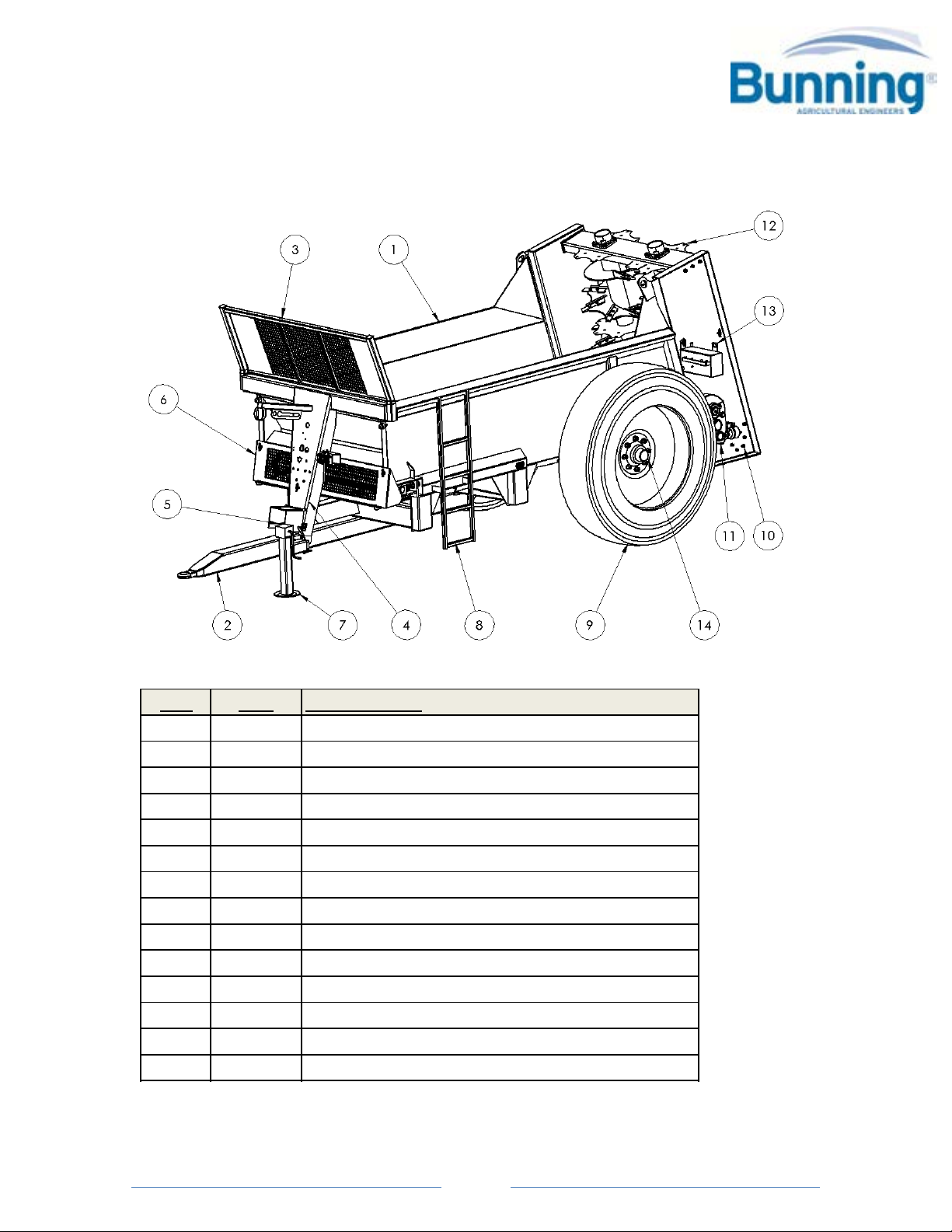

MACHINE OVER VIEW
MACHINE OVER VIEW PARTS LIST
KEY QTY DESCRIPTION
1 1 BODY
2 1 DRAWBAR
3 1 STONE GUARD
4 1 FRONT PILLAR
5 1 PTO DRIVE LINE
6 1 FINGER GUARD
7 1 SUPPORT LEG
8 1 LADDER
9 2 WHEEL & TYRE ASSEMBLY
10 1 AUGER GEARBOX
11 1 FLOOR DRIVE GEARBOX, MOTOR AND VALVE
12 2 AUGER
13 2 LAMP ASSEMBLY
14 1 AXLE

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page
10
1. OPERATING INSTRUCTIONS
The intended purpose of the vehicle is to tow and spread manure and other materials.
1.1 Hitching to tractor.
Attach spreader to pick-up hook or static hitch stub. Do not attach to swinging drawbar
or pick-up hook in extended position.
Remove screwjack from drawbar (if fitted) and locate in transport position provided at
the front of spreader.
Turn off the tractor engine and remove the key.
Slide the tractor end of the PTO shaft out and fit to the tractor PTO. Lay the two halves
of the PTO shaft alongside one another and mark the required lengths, allowing for
turning. Maximum pull out of 300mm (12 inches) of the 2 shafts. Cut to size and clean
burrs at each end of shaft KEEP SHAFT SLIDING SURFACES GREASED. Attach chains
fitted to PTO guard (to prevent rotation of guard) to suitable point on the tractor and
hole provided on metal cover over PTO shaft on spreader. Ensure that the spring loaded
pins in splined yokes are fully locked in position. Always disengage the PTO when
turning sharply to avoid damage to shafts universal joints. Where a wide angle PTO is
fitted attach this end to the tractor. Please refer to the DVD for more information.

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page
11
1.2 Coupling of hydraulic hoses.
Fit the two hoses for the floor drive hydraulic motor (one to feed and one for return) to
double spool valve on tractor. Choose position of spool lever for ease of control to
obtain floor movement to rear. Reversing of floor is done by selecting the opposite
position of hydraulic control lever. Universal quick release probes are fitted as standard
to hose ends. Mark hose as required to assist in the future coupling for correct position
of feed and return. When a slurry door is fitted connect the hydraulic hoses to a double
spool valve and select the hose positions to suit the operator to open and close the
door.
Fit hydraulic brake hose to trailer brake valve on tractor (male fitting).
A universal female brake coupling is fitted as standard to the hose ends.
N.B CHECK DIRECTION OF FLOOR BEFORE LOADING.
Do not run floor in reverse with full load. Speed of floor in reverse is at MAXIMUM.
Only reverse floor for a few seconds.
Ensure the braking system is connected and that it functions correctly before moving.
FLOOR PRESSURE
FLOOR RETURN
SLURRY DOOR OPEN
SLURRY DOOR CLOSE
HYD LIGHTS/COMPOST DOORS OPEN
HYD LIGHTS/COMPOST DOORS CLOSE
BRAKES

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page
12
1.3 Hand brake.
The handbrake is a multi-stroke ratchet type. To apply the handbrake give the handle
short pumps (a clicking of the ratchet will be heard) until resistance occurs and
subsequent tightening of the cable. To release the handbrake give the handle one sharp
movement in the opposite direction. This releases the ratchet mechanism.
1.4 Brake adjustment.
Brake adjustment is carried out at the hydraulic brake ram unit fitted to each wheel axle
giving independent adjustment to each wheel. To adjust, jack up the spreader, slacken
the locknut in the set screw and turn the set screw clockwise. (See section 7)
BEWARE NOT TO OVER ADJUST. Make sure the wheel can rotate freely.
1.5 Floor adjustment.
When adjusting floor chains ensure that the adjustment is carried out equally to both
sides.
DO NOT ALLOW THE CHAINS TO BECOME TOO SLACK.
ADJUST CHAINS AFTER A FEW LOADS.
KEEP CHAINS ADJUSTED CORRECTLY AT ALL TIMES, A GUIDE IS TO BE ABLE TO SEE A
WHOLE LINK BELOW FRONT BOTTOM EDGE OF SPREADER i.e. FROM CENTRE TO
FRONT.
Reverse floor
The floor should only be reversed for very short periods, to clear the augers.
Do not reverse if the floor chain is slack, tighten floor chain first.
1.6 Method of operation.
1) Select speed of floor required on control valve.
2) Engage PTO to power the rear augers –tractor engine revs low.
3) Raise slurry door to required height if fitted.
4) Engage spool valve to power floor to rear.
1.7 Slurry Door
As the load height reduces lower the slurry door to cover the augers. This will help
prevent foreign objects being thrown forward.

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page
13
2. MAINTENANCE
2.1 Lubrication of spreader.
DAILY GREASE Front and rear floor shaft
Overrun clutch to front of main ‘T’ gearbox
Hitch eye
WEEKLY GREASE All sealed bearing –1/2 pump of grease gun maximum.
TAKE CARE NOT TO DAMAGE GREASE SEAL BY OVERGREASING
Sliding tube of PTO shaft.
PTO universal joints –Follow manufacturers instructions.
Screwjack top (when fitted)
Shearbolt bush
MONTHLY Check gearbox oil levels
ANNUALLY Change oil to all gearboxes
TYPE OF LUBRICATION GREASE Multi purpose
GEARBOXES EP90
2.2 Servicing intervals
The period recommended is based on normal operating conditions. Severe or unusual
conditions may require more frequent lubrication or oil changes.
IMPORTANT: ENSURE CV JOINT IS GREASED BEFORE FIRST USE!
TAKE CARE NOT TO DAMAGE SEALS BY OVERGREASING.
DAILY (8 HRS)
1. Check for hydraulic fluid leaks and damaged hoses.
2. Grease Front and Rear floor chain shaft bearings.

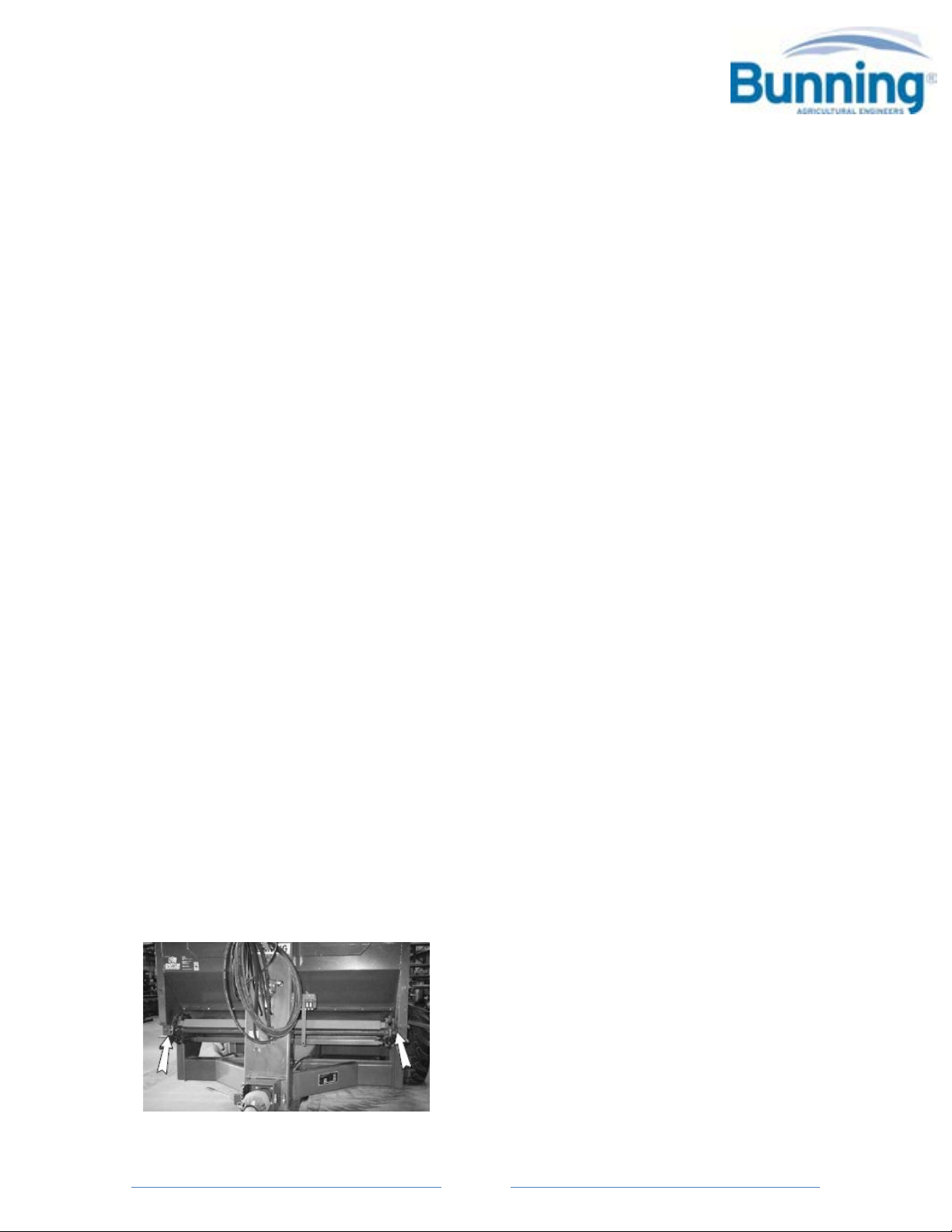

a. Front shaft.
• Remove front Finger Guard to access bearings.

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page
14
b. Rear Shaft.
• Grease both left and right bearings.
3. Grease the Overrun Clutch to front of the auger gearbox.
WEEKLY (40 HRS)
1. Check wheel nuts. Re-torque as needed.
2. Grease all sealed bearings
a. Driveline hanger bearings (2 or 3 depending on model).
b. Top auger bearings (Grease nipples access provided on right turret).
3. Grease the telescoping section of the PTO shaft.

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page
15
4. Grease PTO input drive system.
a. Input shaft.
b. Cross joint fittings.
c. Guard bearings.
d. Shear bolt housing.
e. Over-running clutch (5 pumps).
5. Grease the implement jack top.
6. Check gearbox oil level
a. Floor Chain Drive Gearbox
-Oil should be level with the middle of the sight glass.
-Add oil as required through the top plug.
b. Auger Gearbox
-Spreader must be unhooked from tractor and set on level ground to check oil. Oil
should be level with the middle of the sight glass.
-Add oil as required through the top plug.
-Oil may take a while to distribute in casing, recheck level after 30 –40 minutes and
repeat if necessary.
MONTHLY
1. Apply grease or heavy oil to apron chain.
2. Grease telescoping section of PTO shaft.

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page
16
3. Grease the CV Joint of PTO shaft (15 pumps)
4. Grease suspension system spring bushings on each side.
5. Grease brake pivot bushings (Tandem Suspension machines).
6. Grease parking brake leaver joint.
7. Check and adjust the apron chain tension. Refer to section 5.2.2 - page 50.
ANNUALLY
1. Change oil to all gearboxes.
2. Check the condition of the frame sealing flaps. Replace if not sealing the sides or bottom.
a. Front.
b. Rear Slurry Door Auger Deck.
3. Check brake setting.
Brakes can be checked by depressing the brake petal with the engine running and the
tractor in gear; release clutch to determine brake adjustment.
4. Check condition of rotor blades and paddles. Repair when there are loose bolts, cracked
welds, chipped, bent or broken blades or paddles. Replace when any components are worn
within 1 inch (25 mm) of flighting.
5. Clean machine.
6. Check general hardware/bolt tightness. Retighten if necessary.
It is recommended to apply waste oil to the floor chains periodically when spreading dry material
and particularly at the end of the spreading season. This assists in the smooth running of the
machine and prolongs the working life of the components.

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page
17
2.3 SERVICE RECORD
See Lubrication and Mainteneance sections for details of service. Copy this page to continue record.
ACTION CODE CK = CHECK CL = CLEAN G = GREASE

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page
18
2.4 Shearbolt Protection.
Only one shearbolt is fitted to the spreader. This is located on the spreader end of the
PTO shaft. The bolt is M10 x 60 grade 6.8 mild steel.
ON NO ACCOUNT MUST A BOLT OF HIGHER GRADE THAN 6.8 TENSILE STRENGTH BE
FITTED.
2.5 Greasing points
KEY GREASE POINT
1 ALL BEARINGS IN DRIVE LINE
2 FRONT SHAFT
3 PTO KNUCKLES
4 REAR SHAFT
5 BEARINGS TOP OF AUGERS (GREASE POINT O/S ON TURRET)

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page
19
3. FLOOR DRIVE
3.1 HYDRAULIC CIRCUIT FOR FLOOR DRIVE

LOWLANDER MSL60 MANURE SPREADER –INSTRUCTION & SPARES MANUAL
Page
20
3.1 HYDRAULIC CIRCUIT FOR FLOOR DRIVE PARTS LIST
KEY QTY PART No. DESCRIPTION
1 1 B3000 FLOW CONTROL
2 3 51593 3/4" BONDED SEAL
3 4 51591 1/2" BONDED SEAL
4 1 51590 3/8" BONDED SEAL
5 2 51337 3/4" TO 3/8"ADAPTOR
6 1 51340 3/4" / 1/2" ADAPTOR
7 2 51336 1/2" TO 3/8" ADAPTOR
8
9 2 51464 1/2" BULKHEAD
10
11 151447 3/8" MALE TEE
12 151412 1/2" MALE/FEMALE 90 DEG
13 151414 3/8" MALE/FEMALE 90 DEG
14
15 151393 1/2" TO 3/8" FEMALE/FEMALE
16
17
18 151576 1/2" MALE PROBE
19 2 B4400 HYD HOSE 230mm
20 1 B4401 HYD HOSE 610mm
21
22 2 B4414 HYD HOSE 2500mm
23 B4416 HYD HOSE FLOW
24 B4417 HYD HOSE RETURN
26 1 B3068 DOUBLE CROSS LINE RELIEF VALVE
