buratti meccanica Clorofilla Sequoia User manual

Revision 00_31.03.2022
Manual Code CLO_SL_00_202203
ORIGINAL INSTRUCTIONS
English
EN
USE AND MAINTENANCE MANUAL
Sequoia bike lifter
Serial Number
Manufacturing Year

Pag. 2 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019

Pag. 3 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019
1.
INTRODUCT
5
1.1. THE MANUAL 5
1.2. COPYRIGHT 5
1.3. HOW TO READ THIS MANUAL 5
1.4. GENERAL WARNINGS 5
2. GENERAL INFORMATION 6
2.1. MANUFACTURER’S DATA 6
2.2. CLOROFILLA SEQUOIA’S DATA 6
2.2.1. CE PLATE 6
2.2.2. DECLARATION OF CONFORMITY 7
2.3. WARRANTY 8
2.4. GENERAL WARNINGS 8
3. SAFETY 9
3.1. GENERAL SAFETY DIRECTIONS 9
3.2. INTENDED USE 9
3.2.1. CORRECT USE 9
3.2.2. MISUSE 10
3.3. PERSONAL PROTECTION EQUIPMENT 11
3.4. RESIDUAL RISKS 11
4. GENERAL DESCRIPTION 12
4.1. MAIN CHARACTERISTICS AND FUNCTIONS 13
4.2. CLOROFILLA SEQUOIA’S COMPONENTS 14
4.3. DIMENSION 15
5. HOW TO USE CLOROFILLA SEQUOIA 16
6. UNPACKING AND INSTALLATION 18
6.1. UNBOXING PROCESS AND START-UP 18
6.2. RECOMMENDED INSTALLATION 22
7. MAINTENANCE 24
7.1. MAINTENANCE OPERATIONS 24
7.2. CLOROFILLA’S DISPOSAL 24
8.
ATTACHMENTS
25

Pag. 4 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019

Pag. 5 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019
1.
INTRODUCT
1.1. THE MANUAL
IMPORTANT: This manual must be carefully stored and replace in case of any deterioration or lack of
readability.
1.2. COPYRIGHT
This manual is under the ownership of BURATTI MECCANICA S.r.l. Every duplicate, even partial, is
strictly prohibited. The descriptions and the illustrations given in this manual are not binding.
BURATTI MECCANICA S.r.l. is the only one who can edit it.
© RESERVED RIGHTS: Every reproduction right in this manual is reserved to BURATTI MECCANICA S.r.l.
Reprint, duplication and translation are prohibited without a written authorization by BURATTI
MECCANICA S.r.l. even partially. The manual cannot be given to third parties without any written
authorization by BURATTI MECCANICA S.r.l.
1.3. HOW TO READ THIS MANUAL
In this manual have been used recurring graphic styles with the aim to make the comprehension easier.
Warnings and/or the instructions that are essential have been highlighted with the following symbols:
IMPORTANT: Means a very important information worthy of attention.
ATTENTION:means helpful hints that must be taken into consideration to avoid damaging CLOROFILLA
SEQUOIA or its parts.
1.4. GENERAL WARNINGS
This manual has been issued by the manufacturer and it is part of CLOROFILLA SEQUOIA’s equipment.
It contains all the information needed to guarantee its usage and maintenance.
BURATTI MECCANICA S.r.l. cannot predict every single risk, hence all the warnings included in this
manual may not cover all security’s cautions. If you have any doubt regarding installation, use and
maintenance procedures, please refer to BURATTI MECCANICA S.r.l.
IMPORTANT: The person in charge of the installation of CLOROFILLA SEQUOIA must have read this
manual in all its parts before the start-up.
IMPORTANT:BURATTI MECCANICA S.r.l. has the right to amend CLOROFILLA SEQUOIA and its technical
documentation without any requirement by third parties. Contents and warning of this manual are
valid starting from the issuing.
i
i
i
i

Pag. 6 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019
2. GENERAL INFORMATION
2.1. MANUFACTURER’S DATA
Buratti Meccanica S.r.l.
Headquarter: via Archimede n. 535, 47521 Cesena (FC)
Tel. +39 0547 301623
Fax. +39 0547 645734
Web: http://www.burattimeccanica.com
2.2. CLOROFILLA SEQUOIA’S DATA
This machine meets the safety requirements set by Machine Directive 2006/42/EC.
This conformity is certified and the “CE” markings have been applied to the machine as proof.
The plate must always be kept legible regarding the data it contains, periodically cleaning it.
2.2.1. CE PLATE
ATTENTION: Do not remove or damage the identification plate.
IMPORTANT: In the event of loss or deterioration, the manufacturer recommends you request a
copy, indicating the data in this manual or on the original plate, for its replacement.
i

Pag. 7 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019

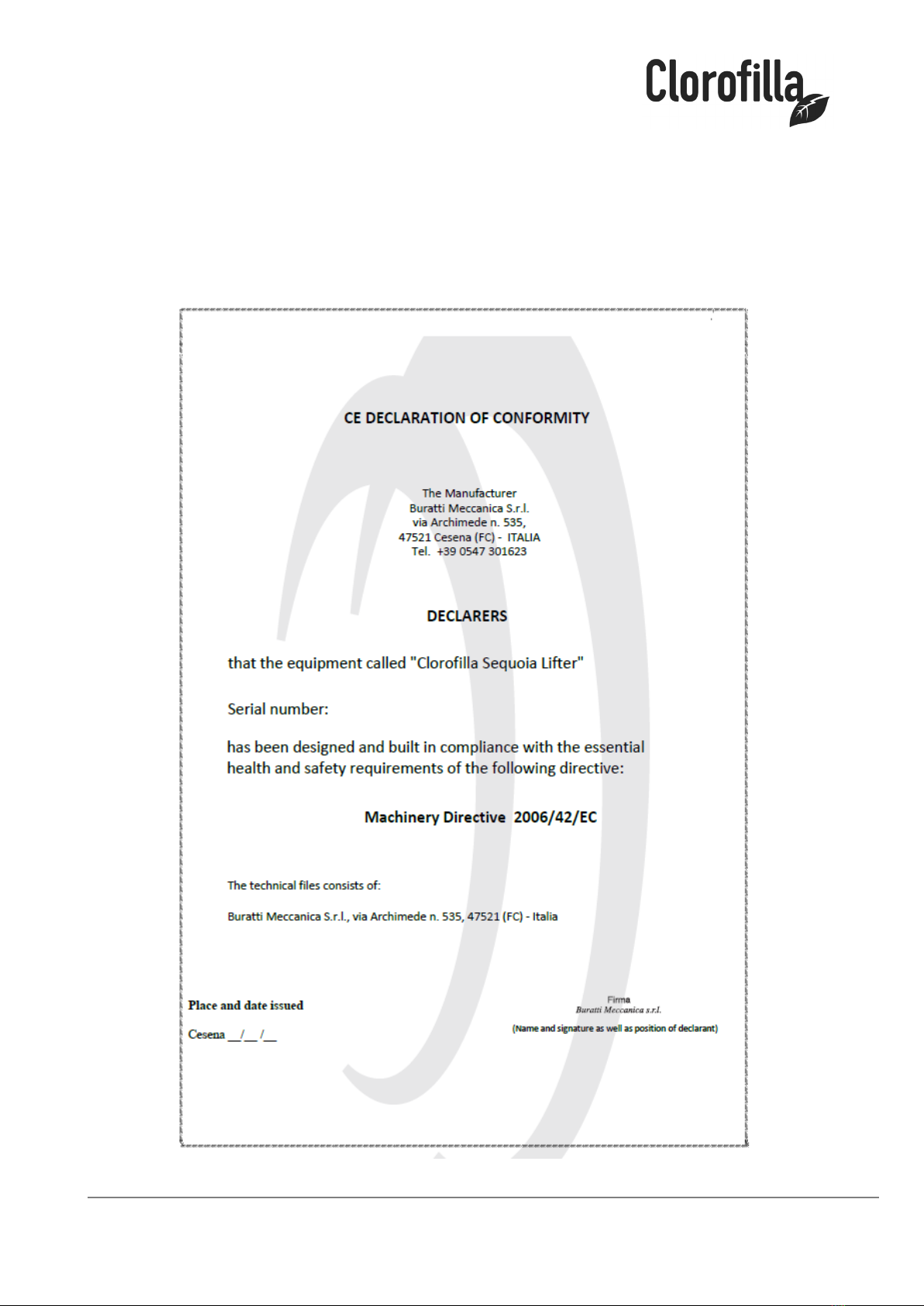

2.2.2. DECLARATION OF CONFORMITY
The CE declaration of conformity is a document signed by the Manufacturer who guarantees and
certifies that the machine meets all safety regulations.
This document is enclosed with the manual

Pag. 8 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019
2.3. WARRANTY
CLOROFILLA SEQUOIA’s warranty lasts 24 months. CLOROFILLA SEQUOIA has successfully passed in the
factory all the tests required by the manufacturer.
Warranty does not cover vandalism and tampering but only materials, manufacturing and assembly
defects.
2.4. GENERAL WARNINGS
The manufacturer waives any and all responsibility for damages caused by non-observance of the
instructions of this manual
ATTENTION: Before starting any operation, check the working area looking for possible endangered
condition for people or CLOROFILLA SEQUOIA.
ATTENTION: CLOROFILLA SEQUOIA must be only used with bicycles.
ATTENTION: Do not hang yourself on CLOROFILLA SEQUOIA’s structure.
ATTENTION: Do not hang on CLOROFILLA SEQUOIA’s supports any object which weight goes beyond
50kg.
ATTENTION: It’s strictly prohibited to hang yourself on CLOROFILLA SEQUOIA’s supports.

Pag. 9 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019
3. SAFETY
3.1. GENERAL SAFETY DIRECTIONS
During design and construction, the Manufacturer has carefully considered possible hazards and
personal risks that may result from interaction with the machine.
However, discretion is invaluable. Safety is also in the hands of all the operators who interact with
the machine.
IMPORTANTE: The manufacturer is not liable for accidents due to the user's failure to observe
pertinent laws, provisions, instructions and rules in force.
Carefully read the instructions in this manual and those applied directly on the machine; in
particular, observe those that pertain to safety.
3.2. INTENDED USE
The machine described in this manual is a service column for lifting electric bicycles. It was
designed and built for lifting and repairing electric bicycles.
Only use the machine for this purpose.
ATTENTION: Do not let children or unauthorised personnel near or use the machine.
3.2.1. CORRECT USE
The correct use of the machine concerns only what is indicated in the manual and concerns
exclusively the gripping and handling of the component described in chapter 3.2 "Intended use".
Ogni altro utilizzo per finalità diverse è da considerarsi non corretto ed esplicitamente vietato.
ATTENTION:The manufacturer cannot be held liable for malfunction due to non-observance
of the above instructions.
i

Pag. 10 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019
3.2.2. MISUSE
The machine was designed to be exclusively used in the sectors indicated in the previous chapter,
thus materials such as wood, meat and similar are explicitly excluded.
Any machine use for purposes other than those foreseen by the manufacturer is considered
improper use.
Do not use the machine for improper use but only for those foreseen. Machine use for operations
other than those described is strictly prohibited.
The manufacturer cannot be held liable for different use or for the failure to observe the
instructions imparted by the manufacturer.
IT IS EXPRESSLY PROHIBITED:
•To use the machine as a general lifter for purposes other than those indicated in this manual.
Manomettere od intervenire sui dispositivi di protezione e di sicurezza.
IMPORTANT: It is mandatory for the operator, the maintenance personnel, etc. to fully and
scrupulously follow both the safety and accident prevention norms in force in the Country and
plant of use, as well as the instructions, warnings and general rules concerning the safety included
in this manual.
In using this machine it is necessary to observe the following interdictions:
Nell’utilizzo della macchina è indispensabile attenersi ai seguenti divieti: Nell’utilizzo della macchina
è indispensabile attenersi ai seguenti divieti:
•it is prohibited to lain on the machine during the functioning;
•it is prohibited to sit and/or lain onto the components of the machine;
•it is prohibited to use the machine or part of it for any use different from those indicated in this
manual;
•it is prohibited to modify any part of the machine;
•it is prohibited to apply any further device on the machine;
•it is prohibited to operate the machine under the influence of alcohol, psychotropic medicines
or drugs.
i

Pag. 11 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019
3.3. PERSONAL PROTECTION EQUIPMENT
For correct equipment use, personnel must be equipped with suitable personal protection
equipment according to the work they perform.
Personal protection equipment (P.P.E.) are all those tools that allow operators to work in maximum
safety conditions.
The personal protection equipment supplied to machine operators must be:
•comply with current law,
•be approved,
•be in good working conditions.
Operators must wear clothing suited to workshop work, avoid wearing necklaces, laces or any other
object that could get caught in moving machine parts.
ATTENTION: The employer has the obligation to inform the personnel about the following topics
regarding the safety during the use of the machine:
•accident hazard;
•personal protection equipment for the operator;
•general rules for accident prevention as established by international legislation and the law of
the machine’s country of destination.
Before starting to use the machine, the operator must know the position and function of the
controls and the characteristics of the machine and carefully read the full manual and all the
included attached manuals.
IMPORTANT: Always apply and get other people to apply safety rules. In the event of any doubt
please read again the manual before acting.
3.4. RESIDUAL RISKS
The machine and the normal use are manufactured according to the principle of safety integration
for the protection of the operator.
Some residual risks still must be considered:
•Residual hand crush hazard for the operator while operating the setting and adjustment of the
machine (for example while opening and/or closing the machinery)
•Indelible impact hazard during handling.
The manufacturer will not be held responsible of any damage caused by maintenance provided
without due attention to this particular operative condition.
IMPORTANTE: residual risks can ben avoided by scrupulously retain to the instructions provided
both through the signs applied on the hazard areas and in this manual.
i
i

Pag. 12 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019
4. GENERAL DESCRIPTION
CLOROFILLA is a service station for e-bikes addressed to bicycle mechanics. It can be used for
ordinary and extraordinary maintenance and repairing interventions. The station is provided with
two clamps whose gap, width and bent can be adjusted through the central hand that allows the
support to rotate.
Bicycles can be lifted and lowered by means of a screw-driver joint.
The station can be fixed to the floor (chap. 6.1 “Recommended installation”), or moved on the two
wheels tightened on the support plate.

Pag. 13 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019
4.1. MAIN CHARACTERISTICS AND FUNCTIONS
Rif.
MAIN CHARACTERISTICS AND FUNCIONS
A
Double support clamp
B
Clamp rotation regulation single knob
C
Gripper lever
D
Lifting system rotation regulation central handle
E
Rotation bottom bracket
F
Endless screw mechanical lifting system
G
Battery powered screwdriver joint
A
E
A
D
F
B
C
B
B
G
D
C
E

Pag. 14 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019

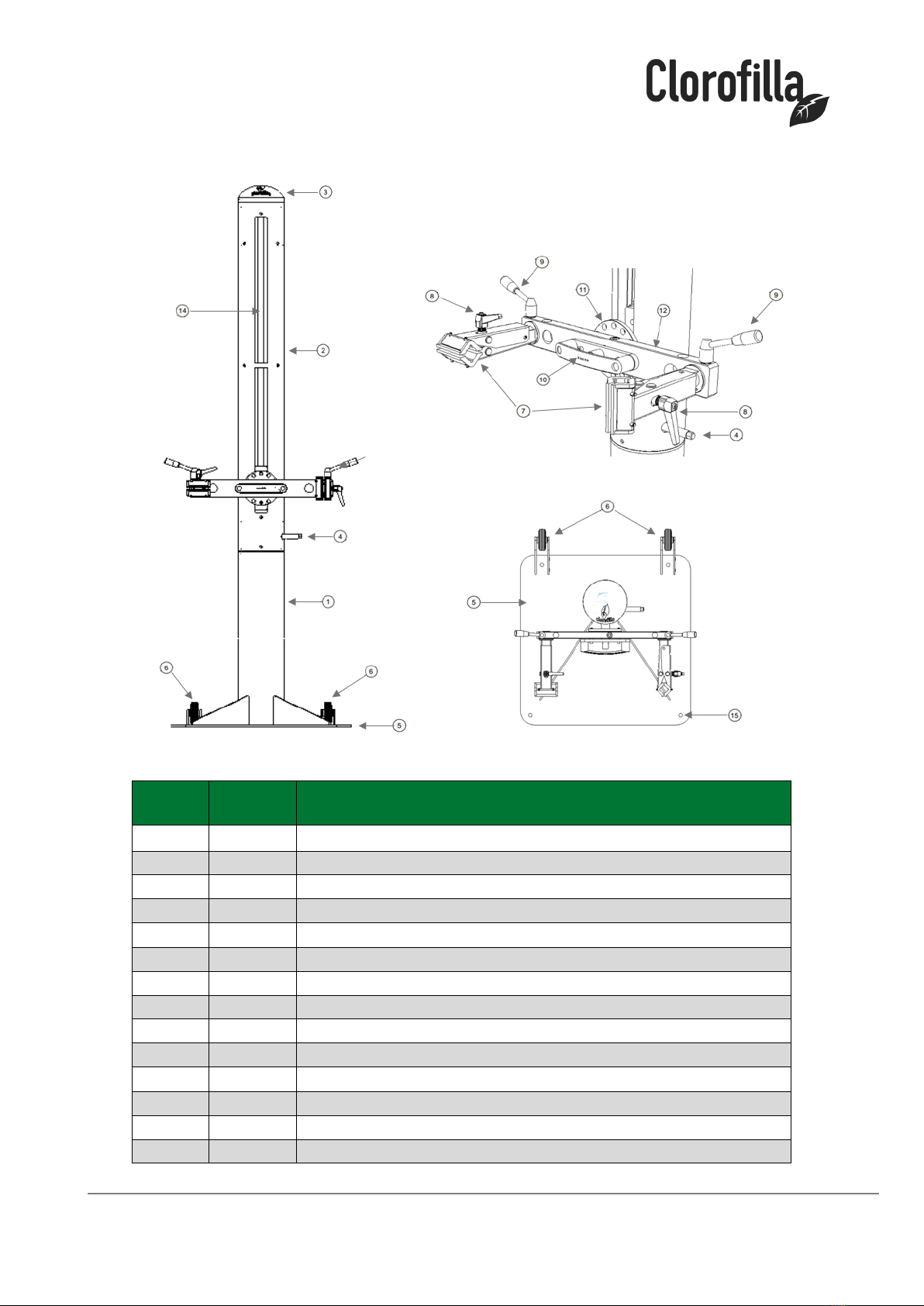

4.2. CLOROFILLA SEQUOIA’S COMPONENTS
Rif. Qtà DESCRIZIONE
1 1
Lower pipe
2
1
Upper pipe
3
1
Dome
4
1
Screwdriver attachment
5
1
Fixing plate
6
2
Wheels
7
2
Support clamps
8
2
Support clamp adjustment lever
9
2
Clamp rotation adjustment lever
10
1
Central rotation adjustment blocking/unblocking handle
11
1
Rotation bottom bracket
12
1
Adjustment levers and clamps support tube
13
1
Endless screw compartment
14
4
Fixing holes

Pag. 15 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019

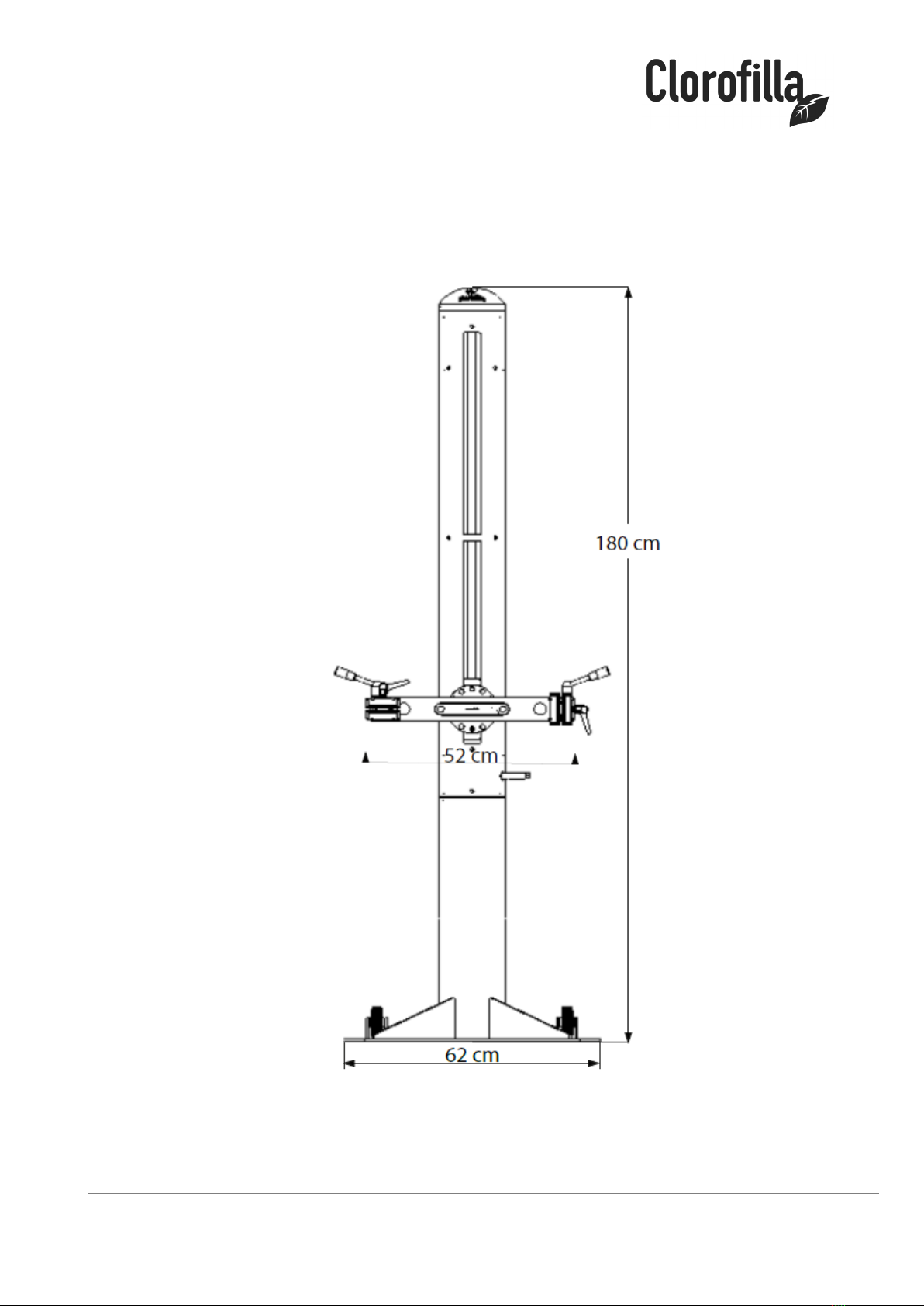

4.3. DIMENSION

Pag. 16 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019
5. HOW TO USE CLOROFILLA SEQUOIA
1) Fix the bicycle to the two support clamps (ref. A) after their gap, width and bent have been
adjusted by operating on the different levers and knobs (ref. A, B, C), according to type of frame.
2) Connect the battery powered screwdriver to the specific joint provided on the station (ref. C)
A
A
1
1
2

Pag. 17 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019
3) Take the bicycle to the demanded height.
4) To adjust the lean required for the kind of intervention to perform, use the central handle pulling
it toward yourself (ref. D), the central rotation movement (ref. E) unblocks, allowing to lean the
bicycle rightward or leftward. Once reached the working position, release the handle and proceed to
the repairing. Once the intervention finished, lower the bicycle to the ground through the use of the
battery powered screwdriver, loosen the two supporting clamps and release the bicycle from the
station.
D
E
4
3

Pag. 18 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019
6. UNPACKING AND INSTALLATION
Unpack the machine and ensure that it has not been damaged during transport.
Packaging dimensions cm: 120 x 80 x 66h
Packaging type: wood
Packaging weight: about 61kg
The installation is entirely borne by the buyer. For any technical information (floor characteristics)
please refer to this use and maintenance manual.
6.1. UNBOXING PROCESS AND START-UP
1) Cut the plastic straps (scissors) and remove the outer packaging.

Pag. 19 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019
2) Remove the upper cover.
3) Remove the screws on the lower side of the box (screwdriver or electric screwdriver) and remove
the case.

Pag. 20 di 27
00_31.03.2022
Buratti Meccanica Copyright ©2019
4) Cut the cable ties.
5) Unscrew the safety nuts (13mm wrench)
Table of contents
Other buratti meccanica Bicycle Accessories manuals

buratti meccanica
buratti meccanica Clorofilla User manual

buratti meccanica
buratti meccanica Clorofilla Trail User manual

buratti meccanica
buratti meccanica Clorofilla Spot User manual

buratti meccanica
buratti meccanica Clorofilla SAVANA User manual

buratti meccanica
buratti meccanica Clorofilla SAVANA User manual
