BURG WATCHER TSE 5000 User manual

ELECTRONIC DOOR LOCKING SYSTEMS
TSE 4000 HOME 35
TSE 5000 BUSINESS 36
BUSINESS Accessories 38
TSE Assembly 39

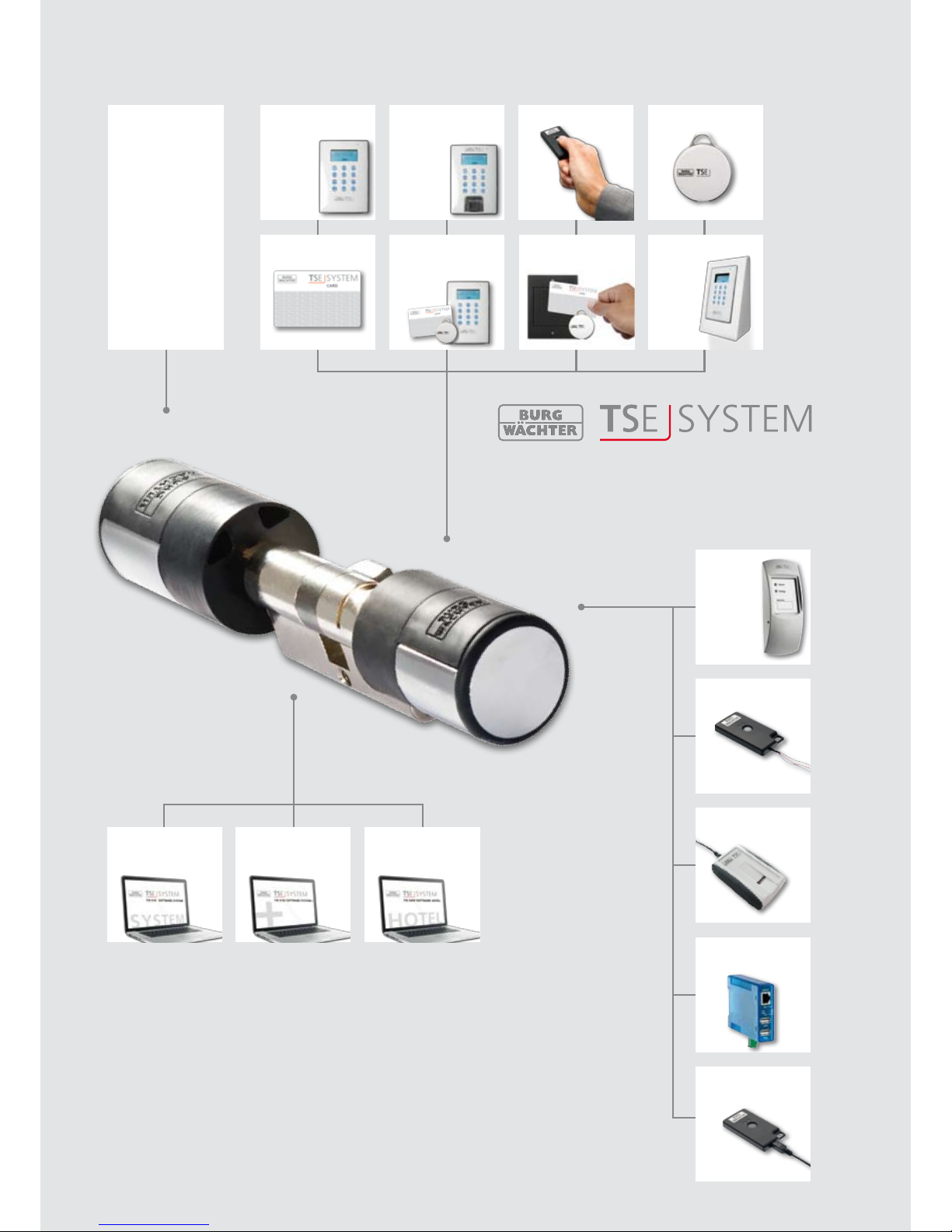

TSE 6000 SYSTEM 40
ALWAYS THE
SAFE CHOICE!
www.burg.biz 33
For more details please contact Burton Safes Ltd, t 01484 663388 f 01484 666338 [email protected] www.burtonsafes.co.uk

34
Range and performance list
Mistakes, changes and further technical
developments reserved.
TSE Keypad protection
against weather, water, dirt
Weatherproof:
with certified protection class IP65 according to EN 60529.
Guaranteed protection against dust and water in every
condition.
Comfortable:
With touch-panel-technology. The user activates the system
by touching one of the buttons. It can be operated in dawn
and darkness thanks to the cool blue lighting.
The TSE
product range
at a glance
TSE Set 4001 HOME TSE Set 5011 PINCODE TSE Set 5012 FINGERSCAN TSE Set 5013 E-KEY
1) Every finger occupies one user memory, for an additional CODE or E-KEY a second user memory will be occupied.
2) Registration via TSE SOFTWARE.
3) Applies to door thickness, where the profile cylinder is not overlapping. For other doors please contact us.
4) Fingerscan data can only be programmed via the keypad FS unit. No transmission via software possible.
5) With an optimally adjusted radio channel.
Possible code combinations 1 Million 1 Million 1 Million –
How many digits is the PINCODE? 6 digits 6 digits 6 digits –
Number of possible users 6 48 48 48
Number of possible PINCODES 1 48 48 –
Number of possible FINGERSCAN – – 241) –
Number of possible E-KEY 5 47 47 472)
Safe AES encryption 4 4 4 4
Menu-controlled user guidance – 4 4 –
Multilingual menu guidance – 44–
Assembly position control unit
Assembly control unit Outdoor area protected IP 65 Outdoor area protected –
from weather from weather
Backset Inward opening door 25 mm3)
Outward opening door 35 mm3)
Keypad fixing position Up to 10 m from door –
Master key function with user administration – Via TSE SOFTWARE (optional)4)
Programming via keypad 4 4 4 –
Software – 44 4
Timer functions – 4 Via TSE SOFTWARE
History trace – 4 Via TSE SOFTWARE
Stored history procedures – Last 600 procedures
Power supply
Keypad 2 x LR06 Alkaline 4 x LR06 Alkaline 4 x LR06 Alkaline –
Cylinder 2 x LR03 Alkaline 2 x LR06 Alkaline 2 x LR06 Alkaline 2 x LR06 Alkaline
E-Key – – – 1 x CR 2032
Possible operations with one set of batteries 5)
Keypad 20.000 32.000 23.000 –
Cylinder 40.000 50.000 60.000 50.000
Standby-time
Keypad 2,5 years 3,5 years 3,5 years –
Cylinder 2,5 years 2,5 years 2,5 years 2,5 years
Battery exchange advice 4 4 4 4
Memory protection without batteries 44 4 4
Mechanical emergency lock – 4 4 4
Profile cylinders for emergency doors, free-wheeling on both sides and/or half-cylinder on demand.
For more details please contact Burton Safes Ltd, t 01484 663388 f 01484 666338 [email protected] www.burtonsafes.co.uk

35
TSE 4000 HOME
TSE Set 4001
PINCODE
Electronic door lock TSE HOME SET 4001 PINCODE
The affordable entry-level solution for one door
Complete set for interior and exterior doors:
Electronic TSE-profile-cylinder communicates wireless with keypad,
incl. batteries, operating and assembly instructions
WIRELESS
• keypad can be fixed up to 10 m from the door
SIMPLE
• no cabling, no drilling, etc.
• electronic TSE-profile-cylinder replaces the mechanical one
• existing fittings remain unchanged
• no drilling - easy to change (s. p. 39)
• keypad assembly only in areas protected from weather
SECURE
• 1 million different codes possible
• up to 6 users can be programmed:
One 6-digit code and up to 5 optional radio keys
TSE E-KEY
• optimum protection against manipulation
• without mechanical emergency lock
COMPATIBLE
• for all doors with a thickness of up to 120 m (60/60)
• for interior and exterior doors
TSE Set 4001 HOME W 54330 6 White
TSE Set 4001 HOME MCR 55040 3 Matt chrome
Art.-No. EAN Colours
40 03482...
Counter TSE HOME
• counter (83453), dimensions 48 x 38 cm,
incl. adapted boards (81942)
• on demand incl. plinth (83454),
plinth: 76 x 42 x 33 cm
For more details please contact Burton Safes Ltd, t 01484 663388 f 01484 666338 [email protected] www.burtonsafes.co.uk

36

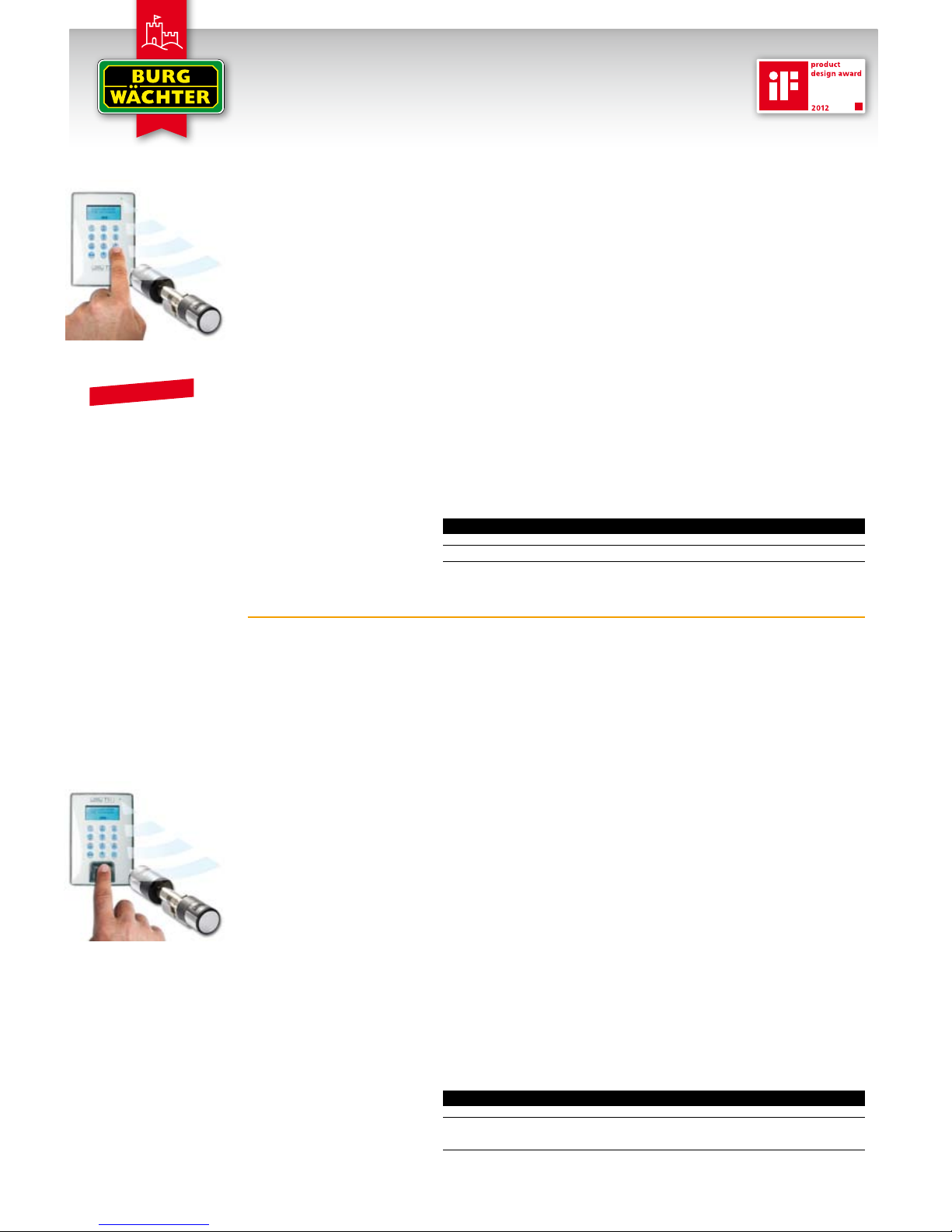

Electronic door lock TSE BUSINESS SET 5011 PINCODE
Complete set for interior and exterior doors: Electronic TSE profile cylinder communicates wireless
with the KEYPAD PINCODE, incl. batteries, operating and assembly instructions
Electronic door lock TSE BUSINESS SET 5012 FINGERSCAN
Complete set for interior and exterior doors: Electronic TSE profile cylinder communicates wireless
with the KEYPAD FINGERSCAN, incl. batteries, operating and assembly instructions
SIMPLE
• no cabling, no drilling, etc.
• electronic TSE profile cylinder replaces the mechanical one
• existing fittings remain unchanged
• no drilling - easy to change (s. p. 39)
• cylinder inside needs to be placed only in areas protected
from weather
PC COMPATIBLE
• our optional TSE software offers several additional functions
such as:
- user management of pincodes or E-Keys
- administration of access time and access rights for pincodes
or E-Keys
- history readout, etc.
SIMPLE
• no cabling, no drilling, etc.
• electronic TSE profile cylinder replaces the mechanical one
• existing fittings remain unchanged
• no drilling - easy to change (s. p. 39)
• cylinder inside needs to be placed only in areas protected
from weather
PC COMPATIBLE
• our optional TSE software offers several additional functions
such as:
- user management of pincodes or E-Keys
- administration of access time and access rights for pincodes
or E-Keys
- history readout, etc.
SECURE
• up to 48 users can be programmed
(incl. 1 admin code)
• 1 million different codes possible
• 6-digit user codes
(optional: radio keys TSE E-KEY)
• optimum protection against manipulation
• incl. mechanical emergency lock (2 keys)
• keypad weatherproof, protection class IP 65
COMPATIBLE
• for all doors with a thickness of up to 120 mm (60/60)
• for interior and front doors
WIRELESS
• keypad can be fixed up to 10 m from the door
• illuminated keypad
• keypad operation via touchpanel
SECURE
• up to 48 users can be programmed
(incl. 1 admin code)
• therefrom up to 24 ngerscans can be programmed
• additional users with a 6-digit PINCODE or optional
TSE E-Key can be programmed
• 1 million different codes possible
• optimum protection against manipulation
• incl. mechanical emergency lock (2 keys)
• keypad assembly only in areas protected from weather
COMPATIBLE
• for all doors with a thickness of up to 120 mm (60/60)
• for interior and front doors
WIRELESS
• keypad can be fixed up to 10 m from the door
• illuminated keypad
• keypad operation via touchpanel
TSE Set 5011 PINCODE 55100 4 with keypad
Art.-No. EAN Description
40 03482...
TSE Set 5012 FINGERSCAN 55110 3 with keypad and
fingerscan
Art.-No. EAN Description
40 03482...
TSE 5000 BUSINESS
TSE Set 5011
PINCODE
TSE Set 5012
FINGERSCAN
Protection class IP 65
For more details please contact Burton Safes Ltd, t 01484 663388 f 01484 666338 [email protected] www.burtonsafes.co.uk

37
TSE Set
5013 E-KEY
Electronic door lock TSE BUSINESS SET 5013 E-KEY
Complete set for interior and exterior doors: Electronic TSE profile cylinder communicates wireless
with the radio key TSE E-KEY, incl. batteries, operating and assembly instructions
SIMPLE
• no cabling, no drilling, etc.
• electronic TSE profile cylinder replaces the mechanical one
• existing fittings remain unchanged
• no drilling - easy to change (s. p. 39)
• cylinder inside needs to be placed only in areas protected
from weather
PC COMPATIBLE
• administration of users, definition of time frame and
authorizations, history reports and other functions possible
with optional software
SECURE
• up to 47 TSE E-KEYS programmable
(via TSE SOFTWARE)
• optional TSE PINCODE / FINGERSCAN keypad
• optimum protection against manipulation
• incl. mechanical emergency lock (2 keys)
COMPATIBLE
• for all doors with a thickness of up to 120 mm (60/60)
• for interior and front doors
WIRELESS
• operation without keypad via TSE E-KEY
TSE Set 5013 E-KEY 55020 5 Unit with 1 TSE E-KEY
Art.-No. EAN Description
40 03482...
TSE 5000 BUSINESS
Profile cylinders for emergency doors, free-wheeling on both sides and/or half-cylinder on demand.
Mistakes, changes and further technical developments reserved.

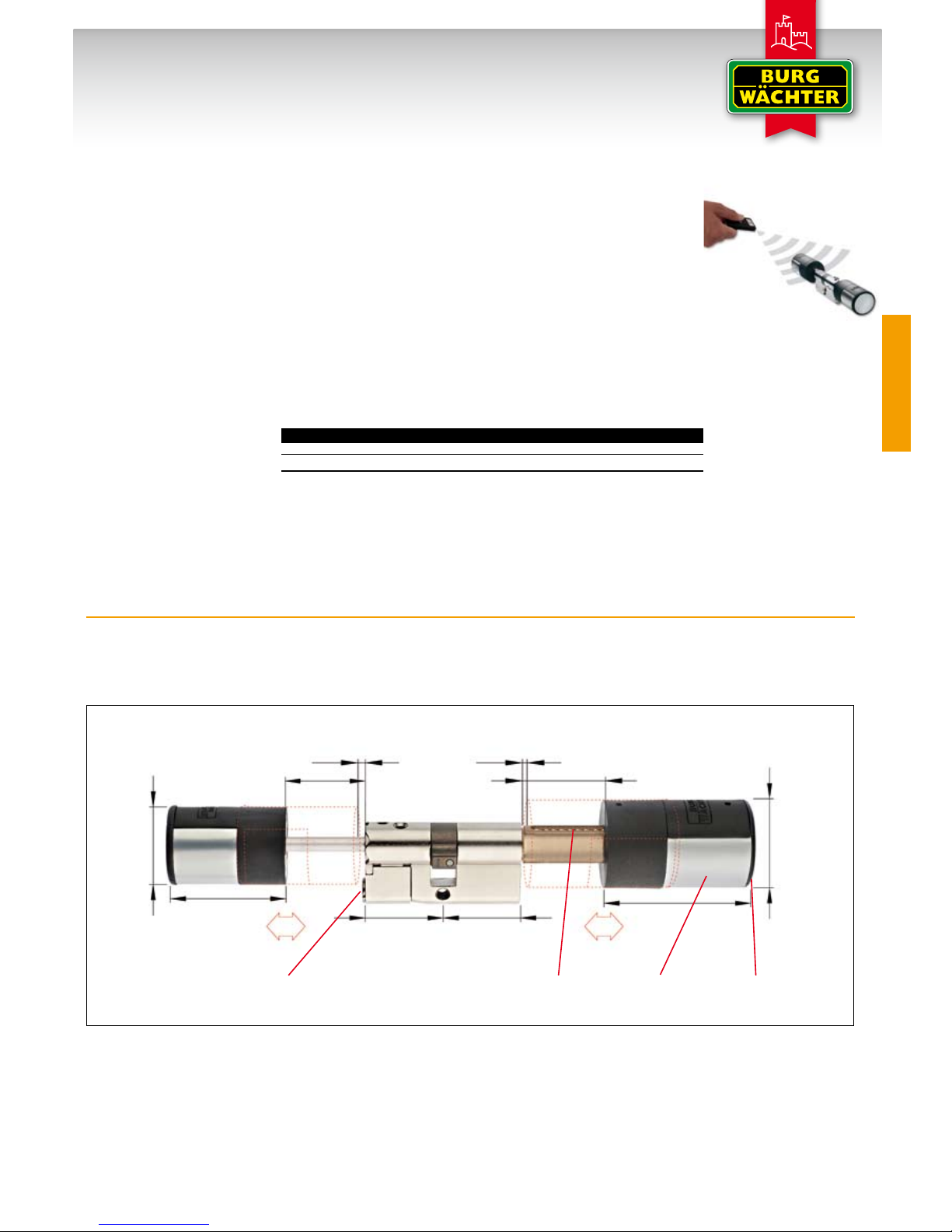

Outer side Inner sideDimensions in mm
1 - 30 mm 1 - 30 mm
Mechanical
emergency lock
Detent system: The cylinder is adjustable to
any door thickness of up to 120 mm (60/60)
Batteries
(2 x LR06)
Function
Control LED
30 30
45 57
Ø 30
Ø 34
For more details please contact Burton Safes Ltd, t 01484 663388 f 01484 666338 [email protected] www.burtonsafes.co.uk

38

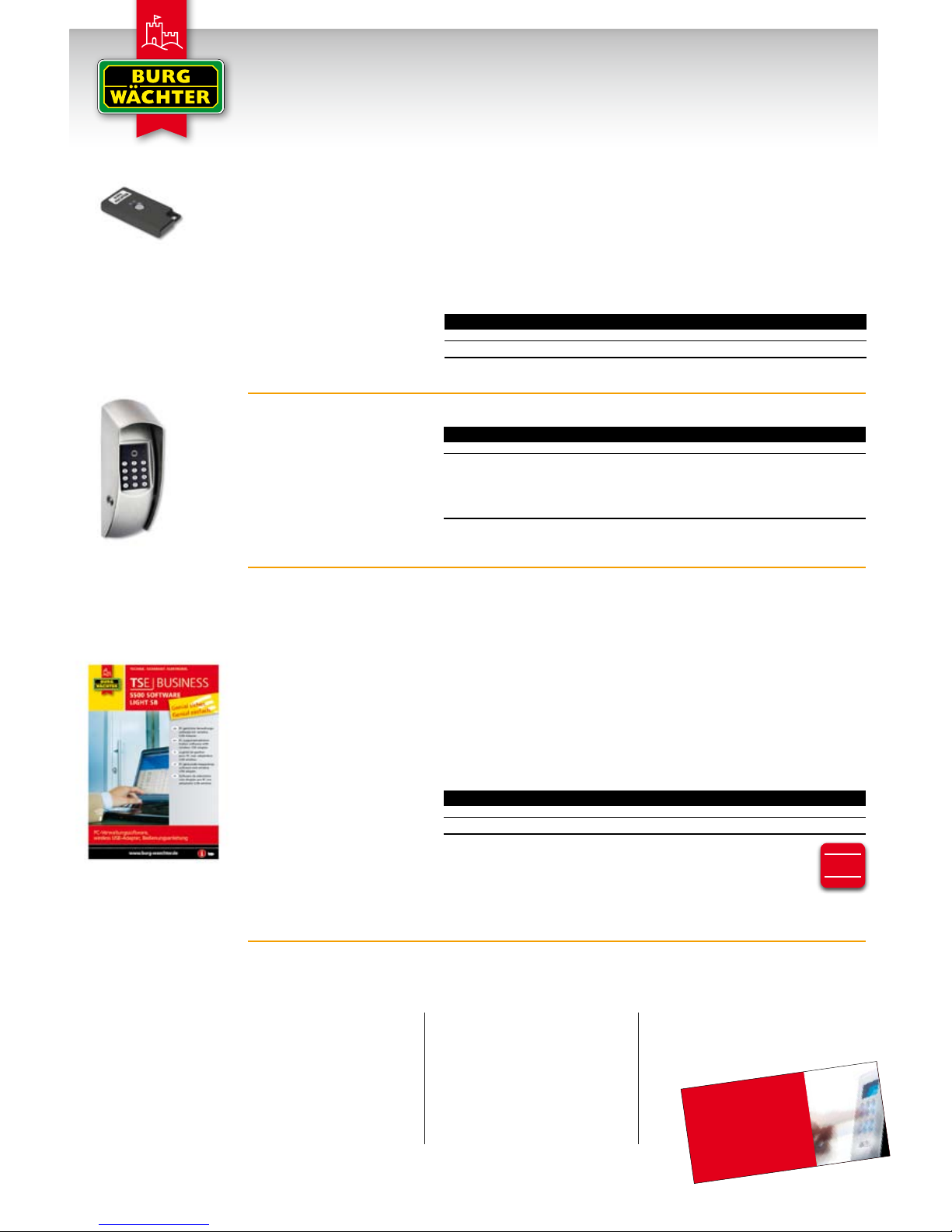

Radio key TSE E-KEY
Electronic radio key - handy and attractive.
• distance between radio key and door lock can be
up to 3 m depending on environmental conditions
• manual mode: TSE Wireless opens at the push of
a button – E-KEY has to be used
• automatic mode (only 5011/5012):
TSE Wireless opens after activating the KEYPAD
– TSE E-KEY does not have to be used
• battery change display, power supply:
standard CR 2032 coin cell
• optimal using via PC software
TSE E-KEY
TSE Stainless steel
cover
TSE Stainless steel cover
Stainless steel cover protects against
humidity, vandalism and code spying.
Can be refitted without any
difficulties.
TSE software for more functionality
Professional and clear administration and configuration of your entire door locking system
• naming of users
• programming of
- Pincodes
- Radio keys (TSE E-KEY)
• administration of access times and access rights
and calendar function
• history readout
• while programming, the distance between PC and
TSE profile cylinder can be up to 25 m
• system requirements Windows XP, Vista or Windows 7 in
a standard configuration, USB-Port
• no permanent radio controlled connection between PC
and TSE necessary
TSE Software
TSE software for the configuration
and administration of entire door
locking systems. For door locking
systems of up to 15 users – extremely
functional and clear.
For TSE BUSINESS:
Compatible functionality upgrading of the TSE SYSTEM range on demand
TSE Control Unit
Electronic control unit for switching
electric devices (garage doors,
light, barriers, elevators, etc.)
via TSE PINCODE, FINGERSCAN
or E-KEY
Additional TSE KEYPADS
• KEYPAD PINCODE for TSE 5011,
5012, 5013, TSE Control
• Fingerscan-KEYPAD FINGERSCAN
for TSE 5011, 5013,TSE Control
as from version 1.9
TSE Software
For the administration of more
than 15 users
TSE 5103 E-KEY SB 55030 4
Artikel EAN
40 03482...
TSE Stainless steel cover EBL SB 54680 2 Available for keypads
from the series
3000 BASIC and
4000 HOME
Artikel EAN Info
40 03482...
TSE 5500 Software LIGHT SB 55310 7 15 8
Art.-No. EAN Users Doors
40 03482... up to up to
Mistakes, changes and further technical developments reserved.
Additional accessories for TSE
TSE Keypad
protection against
weather, water, dirt
For details see p. 34.
NEW
For more details please contact Burton Safes Ltd, t 01484 663388 f 01484 666338 [email protected] www.burtonsafes.co.uk

39
Assembly instructions TSE electronic cylinder
Simple to install –
a few steps to attain electronic security for interior and front doors:
TSE 4000 HOME TSE 5000 BUSINESS
TSE BUSINESS Set 5013 E-KEY:
Open or close the door simply and safely by pushing the button
of your TSE E-KEY or by entering a 6-digit user code into the keypad
of the TSE Keypad PINCODE or FINGERSCAN which are optionally available.
3
Adjust to the door thickness
by integrated detent system.
1
Remove the existing profile cylinder
and replace it by the electronic
TSE-profile-cylinder, which must be
inserted from the outside
2
Screw the electronic
TSE-profile-cylinder on the door
as usual.
TSE HOME Set 4001:
Install the TSE Keypad at an
appropriate place.
The distance between TSE Keypad
and your door can be up to 10 m.
5
4
Fix the knob by using the hex key
enclosed.
3
Adjust to the door thickness
by integrated detent system.
1
Remove the existing profile cylinder
and replace it by the electronic
TSE-profile-cylinder, which must be
inserted from the inside
2
Screw the electronic
TSE-profile-cylinder on the door
as usual.
TSE BUSINESS Set 5011 PINCODE,
Set 5012 FINGERSCAN:
Install the TSE Keypad PINCODE or
FINGERSCAN* at an appropriate place.
The distance between TSE Keypad
PINCODE / FINGERSCAN and your
door can be up to 10 m.
* in areas protected from weather
5
4
Fix the exterior knob by using the
hex key enclosed.
The wireless-technology permits
an easy fitting without drilling,
sawing, wiring, etc.
For more details please contact Burton Safes Ltd, t 01484 663388 f 01484 666338 [email protected] www.burtonsafes.co.uk

ADD-ON
MODULE
TSE 6201
CONTROL
TSE 6202 SWITCH
TSE 6203
ENROLLMENT
TSE 6204
ADAPTER TCP / IP
TSE 6205
NETWORK UNIT
IDENT
TSE 6103 E-KEY
TSE 6112
KEYPAD FS
FINGER-
SCAN
TSE 6111
KEYPAD PIN
PINCODE
TSE 6107 CHIP
TSE 6104 CARD TSE 6115
KEYPAD CARD
TSE POWER
Keypad*
CYLINDER
TSE 6000
CYLINDER
Versions:
TSE 6010
TWIN
TSE 6020
ANTIPANIC
TSE 6030
HALF
SOFTWARE
TSE 6501
SOFTWARE
SYSTEM
TSE 6502
SOFTWARE
SYSTEM +
TSE 6450
SOFTWARE
HOTEL
Trendsetting solutions for
companies, hotels, practices, ...
Security comfort at the highest stage.
TSE SYSTEM is created for all buildings, e.g. headquarters, production facilities,
research institutions, universities, hospitals, retirement homes and a lot more.
A special version for hotels is also available.
Special products for premises or larger building complexes:
We will inform you in detail about the TSE SYSTEM range on demand.
The TSE SYSTEM program.
* PINCODE, FINGERSCAN and CARD versions available in white and stainless steel.
40
TSE 6106
CARD-READER
For more details please contact Burton Safes Ltd, t 01484 663388 f 01484 666338 [email protected] www.burtonsafes.co.uk
