PlusConnect™ GatesAir ZXA
Installation and Operation Manual
PlusConnect™GatesAir ZXA Manual REV B

Copyright © 2015 Burk Technology, Inc.
Table of Contents
Introduction............................................................................................................................................ 1
Compatibility ..........................................................................................................................................2
Transmitter Compatibility...................................................................................................................2
ARC Plus Compatibility .......................................................................................................................2
Unpacking...............................................................................................................................................2
Front Panel Indicators............................................................................................................................. 3
Hardware Configuration ......................................................................................................................... 3
Additional SNMP Parameters.......................................................................................................... 5
Setting the Password ...................................................................................................................... 5
Uploading New Firmware................................................................................................................ 5
Installation..............................................................................................................................................6
Software Configuration ..........................................................................................................................6
Adding the PlusConnect Unit to the ARC Plus Site..............................................................................6
Manually Mapping PlusConnect Parameters....................................................................................... 7
Setting up Labels, Limits and Alarms......................................................................................................8
Creating a PlusConnect Custom View in AutoPilot Plus ..........................................................................8
Operation ...............................................................................................................................................9
Troubleshooting ................................................................................................................................... 10
Connection Errors ............................................................................................................................. 10
Getting Help ......................................................................................................................................... 10
Warranty............................................................................................................................................... 11

PlusConnect™ GatesAir ZXA Installation and Operation Manual
1
Introduction
The PlusConnect™ GatesAir ZX provides a connection between the GatesAir ZXA transmitter series
and the ARC Plus transmitter remote control system. The PlusConnect reads transmitter parameters
using SNMP over an existing LAN, WAN, or Internet connection. The PlusConnect then forwards real-
time data to the ARC Plus, also via LAN, WAN, or Internet. Monitor and control PlusConnect channels
via:
The front panel of the ARC Plus
A web browser, using the built-in web interface on the ARC Plus
Web-enabled mobile device, using the built-in mobile web interface on the ARC Plus
PC, using optional AutoPilot® 2010 or AutoPilot® Plus software
Telephone, using the optional ESI/RSI Speech Interface for the ARC Plus
The PlusConnect is part of the Plus-X family of Ethernet I/O products designed for the ARC Plus.
Important! The PlusConnect operates in conjunction with an ARC Plus system. Be sure to complete
configuration of the ARC Plus before adding the PlusConnect to the system.
Installation Note
Even though you may operate the ARC Plus and PlusConnect on different subnets, Burk Technology
strongly recommends installing the PlusConnect on the same LAN as the ARC Plus. In a network failure,
an ARC Plus can only continue to monitor and control a PlusConnect on the same LAN. If the network
link between the units is not available, ARC Plus macros, alarm monitoring and telephone control will
be unavailable for the PlusConnect unit.

PlusConnect™ GatesAir ZXA Installation and Operation Manual
2
Compatibility
Transmitter Compatibility
The PlusConnect GatesAir ZXA is compatible with the GatesAir ZXA Transmitter models (20RU) ZX500,
ZX1000, ZX2000 and ZX3500. New models (ZX2500, ZX3250, ZX5000, ZX7.5 AND ZX10 are covered in
a separate manual, PlusConnect GatesAir ZXB.
Transmitter models, firmware versions and options are subject to change. Visit www.burk.com for current
information.
ARC Plus Compatibility
Before installing the PlusConnect, please verify that the ARC Plus firmware, AutoPilot software and
AutoLoad Plus software versions are current. Updates are available at www.burk.com. The following
are minimum software and firmware requirements
Software
Version
ARC Plus firmware
2.1.0
AutoLoad Plus software
2.0.0
AutoPilot Plus software
2.0.0
AutoPilot 2010 software
2.5.0
Unpacking
The PlusConnect GatesAir ZXA ships with the following:
Manual
PlusConnect unit
Power cord
10’ shielded CAT5 cable

PlusConnect™ GatesAir ZXA Installation and Operation Manual
3
Front Panel Indicators
Front panel of the PlusConnect unit
Indicator
State
Description
Power LED
On
Power is on
Power LED
Off
Power is off
Link LED
On (solid)
ARC Plus and transmitter connections are good
Link LED
Blinking
Transmitter connection is down
Link LED
Off
ARC Plus connection is down
Hardware Configuration
This step will link the PlusConnect to a specific ARC Plus unit and will identify the transmitter to which
the unit will be connected.
Important! This procedure will reset the PlusConnect to its default IP address: 192.168.0.100.
1. Connect your PC and the PlusConnect to the same LAN.
2. Assign your PC the IP address 192.168.0.1, with the subnet mask 255.255.255.0
3. Use a paper clip or similar small object to press the Config button on the PlusConnect unit. The
power LED will blink when the unit is in configuration mode.
4. Open a telnet session to the PlusConnect at the address 192.168.0.100 (port 23). Using
Windows, you can launch telnet by typing “telnet 192.168.0.100” from a command prompt.
(If Telnet is not available, go to Control Panel/Programs and Features/Turn Windows Features
On or Off and turn on Telnet Client.)
5. When prompted, enter the default password for the PlusConnect: password.
Burk Technology
PlusConnect Harris ZX16 v1.0.6
Password:
6. Telnet will display the main menu.

PlusConnect™ GatesAir ZXA Installation and Operation Manual
4
To change a setting, enter the menu number for that setting and the press <Enter>.

PlusConnect™ GatesAir ZXA Installation and Operation Manual
5
7. Enter the appropriate configuration settings for the following parameters:
#
Setting
Description
3
IP Address
The IP address you want to assign to the PlusConnect unit
4
Subnet
The subnet mask for your LAN
5
Gateway
The gateway for your LAN
7
Transmitter IP Address
The IP address of your GatesAir ZXA series transmitter
8
Transmitter SNMP Port
Normally 161
9
SNMP Read Community
String
Normally public
10
SNMP Write Community
String
Normally private
11
SNMP Polling Rate
The rate at which new samples are requested
12
SNMP Timeout
Length of time the PlusConnect will wait for response
13
ARC Plus IP Address
The IP address of your ARC Plus unit
14
ARC Plus Plus-X Port
The Plus-X port number configured on your ARC Plus (typically
45000)
15
SNMP Security Code
The security code used for SNMP commands. See your
transmitter documentation for more information.
8. Enter 99 and press <Enter> to save your changes and reboot the PlusConnect.
Additional SNMP Parameters
The main menu allows configuration of additional parameters beyond those described in the table
above. The default values for these entries are appropriate for most installations. If you have made
specific changes to the SNMP functionality of your transmitter, you should change the corresponding
parameters using the PlusConnect telnet configuration tool.
Setting the Password
Changing your password is strongly recommended. The PlusConnect password is used to access the
telnet configuration menu. To change the password, use option #16: Set Password.
Uploading New Firmware
To upload new firmware to the PlusConnect, use option #18: Upload Firmware. When prompted to
start the firmware upload, enter “Y” for yes. The system will respond with the following message:
To load firmware run:
tftp [IP Address] put [firmware.hex]
Open a command prompt in Windows and type the specified command, replacing [IP Address] with the
IP address of your PlusConnect unit, and [firmware.hex] with the file name of the new firmware file.
Once the TFTP process is complete, your unit will reboot and run the new firmware. You can confirm
the upload was successful by opening a telnet session and observing the firmware version from the log
on prompt.

PlusConnect™ GatesAir ZXA Installation and Operation Manual
6
For the latest firmware updates, visit www.burk.com.
Installation
After entering the configuration settings, you are ready to install the PlusConnect in its permanent
location. Simply connect the PlusConnect unit to your LAN and power it on. The PlusConnect will
automatically begin reading data from the transmitter.
Software Configuration
Now that the PlusConnect is installed on the network and connected to the transmitter, you are ready
to add the PlusConnect to the ARC Plus using AutoLoad Plus. AutoLoad Plus is included with the ARC
Plus, and may also be downloaded from www.burk.com.
Configuration involves:
Adding the PlusConnect unit to the ARC Plus site
Mapping PlusConnect parameters to unused ARC Plus channels
Adding the PlusConnect Unit to the ARC Plus Site
Adding a Plus-X device in AutoLoad Plus
In order for the ARC Plus to recognize the PlusConnect, the PlusConnect must be added to the site:
1. Open AutoLoad Plus and connect to the ARC Plus site to which you are adding the
PlusConnect.
2. From the Edit menu, select Plus-X Devices to open the Plus-X device configuration dialog.
3. Click New… to add the PlusConnect to the site.

PlusConnect™ GatesAir ZXA Installation and Operation Manual
7
4. AutoLoad Plus will prompt you to select the device type. Select “PlusConnect GatesAir ZXA”.
You may optionally change the description for the PlusConnect. The description appears in
AutoLoad Plus to identify each PlusConnect channel.
5. Enter the IP address and port number of the PlusConnect. These should be the same settings
you used when you configured the PlusConnect using telnet.
6. Check the Map default set of channels box if you wish to automatically add the most
commonly used PlusConnect parameters to the ARC Plus (recommended). There must be 24
consecutive unused channels, including this starting channel. You do not need to have
additional Integrated Input Units and Integrated Command Relay Units in order to use these
channels.
Important! PlusConnect channels take the place of normal I/O channels. If a metering input,
status input, or command relay is connected to an ARC Plus channel and a PlusConnect
parameter is subsequently mapped to that channel, the I/O channel will no longer be
displayed.
7. Click OK.
Manually Mapping PlusConnect Parameters

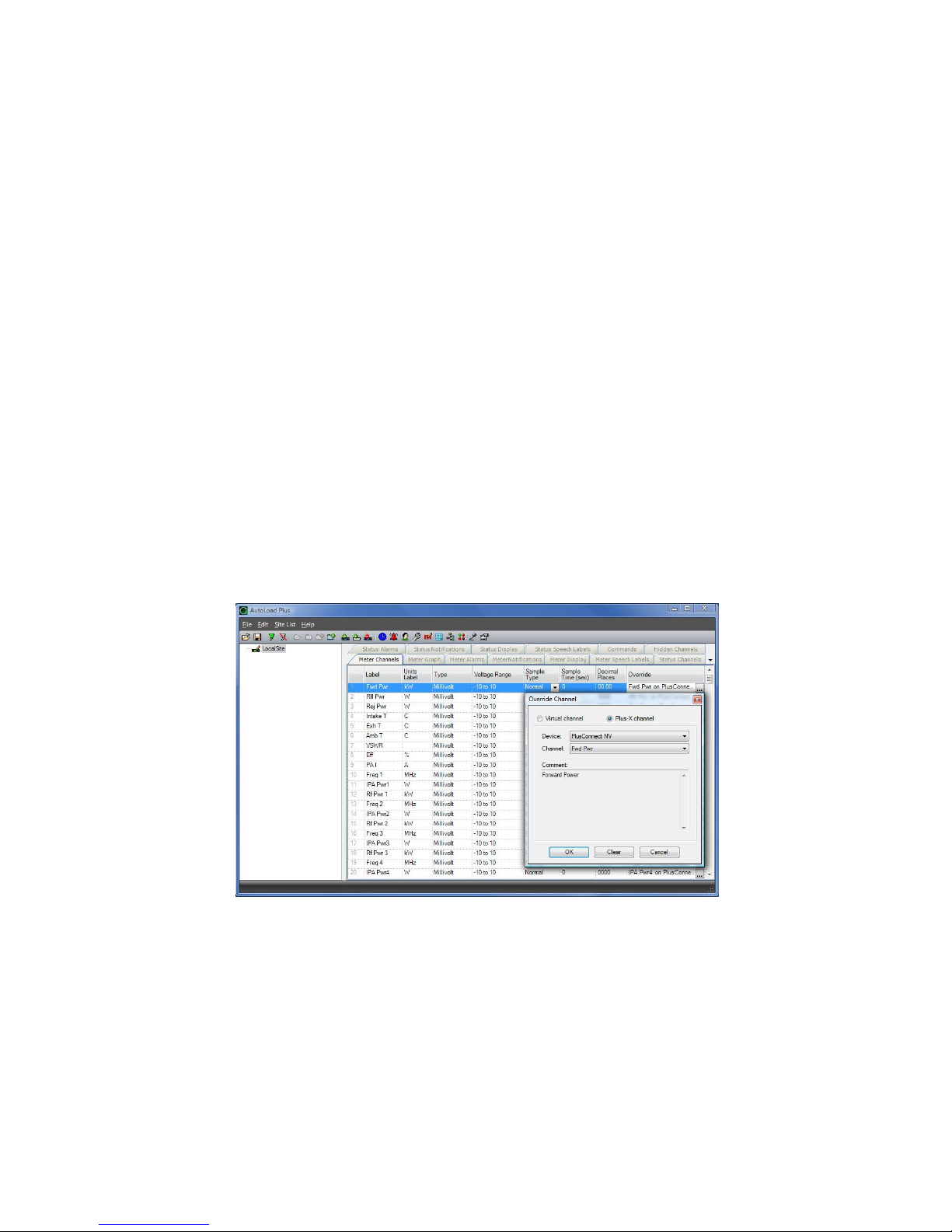

Overriding channels in AutoLoad Plus
Even if you chose to map the default set of channels when you added the PlusConnect to the site, you
may wish to map additional channels to the ARC Plus. The PlusConnect GatesAir ZX transmitter
provides access to many remote control parameters, all of which are selectable for display on the ARC
Plus (provided there is sufficient unused channel capacity).

PlusConnect™ GatesAir ZXA Installation and Operation Manual
8
Mapping additional channels is accomplished in AutoLoad Plus by selecting the Meter Channels,
Status Channels or Commands tab, as appropriate:
1. Within any of these tabs, click the Override button to change a channel’s assignment from a
traditional I/O channel to a Plus-X channel.
2. When the Override Channel dialog appears, select Plus-X channel and choose the Plus-X
device from the list.
3. Select the PlusConnect channel you wish to use in place of this I/O channel.
4. Click OK.
Once mapped, the PlusConnect channel will appear on the front panel of the ARC Plus, in AutoPilot, on
the ARC Plus web page, and will be accessible via the ESI/RSI.
Setting up Labels, Limits and Alarms
Labels, limits and alarms for PlusConnect parameters are set up in AutoLoad Plus. The process is the
same as for limits and alarms of other ARC Plus channels. Refer to the ARC Plus manual for information
on channel configuration.
Important! Because operation preferences vary so widely, no alarms are pre-configured within the
PlusConnect channels. You must use AutoLoad Plus to set up alarms for the PlusConnect channels.
Creating a PlusConnect Custom View in AutoPilot Plus

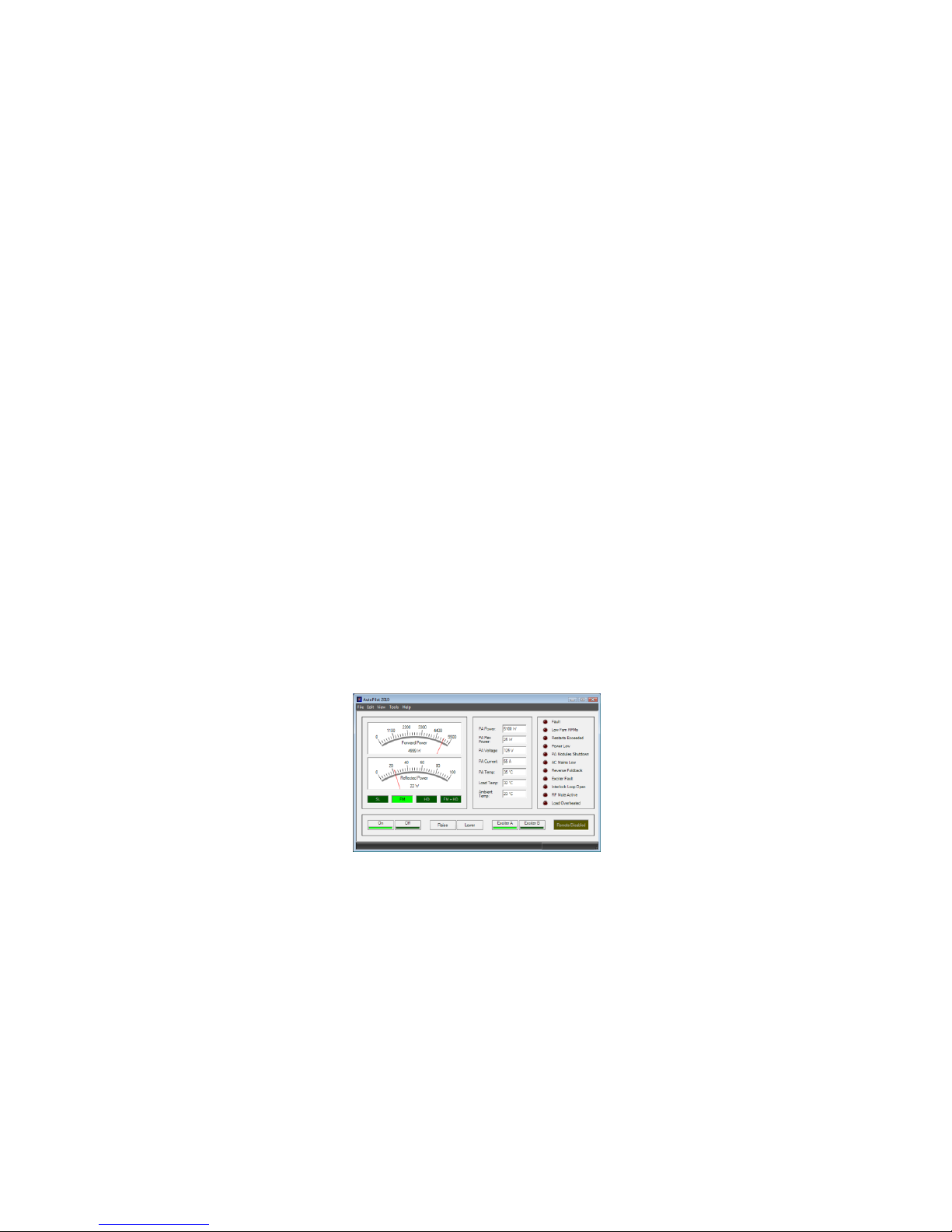

PlusConnect Custom View for the GatesAir ZXA
The easiest way to monitor your PlusConnect parameters is by creating a Custom View in AutoPilot
using a pre-built template specific to your transmitter model. In order to use templates, you must map
the default set of channels to the ARC Plus during setup. If you have mapped a custom set of channels,
you can still use a Custom View to display them, but the template will not function as intended.

PlusConnect™ GatesAir ZXA Installation and Operation Manual
9
To create a custom view with a PlusConnect template:
1. Open the Custom View Editor by selecting File New 
Custom View.
2. When the Custom View Editor opens, select File New
From Template… This opens the Load Template dialog.
3. Browse for the desired template. The default location for
templates is %ProgramFiles%\Burk Technology\AutoPilot
2010\Templates\Custom Views. Choose the PlusConnect
folder, followed by GatesAir ZX Series.
4. Select template for the PlusConnect GatesAir ZX.
5. Select the Network and Site for the Arc Plus connected to the PlusConnect.
6. Enter the Starting channel for the PlusConnect parameters. This starting channel must be the
same as the starting channel you used when adding the PlusConnect to the ARC Plus site.
7. Press OK. AutoPilot will load the template in the editor and automatically populate the
channels.
8. Save the Custom View using the Save icon in the tool bar.
9. Close the editor. You may then select the Custom View for display in AutoPilot.
Operation
Once the PlusConnect parameters are mapped to ARC Plus channels using AutoLoad Plus, accessing
the transmitter parameters is no different from any other ARC Plus channel. You may view channels
using:
The front panel of the ARC Plus
The front panel of any ARC Plus configured for site-to-site operation with this site
The built-in web interface
A mobile device, via the built-in mobile web interface
AutoPilot
The ESI/RSI
For more information on using the ARC Plus to monitor and control the remote site, please see the ARC
Plus Installation and Operation Manual.
Note that the PlusConnect channels are routed only through the ARC Plus unit specified during
PlusConnect configuration. In order to access the transmitter by any means, the ARC Plus unit must be
powered and connected to the network.
Load Template dialog

PlusConnect™ GatesAir ZXA Installation and Operation Manual
10
Troubleshooting
Connection Errors
If the PlusConnect is unable to communicate with the transmitter using SNMP, the Link LED on the
front panel of the PlusConnect will blink. Check that both the PlusConnect and transmitter are
connected to the network and configured properly.
If the network connection between the PlusConnect and ARC Plus is lost, the ARC Plus will log an alarm
after three minutes of network failure. The PlusConnect Link LED will also turn off.
Note: PlusConnect events and errors are logged to the ARC Plus event list, which is accessible by the
ARC Plus front panel and from AutoPilot.
Getting Help
For customer support, please email [e-mail] or call our direct customer support line at 978-
486-3711. We will be glad to assist you. The customer support office is open Monday –Friday, 9AM to
5PM Eastern Time.

PlusConnect™ GatesAir ZXA Installation and Operation Manual
11
Warranty
Burk Technology, Inc. warrants the PlusConnect GatesAir ZXA to be free of defects in materials and
workmanship for a period of 24 months from the date of purchase. Equipment will be repaired or
replaced at the option of Burk Technology and returned freight prepaid to the customer. Damage due
to abuse or improper operation or installation of the equipment or caused by fire or flood or harsh
environment is not to be covered by this warranty. Damage in shipping is not the responsibility of Burk
Technology. A return authorization must be obtained before returning any equipment. Materials
returned under this warranty must be shipped freight prepaid and insured in the original shipping
carton or suitable substitute to Burk Technology, Inc., 7 Beaver Brook Road, Littleton, MA 01460.
Repairs not covered under this warranty will be made at prevailing shop rates established by Burk
Technology.
THE WARRANTY SET FORTH ABOVE IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. BURK TECHNOLOGY, INC. SHALL NOT BE LIABLE TO ANY
PARTY FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING FROM
THE USE OF THIS EQUIPMENT.
