1 About this document
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
1 About this document
1.1 Function
This instruction provides all the information you need for mounting,
connection and setup as well as important instructions for mainte-
nance,faultrectication,theexchangeofpartsandthesafetyofthe
user. Please read this information before putting the instrument into
operation and keep this manual accessible in the immediate vicinity
of the device.
1.2 Target group
This operating instructions manual is directed to trained personnel.
Thecontentsofthismanualmustbemadeavailabletothequalied
personnel and implemented.
1.3 Symbols used
Information, note, tip: This symbol indicates helpful additional infor-
mation and tips for successful work.
Note: This symbol indicates notes to prevent failures, malfunctions,
damage to devices or plants.
Caution: Non-observance of the information marked with this symbol
may result in personal injury.
Warning: Non-observance of the information marked with this symbol
may result in serious or fatal personal injury.
Danger: Non-observance of the information marked with this symbol
results in serious or fatal personal injury.
Ex applications
ThissymbolindicatesspecialinstructionsforExapplications.
• List
The dot set in front indicates a list with no implied sequence.
1 Sequence of actions
Numbers set in front indicate successive steps in a procedure.
Battery disposal
This symbol indicates special information about the disposal of bat-
teries and accumulators.

4
2 For your safety
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
2 For your safety
2.1 Authorised personnel
All operations described in this documentation must be carried out
onlybytrained,qualiedpersonnelauthorisedbytheplantoperator.
During work on and with the device, the required personal protective
equipment must always be worn.
2.2 Appropriate use
The LEVEL SWITCH 8110 is a sensor for point level detection.
Youcannddetailedinformationabouttheareaofapplicationin
chapter " Product description".
Operational reliability is ensured only if the instrument is properly
usedaccordingtothespecicationsintheoperatinginstructions
manual as well as possible supplementary instructions.
For safety and warranty reasons, any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbi-
traryconversionsormodicationsareexplicitlyforbidden.
2.3 Warning about incorrect use
Inappropriate or incorrect use of this product can give rise to applica-
tion-specichazards,e.g.vesseloverllthroughincorrectmounting
or adjustment. Damage to property and persons or environmental
contamination can result. Also, the protective characteristics of the
instrument can be impaired.
2.4 General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and directives.The instrument must only be operated in a
technicallyawlessandreliablecondition.Theoperatorisresponsi-
ble for the trouble-free operation of the instrument.When measuring
aggressive or corrosive media that can cause a dangerous situation
if the instrument malfunctions, the operator has to implement suitable
measures to make sure the instrument is functioning properly.
The safety instructions in this operating instructions manual, the na-
tional installation standards as well as the valid safety regulations and
accident prevention rules must be observed by the user.
For safety and warranty reasons, any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbi-
traryconversionsormodicationsareexplicitlyforbidden.Forsafety
reasons,onlytheaccessoryspeciedbythemanufacturermustbe
used.
To avoid any danger, the safety approval markings and safety tips on
the device must also be observed.

5
2 For your safety
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
2.5 Safety label on the instrument
The safety approval markings and safety tips on the device must be
observed.
2.6 EU conformity
ThedevicefullsthelegalrequirementsoftheapplicableEUdirec-
tives.ByaxingtheCEmarking,weconrmtheconformityofthe
instrument with these directives.
The EU conformity declaration can be found on our homepage.
2.7 Installation and operation in the USA and
Canada
This information is only valid for USA and Canada. Hence the follow-
ingtextisonlyavailableintheEnglishlanguage.
Installations in the US shall comply with the relevant requirements of
the National Electrical Code (ANSI/NFPA 70).
Installations in Canada shall comply with the relevant requirements of
the Canadian Electrical Code.

6
3 Product description
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
3 Product description
3.1 Conguration
The scope of delivery encompasses:
• LEVEL SWITCH 8110 point level switch
• Test magnet
• Documentation
– This operating instructions manual
– Ifnecessary,certicates
The LEVEL SWITCH 8110 consists of the components:
• Housing with electronics
• Processttingwithtuningfork

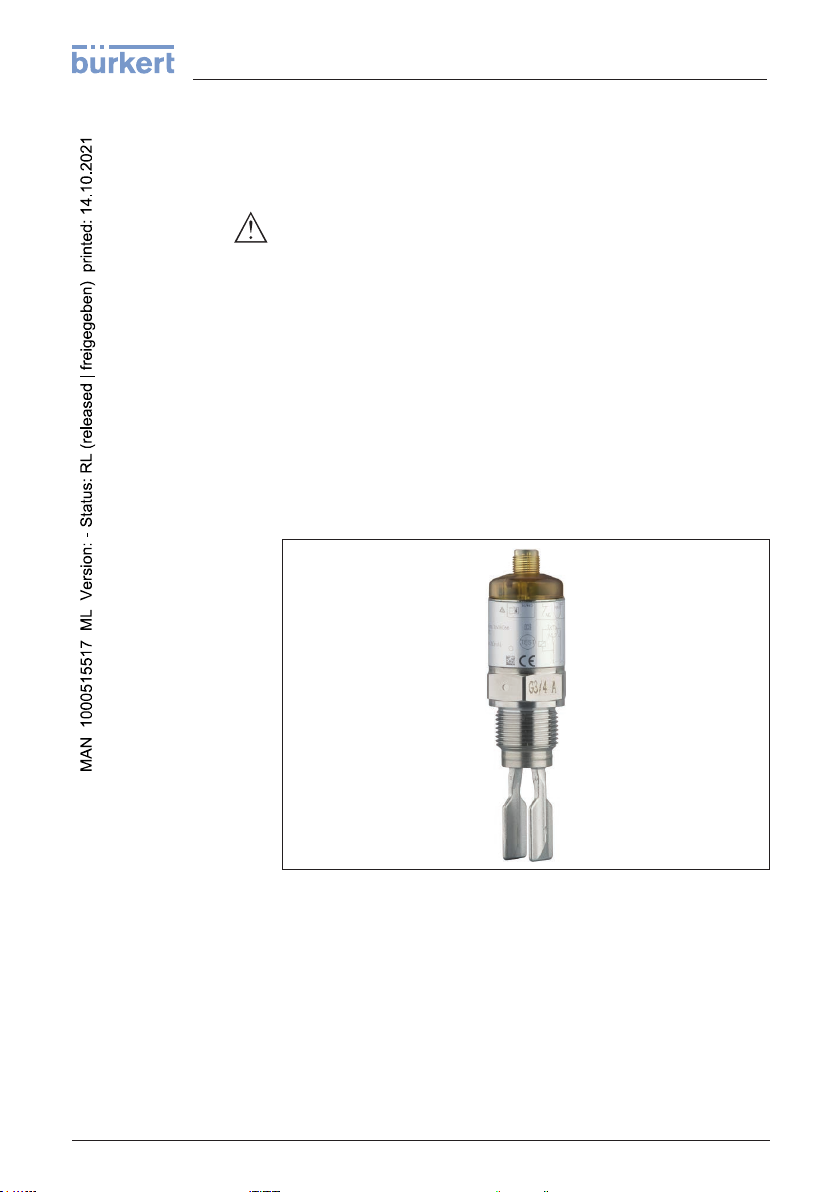

Fig. 1: LEVEL SWITCH 8110
Thetypelabelcontainsthemostimportantdataforidenticationand
use of the instrument:
• Article number
• Serial number
• Technical data
3.2 Principle of operation
LEVEL SWITCH 8110 is a point level sensor with tuning fork for point
level detection.
It is designed for industrial use in all areas of process technology and
can be used in liquids.
Typicalapplicationsareoverllanddryrunprotection.Withatuning
fork of only 38 mm length, LEVEL SWITCH 8110 can be also mount-
ed e.g. in pipelines from DN 25. The small tuning fork allows use in
vessels, tanks and pipes.Thanks to its simple and robust measuring
Scope of delivery
Constituent parts
Type label
Application area

7
3 Product description
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
system,LEVELSWITCH8110isvirtuallyunaectedbythechemical
and physical properties of the liquid.
Itfunctionsevenunderdicultconditionssuchasturbulence,airbub-
bles,foamgeneration,buildup,strongexternalvibrationorchanging
products.
Function monitoring
The electronics module of LEVEL SWITCH 8110 continuously moni-
tors the following criteria via frequency evaluation:
• Strong corrosion or damage on the tuning fork
• Loss of vibration
• Linebreaktothepiezodrive
If a malfunction is detected or in case of voltage supply, the electron-
icstakesonadenedswitchingstatus,i.e.theoutputisopen(safe
state).
Thetuningforkispiezoelectricallyenergisedandvibratesatitsme-
chanicalresonancefrequencyofapprox.1100Hz.Whenthetuning
fork is submerged in the product, the frequency changes.This change
is detected by the integrated electronics module and converted into a
switching command.
LEVEL SWITCH 8110 is a compact instrument, i.e. it can be oper-
atedwithoutexternalevaluationsystem.Theintegratedelectronics
evaluates the level signal and outputs a switching signal.With this
switching signal, a connected device can be operated directly (e.g. a
warning system, a pump etc.).
Thedataforpowersupplyarespeciedinchapter"Technical data".
3.3 Adjustment
The switching status of LEVEL SWITCH 8110 can be checked when
the housing is closed (signal lamp). Products with a density > 0.7 g/
cm³ (0.025 lbs/in³) or ordered optionally with a density > 0.5 g/cm³
(0.018 lbs/in³) can be detected.
3.4 Packaging, transport and storage
Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
based on ISO 4180.
The packaging of standard instruments consists of environment-
friendly, recyclable cardboard. For special versions, PE foam or PE
foil is also used. Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out in due consideration of the notes on the
transport packaging. Nonobservance of these instructions can cause
damage to the device.
Functional principle
Voltage supply
Packaging
Transport

8
3 Product description
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
The delivery must be checked for completeness and possible transit
damage immediately at receipt. Ascertained transit damage or con-
cealed defects must be appropriately dealt with.
Up to the time of installation, the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated, the packages must be stored only under
the following conditions:
• Not in the open
• Dry and dust free
• Notexposedtocorrosivemedia
• Protected against solar radiation
• Avoiding mechanical shock and vibration
• Storage and transport temperature see chapter " Supplement -
Technical data - Ambient conditions"
• Relative humidity 20 … 85 %
Transport inspection
Storage
Storage and transport
temperature

9
4 Mounting
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
4 Mounting
4.1 General instructions
Note:
For safety reasons, the instrument must only be operated within the
permissibleprocessconditions.Youcannddetailedinformationon
the process conditions in chapter " Technical data" of the operating
instructions or on the type label.
Hencemakesurebeforemountingthatallpartsoftheinstrumentex-
posedtotheprocessaresuitablefortheexistingprocessconditions.
These are mainly:
• Active measuring component
• Processtting
• Process seal
Process conditions in particular are:
• Process pressure
• Process temperature
• Chemical properties of the medium
• Abrasionandmechanicalinuences
Theinstrumentissuitableforstandardandextendedambientcondi-
tions acc. to DIN/EN/IEC/ANSI/ISA/UL/CSA 61010-1. It can be used
indoors as well as outdoors.
In general, LEVEL SWITCH 8110 can be installed in any position.The
instrument only has to be mounted in such a way that the tuning fork
is at the height of the desired switching point.
Keep in mind that the swichting point can vary dependent on the
installation position.
The switching point refers to the medium water (1 g/cm³/0.036 lbs/
in³). Please keep in mind that the switching point of the instrument
shiftswhenthemediumhasadensitydieringfromwater.
Process conditions
Suitability for the ambient
conditions
Switching point

10
4 Mounting
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
2
3
1
11 mm
(0.43")
29 mm
(1.14")
Fig. 2: Vertical mounting
1 Switching point in water
2 Switching point with lower density
3 Switching point with higher density
2
1
Fig. 3: Horizontal mounting
1 Switching point
2 Switching point (recommended mounting position, particularly for adhesive
products)
Fig. 4: Measures against moisture ingress
Moisture

11
4 Mounting
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
Do not hold LEVEL SWITCH 8110 on the tuning fork.
Theprocessttingmustbesealedifthereisgaugeorlowpressure
in the vessel. Before use, check if the sealing material is resistant
against the measured product and the process temperature.
Themax.permissiblepressureisspeciedinchapter"Technical
data" or on the type label of the sensor.
The vibrating level switch is a measuring instrument and must be
treated accordingly. Bending the vibrating element will destroy the
instrument.
Warning:
The housing must not be used to screw the instrument in! Applying
tightening force can damage internal parts of the housing.
Usethehexagonabovethethreadforscrewingin.
4.2 Mounting instructions
For threaded versions of LEVEL SWITCH 8110 in combination with a
mounting boss with O-ring in front and welding marking.
LEVELSWITCH8110withthreadsizes¾"and1"haveadened
thread.This means that every LEVEL SWITCH 8110 is in the same
positionafterbeingscrewedin.Removethereforethesuppliedat
sealfromthethreadofLEVELSWITCH8110.Thisatsealisnot
requiredwhenusingaweldedsocketwithfront-ushseal.
Before welding, unscrew LEVEL SWITCH 8110 and remove the rub-
ber ring from the welded socket.
Theweldedsocketisprovidedwithamarking(notch).Forhorizontal
mounting, weld the socket with the notch facing upward or downward;
inpipelines(DN25toDN50)alignedwiththedirectionofow.
1
Fig. 5: Marking on the welded socket
1 Marking
Incaseofhorizontalmountinginadhesiveandviscousproducts,
the surfaces of the tuning fork should be vertical in order to reduce
buildup on the tuning fork.The position of the tuning fork is indicated
byamarkingonthehexagonofLEVELSWITCH8110.Withthis,
you can check the position of the tuning fork when screwing it in.
Whenthehexagontouchestheseal,thethreadcanstillbeturnedby
Transport
Pressure/Vacuum
Handling
Welded socket
Adhesive products

12
4 Mounting
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
approx.halfaturn.Thisissucienttoreachtherecommendedinstal-
lation position.
In adhesive and viscous products, the surfaces of the tuning fork
shouldprotrudeintothevesseltoavoidbuildup.Thereforenozzlesfor
angesandmountingsbossesshouldnotexceedacertainlength.
30 mm
(1.18")
Fig. 6: Adhesive products
IfLEVELSWITCH8110ismountedinthellingstream,unwanted
false measurement signals can be generated. For this reason, mount
LEVEL SWITCH 8110 at a position in the vessel where no disturbanc-
es,e.g.fromllingopenings,agitators,etc.,canoccur.
To make sure the tuning fork of LEVEL SWITCH 8110 generates as
littleresistanceaspossibletoproductow,mountthesensorsothat
the surfaces are parallel to the product movement.
Inowingmedium
Productow

13
5 Connecting to power supply
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
5 Connecting to power supply
5.1 Preparing the connection
Always keep in mind the following safety instructions:
Warning:
Connect only in the complete absence of line voltage.
• The electrical connection must only be carried out by trained,
qualiedpersonnelauthorisedbytheplantoperator.
• Alwaysswitchopowersupply,beforeconnectingordisconnect-
ing the instrument.
The instrument is connected with standard three-wire cable without
shielding.Ifelectromagneticinterferenceisexpectedwhichisabove
the test values of EN 61326 for industrial areas, shielded cable should
be used.
Make sure that the cable used has the required temperature resist-
anceandresafetyformax.occurringambienttemperature
5.2 Wiring plan
Fig. 7: Connection variant - M12 x 1 plug
M12 x 1 plug connection
This plug connection requires a prefabricated cable with plug. De-
pending on the version, protection IP66/IP67 or IP68 (0.2 bar).
For connection to binary inputs of a PLC.
For power supply, use an energy-limited circuit according to
EN 61010.
Note safety instructions
Connection cable
Housing overview
Plug versions
IO-Link

14
5 Connecting to power supply
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
LLC/Q1 LL
R
L
1
4
2
3
1
4
2
3
-
Max. Min.
-
++
Q2

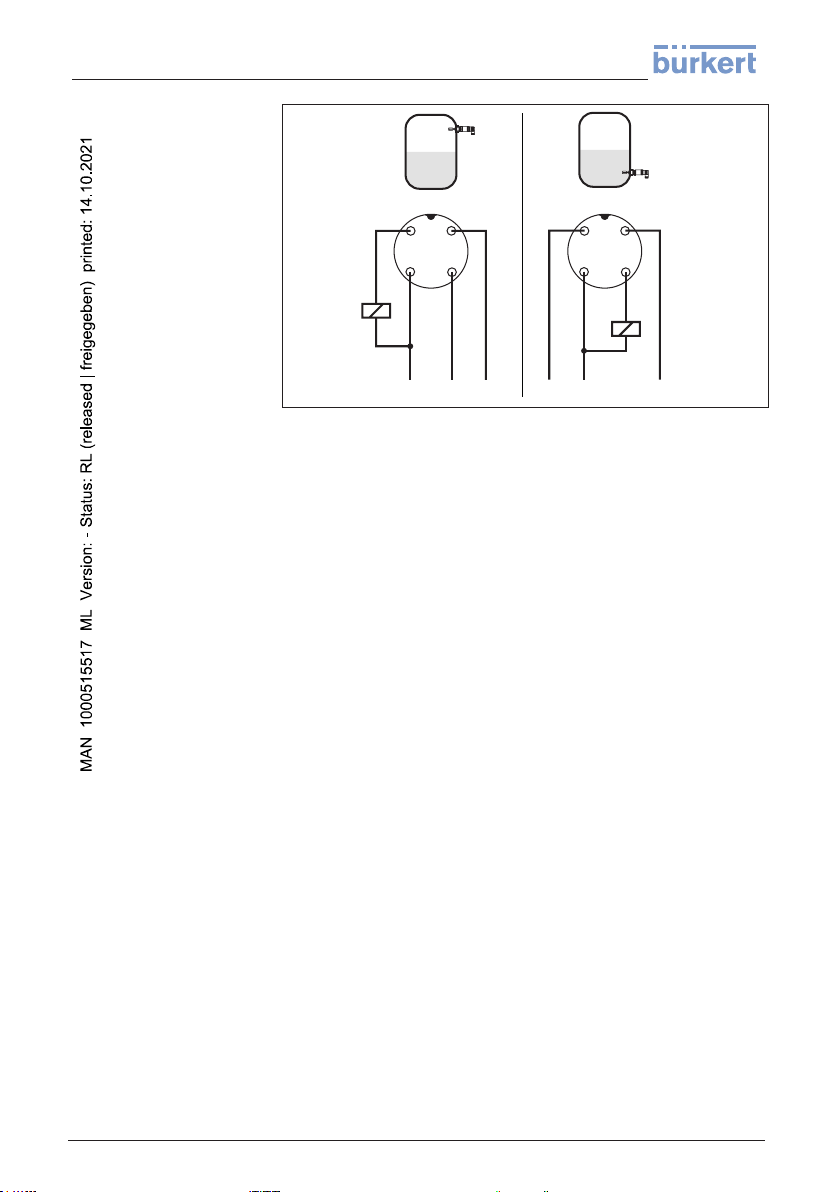

Fig. 8: Wiring plan (housing), terminal assignment IO-link output with M12 x 1
plug connection
1 L+ Voltage supply (brown)
2 Max. level detection (white)
3 L- Voltage supply (blue)
4 Min. level detection/IO-Link communication (black)
RLLoad resistance (contactor, relay, etc.)

15
6 Setup
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
6 Setup
6.1 Indication of the switching status
The switching status of the electronics can be checked via the signal
lamps (LEDs) integrated in the upper part of the housing.
The signal lamps have the following meaning:
• Green lights - voltage supply connected
• Yellow lights - vibrating element covered
• Redlightsbriey-functiontestduringinstrumentstart(for0.5s)
• Red lights - shortcircuit or overload in the load circuit (sensor
output high-impedance)
• Redashes-Erroronthevibratingelementortheelectronics
(sensor output high impedance)
6.2 Simulation
The LEVEL SWITCH 8110 has an integrated function for simula-
tion of the output signal which can be activated magnetically. Please
proceed as follows:
→ Hold the test magnet (accessory) against the circle symbol with
the label "TEST" on the instrument housing
Fig. 9: Simulation of the output signal
The test magnet changes the current switching condition of the instru-
ment.You can check the change on the signal lamp. Please note that
all connected device are activated during the simulation.
If LEVEL SWITCH 8110 does not switch over after several tests with
the test magnet, you have to check the plug connection and the
connection cable and try it again. If there is no switching function, the
electronicswillbedefective.Inthiscaseyouhavetoexchangethe
electronics or return the instrument to our repair department.
Caution:
It is absolutely necessary that you remove the test magnet from the
instrument housing after the simulation.

16
6 Setup
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
6.3 Function table
The following table provides an overview of the switching conditions
depending on the set mode and the level.
Level Switching sta-
tus
Control lamp
Yellow - cov-
erage
Control lamp
Green - voltage
indication
Control lamp
Red - fault sig-
nal
Max.modeofop-
eration
closed
Max.modeofop-
eration
open
Min. mode of op-
eration
closed
Min. mode of op-
eration
open
Fault any open any

17
7Maintenanceandfaultrectication
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
7 Maintenanceandfaultrectication
7.1 Maintenance
If the device is used properly, no special maintenance is required in
normal operation.
The cleaning helps that the type label and markings on the instrument
are visible.
Take note of the following:
• Use only cleaning agents which do not corrode the housings, type
label and seals
• Use only cleaning methods corresponding to the housing protec-
tion rating
7.2 Rectify faults
The operator of the system is responsible for taking suitable meas-
ures to rectify faults.
Thedeviceoersmaximumreliability.Nevertheless,faultscanoccur
during operation.These may be caused by the following, e.g.:
• Sensor
• Process
• Voltage supply
• Signal processing
Therstmeasuretotakeistochecktheoutputsignal.Inmanycases,
thecausescanbedeterminedthiswayandthefaultsquicklyrectied.
Error Cause Rectication
Green signal
lampo
Voltage supply in-
terrupted.
Check the voltage supply and the ca-
ble connection
Electronics de-
fective
Exchangetheinstrumentorsenditin
for repair
Red signal lamp
lights (switching
output high-im-
pedance)
Error with the
electrical con-
nection
Connect the instrument according to
the wiring plan
Shortcircuit or
overload
Check the electrical connection
Red signal lamp
ashes(switching
output high-im-
pedance)
Vibrating fre-
quency out of
specication
Check the vibrating element on build-
up and remove it
Buildup on the vi-
brating element
Check the vibrating element and
the sensor if there is buildup and re-
move it
Vibrating element
damaged
Check if the vibrating element is dam-
ageorextremelycorroded
Maintenance
Cleaning
Reaction when malfunc-
tion occurs
Causes of malfunction
Faultrectication
Checking the switching
signal

18
7Maintenanceandfaultrectication
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
Depending on the reason for the fault and the measures taken, the
steps described in chapter " Set up" may have to be carried out again.
7.3 How to proceed if a repair is necessary
If it is necessary to repair the instrument, please contact the agency
serving you.
Reaction after fault recti-
cation

19
8 Dismount
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
8 Dismount
8.1 Dismounting steps
Warning:
Before dismounting, be aware of dangerous process conditions such
ase.g.pressureinthevessel,hightemperatures,corrosiveortoxic
products etc.
Take note of chapters " Mounting" and " Connecting to voltage sup-
ply" and carry out the listed steps in reverse order.
8.2 Disposal
The instrument consists of materials which can be recycled by spe-
cialised recycling companies. We use recyclable materials and have
designed the electronics to be easily separable.
WEEE directive
The instrument does not fall in the scope of the EU WEEE directive.
Article2ofthisDirectiveexemptselectricalandelectronicequipment
from this requirement if it is part of another instrument that does not
fall in the scope of the Directive.These include stationary industrial
plants.
Pass the instrument directly on to a specialised recycling company
and do not use the municipal collecting points.
If you have no way to dispose of the old instrument properly, please
contact us concerning return and disposal.

20
9 Supplement
LEVEL SWITCH 8110 • IO-Link
66109-EN-210412
9 Supplement
9.1 Technical data
Note for approved instruments
The technical data in the respective safety instructions which are included in delivery are valid for
approvedinstruments(e.g.withExapproval).Thesedatacandierfromthedatalistedherein,for
exampleregardingtheprocessconditionsorthevoltagesupply.
All approval documents can be downloaded from our homepage.
General data
Material 316L corresponds to 1.4404 or 1.4435
Materials, wetted parts
ƲTuning fork 316L
ƲProcess seal Klingersil C-4400
Ʋ Processttings 316L
Materials, non-wetted parts
ƲHousing 316L and plastic PEI
ƲCable gland PA, stainless steel, brass
ƲSealing, cable gland NBR
ƲBlind plug, cable gland PA
M12x1plugconnector
ƲContact support PA
ƲContacts CuZn, nickel layer and 0.8 µm gold-plated
ƲPlug seal FKM
Weight approx.250g(9oz)
Processttings
ƲPipe thread, cylindrical (DIN 3852-A) G½,G¾,G1,R1
ƲPipe thread, conical (ASME B1.20.1) ½NPT,¾NPT,1NPT
hygienicttings
ƲClamp (DIN 32676, ISO 2852) 1", 1½", 2"
ƲSlotted nut DN 25 PN 40, DN 40 PN 40, DN 50 PN 25
Max.torque-processtting
ƲThread G½, ½ NPT 50 Nm (37 lbf ft)
Ʋ ThreadG¾,¾NPT 75 Nm (55 lbf ft)
ƲThread G1, 1 NPT 100 Nm (73 lbf ft)
Surface quality
ƲStandard Ra< 3.2 µm (1.26-4 in)
ƲHygienic version Ra< 0.8 µm (3.15-5 in)
Measurement accuracy
Hysteresis approx.2mm(0.08in)withverticalinstallation
