1. General
Dear customer,
Congratulations on purchasing the BURY CP 1100. You have chosen a high quality product that is ex-
tremely easy to use.
Please read the operating manual carefully so that you can fully enjoy your BURY CP 1100. If you have
any further questions concerning installation or operation of your car telephone, please contact your
dealer. He will be happy to give you reliable advice.
You can also contact our hotline. Our phone and fax numbers are listed in the chapter Service at the
end of the operating instructions.
Have a good trip!
2. Security guidelines

3
Avoid contact with magnetic mediaX
To avoid the risk of demagnetisation, do not allow elec-X
tronic devices or magnetic media close to your phone for
a long time
Avoid Extreme TemperaturesX
Do not expose your phone or its accessories to extremeX
temperatures, minimum – 10 and maximum + 55 degrees
Celsius
Avoid contact with liquid, keep dryX
Do not expose your phone or its accessories to liquid,X
moisture or high humidity
Do not use harsh chemicals, cleaning solvents, or aerosolsX
to clean the device or its accessories
Do not try and dissambleX
Only qualified personnel must service or repair the phoneX
or its accessory.
Do not rely on this device for emergencyX
communications
Only use approved accessoriesX
Do not connect with incompatible products orX
accessories.

4Introductory information
RF Exposure
Your phone contains a transmitter and a receiver. When it is ON, it re-
ceives and transmits RF energy. When you communicate with your
phone, the system handling your call controls the power level at which
your phone transmits. To ensure compliance with RF exposure guide-
lines the phone must be used with a minimum of 30 cm separation from
the body.
Specific Absorption Rate (SAR)
Your device is a radio transmitter and receiver. It is designed not to
exceed the limits for exposure to radio waves recommended by inter-
national guidelines. These guidelines were developed by the independ-
ent scientific organisation ICNIRP and include safety margins designed
to assure the protection of all persons, regardless of age and health.
The guidelines use a unit of measurement known as the Specific Ab-
sorption Rate, or SAR. The SAR limit for car phones is 2 W/kg. The
highest SAR value for this device when tested complied with this limit.
Installation - who should do it
The installation of this system can be carried out by yourself but please
observe the installation requirements of the automotive manufacturer.
During the installation, park the car at a place where the road traffic is
not impaired. We recommend to let a specialised workshop perform the
installation.
Power supply
The system is designed for use in both passenger vehicles and heavy
goods vehicles (HGVs). The operating voltage spans the 12 to 24 volts
range. If you have queries regarding this subject, please contact our
hotline.
Position, volume
Install the components of the device in the vehicle so that your field of
vision is not impaired and the components are not mounted in the im-
pact zone of the passenger compartment or in the airbag inflation
zones. The removal of coverings (with and without airbags) or compo-
nents of the dashboard requires – in some cases – special tools and
special knowledge.

5
Intended use
We shall not be liable for damages or malfunctions due to improper use
of the BURY CP 1100. Therefore, do not expose the device to moisture,
extreme temperatures or shocks and carefully follow the procedure
described in the installation and operating guidelines.
Use while driving
Operate the system only when the situation allows it and when you do
not endanger, harm, constrain, or annoy other road users. The volume
of the device has to be set in a way that exterior noise is still audible.
Faults
Do not commission the device if you detect or assume a defect. In this
case, contact a BURY specialised dealer or our hotline. Improper repair
efforts can be dangerous for you. Therefore, only skilled personnel may
perform inspections.
Product handling
You alone are responsible for how to use your phone and any conse-
quences of ist use.
Important:
The manufacturer strongly recommends that you useX
the handsfree functionality of the BURY CP 1100 at all
times.
The driver is ultimately responsible for the safe operationX
and control of their vehicle at all times. You should never
use a hand held phone, including sending or reading text or
picture messages, while driving.
Research indicates that there is a risk to safety when theX
driver of a motor vehicle is distracted and using a mobile
phone while driving can be a distraction.
Full attention must be given to driving at all times in orderX
to reduce the risk of an accident.
Always treat your phone and its accessories with care andX
keep it in a clean and dust-free place.
Please comply with the country-specific laws concerningX
in-car telephone calls.
Avoid exposure to long peri-
ods of direct sunlight when
vehicle is parked as this can
cause, among others, dam-
age to the readability of the
display. The sound function-
ing of the display is guaran-
teed up to a maximum tem-
perature of 55° C.

6
Installation of the system
3. Scope of supply
8

7
The BURY CP 1100 is supplied with different combinations of components, depending on the sales
regions (countries). The operating manual refers to all versions.

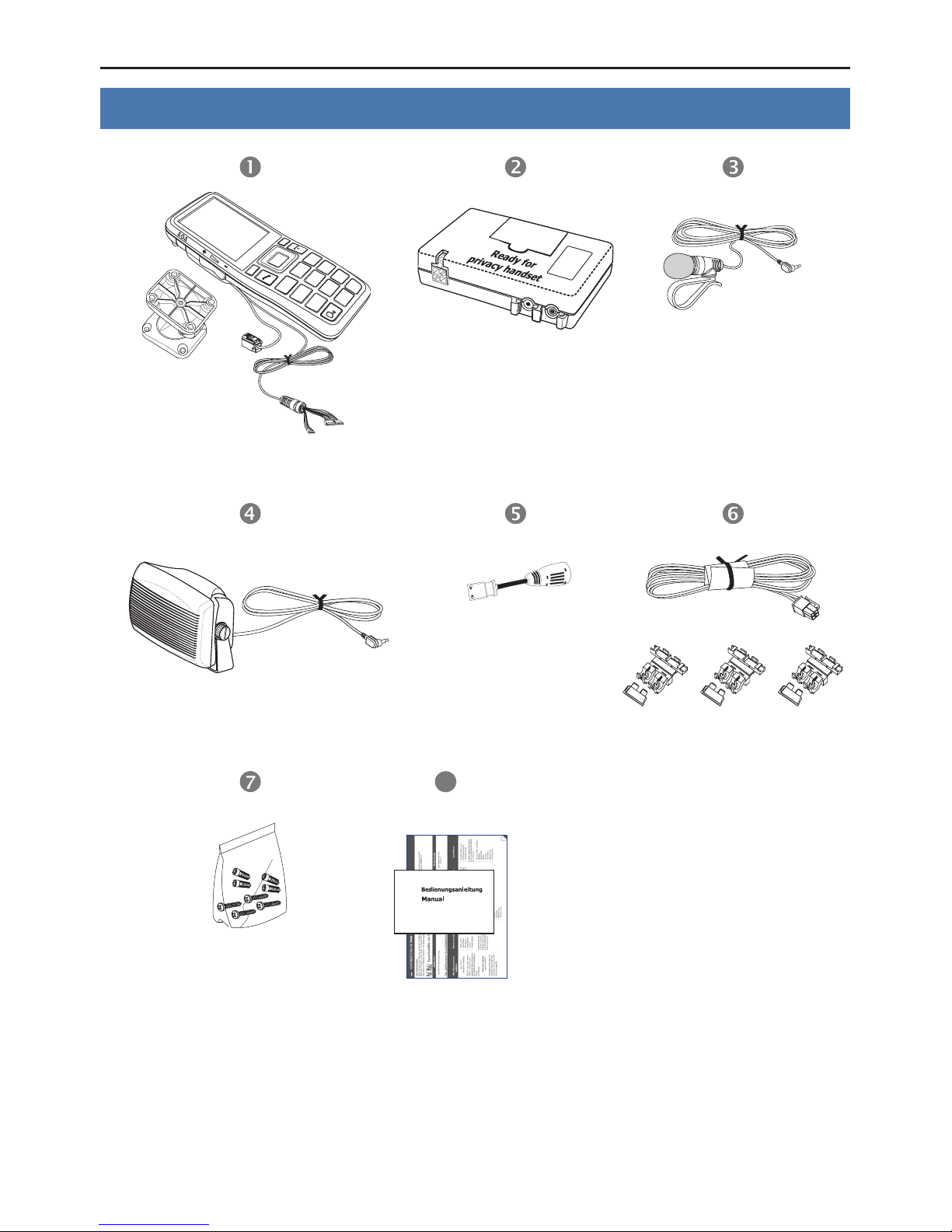

Description of the components:
1) BURY CP 1100 with Vehicle Mount
2) Electronic box
3) Microphone
4) External loudspeaker
5) Antenna adapter
6) Power supply cable with fuses
7) Mounting accessories
8) Printed installation and operating manual, Quick user guide
Note:
If certain components are added or omitted you will receive the corresponding informa-X
tion on a separate enclosure.
Optional accessories:
Loudspeaker switch box AC 5120

8Installation of the system
4. Positioning and mounting
Step 1:
First of all, please choose the most convenient position for the
BURY CP 1100 in your vehicle by checking different positions in the ve-
hicle.
When installing the BURY CP 1100 avoid positioning the system where
it may disrupt the proper operation of the vehicle and its components,
such as car stereo, air bags, cubbyhole, glove compartment, ashtray,
lighter, gear stick or hand brake.
If you would like to use the device during your journey, positioning it in
the front area on the driver’s side is advisable. Sit in the vehicle and
check whether you can reach the device without difficulty.
After having found a suitable position for the BURY CP 1100 in the ve-
hicle you can now mount the BURY CP 1100 with the Vehicle Mount.
The end of the cable with the small Molex connector is ideally suited for
placing through small openings in the dashboard area. This facilitates a
practically invisible installation of the cable. Take the length of the cable
into account and make sure that it is of sufficient length to reach the
intended location of the electronics box.
Important:
When positioning the BURY CP 1100 please take care thatX
the BURY CP 1100 does not impair the view onto the road,
that it will not be installed in the impact zone of the pas-
senger compartment (amongst others in the airbag inflation
zones) and that the cable may be laid without any prob-
lems.
Please avoid direct sunlight on the BURY CP 1100 or highX
internal temperatures, which can be rapidly reached in
parked vehicles.

9
Example of installation in the car:
Overview of all components:
You will receive a separate manual when you purchase the handset shown.

10 Installation of the system
Step 2:

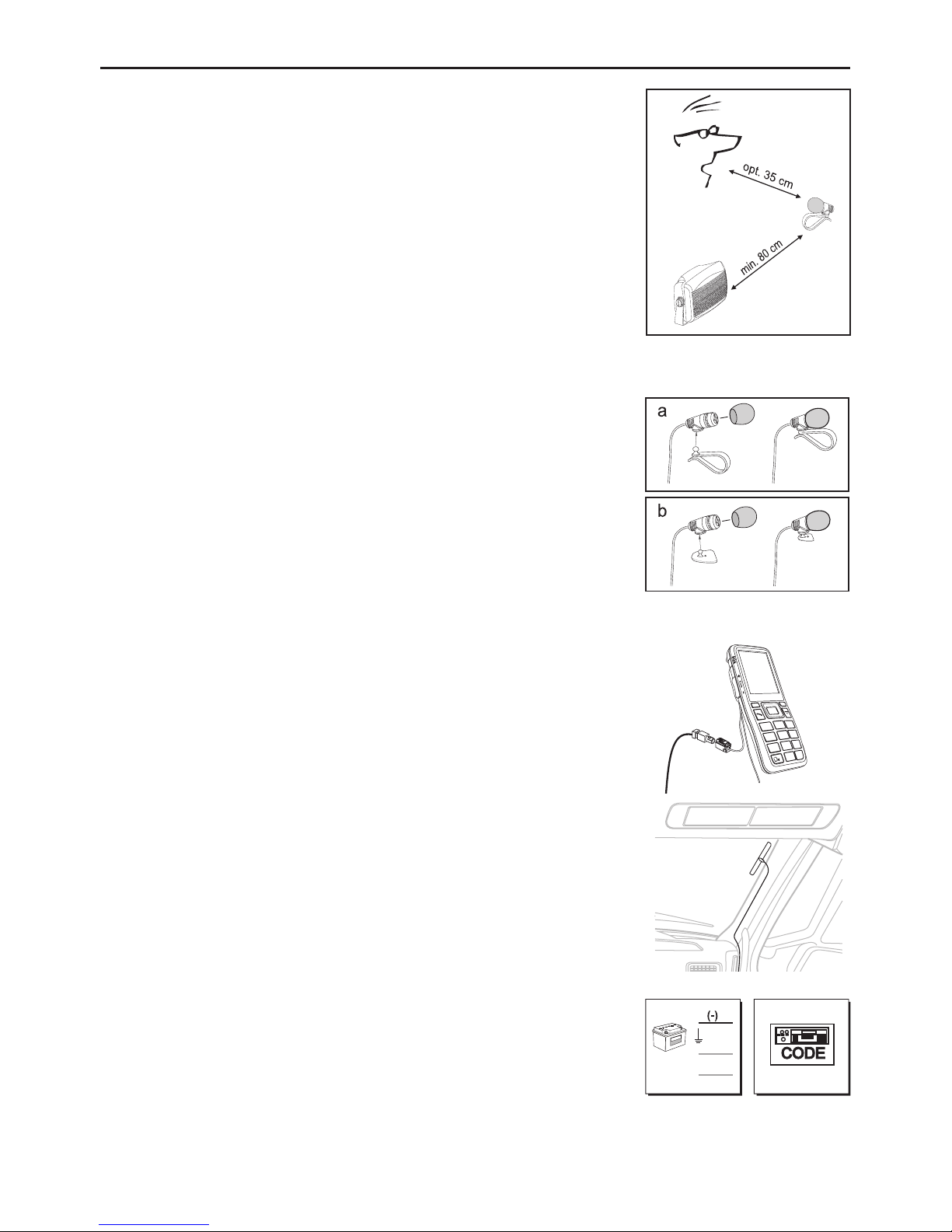

Depending on the vehicle type and its equipment (e.g. airbags), it is
reasonable to install the microphone either at the A-pillar, at the sun
shield or at the roof interior. For details about the equipment features
please refer to the vehicle documents.
Step 3:
Remove or loosen up cladding and covers to be able to install all of the
cables in the vehicle as comfortably as possible. Please lay the cables
in a way that they do not lie/hang unsecured in the vehicle and that
they may not influence the conducting of the vehicle. When laying
a cable, please take care that it is not under traction stress but that it
has some tolerance. Avoid crushing the cable as damages of the insula-
tion can be caused by friction/rubbing.
Step 4:
Install the electronics box at a convenient place in the vehicle. This can
e.g. be behind the radio, in the glove box, or in the centre console.
Please mind that you can access the connections of the box without
difficulty. It is possible that you will have to connect the components
before attaching the electronics box, if it isn’t possible to do this after-
wards due to a lack of space. A description of the connections is pro-
vided in the next section.
Step 5:
The preferred position for on-glass antenna is either on the upper right
side or upper left side of the windshield, opposite from the driver´s
seat.
Important:
Ensure the antenna is located at least 20 cm away fromX
driver and passengers.
To avoid audio interference, do not thread the antennaX
cable close to the microphone cable.

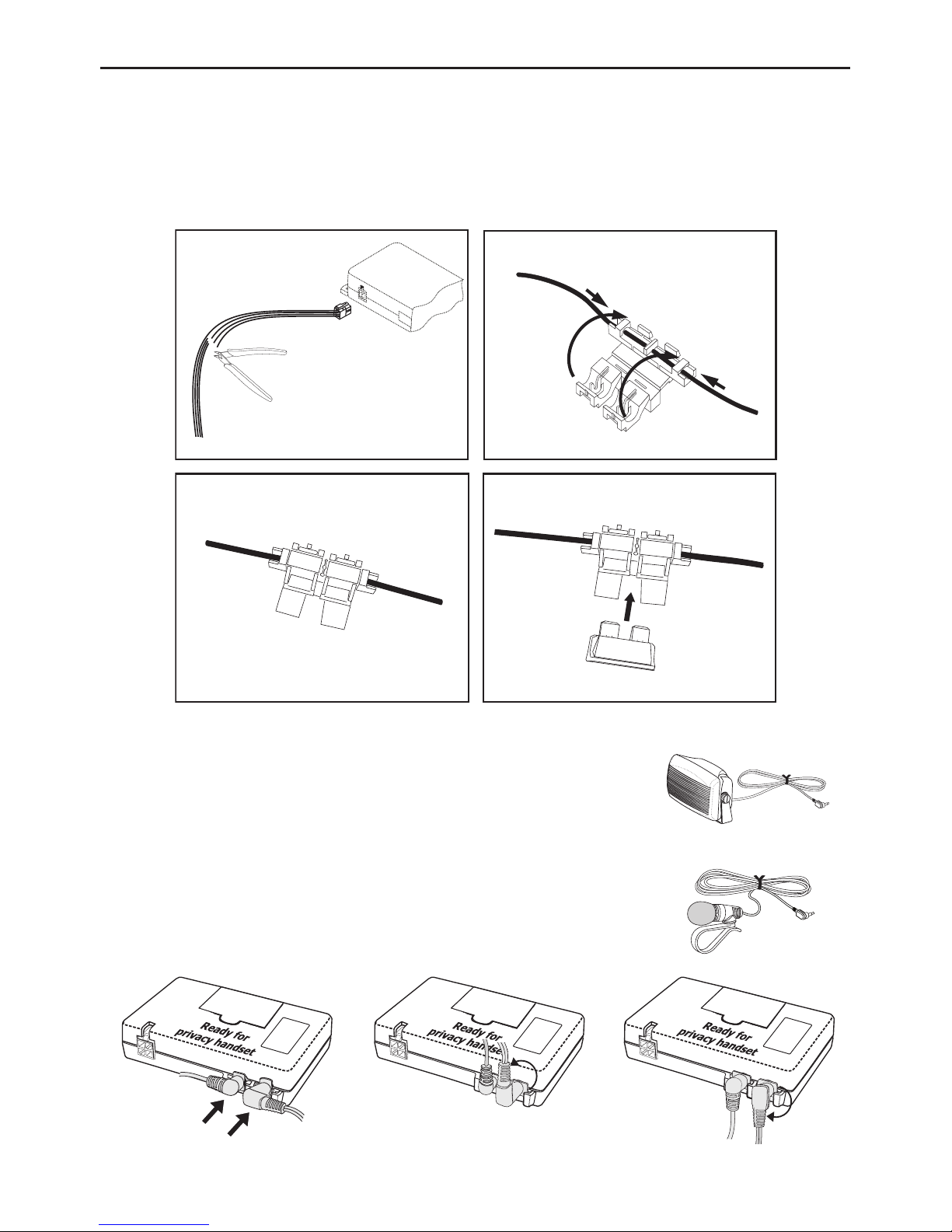

Before connecting the components to the electronics box you should
branch off the battery for safety reasons. In doing so, take into account
that there might be a radio coding (confer radio manual).
Important:
Please install the electronics box behind a cover or some-X
where you can only reach by opening or unfastening a pro-
tective cover / a cover. The elctronics box must not hang
loosely in the vehicle.

11
5. Plug the cable for the BURY CP 1100 into the electronic box
Step 1:
Open the top cover of the
electronic box
Step 4:
Carefully close the top cover of the
electronic box, ensuring no wires
get trapped in the process
Step 3:
Check that all components have
snapped firmly into place and gently
push down ensuring they are below
the level of the top cover position
Step 2:
Plug both jacks into the circuit board
Note the coding on the jackX
Ensure the jacks snap firmlyX
into place

12 Installation of the system
6. Connections on the electronics box
The additional components of the BURY CP 1100 are connected to the electronics box.
The following connections are provided:
Connection options:
1 Power supply
2 External loudspeaker
3 Microphone
4 BURY CP 1100
1 - Power supply
The power supply of the BURY CP 1100 is established via a 4-core ca-
ble. Connect the black (clamp 31 – minus), the red (clamp 30 – steady
plus) and the blue cable (clamp 15 – ignition plus) to the power supply
of your radio (where required via the cigarette lighter or the fuse box).
After connection to the counterpart, the yellow cable provides for radio
muting during a phone conversation. Please connect the white Molex
connector with connection 1.
Note:
Do not connect your device to the power supply or switchX
it on until instructed to do so in the installation instruc-
tions.
Attention:
If you also connect the blue cable to clamp 30 (steadyX
positive), the BURY CP 1100 will be permanently supplied
with power. If the vehicle is not running for a longer period,
this could lead to a discharge of the car battery.
If you deviate from the specified connection descrip-X
tions it may be the case that certain functions on the BURY
CP 1100 (e.g. the on-call duty) will not function correctly.
4
1
23

13
Installation instructions for the fuses
Please cut through the red, the black and the blue cable by means of a wire cutter. Now insert the two
endings of the red cable resulting from the cut into one of the binders, then close it.
If you hear two clicking noises, the clamp snapped in properly. Now insert one of the fuses and then
repeat the procedure with the other cables.
2 - External loudspeaker
Connect the external loudspeaker here if you do not want to or are not
able to make use of the vehicle’s own sound system. When installing
the loudspeaker, make sure it is positioned the correct distance from
the microphone.
3 - Microphone input
This is where you plug in the microphone jack.

14 Installation of the system
4 - BURY CP 1100
This is where you connect the BURY CP 1100.

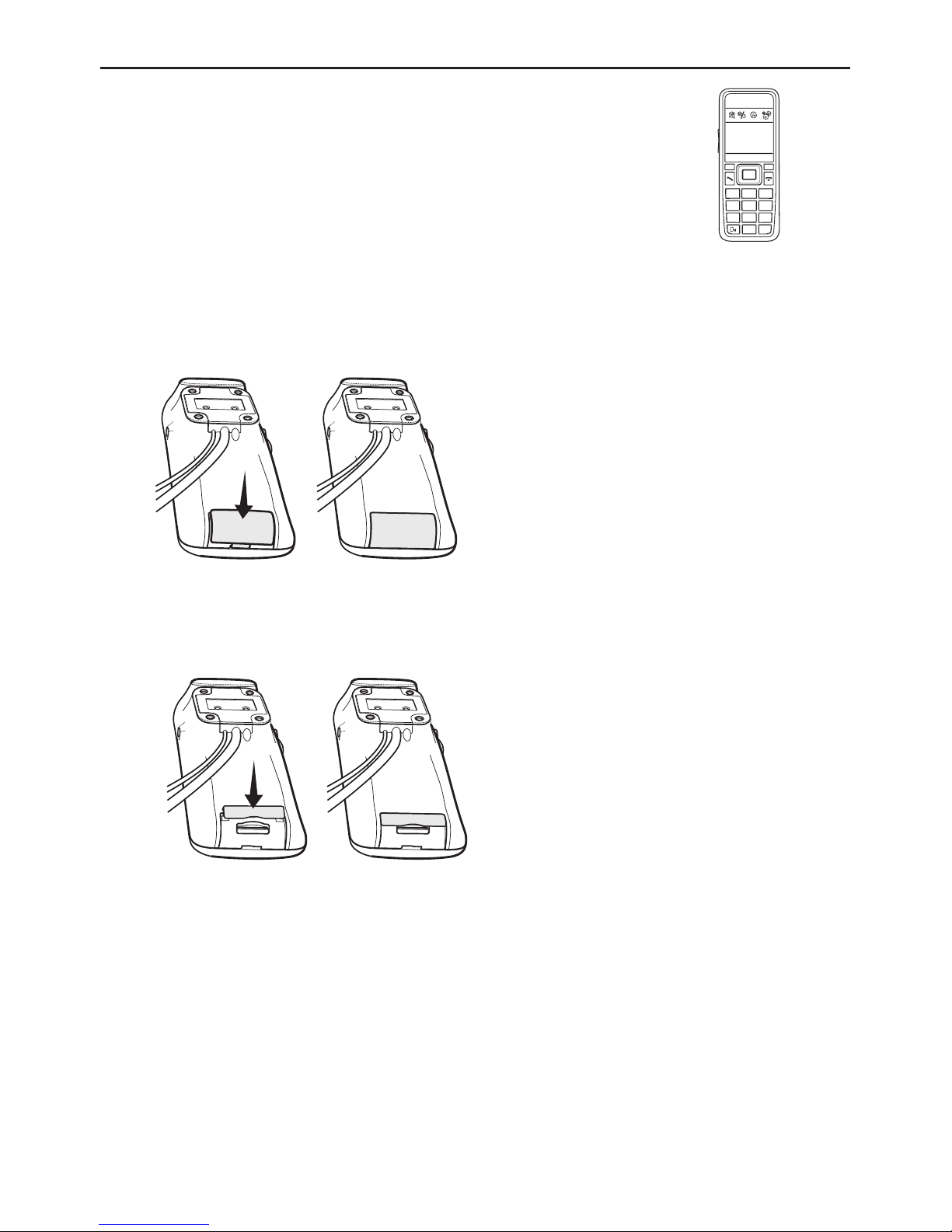

SIM card protection
The plastic cap that is used to protect your SIM card can be used once
only.
Note:
The device may be damaged if you try to remove the plas-X
tic cap.
Optionally, you can also protect your SIM card with a removable rub-
ber cap.

15
Operating guidelines
7. Using the BURY CP 1100 for the first time
The BURY CP 1100 offers you an extremely convenient in-car telephone solution. A well as a 2.8 inch
display and a well-spaced keypad, the clear and easy-to-read car phone also has SIM card slot which
allows it to function as a fully stand-alone communication system.
Description of the main system:
Activating your SIM card
Insert the SIM card into the SIM card slot while the BURY CP 1100 is
switched off.
Avoid touching the SIM card’s metal surfaceX
Switching the BURY CP 1100 on and off
After the power supply of the BURY CP 1100 is successfully connected,
the system is activated when you have started the vehicle. The car phone
can be switched on and off manually by pressing the End button.
Mini USB
Display 2,8“ Right Menu Button
End Button
4 Way Navigation Key Scroll
through menus and lists
SIM Card slot
SOS Button
Volume control
Left Menu Button
Start Call / Redial Button
Keypad – Large illuminated, well-spaced,
tactile buttons ensure accuracy and speed
Voice control activation button

16 Operating guidelines
Adjusting the volume
Use the volume control to adjust the ring volume when no calls are ac-
tive. Use the volume control to adjust the call volume during a call.
Entering your PIN
Now enter your PIN. Your PIN (Personal Identification Number) pro-
tects you against unauthorised use of your telephone card by third
parties.
Note:
If you enter the wrong PIN three times you will need yourX
PUK number to unlock your card.
Afterwards you will reach the head menu. Different symbols will appear
in the top row. These symbols have following meaning:
Missed calls / New messages•
Signal strength of the telephone network•
Activation of voice control•
The symbols on the display have the following meanings:
Day/Night mode•
Call lists•
Contacts•
Messages•
Settings•
Date/Time•
Memo•
Choose language
After this, you have to select the menu language if several are available
for you to select. Regional differences may occur in this context. If the
system is only equipped with one language then this should load auto-
matically. You can change the menu language again by selecting Set-
tings in the Head menu, and then changing the Language in the
Phone menu item.

17
8. Handling possibilities
The system can be operated in two ways:
1. Operation using voice control
The „VOICE COMMANDS“ are highlighted
in the further explanatory notes.
2. Operating the menu using the keypad
9. Voice control
Voice control
The menu items of the system can be selected using voice commands
once this function has been activated. There are exceptions, however,
when you still have to use navigation key scroll. During an active tele-
phone call, for instance, you can’t use voice commands. You have to
select any additional functions using the keypad.
To start the voice control feature, press this button. If the Magic Word
function is activated, you can also start the voice control by stating the
„ACTIVATE VOICE DIAL“ command. In certain situations, however,
with an incoming call and activated voice recognition for instance, the
BURY CP 1100 will start the voice control system automatically. The
system signals that it is ready to receive a command by emitting an
acoustic signal.
If you aren’t sure of the right command to use, then simply state „HELP
/ WHAT CAN I SAY“. The BURY CP 1100 will then read out the com-
mands available for the particular menu in which you currently find
yourself. If the BURY CP 1100 fails to understand one of your com-
mands, or the particular option isn’t available, the help function will
start automatically and list the possible commands. When entering
voice commands, please ensure you speak naturally, clearly and at
a regular speed.
Note:
With the use of the voice control it is recommended toX
turn down the volume of components which are independ-
ent of the audio system (e.g. a navigation system) or to
switch off the broadcast of traffic jam warnings in order to
avoid unintended voice entries.

18 Operating guidelines
In addition to these commands, the BURY CP 1100 recognises the numbers from zero to nine. Num-
bers which are larger than nine must be spoken individually (e.g. 10 = one, zero). To search in the
contacts, the BURY CP 1100 recognises the letters „A“ to „Z“ as well as the NATO alphabet. For the
entry of telephone numbers abroad, the command „PLUS“ is also available.
When using voice control, in all menus these four commands are always available:
10. Operating the menu using the keypad
Cancel
Help
Back
Head menu
breaks off the current action
back to head menu
one step back
names all commands which are available
You can also operate the BURY CP 1100 using the illuminated and well-
spaced keypad. The keypad offers the following options:
Use the End button to end a call or leave the selected menu page.
Use the Start call button to accept a call or to redial.
Use the menu buttons on the left and right hand sides to open the cor-
responding menu displayed.
Use the navigation button in like a joystick to navigate through the
menu system and to change settings.
Use the SOS button to make an emergency call. You can pre-set the
number to call in an emergency in the menu settings.

19
11. Menu navigation
Here you will find all menus which are necessary for the operation and
configuration of the system. These can be selected through the key-
board or using voice control.
You are also able to select additional frequently used commands via
voice control which otherwise first appear later in the menu tree. These
are as follows:
„DIAL JOE BLOGGS“,
„READ NEW TEXT MESSAGE“.
If the voice control function is active then the corresponding menu ap-
pears in the display, or the details of the particular function that has
been activated. In the following the individual menu points will be ex-
plained.
Dial Joe Bloggs
With this voice command (is not shown on the display) you can immedi-
ately call a contact from your telephone book with active voice control.
Note:
When doing so, it is important that the stated name ex-X
actly corresponds with the entry stored in the phonebook.
Please note that telephone book entries, which are only
shown in capital letters must be spelt out. Example: ADAC.
If the names have been reversed then the command changes to:
„DIAL BLOGGS JOE“.
Dial Joe Bloggs

20 Operating guidelines
Dial number
Delete group
Dial
Delete last
Delete all
Contacts
Play list
Dial number
It makes sense to divide telephone numbers in short number blocks of
3-4 digits and to say them this way. At each break, the BURY CP 1100
repeats the number block and waits for the next number block. After
the signal tone you can respectively continue your announcement.
Enter the area code. Enter the first numbers of the actual telephone
number. Enter the remaining numbers of the actual telephone number.
When you have entered the last number block of the telephone number,
you can check the complete telephone number once again with the
voice command „PLAYBACK “. Here are some more commands:
The complete entry will be deleted, or the previous entry.
The last digit is deleted.
A telephone connection is being established.
The last number block will be deleted.
Contacts
The entire list is read aloud to you. With „STOP“ you can stop the
process and select the respective entry. With „NEXT“ or „NEXT
PAGE“ and „PREVIOUS“ or „PREVIOUS PAGE“ you can navigate in
the list. With „ D I AL“ the telephone connection will be made. You can
also jump directly to one of the entries shown by activating the entry
number. E.g.: „SELECT ENTRY THREE“.
You can save names and phone numbers to the memory of the SIM
card (SIM directory) and to the internal memory of the car phone. De-
pending on your provider, up to 250 contacts can be stored to the SIM
card, while 1500 contacts can be stored to the internal memory.
You can also subsequently save a number that called your phone or
from which you received a text message. You do not have to enter the
number all over again.
