Busch-Jaeger 1098 U-101 User manual

2CKA001473B8291
│ 05.07.2018
Product manual
Electronic room temperature controller
insert
1098 U
-101
1098 UF-101

Table of contents
Product manual 2CKA001473B8291
│2
Tableofcontents
1 Notes on the instruction manual.......................................................................................................................4
2 Safety.................................................................................................................................................................5
2.1 Information and symbols used .............................................................................................................5
2.2 Intended use..........................................................................................................................................6
2.3 Improper use .........................................................................................................................................6
2.4 Target group / Qualifications of personnel...........................................................................................7
2.4.1 Operation...........................................................................................................................................7
2.4.2 Installation, commissioning and maintenance..................................................................................7
2.5 Safety instructions.................................................................................................................................8
3 Information on protection of the environment..................................................................................................9
3.1 Environment ..........................................................................................................................................9
4 Setup and function..........................................................................................................................................10
4.1 Features of function and equipment...................................................................................................10
4.1.1 Control elements .............................................................................................................................10
5 Technical data.................................................................................................................................................11
6 Connection, installation / mounting................................................................................................................12
6.1 Requirements for the electrician.........................................................................................................12
6.2 Mounting/dismantling..........................................................................................................................13
6.3 Electrical connection...........................................................................................................................15
7 Commissioning................................................................................................................................................16
8 Operation.........................................................................................................................................................17
8.1 Notes on operation..............................................................................................................................17
8.2 Operating modes.................................................................................................................................18
8.3 Normal operation.................................................................................................................................19
8.3.1 Display.............................................................................................................................................19
8.3.2 Button assignment...........................................................................................................................20
8.4 Device settings....................................................................................................................................21
8.4.1 Menu tree.........................................................................................................................................22
8.4.2 Language.........................................................................................................................................24
8.4.3 RESET (Resetting the device)........................................................................................................25
8.4.4 RESET (resetting to the factory settings) .......................................................................................25
8.5 Setting the starting / switching times..................................................................................................26
8.5.1 General............................................................................................................................................26
8.5.2 Block programming..........................................................................................................................27
8.6 Calling up special functions................................................................................................................29
8.6.1 MAX and MIN values.......................................................................................................................29
8.6.2 Valve protection...............................................................................................................................31
8.6.3 Standby times..................................................................................................................................32
8.6.4 OFFSET...........................................................................................................................................33
8.6.5 Button lock.......................................................................................................................................34
8.6.6 Date / Time......................................................................................................................................35

Table of contents
Product manual 2CKA001473B8291
│3
8.6.7 Adjust temperature..........................................................................................................................37
8.7 Display during mains power failure....................................................................................................39
9 Maintenance....................................................................................................................................................40
9.1 Cleaning...............................................................................................................................................40
10 Index................................................................................................................................................................41

Notes on the instruction manual
Product manual 2CKA001473B8291
│4
1 Notes on the instruction manual
Please read through this manual carefully and observe the information it contains. This will
assist you in preventing injuries and damage to property, and ensure both reliable operation and
a long service life for the device.
Please keep this manual in a safe place.
If you pass the device on, also pass on this manual along with it.
Busch-Jaeger accepts no liability for any failure to observe the instructions in this manual.
If you require additional information or have questions about the device, please contact Busch-
Jaeger or visit our Internet site at:
www.BUSCH-JAEGER.de

Safety
Product manual 2CKA001473B8291
│5
2 Safety
The device has been constructed according to the latest valid regulations governing technology
and is operationally reliable. It has been tested and left the factory in a technically safe and
reliable state.
However, residual hazards remain. Read and adhere to the safety instructions to prevent
hazards of this kind.
Busch-Jaeger accepts no liability for any failure to observe the safety instructions.
2.1 Information and symbols used
The following Instructions point to particular hazards involved in the use of the device or provide
practical instructions:
Danger
Risk of death / serious damage to health
– The respective warning symbol in connection with the signal word "Danger"
indicates an imminently threatening danger which leads to death or serious
(irreversible) injuries.
Warning
Serious damage to health
– The respective warning symbol in connection with the signal word "Warning"
indicates a threatening danger which can lead to death or serious
(irreversible) injuries.
Caution
Damage to health
– The respective warning symbol in connection with the signal word "Caution"
indicates a danger which can lead to minor (reversible) injuries.
Attention
Damage to property
– This symbol in connection with the signal word "Attention" indicates a
situation which could cause damage to the product itself or to objects in its
surroundings.
NOTE
This symbol in connection with the word "Note" indicates useful tips and
recommendations for the efficient handling of the product.
The following safety symbols are used in the operating manual:
This symbol alerts to electric voltage.

Safety
Product manual 2CKA001473B8291
│6
2.2 Intended use
The device is used in closed rooms for the time-controlled regulation of the temperature for
heating systems/electric floor heating.
The device is intended for the following:
■Operation according to the listed technical data
■Installation in dry interior rooms
■Only suitable for installation in flush-mounted boxes according to DIN 49073-1, Part 1, or in
suitable surface-mounted housings.
■Use with the connecting options available on the device
The intended use also includes adherence to all specifications in this manual.
2.3 Improper use
Each use not listed in Chapter 2.2 “Intended use“ on page 6 is deemed improper use and can
lead to personal injury and damage to property.
Busch-Jaeger is not liable for damages caused by use deemed contrary to the intended use of
the device. The associated risk is borne exclusively by the user/operator.
The device is not intended for the following:
■Unauthorized structural changes
■Repairs
■Outdoor use
■The use in bathroom areas

Safety
Product manual 2CKA001473B8291
│7
2.4 Target group / Qualifications of personnel
2.4.1 Operation
No special qualifications are needed to operate the device.
2.4.2 Installation, commissioning and maintenance
Installation, commissioning and maintenance of the device must only be carried out by trained
and properly qualified electrical installers.
The electrical installer must have read and understood the manual and follow the instructions
provided.
The electrical installer must adhere to the valid national regulations in his/her country governing
the installation, functional test, repair and maintenance of electrical products.
The electrical installer must be familiar with and correctly apply the "five safety rules" (DIN VDE
0105, EN 50110):
1. Disconnect
2. Secure against being re-connected
3. Ensure there is no voltage
4. Connect to earth and short-circuit
5. Cover or barricade adjacent live parts

Safety
Product manual 2CKA001473B8291
│8
2.5 Safety instructions
Danger - Electric voltage!
Electric voltage! Risk of death and fire due to electric voltage of 100 … 240 V.
Dangerous currents flow through the body when coming into direct or indirect
contact with live components. This can result in electric shock, burns or even
death.
■Work on the 100 … 240 V supply system may only be performed by
authorised and qualified electricians.
■Disconnect the mains power supply before installation / disassembly.
■Never use the device with damaged connecting cables.
■Do not open covers firmly bolted to the housing of the device.
■Use the device only in a technically faultless state.
■Do not make changes to or perform repairs on the device, on its components
or its accessories.
■Keep the device away from water and wet surroundings.
Caution! - Risk of damaging the device due to external factors!
Moisture and contamination can damage the device.
■Protect the device against humidity, dirt and damage during transport,
storage and operation.

Information on protection of the environment
Product manual 2CKA001473B8291
│9
3 Information on protection of the environment
3.1 Environment
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with domestic
waste.
– The device contains valuable raw materials which can be recycled.
Therefore, dispose of the device at the appropriate collecting depot.
All packaging materials and devices bear the markings and test seals for proper disposal.
Always dispose of the packaging material and electric devices and their components via the
authorized collecting depots and disposal companies.
The products meet the legal requirements, in particular the laws governing electronic and
electrical devices and the REACH ordinance.
(EU Directive 2012/19/EU WEEE and 2011/65/EU RoHS)
(EU REACH ordinance and law for the implementation of the ordinance (EC) No.1907/2006).

Setup and function
Product manual 2CKA001473B8291
│10
4 Setup and function
4.1 Features of function and equipment
4.1.1 Control elements
The following modules are used. The device can only be operated with central cover plate
6435-xxx. The cover plate is latched onto the control element as a so-called "floating rocker".
1098 U-101
1098 UF-101 6435-xxx

Technical data
Product manual 2CKA001473B8291
│11
5 Technical data
Nominal voltage: 230 V AC ±10%, 50 Hz
Nominal power:
1098 U-101
Change-over
contact/normally
open contact
closed while de-
energized
(connection 1)
10 (4) A
Change-over
contact/normally
closed contact
open while de-
energized
(connection 2)
5 (2) A
1098 UF-101
Change-over
contact/normally
open contact
closed while de-
energized
(connection 1)
16 (2) A
Change-over
contact/normally
closed contact
open while de-
energized
(connection 2)
5 (2) A
Control range: 1098 U-101 5°C - 30°C
1098 UF-101 10°C - 50°C
Opening of change-over contact:
< 3 mm µ
Power reserve: Approx. 10 h at 25°C
Memory locations: Maximum of 28 switching times
Shortest switching interval: 5 minutes
Ambient temperature: 0°C - 30°C
Protection type: IP 20
Regulation EN 60 730-2-9
Input: 1098 UF-101 External remote sensor
Summer/winter time: Automatic changeover
Mode of operation (DIN EN 60730-1): 1B
Degree of contamination (DIN EN 60730-1): 2
Rated surge voltage (DIN EN 60730-1): 4000 V

Connection, installation / mounting
Product manual 2CKA001473B8291
│12
6 Connection, installation / mounting
Danger - Electric voltage!
Risk of death due to electrical voltage of 100 … 240 V during short-circuit in the
low-voltage conduit.
– Low-voltage and 100 … 240 V conduits must not be installed together in a
flush-mounted box!
6.1 Requirements for the electrician
Danger - Electric voltage!
Install the device only if you have the necessary electrical engineering
knowledge and experience.
■Incorrect installation endangers your life and that of the user of the electrical
system.
■Incorrect installation can cause serious damage to property, e.g. due to fire.
The minimum necessary expert knowledge and requirements for the installation
are as follows:
■Apply the "five safety rules" (DIN VDE 0105, EN 50110):
1. Disconnect
2. Secure against being re-connected
3. Ensure there is no voltage
4. Connect to earth and short-circuit
5. Cover or barricade adjacent live parts.
■Use suitable personal protective clothing.
■Use only suitable tools and measuring devices.
■Check the type of supply network (TN system, IT system, TT system) to
secure the following power supply conditions (classic connection to ground,
protective earthing, necessary additional measures, etc.).

Connection, installation / mounting
Product manual 2CKA001473B8291
│13
6.2 Mounting/dismantling
Danger - Electric voltage!
Risk of death and fire due to electric voltage of 100 to 240 V.
– Work on the 100 - 240 V supply system may only be performed by
authorised and qualified electricians.
– Disconnect the mains voltage prior to mounting and dismantling.
Caution! The device can sustain damage when coming into contact with
hard objects!
The plastic parts of the device are sensitive.
– Pull the attachment off only with your hands.
– Do not lever parts off with screwdrivers or similar hard objects.
In Germany the flush-mounted insert must only be installed in flush-mounted boxes according to
DIN 49073-1, Part 1, or suitable surface-mounted housings.
Different installation standards apply in other countries. These are to be taken into account
when used in connection with a different support ring and flush-mounted box.
1. Pull the attachment off.
– If the device is already mounted
or assembled, pull off the
attachment from the flush-
mounted insert with the aid of the
frame.
Fig. 1: Wall mounting: pulling off the attachment

Connection, installation / mounting
Product manual 2CKA001473B8291
│14
– If the device is in its as-delivered
state, pull the attachment off the
flush-mounted insert with your hands.
– Pull the attachment off only with your
hands. Do not lever parts off with
screwdrivers or similar hard objects.
This will damage the device.
– When pulling off, first the resistance
of the plastic clamps must be
overcome.

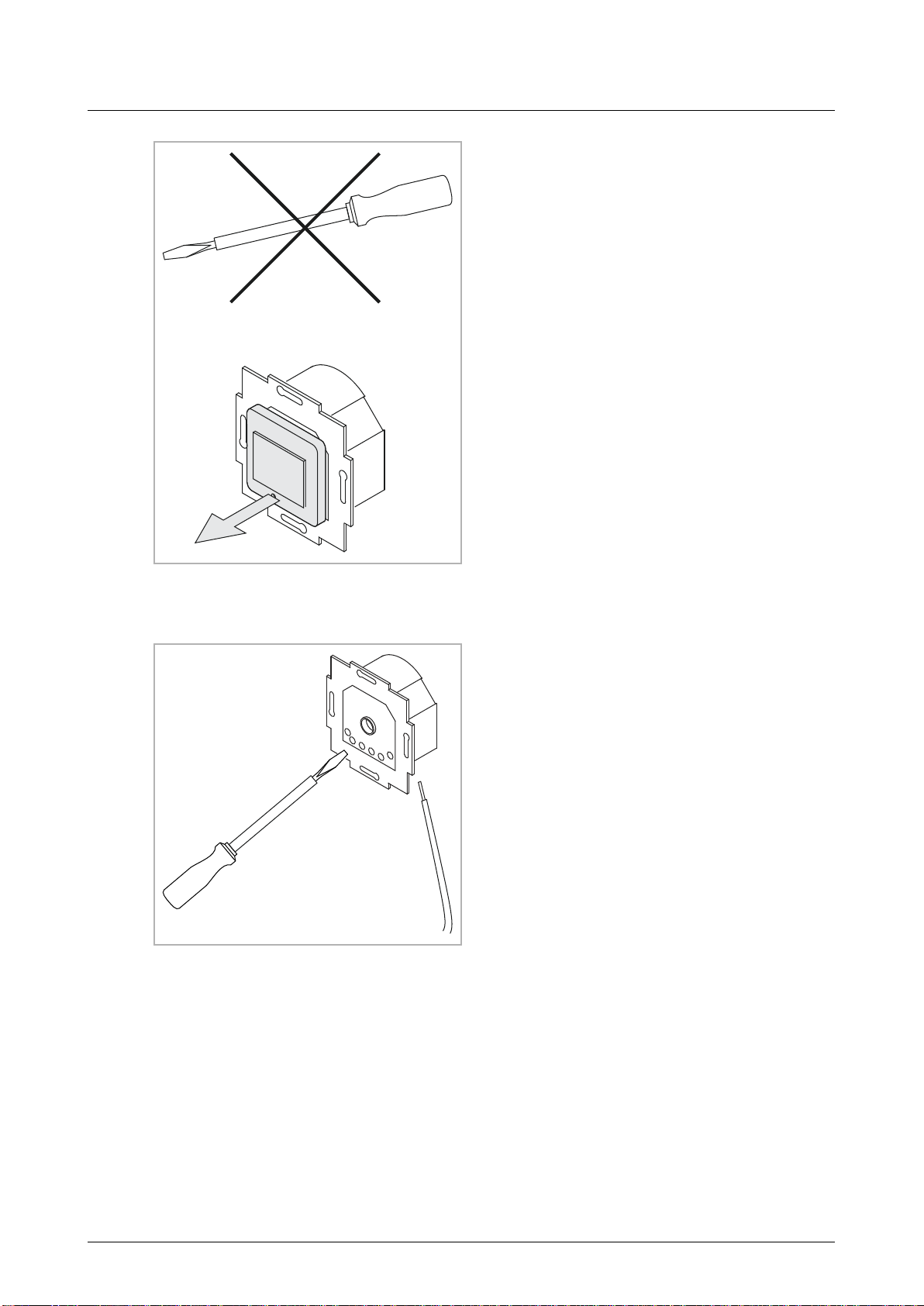

Fig. 2: Device in as-delivered state: pulling off the
attachment
1. Connect the cables to the flush-
mounted insert.
– For the connection assignment,
see chapter see chapter 6.3
“Electrical connection“ on page
15.
Fig. 3: Connecting the cables

Connection, installation / mounting
Product manual 2CKA001473B8291
│15
6.3 Electrical connection
L
N
LN 2 1
L
N
LN 2 1
16A 16A
1098 UF-101 1098 U-101
Fig. 4: Circuit diagrams
Terminal designation Assignment
L Phase
N Neutral conductor
1 Output for controlling the heating load
2 Output for controlling the cooling load
ϑRemote sensor connections
* The sensor cable must be installed in a protective cable duct.

Commissioning
Product manual 2CKA001473B8291
│16
7 Commissioning
Notice
The setup is carried out automatically during initial commissioning or when
resetting the settings (RESET).

Operation
Product manual 2CKA001473B8291
│17
8 Operation
No special qualifications are needed to operate the device.
8.1 Notes on operation
In the event of a power failure, the internal clock continues to operate for about 10 hours. After
this the time and date have to be reprogrammed. All other data remain saved.
The operating element can be removed from the flush-mounting insert for approximately 20
minutes and adjusted separately.
A total of 4 switching times per day can be set:
– 2 x for comfort mode
– 1 x for standby mode
– 1 x for night mode
If the display is on --:--, this can mean the following:
– No time has been set
– The memory is not occupied
– The function is not active
Flashing numbers / values can be changed. If no entry is made, the display switches back to the
operating mode after 2 minutes.

Operation
Product manual 2CKA001473B8291
│18
8.2 Operating modes
Fig. 5: Display views of operating modes
Icon Operating mode
AUTO
At the programmed times, the system is brought to the programmed set
values for comfort, stand-by, and night mode. *
COMFORT MODE
Temperature when somebody is present. *
STANDBY MODE
Temperature when nobody is present
This function is not automatically activated at the factory. *
NIGHT MODE
Temperature during the night. *
OFF
The control system is switched off.
No temperature value is displayed. The display appears when OFF is
activated. Manual temperature changes are not possible.
* The temperature can be changed manually at all times.
■Press the OK button for 2 seconds to change the operating mode.
■All of the temperature values that are displayed are set values.
■Active programs can be recognised by a flashing dot in the temperature display.

Operation
Product manual 2CKA001473B8291
│19
8.3 Normal operation
8.3.1 Display
1
2
3
4
6
5
78
9
10
Fig. 6: Icons
No. Function
1 Display of programmed daily cycles
2 Info line / time / date
3 Icon for °C
4 Mains power failure
5 Status display = heating
6 Current weekday
7 "Automatic" operating mode
8 "Comfort / Standby" operating mode
9 "Night" operating mode
10 Temperature / status
Notice
If the text is too long for the info line, it will run through the info line.

Operation
Product manual 2CKA001473B8291
│20
8.3.2 Button assignment
Fig. 7: Button assignment of the cover pate
Button Function In setting mode Adjusting values RESET
Calling up menu level
and switching to setting
mode.
– Keep the button
pressed for 2
seconds.
Return to operating
mode
Press all buttons of
the rocker switch
simultaneously for
approx. 5 seconds.
The temperature
controller will be
reset to the factory
settings.
Raise temperature Select menu items Adjust values
Lower temperature
Confirmation Select menu Accept value
Notice
The set temperature will be adjusted regardless of the time programs. If
necessary, the value can be manually adjusted with the UP button (˄) or DOWN
button (˅). This does not affect the values that are set in the time programs.
