Bush Hog FTH 480 Use and care manual

LAND MAINTENANCE
REPAIR PARTS MANUAL
MODEL: FTH
SECTION: 45
BUSH HOG®
2501 Griffin Ave. • Se ma, AL 36703
[phone] • [phone]
Parts Ordering 1-800-304-2836
Fax [phone]
www.bushhog.com

BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
FTH 480, FTH 600, FTH 720
ALPHABETICAL I DEX
CO TE TS PAGE
Base Frame
FTH480...............................................................45-1-1
FTH600&720 .........................................................45-1-2
Belts, Drive
FTH480...............................................................45-2-1
FTH600&720 .........................................................45-2-2
CasterArm(All odels) ....................................................45-6-1
Decals; Safety, Warning, Danger
FTH480...............................................................45-1-1
FTH600&720 .........................................................45-1-2
DriveshaftAssy.(All odels) ..........................................45-4-1,45-4-2
GearBoxAssemblies ................................................45-3-2,45-3-3
ast&Support(3PTLift)...................................................45-5-1
Pulleys (Drive & Idlers)
FTH480 ..............................................................45-2-1
FTH600&720 .........................................................45-2-2
Roller,Front..............................................................45-6-2
Shields, Safety
FTH480...............................................................45-1-1
FTH600&720 .........................................................45-1-2
SpindleAssembly .........................................................45-3-1
Wheel&ForkAssembly ....................................................45-6-1
JUNE, 2004

BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
30 2928
27
35
12
34
33
36
35
24 25
31
32
15
25
19
6
12
10
3
21
21
20
18
1
13
17
13
6
11
12 26
4
16
14
7
22
23
2

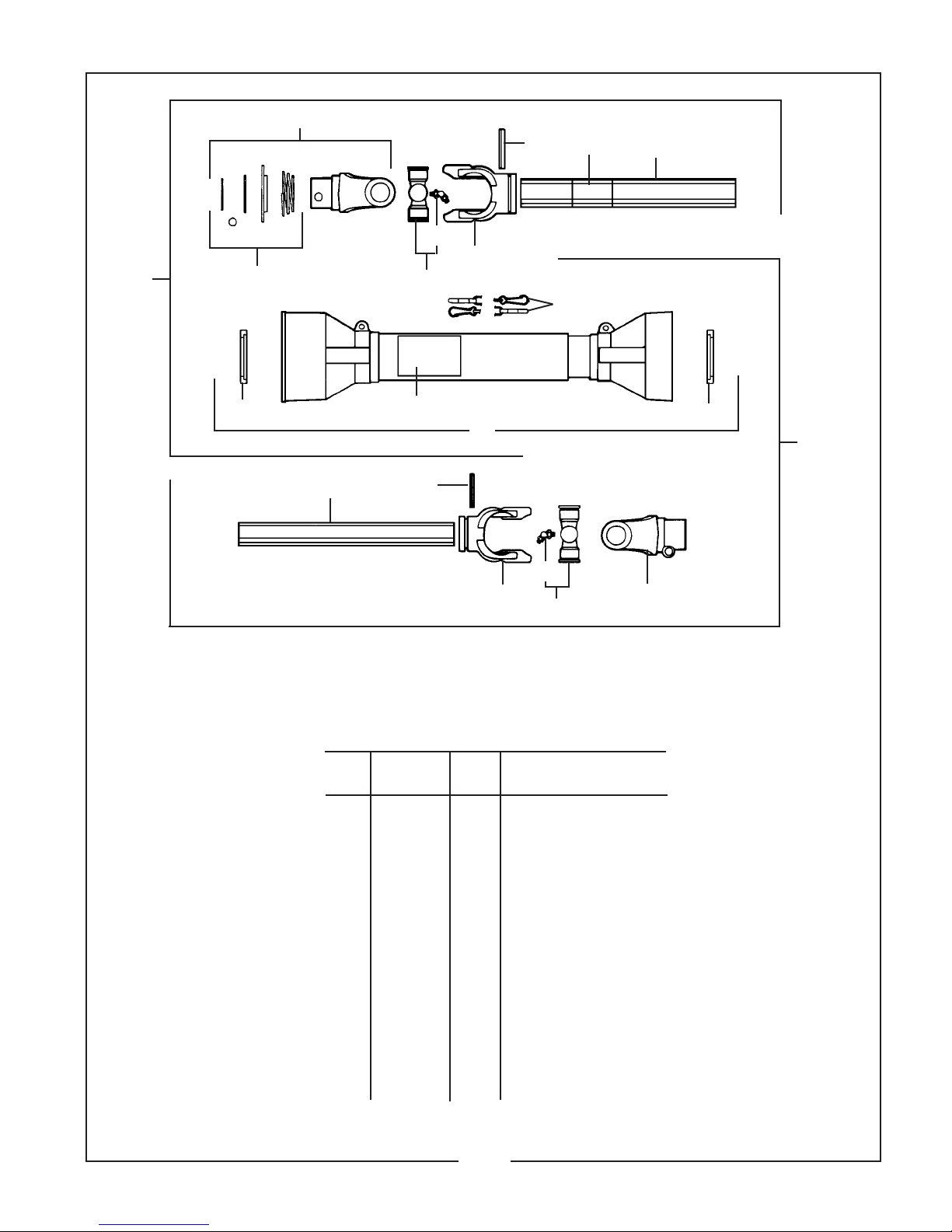

REF. PART QTY. DESCRIPTIO
O. O.
1 90878 1 Gear Box ount w/Decals
2 90873 1 Deck Weldment w/Decals
3 90876 1 R.H. Belt Shield w/Decals
4 90877 1 L.H. Belt Shield w/Decals
5 90875 1 Grass Shield w/Decals
6 88660 2 Plug
7 82619 1 Danger Decal
8 50042281 1 RP Decal
9 83056 1 Warning Decal
10 82618 1 Warning Decal
11 82617 1 Warning Decal
12 50012615 3 Warning Decal
13 50012616 2 Danger Decal
14 90837 1 odel No. Decal Stripe
15 90838 1 odel No. Decal
16 12115 1 Bush Hog Decal
17 90879 1 Belt Installation Decal
18 20414 4 Locknut, Flanged 5/8”

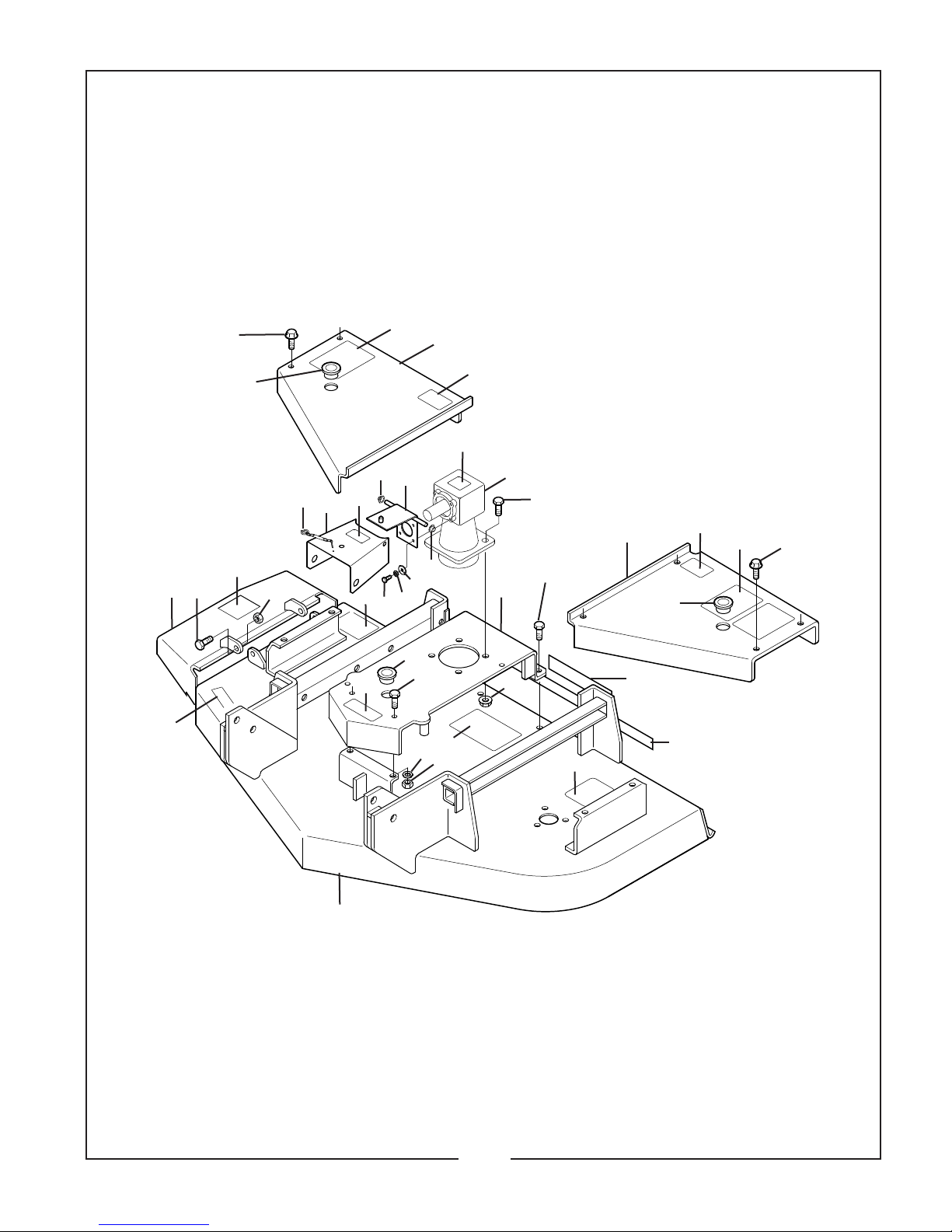

BASE FRAME A D SHIELDI G
FTH 480
45-1-1
REF. PART QTY. DESCRIPTIO
O. O.
19 ––––– 4 Capscrew 5/8” xs 1 3/4” Gr. 5
20 ––––– 2 Flatwasher 1/2”
21 ––––– 4 Capscrew 1/2” x 1 1/2” Gr.5
22 ––––– 4 Lockwasher 1/2”
23 ––––– 4 Hex Nut 1/2”
24 09131200 4 Locknut 3/8”
25 ––––– 3 Capscrew 3/8” x 1 “ Gr.5
26 86873 8 Capscrew, Flange Lock 3/8” x 3/4” Gr.5
27 94306 1 Input Shield
28 44216 4 Flatwasher m8
29 44311 4 Lockwasher m8
30 44215 4 Capscrew m8
31 ––––– 1 Lockwasher 3/8”
32 ––––– 1 Hex Nut 3/8”
33 50057096 1 Decal, Gearbox Warranty
34 94305 1 Shield ount
35 50014067 2 Cap, Friction
36 6050096 1 Pin & Chain Assembly
9
5
8
APRIL, 2008

BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
45-1-2
FTH 600 & FTH 720
BASE FRAME A D SHIELDI G
21
6
12
3
13
22 23
24
33
7
31
36
33 32
34 13 29
18
20
19 8
5
9
10
6
25
27 28
15
30
1
25, 26, 27, 28
13
35
6
4
14
2
16
17
APRIL, 2008

BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
45-1-3
REF. PART O. PART O. QTY. DESCRIPTIO
O. FTH600 FTH720
1 50055182 50055205 1 Gearbox ount
2 50056708 50056716 1 Deck w/ Decals, Blue
50056709 50056717 1 Deck w/ Decals, Green
50056710 50056718 1 Deck w/ Decals, Orange
50056711 50056719 1 Deck w/ Decals, Red
3 50055174 50055194 1 Right Shield w/ Decals
4 50055178 50055198 1 Left Shield w/ Decals
5 50056712 50056720 1 Grass Shield w/ Decals, Blue
50056713 50056721 1 Grass Shield w/ Decals, Green
50056714 50056722 1 Grass Shield w/ Decals, Orange
50056715 50056723 1 Grass Shield w/ Decals, Red
6 88660 88660 3 Plug
7 94306 94306 1 Input Shield
8 83056 83056 1 Warning Decal
9 90835 90835 1 odel No. Decal FTH 600
90902 90902 1 odel No. Decal FTH 720
10 50042281 50042281 1 Decal, 540 RP
11 50042284 50042284 1 Warning Decal (Left Side)
12 50042283 50042283 1 Warning Decal (Right Side)
13 50012615 50012615 3 Warning Decal
14 50012616 50012616 2 Danger Decal
15 88655 88655 1 Decal, Belt Installation
16 50055113 50055113 1 Bush Hog Decal
17 90836 90836 1 Stripe / odel No. Decal FTH 600
90903 90903 1 Stripe / odel No. Decal FTH 720
18 50042282 50042282 1 Danger Decal
19 –––– –––– 1 Capscrew 3/8” x 1’’ Gr. 5
20 09131200 09131200 2 Locknut 3/8”
21 86873 86873 8 Capscrew, Flanged 3/8” x 3/4”
22 44215 44215 4 Capscrew 8 x 1.25 x 15
23 44311 44311 4 Lockwasher 8
24 44216 44216 4 Flatwasher 8
25 –––– –––– 4 Capscrew 1/2” x 1 1/2” Gr. 5
26 –––– –––– 2 Flatwasher 1/2”
27 –––– –––– 4 Lockwasher 1/2”
28 –––– –––– 4 Hex Nut 1/2”
29 15165 15165 4 Capscrew 5/8” x 1 3/4” Gr.5
30 20414 20414 4 Locknut 5/8”
31 50057096 50057096 1 Gearbox Warranty Decal, 5 Yr.
32 94305 94305 1 Shield ount
33 50014067 50014067 2 Cap, Friction
34 6050096 6050096 1 Pin & Chain Assembly
35 50042285 50042285 1 Warning Decal
36 50069162 50069162 1 Gearbox Assembly,
FTH 600 & FTH 720
BASE FRAME A D SHIELDI G
NOVE BER, 2011

BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
REF. PART QTY. DESCRIPTIO
O. O.
1 50051388 2 Spindle Assembly
2 70015BH 1 Gear Box Assembly
3 44506 2 Capscrew 1/2” x 1 3/4” UNF Gr.8
4 44040 2 Safety Washer
5 88773 2 Blade 25” (Offset, Uplift)
82325 2 Blade 25” (Flat, Uplift)
6 88754 2 Blade Washer
7 88756 2 Sheave
8 88753 2 Wood Ruff Key
9 20748 2 Flatwasher 5/8”
10 09162000 2 Locknut 5/8”
11 50008038 1 Spring
12 88669 1 Rod Weld.
13 88741 1 Drive Sheave
14 90880 1 Drive Belt
15 90881 1 Idler Arm Assy.(Items 16 - 20)
REF. PART QTY. DESCRIPTIO
O. O.
16 88691 1 Bushing
17 88663 1 Idler pulley
18 90849 1 Idler Arm Weld.
19 –––– 1 Capscrew 5/8” x 3” Gr.5
20 15598 1 Lock Nut 5/8”
21 21020614 1 Cotter Pin 3/16” x 1 1/2”
22 20376 1 Flatwasher 1”
23 70288 1 Square Key
24 70286 1 Spring Washer
25 70287 1 Hex Nut 30 x 2
26 –––– 6 Capscrew 1/2” x 1 1/2’’
27 15554 6 Locknut 1/2”
28 –––– 6 Lockwasher 1/2”
29 –––– 2 Hex Nut 3/8”
PULLEYS A D BELTS
FTH 480 - 48” MOWER
4
3
5
26
61
28
27
9
10
8
25
24
12
2
29
14
23
13
19
18
17
20
16
22
21
11
45-2-1
7
15
APRIL, 2008

REF. PART QTY. DESCRIPTIO
O. O.
1 50051388 3 Spindle Assembly
2 50069162 1 Gear Box Assembly
3 44506 3 Capscrew 1/2” x 1 3/4” UNF Gr. 8
4 44040 3 Safety Washer, Heavy Duty
5 88668 3 Blade 21” (FTH 600)
82324 3 Blade 21” (FTH 600 Optional)
88773 3 Blade 25” (FTH 720)
82325 3 Blade 25” (FTH 720 Optional)
6 88754 3 Blade Washer
7 88756 3 Sheave
8 88753 3 Wood Ruff Key 606
9 20748 3 Flatwasher 5/8”
10 09162000 3 Locknut 5/8”
11 50008038 1 Spring
12 88669 1 Rod Weldment
13 88666 1 Drive Sheave (FTH 600)
88741 1 Drive Sheave (FTH 720)
14 88667 1 Belt (FTH 600)
88843 1 Belt (FTH 720)
BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
REF. PART QTY. DESCRIPTIO
O. O.
15 88663 1 Idler Pulley
16 70228 1 Key
17 70286 1 Spring Washer
18 70287 1 Hex Nut 30 x 2
19 20376 1 Flatwasher 1”
20 –––– 1 Cotter Pin 3/16” x 1 1/2”
21 –––– 1 Capscrew 5/8” x 2” Gr. 5
22 –––– 1 Lockwasher 5/8”
23 6050133 1 Special Flatwasher
24 –––– 2 Hex Nut 3/8”
25 88671 1 Idler Arm Assy. (Items 26 - 30)
26 88691 1 Bushing
27 88663 1 Idler Pulley
28 88703 1 Idler Arm Weld.
29 –––– 1 Capscrew 5/8” x 3” Gr.5
30 15598 1 Locknut 5/8”
31 –––– 9 Capscrew 1/2” x 1 1/2’’ Gr. 5
32 –––– 9 Lockwasher 1/2”
33 15554 9 Locknut 1/2”
PULLEYS A D BELTS
FTH 600 & FTH 720
24
12
11
29
28
26
27
30
20
19
25
2
14
16
13
17
18
15
23
22
21
10
9
8
33
32
1
31
6
5
4
3
45-2-2
7
NOVE BER, 2011

BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
2
3
5
4
1
3
2
REF. PART QTY. DESCRIPTIO
O. O.
1 88751 1 Spindle Housing
2 97685 2 Retaining Ring
3 88749 2 Bearing 25mm
4 50051387 1 Shaft
5 449 1 Grease Fitting
45-3-1
50051388 SPI DLE ASSEMBLY
FTH 480, 600, 720 MODELS
Replaces 88757 Spindle Assembly (Obsolete)
JANUARY 2007

BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
REF. PART QTY. DESCRIPTIO
O. O.
1 70329 A/R Shim .3mm
70330 A/R Shim .4mm
70331 A/R Shim .5mm
70332 A/R Shim 1.3mm
2 70229 1 Bearing
3 70133 1 Retaining Ring
4 70279 1 Cap
5 70226 1 Key 10 x 8 x 30
6 70281 1 Shaft
7 70110 2 Outside Retaining Ring
8 70094 1 Gear 26 teeth
9 70326 4 Capscrew 8 x 16
10 70092 1 Top Plate
11 70282 1 Pinion 12 teeth
12 70082 2 Bearing
13 70393 1 Vent Plug
14 N/A 1 Serial No. Plate
15 70129 1 Bearing
16 70283 1 Housing
17 N/A 1 Spacer Ring
18 70081 1 Gasket
19 70285 1 Bushing
20 70080 1 Seal
21 70079 1 Shoulder Ring
Abbreviations:
A/R – As Required
/A – ot Available
REF. PART QTY. DESCRIPTIO
O. O.
22 70286 1 Spring Washer
23 70287 1 Hex Nut
24 70288 1 Key 6 x 6 x 30 mm
25 70290 1 Seal
26 70291 1 Retaining Ring
27 70181 1 Plug 3/8”
70015BH GEARBOX ASSEMBLY
For FTH 480 and Early Models 600 & 720 Models
Replaced by 50069162 Gearbox on Models
FTH 600 and FTH 720
45-3-2
NOVE BER, 2011

BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
45-3-3
REF. PART
O. O. QTY. DESCRIPTIO
1 50069164 1 Casting
2 70133 2 Snap Ring 72 x 75 x 2.5
3 70279 1 Oil Cap
4 70797 1 Ball Bearing 30207
5 70639 2 Shim 60.3 x 71.7 x .03
70640 2 Shim 60.3 x 71.7 x .04
70641 2 Shim 60.3 x 71.7 x .05
70642 2 Shim 60.3 x 71.7 x 1.0
6 70348 1 Shim 45.3 x 65.3 x .03
70349BH 1 Shim 45.3 x 65.3 x .04
70350 1 Shim 45.3 x 65.3 x .05
70351 1 Shim 45.3 x 65.3 x 1.0
7 70796 2 Roller Bearing 30209
8 70905 1 Nut 45
9 70848 1 Dust Lip 40 x 90 x 8
10 50042822 1 Input Shaft 1-3/8” Z6
11 70134 1 Oil Seal 35 x 72 x 10
12 71453 1 Ball Bearing 6207
13 50042823 1 Cover
14 F7502811 1 Shim 35.3 x 48 x 2.5
15 80538 1 1/2” GAS Solid Plug
16 70250 1 Snap Ring 40 x 37.5 x 2.5
17 50042824 1 Crown Z30
18 70288 1 Parallel Key 6 x 6 x 30
19 50042826 1 Pinion Z12
20 70286 1 Ext. Tooth Washer 31 x 48
21 70287 1 Hex Nut 30
22 70278 4 Bolt 8 x 1.25 x 20
23 70292 1 3/8” GAS Solid Plug

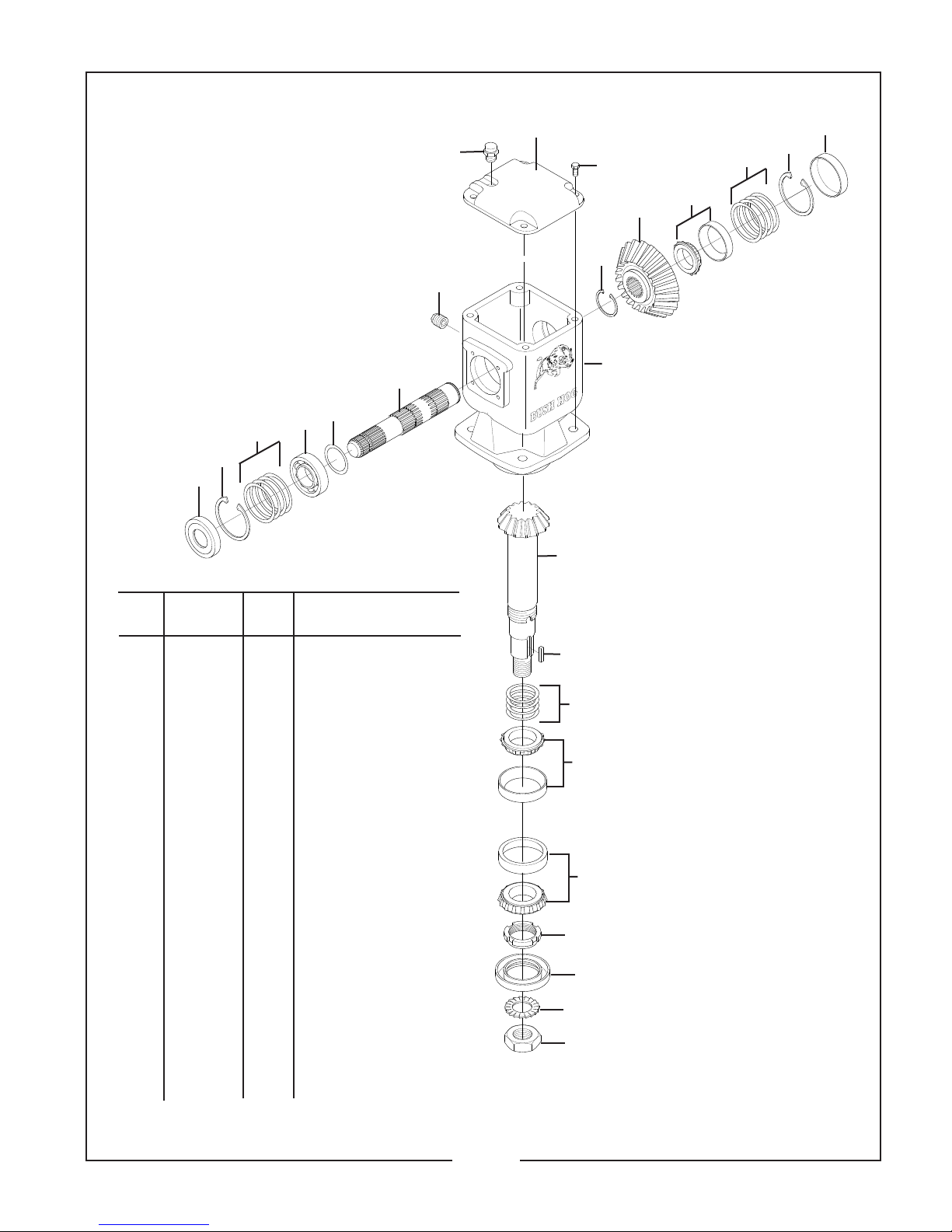

50069162 GEARBOX ASSEMBLY
(Formerly Identified as 71334)
Mfd. by Comer
Used on FTH 600 & FTH 720
11
2
512 14
10
23
16
1
19
18
6
7
17 4
5
23
13
15 22
7
8
9
20
21
NOVE BER, 2011

BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
REF. PART QTY. DESCRIPTIO
O. O.
1 90010 1 Shielded Front Half Assy.
2 90814 1 Shielded Rear Half Assy.
3 64692 2 Yoke Assy.
4 63945 2 Q.D. Pin Kit
5 64694 2 Cross Bearing Kit
6 63956 2 Grease Fitting
7 78571 1 Yoke, Outer Tube
8 78577 1 Flexible Pin (Outer Pin)
9 82800 1 Outer Tube
10 78786 1 Danger Decal
11 78570 1 Yoke, Inner Tube
12 78578 1 Flexible Pin (Inner Tube)
13 82801 1 Inner Tube
14 90012 1 Safety Shield
15 90008 1 Outer Shield Bearing
16 50042832 1 Inner Shield Bearing
17 78608 1 Danger Decal
18 64814 2 Safety Chain
89479 DRIVESHAFT ASSEMBLY
FTH 480, 600, 720 Models
Replaced by 93050 Driveshaft
10
97
8
6
53
4
17 15
18
1
14
16
4
3
6
511 12
13
2
45-4-1
APRIL, 2008

BUSH HOG / LA D MAI TE A CE REPAIR PARTS MA UAL
45-4-2
12
3
20
21
4
55
66
7
8
9
10
11
12
14
15
13
17
18
16 16
19
REF. PART
O. O. QTY. DESCRIPTIO
1 76808 1 Outer Half w/Shield
2 76096 1 Inner Half w/Shield
3 76126 1 Yoke & Pin Assy.
4 76062 1 Q.D. Pin Kit
5 64694 2 Cross Bearing Kit
6 63956 2 Grease Fitting
7 78571 1 Outer Yoke
8 78577 1 Roll Pin for Outer Yoke
9 82800 1 Outer Tube
10 78786 1 Danger Decal
11 82801 1 Inner Tube
12 78578 1 Roll Pin for Inner Yoke
13 78570 1 Inner Yoke
14 76146 1 Shield Assy.
15 76192 1 Outer Bearing
16 87992 6 Shield Bolt
17 76191 1 Inner Bearing
18 78608 1 Danger Decal
19 64814 2 Safety Chain
20 76711 1 Complete Collar Yoke
21 50017480 1 Ball Collar Kit 1-3/8”
76722 DRIVESHAFT ASSEMBLY
(540 RPM 1-3/8” – 6 Spline Yoke)
Mfd. by Comer / EG
Replaces 93050 Driveshaft
ote: Some early driveshafts were shipped with
push pins on the tractor yoke end. Order 76062 push
pin set to replace pin. Order 76711 for complete
yoke replacement.
76062 Push Pin Set
JULY, 2002

BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL
45-4-3
REF. PART
O. O. QTY. DESCRIPTIO
1 50035260 1 Complete Collar Yoke
2 64694 2 Cross Journal Set
3 63956 2 Grease Nipple
4 78571 1 Outer Tube Yoke
5 78577 1 Flexible Pin
6 82800 1 Outer Tube
7 82801 1 Inner Tube
8 78578 1 Flexible Pin
9 78570 1 Inner Tube Yoke
10 64692 1 Outer Yoke
11 90008 1 Outer Bearing
12 50042832 1 Inner Bearing
13 64814 2 Chain
14 50035261 1 Ball Collar Kit
15 50035268 1 Half Shaft, Outer
16 50035295 1 Half Shaft, Inner
17 90012 1 Safety Guard
18 78786 1 Danger Decal
19 78608 1 Danger Decal
50034246 DRIVESHAFT ASSEMBLY
(OBSOLETE REPLACED BY 50063616)
540 RPM, 1-3/8” – 6 spline, Mfd. by Binacchi
Binacchi Size 4, ASAE Size 3
1
15 14
6
18
4
5
2
19
13
11
16
8
7
910
2
12
17
3
3
APRIL, 2008

BUSH HOG/ LA D MAI TE A CE REPAIR PARTS MA UAL
45-4-4
50063616 DRIVE SHAFT ASSEMBLY
(Replaces the 50034246 Driveshaft Assy.)
ASAE Size 3
540 RPM, 1-3/8” - Spline Tractor
Mfd. by Bondioli & Pavesi
13
47
13
568
10 10
11
914
18
17
16
15
12 12
REF. PART
O. O. QTY. DESCRIPTIO
1 50064902 2 Ball Collar Yoke Assy.
2 64964 2 Cross Bearing Kit
3 78571 1 Yoke Outer Tube
4 78577 1 Roll Pin for Outer Tube
5 50064906 1 Outer Tube
6 50064907 1 Inner Tube
7 78578 1 Roll Pin Inner Tube
8 78570 1 Yoke for Inner Tube
9 50064911 1 Outer Shield Bearing
REF. PART
O. O. QTY. DESCRIPTIO
10 71404 6 Self Tapping Screw
11 50064912 1 Inner Shield Bearing
12 50064890 2 Shield Chain
13 78786 1 Danger Decal, Outer Tube
14 78608 1 Danger Decal, Inner Tube
15 50064645 2 Ball Collar Kit
16 50064914 1 Outer Half Assy.
17 50064940 1 Inner Half Assy.
18 50064916 1 Complete Shield Kit
2
115
April, 2010

BUSH HOG / LAND MAINTENANCE REPAIR PARTS MANUAL

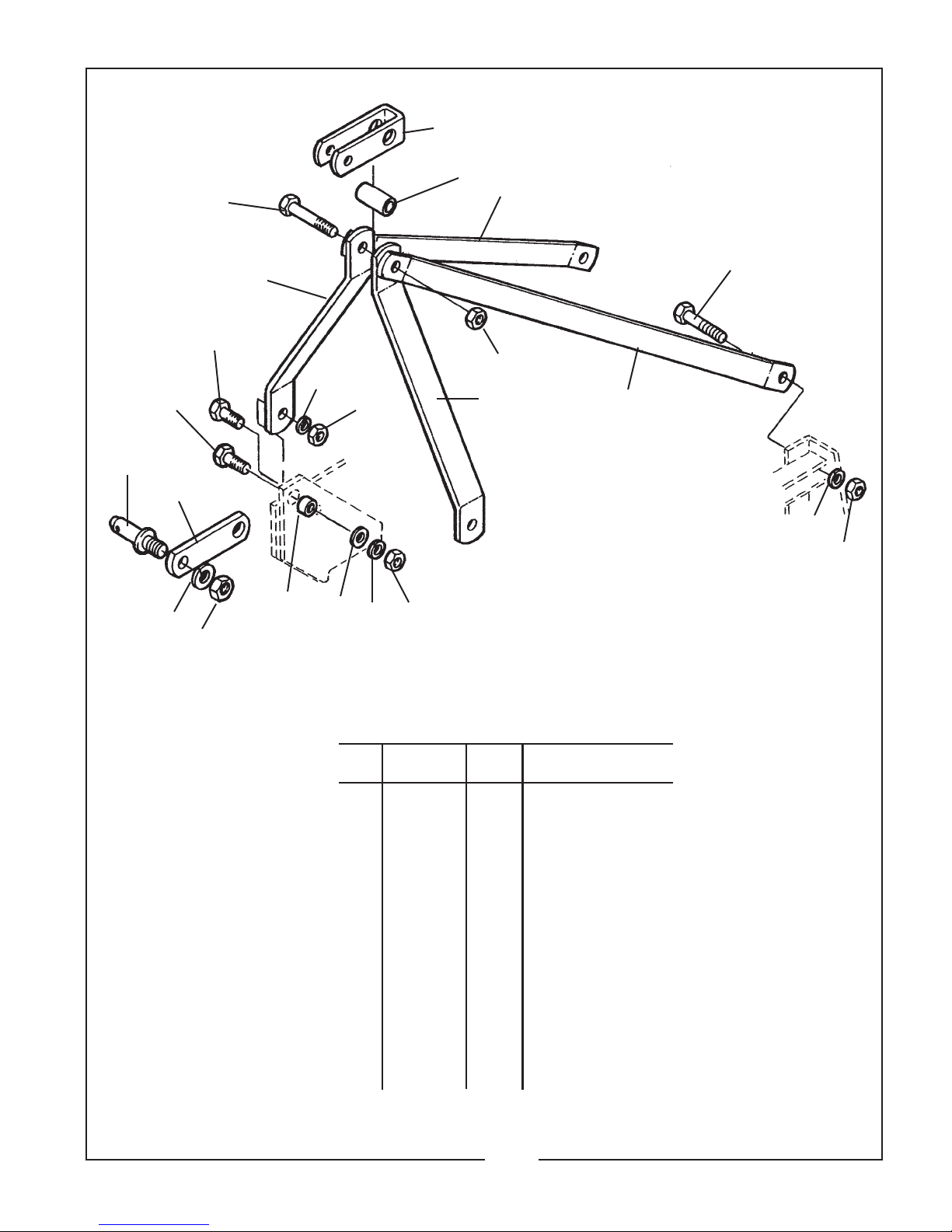

MAST A D SUPPORTS
FOR
FTH 480, 600, 720 MODELS
REF. PART QTY. DESCRIPTIO
O. O.
1 88686 2 Lift Arm
2 63765 2 Lift Pin
3 44061 2 Hex Nut 7/8” UNF
4 15824 2 Lockwasher 7/8”
5 88687 2 Spacer
6 88678 2 ast
7 88677 2 ast Support
8 82815 1 Floating Top Link
9 82817 1 Pivot Tube
10 –––– 2 Capscrew 1/2” x 2” Gr. 5
11 –––– 2 Capscrew 1/2” x 1 1/2” Gr.5
12 –––– 4 Lockwasher 1/2”
13 –––– 2 Flatwasher 1/2”
14 –––– 4 Hex Nut 1/2”
15 –––– 1 Capscrew 1/2” x 5” Gr.5
16 15554 1 Locknut 1/2”
17 –––– 2 Capscrew 5/8” x 4” Gr. 5
18 –––– 2 Lockwasher 5/8”
19 –––– 2 Hex Nut 5/8”
2
1
4
3
11
10
12
14
513 12 14
6
15
8
6
97
7
17
18
19
16
45-5-1
ARCH, 1994

BUSH HOG / LA D MAI TE A CE REPAIR PARTS MA UAL
REF. PART QTY. DESCRIPTIO
O. O.
1 –––– 6 Capscrew 5/8” x 3 1/2” Gr. 5
2 –––– 6 Lockwasher 5/8”
3 –––– 6 Hex Nut 5/8”
4 90659 4 Caster Arm Assy.
5 449 1 Grease Fitting
6 84612 4 Spacer 1/2”
7 84613 8 Spacer 1”
8 20312 2 Lynch Pin
9 88683 2 Wheel and Fork Assy. (Solid Tire)
10 88695 1 Fork Weldment (Solid Tire)
11 62574 1 Sleeve (Solid Tire)
12 44030 1 Capscrew 1/2” x 5” Gr.5
13 15554 1 Locknut 1/2”
14 87750 1 Solid Tire Assy.
15 85398 2 Bushing
16 20748 8 Flatwasher 5/8”
17 88956 2 Wheel & Fork Assembly (Pneumatic Tire)
18 88973 1 Fork Weldment (Pneumatic Tire)
19 88970 1 Sleeve (Pneumatic Tire)
20 20776 1 Capscrew 1/2” x 6” (Pneumatic Tire)
21 88957 1 Pnuematic Tire Assembly
22 88971 1 Rim w/ Bushings
23 88969 1 Pneumatic Tire 410/350/4
24 91096 1 Roller Bearing Kit (Items 15, 25) Optional1
25 90810 1 Roller Bearing
CASTER ARM & TAILWHEEL
FTH 480, 600 & 720 MODELS
8
6
7
4
10
13
11
12
13
20
19
18
15
14
9
1
16
3
2
45-6-1
5
24
15
22
23
21
17
191096 Bearing Kit includes (Qty. 4) 90810 Roller Bearings and (Qty. 8) 85398 Bushings.
JANUARY 2007
15
25

BUSH HOG / LA D MAI TE A CE REPAIR PARTS MA UAL
45-6-2
REF. PART
O. O. QTY. DESCRIPTIO
1 79057 1 Roller
2 05161212 4 Carriage Bolt 3/8” x 1-1/4”
3 –––– 4 Hex Nut 3/8”
4 –––– 4 Lockwasher 3/8”
5 –––– 4 Flatwasher 3/8”
6 –––– 2 Flatwasher 3/4”
7 50021170 1 Sleeve
8 50021169 1 Left Roller ount
9 50021168 1 Right Roller ount
10 15554 1 Locknut 1/2”
11 20580 1 Capscrew 1/2” x 6-1/2”
90871 Front Roller Kit
For Current Models FTH600 & FTH720
90868 Front Roller Assembly
For FTH480
Front Roller Assembly
For Early Models FTH600 & FTH720
REF. PART
O. O. QTY. DESCRIPTIO
1 90863 1 Roller ount, Left FTH480
2 90862 1 Roller ount, Right FTH480
3 90865 1 Roller ount, Left FTH600 & FTH720
4 90864 1 Roller ount, Right FTH600 & FTH720
5 19443 1 Roll Pin
6 83055 1 Roller Shaft
7 79057 1 Roller
8 83054 1 Retainer Pin
9 5161212 4 Carriage Bolt 3/8” x 1-1/4”
10 –––– 4 Flatwasher 3/8”
11 –––– 4 Lockwasher 3/8”
12 –––– 4 Hex Nut 3/8”
13 –––– 2 Flatwasher 3/4”
9
85
4
2
3
10
6
6
7
11
9
4
3
2
12
11 10
8
6
13
7
5
1
13
1
APRIL 2000
