Bush VCM40A16L0B-70 User manual

Instruction manual
Multi Cyclonic Bagless Cylinder Vacuum Cleaner
Model: VCM40A16L0B-70
SKU: 134082072
Cat: 8455578

If you require any technical guidance or find that your product is not operating as intended, a sim ple solution can often be found in the
Troubleshooting section of these instructio ns
2
Help and Guidance
Should you require any guidance; call our Help line on 0345 604 0105.
Further contact details can be found online at: w w w .bush- suppo rt.co .uk
You’ll soon be enjoying your new Bush Multi
Cyclonic Bagless Cylinder Vacuum Cleaner.
It all begins here, with your instructions. Don’t
worry, there’s nothing too technical coming up.
Just simple, step-by-step guidance to get you up
and running quickly. Sound good? Then let’s get
started.
We’re here to help you get the most from your Bush Multi Cyclonic Bagless
Cylinder Vacuum Cleaner.

Or by calling one of our experts on 0345 604 0105
3
Contents
1
Safety information
Pow er source
Ventilation heat and m oisture
Warning
Plug / Wiring advice
6
7
7
8
2
Getting to know your vacuum cleaner
Accessories
Parts
10
11
3
Installing your vacuum cleaner
Assembly
14
4
Using your vacuum cleaner
Getting started
Nozzle use
Storage
16
17
17
5
Care and maintenance
Maintenance
Em ptying the dust co ntainer
Cleaning the filters
Technical specification
20
20
21
23
6
Product support
Troubleshooting
Help and assistance
Recycling electrical products
Guarantee
26
27
28
29

If you require any technical guidance or find that your product is not operating as intended, a sim ple solution can often be found in the
Troubleshooting section of these instructio ns
4

Or by calling one of our experts on 0 345 604 0105
5
Safety information 1

If you require any technical guidance or find that your product is not operating as intended, a sim ple solution can often be found in the
Troubleshooting section of these instructio ns
6
Safety information
Important - Please read these instructions fully
before installing or operating
Power source
Fo r ho usehold and indoor use only
Keep the appliance and its cord out of reach of children less
than 8 years.
Do not allow children to use the appliance without supervision.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or m ental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children unless they are aged
from 8 years and above and supervised.
Do not pull on the cable to disconnect from m ains supply.
Fully unwind the cable before plugging in and ensure the cable
is positioned away from areas w here it is likely to get dam aged
or cause a trip hazard.
Do not operate the vacuum if dam aged or after it malfunctions.
In the event the supply cord is damaged, it must only be
replaced by a qualified service engineer, with a suitably approved
part.
This appliance must be positioned so that the plug is accessible
and the plug socket is within easy reach of the power cord.
Switch off and unplug when not in use and before emptying,
cleaning or servicing the appliance. Servicing of this appliance
must only be carried out by a qualified electrician.

Or by calling one of our experts on 0345 604 0105
7
Safety information
Important - Please read these instructions fully
before installing or operating
Ventilation, heat and moisture
Keep appliance, cable and plug away from areas w here it is likely
to get splashed. Never im m erse in w ater.
Warning!
Do not place fingers or other objects into the hose nozzle or
under the floor head when the vacuum cleaner is in use.
Do not run the appliance over the pow er cable.
Do not use the appliance to pick up burning or hot objects (e.g.
coal, ash, cigarettes etc} of any kind.
Do not use the appliance to pick up any liquids or use on wet
surfaces.
Do not cover the appliance or restrict air vents.
Do not use the appliance to pick up sharp objects (e.g. pins, nails,
tacks, staples etc) or string.
.

If you require any technical guidance or find that your product is not operating as intended, a sim ple solution can often be found in the
Troubleshooting section of these instructio ns
8
Safety information
Important - Please read these instructions fully
before installing or operating
Plug / Wiring advice
The wires in this m ains lead are coloured in accordance with the
following UK electrical code: BLUE = NEUTRAL
BROWN = LIVE
Non-rewireable plug
‐
‐
refitted. If the fuse cover is lost o r dam aged, the appliance m ust not
be used.

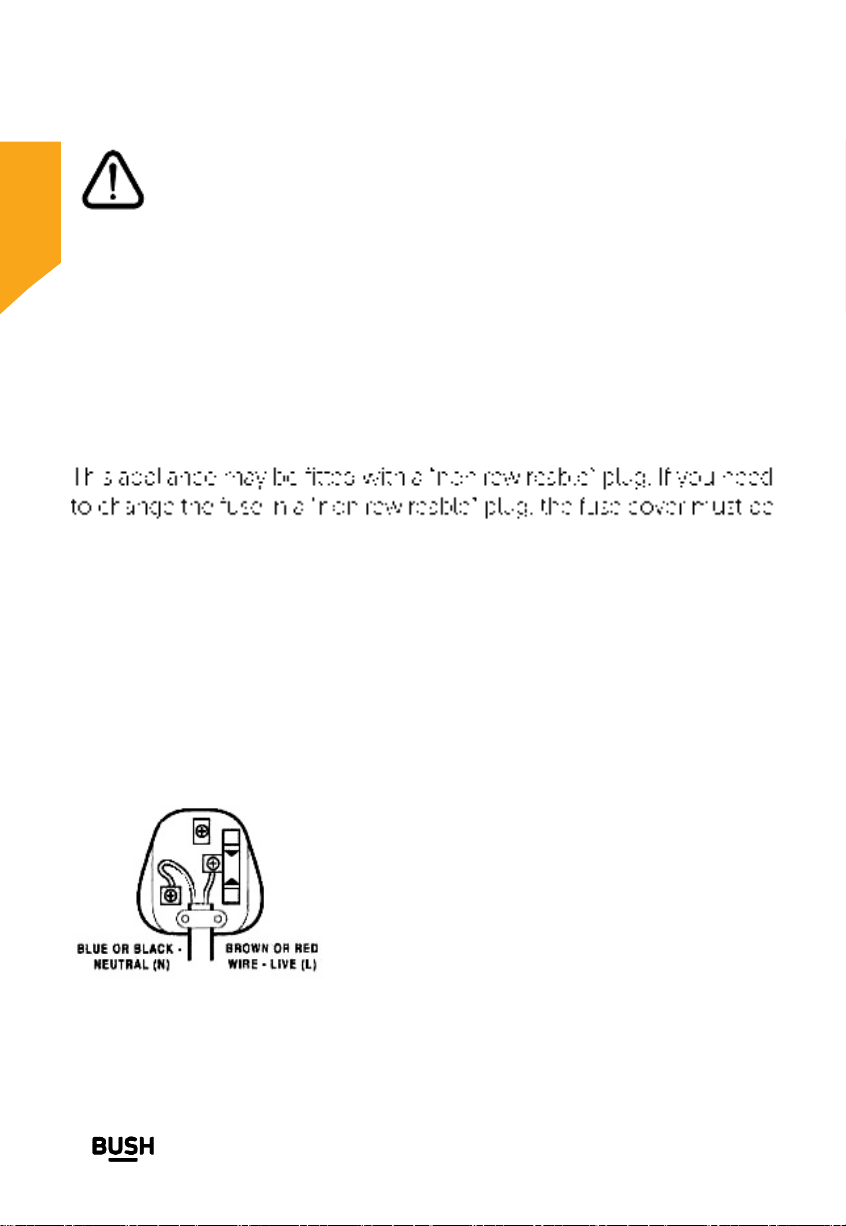

Rewireable plug
The colours of the wires in the m ains lead of this appliance m ay not
correspond with the coloured m arkings identifying the term inals in a
rewireable plug. Rew ireable plugs should o nly be replaced by a
suitably co m petent person. If in do ubt, co nsult a qualified
electrician.
The BLUE wire must be connected to
the terminal m arked with the letter N
The BROWN wire m ust be connected
to the terminal marked with the letter L

Or by calling one of our experts on 0 345 604 0105
9
Getting to know your vacuum 2

If you require any technical guidance or find that your product is not operating as intended, a sim ple solution can often be found in the
Troubleshooting section of these instructio ns
10
Getting to know your vacuum
Please read these instructio ns carefully. They co ntain im portant info rm ation which
will help you get the best from your vacuum and ensure safe and correct
installation and o peration.
If you require any further assistance, our technical experts are happy to help. For
full details, refer to the product support section at the end of these instructions.
Accessories
Vacuum cleaner Floor head
Co m bination nozzle
Extension tube Flexible hose

Or by calling one of our experts on 0345 604 0105
11
Getting to know your vacuum

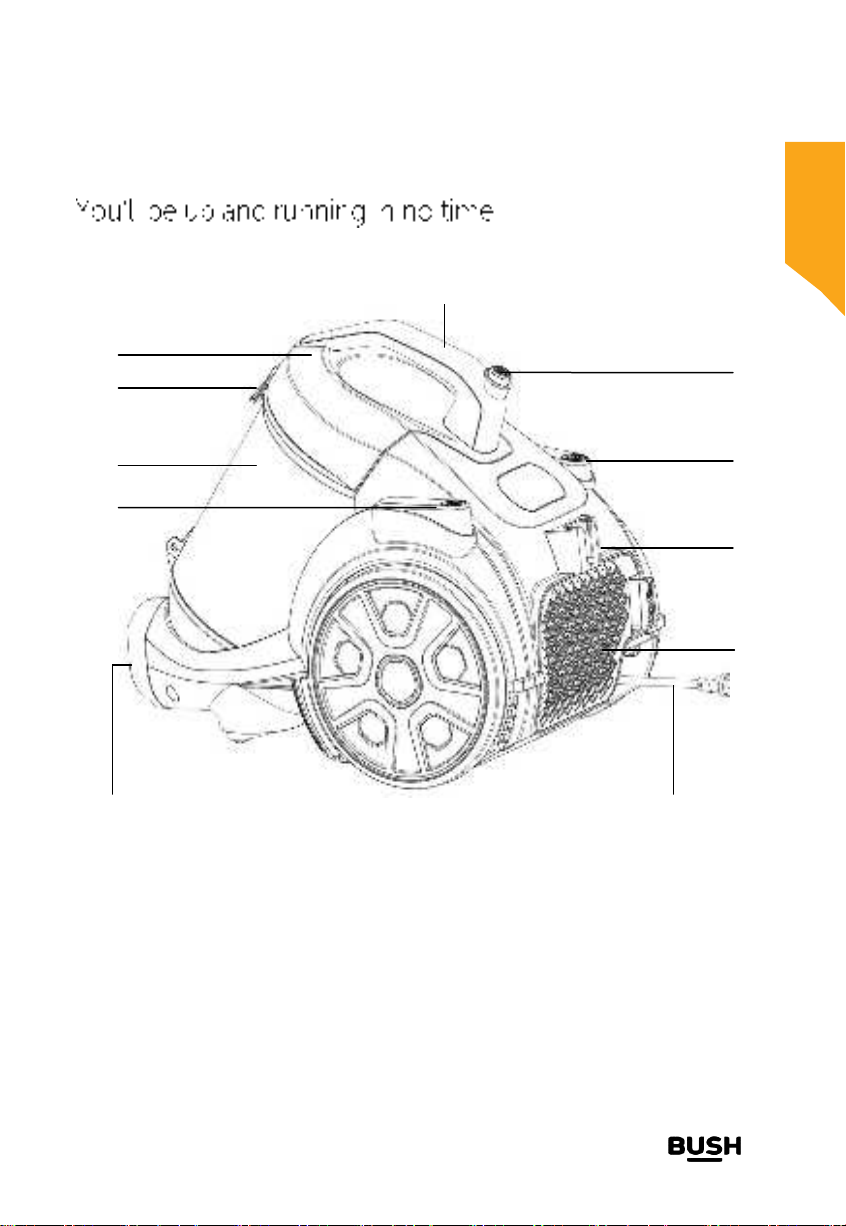

Parts
1Carrying handle
2Dust container release button
3Cable rew ind button
4Floor head storage point
5Outlet filter cover
6Power cable
7Flexible hose socket
8ON/ OFF button
9Dust container
10 Dust container catch
11 Dust container lid
3
1
5
2
6
7
11
4
8
9
10

If you require any technical guidance or find that your product is not operating as intended, a sim ple solution can often be found in the
Troubleshooting section of these instructio ns
12

Or by calling one of our experts on 0 345 604 0105
13
Installing your vacuum 3

If you require any technical guidance or find that your product is not operating as intended, a sim ple solution can often be found in the
Troubleshooting section of these instructio ns
14
Installing your vacuum
Bringing it all together
Assembly
1. Insert the flexible hose coupling into the hose socket and push to
secure, a click w ill be heard.
2. Fit the extension tube onto the end of the curved handle and push fit
the floor head onto the extension tube (fig.1). The crevice nozzle can
fit onto the curved handle and the extension tube in a similar manner.
3. To adjust the length of the extension tube, press the extension tube
button and pull out the inner tube to the required length.
4. To rem ove the extension tube and accessories firm ly pull apart.
5. To disconnect the flexible hose from the body of the cleaner ensure
that vacuum cleaner is switched off. Squeeze the hose release button
and pull apart.

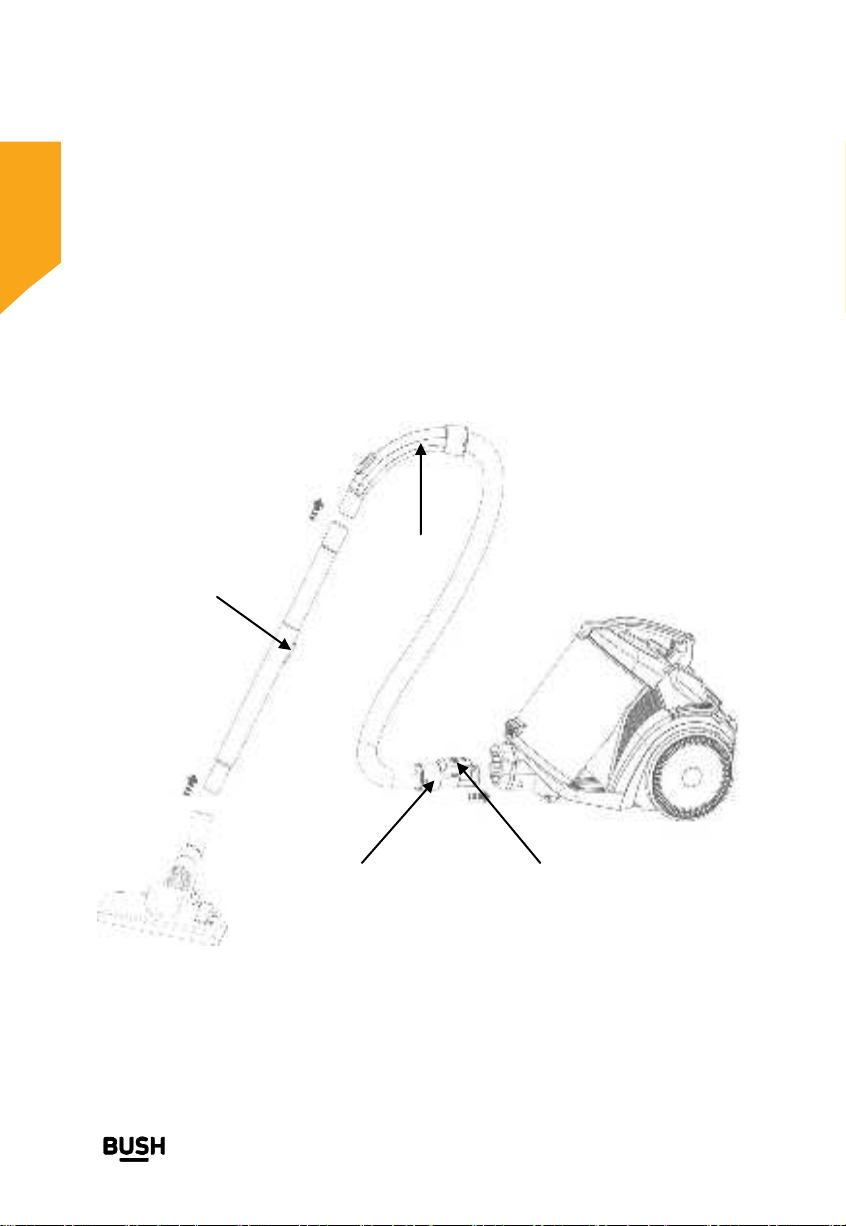

Fig. 1
Handle
Extension tube button
Hose coupling
Hose release button

Or by calling one of our experts on 0 345 604 0105
15
Using your vacuum 4

If you require any technical guidance or find that your product is not operating as intended, a sim ple solution can often be found in the
Troubleshooting section of these instructio ns
16
Using your vacuum
Getting started
1. Before use, pull out the cable until the yellow m ark on the cable is
visible. This is the ideal cable length. Do not extend the cable beyond
the RED m ark.
2. Fit the correct nozzle for the cleaning application (see next page) and
plug the vacuum cleaner into the mains supply.
3. Press the ON/OFF button to start the vacuum cleaner and vacuum as
required.

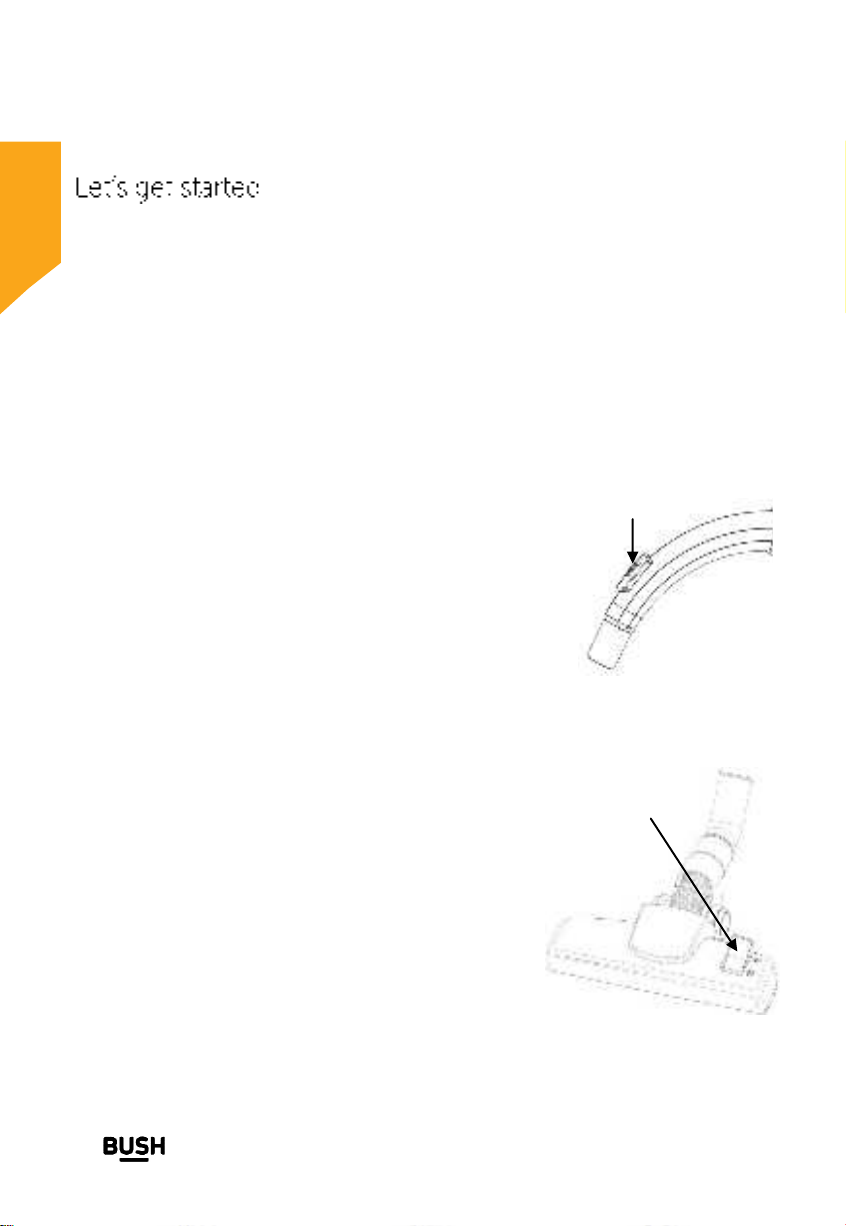

4. The suction can be released quickly by
moving the suction release slider on the
top of the flexible hose handle (fig. 2).
5. To raise or lower the brushes on the
floor head (fig. 3) press or lift the floor
head adjustm ent lever.
When cleaning carpets, raise the
brushes on the floor head.
When cleaning hard floors, lower
the brushes on the floor head.
6. Press the ON/OFF button again to
switch the vacuum cleaner off after use
and before disconnecting the plug from
the m ains supply.
7. Rewind the cable by pressing the cable
rew ind button. It is advisable to guide
the cable with your hand to prevent the
cable whipping and damaging the
appliance or other household property.
If the cable does not rewind completely,
pull the cable out a sm all way and press
the rewind button again.
Fig. 2
Fig. 3
Suction release
slider
Adjustment lever

Or by calling one of our experts on 0345 604 0105
17
Using your vacuum
Nozzle use
Nozzle
Cleaning area
Floor &
carpets
Furniture
Between
cushions
Curtains
Stairs
Walls
Skirting
edges
Radiators
Floor head


Com bination-brush




Com bination-crevice tool





Storage
To store the vacuum cleaner
tidily when not in use, slide the
storage point on the floor head
into the socket at the rear of the
cleaner as shown (fig. 4).
Fig. 4

If you require any technical guidance or find that your product is not operating as intended, a sim ple solution can often be found in the
Troubleshooting section of these instructio ns
18

Or by calling one of our experts on 0 345 604 0105
19
Care and maintenance 5

If you require any technical guidance or find that your product is not operating as intended, a sim ple solution can often be found in the
Troubleshooting section of these instructio ns
20
Care and maintenance
Looking after your appliance
Maintenance
Switch off and disconnect from the m ains supply before carrying out
cleaning and maintenance.
To ensure your vacuum cleaner works at optimum efficiency, keep the
ventilation holes and vacuum cleaner surface free from dirt.
Ensure that the dust container is em ptied and the air filters are w ashed
regularly.
1. Wipe the outside of the vacuum cleaner and accessories with a dam p
(not w et) cloth and then wipe dry. Do not use detergents, solvents or
abrasives as these may scratch or damage the surface.
2. Never imm erse the vacuum cleaner, cable or plug in w ater.
3. When not in use, store in a cool, dry place.
Emptying the dust container
1. When the dust container reaches the MAX line m arked on the dust
container or when the suction power is reduced, it is time to em pty
the dust container.
2. Switch off and disconnect from the m ains supply.

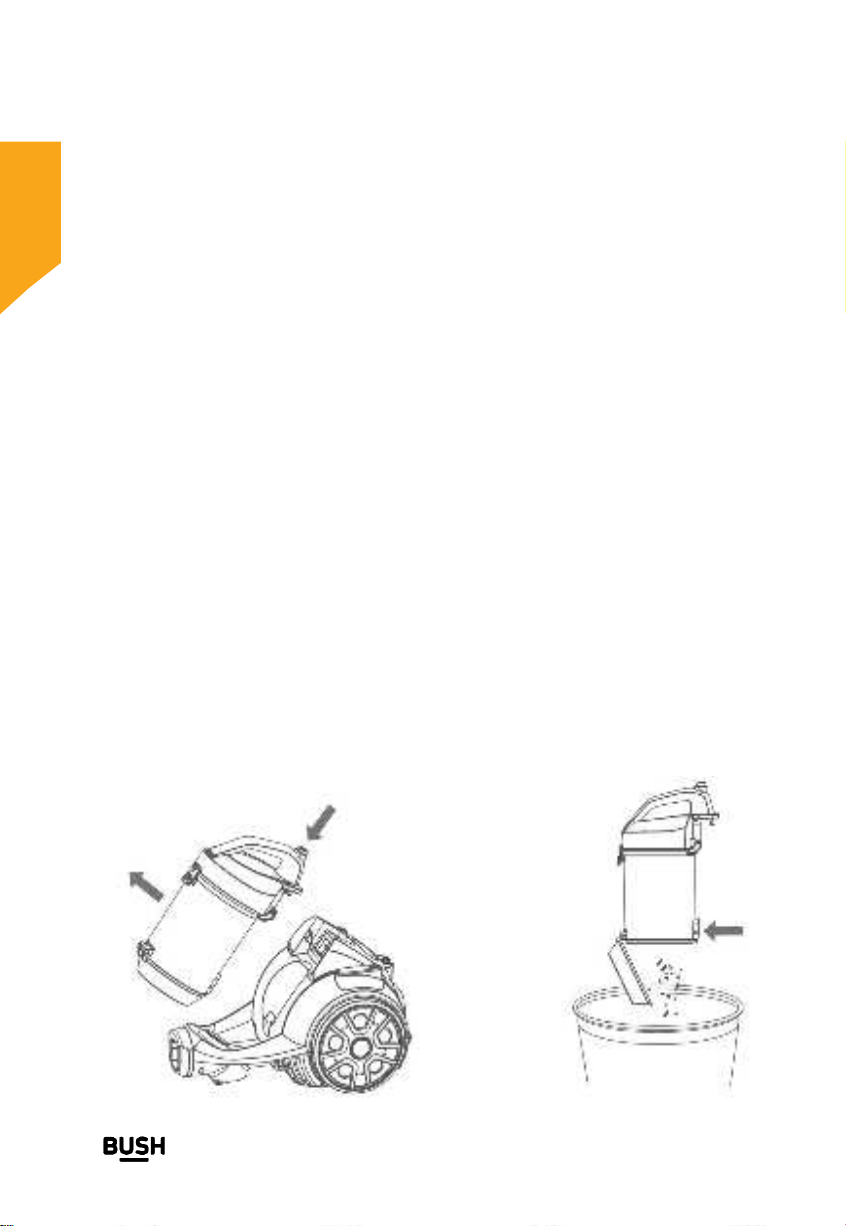

3. Press the dust container release button and lift off the dust container
using the handle (fig.5).
Fig.5
Fig.6
②
