Bushnell PowerSync PP2020 User manual
04-13Model # PP2020/PP2010
Quick Start Guide
BatteryChargers
AA RECHARGER
POWERCHARGER
IMPORTANT SAFETY INFORMATION
Please read this manual in its entirety before operating your Bushnell POWERSYNC product. It contains
important information concerning the setup, operation and maintenance of the product. Keep this
manual for future reference.
• WARNING: This product should only be used with the supplied charging unit and accessories
(not included with all models). Use of a charger or accessories not recommended or supplied by
Bushnell may result in product damage, re, electrical shock or injury, and will void your product
warranty.
• CAUTION: Do not use the product to charge an external device at the same time as the internal
battery is being charged by the AC wall charger.
• CAUTION: Do not operate the product in an environment where temperatures exceed 112o F/45o C
• CAUTION: Do not submerge the product in water, or attempt to operate the product after it has
been exposed to water.
• CAUTION: Do not attempt to open the product. There are no user serviceable internal parts.
Disassembling the product will void your warranty. The rechargeable battery must be replaced
by a qualied technician.
• CAUTION: Check adaptors for correct t and compatibility before using the product to charge
electronic devices. Improperly used adaptors can be a shock hazard and may damage the
electronic device.
• CAUTION: Before operating the product or connecting it to any other device, check to ensure that
all cables are not damaged. Extreme heat, water, petroleum products and sharp edges all have
the potential to damage cables. Do not use any cable with exposed wiring.
• CAUTION: Charge your connected devices in an area away from the direct sun if possible.
• WARNING: EXPLOSION HAZARD! - Do not incinerate any Bushnell POWERSYNC product, or
attempt to use it in a microwave oven.
• WARNING: Bushnell POWERSYNC products are not intended for powering any medical
equipment, life support devices, or any other critical equipment.
• CAUTION: Do not clean your Bushnell POWERSYNC product with anything other than a damp rag.
The use of cleaning chemicals or other products may harm the unit and will void your warranty.
• Do not dispose of any Bushnell POWERSYNC product as you would normal household trash.
Please contact your local government authority for directions regarding the proper disposal of
products containing a Lithium Ion battery.
PACKING LIST
This POWERSYNC model includes the following items:
• BatteryCharger (Model PP2020 or PP2010)
• USB Cable
• AC Wall Charger
• 4 NiMh AA Batteries (Model PP2010 only)
• Quick Start Guide
AC Wall Charger
with USB cable connected
1
HOW THE BATTERYCHARGERS WORK
The PowerCharger (PP2020) with internal power source (Lith-Ion battery) and
the AA Recharger (PP2010) with removable power source (AA NiMh batteries)
store electrical energy, so it can be used to recharge your portable electronic
devices whenever you’re away from your home or campsite. Press the orange
lid latch button on the side of the battery charger to access the Input and
Output ports as shown below.
TO BatteryCharger
INPUT PORT
(micro USB plug)
FROM WALL CHARGER
USB PORT
(standard USB plug)
INPUT-Used for charging the BatteryCharger’s
internal battery from wall charger.
* Use USB charging cable included with your
device if this connector is not compatible.
TO PORTABLE DEVICE
CHARGING PORT*
(micro USB plug)
FROM BatteryCharger
OUTPUT PORT
(standard USB plug)
OUTPUT-Used for charging your device(s)
from the BatteryCharger’s internal battery
(once charged via AC wall charger)
Lid Latch
Button
PP2020 INPUT
OUTPUTS
Field Light
PP2010 INPUT
OUTPUT
Field Light
2

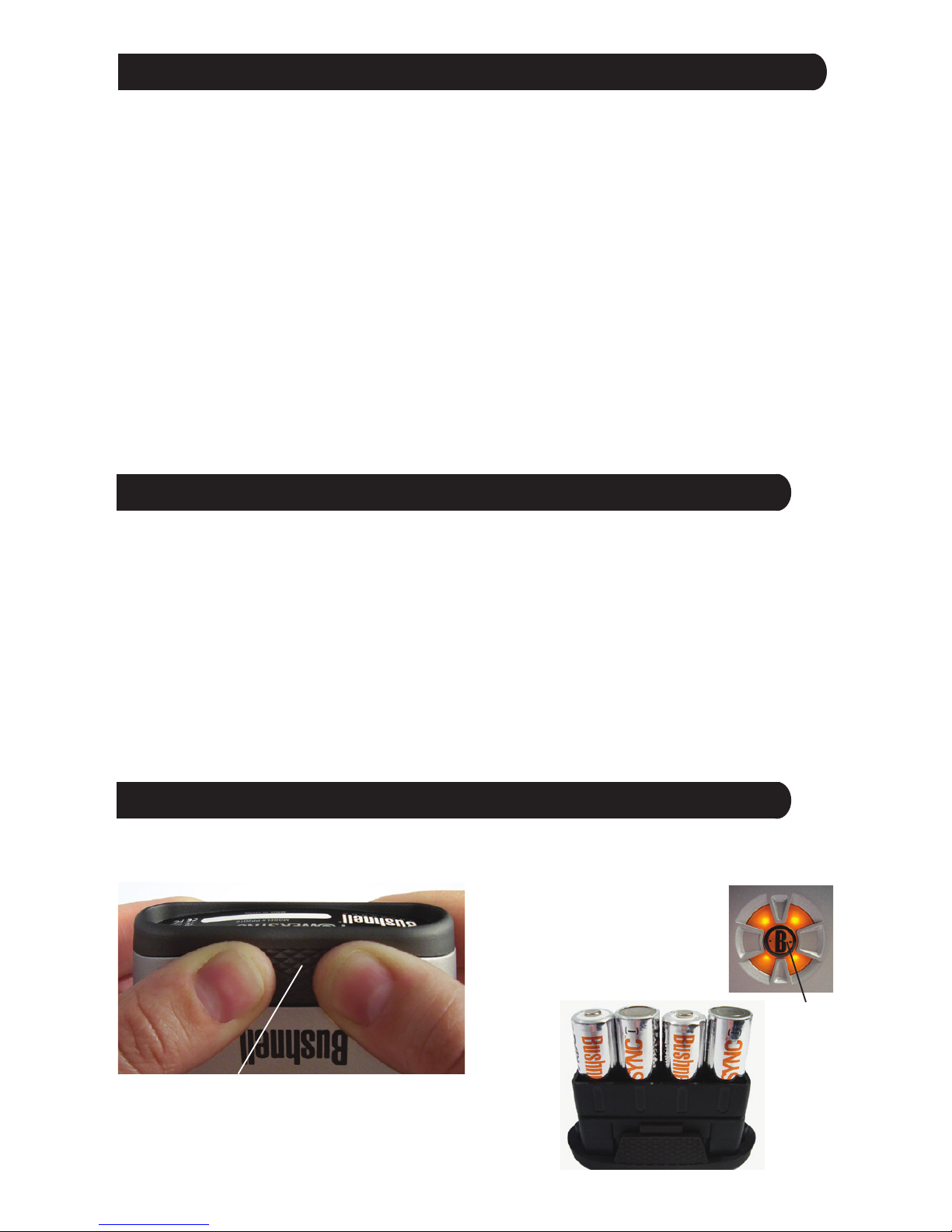

CHARGING THE BATTERYCHARGER FROM THE WALL CHARGER
CHARGING YOUR DEVICE FROM THE BATTERYCHARGER
STORING & TRANSPORTING THE BATTERYCHARGER
1. (Model PP2010 only) Press the front battery pod grip (A) in until it clicks,
then pull the battery pod (B) out of the bottom of the battery charger.
Insert the 4 supplied AA NiMh rechargeable batteries if they are not
already in place.
2. Press the lid latch button and pull open the top of the BatteryCharger.
3. Connect the USB cable to the micro-USB INPUT port from the USB port
on the supplied AC charger (see packing list), and plug it into a wall outlet
(100-240v).
4. Press the Power button at the center of the PowerSync Power Gauge (C).
All four LEDs on the Power Gauge (Fig. 1) will light up (for 10 min.) when
the BatteryCharger’s internal battery has been fully charged (you may
leave it connected to the charger overnight without risk of overcharging),
and you’re ready to connect and charge your device.
Press the power button at the center of the PowerSync Power Gauge (C)
to check the BatteryCharger’s charge status, then connect the supplied
USB cable from the OUTPUT port of the BatteryCharger to your device to
recharge it. If your device uses a non-standard type of connector, use the
cable that came with it to connect to the BatteryCharger’s OUTPUT port.
Check the charge indicator on your device to determine when it’s ready
to use. The NiMh AA batteries inside the PP2010 may also be removed and
used to power any device that operates on AA batteries (unless the use of
rechargeable batteries is not recommended).
Close the top lid when storing or transporting the BatteryCharger, to help
keep dirt and debris out of the USB ports.
Power
Button
CPowerSync
Power Gauge
BNiMh AA Battery Pod
(PP2010 only)
ABattery Pod Grip
(front side)
(PP2010 only)
WARNING: INSERT ONLY NiMh AA
BATTERIES IN THE PP2010. NEVER
ATTEMPT TO CHARGE ALKALINES
OR LITHIUMS.
34
Fig. 1
Charging In
from AC
>25% >50% >75% >90% FULL
Blinking
<25% >25% >50% >75% FULL
Fig. 3
Checking
Charge Level
Blinking
<25% <50% <75% <90% FULL
Fig. 2
Charging Out
to Device
Slowly Blinking
UNDERSTANDING THE POWERSYNC POWER GAUGE
The 4 LED charge indicators behind the Power Gauge (C) allow you to monitor
the status of the BatteryCharger’s internal battery. While the battery is
charging from the AC wall charger, the LEDs will light up in sequence to show
the charge level as shown in Fig. 1. The LED indicating the current battery
level will blink rapidly while charging. When charging is complete, all LEDs
remain on for 10 min., then shut o until the Power button is pressed.
While the BatteryCharger is charging your connected device (Power button
must be pressed), the LEDs will monitor the BatteryCharger’s battery level as
shown in Fig. 2, with a single LED blinking once every 15 sec. (shows active
charging but conserves battery power).
You can also check the current level of the BatteryCharger’s battery charge
anytime by pressing the Power button, even when it is not connected to the
charger or an external device. The LEDs will glow steadily to indicate the
charge level % as shown in Fig.3. , then shut o after 10 seconds.
The Field Light will glow during charging. You can also press
the power button at any time to turn it on to help insert the
USB cable into the Output port when you’re charging at night.
Field Light
4

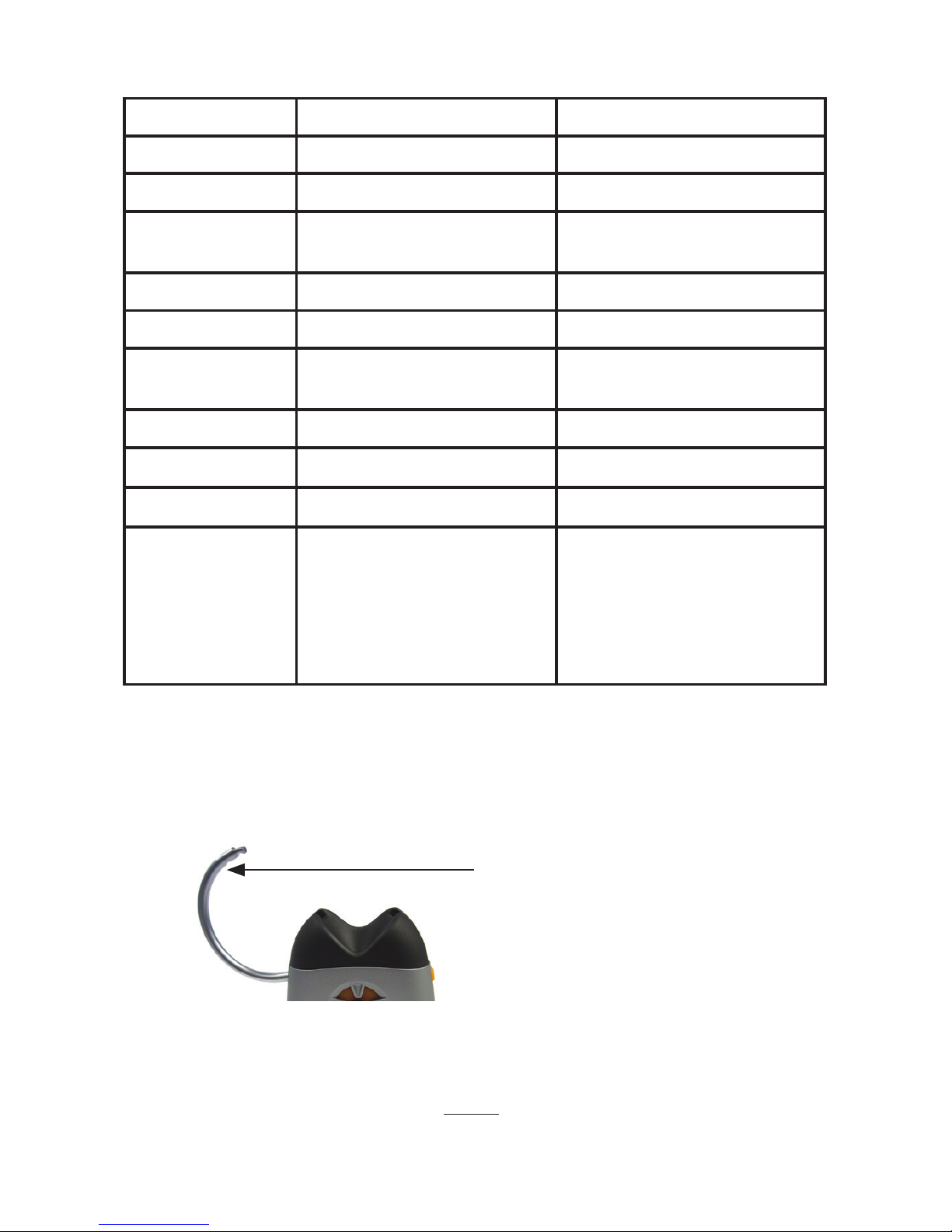

TECHNICAL SPECIFICATIONS
Model PP2020 PowerCharger PP2010 AA Recharger
Weight 9.3 oz / 167 g 7.9 oz / 153 g
Size 5.9 x 3.3 x 1.1 in. 5.0 x 3.1 x 0.9 in.
Charge Time (Wall
Charger)
approx. 8 hrs. approx. 5 hrs.
Power Output 5 volts, 1 amp (1000 mA) 5 volts, 1 amp (1000 mA)
Internal Battery Type High Capacity Lith Ion (20 Whr) n/a
Removable Batteries
(included)
n/a 4x NiMh rechargeable AA (2000ma)
USB Inputs / Outputs 1 / 2* 1 / 1
Operating Temp. Range -4 ~ 112oF (-20~44oC) -4 ~ 112oF (-20~44oC)
Storage Temp. Range -4 ~ 140oF (-20~60oC) -4 ~ 140oF (-20~60oC)
Recommended
Devices/# of Charges**
(from fully charged
internal battery)
Cell Phones (inc Smartphones)/3x,
MP3 Players/4x, Digital Cameras/7x,
Tablet/1x Note: Tablets and other
devices have higher power requirements
and may not attain a full charge from
the BatteryCharger battery.
Cell Phones (inc Smartphones)/1x, MP3
Players/2x, Digital Cameras/2.5x
Note: Tablets and other devices have
higher power requirements and may
not attain a full charge from the
BatteryCharger battery.
* Two devices may be charged simultaneously. They will not charge any slower than if only one device was connected,
however the PowerCharger’s internal battery charge will be depleted more rapidly.
** Rechargeable batteries in electronic devices charge at dierent rates, depending on many factors including temperature, age and circuit
design. Bushnell provides examples of charges per device, based on typical product use and are not intended to be specic to any single device.
WARNING: MODEL PP2010 IS DESIGNED TO RECHARGE ONLY NiMh (Nickel Metal
Hydride) AA RECHARGEABLE BATTERIES. USE ONLY THE SUPPLIED NiMh BATTERIES
OR COMPARABLE REPLACEMENTS. NEVER ATTEMPT TO CHARGE ALKALINE OR
LITHIUM AA BATTERIES IN THE PP2010.
After pressing orange lid latch button,
carabiner clip can be opened for easy
attachment to backpacks, belt loops, etc.
Press clip back into place and secure latch
before transporting.
5
This device complies with Part 15 of the FCC interference limits for Class B digital devices FOR HOME OR OFFICE USE. These limits are
designed to provide reasonable protection against harmful interference in a residential installation, and are more stringent than“outdoor”
requirements.
Operation of this device is subject to the following conditions; (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The device does not contain any user-serviceable parts. Repairs should only be made by an Authorized Bushnell repair center. Unauthorized
repairs or modications could result in permanent damage to the equipment, and will void your warranty and your authority to operate
this device under Part 15 regulations.
The shielded interface cable which is provided must be used with the equipment in order to comply with the limits for a digital device
pursuant to Subpart B of Part 15 of FCC Rules.
FCC Compliance Statement
Your Bushnell®POWERSYNC product is warranted to be free of defects in materials and workmanship for one year after the date of purchase.
In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product
postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by
someone other than a Bushnell Authorized Service Department.
Any return made under this warranty must be accompanied by the items listed below:
1. A check/money order in the amount of $10.00 to cover the cost of postage and handling
2. Name and address for product return
3. An explanation of the defect
4. Proof of Date Purchased
5. Product should be well packed in a sturdy outside shipping carton, to prevent damage in transit, with return postage prepaid
to the address listed below:
IN U.S.A. Send To: IN CANADA Send To:
Bushnell Outdoor Products Bushnell Outdoor Products
Attn.: Repairs Attn.: Repairs
9200 Cody 25A East Pearce Street, Unit 1
Overland Park, Kansas 66214 Richmond Hill, Ontario L4B 2M9
For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information. In
Europe you may also contact Bushnell at: Bushnell Germany GmbH
European Service Centre
Mathias-Brüggen-Str. 80
D-50827 Köln
GERMANY
Tél: +49 221 995568-0
Fax: +49 221 995568-20
This warranty gives you specic legal rights.
You may have other rights which vary from country to country.
©2013 Bushnell Outdoor Products
Specications and designs are subject to change without
any notice or obligation on the part of the manufacturer.
ONE YEAR LIMITED WARRANTY
Customer Service: (800) 423-3537
www.bushnell.com
©2013 Bushnell Outdoor Products
