Bushnell 23-2811 User manual

Lit. #: 98-1535101-10
Binocular inSTrucTion Manual

TABLE OF CONTENTS
A New Take on What Hard-Core Hunters Demand
Eye Adjustments
Eyecup Adjustment
Focusing
Neckstrap Attachment
Tripod Socket
Waterproof/Fogproof
Instructions for Care
Cleaning
Une Nouveau Point de Vue de Ce Que Les Fervents de la Chasse Exigent
Reglages des Yeux
Ajustement des œilletons
Mise Au Point
Fixation de la Bandoulière
Articulation Du Trepied
Impermeabilite Et Etancheite Au Brouillard
Conseils D’Entretien
Nettoyage
Nueva Opción Para las Demandas de Cazadores Más Exigentes
Ajustes a los Ojos
Ajuste del Ocular
PAGE #
5
6
6-7
7
8
8
8
9
9
11
12
12-13
13-14
14
14
14
15
15
17
18
18-19
English
Spanish
French

19
20
20
20
21
21
23
24
24-25
25-26
26
26
26-27
27
27
29
30
30-31
31-32
32
32
32
33
33
Enfoque
Colocación de la Correa
Receptáculo del Trípode
Resistente Al Agua / Resistenta a la Niebla
Instrucciones Para el Mantenimiento
Limpieza
Eine Neue Lösung Für Das, Was Eingefleischte Jäger Fordern
Augenpassung
Einstellen Der Augenmuscheln
Fokussieren
Anbringen Des Tragegurts
Stativöffnung
Wasserdicht / Nebeldicht
Handhabungshinweise
Reinigung
Una Prospettiva Nuova Per Le Esigenze Dei Cacciatori Piu’ Intransigenti
Regolazioni Per Gli Occhi
Registrazione Della Conchiglia Oculare
Messa a Fuoco
Attacco Della Tracolla
Zoccolo Per Treppiede
Impermeabile / Antiappannante
Istruzioni Per La Manutenzione Del Binocolo
Pulizia
German
Portugese

5
A NEW TAKE ON WHAT HARD-CORE
HUNTERS DEMAND. Enviro-Friendly. From the lead
& arsenic free EF glass to the
new Dura-Grip rubber, all Trophy
XLT binoculars are made with
environmentally friendly materials.
Fast Focus. Because every
second counts when you’re
tracking wild game, the focus
wheel moves from near to far with
increased speed, while retaining
the accurate precision you need.
Flip Objective Covers. Attached,
hinged protective lens caps keep
you ready to glass an area quickly
without fumbling with removable
caps that can get left in the mud.
World-Class Optics and Heightened Durability.
With light transmission, clarity and ruggedness
as top priorities, we set out to build the ultimate
hunting binoculars. The XLT series was born, with a new
housing material that’s both durable and comfortable
to use — and environmentally responsible. Fully multi-
coated optics and BaK-4 prisms work together
to deliver ultra-bright, razor-sharp images through
the most critical periods of game movement. And
the tough, streamlined Dura-Grip rubber armored
housing is O-ring sealed and nitrogen purged for
100% waterproof/fogproof dependability. Soft-touch
thumbgrips further improve handling ease, and the
objective lenses are well protected from the elements
by flip covers.
English

6
Thank you for purchasing your new Bushnell Trophy® XLT Binoculars.
This manual will help you optimize your viewing experience by explaining how you can adjust the
binocular to your eyes, and how to care for this instrument.
Read these instructions carefully before using your binocular.
EYE ADJUSTMENTS
How to Adjust for Distance Between Your Eyes
The distance between the eyes, called “interpupillary distance,” varies from person to person.
To achieve perfect alignment of lens to eyes, follow these simple steps:
1. Hold your binocular in the normal viewing position.
2. Grasp each barrel firmly. Move the barrels closer together or further apart until you see a
single circular field. Always re-set your binocular to this position before using it.
How to Adjust for Individual Eye Strength
As individual eyesight varies from one person to another, your Bushnell Trophy XLT binocular has a
diopter setting feature which allows you to fine-tune the binocular to your vision. Follow the focusing
instructions on the next page.
EYECUP ADJUSTMENT
Your Bushnell Trophy XLT binocular is fitted with twist-up eyecups designed for your comfort and to
exclude extraneous light. For users without eyeglasses, twist the eyecups up, rotating the eyecups
counter-clockwise until they lock into the fully “up” position.

7
If you wear glasses, make sure the eyecups are in the down position — this will bring your eyes closer
to the binocular lens, allowing you to see the full field of view. To lower the eyecups from the full “up”
position, rotate them clockwise. The eyecups may also be left at positions “in between” fully up and fully
down, which may suit some individuals better.
FOCUSING
1. Adjust the interpupillary distance by adjusting the center hinge until you see a single circular
image.
2. The diopter adjustment ring is located directly below the right eyecup. Make sure the diopter
adjustment is set to “zero” for now (raised index tab on the diopter ring is lined up with center mark
on the binocular). Keep both eyes open at all times.
3. Using the attached lens cap or your hand, cover the objective (front) lens on the right side of the
binocular as you look into the eyepieces.
4. Using the center focus knob, focus on a distant object with fine detail (e.g., brick wall, tree
branches, etc) until it appears as sharp as possible on the left side.
5. Uncover the objective lens on the right side, and cover the left objective lens while continuing to
view the same object.
6. Rotate the diopter adjustment ring to bring the object into focus in the right side of the binocular.
Avoid over-turning or forcing the diopter mechanism. If you are unable to bring the object into
focus in the right side by adjusting the diopter ring, make sure the left side is still focused and
that the center focus knob was not moved from its original setting. The diopter adjustment only
affects the right side.
7. Your binocular should now be adjusted for your eyes. Focusing for any distance can now be done
simply by turning the center focus knob. Make a note of the diopter setting you made (index tab
position relative to the +/- scale) for future reference.

8
NECKSTRAP ATTACHMENT
Thread the ends of the neckstrap through the strap lugs on each side of the binocular, then back
through the plastic buckle. Adjust the position of the binoculars on your chest as they hang around
your neck to your preference by changing the length of the strap portion which passes through the lug
and buckle (by an equal amount on each side).
TRIPOD SOCKET
To attach the Trophy XLT to a tripod or monopod, unscrew (counter-clockwise)
the “B” logo cap which covers the threaded socket inside the center hinge,

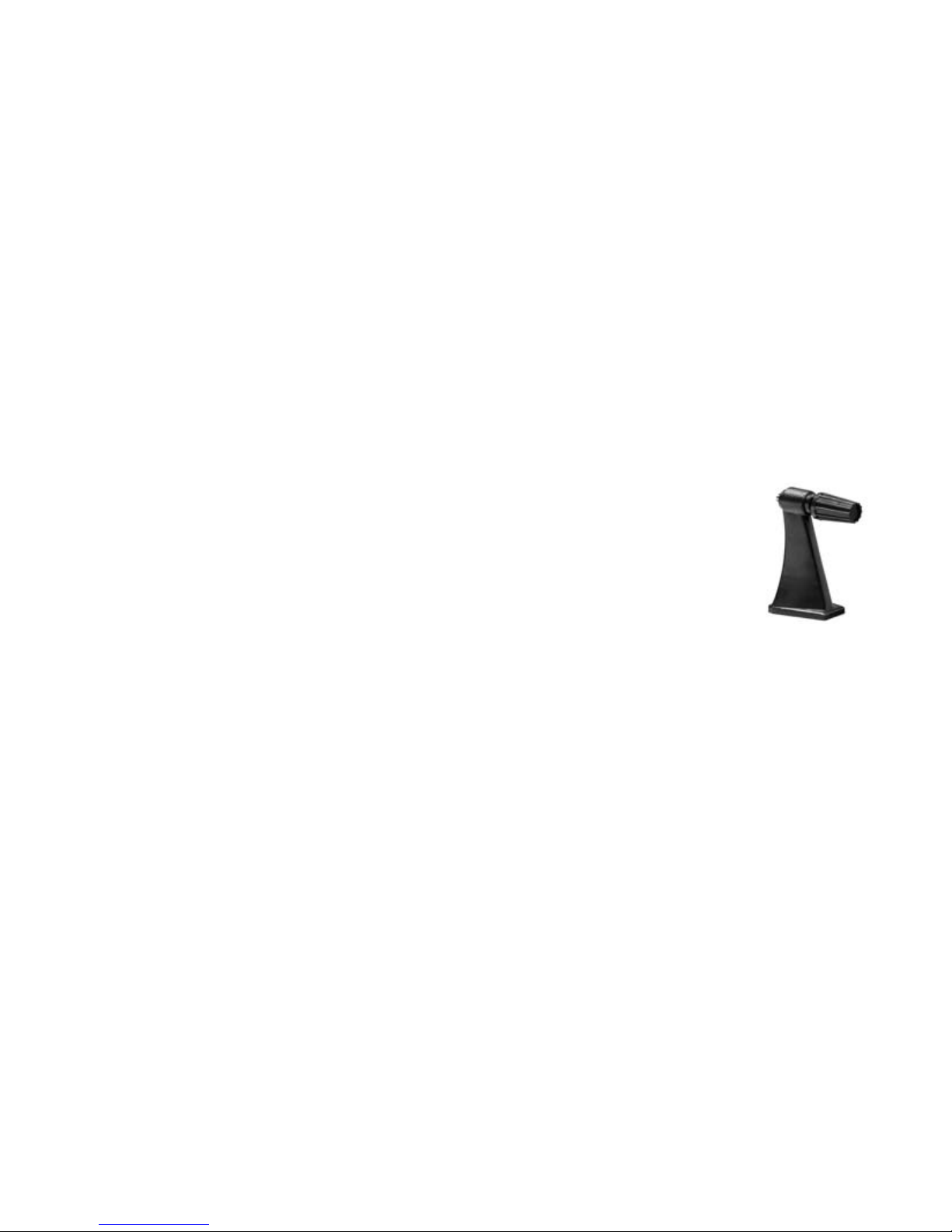

and set it aside in a safe place. Use a compatible binocular tripod adapter,
such as the Bushnell model #161001CM, (an accessory bracket, shown here,
which attaches between the binocular and tripod) to attach your Trophy XLT
to any standard tripod in a horizontal position to provide a stable image during
prolonged viewing.
WATERPROOF / FOGPROOF
Your Bushnell Trophy XLT binocular has been designed and built utilizing the latest waterproof and
fogproof technology. The binoculars are O-ring sealed for complete moisture protection. Fogproof
protection is achieved from dry nitrogen purging that removes all internal moisture.
Binocular Tripod
Adapter (optional)
(Bushnell#161001CM)

9
NEVER LOOK DIRECTLY AT THE SUN WITH YOUR BINOCULAR
AS IT MAY CAUSE SERIOUS DAMAGE TO YOUR EYES
INSTRUCTIONS FOR CARE
Your Bushnell Trophy XLT binocular will provide years of trouble-free service if it receives the normal
care you would give any fine optical instrument.
1. Avoid sharp impacts. Set the binocular down gently on hard surfaces.
2. Tug on the strap after attaching it to make sure it is securely fastened to the binocular before
placing it around your neck.
3. Store your binocular in a cool, dry place whenever possible.
CLEANING
1. Blow away any dust or debris on the lens (or use a soft lens brush).
2. To remove dirt or finger prints, clean with the supplied micro-fiber cloth rubbing in a circular
motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and
eventually cause permanent damage. The included, washable “microfiber” cleaning cloth is
ideal for the routine cleaning of your optics. Simply breathe lightly on the lens to provide a slight
amount of moisture, then gently rub the lens with the microfiber cloth.
3. For a more thorough cleaning, photographic lens tissue and photographic-type lens cleaning
fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning cloth – never
directly on the lens.

10
WARRANTY/REPAIR
LIFETIME LIMITED WARRANTY
We are so proud of our Bushnell Trophy® XLT Binoculars that their materials and workmanship are warranted to be free of defects for the life
of the binocular. The warranty is available to any owner of the Trophy® XLT Binocular. This warranty does not cover damages caused by misuse
or improper handling, installation or maintenance of the binoculars. At our option, we will repair or replace any defective Trophy® XLT binocular,
which shall be your sole remedy under this warranty. In no event shall we be liable for transportation costs to us, costs of removal or reinstallation
of the binocular, or incidental or consequential damages. Some states do not allow the exclusion of limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
Any return in the U.S. or Canada made under this warranty must be accompanied by the items listed below:
1) A check/money order in the amount of $10.00 to cover the cost of postage and handling
2) Name and address for product return
3) An explanation of the defect
4) Proof of Purchase
5) Product should be well packed in a sturdy outside shipping carton, to prevent damage in transit, with return postage prepaid to the
address listed below:
IN U.S.A. Send To: IN CANADA Send To:
Bushnell Outdoor Products Bushnell Outdoor Products
Attn.: Repairs Attn.: Repairs
8500 Marshall Drive 25A East Pearce Street, Unit 1
Lenexa, Kansas 66214 Richmond Hill, Ontario L4B 2M9
For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information. In Europe you
may also contact Bushnell at: Bushnell Germany GmbH
European Service Centre
Mathias-Brüggen-Str. 80
D-50827 Köln
GERMANY
Tel: [phone]
Fax: [phone]
This warranty gives you specific legal rights. You may have other rights which vary from country to country.
©2010 Bushnell Outdoor Products
