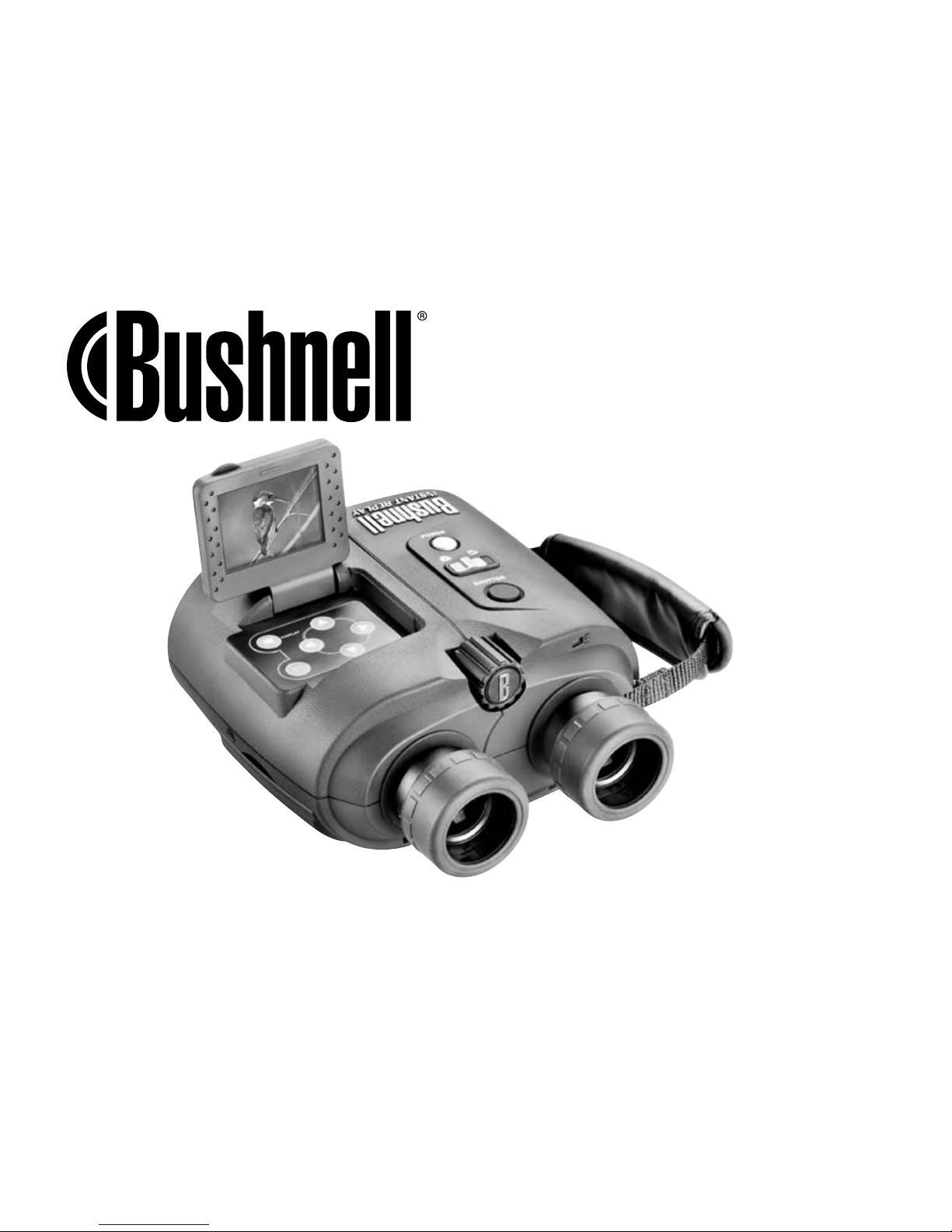

Congratulations on your purchase of a Bushnell® ImageView® binocular. Before using the product,
please read the instructions contained in this manual and take time to familiarize yourself with the
different parts and features of the product.
PARTS AND NAMES
3
Battery Cover
Strap Buckle
Focus
Adjustment
Knob LCD Monitor
Operation
Panel
Display Button
Enter Button
Terminal Cover
PowerOn/
Off Button
Option
SelectSwitch
DC IN 3V (Battery)
Eject Button
Memory Card Slot
Video Output
USB Port
Shutter
Button
Status
LCD
Eyecups
Power On
Capture Movie Capture Playback - Still Playback-Movie
Push the option
select switch to
still camera mode.
Open the
LCD monitor.
Adjust the
focus knob.
Push the option
select switch to
movie mode.
Open the
LCD monitor.
Press the
shutter button
to start recording.
Open the
LCD monitor.
Push the option
select switch to
still camera mode.
Open the
LCD monitor.
Push the option
select switch to
movie mode.
You can record up
to a 30 second
movie clip. If over
30 seconds, the
binocular will
keep the last
30 seconds.
Press the
enter button
(display function mode)
Press the
shutter button.
Use the operation
panel to select
an image.
Use the operation
panel to select
a movie.
Press the shutter
button again
to stop recording.
1. Thumbnail
2. Magnify
3. Management
4. Set Up
5. Exit
Press the
display button.
Press the
display button.
Press the
enter button
(display function mode)
1. Thumbnail
2. Management
3. Set Up
4. Exit
Power On
AC adaptor/AA Battery
Open the
terminal cover.
Use the
USB cable
to connect.
On this mode,
the binocular
becomes the
external hard
disk. Edit the
movie or image(s)
directly.
Exit
Image/Movie Export
SYSTEM OPERATION
ENGLISH

Operating Procedure Picture Description Binocular Action
5. Press the shutter button The recorded image remains on
to take the picture the monitor for about one
second, then restores the
original mode.
OPERATION GUIDE - Movie Capture
Operating Procedure Picture Description Binocular Action
1. Press the power button Use the power button to turn
the binocular on and off.The
LCD will turn off automatically
to conserve power if it is left idle
(no button or switches operated)
for 2 minutes. The camera will
turn off the main power to conserve
energy if left idle for 5 minutes
2. Push the Movie mode of the Now you can record movies in
option select switch to Movie mode Movie Mode. This procedure
selects movie record/playback.
3. Open the LCD monitor Compose images using either the
monitor screen or binocular
eyepiece. Focusing should always
be done while viewing the
LCD monitor.
4 5

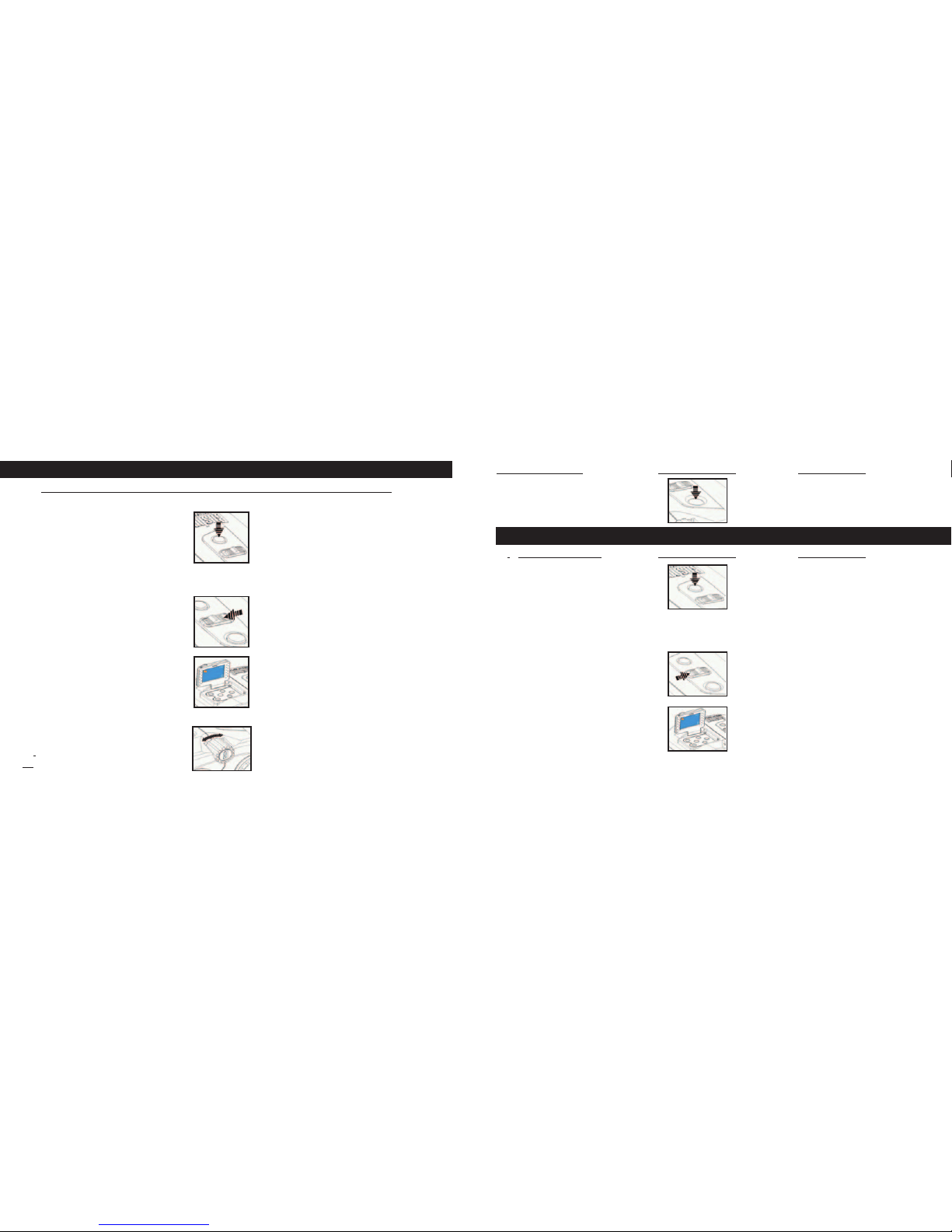

OPERATION GUIDE - Image Capture
UTIOperating Procedure Picture Description Binocular Action
1. Press the Power Button Use the power button to turn the
binocular on and off. The
LCD will turn off automatically
to conserve power if it is left idle
(no button or switches operated)
for 2 minutes. The camera will
turn off the main power to conserve
energy if left idle for 5 minutes
2. Push the capture mode of Now you can take images
the Option Select Switch to in capture mode. This
Still Camera Mode. procedure selects still image
record/playback
3. Open the LCD Monitor Compose images using either the
monitor screen or binocular
eyepieces. Focusing should always
4. Adjust the Center Focus Knob Turn the focus adjustment knob
to make the image of your subject until the image on the
clear on the LCD monitor. monitor screen is clear.

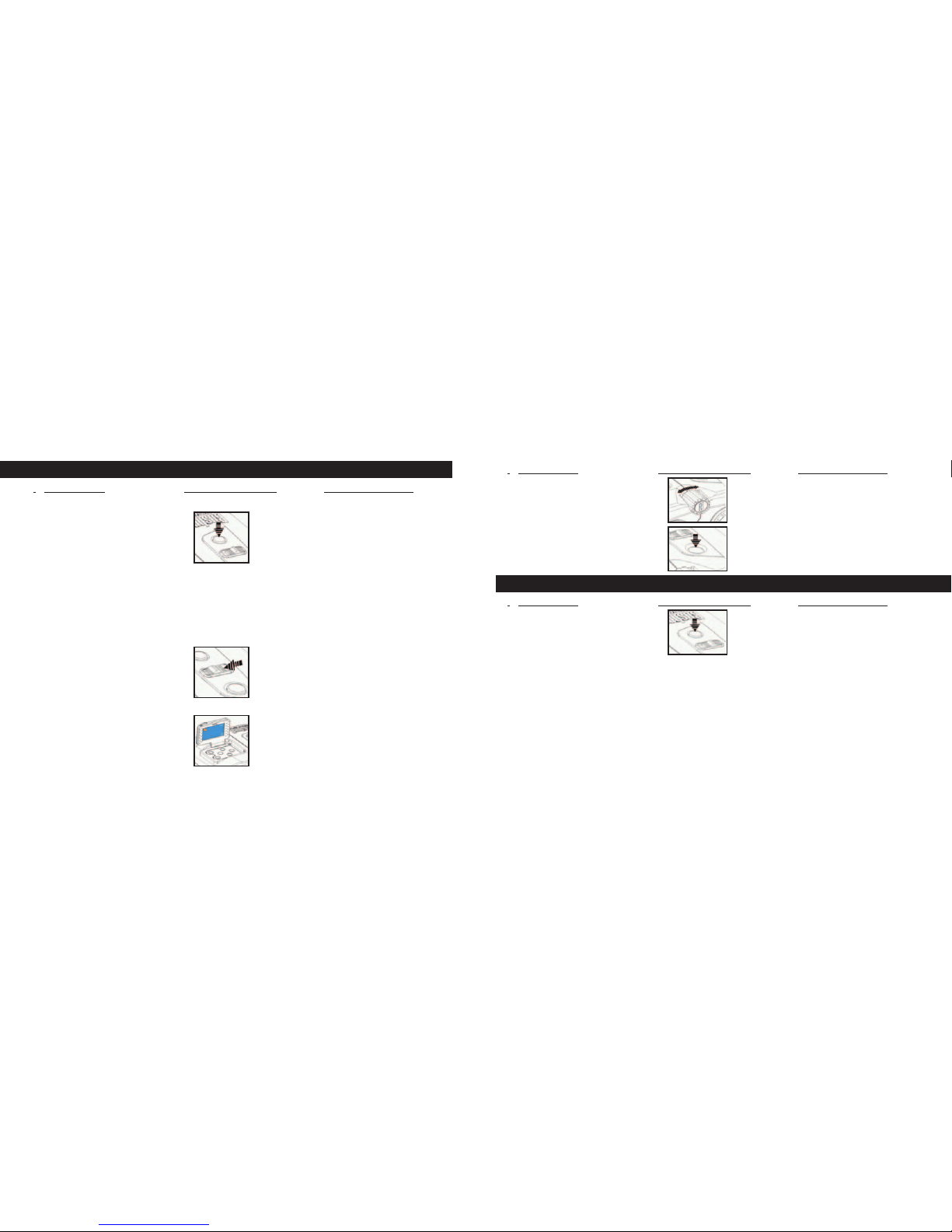

Operating Procedure Picture Description Binocular Action
2. Push the capture mode of the Selects still image record/playback
option select switch to
Still Camera Mode
3. Open the LCD monitor View images using the monitor screen.
4. Press display button The recorded image is displayed
on the monitor
5. Use the buttons on the Display the previous or next image
operation panel to select the stored in the binocular.
image to be played.
6. Press the enter button for additional Playback Function items appear
playback functions on the right of the screen
7. Use the buttons on the Select the function on the screen.
operation panel to select the
desired function
6 7
Operating Procedure Picture Description Binocular Action
4. Adjust the Center Focus Knob Turn the focus adjustment knob
to make the image of your subject until the image on the monitor
clear on the LCD monitor. screen is clear.
5. Press the shutter button. Start to record movies.
6. Press the shutter button again. Finish recording movie.
(The movie length is 30 seconds
maximum. The Instant Replay
will continue to record over the
previous movie until the shutter
button is pressed for a second time
to stop recording. Therefore, the
internal memory will always
contain the most recent
30 seconds of action recorded.)
OPERATION GUIDE - Playback Recorded Images
Operating Procedure Picture Description Binocular Action
1. Press the power button Us e the power button to turn
the binocular on and off.The
LCD will turn off automatically
to conserve power if it is left idle
(no button or switches operated)
for 2 minutes. The camera will
turn off the main power to conserve
energy if left idle for 5 minutes

Operating Procedure Picture Description Binocular Action
Magnify Function Display the recorded image.
1. Press the enter button Display the enlarged
image currently.
2. Use the buttons of the panel Zoom in on the image:
to move the display area “Up Arrow”: The image moves up
vertically or horizontally “Down Arrow”: Image moves down
“Left Arrow”: Image moves left
“Right Arrow”: Image moves right
3. Press the enter button Restore playback images mode
8
8. Press the enter button Display Function items appear on
the right of the screen.
OPERATION GUIDE - Functions (Playback Recorded Images)
Operating Procedure Picture Description Binocular Action
Thumbnail Function This displays 9 images on the
monitor at the same time.
1. Use the buttons of the operation The currently selected image
panel to select a specific image. will be framed (highlighted).
2. Press the enter button The specific image file is displayed
on the monitor screen.
3. Press the enter button Restore playback images mode
9

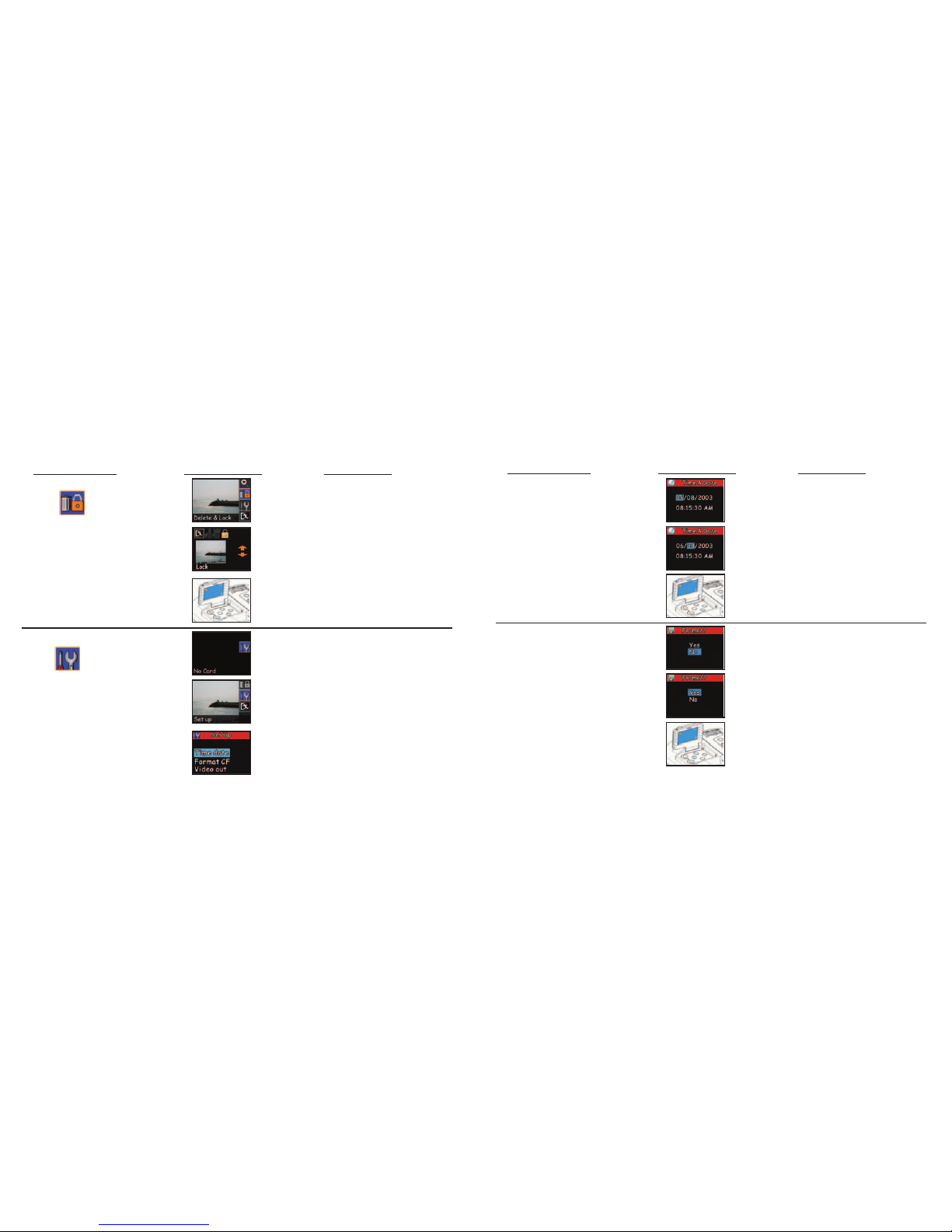

Operating Procedure Picture Description Binocular Action
Set-Up Function - cont’d
Time and Date The Time and Date Setting shows
on the screen. Change the number
at the highlighting position.
1. Use the buttons on the operation Use the “Left Arrow” and “Right
panel to set the Time and Date Arrow” buttons to select the
highlighting position. And use the
“Up Arrow” and “Down Arrow”
buttons to change the number.
2. Press the enter button Go back to still image
playback mode
Format CF The “Format CF” setting shows on
the screen. Set items at the
highlighting position.
1. Use the buttons on the operation Yes – Format CF Card
panel to select Yes or No. No – Cancel Format
2. Press the enter button Go back to image playback mode
1110
Operating Procedure Picture Description Binocular Action
Delete and Lock Function Display the file management screen
1. Use the buttons on the Use the “Up Arrow” and “Down
operation panel to select the Arrow” buttons to select the
managing file option images. Use the “Left Arrow” and
“Right Arrow” buttons to select
[Exit – Delete – Lock] option
2. Press the enter button Go back to playback images mode
Set-Up Function You cannot enter the Set-Up
Function if no memory card
is inserted
1. Press the display button Display the setting screen
2. Press the enter button If a memory card has been
inserted, press the enter button,
the use the direction arrow
buttons to select the settings

Operating Procedure Picture Description Binocular Action
Sound The key sound setting shows on
the screen. The default is on.
1. Use the buttons on The key sound setting shows on the
the operation panel to select screen. The current setting is off.
sound setting.
2. Press the enter button Go back to playback images Mode
Panel Brightness The panel brightness setting shows
on the screen. The current brightness
is identified by the arrowhead.
1. Use the buttons on The panel brightness is controlled
the operation panel to select by the arrowhead.
resolution setting.
2. Press the enter button Go back to playback images mode
Exit Restore the capture mode
13

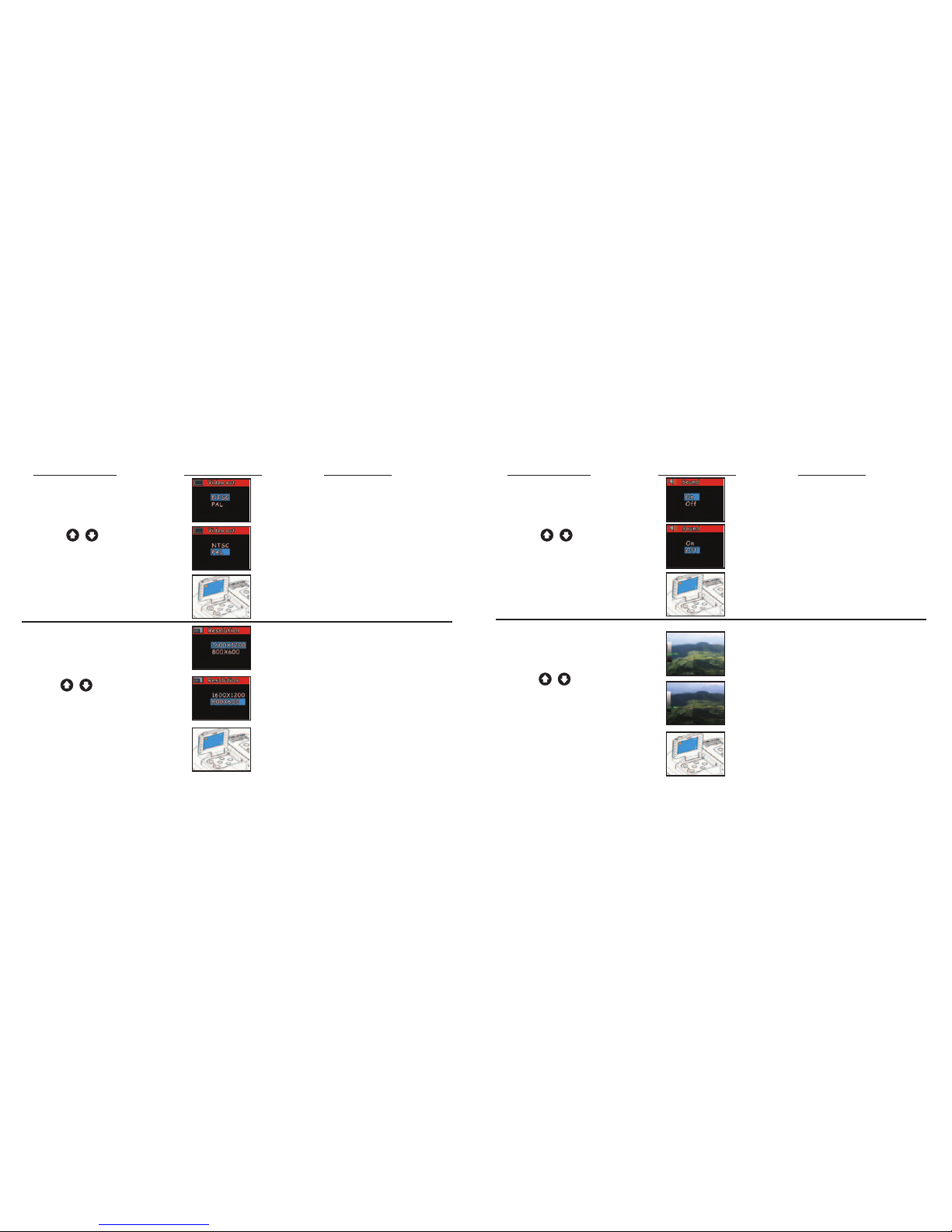

Operating Procedure Picture Description Binocular Action
Video Out The Video Out setting shows on
the screen. The default is NTSC
(US/Japan video standard)
1. Use the buttons on Choose PAL if applicable to
the operation panel to select your country (most European
the Video Out setting and Asian countries)
2. Press the enter button Go back to image playback mode.
Resolution The resolution setting shows on the
screen. The default is 1600x1200.
1. Us the buttons on The resolution setting shows on
the operation panel to select screen. The current setting is
resolution setting. 800x600.
2. Press the enter button Go back to playback images mode
12

Operating Procedure Picture Description Binocular Action
5. Use the “Right Arrow” button on Monitor screen is playing. When
the operation panel to play the movie the movie is finished it will return
to the last scene.
6. Press the enter button Display Function items appear on
the right of the screen
OPERATION GUIDE - Functions (Playback Recorded Movies)
Thumbnail Function This displays 9 movies on the
monitor at the same time.
1. Use the buttons of the operation The currently selected movie
panel to select the movie. will be framed (highlighted).
2. Press the enter button The recorded movie is displayed
on the monitor screen.
15

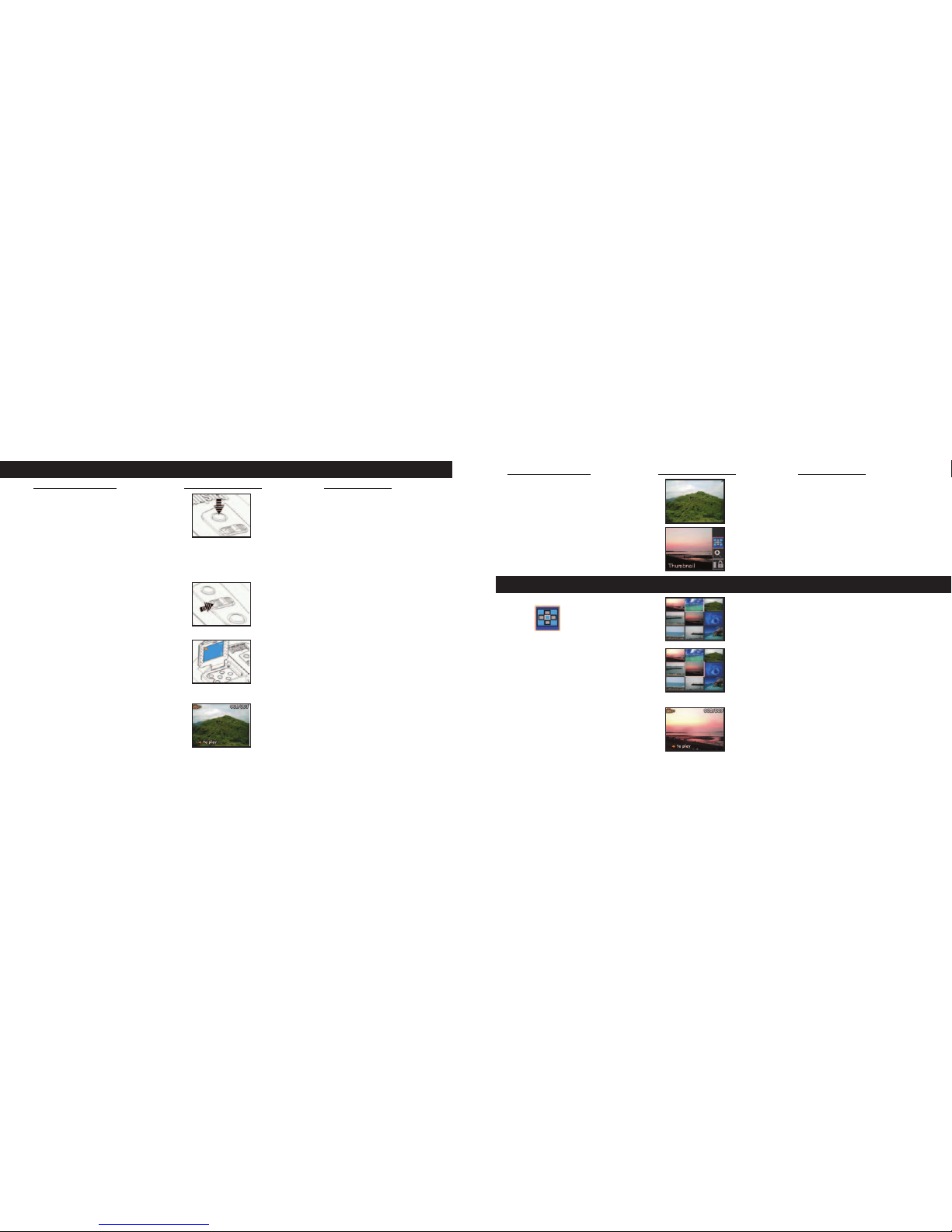

OPERATION GUIDE - Playback Recorded Movies
Operating Procedure Picture Description Binocular Action
1. Press the power button Use the power button to turn
the binocular on and off.The
LCD will turn off automatically
to conserve power if it is left idle
(no button or switches operated)
for 2 minutes. The camera will
turn off the main power to conserve
energy if left idle for 5 minutes.
2. Push the Movie mode of the Selects Movie record/playback
option select switch to Movie Mode
3. Open the LCD monitor View movie using the
monitor screen.
4. Press display button The recorded movie is displayed
on the monitor
14

Operating Procedure Picture Description Binocular Action
Delete and Lock Function Display the file management screen
1. Use the buttons on the operation panel Use the buttons to select
to select the managing file option the movie. Use the buttons
to select [Exit–Delete–Lock] option
2. Press the enter button Go back to movie playback mode
Set-Up Function You can’t enter the Set-Up Function
if no memory card is inserted
1. Press the display button Display the setting screen
2. Press the enter button If a memory card has been inserted,
press the enter button, then use the
direction arrow buttons to select
the settings 17

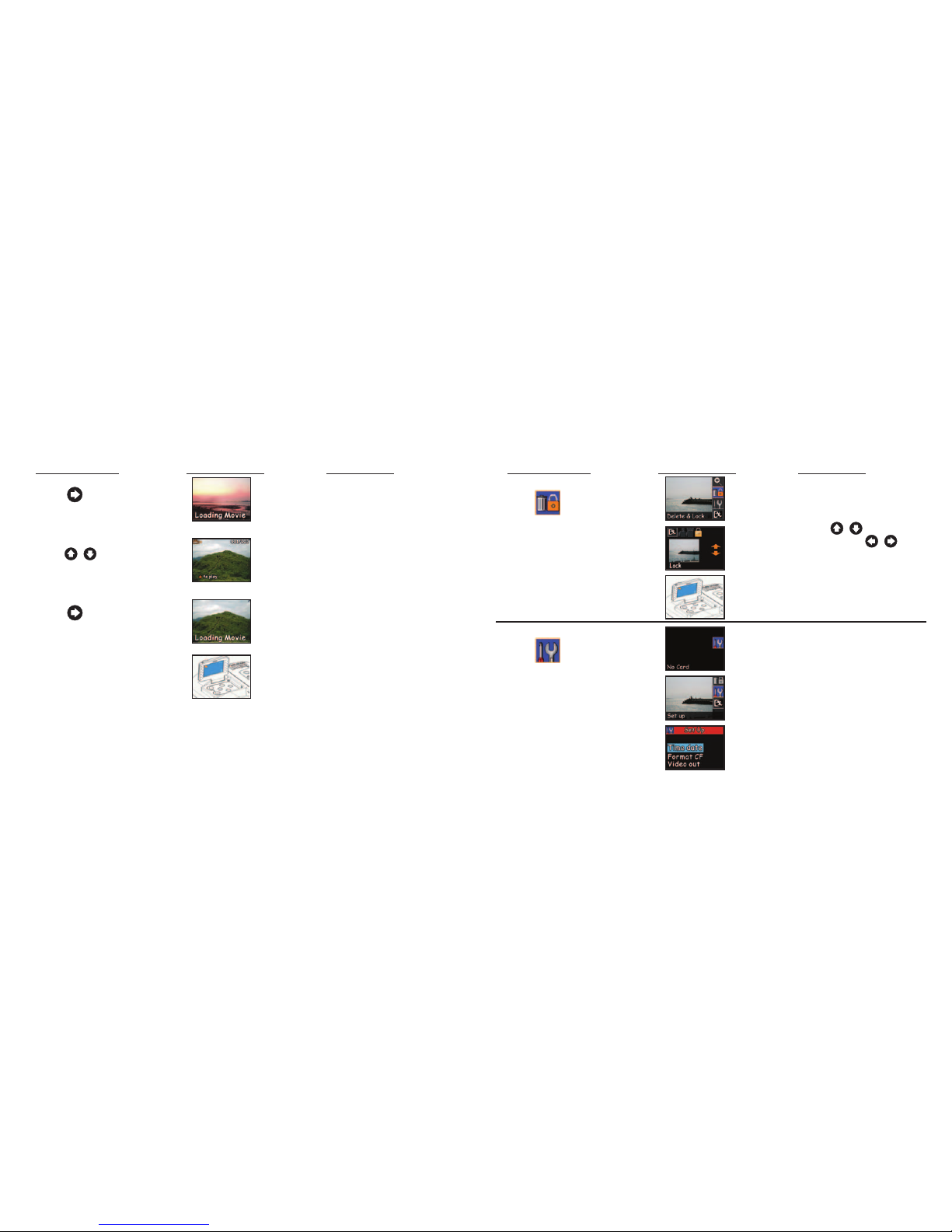

Operating Procedure Picture Description Binocular Action
3. Use the button on the The monitor displays “Loading
operation panel to play the movie. Movie” for about 1 second and
then plays the movie
4. Use the buttons to The recorded movie is displayed
select the movie on the monitor
5. Use the button on the The monitor displays “Loading
operation panel to play the movie Movie” for about 1 second and
then plays the movie
6. Press the enter button Go back to movie playback mode
16
