ENGLISH
SPECIFICATIONS
Magnification: 2.5 X
Objective Size: 40 mm
Vertical Resolution: 36 lines/mm
Viewing Range* 4–600 ft. / 1.2-183 m
Range of Built-In Infrared Illuminator Up to 90 yards
Field of View: 94 feet at 100 yards / 31 meters at 100 meters
Battery Type: AAA (2)
Operating Time: Up to 70 hours without IR /20 hours with IR illuminator on
Temperature Range: -22 to 104 º F / -30 to 40 º C
Eyepiece Adjustment: +/- 4 diopter
Length: 6.5 inches / 165 mm
Width: 6.3 inches / 160 mm
Height: 3.0 inches / 76 mm
Weight: 18.0 oz / 510 g
* Maximum distance at which a human figure can be recognized under ideal viewing conditions;
defined as clear conditions (no fog, dust, etc.) under the light of 1/4 moon.

5
Congratulations on the purchase of your Bushnell Night Vision Product. Bushnell Night Vision products are comprised of high quality
image intensifier tubes and optics. Bushnell Night Vision products amplify existing light, allowing you to see in dark conditions too
dark for the naked eye.
HOW NIGHT VISION WORKS
Bushnell Night Vision products collect and amplify existing light through the objective lens, which is then focused on the image
intensifier. Inside the intensifier, a photocathode is “excited” by the light and converts the photon energy into electrons. These
electrons accelerate across an electrostatic field inside the intensifier and strike a phosphor screen (like a green monochrome TV
screen) which emits an image that you can see. It is the acceleration of electrons, which provides gain and enhances the image.
This is a Generation I (analog) night vision device.
Your Night Vision device is ideal for a variety of professional and recreational uses including the following:
• Wildlife Observation
• Astronomy
• Boating / Marine Use
• Police / Law Enforcement
• Search and Rescue
• Security
• Property Management
CAUTION: As with any analog night vision device based on light intensifier tube technology, DO NOT REMOVE THE LENS CAPS AND
OPERATE THE DEVICE IN BRIGHT LIGHT (DAYLIGHT). Turning on the device's power with the lens covers removed in brightly lit
environments (outdoors or indoors) can potentially damage your night vision unit, beyond repair if the light level is very high and/
or exposure time is extended. The objective lens caps have a pinhole opening to admit a small amount of light for testing purposes.

6
GETTING STARTED
Installing Batteries

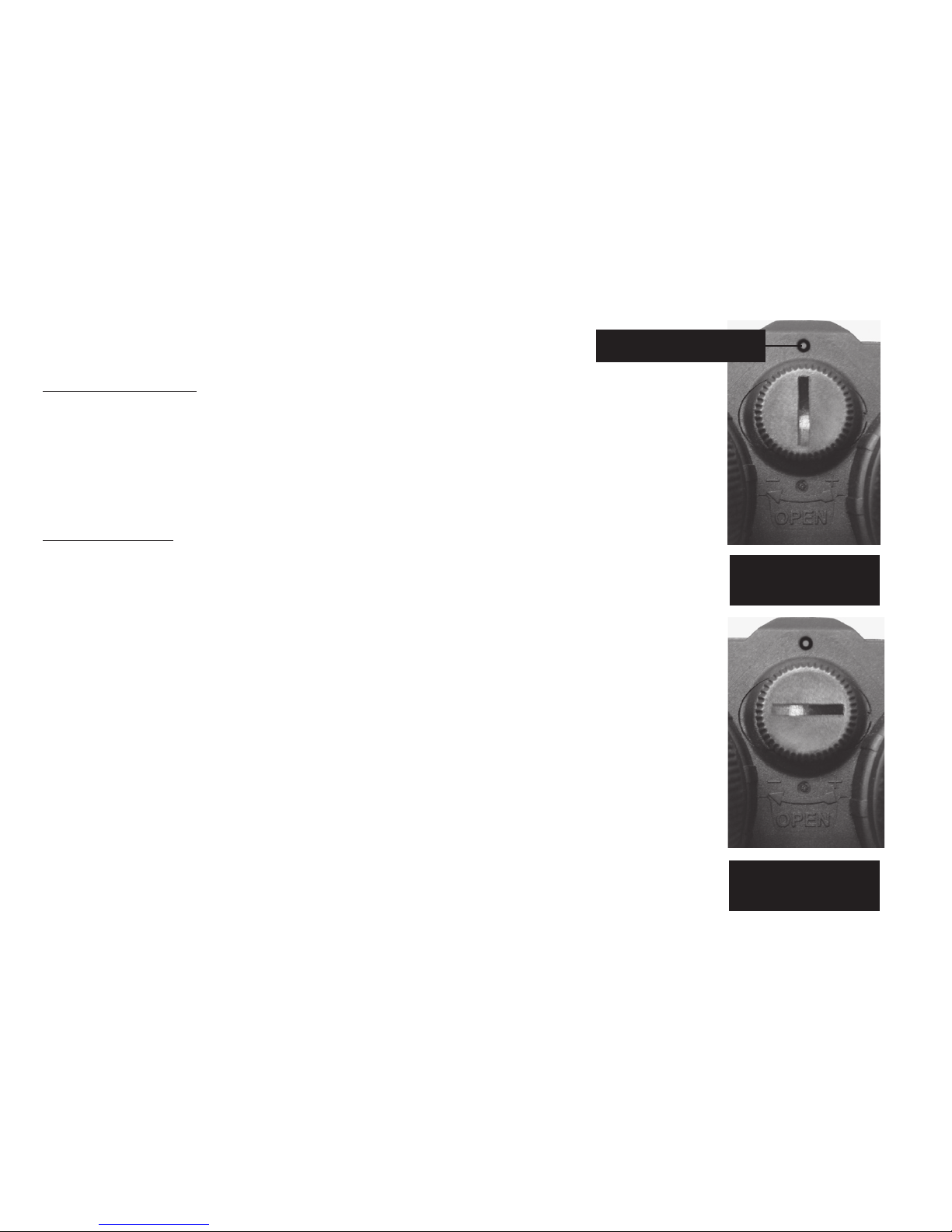

This device operates on two AAA batteries (alkaline or lithium). To install, rotate
the battery cover in a clockwise direction, to the "open" position as shown in
the lower right photo. Insert the batteries into the battery compartment so that
the positive (+) and negative (-) terminals of the batteries facing you match the
markings above the OPEN arrow ("-" on left side, "+" on right side). Replace the
battery cover carefully, rotating it counter-clockwise back to the closed position.
Use and Testing
Make sure the batteries have been installed according to the instructions above.
If you wish to test your night vision device in a lighted area, be sure the
objective lens caps are covering both objective lenses prior to pressing the
“ON” button. The objective lens caps have a pinhole opening to admit a small
amount of light for testing purposes.
If testing or using the device in the dark, remove the objective lens caps and
activate the device by pushing the “ON” button. The power indicator LED above
the battery cover will light.
To focus, select an object at the approximate distance for the area that you
intend to view. Adjust each eyepiece diopter setting until the image appears the
sharpest for your eyesight. After your initial diopter setting, the front (objective)
lenses are now utilized for focusing: adjust the front lenses clockwise when you
need to focus on closer objects, counter clockwise for more distant objects. If
you are unable to focus on very close objects, the eyepieces may then be used
as well for fine adjustments only.
Battery Cover
Closed Position
Battery Cover
Open Position
Power Indicator

7

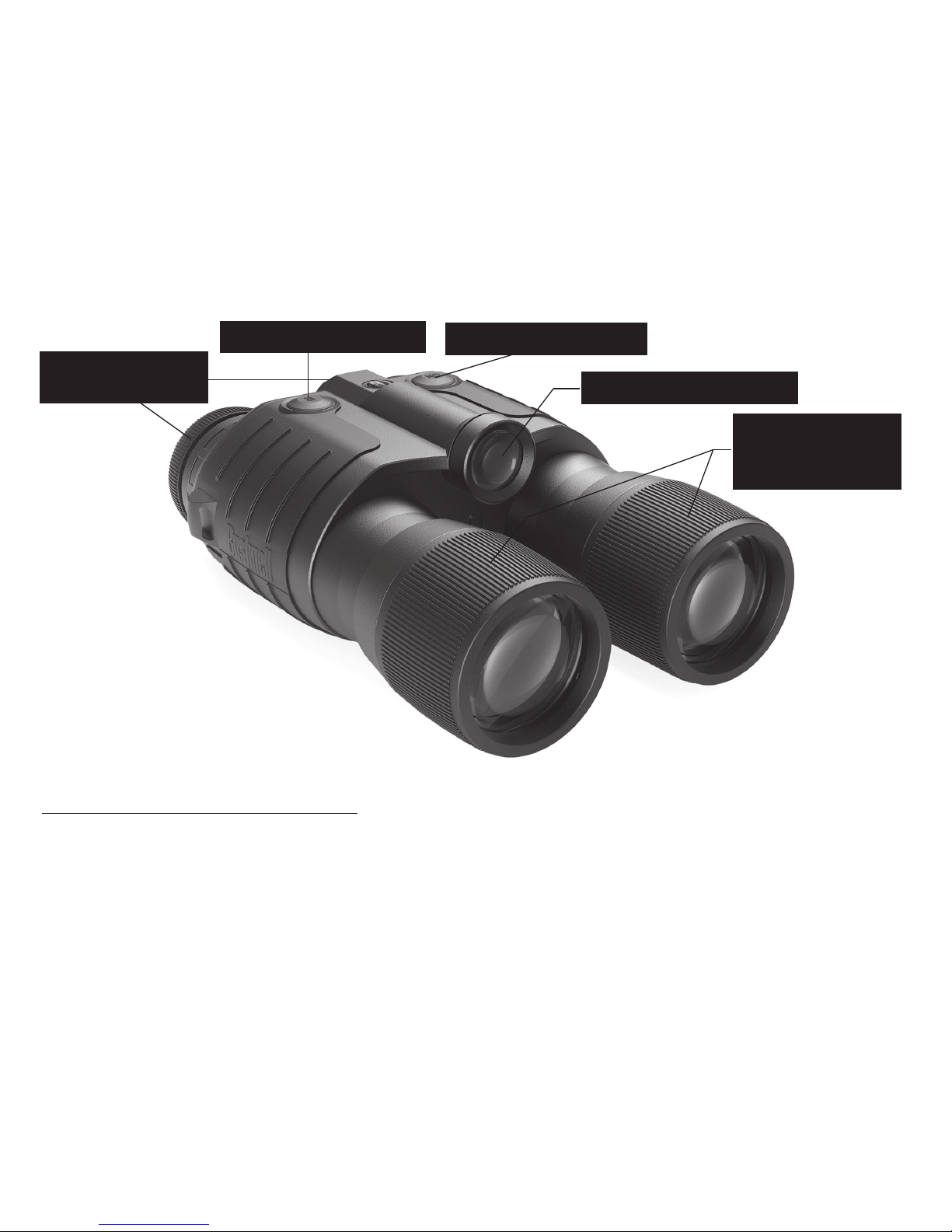

POWER BUTTONIR BUTTON
IR ILLUMINATOR
EYEPIECE
DIOPTER
OBJECTIVE LENS
(MAIN) FOCUS
Using the Infrared Illuminator
Your Night Vision device offers a Built-In Infrared Illuminator. This allows you to see in complete darkness where no ambient
light source, such as moonlight, is available. If the subject is to be viewed in a completely dark area, activate the infrared
illuminator by pressing the IR button. In brighter areas turn off the IR illuminator by pressing it again to maximise battery life.

8
CAUTION: This device can be used in extreme cold weather. However, when the unit is brought back into a warm environment, you
must wait approximately 5 hours to allow it to adjust to the change in temperature before using the unit again. If this is not done,
damage could occur due to condensation that may have accumulated on the internal circuitry of the unit.
Spots In The Image
You may see spots in the image. These vary from device to device and are very small cosmetic blemishes inside the intensifier tubes.
These are normal for "Gen 1" analog technology Night Vision devices and are NOT a defect.
TROUBLESHOOTING
Device will not turn on.
Check that the batteries are installed properly. Replace the batteries with new ones. Check the battery contacts to ensure they are
clean and free of corrosion. If the power indicator LED is lit, make sure the objective covers are removed before viewing in dark
conditions.
Image is not focused.
Adjust the Eyepiece diopter rings for your vision. Use the Objective Lens focusing controls to adjust for subjects at different distances.
If still no improvement, clean the lenses; they may be foggy or dusty.
Visibility decreases or disappears.
Bright light sources such as headlights may cause visibility to degrade or disappear completely. Turn the Power OFF and turn
the binocular away from the light source. The unit will restore itself in 1 or 2 minutes. Conditions such as fog or extremely dark
environments will decrease visibility.
Image flashes.
The image may flash when used in a bright environment. It may also flash during the first few seconds of use in dark environments.

9
CARE AND MAINTENANCE
Your Bushnell Night Vision device was designed to provide many years of reliable service.
To ensure that you get the most enjoyment out of your Night Vision device, always obey the following warning and precautions:
• Do not point this device toward any light source greater than 1 lux such as car headlights, for an extended period of time.
• This device utilizes an internal flash protection system which minimizes potential damage, but long-term exposure to bright lights
can damage the unit. Any such damage may void your warranty.
• This device was designed to be self-contained. Do not open the body of the device or otherwise attempt to service this device.
• Always store the device in a dry, well-ventilated room.
• Remove the batteries if the device is to be stored for longer than 2 months.
• Keep the device away from any heating and air conditioning vents or other heating devices, direct sunlight, and moisture.
• Avoid dropping or otherwise shocking the unit. Although designed for rugged outdoor use, this device incorporates a sophisticated
optical system, which could be damaged in extreme cases of misuse.
• The device is weather-resistant, not waterproof, and should never be submerged or subjected to a direct stream of water.
• Clean the optical lenses with professional lens cleaning supplies.
• Clean the exterior of the device with a soft clean cloth.
Class 1 LED product per IEC 60825-1/nov 1993, appendix EN 60825-1A11/oct1996

10
ONE YEAR LIMITED WARRANTY
Your Bushnell®product is warranted to be free of defects in materials and workmanship for one year after the date of
purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that
you return the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling,
installation, or maintenance provided by someone other than a Bushnell Authorized Service Department.
Any return made under this warranty must be accompanied by the items listed below:
1) A check/money order in the amount of $10.00 to cover the cost of postage and handling
2) Name and address for product return
3) An explanation of the defect
4) Proof of Date Purchased
5) Product should be well packed in a sturdy outside shipping carton, to prevent damage in transit, with return postage
prepaid to the address listed below:
IN U.S.A. Send To: IN CANADA Send To:
Bushnell Outdoor Products Bushnell Outdoor Products
Attn.: Repairs Attn.: Repairs
9200 Cody 140 Great Gulf Drive, Unit # B
Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W5
For products purchased outside the United States or Canada please contact your local dealer for applicable warranty
information. In Europe you may also contact Bushnell at: Bushnell Germany GmbH
European Service Centre
Mathias-Brüggen-Str. 80
D-50827 Köln
GERMANY
Tél: [phone]
Fax: [phone]
This warranty gives you specific legal rights.
You may have other rights which vary from country to country.
©2014 Bushnell Outdoor Products
