Congratulations on your purchase of the Bushnell ImageView®binocular!
The Bushnell ImageView binocular takes the technology of digital
photography and combines it with a high-quality compact binocular.
This allows you to observe sporting events, wildlife, scenic vistas or
anything you would normally use a binocular for, and then save the
image in a built-in attached digital camera. You can then download these
images to your computer and e-mail them to your friends and family,
print out the pictures, or save them in a photo album for future use.
Before using the product, please read the instructions contained in this
manual and take time to familiarize yourself with the different parts and
features of the product.
ENGLISH

5

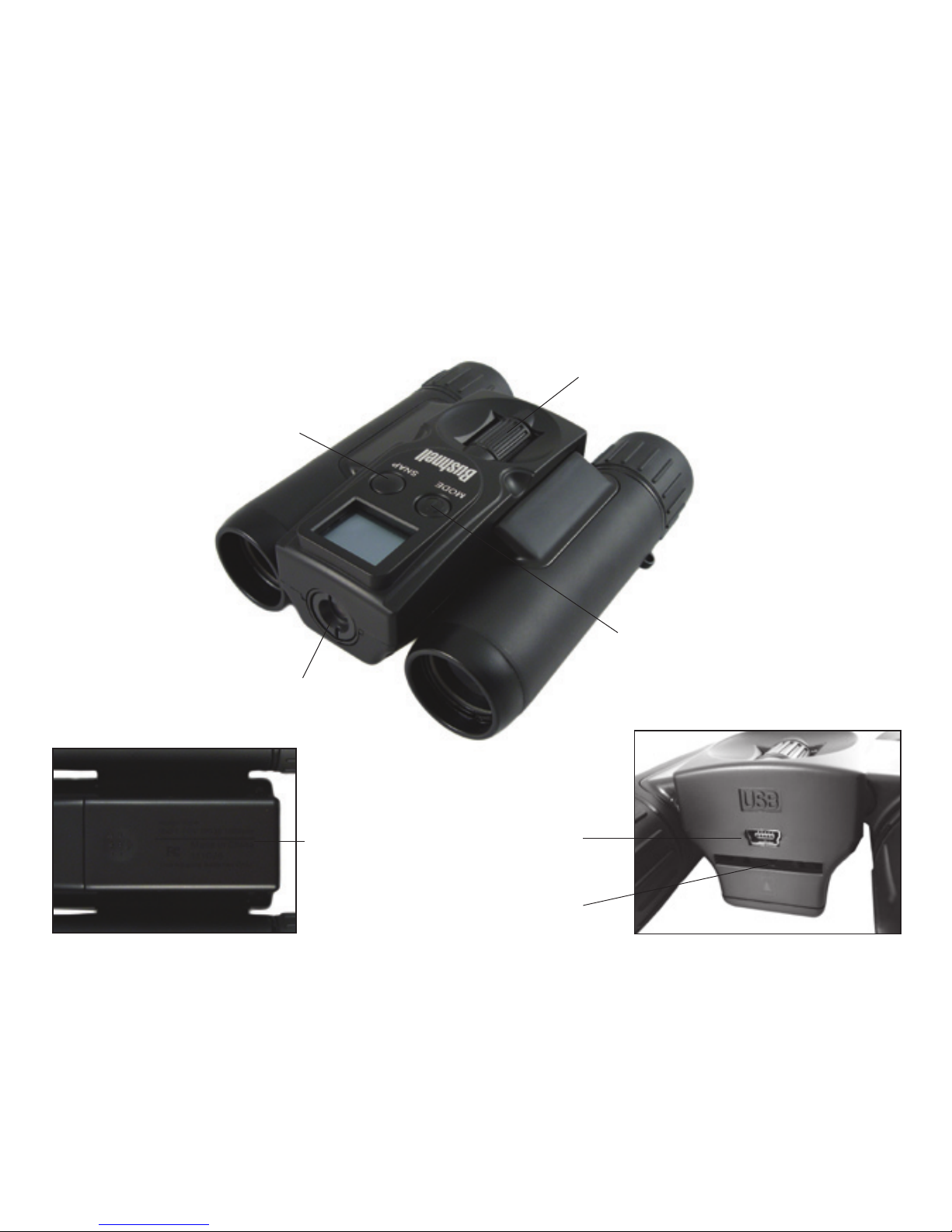

Camera and Binocular Parts Guide
Camera
Lens
Power/
MODE
Button
Binocular Focus
SNAP
Button
Battery
Compartment
USB
Port
SD Card
Slot

6
CAMERA PARTS Setup and Basic Operation
1. The camera is powered by two AAA alkaline, lithium, or NiMh batteries (not
included). Insert batteries into the compartment, with the springs in contact with
the negative (at) end of each battery. A power meter on the top right of the
display indicates battery condition.
2. Insert an SD card ("upside down" with metal contacts facing up) in the slot if
greater storage is desired. You may use SD cards (not MMC cards) up to 32 GB
capacity.
3. Press and hold the MODE button for two seconds to turn on the camera. The
camera will turn o automatically after about 3 minutes if no buttons are pressed.
Note: when the camera is connected to a computer via the supplied USB cable, the
camera will draw power from the computer with no battery drain.
4. Hold the ImageView steady and press SNAP to take a picture (or start/stop
shooting a video, when the camera is in video mode). The camera focus is preset
to take sharp photos from approximately 75 feet to innity.
Using the Optional Operating Modes
Your ImageView is already setup to produce high quality results right out of the box,
and it is not necessary to use the optional modes-you may simply press the SNAP
button and start taking photos. However, as you might want to shoot a video clip, delete
one or more previous photos, or explore other options, we recommend you review the

7
available operating modes listed in the chart below. Briey pressing the MODE button
will step through these operational modes in the listed order, and you will see the icon
for each mode on the display. Use the SNAP button to perform the operation after
selecting the icon. If you don't press SNAP within 5 seconds, the camera will return to its
normal operation and display.
Mode Icon Description
Self-Timer Clock Photo is taken after a 10 second delay when SNAP is pressed (in
normal still photo mode.) This can be used to avoid accidently
shaking the camera when the SNAP button is pressed. The timer
automatically cancels after use.
Video Movie
Camera
Select the movie camera icon, then begin shooting by pressing
SNAP. The counter will show the elapsed time while recording
the video clip. The camera will continue recording video until
you stop it by pressing SNAP again, or until there is no more
memory available to store it (whichever occurs rst). The counter
will advance by one, indicating the video le has been saved.
The camera automatically returns to normal still photo mode
after a video has been shot. Video resolution=640x480 pixels per
frame@25 fps

8
Using the Optional Operating Modes
Mode Icon Description
Delete Last 1 frame
crossed out
Select this mode and press SNAP to delete only the last photo or
video you took. The counter will go down one number.
Delete All 3 frames
crossed out
Select this mode and press SNAP twice to erase the entire memory
contents (the counter resets to zero). Use this after downloading
your les, to clear the memory so you can take new photos. If
"Delete All" is selected accidently, simply wait a few seconds and
the camera will return to normal operation.
Continuous CS Select continuous mode to shoot a rapid series of three photos
instead of a single frame when SNAP is pressed (in normal still
photo mode). This mode automatically cancels after the series of
photos have been shot.
System Requirements
• Operating System: Windows® 2000/ME/XP/Vista/Windows 7 (Windows 98 is not
supported) or Mac OS 9 / OS X
• Internal USB Port

9
Using the ImageView with Your Computer
1. The camera will be recognized as a USB mass storage device, which means no
special drivers are required for all operating systems later than Windows 98 (Me,
2000, XP, Vista, and Windows 7.) Mac OS 9 and OSX are also compatible.
2. If you have a computer OS as listed above that is USB mass storage compliant,
a new disc icon will appear in Windows Explorer (under “My Computer”) as a
new“Removable Disc”after plugging in the USB cable from the ImageView. Mac
users will see the new "storage device" appear on their desktop. Clicking on
the new disc icon will show the contents, a folder named “DCIM.” The image
folder inside this contains your photos, stored as JPEGs (.jpg le format). They
may then be viewed, edited, renamed and saved using any photo or graphics
software that accepts .jpg les. Videos are recorded in AVI format.
3. After you have copied or opened and saved the photo les to your computers
hard drive, you may disconnect the ImageView camera (NEVER disconnect
the camera while les are still being transferred to your computer). Before
disconnecting, you should“eject”or stop the "removable disc" representing the
camera to avoid an error message (not necessary with Windows XP or later OS).
4. See the following pages for step-by-step instructions on downloading your
photos.

10
1. Make sure the ImageView is powered on rst (if it is not, it may be recognized as a
"web cam" by your computer). Connect the supplied cable to the ImageView’s USB
port, then directly to a main USB port on your computer-do not use front panel/
keyboard USB ports or unpowered“hubs”.
2. The LCD display will indicate“STO”(if you see "PCC" (PC Camera) instead, unplug the
USB cable, turn the ImageView on rst and try again), and the ImageView will be
recognized as a standard “USB Mass Storage” device. This means that the camera
les can be easily viewed, edited, or copied to your hard drive, just as if they were
stored on an external hard drive or ash drive. (Note for Mac users: the camera will
appear on the Mac desktop as an "Untitled" disk.)
3. (This step is not required with recent Windows operating systems, simply use the
options in the pop-up window to view, copy or edit your photos). Open My Computer
or Windows Explorer. The camera will be seen as a new “Removable Disk” with
an unused drive letter assigned to it. Double click this new “Disk” icon, open
the “DCIM” folder inside, then the folder(s) inside that (“PICT0001.JPG” ,etc). Still
photos are .JPG format, video les are .AVI format. Single clicking any le should
show a small preview image.
4. Click “Edit>Select All” (or click on one photo, contol+click to select multiple
photos), then “Edit>Copy to Folder”(in Windows menus). Select an existing folder
on your hard drive, such as “My Pictures”, or create a new folder (“Football”, etc.),
then click“OK” to transfer copies of the photo les you want.
Transferring Photos/Videos to Your Computer

11
Transferring Photos/Videos to Your Computer
5. After the photos are transferred to your hard drive, you can disconnect the camera.
Some Windows operating systems may produce a screen warning that you have
disconnected a USB device without stopping or ejecting the “disk” rst (your
photo les will not be harmed). (On Mac computers, drag the “disk” that appeared
on your desktop when the camera was connected into your Trash to “eject” it before
disconnecting.)
6. You’re now ready to open the photo les in any photo editing software. Just use
File>Open and go to the folder where you stored the photos earlier. It is also
possible to open and work with your photos directly from the ImageView while it
is still connected. If you choose to work this way, from a connected camera, be sure
that you save the photo (when you are done editing) to your hard drive, and not the
camera’s memory or card. If you are new to photo editing on a computer, consult
your software’s Help menu for tips on using its features. Along with adjusting the
brightness, contrast, sharpness and color of your photos, you can resize the photo
to t the paper if you are printing, or save a smaller, low or medium resolution
version for email or inserting into documents. When you are ready to save your
edited le, you may want to use“Save As”and give it a more descriptive name than
“PICT___”. Doing this also preserves the original le as a backup to reopen and re-
edit later. Make sure you have successfully transferred all the photos you wanted
to save before using“Delete All” mode to make room for new images.

12
Using the Binocular
The ImageView's binocular optics are designed to provide many years of pleasurable
viewing. This portion of the booklet will help you achieve optimum performance by
explaining how you can adjust the binocular to your eyes, and how to care for this
instrument. Read the instructions carefully before using your binocular.
Adjusting the Binocular IPD
The distance between the eyes, called “interpupillary distance,” varies from person to
person. To set the hinge for your personal IPD:
• Hold the binocular in the normal viewing
position, with a firm grip on each side.
• Move the barrels closer together or further
apart (Fig. 1) until you see a single circular field.
• Always re-set your binocular to this position
before using.
Focusing/Diopter Adjustment
As individual eyesight varies from one person to another, your binocular has an
adjustable diopter feature which allows you to fine-tune the binocular to your vision.
To set the diopter and focus the ImageView's binocular:
1. Adjust the hinge for your interpupillary distance as described in “Adjusting the
Binocular IPD”.
FIG. 1 INTERPUPILLARY DISTANCE

13
Binocular instructions
2. Set the “diopter adjustment” to zero (Fig. 2).
3. Keep both eyes open at all times.
4. Using a lens cover or your hand, cover the objective (front)
lens of the right side of the binocular.
5. Using the center focus wheel, focus on a distant object with
fine detail (e.g., brick wall, tree branches, etc.), until it appears
as sharp as possible through the left side of the binocular.
6. Uncover the objective lens on the right side, cover the left
objective lens, then view the same object.
7. Turn the “diopter setting” adjustment ring, until the object
is sharp for your right eye. Caution should be used as over turning or forcing the
diopter eyepiece may damage the binocular.
8. Your binocular should now be adjusted for your eyesight. Focus at any far or near
distances can now be attained simply by turning the center focus wheel. Make a
note of your diopter setting for reference.
Eyecups
The ImageView binocular is fitted with rubber roll-down eyecups designed for your
comfort and to exclude extraneous light. If you wear glasses, roll down the eyecups.
This will bring your eyes closer to the ocular (eyepiece) lenses, so you can more easily
view the entire image without any cutoff.
Using the Binocular
FIG. 2 DIOPTER ADJ.

14
Storage, General Care and Cleaning
Your Bushnell ImageView will provide years of trouble-free service if it receives the normal
care you would give any fine optical instrument. The ImageView is not waterproof, and
should not be exposed to any source of moisture. Water damage is not covered by the
warranty.
1. When storing your ImageView binocular, put the eyecups in their "up" position. This
avoids excessive stress and wear on the eyecups (if left in the down position).
2. Avoid banging and dropping.
3. Store in a cool, dry place.
4. WARNING: Looking directly at the sun with your binocular can cause permanent
eye damage.
5. Never expose your ImageView binocular to any type of excessive liquid or fluid, as it
is not water/fogproof.
6. Take the batteries out of your ImageView if you are not going to use it for a long
period of time. Make sure you have downloaded any photos/videos first.
Cleaning
1. Blow away any dust or debris on the lens (or use a soft lens brush.)
2. To remove dirt or finger prints, clean with a soft cotton cloth rubbing in a circular
motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface
and eventually cause permanent damage. A “microfiber” cleaning cloth (available at
most photo dealers) is ideal for the routine cleaning of your optics.

15
3. For a more thorough cleaning, photographic lens tissue and photographic-type
lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the
cleaning cloth – never
directly on the lens.
WARNING
Do NOT look directly at the sun through your binoculars.
Doing so may cause permanent eye damage.
NOTE: To reset the camera if you experience problems or if the display becomes
unresponsive, remove the batteries for at least one minute, then re-install them.
NOTE: Some ImageView model 111026 units (depending on date of manufacture
and/or supplier parts availability) may include a small amount of internal
memory capacity (8MB or less). This is intended only for testing purposes, as any
photos stored in this (volatile) internal memory will be lost when the camera is
powered off. If your unit has internal memory, we do not recommend using it for
that reason-always insert an SD card when using the camera, so your photos will
be stored in a memory device that is not battery dependent.

16
Your Bushnell®product is warranted to be free of defects in materials and workmanship for two years after the date of purchase.
In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return
the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or
maintenance provided by someone other than a Bushnell Authorized Service Department.
Any return made under this warranty must be accompanied by the items listed below:
1) A check/money order in the amount of $10.00 to cover the cost of postage and handling
2) Name and address for product return
3) An explanation of the defect
4) Proof of Date Purchased
5) Product should be well packed in a sturdy outside shipping carton, to prevent damage
in transit, with return postage prepaid to the address listed below:
IN U.S.A. Send To: IN CANADA Send To:
Bushnell Outdoor Products Bushnell Outdoor Products
Attn.: Repairs Attn.: Repairs
9200 Cody 25A East Pearce Street, Unit 1
Overland Park, Kansas 66214 Richmond Hill, Ontario L4B 2M9
For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information.
In Europe you may also contact Bushnell at: Bushnell Germany GmbH
European Service Centre
Mathias-Brüggen-Str. 80
D-50827 Köln
GERMANY
Tel: [phone]
Fax: [phone]
This warranty gives you specific legal rights.
You may have other rights which vary from country to country.
©2012 Bushnell Outdoor Products
TWO-YEAR LIMITED WARRANTY

17
FCC Note:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The shielded interface cable must be used with the equipment in order to comply with the limits for
a digital device pursuant to Subpart B of Part 15 of FCC Rules.
Specications and designs are subject to change without
any notice or obligation on the part of the manufacturer.
Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.

18
Merci d'avoir acheté les jumelles ImageView® de Bushnell ! Les jumelles
ImageView de Bushnell s'emparent de la technologie de la photographie
numérique pour l'intégrer à des jumelles compactes de grande qualité.
Grâce à ces jumelles, vous pourrez observer des événements sportifs,
la nature, des panoramas touristiques ou tout ce que vous observez
habituellement avec des jumelles et même capturer l'image à l'aide d'un
appareil photo numérique intégré. Vous pourrez alors télécharger ces
images sur votre ordinateur et les envoyer par e-mail à vos proches, les
imprimer ou les conserver dans un album photo pour une utilisation
ultérieure. Avant d'utiliser le produit, veuillez lire les instructions de
ce manuel et vous accorder un moment pour vous familiariser avec les
différents éléments et fonctionnalités du produit.
FRANÇAIS

19
Guide pour l’appareil photo et les diérentes parties des jumelles
Objectif
Bouton
Power/MODE
(Marche/MODE)
Mise au point des jumelles
Bouton SNAP
(Déclencheur)
Compartiment
des piles
Port
USB
Fente pour
carte SD

20
CAMERA PARTS
Installation et fonctionnement standard
1. L'appareil photo est alimenté par deux piles AAA alcalines, au lithium ou rechargeables (non
incluses). Insérez les piles dans le compartiment, en plaçant les ressorts en contact avec
la borne négative (extrémité plate) de chaque pile. Un indicateur de charge dans la partie
supérieure droite de l’écran indique le niveau des piles.
2. Placez une carte mémoire SD (« à l’envers », les contacts métalliques dirigés vers le haut) dans
l’emplacement prévu à cet eet si vous souhaitez avoir plus de capacité de stockage. Vous
pouvez utiliser des cartes mémoires SD (et non pas des cartes MMC) pouvant avoir jusqu’à
32 Go de capacité.
3. Appuyez sur le bouton MODE et maintenez-le enfoncé pendant deux secondes pour allumer
l'appareil photo. L’appareil photo s’éteindra automatiquement après environ trois minutes si
vous n’appuyez sur aucun bouton. Remarque : lorsque l'appareil photo est relié à un ordinateur à
l'aide du câble USB fourni, l'ordinateur alimentera l'appareil photo, préservant ainsi les piles.
4. Tenez fermement l’ImageView et appuyez sur le bouton SNAP pour prendre une photo (ou
commencer/arrêter la prise d’une vidéo lorsque l’appareil photo est en mode vidéo). La mise
au point de l’appareil photo est réglée pour prendre des photos nettes à partir d’environ 23
mètres jusqu'à l’inni.
Utilisation des modes de fonctionnement optionnels
Votre ImageView est conguré pour produire des résultats de grande qualité dès sa sortie de
l'emballage. Il n'est donc pas nécessaire d'utiliser les modes optionnels – il vous sut d'appuyer sur
