Bushnell Stableview 18-1035 User manual

Model: 18-1035
LIT. #: 98-0495/10-04

CONTENTS
ENGLISH .................................................................................... 1
FRANÇAIS .................................................................................. 11
ESPAÑOL ................................................................................... 24
DEUTSCH ................................................................................... 37
ITALIANO .................................................................................. 50
PORTUGUÊS .............................................................................. 63

QUICK REFERENCE GUIDE
1) Load two AA alkaline batteries into the compartment on the handstrap.
2) Press the Power button (a) to turn on. The electronic system will start up, and the binoculars will go
to Standby mode after about five seconds. (LED indicator stops blinking
3) Adjust the eyepiece spacing (b) to match the distance between your two eyes.
4) Use your left eye as you adjust the focus control knob (c). When the image becomes sharp, use your
right eye and turn the diopter adjustment ring (d) to focus for the right eye. Once you have performed
the diopter correction, use only the control knob (c) to check focus again.
5) Turn the stabilization lever (e) to the ACTIVE position to activate the stabilization feature.
6) Press the power button briefly to change to fine mode, which is more effective at countering hand
shake. Tap the power button again to return to normal mode.
7) When finished, turn the stabilization lever (e) to the HOLD position and press the Power button (a)
to turn off.

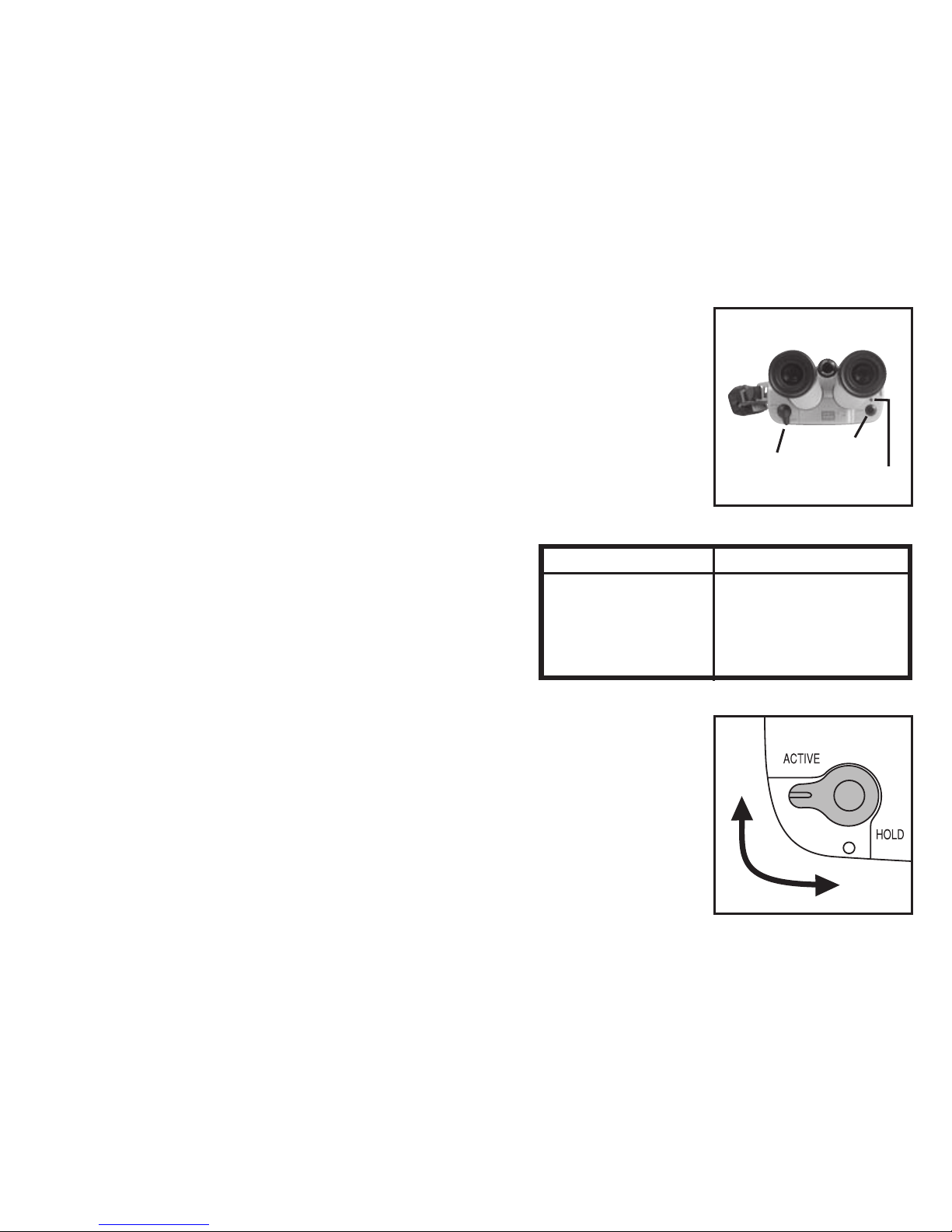

LED Status
Lit in orange Standby (stabilization off)
Lit in green Stabilization active (normal)
Flashing in orange/green Fine mode
Lit in red Batteries should be replaced
Flashing in red System problem
Off Power Off

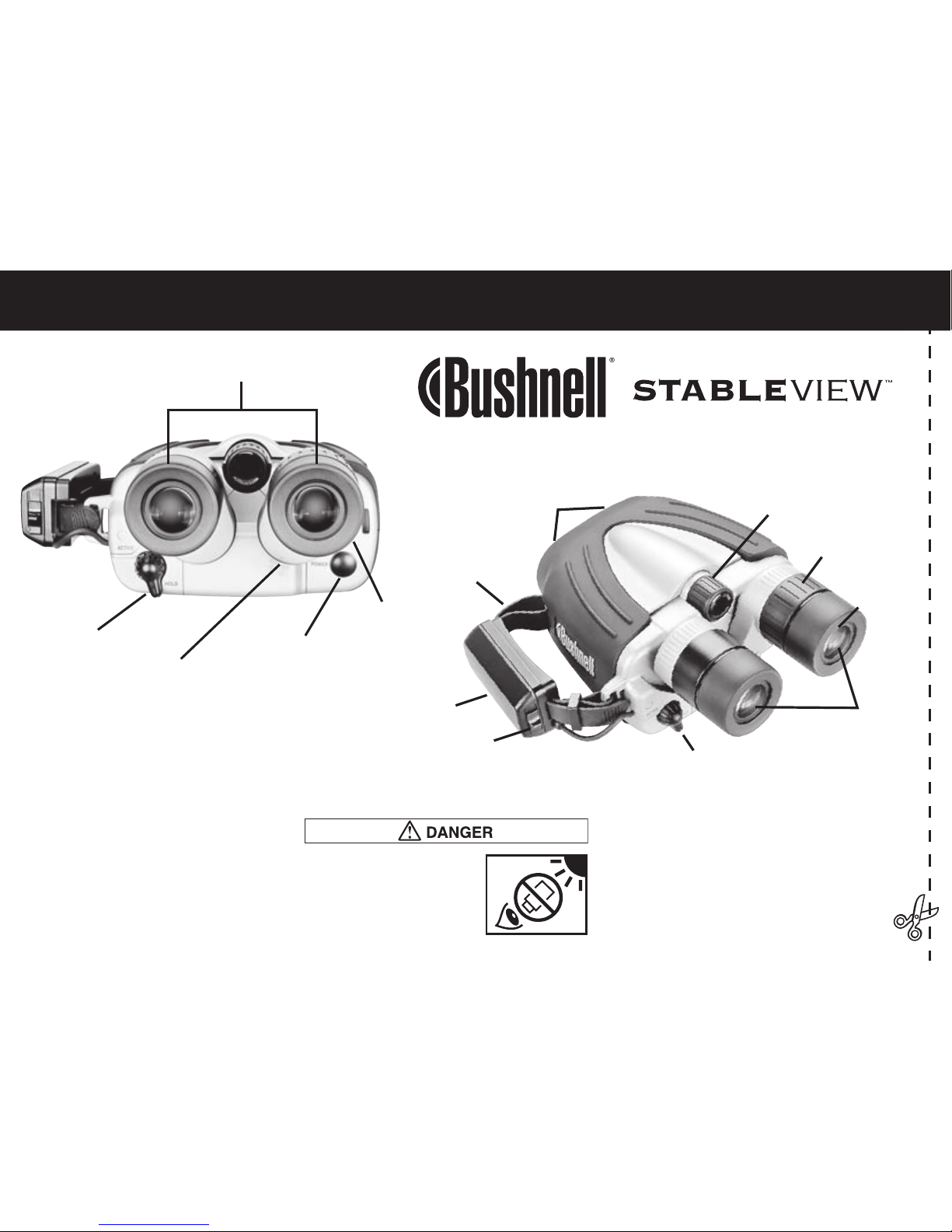

(b) Eyepieces adjust for
interpupillary distance
LED Indicator
(a) Power button/Mode
switch
Interpupillary scale
(e) Stabilization lever
Large light-gathering
35mm objective lenses
Handstrap
Battery
compartment
Battery compartment
release knob Stabilizer lever
(c) Focus control knob
(d) Diopter
adjustment ring
Eyepiece lenses
Eyecup
QUICK REFERENCE GUIDE

(d) Diopter
adjustment ring
Eyepiece lenses
Eyecup
1
CONTENTS
Bushnell StableView
Soft case
Cleaning cloth
Neckstrap
Eyepiece cap
Instruction manual (this handbook)
CONGRATULATIONS
Thank you for purchasing Bushnell StableView binoculars. Be sure to read this manual thoroughly for
proper use.
Bushnell StableView binoculars use advanced technology in optics, electronics, and ergonomics.
The stabilization feature built into these binoculars cancels out vibration from the outside and the
shake that occurs with hand-held use, offering stabilized viewing without a tripod, even at high
magnifications.
Your Bushnell StableView has an exclusive feature, providing two different stabilization modes in one
binocular for the first time. “Normal” mode is designed to counteract the long, slow motion encountered
in a boat, plane or car, and is also ideal for tracking moving subjects such as a bird in flight. “Fine” mode
compensates for short, rapid external vibration, designed to be very effective against the visible effect of
hand held shake (tremor) that many experience with high power binoculars. The modes are easily set,
and you can quickly switch between them.
The newly designed lenses are multi-coated, provide a wide field of view and reduced eye fatigue. The
prisms are phase-coated to offer sharp contrast and bright images.
Bushnell StableView binoculars are waterproof and airtight, allowing worry-free usage in a boat or rainy weather.

DIGITAL STABILIZING
HOW IT WORKS
• AZ (azimuth) and EL (elevation) piezo gyro
vibration sensors and direct-drive motors
work together to move a gimbaled assembly
with erecting prism to counteract vibration
and keep the image steady, which offers shake-
free viewing even from a moving vehicle.
• The position sensor activates the stabilization
feature as it detects vertical and horizontal
motion.
• The newly designed lenses are multi-coated
for bright images.
• The prisms have a special coating that gives
sharper images than ever before.
• The eyepieces incorporate advanced optical
technology that offers a wide field of view
and reduces eye fatigue. The eyecups can be
twisted up and down for use with glasses.
• Bushnell StableView binoculars are waterproof
and filled with dry nitrogen to prevent internal
fogging of the optical components.
Eyepiece Lenses
Gimbal Assembly
EL Direct Motor
AZ Direct Motor
Position Gyro Sensor
Objective Lens
Position
Sensor
Prism Assembly
Position Sensor
2

Eyepiece Lenses
Gimbal Assembly
EL Direct Motor
3
HOW TO ADJUST AND FOCUS
Eyepiece
Rotate the rubber eyecups up or down to adjust the height. If you wear
glasses or sunglasses when using the binoculars, set the eyepcups at their
lowest positions.
Interpupillary adjustment
Use both eyes to look into the eyepieces and adjust the interpupillary
distance to match the distance between your two eyes until you see just
one perfectly circular image.
Diopter adjustment
You should perform the diopter correction before first usage, as the vision
of your two eyes might be different.
Close your right eye and use only your left eye as you adjust the focus
control knob.
Once you get a sharp image, close your left eye and open your right eye.
Turn the right diopter adjustment ring to focus for the right eye. (Do
NOT use the focus control knob.)
Now look through the binoculars with both eyes and make sure the
diopter adjustment is perfect. Only the focus control knob should be
needed for later focusing.
Focus Control Knob
Diopter Adjustment
Ring

BATTERY INSTALLATION
1) Slide the battery compartment release
switch on the handstrap to the Open
position to release the battery holder.
2) Insert two new size AA alkaline batteries.
3) Attach the battery holder to the handstrap
and slide the release switch to the locked
position to secure the compartment.
WARNING
• NEVER slide the stabilization
lever to the ACTIVE position if
you do not have two batteries
installed. Damage could result.
• Use the same type of batteries. Do
NOT mix old and new batteries.
Doing so can cause leakage or
rupture.
• When changing the batteries
outdoors, be sure not to let
any water get into the battery
compartment.
• If you plan to leave the binoculars
stored for a prolonged period,
remove the batteries in order to
prevent natural discharge and/or
leakage.
When the batteries are removed,
keep the battery holder attached
to the handstrap to protect the
internal contact points.
• Keep the contact points away from
any metal. Damage could result.
4
SPECIFICATIONS
Magnification 10x
Objective Lens Diameter 35mm
Compensation Angle (stabilization correction) 3
Eye Relief 12mm
Field of View 260ft. at 1000yds/86.6m at 1000m
Minimum Focusing Distance 12ft.
Exit Pupil 3..5mm
Interpupillary Adjustment Distance 53 to 74 mm
Dimensions: LxWxH 7.25 x 6 x 3.5 inches (without strap)
Weight 43.9oz/1244g
Battery (2) Size AA alkaline batteries (not included)
Safe Ambient Temperature Range -10 C to 50 C (14 F to 122 F)
Specifications and designs are subject to change without notice.

LED
Indicator
Stabilization Lever
Power Button
LED Status
Lit in orange Standby (stabilization off)
Lit in green Stabilization active (normal)
Flashing in orange/green Fine mode
Lit in red Batteries should be replaced
Flashing in red System problem
Off Power Off
STABILIZATION OPERATION
When you press the Power button the first time, the LED lights in
orange, and the binoculars go to Standby mode. Your Bushnell StableView
binoculars go through an internal system check and take about five
seconds to stabilize their performance.
Then, turn the stabilization lever to the ACTIVE position. The LED turns
green, indicating that the stabilization feature is active.
Stabilization Mode Switching
There are 2 stabilization modes: the regular stabilization
mode (normal mode), and enhanced stabilization mode (fine
mode).During use in normal mode, you can switch to fine
mode. In fine mode, cancellation of rapid vibration is
improved over normal mode, achieving sharp, hand held
images. However, as panning (tracking of the target) motion
is not counteracted in fine mode, it is recommended that you first locate the
target in normal mode, then switch to fine mode for observation.
Mode Operation
Use the power button to switch the stabilization modes.
During normal mode operation (Power ON; stabilization lever at
ACTIVE position), hold down the power button briefly then release to
operate in fine mode.
5

During fine mode operation, the LED will alternately flash in orange and green.
Briefly pressing the power button again will switch operation back to normal mode, and the LED will
return to a steady green light.
Stabilization Lever
Setting the stabilization lever back to the HOLD position turns the stabilization feature off, and the
LED turns orange again, indicating Standby mode.
Set the stabilization lever as you wish.
Standby mode conserves battery power.
When finished, turn the stabilization lever to the HOLD position and press the Power button to turn off.
If you leave your Bushnell StableView binoculars in either Standby or Stabilization mode for a few
minutes without using them, the stabilization lever will return to the HOLD position, and the
binoculars will shut off automatically.
Stabilization lever position power button operation Equipment status LED status
HOLD Hold down ON (Standby) Lit/flashing orange
Press briefly, Switches between Alternately flashing
ACTIVE then release fine and normal green/orange (fine)
for several seconds in modes or steady green
standby mode (normal)
HOLD Hold down OFF OFF
6

7
HOW TO USE THE HANDSTRAP
The binoculars can be more securely held when
you slip your hand through the handstrap.
Slip your hand through the handstrap and adjust
the belt length.
To tighten the strap, pull the belt on the eyepiece
end.
To loosen the strap, lift the buckle on the backside
of the handstrap and pull on the belt.
WARNING
The handstrap also serves as the battery holder. Do NOT apply
strong force or remove the strap from the binoculars. Damage
could result.
INSTALLING THE NECKSTRAP
1) Make a large loop at each end of the neckstrap
2) Insert strap through neckstrap bracket
3) Lead the strap inside the loop and through the buckle and pull
tight. Do the same with the outer loop.
4) Do the same with the opening in the binoculars to attach the
strap on the other side.

KEEP YOUR LENSES CLEAN
Dust, salt, and oil left from fingerprint smudges should never be allowed to remain on the lenses because
they can harm the coating applied to lens surfaces. Use lens cleaning tissues and a good lens cleaning
fluid. Both are usually available wherever cameras, binoculars or eye glasses are sold. For best results,
when you need to clean one lens, clean all four. Start by blowing off any dust that may be on the lenses.
Then, follow these steps...
1) Take a single lens tissue and fold it twice as shown.
2) Roll the tissue into a cylinder and moisten only
one tip with lens cleaning fluid.
3) Starting in the center of the lens, gently rub in a
circular motion from the center to the outside.
Use each tissue only once. Sometimes, it may be
necessary to repeat the process. STEP 1 STEP 2 STEP 3
8

PRECAUTIONS AND WARNINGS
DANGER: Never look directly at the sun or any bright light through the
binocular. Serious harm, including loss of vision, can result.
WARNING
• The Bushnell StableView binocular is waterproof. But it can be damaged if water or other foreign
material (dust, sand, etc.) gain entry. Do not open the battery compartment in a marine, high
humidity or dusty environment, the interior of the binocular can be compromised. Make sure that
the battery holder stays in the proper position and the release switch is in the locked position.
• Do not change batteries in wet or dusty conditions.
• If you plan to leave the binocular stored for long periods of time keep it in a cool, dry location and
remove the batteries or damage could result from leakage.
• If you use the Bushnell StableView at sea, it is recommended that you flush it with fresh water
following exposure to salt spray/salt air.
• Do not use these binoculars while driving a vehicle or operating machinery. A variety of accidents are
possible.
9

WARRANTY / REPAIR
TWO-YEAR LIMITED WARRANTY
Your Bushnell® product is warranted to be free of defects in materials and workmanship for two years after the date of
purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that
you return the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling,
installation, or maintenance provided by someone other than a Bushnell Authorized Service Department.
Any return made under this warranty must be accompanied by the items listed below:
1) A check/money order in the amount of $10.00 to cover the cost of postage and handling
2) Name and address for product return
3) An explanation of the defect
4) Proof of Date Purchased
5) Product should be well packed in a sturdy outside shipping carton, to prevent
damage in transit, with return postage prepaid to the address listed below:
IN U.S.A. SEND TO: IN CANADA SEND TO:
Bushnell Performance Optics Bushnell Performance Optics
Attn.: Repairs Attn.: Repairs
8500 Marshall Drive 25A East Pearce Street, Unit 1
Lenexa, Kansas 66214 Richmond Hill, Ontario L4B 2M9
For products purchased outside the United States or Canada please contact your local dealer for applicable warranty
information. In Europe you may also contact Bushnell at: BUSHNELL Performance Optics Gmbh
European Service Centre
MORSESTRASSE 4
D- 50769 KÖLN
GERMANY
Tél: [phone]
Fax: [phone]
This warranty gives you specific legal rights.
You may have other rights which vary from country to country.
©2004 Bushnell Performance Optics
10

Modèle : 18-1035
PUBL. # 98-0420/05-04
Français
11

GUIDE DE RÉFÉRENCE RAPIDE
1) Mettez deux piles alcalines de type AA dans le compartiment de la dragonne.
2) Appuyez sur le bouton Power (alimentation) (a) pour mettre l’instrument sous tension. Le système
électronique doit démarrer et les jumelles doivent passer au mode d’attente au bout d’environ cinq
secondes. (L’indicateur DEL cesse de clignoter).
3) Réglez l’espace entre les oculaires (b) pour qu’il corresponde à la distance entre vos deux yeux.
4) Servez-vous de votre œil gauche pour régler la molette de mise au point (c). Lorsque l’image devient
nette, servez-vous de votre œil droit et tournez la bague de réglage dioptrique (d) pour la mise au
point de l’œil droit. Une fois que vous avez effectué la correction dioptrique, utilisez uniquement la
molette (c) pour vérifier la mise au point.
5) Tournez le levier de stabilisation (e) à la position ACTIVE pour activer la fonction de stabilisation.
6) Appuyez brièvement sur le bouton d’alimentation pour passer au mode fin qui est plus efficace pour
compenser le tremblement de la main. Tapez de nouveau légèrement le bouton d’alimentation pour
revenir au mode normal.
7) Une fois terminé, mettez le levier de stabilisation (e) à la position HOLD (MAINTIEN) et appuyez
sur le bouton d’alimentation (a) pour désactiver.
DEL État
Allumé orange Attente (stabilisation désactivée)
Allumé vert Stabilisation active (normal)
Clignotant orange/vert Mode fin
Allumé rouge Les piles doivent être remplacées
Clignotant rouge Problème de dispositif
Éteint Instrument hors tension 12

13
(b) Les oculaires se règlent pour la
distance interpupillaire
Indicateur DEL
(a) Bouton d’alimentation/
commutateur de mode
Échelle
interpupillaire
(e) Levier de
stabilisation
Grands objectifs de
35 mm qui captent la
lumière
Dragonne
Compartiment des piles
Bouton de dégagement
du compartiment des
piles
Levier de stabilisateur
(c) Molette de mise au
point
(d) Bague de
réglage
dioptrique
Lentilles d’oculaire
GUIDE DE RÉFÉRENCE RAPIDE
Ne regardez jamais directement
le soleil ou une lumière brillante
dans les jumelles. Des lésions
graves, y compris la perte de la
vue pourraient en résulter.
