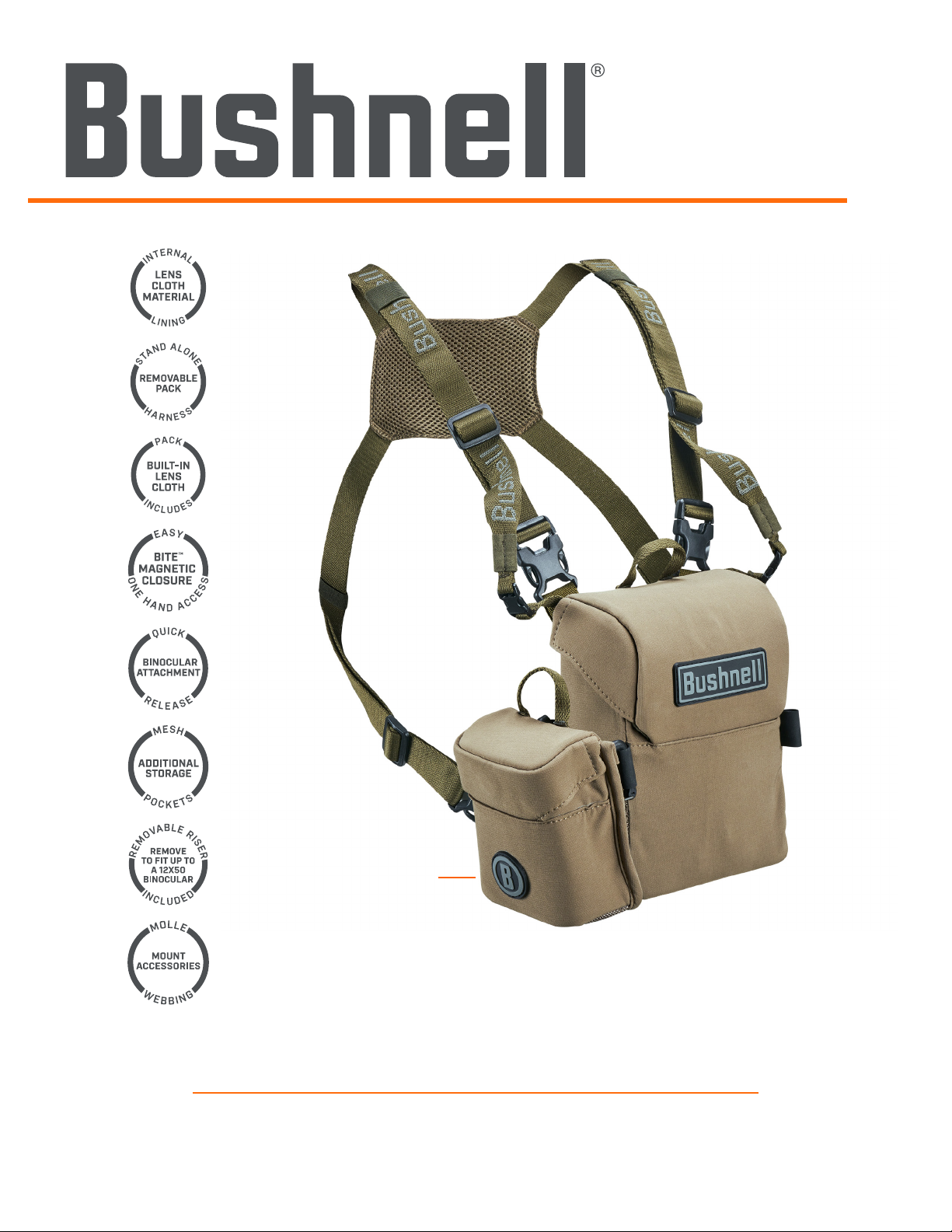

Bushnell VAULT BABINPCT User manual

Model #: BABINPCT, BABLRFPCT 6-22
LRF Pouch
Sold Separately
VA U LT ™
MODULAR OPTICS PROTECTION SYSTEM
BINOCULAR PACK AND LRF POUCH

2
I. Binocular Riser Insert
For binoculars 6in tall
or shorter
J. MOLLE (PALS) Webbing
For additional attachments
L. Lens Cleaning Cloth
Tethered to internal pocket M. Slip Pocket
Convenient pocket for at
objects such as phones, maps
& documents.
PARTS GUIDE
K. Mesh Pouches
Placed left, right and inside for
wind checkers, mouth calls, etc.
A.
B.
C.
D.
E.
F.
G.
H.
Bino Pack A
Harness Straps B
Harness Buckles C
Binocular Attachment Straps D
Quick Release Buckles E
Tri-Slides F
Strap Keeper G
Rubber Attachment Loops H
Binocular Riser Insert I
MOLLE (PALS) Webbing J
Mesh Pouches K
Tethered Lens Cleaning Cloth L
Slip Pocket M
LRF Pouch (sold separately) N
N.

3
The Vault™ Binocular Pack is the first truly modular binocular harness pack that makes it easy to protect and access
your glass in the field. The Vault’s magnetic closure securely keeps your binos in the pack when closed, allowing you to
confidently move around in spot and stock situations and keep the binos in the pack even when upside down. In addition,
the Vault has mesh pockets with an elastic band on both sides for a wind checker and mouth calls, as well as a padded
slip pocket on the back for your mobile phone or documents. Along with the addition of the Vault LRF pouch that uses the
same dynamic features, having your range finder and binoculars readily accessible and protected close at hand.
Some of the thoughtful design features include:
• QUIET, MAGNETIC CLOSURE WITH EASY, ONE-HAND ACCESS
Magnetic closure makes it easy to access and protect your glass quickly without making noise. The closure is designed
to open with one hand towards the front so that you don’t have to fight the flap.
• DURABLE, SOFT-TOUCH FABRIC REDUCES NOISE IN THE FIELD
Soft-touch material prevents sounds from movement in the field, ensuring you don’t blow your position. The material
is water resistant. The inside of the pack is lined with lens cleaning cloth material that will protect your glass.
• SLEEK, COMPACT DESIGN WITH MODULAR CAPABILITIES
The compact design makes it easy to carry what you need without getting in the way of your movement. MOLLE
webbing on the bottom of the pack allows a pistol or bear spray holster to be mounted.
• ULTRALIGHT, COMFORTABLE, AND MODULAR HARNESS
The fully-featured harness is an easy-to-use comfortable design. Offset buckles allow the harness to clip into itself,
creating a stand-alone harness that can be used if the pack is not needed.
• FITS UP TO 12x50 ROOF BINOCULARS
Tested to fit Bushnell™roof optics up to 12x50 configuration. For smaller binoculars, the included riser allows them to
sit at the top of the pack making it easier to pull out.
FITTING YOUR VAULT BINO PACK:
1. Attach your binocular by threading the small ends of the Binocular Attachment
Straps into your binocular’s strap slugs, see image below. Put the attached
binoculars in the Vault and proceed to custom fit the Vault to your preference.
2. To successfully fit your Vault, we recommend buckling the two Shoulder
Straps into the top harness buckles and click one of the Waist Straps into the
corresponding buckle at the bottom of the pack. Slip the harness over your head
and make adjustments to the shoulder straps by sliding the webbing through the
plastic slides for height placement and comfort of the pack on your chest.
3. After adjusting the shoulder straps, attach the second waist strap by buckling
it into the bottom of the bino pack. Now, make adjustments to the waist straps by
threading the webbing through the plastic slides on the waist straps for comfort
and security.
4. Adjust the Binocular Attachment Straps by threading them through the shoulder
strap plastic slides. Adjust until your glass is at a comfortable length when hanging
down and holding up to your eyes.
You are the proud owner of the
Bushnell Vault™ Modular Optics Protection System Binocular Pack.
Thread the small strap
ends of the Binocular
Attachment Straps to
your binocular.
Shoulder Straps
Waist Straps
Binocular Attachment Straps
Thread the large strap ends of the
Binocular Attachment Straps to your
Shoulder Straps.

4
Front Open Position
Side Open Position
Three Locking U-Clips
are provided with the
Vault LRF Pouch.
U-Clip Placement for Front Open Position
U-Clip Placement for Side Open Position
USING THE HARNESS WITHOUT THE BINO PACK:
The Vault harness can be worn without using the bino pack. Simply unbuckle the
harness buckles from the bino pack and click each side together, as shown here.
Adjust the length of the straps to your preference. Tug on the Binocular Attachment
Straps to make sure the binocular is secure.
THE VAULT™LRF POUCH
Attaching and using the Vault LRF Pouch:
The Vault Modular Optics Protection System has many options to
accommodate any outdoor enthusiast. Using the Vault LRF (Laser
Rangefinder) Pouch with your Vault Bino Pack adds more versatility
to your adventure. The Vault LRF pouch has the same fabric and quiet
magnetic closure as the bino pack. It attaches to the bino pack using three
simple, secure Locking U-Clips. The pouch can be mounted on either side
of the pack in two positions. An included coiled tether prevents drops.
1.Attach your Laser Rangefinder to the Vault LRF Pouch using the provided coiled
tether. Thread the loop through the lanyard hole on your LRF.
2.Clip the end of the cord to either of the two black rubber tabs with holes on the
back of the pouch.
3.To attach the Vault LRF Pouch to the bino pack in any of the four possible positions,
use the three Locking U-Clips to connect the rubber loops or straps of the Bino Pack
and the LRF Pouch. Ensure the metal tab is closed on the Locking U-Clip by securing it
over the hook.

5
SKU
Outside Dimensions
Inside Dimensions
Weight (oz /g)
BABINPCT 7.75in x 6in x 3.5in 7in x 5.5in x 2.75in
6.14in x 5.5in x 2.75 with riser
13.7/389
14.5/412 with riser
BABLRFPCT 5.25in x 4in x 2.36in 4.5in x 3.23in x 2in 3.4/ 96.2
Technical Specications
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et eets nocifs sur la reproduction –www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y Daño Reproductivo – www.P65Warnings.ca.gov
ACHTUNG: Krebs und Reproduktive Schäden – www.P65Warnings.ca.gov
AVVERTENZA: cancro e danni agli organi riproduttivi – www.P65Warnings.ca.gov
AVISO: Cancro e Danos ao Aparelho Reprodutor – www.P65Warnings.ca.gov
WARNING: Bite feature included with device contains a Neodymium magnet. Magnets could aect the
functioning of pacemakers and implanted heart debrillators. If you use these devices, keep sucient distance
from magnet.Warn others who wear these devices from getting too close to magnets.
• Magnet may lose part of its adhesive force permanently if exposed to temperatures above o F (o C).
• Magnets produce far-reaching, strong magnetic eld. They could damage TVs and laptops, computer hard
drives, credit and ATM cards, data storage media, mechanical watches, hearing aids and speakers. Keep unit
away from devices and objects that could be damaged by strong magnetic elds.
SCAN CODE TO LEARN
MORE ABOUT THE VAULT
BINOCULAR PACK

6
This warranty gives you specic legal rights, and you may also have other rights, which
vary from state to state.
We warrant that during the warranty period, with proper use and care, the product will be
free from defects in materials and workmanship and will meet represented performance
standards as dened by the warrantor in its sole discretion.
The remedies described herein are your sole and exclusive remedies and our entire
liability for any breach of this warranty. Our liability shall under no circumstances
exceed the actual amount paid by you for the defective product, nor shall we under any
circumstances be liable for any consequential, incidental, special, or punitive damages or
losses, whether direct or indirect.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
Our responsibility for defective goods is limited to repair or replacement as described
below in this warranty statement.
BUSHNELL LIFETIME IRONCLAD WARRANTY
BUSHNELL PERFORMANCE OPTICS (the “Warrantor”), whose address is 9200 Cody,
Overland Park, Kansas 66214, warrants that the goods described in this warranty, with
proper use and care, are free from defects in materials and workmanship and meet all
represented performance standards as dened by the Warrantor in its sole discretion.
WHO MAY USE THIS WARRANTY?
This warranty extends to the original purchaser of the product warranted under this
warranty and to each transferee of the product during the term of the warranty (each, a
“Consumer”). This Warranty is valid for residents of the United States and Canada only.
In other countries, please get in touch with your location’s dealer for applicable warranty
information or go to Bushnell. eu. No agent, representative, dealer, or unauthorized
employee of Bushnell has the authority to increase or alter the obligation of this warranty.
WHAT IS COVERED IN THIS WARRANTY?
This warranty covers all products within the following product families: Binoculars,
Riescopes, Laser Rangenders, Spotting Scopes, Electro-Optics, and Trail Cameras (the
“Product”), that were manufactured on or after June 2020, and each of their component
parts, except electronic components (covered for ve years under this warranty) and
batteries, if the failing Product or component part has a defect in materials or workmanship
and the failure effects the mechanical or optical operation or performance of the Product.
HOW LONG DOES THIS WARRANTY LAST?
The term of this Warranty begins on the date the product is manufactured, as indicated by
the date or other serialization codes stamped directly on the product, and continues for
the Product’s life (the Warranty Period). For this warranty, product lifetimes are dened as
follows:
• Riescope Product Lifetime = 30 years
• Binoculars and Spotters Product Lifetime = 20 years
• Laser Rangenders = 5 years
• Electro-Optics* & Electronic Components = 5 years
• Trail Cameras and Accessories= 2 years
WHAT WILL THE WARRANTOR DO UNDER THIS WARRANTY?
In the event of a defect, malfunction, or other failures of the Product not caused by any
misuse or damage to the Product while in the Consumer’s possession, the Warrantor will
remedy the failure or defect, without charge to the Consumer, within a reasonable amount
of time. The Warrantor can choose to repair or replace the product.
Suppose the Product or one of its component parts still contains a defect or malfunction
after a reasonable number of attempts by the Warrantor to remedy the defect or
malfunction. In that case, the Consumer is entitled to either a refund of the purchase price
or a replacement of the Product or its component part without charge.
WHAT ARE THE WARRANTY’S EXCLUSIONS AND LIMITATIONS?
This warranty does not cover/include the following:
• Any damage to the case, the housing, the mechanics, or the optics is cosmetic only
and that does not affect the product’s operation or performance (as determined by
Bushnell).
• Damage caused by failing to get reasonable and necessary maintenance on the
product or failing to follow the product’s operating instructions.
• Loss or theft
• Any damage resulting from unauthorized repair, modication, or disassembly by
someone other than a Bushnell Authorized Service Department.
• Any intentional damage, misuse, or abuse
• Ordinary wear and tear
• Any product where the product’s date stamp or other serialization codes have been
removed or otherwise made unreadable.
The remedies described herein are your sole and exclusive remedies and our entire
liability for any breach of this warranty. Our liability shall under no circumstances
exceed the actual amount paid by you for the defective product, nor shall we under any
circumstances be liable for any consequential, incidental, special, or punitive damages or
losses, whether direct or indirect.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
HOW CAN THE CONSUMER REQUEST SERVICE UNDER THIS WARRANTY?
No receipt, warranty card, or product registration is required to assert a Warranty claim.
All claims must be submitted within the Warranty Period. A downloadable repair form
and other information to ensure fast, accurate processing can be found at Bushnell.com/
warranty. The consumer must provide their contact information (name, shipping address,
and daytime phone #), and a description of the defect or damage or statement of other
reason for return and ship to Bushnell at one of the following addresses:
To view the full warranty and nd details on how to request service under warranty, go
to our website at www.bushnell.com/warranty. Alternatively, you can request a copy
of the warranty by calling us at 1-800-423-3537 or writing to us at one of the following
addresses:
IN U.S.A. Send To: IN CANADA Send To:
Bushnell Holdings, Inc. Bushnell Holdings, Inc.
Attn.: Repairs Attn.: Repairs
9200 Cody 140 Great Gulf Drive, Unit B
Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1
1. Product should be well packed in a sturdy package or shipping container to prevent
damage in transit.
2. You, the Consumer, are responsible for shipping the product to Bushnell, but we will pay
to return ship the repaired or replaced product back to you anywhere in the continental
United States.
For more information on this warranty, call toll-free in the US and Canada:
1-800-423-3537. You may have other rights which vary from country to country.
©2022 Bushnell Outdoor Products
LIFETIME
IRONCLAD
WARRANTY

7
©2022 Bushnell Outdoor Products
Bushnell,™, ®, denote trademarks of Bushnell Outdoor Products • Made in China
Bushnell,™, ®, représente une marque de fabrique de Bushnell Outdoor Products • Fabriqué en Chine
Bushnell,™, ®, denota una marca registrada a Bushnell Outdoor Products • Fabricado en China
Bushnell,™, ®, ist ein Warenzeichen der Bushnell Outdoor Products • Hergestellt in China
Bushnell,™, ®, indica un marchio della Bushnell Outdoor Products • Fabbricato in Cina
9200 Cody, Overland Park, KS 66214
800-423-3537
www.bushnell.com
