SK ClickClick User manual
Quick Release System
SK ClickClick
USER MANUAL
Version: CC31 (updated on 12.2021)
!
#1 Design
The ‘SK ClickClick’ Quick Release System was designed for riders who are looking for a
compact, lightweight, functional, high-end and safe solution for the connection between their
kite and harness. The major benefits of this product compared to other release systems are
three-fold; lightweight, small in size and a low friction integrated ball-bearing swivel. These
benefits will bring the kite bar closer to the body, allow your kite equipment to be lighter and
allow the untwisting of your front lines to be easier than ever before. This device has not been
designed for riders who practice unhooked (disconnecting the release system from the harness)
manoeuvres or any kind of soaring/flying application."
This Quick Release System was designed to be used exclusively in combination with an SK
control bar and a rig manufactured by SK Shapes. The SK ClickClick has been designed for
experienced riders and professional athletes.
#2 Replacing the Depower & Safety Line
When the depower line or the safety line need to be replaced, make sure to use parts exclusively
provided by SK Shapes. Parts from other manufacturers may impede the proper functioning of
the system.#
Replacing or changing the depower line is relatively easy. Follow the instructions below:
Loosen the two screws
on the bottom plate
spinner with a 2mm hex
key.
Make sure that all parts are
present: two screws, bottom
plate spinner and the
dogbone.
Guide the depower line
through the entire release
system and put the dogbone
into the eyesplice loop of the
depower line.
Insert the doggone into the
bottom plate spinner and
place the two screws in the
holes.
Place the assembled bottom
plate spinner into the cavity
and tighten the screws
(torque: 0.5Nm - finger tight).
!

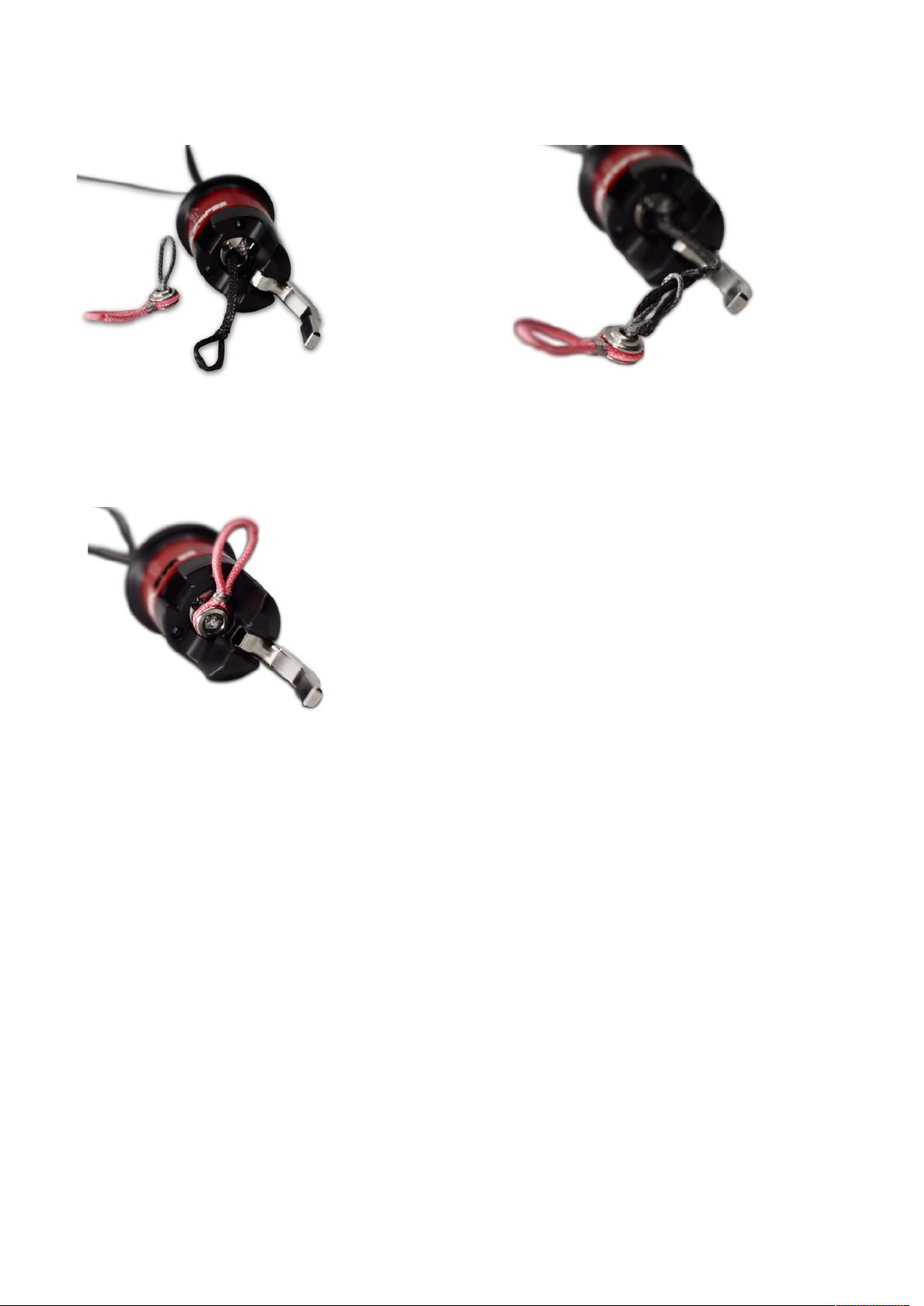

The safety line must always be connected to the safety spinner as illustrated:
Guide the safety line through the
entire release system.
Attach the safety line swivel to the safety
line with a larks-head knot.
Pull the safety line up to ensure
that the swivel sits in place
correctly. This is the default setup
while using this product.
!
#4 Harness Connection
The harness connection point that connects the SK ClickClick must be a 5x21,5mm forged
stainless steel ring (grade 316L). This high load (breaking load: 2’000kg) ring can be sourced
from SK Shapes."
Any sort of other connectors on harness side (hooks, ropes, soft loops, d-rings etc.) are
inappropriate and will void any warranty.
This is the connection setup we
recommend for users who prefer a
fixed attachment point
Users who prefer a sliding
connection point need to attach the
release system like this.
On a classic hook, the user must
connect the metal ring with a
Dyneema® loop.
After the ring is knotted to the harness the
release system can be connected to this
ring.
#5 Care & Maintenance
As with every high-end product, this release system needs regular care and maintenance.#
Before and after every single use of this product the user must ensure that this safety device is
free of sand, dust, salt and any other dirt that may affect its functionality."
No lubricant is needed.#
All screws must be tightened with the recommended torque and the screws which sit in a metal
thread must be tightened with a suitable thread locker (e.g. LOCTITE ® 243).#
When the release system is not in use it should be stored dry at room temperature.
#6 Safety Notes
The user carries the sole responsibility for themselves and third parties when using this product.
The product may only be used with original spare parts, and may not be modified."
During the whole life span of this safety system the user must follow the care and maintenance
instructions diligently to maintain the functionality and reliability of this product."
If any part of this quick release system is not in its original shape or the surface texture has
changed, the user must replace it immediately. Every single part of this product can be ordered
separately."
"
When using a safety line make sure the uniquely designed safety line swivel by SK Shapes is
attached to the safety line to ensure complete safety."
"
The user weight must be between 35 and 120 kilograms including the riding equipment (wetsuit
or snow clothes, harness, vest, helmet, gloves, boots for snow-kiting, booties for kitesurfing).#
○The safest way to use this equipment is on water."
○Always be extremely careful when using this equipment."
○You are responsible for yourself and others when using this product."
○Always release the quick release safety system in case of emergency. "
○Always use the appropriate kite size for your ability and wind conditions."
○Do not over estimate your abilities."
○Be aware that strong gusts can be life threatening."
○Never kite in stormy weather and strong gusts."
○Never kite when there are obstacles in the downwind direction."
○Never kite in offor on shore wind conditions.
#7 Release Of Liability
#8 Assumption Of Risk
By assembling or using this SK Shapes product, you agree that you have read and understood
the latest version of the SK ClickClick manual before using this product. You also agree that you
will ensure any other user of this product reads and understands this manual before allowing
this person to use the product.
Using this product involves certain inherent risks, dangers and hazards, and can cause severe
injuries, damage, or death to both the user and to any third party non-user. The user of this
product assumes and accepts any and all risks related to the usage of this product. The risk of
using this product can be greatly reduced by acquiring training lessons in an accredited
kiteboarding school, following the guiding principles of this manual and by using common
sense.
#9 Release And Waiver of Claims
In consideration of the re-sale of the SK Shapes product, the user agrees to the fullest extent
permitted by law, as follows; #
To waive any and all claims that you have or may in the future have against SK Shapes GmbH
and all related parties resulting from use of this SK Shapes product and any of its components. #
To release SK Shapes GmbH and all related parties from any and all liability for any loss,
damage, injury or expense that you or any users of your SK Shapes product may suffer, or that
your next of kin may suffer, as a result of the use of this SK Shapes product, due to any cause
whatsoever, including negligence or breach of contract on the part of SK Shapes GmbH and all
related parties in the design or manufacture of the SK Shapes product and any of its
components. #
In the event of your death or incapacity, all provisions contained herein shall be effective and
binding upon your heirs, next of kin, executors, administrators, assigns, and representatives. SK
Shapes GmbH related parties have not made and expressly deny any oral or written
representations other than what is set forth here in the SK Shapes Product users manual.
!
#10 Warranty
SK Shapes warrants this product to be free from major defects in material or workmanship to
the original purchaser, for a period of twelve months from the date of purchase."
"
This warranty is valid only if the product is used for recreational use and excludes products used
in teaching or rental operations. #
SK Shapes will make the final warranty decisions, after careful inspection of photos of the
damaged equipment that must display the serial number of the quick release system. This
product can be returned to SK Shapes if SK Shapes gives express authorisation for you to do
so. If SK Shapes gives the authorisation to return the product, the customer is responsible to
prepay all the shipping costs and insure the package. Shipping charges are not refundable. SK
Shapes is responsible for return shipping and insurance costs to the customer. All coverage
under this warranty is void if any modification or change has been made to this product.
Repaired or replaced products are covered only for the remainder of the original warranty. All
warranty claims must be accompanied by the original purchase receipt, which has to clearly
display name and the date of purchase. "
"
Any manufacturer’s defect as determined by SK Shapes is covered. #
This warranty is subject to the following limitations."
○Any problems resulting from misuse, abuse, impact on any surface including water. "
○Any problems resulting from excessive sun, sand and salt exposure."
○Damage due to improper storage and handling of this product. "
○Damage due to screws not tightened according to the recommended torque. "
○Damage caused by any modifications, or damage to the marking of the serial number. "
○Damage from rigging with any other bar components other than SK Shapes. "
○Damage caused by pilot error. "
○Normal wear and tear. "
○Damage caused by anything other than defects in the material or workmanship. #
